EN 60204-1:2018

Safety of machinery - Electrical equipment of machines - Part 1: General requirements

IEC 60204-1:2016 is available as IEC 60204-1:2016 RLV which contains the International Standard and its Red line version, showing all changes of the technical content compared to the previous edition. IEC 60204-1:2016 applies to electrical, electronic and programmable electronic equipment and systems to machines not portable by hand while working, including a group of machines working together in a co-ordinated manner. The equipment covered by this part of IEC 60204 commences at the point of connection of the supply to the electrical equipment of the machine. This sixth edition cancels and replaces the fifth edition published in 2005. It constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition: - added requirements to address applications involving power drive systems (PDS); - revised electromagnetic compatibility (EMC) requirements; - clarified overcurrent protection requirements; - requirements for determination of the short circuit current rating of the electrical equipment; - revised protective bonding requirements and terminology; - reorganization and revision to Clause 9, including requirements pertaining to safe torque off of PDS, emergency stop, and control circuit protection; - revised symbols for actuators of control devices; - revised technical documentation requirements; - general updating to current special national conditions, normative standards, and bibliographical references.

Sicherheit von Maschinen - Elektrische Ausrüstung von Maschinen - Teil 1: Allgemeine Anforderungen

Sécurité des machines - Équipement électrique des machines - Partie 1: Exigences générales

L'IEC 60204-1:2016 s'applique aux équipements et systèmes électriques, électroniques et électroniques programmables des machines non portables à la main en fonctionnement y compris un groupe de machines fonctionnant ensemble d'une manière coordonnée. L'équipement couvert par la présente partie de l'IEC 60204 commence au point de connexion de l'alimentation à l'équipement électrique de la machine. Cette sixième édition annule et remplace la cinquième édition parue en 2005. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - exigences supplémentaires pour traiter des applications impliquant des systèmes d'entraînements électriques de puissance (PDS); - exigences révisées concernant la compatibilité électromagnétique (CEM); - clarification des exigences de protection contre les surintensités; - exigences pour la détermination des caractéristiques du courant de court-circuit de l'équipement électrique; - révision des exigences de liaisons de protection et la terminologie; - réorganisation et révision à l'Article 9, notamment les exigences relatives à la suppression sûre du couple du PDS, à l'arrêt d'urgence, et à la protection du circuit de commande; - révision des symboles pour les organes de commande des appareils de commande; - révision des exigences sur la documentation technique; - mise à jour générale des conditions nationales particulières, des normes et des références bibliographiques.

Varnost strojev - Električna oprema strojev - 1. del: Splošne zahteve (IEC 60204-1:2016, spremenjen)

Ta del standarda IEC 60204 se uporablja za električno, elektronsko ter programirljivo elektronsko opremo in sisteme za stroje, ki niso ročno prenosljivi med delom, vključno s skupino strojev, ki delujejo skupaj in usklajeno.
OPOMBA 1: Ta del standarda IEC 60204 je standard uporabe in ni namenjen omejevanju ali onemogočanju tehnološkega napredka.
OPOMBA 2: V tem delu standarda IEC 60204 izraz »električni« zajema električne, elektronske in programirljive elektronske zadeve (tj. »električna oprema« pomeni električno, elektronsko in programirljivo elektronsko opremo).
OPOMBA 3: V okviru tega dela standarda IEC 60204 izraz »oseba« zajema vse posameznike in tiste osebe, ki so dodeljene za uporabo ter vzdrževanje te opreme in ki jim je to naročil uporabnik ali njegov zastopnik.
Oprema, ki je zajeta v tem delu standarda IEC 60204, se začne na točki povezave z napajanjem električne opreme stroja (glej točko 5.1).
OPOMBA 4: Zahteve za električne inštalacije so podane v skupini standardov IEC 60364. Ta del standarda IEC 60204 se uporablja za električno opremo ali dele električne opreme, ki delujejo pri nazivni napajalni napetosti največ 1000 V za izmenični tok (AC) in največ 1500 V za enosmerni tok (DC), pri čemer nazivna napajalna frekvenca ne presega 200 Hz.
OPOMBA 5: Informacije o električni opremi ali delih električne opreme, ki delujejo pri višji nazivni napajalni napetosti, je mogoče najti v standardu IEC 60204-11.
Ta del standarda IEC 60204 ne zajema vseh zahtev (na primer varovanja, spajanja ali nadzora), ki so potrebne ali zahtevane zaradi drugih standardov ali predpisov za zaščito oseb pred nevarnostmi, ki niso pogojene z virom električne energije. Vsaka vrsta stroja vključuje edinstvene zahteve, ki jih je treba izpolniti za zagotovitev ustrezne varnosti. Ta del standarda IEC 60204 vključuje zlasti (vendar ni omejen na) električno opremo strojev, kot je opredeljeno v točki 3.1.40.
OPOMBA 6: Dodatek C navaja primere strojev, katerih električno opremo je mogoče zajeti s tem delom standarda IEC 60204.
Ta del standarda IEC 60204 ne določa dodatnih in posebnih zahtev, ki lahko veljajo za električno opremo strojev, ki na primer:
– so namenjeni uporabi na prostem (tj. zunaj zgradb ali drugih zaščitnih struktur);
– uporabljajo, obdelujejo ali proizvajajo potencialno eksplozivni material (na primer barvo ali žagovino);
– so namenjeni uporabi v potencialno eksplozivnih in/ali vnetljivih atmosferah;
– predstavljajo posebna tveganja pri proizvodnji ali uporabi nekaterih materialov;
– so namenjeni uporabi v rudnikih;
– so šivalni stroji, enote in sistemi (ki so zajeti v standardu IEC 60204-31);
– so dvižni stroji (ki so zajeti v standardu IEC 60204-32);
– so polprevodniška proizvodna oprema (ki je zajeta v standardu IEC 60204-33).
Tokokrogi, pri katerih se električna energija neposredno uporablja kot delovno orodje, so izključeni iz tega dela standarda IEC 60204.

General Information

• Status: Published
• Publication Date: 13-Sep-2018
• Withdrawal Date: 13-Sep-2021
• ICS: 13.110 - Safety of machinery
• ICS: 29.020 - Electrical engineering in general
• Technical Committee: CLC/TC 44X - Safety of machinery: electrotchnical aspects
• Drafting Committee: IEC/TC 44 - IEC_TC_44
• Current Stage: 6060 - Document made available - Publishing
• Start Date: 14-Sep-2018
• Completion Date: 14-Sep-2018
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: SIST EN 60204-1:2018 - Safety of machinery - Electrical equipment of machines - Part 1: General requirements (IEC 60204-1:2016 , modified)

Relations

• Replaces: EN 60204-1:2006/A1:2009 - Safety of machinery - Electrical equipment of machines - Part 1: General requirements
• Effective Date: 24-Jan-2023
• Replaces: EN 60204-1:2006 - Safety of machinery - Electrical equipment of machines - Part 1: General requirements
• Effective Date: 12-Jun-2014
• Amended By: EN 60204-1:2018/prA1:2020 - Safety of machinery - Electrical equipment of machines - Part 1: General requirements
• Effective Date: 17-Mar-2020

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2018
Nadomešča:
SIST EN 60204-1:2006
SIST EN 60204-1:2006/A1:2009
Varnost strojev - Električna oprema strojev - 1. del: Splošne zahteve (IEC 60204-
1:2016, spremenjen)
Safety of machinery - Electrical equipment of machines - Part 1: General requirements
(IEC 60204-1:2016 , modified)
Sicherheit von Maschinen - Elektrische Ausrüstung von Maschinen - Teil 1: Allgemeine
Anforderungen (IEC 60204-1:2016 , modifiziert)
Sécurité des machines - Équipement électrique des machines - Partie 1: Exigences
générales (IEC 60204-1:2016 , modifiée)
Ta slovenski standard je istoveten z: EN 60204-1:2018
ICS:
13.110 Varnost strojev Safety of machinery
29.020 Elektrotehnika na splošno Electrical engineering in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60204-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2018
ICS 13.110; 29.020 Supersedes EN 60204-1:2006
English Version
Safety of machinery - Electrical equipment of machines -
Part 1: General requirements
(IEC 60204-1:2016 , modified)
Sécurité des machines - Équipement électrique des Sicherheit von Maschinen - Elektrische Ausrüstung von
machines - Partie 1: Exigences générales Maschinen - Teil 1: Allgemeine Anforderungen
(IEC 60204-1:2016 , modifiée) (IEC 60204-1:2016 , modifiziert)
This European Standard was approved by CENELEC on 2018-03-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60204-1:2018 E

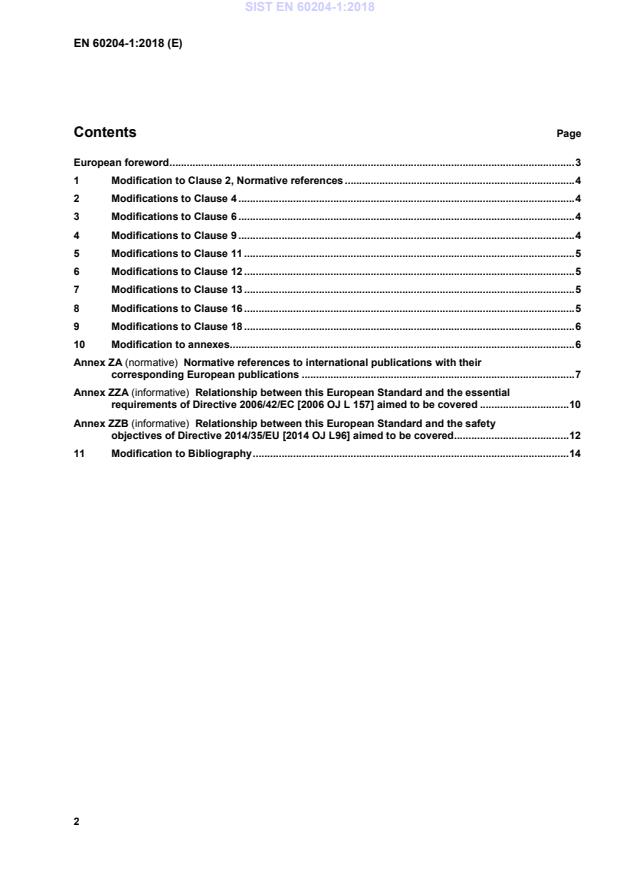

Contents Page
European foreword . 3
1 Modification to Clause 2, Normative references . 4
2 Modifications to Clause 4 . 4
3 Modifications to Clause 6 . 4
4 Modifications to Clause 9 . 4
5 Modifications to Clause 11 . 5
6 Modifications to Clause 12 . 5
7 Modifications to Clause 13 . 5
8 Modifications to Clause 16 . 5
9 Modifications to Clause 18 . 6
10 Modification to annexes. 6
Annex ZA (normative) Normative references to international publications with their
corresponding European publications . 7
Annex ZZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC [2006 OJ L 157] aimed to be covered . 10
Annex ZZB (informative) Relationship between this European Standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be covered . 12
11 Modification to Bibliography . 14
European foreword
This document (EN 60204-1:2018) consists of the text of IEC 60204-1:2016, prepared by IEC/TC 44
"Safety of machinery - Electrotechnical aspects", together with the common modifications prepared by
CLC/TC 44X "Safety of machinery: electrotechnical aspects".
The following dates are fixed:
• latest date by which this document has to be (dop) 2019-03-14
implemented at national level by publication
of an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2021-09-14
conflicting with this document have to be
withdrawn
This document supersedes EN 60204-1:2006.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 60204-1:2016 are prefixed “Z”.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directives, see informative Annexes ZZA and ZZB, which are integral
parts of this document.
Endorsement notice
The text of the International Standard IEC 60204-1:2016 was approved by CENELEC as a European
Standard with agreed common modifications.
COMMON MODIFICATIONS
1 Modification to Clause 2, Normative references
Add the following note after the first paragraph:
NOTE In CENELEC, Annex ZA applies instead of Clause 2.
2 Modifications to Clause 4
4.4.2 Electromagnetic Compatibility

nd
paragraph and related bulleted list.
Delete the 2
4.4.5 Altitude
nd
Replace the text of the 2 paragraph before the hyphened list with:
“For equipment to be used at higher altitudes, it is necessary to take into account changes in
parameters for example, the reduction of:”.

rd
Add the start of the 3 paragraph:
“Other parameters of different components can also alter with altitude.”.

3 Modifications to Clause 6
6.3.1 General
Replace the text of Note 1 with:
“The risk of harmful physiological effects from touch voltages depends upon a number of factors.
These include but are not limited to; value of touch voltage, duration of possible exposure,
environmental factors, skin condition”.

4 Modifications to Clause 9
9.2.3.2 Start
th
Replace the 4 paragraph with:
“The provision of acoustic and/or visual warning signals before the starting of hazardous machine
operation shall be considered during the risk assessment. Where the risk assessment determines that
either or both are required the emission level of noise/light shall be suitable for the intended
environment.".
9.2.4.1 General requirements
nd
Replace the 2 paragraph with:
“Where a safety function of a CCS relies on data transmission the transmission reliability shall be
considered.”.
9.2.4.8 Emergency stop reset
Replace the last paragraph with:
“Where the risk assessment show that resetting of an emergency stop actuator on the portable
cableless operator control station is not adequate then one or more supplementary fixed resets shall
be provided.”.
5 Modifications to Clause 11
11.4 Enclosures, doors and openings

th
In the 8 paragraph, replace “harmful” with “detrimental”.

6 Modifications to Clause 12
12.3 Insulation
st
In the 1 paragraph, replace “should” with “shall”.

7 Modifications to Clause 13
13.5.2 Rigid metal conduit fittings

nd
First paragraph, 2 sentence, replace with “Where galvanic action is possible between dissimilar
metals these metal combinations shall not be used”.

8 Modifications to Clause 16
16.1 General
Add to the first paragraph: “The markings shall be sufficiently durable to remain legible for the
foreseen lifetime of the machine.”.

16.4 Marking of enclosures of electrical equipment

nd
Delete the 2 bullet.
9 Modifications to Clause 18
18.1 General
Add to paragraph 2: “Where the sequence cannot be followed verification a) and b) shall be conducted
first.”.
18.4 Voltage tests
Replace the first paragraph with “When voltage tests are performed, tests and test equipment shall be
in accordance with EN 61180.”.

10 Modification to annexes
Add the following annexes.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60034-1 (mod) 2010 Rotating electrical machines - EN 60034-1 2010
Part 1: Rating and performance
- -  + corr. October 2010
IEC 60072 series Dimensions and output series for - -
rotating electrical machines
IEC 60309-1 1999 Plugs, socket-outlets and couplers for EN 60309-1 1999
industrial purposes -
+ A1 (mod) 2005 + A1 2007
Part 1: General requirements
+ A2 2012 + A2 2012
IEC 60364-1 (mod) 2005 Low-voltage electrical installations - HD 60364-1 2008
Part 1: Fundamental principles,
assessment of general characteristics,
definitions
IEC 60364-4-41 (mod) 2005 Low-voltage electrical installations - HD 60364-4-41 2007
Part 4-41: Protection for safety -
- -  + corr. July 2007
Protection against electric shock
IEC 60364-4-43 (mod) 2008 Low voltage electrical installations - HD 60364-4-43 2010
Part 4-43: Protection for safety -
Protection against overcurrent
IEC 60364-5-52 (mod) 2009 Low-voltage electrical installations - HD 60364-5-52 2011
Part 5-52: Selection and erection of
electrical equipment - Wiring systems
IEC 60364-5-53 2001 Electrical installations of buildings - - -
Part 5-53: Selection and erection of
1)
+ A1 (mod) 2002 HD 60364-5-534 2008
electrical equipment - Isolation,
2)
switching and control
+ A2 (mod) 2015 HD 60364-5-534 2016

1) IEC 60364-5-53:2001/A1:2002, Clause 534: “Devices for protection against overvoltages” is harmonized as
HD 60364-5-534:2008. HD 60364-5-534:2008 will be superseded by HD 60364-5-534:2016 on 2018-12-14.
2) IEC 60364-5-53:2001/A2:2015, Clause 534: “Devices for protection against overvoltages” is harmonized as
HD 60364-5-534:2016.
Publication Year Title EN/HD Year
IEC 60364-5-54 2011 Low-voltage electrical installations - HD 60364-5-54 2011
Part 5-54: Selection and erection of
electrical equipment - Earthing
arrangements and protective
conductors
IEC 60417-DB 2002 Graphical symbols for use on - -
equipment
IEC 60445 2010 Basic and safety principles for man- EN 60445 2010
machine interface, marking and
identification - Identification of
equipment terminals, conductor
terminations and conductors
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- -  + corr. May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems -
Part 1: Principles, requirements and
tests
IEC 60947-2 2016 Low voltage switchgear and EN 60947-2 2017
controlgear -
Part 2: Circuit-breakers
IEC 60947-3 2008 Low-voltage switchgear and EN 60947-3 2009
controlgear -
+ A1 2012 + A1 2012
Part 3: Switches, disconnectors,
switch-disconnectors and fuse-
+ A2 2015 + A2 2015
combination units
IEC 60947-5-1 2003 Low-voltage switchgear and EN 60947-5-1 2004
controlgear -
- -  + corr. November 2004
Part 5-1: Control circuit devices and
- -  switching elements - Electromechanical + corr. July 2005
control circuit devices
+ A1 2009 + A1 2009
IEC 60947-5-5 1997 Low-voltage switchgear and EN 60947-5-5 1997
controlgear -
+ A1 2005 + A1 2005
Part 5-5: Control circuit devices and
- -  switching elements - Electrical + A11 2013
emergency stop device with
+ A2 2016 + A2 2017
mechanical latching function
IEC 60947-6-2 2002 Low-voltage switchgear and EN 60947-6-2 2003
controlgear -
+ A1 2007 + A1 2007
Part 6-2: Multiple function equipment -
Control and protective switching
devices (or equipment) (CPS)
I
...

SLOVENSKI STANDARD
01-december-2018
1DGRPHãþD
SIST EN 60204-1:2006
SIST EN 60204-1:2006/A1:2009
9DUQRVWVWURMHY(OHNWULþQDRSUHPDVWURMHYGHO6SORãQH]DKWHYH,(&
VSUHPHQMHQ
Safety of machinery - Electrical equipment of machines - Part 1: General requirements
(IEC 60204-1:2016 , modified)
Sicherheit von Maschinen - Elektrische Ausrüstung vonMaschinen - Teil 1: Allgemeine
Anforderungen (IEC 60204-1:2016 , modifiziert)
Sécurité des machines - Équipement électrique des machines - Partie 1: Exigences
générales (IEC 60204-1:2016 , modifiée)
Ta slovenski standard je istoveten z: EN 60204-1:2018
ICS:
13.110 Varnost strojev Safety of machinery
29.020 Elektrotehnika na splošno Electrical engineering in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60204-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2018
ICS 13.110; 29.020 Supersedes EN 60204-1:2006
English Version
Safety of machinery - Electrical equipment of machines -
Part 1: General requirements
(IEC 60204-1:2016 , modified)
Sécurité des machines - Équipement électrique des Sicherheit von Maschinen - Elektrische Ausrüstung von
machines - Partie 1: Exigences générales Maschinen - Teil 1: Allgemeine Anforderungen
(IEC 60204-1:2016 , modifiée) (IEC 60204-1:2016 , modifiziert)
This European Standard was approved by CENELEC on 2018-03-19. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60204-1:2018 E
Contents Page
European foreword . 3
1 Modification to Clause 2, Normative references . 4
2 Modifications to Clause 4 . 4
3 Modifications to Clause 6 . 4
4 Modifications to Clause 9 . 4
5 Modifications to Clause 11 . 5
6 Modifications to Clause 12 . 5
7 Modifications to Clause 13 . 5
8 Modifications to Clause 16 . 5
9 Modifications to Clause 18 . 6
10 Modification to annexes. 6
Annex ZA (normative) Normative references to international publications with their
corresponding European publications . 7
Annex ZZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2006/42/EC [2006 OJ L 157] aimed to be covered . 10
Annex ZZB (informative) Relationship between this European Standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be covered . 12
11 Modification to Bibliography . 14
European foreword
This document (EN 60204-1:2018) consists of the text of IEC 60204-1:2016, prepared by IEC/TC 44
"Safety of machinery - Electrotechnical aspects", together with the common modifications prepared by
CLC/TC 44X "Safety of machinery: electrotechnical aspects".
The following dates are fixed:
• latest date by which this document has to be (dop) 2019-03-14
implemented at national level by publication
of an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2021-09-14
conflicting with this document have to be
withdrawn
This document supersedes EN 60204-1:2006.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Clauses, subclauses, notes, tables, figures and annexes which are additional to those in
IEC 60204-1:2016 are prefixed “Z”.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directives, see informative Annexes ZZA and ZZB, which are integral
parts of this document.
Endorsement notice
The text of the International Standard IEC 60204-1:2016 was approved by CENELEC as a European
Standard with agreed common modifications.
COMMON MODIFICATIONS
1 Modification to Clause 2, Normative references
Add the following note after the first paragraph:
NOTE In CENELEC, Annex ZA applies instead of Clause 2.
2 Modifications to Clause 4
4.4.2 Electromagnetic Compatibility

nd
paragraph and related bulleted list.
Delete the 2
4.4.5 Altitude
nd
Replace the text of the 2 paragraph before the hyphened list with:
“For equipment to be used at higher altitudes, it is necessary to take into account changes in
parameters for example, the reduction of:”.

rd
Add the start of the 3 paragraph:
“Other parameters of different components can also alter with altitude.”.

3 Modifications to Clause 6
6.3.1 General
Replace the text of Note 1 with:
“The risk of harmful physiological effects from touch voltages depends upon a number of factors.
These include but are not limited to; value of touch voltage, duration of possible exposure,
environmental factors, skin condition”.

4 Modifications to Clause 9
9.2.3.2 Start
th
Replace the 4 paragraph with:
“The provision of acoustic and/or visual warning signals before the starting of hazardous machine
operation shall be considered during the risk assessment. Where the risk assessment determines that
either or both are required the emission level of noise/light shall be suitable for the intended
environment.".
9.2.4.1 General requirements
nd
Replace the 2 paragraph with:
“Where a safety function of a CCS relies on data transmission the transmission reliability shall be
considered.”.
9.2.4.8 Emergency stop reset
Replace the last paragraph with:
“Where the risk assessment show that resetting of an emergency stop actuator on the portable
cableless operator control station is not adequate then one or more supplementary fixed resets shall
be provided.”.
5 Modifications to Clause 11
11.4 Enclosures, doors and openings

th
In the 8 paragraph, replace “harmful” with “detrimental”.

6 Modifications to Clause 12
12.3 Insulation
st
In the 1 paragraph, replace “should” with “shall”.

7 Modifications to Clause 13
13.5.2 Rigid metal conduit fittings

nd
First paragraph, 2 sentence, replace with “Where galvanic action is possible between dissimilar
metals these metal combinations shall not be used”.

8 Modifications to Clause 16
16.1 General
Add to the first paragraph: “The markings shall be sufficiently durable to remain legible for the
foreseen lifetime of the machine.”.

16.4 Marking of enclosures of electrical equipment

nd
Delete the 2 bullet.
9 Modifications to Clause 18
18.1 General
Add to paragraph 2: “Where the sequence cannot be followed verification a) and b) shall be conducted
first.”.
18.4 Voltage tests
Replace the first paragraph with “When voltage tests are performed, tests and test equipment shall be
in accordance with EN 61180.”.

10 Modification to annexes
Add the following annexes.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60034-1 (mod) 2010 Rotating electrical machines - EN 60034-1 2010
Part 1: Rating and performance
- -  + corr. October 2010
IEC 60072 series Dimensions and output series for - -
rotating electrical machines
IEC 60309-1 1999 Plugs, socket-outlets and couplers for EN 60309-1 1999
industrial purposes -
+ A1 (mod) 2005 + A1 2007
Part 1: General requirements
+ A2 2012 + A2 2012
IEC 60364-1 (mod) 2005 Low-voltage electrical installations - HD 60364-1 2008
Part 1: Fundamental principles,
assessment of general characteristics,
definitions
IEC 60364-4-41 (mod) 2005 Low-voltage electrical installations - HD 60364-4-41 2007
Part 4-41: Protection for safety -
- -  + corr. July 2007
Protection against electric shock
IEC 60364-4-43 (mod) 2008 Low voltage electrical installations - HD 60364-4-43 2010
Part 4-43: Protection for safety -
Protection against overcurrent
IEC 60364-5-52 (mod) 2009 Low-voltage electrical installations - HD 60364-5-52 2011
Part 5-52: Selection and erection of
electrical equipment - Wiring systems
IEC 60364-5-53 2001 Electrical installations of buildings - - -
Part 5-53: Selection and erection of
1)
+ A1 (mod) 2002 HD 60364-5-534 2008
electrical equipment - Isolation,
2)
switching and control
+ A2 (mod) 2015 HD 60364-5-534 2016

1) IEC 60364-5-53:2001/A1:2002, Clause 534: “Devices for protection against overvoltages” is harmonized as
HD 60364-5-534:2008. HD 60364-5-534:2008 will be superseded by HD 60364-5-534:2016 on 2018-12-14.
2) IEC 60364-5-53:2001/A2:2015, Clause 534: “Devices for protection against overvoltages” is harmonized as
HD 60364-5-534:2016.
Publication Year Title EN/HD Year
IEC 60364-5-54 2011 Low-voltage electrical installations - HD 60364-5-54 2011
Part 5-54: Selection and erection of
electrical equipment - Earthing
arrangements and protective
conductors
IEC 60417-DB 2002 Graphical symbols for use on - -
equipment
IEC 60445 2010 Basic and safety principles for man- EN 60445 2010
machine interface, marking and
identification - Identification of
equipment terminals, conductor
terminations and conductors
IEC 60529 1989 Degrees of protection provided by EN 60529 1991
enclosures (IP Code)
- -  + corr. May 1993
+ A1 1999 + A1 2000
+ A2 2013 + A2 2013
IEC 60664-1 2007 Insulation coordination for equipment EN 60664-1 2007
within low-voltage systems -
Part 1: Principles, requirements and
tests
IEC 60947-2 2016 Low voltage switchgear and EN 60947-2 2017
controlgear -
Part 2: Circuit-breakers
IEC 60947-3 2008 Low-voltage switchgear and EN 60947-3 2009
controlgear -
+ A1 2012 + A1 2012
Part 3: Switches, disconnectors,
switch-disconnectors and fuse-
+ A2 2015 + A2 2015
combination units
IEC 60947-5-1 2003 Low-voltage switchgear and EN 60947-5-1 2004
controlgear -
- -  + corr. November 2004
Part 5-1: Control circuit devices and
- -  switching elements - Electromechanical + corr. July 2005
control circuit devices
+ A1 2009 + A1 2009
IEC 60947-5-5 1997 Low-voltage switchgear and EN 60947-5-5 1997
controlgear -
+ A1 2005 + A1 2005
Part 5-5: Control circuit devices and
- -  switching elements - Electrical + A11 2013
emergency stop device with
+ A2 2016 + A2 2017
mechanical latching function
IEC 60947-6-2 2002 Low-voltage switchgear and EN 60947-6-2 2003
controlgear -
+ A1 2007 + A1 2007
Part 6-2: Multiple function equipment -
Control and protective switching
devices (or equ
...

ba
SLOVENSKI
SIST EN 60204-1
STANDARD  december 2018
Varnost strojev – Električna oprema strojev – 1. del: Splošne zahteve
(IEC 60204-1:2016, spremenjen)
Safety of machinery – Electrical equipment of machines –
Part 1: General requirements (IEC 60204-1:2016, modified)
Sécurité des machines – Équipement électrique des machines –
Partie 1: Exigences générales (IEC 60204-1:2016, modifiée)
Sicherheit von Maschinen – Elektrische Ausrüstung von Maschinen –
Teil 1: Allgemeine Anforderungen (IEC 60204-1:2016, modifiziert)
Referenčna oznaka
ICS 13.110; 29.020 SIST EN 60204-1:2018 (sl)
Nadaljevanje na straneh II do V in od 1 do 146
© 2020-10. Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno.

SIST EN 60204-1 : 2018
NACIONALNI UVOD
Standard SIST EN 60204-1 (sl), Varnost strojev – Električna oprema strojev – 1. del: Splošne zahteve
(IEC 60204-1:2016, spremenjen), 2018, ima status slovenskega standarda in je enakovreden
evropskemu standardu EN 60204-1 (en), Safety of machinery – Electrical equipment of machines – Part
1: General requirements (IEC 60204-1:2016, modified), 2018.

Ta standard nadomešča SIST EN 60204-1:2006.

NACIONALNI PREDGOVOR
Mednarodni standard IEC 60204-1:2018 je pripravil pododbor Mednarodne elektrotehniške komisije
IEC/TC 44 Varnost strojev – Elektrotehnični pogledi. Vzporedno je standard potrdil tehnični odbor
Evropskega komiteja za standardizacijo v elektrotehniki CLC/TC 44X Varnost strojev: Elektrotehnični
pogledi, katerega tajništvo vodi BSI.

Slovenski standard SIST EN 60204-1:2018 je prevod evropskega standarda EN 60204-1:2018. V
primeru spora glede besedila slovenskega prevoda v tem standardu je odločilen izvirni evropski
standard v angleškem jeziku. Slovensko izdajo standarda je pripravil tehnični odbor SIST/TC MOV
Merilna oprema za elektromagnetne veličine.

Odločitev za privzem tega standarda je 11. novembra 2018 sprejel tehnični odbor SIST/TC MOV Merilna
oprema za elektromagnetne veličine.

ZVEZA Z NACIONALNIMI STANDARDI

S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi
standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti v nacionalno standardizacijo:

SIST EN 60034-1:2010  Električni rotacijski stroji – 1. del: Nazivni podatki in preskus
lastnosti (IEC 60034-1:2010, spremenjen) (vsebuje popravek
AC:2010)
SIST EN 60309-1 (skupina) Mere in izhodne serije električnih rotacijskih strojev
SIST EN 60309-1:2000 Vtiči, vtičnice in spojke za industrijske namene – 1. del: Splošne
zahteve
SIST EN 60309-1:2000/A1:2008  Vtiči, vtičnice in spojni elementi za industrijsko rabo – 1. del:
Splošne zahteve (IEC 60309-1:1999/A1:2005 spremenjen)
SIST EN 60309-1:2000/A2:2012  Vtiči, vtičnice in spojke za industrijske namene – 1. del: Splošne
zahteve (IEC 60309-1:1999/A2:2012)
SIST HD 60364-1:2008 Nizkonapetostne električne inštalacije – 1. del: Temeljna načela,
ocena splošnih karakteristik, definicije (IEC 60364-1:2005,
spremenjen)
SIST IEC 60364-4-41:2006 Nizkonapetostne električne inštalacije – 4-41. del: Zaščitni ukrepi
– Zaščita pred električnim udarom (nadomeščen s SIST HD
60364-4-41:2017)
SIST IEC 60364-4-43:2009  Nizkonapetostne električne inštalacije – 4-43. del: Zaščitni ukrepi
– Zaščita pred nadtoki
SIST HD 60364-5-52:2011 Nizkonapetostne električne inštalacije – 5-52. del: Izbira in
namestitev električne opreme – Sistemi ožičenja
SIST HD 60364-5-53:2016 Nizkonapetostne električne inštalacije – 5-53. del: Izbira in
namestitev električne opreme – Stikalne in krmilne naprave

II
SIST EN 60204-1 : 2018
SIST HD 60364-5-54:2011  Nizkonapetostne električne inštalacije – 5-54. del: Izbira in
namestitev električne opreme – Ozemljitve in zaščitni vodniki (IEC
60364-5-54:2011)
SIST EN 60445:2011 Osnovna in varnostna načela za vmesnik človek-stroj,
označevanje in razpoznavanje – Razpoznavanje terminalov
opreme, končnikov vodnikov in vodnikov (IEC 60445:2010)
SIST EN 60529:1997 Stopnja zaščite, ki jo zagotavlja ohišje (koda IP) (IEC 60529:1989)
(vsebuje popravek AC:1993)
SIST EN 60529:1997/A1:2000  Stopnja zaščite, ki jo zagotavlja ohišje (koda IP) – Dopolnilo A1
SIST EN 60529:1997/A2:2014  Stopnja zaščite, ki jo zagotavlja ohišje (koda IP) – Dopolnilo A2
SIST EN 60664-1:2007 Koordinacija izolacije za opremo v okviru nizkonapetostnih
sistemov – 1. del: Načela, zahteve in preskusi (IEC 60664-1:2007)
SIST EN 60947-2:2017 Nizkonapetostne stikalne naprave – 2. del: Odklopniki (IEC 60947-
2:2016)
SIST EN 60947-3:2009 Nizkonapetostne stikalne in krmilne naprave – 3. del: Stikala,
ločilniki, ločilna stikala in stikalni aparati z varovalkami (IEC 60947-
3:2008)
SIST EN 60947-3:2009/A1:2012  Nizkonapetostne stikalne in krmilne naprave – 3. del: Stikala,
ločilniki, ločilna stikala in stikalni aparati z varovalkami (IEC 60947-
3:2008/A1:2012)
SIST EN 60947-3:2009/A2:2016  Nizkonapetostne stikalne in krmilne naprave – 3. del: Stikala,
ločilniki, ločilna stikala in stikalni aparati z varovalkami – Dopolnilo
A2
SIST EN 60947-5-1:2005 Nizkonapetostne stikalne in krmilne naprave – 5-1. del: Krmilne
naprave in stikalni elementi – Elektromehanske krmilne naprave
(vsebuje popravka AC:2004 in AC:2005)
SIST EN 60947-5-1:2005/A1:2009 Nizkonapetostne stikalne in krmilne naprave – 5-1. del: Krmilne
naprave in stikalni elementi – Elektromehanske krmilne naprave
(IEC 60947-5-1:2003/A1:2009)
SIST EN 60947-5-5:1999 Nizkonapetostne stikalne in krmilne naprave – 5-5. del: Krmilne
naprave in stikalni elementi – Električna (varnostna) naprava za
zaustavitev v sili z mehansko zaporo
SIST EN 60947-5-5:1999/A1:2005 Nizkonapetostne stikalne in krmilne naprave – 5-5. del: Krmilne
naprave in stikalni elementi – Električna (varnostna) naprava za
zaustavitev v sili z mehansko zaporo – Dopolnilo 1 (IEC 60947-5-
5:1997/A1:2005)
SIST EN 60947-5-5:1999/A11:2013 Nizkonapetostne stikalne in krmilne naprave – 5-5. del: Krmilne
naprave in stikalni elementi – Električna (varnostna) naprava za
zaustavitev v sili z mehansko zaporo
SIST EN 60947-5-5:1999/A2:2017 Nizkonapetostne stikalne in krmilne naprave – 5-5. del: Krmilne
naprave in stikalni elementi – Električna (varnostna) naprava za
zaustavitev v sili z mehansko zaporo (EN 60947-5-
5:1997/A2:2017) – Dopolnilo A2
SIST EN 60947-6-2:2003  Nizkonapetostne stikalne naprave – 6. del: Večfunkcijska oprema
– 2. oddelek: Krmilne in zaščitne stikalne naprave (ali oprema)
(CPS) (IEC 60947-6-2:2002)
SIST EN 60947-6-2:2003/A1:2007  Nizkonapetostne stikalne naprave – 6. del: Večfunkcijska oprema
– 2. oddelek: Krmilne in zaščitne stikalne naprave (ali oprema)
(CPS) (IEC 60947-6-2:2002/A1:2007)
III
SIST EN 60204-1 : 2018

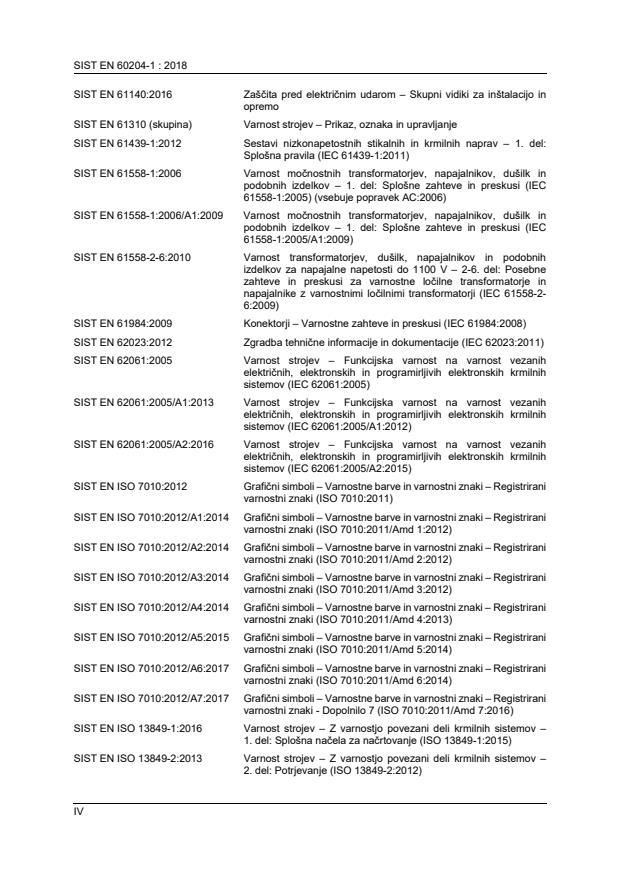

SIST EN 61140:2016 Zaščita pred električnim udarom – Skupni vidiki za inštalacijo in
opremo
SIST EN 61310 (skupina) Varnost strojev – Prikaz, oznaka in upravljanje
SIST EN 61439-1:2012 Sestavi nizkonapetostnih stikalnih in krmilnih naprav – 1. del:
Splošna pravila (IEC 61439-1:2011)
SIST EN 61558-1:2006 Varnost močnostnih transformatorjev, napajalnikov, dušilk in
podobnih izdelkov – 1. del: Splošne zahteve in preskusi (IEC
61558-1:2005) (vsebuje popravek AC:2006)
SIST EN 61558-1:2006/A1:2009  Varnost močnostnih transformatorjev, napajalnikov, dušilk in
podobnih izdelkov – 1. del: Splošne zahteve in preskusi (IEC
61558-1:2005/A1:2009)
SIST EN 61558-2-6:2010 Varnost transformatorjev, dušilk, napajalnikov in podobnih
izdelkov za napajalne napetosti do 1100 V – 2-6. del: Posebne
zahteve in preskusi za varnostne ločilne transformatorje in
napajalnike z varnostnimi ločilnimi transformatorji (IEC 61558-2-
6:2009)
SIST EN 61984:2009 Konektorji – Varnostne zahteve in preskusi (IEC 61984:2008)
SIST EN 62023:2012  Zgradba tehnične informacije in dokumentacije (IEC 62023:2011)
SIST EN 62061:2005 Varnost strojev – Funkcijska varnost na varnost vezanih
električnih, elektronskih in programirljivih elektronskih krmilnih
sistemov (IEC 62061:2005)
SIST EN 62061:2005/A1:2013  Varnost strojev – Funkcijska varnost na varnost vezanih
električnih, elektronskih in programirljivih elektronskih krmilnih
sistemov (IEC 62061:2005/A1:2012)
SIST EN 62061:2005/A2:2016  Varnost strojev – Funkcijska varnost na varnost vezanih
električnih, elektronskih in programirljivih elektronskih krmilnih
sistemov (IEC 62061:2005/A2:2015)
SIST EN ISO 7010:2012 Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011)
SIST EN ISO 7010:2012/A1:2014  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011/Amd 1:2012)
SIST EN ISO 7010:2012/A2:2014  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011/Amd 2:2012)
SIST EN ISO 7010:2012/A3:2014  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011/Amd 3:2012)
SIST EN ISO 7010:2012/A4:2014  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011/Amd 4:2013)
SIST EN ISO 7010:2012/A5:2015  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011/Amd 5:2014)
SIST EN ISO 7010:2012/A6:2017  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki (ISO 7010:2011/Amd 6:2014)
SIST EN ISO 7010:2012/A7:2017  Grafični simboli – Varnostne barve in varnostni znaki – Registrirani
varnostni znaki - Dopolnilo 7 (ISO 7010:2011/Amd 7:2016)
SIST EN ISO 13849-1:2016 Varnost strojev – Z varnostjo povezani deli krmilnih sistemov –
1. del: Splošna načela za načrtovanje (ISO 13849-1:2015)
SIST EN ISO 13849-2:2013 Varnost strojev – Z varnostjo povezani deli krmilnih sistemov –
2. del: Potrjevanje (ISO 13849-2:2012)

IV
SIST EN 60204-1 : 2018
SIST EN ISO 13850:2016 Varnost strojev – Zaustavitev v sili – Načela načrtovanja (ISO
13850:2006)
OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 602041:2018

PREDHODNA IZDAJA
– SIST EN 60204-1:2006, Varnost strojev – Električna oprema strojev – 1. del: Splošne zahteve (IEC
60204-1:2005, spremenjen) (vsebuje popravek AC 2010)
OPOMBE
– Povsod, kjer se v besedilu standarda uporablja izraz "evropski" ali "mednarodni" standard, v SIST
– Nacionalni uvod in nacionalni predgovor nista sestavni del standarda.

– Ta nacionalni dokument je enakovreden EN 60204-1:2018 in je objavljen z dovoljenjem

CEN-CENELEC
Upravni center
Rue de la Science 23
B-1000 Bruselj
This national document is identical with EN 60204-1:2018 and is published with the permission of

CEN-CENELEC
Management Centre
Rue de la Science 23
B-1040 Brussels
V
SIST EN 60204-1 : 2018
(prazna stran)
VI
EVROPSKI STANDARD              EN 60204-1
EUROPEAN STANDARD
NORME EUROPÉENNE
september 2018
EUROPÄISCHE NORM
ICS 13.110; 29.020 Nadomešča EN 60204-1:2006

Slovenska izdaja
Varnost strojev – Električna oprema strojev – 1. del: Splošne zahteve
(IEC 60204-1:2016, spremenjen)

Safety of machinery – Electrical Sécurité des machines – Sicherheit von Maschinen –
equipment of machines – Équipement électrique des Elektrische Ausrüstung von
Part 1: General requirements machines – Partie 1: Exigences Maschinen – Teil 1: Allgemeine
(IEC 60204-1:2016, modified) générales Anforderungen
(IEC 60204-1:2016, modifiée) (IEC 60204-1:2016, modifiziert)

Ta evropski standard je CENELEC sprejel 19. marca 2018. Člani CENELEC morajo izpolnjevati notranje
predpise CEN/CENELEC, s katerimi je predpisano, da mora biti ta standard sprejet kot nacionalni
standard brez kakršnihkoli sprememb.
Seznami najnovejših izdaj teh nacionalnih standardov in njihovi bibliografski podatki so na voljo pri
Upravnem centru ali članih CENELEC.

Evropski standardi obstajajo v treh izvirnih izdajah (nemški, angleški in francoski). Izdaje v drugih jezikih,
ki jih člani CENELEC na lastno odgovornost prevedejo in izdajo ter prijavijo pri Upravnem centru CEN-
CENELEC, veljajo kot uradne izdaje.

Člani CENELEC so nacionalni elektrotehniški komiteji Avstrije, Belgije, Bolgarije, Cipra, Češke
republike, Danske, Estonije, Finske, Francije, Grčije, Hrvaške, Irske, Islandije, Italije, Latvije, Litve,
Luksemburga, Madžarske, Malte, Nekdanje jugoslovanske republike Makedonije, Nemčije,
Nizozemske, Norveške, Poljske, Portugalske, Romunije, Slovaške, Slovenije, Srbije, Španije, Švedske,
Švice, Turčije in Združenega kraljestva.

CENELEC
Evropski komite za standardizacijo v elektrotehniki
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Upravni center CEN-CENELEC: Rue dela Science 23, B-1040 Bruselj

© 2018 CENELEC Lastnice avtorskih pravic so vse države članice CENELEC.        Ref. oznaka EN 60204-1:2018 E

SIST EN 60204-1 : 2018
VSEBINA Stran
Evropski predgovor . 11
Skupne spremembe . 12
1 Sprememba poglavja 2, Zveze s standardi . 12
2 Spremembe poglavja 4 . 12
3 Spremembe poglavja 6 . 12
4 Spremembe poglavja 9 . 12
5 Spremembe poglavja 11 . 13
6 Spremembe poglavja 12 . 13
7 Spremembe poglavja 13 .
...
