IEC 60335-2-45:2002+AMD1:2008+AMD2:2011 CSV
(Main)Household and similar electrical appliances - Safety - Part 2-45: Particular requirements for portable heating tools and similar appliances
Household and similar electrical appliances - Safety - Part 2-45: Particular requirements for portable heating tools and similar appliances
IEC 60335-2-45:2002+A1:2008+A2:2011 deals with the safety of portable electric heating tools and similar appliances, their rated voltage being not more than 250 V. Examples of appliances that are within the scope of this standard are branding tools; burning-in pens; conduit-soldering tools; dehorning tools; desoldering irons; firelighters; glue guns; heat guns; paint strippers; plastic-cutting tools; soldering guns; soldering irons; stripping pliers and thermoplastic conduit-welding tools.
This publication is to be read in conjunction with IEC 60335-1:2010.
This consolidated version consists of the third edition (2002), its amendment 1 (2008) and its amendment 2 (2011). Therefore, no need to order amendments in addition to this publication.
Appareils électrodomestiques et analogues - Sécurité - Partie 2-45: Règles particulières pour les outils chauffants mobiles et appareils analogues
La CEI 60335-2-45:2002+A1:2008+A2:2011 traite de la sécurité des outils chauffants électriques mobiles et des appareils analogues, dont la tension assignée n'est pas supérieure à 250 V. Comme exemples d'appareils compris dans le domaine d'application de la présente norme, on peut citer les fers à marquer, les pyrograveurs, les outils à souder les conduits, les appareils à décorner les animaux, les fers à dessouder les appareils à allumer le feu, les pistolets à colle, les pistolets à air chaud, les appareils de décapage de la peinture, les outils à couper le plastique, les fers instantanés, les fers à souder, les pinces à dénuder, les outils à souder les conduits thermoplastiques.
Cette publication doit être lue conjointement avec la CEI 60335-1:2010.
Cette version consolidée comprend la troisième édition (2002), son amendement 1 (2008) et son amendement 2 (2011). Il n'est donc pas nécessaire de commander les amendements avec cette publication.
General Information
Standards Content (Sample)
IEC 60335-2-45
®
Edition 3.2 2012-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-45: Particular requirements for portable heating tools and similar
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-45: Règles particulières pour les outils chauffants mobiles et appareils
analogues
IEC 60335-2-45:2002+A1:2008+A2:2011
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les
microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.
IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60335-2-45
®
Edition 3.2 2012-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-45: Particular requirements for portable heating tools and similar
appliances
Appareils électrodomestiques et analogues – Sécurité –
Partie 2-45: Règles particulières pour les outils chauffants mobiles et appareils
analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX CG
ICS 13.120; 25.140.20 ISBN 978-2-88912-876-1
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – 60335-2-45 © IEC:2002+A1:2008
+A2:2011

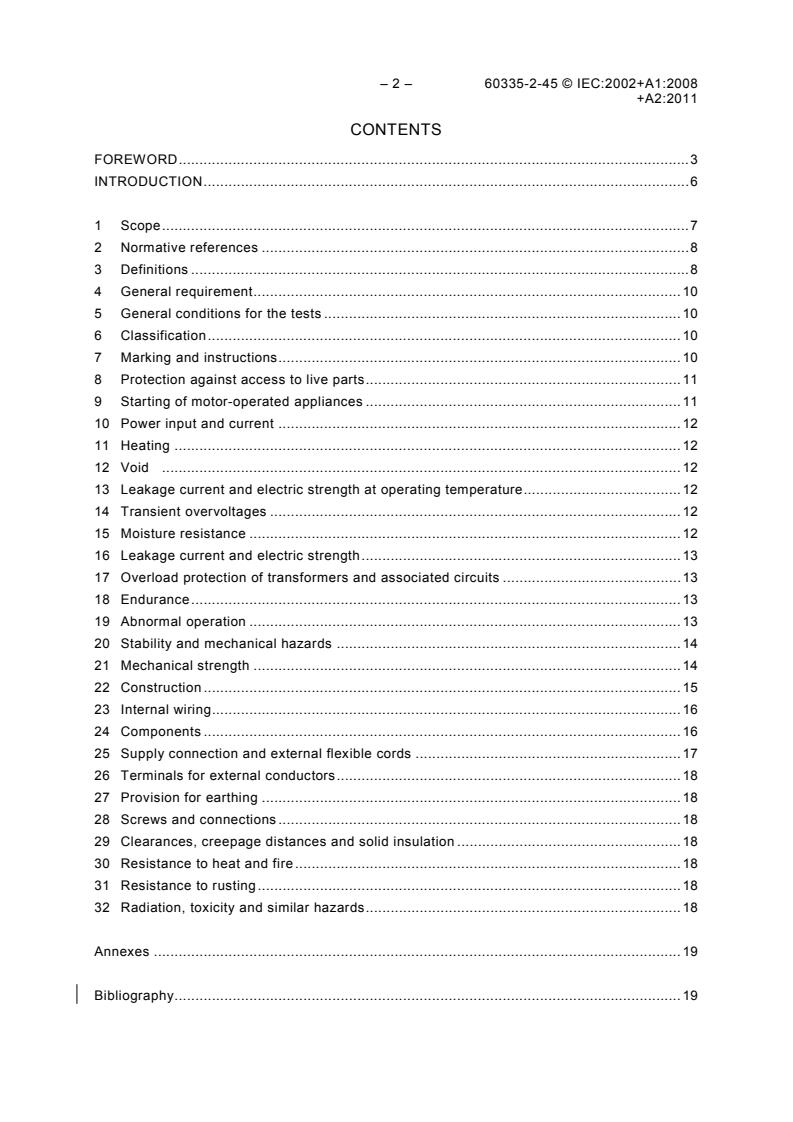

CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Definitions . 8
4 General requirement . 10
5 General conditions for the tests . 10
6 Classification . 10
7 Marking and instructions . 10
8 Protection against access to live parts . 11
9 Starting of motor-operated appliances . 11
10 Power input and current . 12
11 Heating . 12
12 Void . 12
13 Leakage current and electric strength at operating temperature . 12
14 Transient overvoltages . 12
15 Moisture resistance . 12
16 Leakage current and electric strength . 13
17 Overload protection of transformers and associated circuits . 13
18 Endurance . 13
19 Abnormal operation . 13
20 Stability and mechanical hazards . 14
21 Mechanical strength . 14
22 Construction . 15
23 Internal wiring . 16
24 Components . 16
25 Supply connection and external flexible cords . 17
26 Terminals for external conductors . 18
27 Provision for earthing . 18
28 Screws and connections . 18
29 Clearances, creepage distances and solid insulation . 18
30 Resistance to heat and fire . 18
31 Resistance to rusting . 18
32 Radiation, toxicity and similar hazards . 18
Annexes . 19
Bibliography . 19
---------------------- Page: 4 ----------------------
60335-2-45 IEC:2002+A1:2008 – 3 –
+A2:2011
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-45: Particular requirements for portable heating tools
and similar appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This consolidated version of IEC 60335-2-45 consists of the third edition (2002) [documents
61/2219/FDIS and 61/2294/RVD], its amendment 1 (2008) [documents 61/3559/FDIS and
61/3605/RVD] and its amendment 2 (2011) [documents 61/4099/CDV and 61/4197/RVC].
The technical content is therefore identical to the base edition and its amendments and has
been prepared for user convenience.
It bears the edition number 3.2.
A vertical line in the margin shows where the base publication has been modified by
amendments 1 and 2.
---------------------- Page: 5 ----------------------
– 4 – 60335-2-45 © IEC:2002+A1:2008
+A2:2011
The French version of this standard has not been voted upon.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for portable electric
heating tools and similar appliances
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification", or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: The conditions of normal operation are different for soldering guns and plastic-cutting tools (USA).
– 6.1: Class 0 appliances are allowed if their rated voltage does not exceed 150 V and class 0I appliances are
allowed (Japan).
– 6.1: Class 0 soldering irons are allowed if their rated power input does not exceed 18 W (Poland).
– 6.1: Class I dehorning tools are allowed. Class 0 appliances are allowed if their rated voltage does not
exceed 150 V and they are for indoor use only (USA).
– 11.7: The test for firelighters is different (USA).
– 11.8: The modification does not apply (USA).
– 21.101: The drop test is different (USA).
– 24.1.3: Switches are tested for 6 000 cycles of operation (Canada and USA).
– 25.7: Lighter cords are allowed (USA).
– 25.7: The modification does not apply (Japan).
– 25.8: Shorter supply cords are allowed for class II dehorning tools (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
60335-2-45 IEC:2002+A1:2008 – 5 –
+A2:2011
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
It is the recommendation of the committee that the content of the amendment 2 be adopted for implementation
2
nationally not earlier than 12 months or later than 36 months from the date of publication.
---------------------- Page: 7 ----------------------
– 6 – 60335-2-45 © IEC:2002+A1:2008
+A2:2011
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
---------------------- Page: 8 ----------------------
60335-2-45 IEC:2002+A1:2008 – 7 –
+A2:2011
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-45: Particular requirements for portable heating tools
and similar appliances
1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of portable electric heating tools and
similar appliances, their rated voltage being not more than 250 V.
Appliances not intended for normal household use, but which nevertheless may be a source
of danger to the public, such as appliances intended to be used by laymen in shops, in light
industry and on farms, are within the scope of this standard.
Appliances that may also be used when mounted on a support are within the scope of this
standard.
NOTE 101 Examples of appliances that are within the scope of this standard are
– branding tools;
– burning-in pens;
– conduit-soldering tools;
– dehorning tools;
– desoldering irons;
– firelighters;
– glue guns;
– heat guns;
– household film-welding appliances;
– paint strippers;
– plastic-cutting tools;
– soldering guns;
– soldering irons;
– stripping pliers;
– thermoplastic conduit-welding tools.
As far as is practicable, this standard deals with the common hazards presented by
appliances which are encountered by all persons in and around the home. However, in
general, it does not in general take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
---------------------- Page: 9 ----------------------
– 8 – 60335-2-45 © IEC:2002+A1:2008
+A2:2011
NOTE 102 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour and similar authorities.
NOTE 103 This standard does not apply to
– hand-held motor-operated electric tools (IEC 60745);
– transportable motor-operated electric tools (IEC 61029);
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas);
2
– tools using high-frequency heating other than induction soldering irons;
– arc-welding equipment.
2 Normative references
This clause of Part 1 is applicable.
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of appliances under the following conditions
Appliances having a stand are operated on the stand, unless otherwise specified.
Other appliances are operated in accordance with the instructions, unless otherwise specified.
Soldering guns and plastic-cutting tools incorporating a biased-off switch are operated in
cycles in accordance with the instructions but they are switched on for at least 12 s with rest
periods not exceeding 48 s. For soldering guns, the on-period is such that the temperature
at the tip reaches at least 300 °C at the end of the first on-period.
Household film-welding appliances are operated in cycles in accordance with the
instructions but they are switched on at least for the time necessary to weld together two
sheets of plastic film with rest periods not exceeding 2 min. The plastic film is high pressure
(low density) polyethylene, each sheet having a thickness of 50 µm.
Heat guns are operated with the airflow horizontal.
Firelighters are operated to ignite charcoal placed in a tray having a diameter of 600 mm and
a side 50 mm high. The pile of charcoal is 500 mm in diameter and 100 mm high at its centre.
Contact firelighters are positioned with the heating element horizontal and inserted in the
centre of the charcoal.
Hot-air firelighters are positioned with the airflow horizontal, or directed downwards up to
45° if allowed by the construction, whichever is more unfavourable.
3.101
biased-off switch
switch that automatically returns to the off position when its actuating member is released
---------------------- Page: 10 ----------------------
60335-2-45 IEC:2002+A1:2008 – 9 –
+A2:2011
3.102
branding tool
appliance for marking wood, leather and other materials by means of a heated metal stamp
3.103
burning-in pen
appliance for scribing on wood, leather and other materials by means of a heated tip
3.104
conduit-soldering tool
appliance used for joining metal piping by means of solder
3.105
dehorning tool
appliance for burning out horn buds
3.106
desoldering iron
appliance for melting and removing solder
3.107
firelighter
appliance for igniting solid fuel such as charcoal or wood
3.108
contact firelighter
firelighter incorporating a heating element that is in direct contact with the fuel
3.109
hot-air firelighter
firelighter that incorporates a fan and a heating element and blows hot air at the fuel
3.110
heat gun
appliance that produces a jet of hot air
NOTE Heat guns may be used for fusing materials or for softening paint or plastics.
3.111
household film-welding appliance
appliance for household use only, used for welding or cutting thin thermoplastic sheets by
means of electrically heated parts between which the material is clamped
3.112
paint stripper
appliance for softening paint using hot air
NOTE Paint strippers may incorporate a scraper.
3.113
soldering gun
appliance incorporating a transformer, the soldering tip being part of the secondary circuit
3.114
soldering iron
appliance having a heated tip for soldering
---------------------- Page: 11 ----------------------
– 10 – 60335-2-45 © IEC:2002+A1:2008
+A2:2011
3.115
thermoplastic conduit-welding tool
appliance for welding conduit by partly melting the thermoplastic material of a separate fitting
NOTE The fitting has an integral heating wire and is used only once.
2 3.116
induction soldering iron
soldering iron that heats the soldering tip by means of high frequency induction eddy
currents
NOTE Eddy currents are induced in the soldering tip or heating element by the electromagnetic field of a coil.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
NOTE 101 An additional sample of a contact firelighter is required for the test of 21.102.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Dehorning tools shall be class II or class III.
Other appliances shall be class I, class II or class III.
6.2 Addition:
Class II dehorning tools and transformers for class III dehorning tools shall be at least
IPX4.
Conduit-soldering tools and thermoplastic conduit-welding tools shall be at least IPX4.
Hand-held paint strippers for outdoor use shall be at least IPX4, unless the instructions
state they are not to be stored or left outdoors, in which case they may be IPX0.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Contact firelighters shall be marked with the limit of insertion into the fuel.
---------------------- Page: 12 ----------------------
60335-2-45 IEC:2002+A1:2008 – 11 –
+A2:2011
Contact firelighters that are not at least IPX4 shall be marked with the substance of the
following:
Do not expose to rain or moisture.
Thermoplastic conduit-welding tools shall be marked with the types of fittings with which
they are to be used and with the corresponding settings. Each fitting shall be marked with the
type of appliance with which it is to be used and with its own type reference.
7.12 Addition:
The instructions for appliances having a separate stand and not incorporating a biased-off
switch shall include the substance of the following:
WARNING: This tool must be placed on its stand when not in use.
The instructions for class III dehorning tools shall include the substance of the following:
WARNING: Only use the transformer provided.
The instructions for heat guns and hand-held paint strippers shall include the substance of
the following.
A fire may result if the appliance is not used with care, therefore
– be careful when using the appliance in places where there are combustible materials;
...
