Coupling capacitors and capacitor dividers - Part 4: DC and AC single-phase capacitor dividers

IEC 60358-4:2018 applies to DC or AC single-phase capacitor-dividers connected between line and ground used for manufacturing Voltage Transformers as well as for other applications. IEC 60358-4:2018 is to be used in conjunction with the latest edition of IEC 60358-1 and its amendments. IEC 60358-4:2018 was established on the basis of the IEC 60358-1:2012. IEC 60358-4:2018 supplements or modifies the corresponding clauses in IEC 60358-1:2012. This standard cancels and replaces the second edition of IEC 60358 (1990), and constitutes a technical revision.

Condensateurs de couplage et diviseurs capacitifs - Partie 4: Diviseurs capacitifs monophasés en courant continu et en courant alternatif

IEC 60358-4:2018 s'applique aux diviseurs capacitifs monophasés pour courant alternatif ou pour courant continu connectés entre la ligne et la terre utilisés pour la fabrication de transformateurs de tension ainsi que pour d'autres applications.
IEC 60358-4:2018 doit être utilisées conjointement avec IEC 60358-1:2012. IEC 60358-4:2018 a été établie sur la base de IEC 60358-1:2012. IEC 60358 complètent ou modifient les articles correspondants de l'IEC 60358-1:2012.

General Information

Status
Published
Publication Date
02-Jul-2018
Current Stage
PPUB - Publication issued
Completion Date
03-Jul-2018
Ref Project

Buy Standard

Standard
IEC 60358-4:2018 - Coupling capacitors and capacitor dividers - Part 4: DC and AC single-phase capacitor dividers
English and French language
26 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 60358-4
Edition 1.0 2018-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Coupling capacitors and capacitor dividers –
Part 4: DC or AC single-phase capacitor dividers
Condensateurs de couplage et diviseurs capacitifs –
Partie 4: Diviseurs capacitifs monophasés pour courant alternatif ou pour
courant continu
IEC 60358-4:2018-07(en-fr)
---------------------- Page: 1 ----------------------

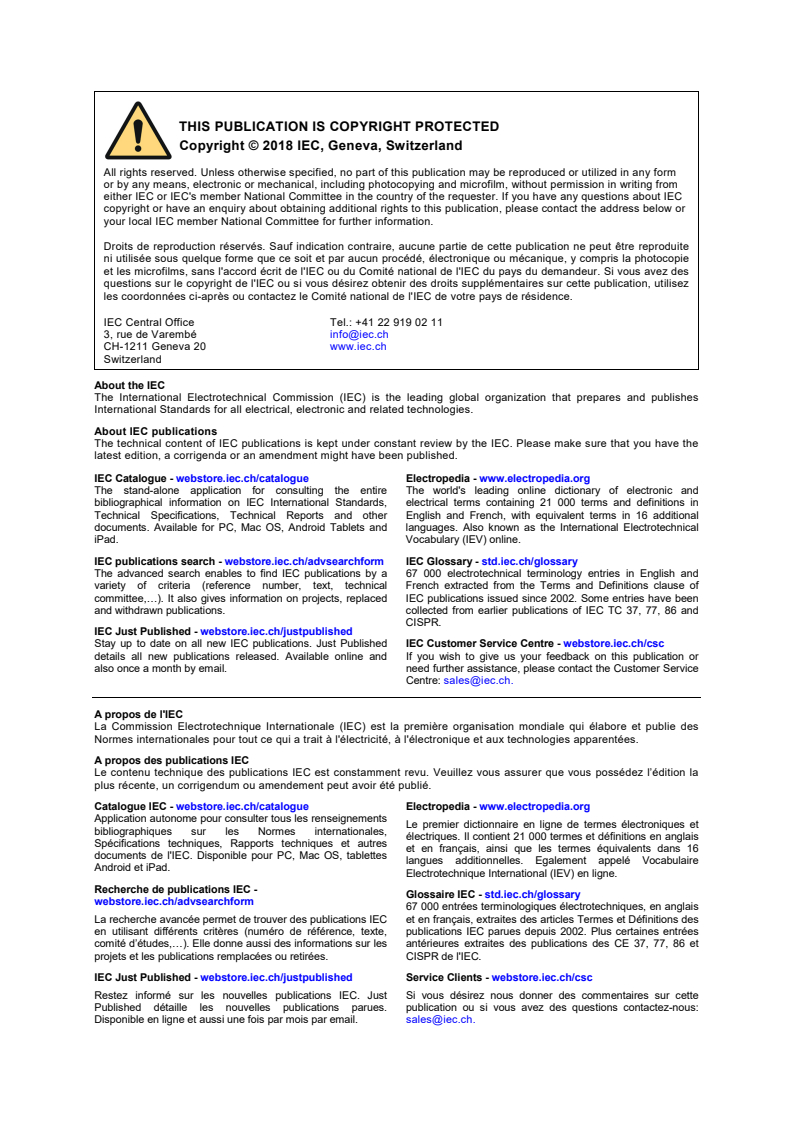

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

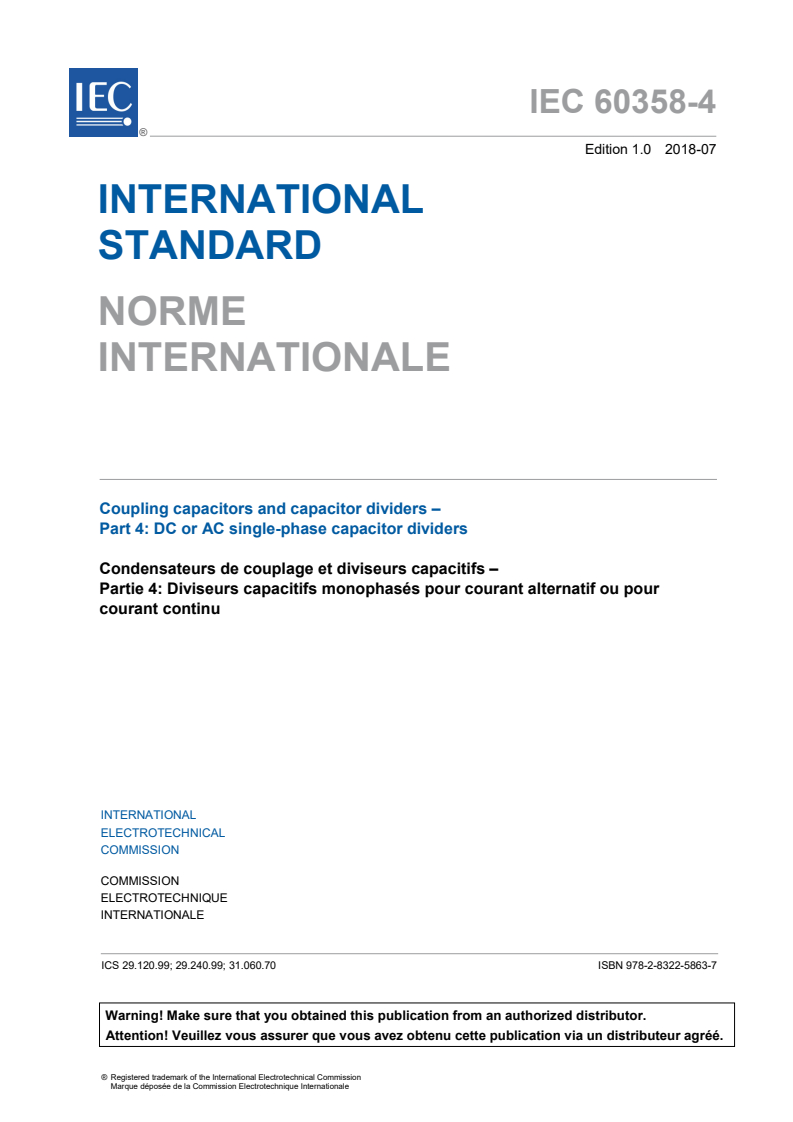

IEC 60358-4
Edition 1.0 2018-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Coupling capacitors and capacitor dividers –
Part 4: DC or AC single-phase capacitor dividers
Condensateurs de couplage et diviseurs capacitifs –
Partie 4: Diviseurs capacitifs monophasés pour courant alternatif ou pour
courant continu
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.99; 29.240.99; 31.060.70 ISBN 978-2-8322-5863-7

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60358-4:2018 © IEC 2018

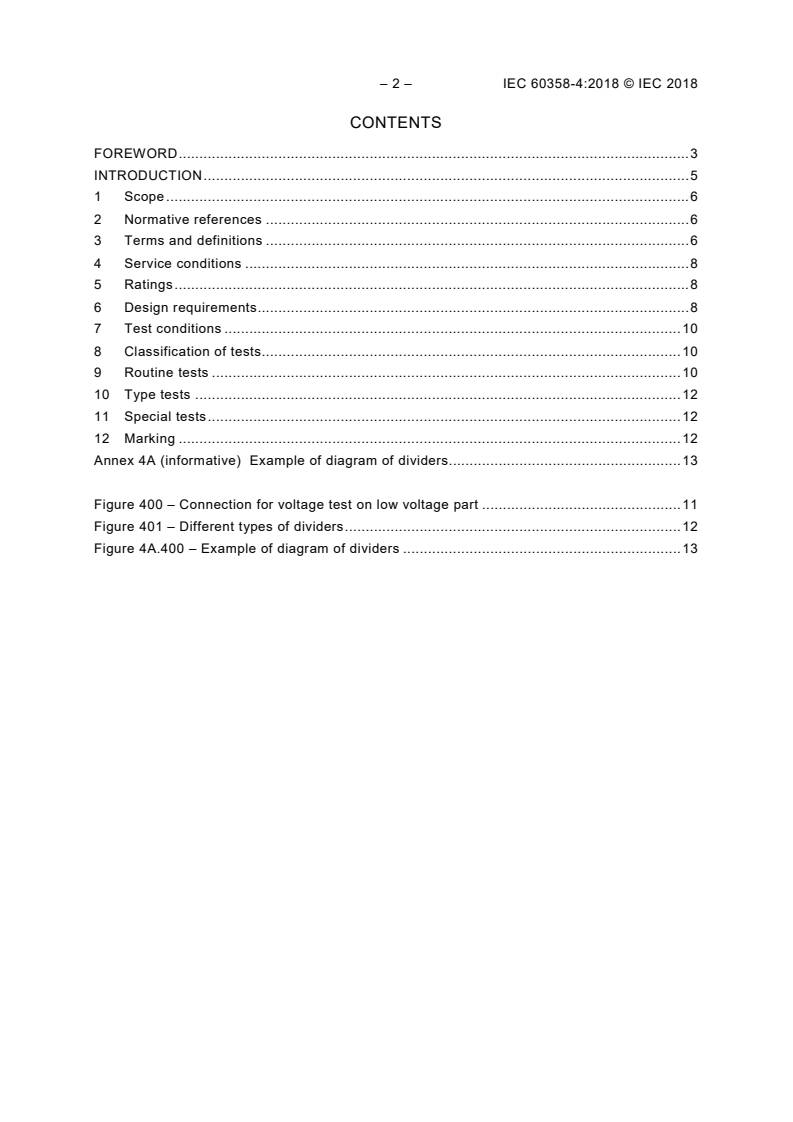

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Service conditions ........................................................................................................... 8

5 Ratings ............................................................................................................................ 8

6 Design requirements ........................................................................................................ 8

7 Test conditions .............................................................................................................. 10

8 Classification of tests..................................................................................................... 10

9 Routine tests ................................................................................................................. 10

10 Type tests ..................................................................................................................... 12

11 Special tests .................................................................................................................. 12

12 Marking ......................................................................................................................... 12

Annex 4A (informative) Example of diagram of dividers........................................................ 13

Figure 400 – Connection for voltage test on low voltage part ................................................ 11

Figure 401 – Different types of dividers ................................................................................. 12

Figure 4A.400 – Example of diagram of dividers ................................................................... 13

---------------------- Page: 4 ----------------------
IEC 60358-4:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
COUPLING CAPACITORS AND CAPACITOR DIVIDERS –
Part 4: DC or AC single-phase capacitor dividers
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60358-4 has been prepared by IEC technical committee 33: Power

capacitors and their applications.
The text of this International Standard is based on the following documents:
FDIS Report on voting
33/616/FDIS 33/617/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all Parts in the IEC 60358 series, published under the general title Coupling

capacitors and capacitor dividers, can be found on the IEC website.
---------------------- Page: 5 ----------------------
– 4 – IEC 60358-4:2018 © IEC 2018

Parts 2 through 4 of IEC 60358 are to be used in conjunction with the latest edition of

IEC 60358-1 and its amendments. They were established on the basis of the first edition

(2012) of that standard.
Parts 2 through 4 of IEC 60358 supplement or modify the corresponding clauses in
IEC 60358-1.

When a particular subclause of Part 1 is not mentioned in Parts 2 through 4, that subclause

applies as far as is reasonable. When this document states “addition”, “modification” or

“replacement”, the relevant text in Part 1 is to be adapted accordingly.

For additional clauses, subclauses, figures, tables or annexes, the following numbering

system is used:

• subclauses, tables and figures which are additional to those in Part 1 are numbered

starting from 200 for Part 2, 300 for Part 3 and 400 for Part 4;

• additional tables or annexes in the remaining Parts are lettered 2A, 2B, 3A, 3B, etc.

• as the notes are integrated into the clauses, their numbering are starting from 1 as usual.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60358-4:2018 © IEC 2018 – 5 –
INTRODUCTION
This series consists of the following Parts:
IEC 60358-1, Coupling capacitors and capacitor dividers – Part 1: General rules

IEC 60358-2, Coupling capacitors and capacitor dividers – Part 2: AC or DC single-phase

coupling capacitor connected between line and ground for power line carrier-frequency (PLC)

application

IEC 60358-3, Coupling capacitors and capacitor dividers – Part 3: AC or DC coupling

capacitor for harmonic-filters applications

IEC 60358-4, Coupling capacitors and capacitor dividers – Part 4: DC or AC single-phase

capacitor dividers
---------------------- Page: 7 ----------------------
– 6 – IEC 60358-4:2018 © IEC 2018
COUPLING CAPACITORS AND CAPACITOR DIVIDERS –
Part 4: DC or AC single-phase capacitor dividers
1 Scope

This Part 4 of IEC 60358 applies to DC or AC single-phase capacitor-dividers connected

between line and ground used for manufacturing Voltage Transformers as well as for other

applications.

NOTE 1 Diagrams of dividers to which this standard applies are given in Figures 401 and 402 (402.1 and 402.2).

NOTE 2 This standard specifies the basic requirements of the dividers; the requirements of the complete Voltage

Transformers are given in the IEC 61869 series.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60358-1:2012, Coupling capacitors and capacitor dividers – Part 1: General rules

3 Terms and definitions
Clause 3 of IEC 60358-1:2012 is applicable with the following additional text:
Subclause 3.1.6 is applicable with the following additional Note:
NOTE For DC voltage divider, U include also peak voltage of harmonics.
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.400 Voltage divider definitions
3.400.1
voltage divider

device comprising resistors, inductors, capacitors, transformer(s) or a combination of these

components such that, between two points of the device, a desired fraction of the voltage

applied to the device as a whole can be obtained

Note 1 to entry: In this standard, voltage divider consists on HV-part, internal and/or external LV-part.

[SOURCE: IEC 60050-312:2001, 312-02-32]
---------------------- Page: 8 ----------------------
IEC 60358-4:2018 © IEC 2018 – 7 –
3.400.2
rated primary voltage

value of the primary voltage which appears in the designation of the voltage divider and on

which its performance is based

Note 1 to entry For a divider the performance is everything concerning the measurement behaviour:

transformation ratio, accuracy, burden, input voltage range, etc.

[SOURCE: IEC 60050-321:1986, 321-01-12, modified ("voltage transformer" replaced by

"voltage divider", Note 1 to entry added)]
3.400.3
rated secondary voltage

value of the secondary voltage which appears in the designation of the voltage transformer

and on which its performance is based
[SOURCE: IEC 60050-321:1986, 321-01-16]
3.400.4
capacitor voltage divider
C-Divider
voltage divider consisting only of capacitors
[SOURCE: IEC 60050-321:1986, 321-03-15]
3.400.5
R-C voltage divider
RC-Divider
voltage divider consisting capacitors with parallel connected resistors
3.400.6
C-R voltage divider
CR-divider
voltage divider consisting capacitors with series connected resistors
3.400.7
R-C-R voltage divider
RCR-divider
voltage divider consisting capacitors with series & parallel connected resistors
3.400.8
rated capacitance of divider C
capacitance value for which the divider has been designed
(resultant capacitance: C = C × C /(C + C ))
R 1 2 1 2
Note 1 to entry: C and C are as presented in Figure 401.
1 2
3.400.9
rated parallel resistance of divider R
resistance value for which the RC- & RCR-voltage divider has been designed
(resultant resistance: R = R + R )
PR P1 P2
Note 1 to entry: R and R are as presented in Figure 401.
P1 P2
---------------------- Page: 9 ----------------------
– 8 – IEC 60358-4:2018 © IEC 2018
3.400.10
rated series resistance of divider R
resistance value for which the CR- & RCR-voltage divider has been designed
(resultant resistance: R = R + R )
SR S1 S2
Note 1 to entry: R and R are as presented in Figure 401.
S1 S2
3.400.11
high-voltage capacitor

capacitor connected between the high-voltage terminal and the intermediate voltage terminal

of a capacitor divider
SEE: Figures 402.1 to 402.2.
[SOURCE: IEC 60050-436:1990, 436-02-12]
3.400.12
intermediate voltage capacitor

capacitor connected between the intermediate voltage terminal and the low-voltage terminal

of a capacitor divider
SEE: Figures 402.1 to 402.2.
[SOURCE: IEC 60050-436, 436-02-13]
3.400.13
ratio of a capacitor divider (voltage ratio)

ratio of the rated primary voltage applied to the capacitor divider (U ) to the open-circuit

intermediate voltage

Note 1 to entry: This ratio corresponds to the sum of the capacitances of the high voltage and intermediate

voltage capacitors divided by the capacitance of the high voltage capacitor:
(C + C )/C
1 2 1

Note 2 to entry: C and C include the stray capacitances, which are generally negligible.

1 2

[SOURCE: IEC 60050-436:1990, 436-04-05, modified (addition of "(U )", addition of Notes to

entry)]
4 Service conditions

Clause 4 of IEC 60358-1:2012 is applicable, unless otherwise specified in the specific product

standard.
5 Ratings

Clause 5 of IEC 60358-1:2012 is applicable, unless otherwise specified in the specific product

standard.
6 Design requirements

Clause 6 of IEC 60358-1:2012 is applicable, with the following additions and replacements:

---------------------- Page: 10 ----------------------
IEC 60358-4:2018 © IEC 2018 – 9 –
6.1 Insulation requirements
6.1.400 AC applications

Subclause 6.1 of IEC 60358-1:2012 is applicable, unless otherwise specified in the specific

product standard.
6.1.401 DC applications

Subclause 6.1 of IEC 60358-1:2012 is applicable with the following replacement for DC

withstand voltage test

For DC application, the DC withstand voltage test is defined with a factor F = 1,5. The voltage

shall be applied during one hour in both polarities, unless otherwise specified in the specific

product standard.
DC-test voltage = (F × U ) = 1,5 × U .
T m m
6.2 Other insulation requirements

Subclause 6.2 of IEC 60358-1:2012 is applicable except for the following modifications in

6.2.1 and 6.2.2:
6.2.1 Low voltage terminal not exposed to weather
Replace Subclause 6.2.1 of IEC 60358-1:2012 with the following new subclause:
6.2.1.400 Intermediate voltage terminal and low voltage terminal non exposed to
weather

Intermediate voltage terminal and low voltage terminal shall withstand an AC voltage of 3 kV

against earth terminal, unless otherwise specified in the specific product standard.

If the intermediate voltage is higher than 0,72/√3 kV, the test voltage has to be adapted

according to Table 3 of 60358-1:2012.
6.2.2 Low voltage terminal exposed to weather
Subclause 6.2.2 of IEC 60358-1:2012 is applicable, with the following addition:
6.2.2.400 Intermediate voltage terminal exposed to weather

Intermediate voltage terminal shall withstand the AC voltage test according to Subclause

6.2.2 of IEC 60358-1:2012, unless otherwise specified in the specific product standard.

6.3 Electromagnetic emission requirements – Radio interference voltage (RIV)

Subclause 6.3 of IEC 60358-1:2012 is applicable, with the following modification: Delete

Note 2.

Annex C of IEC 60358-1:2012 is applicable, with the following modification: Delete Note 3.

6.4 Mechanical requirements

Subclause 6.4 of IEC 60358-1:2012 is applicable, unless otherwise specified in the specific

product standards.
---------------------- Page: 11 ----------------------
– 10 – IEC 60358-4:2018 © IEC 2018
7 Test conditions
Clause 7 of IEC 60358-1:2012 is applicable.
8 Classification of tests
8.1 General
Clause 8 of IEC 60358-1:2012 is applicable.
8.2 Routine tests
Subclause 8.2 of IEC 60358-1:2012 is applicable with the following additions:
8.2.400 Routine tests for voltage divider

Subclause 9.2.400.2 gives supplementary information how to perform the power frequency

withstand voltage test on an intermediate terminal.
The following supplementary tests shall be done:
a) Verification of terminal marking (9.2.400.3)
8.3 Type tests
Subclause 8.3 of IEC 60358-1:2012 is applicable.
8.4 Special tests
Subclause 8.4 of IEC 60358-1:2012 is applicable.
9 Routine tests
Clause 9 of IEC 60358-1:2012 is applicable with the following additions:
9.1 Tightness of the liquid-filled equipment
Subclause 9.1 of IEC 60358-1:2012 is applicable.

NOTE Tightness test for gas insulated equipment is specified in Subclause 9.1.2 of IEC 60358-1:2012.

9.2 Electrical tests
Subclause 9.2 of IEC 60358-1:2012 is applicable, with the following additions:
9.2.400 Electrical tests for divider
9.2.400.1 General

The routine tests on the capacitor part are specified in Subclause 8.2 of IEC 60358-1:2012

with the following modifications:
9.2.400.1.1 Capacitance, tanδ and resistance measurement
The HV-capacitance shall be measured as in Subclause 9.2.2 of IEC 60358-1:2012.

The LV-capacitance can be measured with different methods (for ex: RLC bridge, etc.).

---------------------- Page: 12 ----------------------
IEC 60358-4:2018 © IEC 2018 – 11 –
If any resistor component is placed inside:
The HV-resistance shall be measured as in Subclause 9.2.6 of IEC 60358-1:2012.
The LV-resistance can be measured with lower voltages.
9.2.400.1.2 DC withstand test
The test voltages and the duration are defined in Subclause 6.1.401.

Due to temperature reasons, a cooling down period is allowed between both polarities.

This test has to be done before the PD measurement.

NOTE By agreement between purchaser and manufacturer, this test can be replaced by an AC test at DC test

voltage according to Subclause 6.1.401 divided by √2.
9.2.400.2 Routine tests for low voltage device

The low voltage terminal and intermediate voltage terminal may be shorted together and AC

test voltage shall be applied between them and protective earth during one minute as shown

in Figure 400; the voltage level is defined in Subclause 6.1 of IEC 60358-1:2012.

If a voltage limitation device is connected on protective earth, it shall be disconnected during

the test.
Neither breakdown nor flashover shall occur during the test.
Voltage circuit to Possible short-circuit
connect for the test during the voltage test
Figure 400 – Connection for voltage test on low voltage part
9.2.400.3 Verification of terminal marking

It shall be verified that the terminal markings are correct according to Subclause 12.1.

---------------------- Page: 13 ----------------------
– 12 – IEC 60358-4:2018 © IEC 2018
10 Type tests

Clause 10 of IEC 60358-1:2012 is applicable unless otherwise specified in the specific

product standards.
11 Special tests

Clause 11 of IEC 60358-1:2012 is applicable unless otherwise specified in the specific

product standards.
12 Marking
12.1 Markings of the equipment
Clause 12 of IEC 60358-1:2012 is applicable with following modifications:

Actual values of capacitance C and C or C and C and parallel resistance (if any) R and

R 2 1 2 PR
or R and R or series resistance (if any) R and R or R and R shall be provided
P2 P1 P2 SR S2 S1 S2
to the customer either on name plate or in test report.
12.2 Markings of the terminals
Terminal markings shall be in accordance with Figure 401.
RC-divider C-divider CR-divider RCR-divider
Figure 401 – Different types of dividers
---------------------- Page: 14 ----------------------
IEC 60358-4:2018 © IEC 2018 – 13 –
Annex 4A
(informative)
Example of diagram of dividers
Figure 4A.400 shows an example of diagram of dividers.
Figure 402.1– Example of a diagram Figure 402.2 – Example of a diagram
for a capacitive divider for a RC-divider
Figure 4A.400 – Example of diagram of dividers
___________
---------------------- Page: 15 ----------------------
– 14 – IEC 60358-4:2018 © IEC 2018
SOMMAIRE

AVANT-PROPOS .................................................................................................................. 15
