IEC 60601-2-37:2007/AMD1:2015

Amendment 1 - Medical electrical equipment - Part 2-37: Particular requirements for the basic safety and essential performance of ultrasonic medical diagnostic and monitoring equipment

Amendement 1 - Appareils électromédicaux - Partie 2-37: Exigences particulières pour la sécurité de base et les performances essentielles des appareils de diagnostic et de surveillance médicaux à ultrasons

General Information

• Status: Published
• Publication Date: 07-Jun-2015
• ICS: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION
• ICS: 11.040.55 - Diagnostic equipment
• ICS: 17.140.50 - Electroacoustics
• Technical Committee: SC 62B - Medical imaging equipment, software, and systems
• Drafting Committee: MT 34 - TC 62/SC 62B/MT 34

Relations

• Amends: IEC 60601-2-37:2007 - Medical electrical equipment - Part 2-37: Particular requirements for the basic safety and essential performance of ultrasonic medical diagnostic and monitoring equipment
• Effective Date: 05-Sep-2023
• Revised: IEC 60601-2-37:2024 - Medical electrical equipment - Part 2-37: Particular requirements for the basic safety and essential performance of ultrasonic medical diagnostic and monitoring equipment
• Effective Date: 05-Sep-2023

Standards Content (Sample)

IEC 60601-2-37 ®
Edition 2.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Medical electrical equipment –
Part 2-37: Particular requirements for the basic safety and essential performance
of ultrasonic medical diagnostic and monitoring equipment

Appareils électromédicaux –
Partie 2-37: Exigences particulières pour la sécurité de base et les performances
essentielles des appareils de diagnostic et de surveillance médicaux à ultrasons
IEC 60601-2-37:2007-08/AMD1:2015-06(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 15
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 60 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
15 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 60 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
[e-mail].

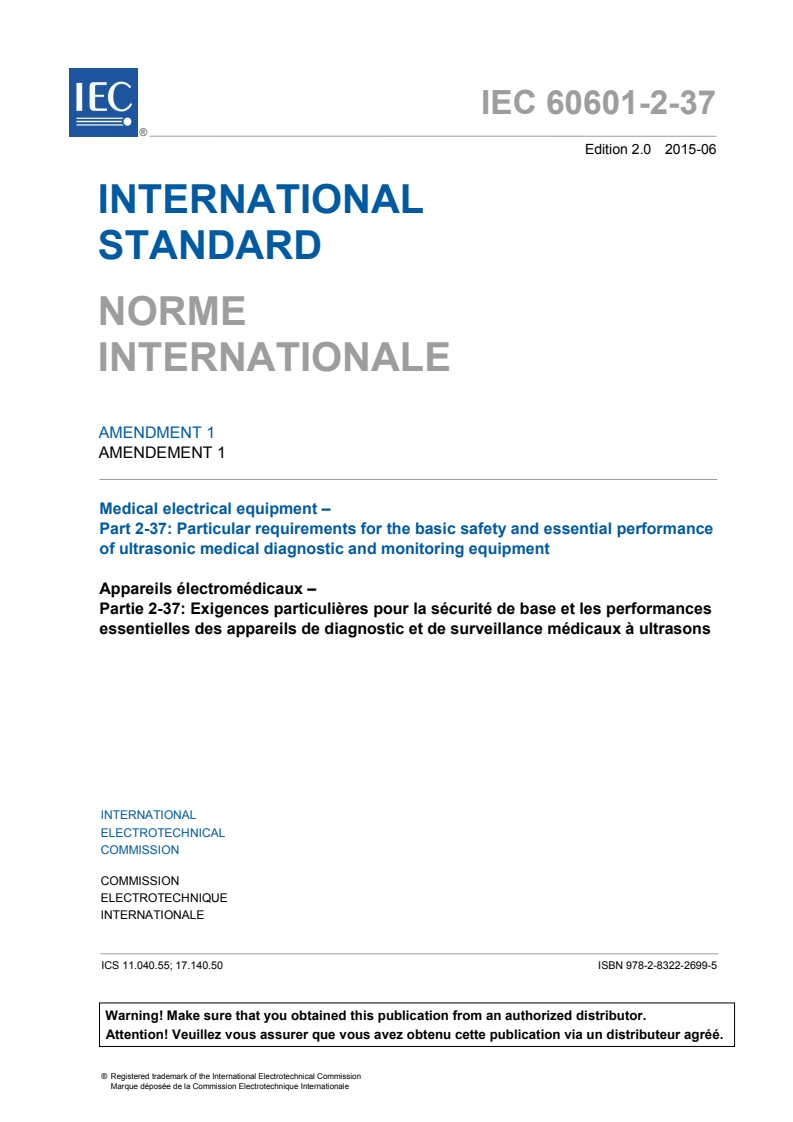

IEC 60601-2-37 ®
Edition 2.0 2015-06
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Medical electrical equipment –

Part 2-37: Particular requirements for the basic safety and essential performance

of ultrasonic medical diagnostic and monitoring equipment

Appareils électromédicaux –
Partie 2-37: Exigences particulières pour la sécurité de base et les performances

essentielles des appareils de diagnostic et de surveillance médicaux à ultrasons

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 11.040.55; 17.140.50 ISBN 978-2-8322-2699-5

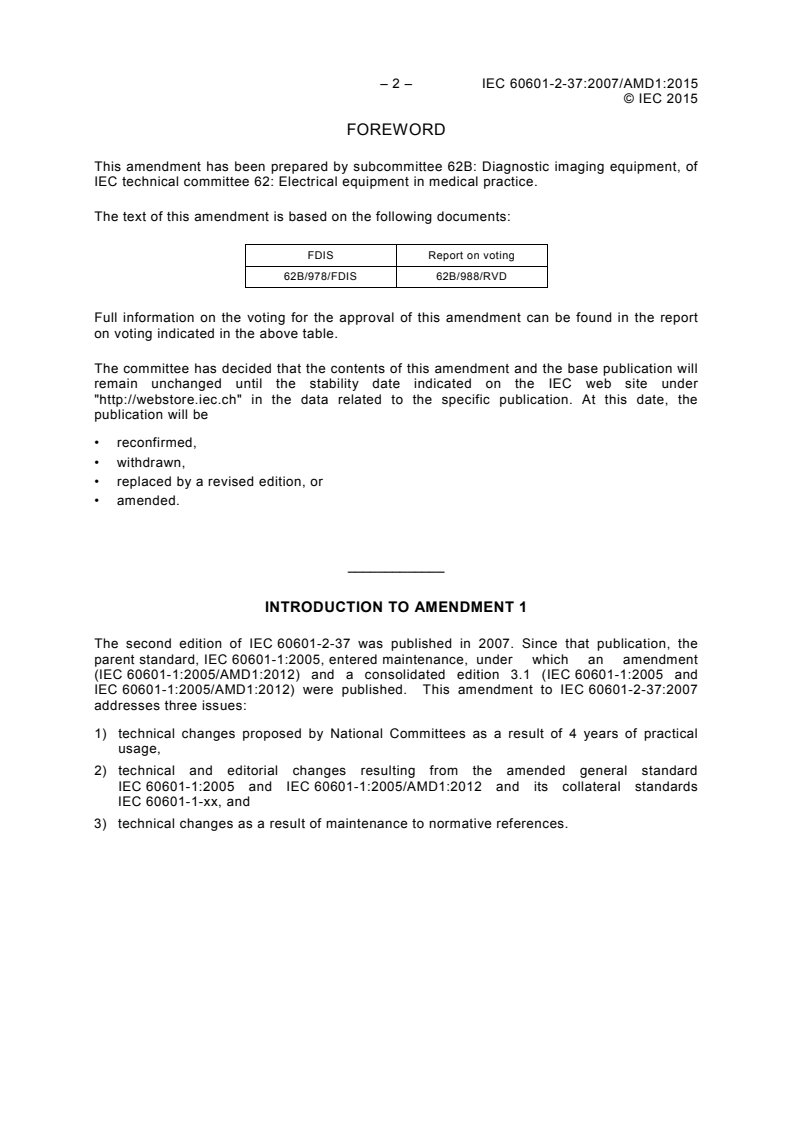

– 2 – IEC 60601-2-37:2007/AMD1:2015
© IEC 2015
FOREWORD
This amendment has been prepared by subcommittee 62B: Diagnostic imaging equipment, of
IEC technical committee 62: Electrical equipment in medical practice.
The text of this amendment is based on the following documents:
FDIS Report on voting
62B/978/FDIS 62B/988/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION TO AMENDMENT 1
The second edition of IEC 60601-2-37 was published in 2007. Since that publication, the
parent standard, IEC 60601-1:2005, entered maintenance, under which an amendment
(IEC 60601-1:2005/AMD1:2012) and a consolidated edition 3.1 (IEC 60601-1:2005 and
IEC 60601-1:2005/AMD1:2012) were published. This amendment to IEC 60601-2-37:2007
addresses three issues:
1) technical changes proposed by National Committees as a result of 4 years of practical
usage,
2) technical and editorial changes resulting from the amended general standard
IEC 60601-1:2005 and IEC 60601-1:2005/AMD1:2012 and its collateral standards
IEC 60601-1-xx, and
3) technical changes as a result of maintenance to normative references.

© IEC 2015
201.1.1 *Scope
Replace “Addition:” with “Replacement:”
201.2 Normative references
Replace the existing text of this subclause by the following:
Clause 2 of the general standard applies except as follows:
Addition:
IEC 60601-1:2005, Medical electrical equipment – Part 1: General requirements for basic
safety and essential performance
IEC 60601-1:2005/AMD1:2012
IEC 60601-2-18:2009, Medical electrical equipment – Part 2-18: Particular requirements for
the basic safety and essential performance of endoscopic equipment
IEC 62127-1:2007, Ultrasonics – Hydrophones – Part 1: Measurement and characterization of
medical ultrasonic fields up to 40 MHz
IEC 62127-1:2007/AMD1:2013
IEC 62359:2010, Ultrasonics – Field characterization – Test methods for the determination of
thermal and mechanical indices related to medical diagnostic ultrasonic fields
201.3 Terminology and definitions
Replace the existing title of this clause with the following:
201.3 Terms and definitions
201.3.201
Replace the existing text of the term and definition by the following:
BONE THERMAL INDEX
TIB
THERMAL INDEX for applications such as foetal (second and third trimester), in which the
ultrasound beam passes through soft tissue and a focal region is in the immediate vicinity of
bone
Unit: None
[SOURCE: IEC 62359:2010, 3.17, modified – The definition no longer refers to neonatal
cephalic applications, and the original notes have been deleted]
_____________
There exists a consolidated edition (3.1) including IEC 60601-1:2005 and its Amendment 1 (2012).
There exists a consolidated edition (1.1) including IEC 62127-1:2007 and its Amendment 1 (2013).

– 4 – IEC 60601-2-37:2007/AMD1:2015
© IEC 2015
201.3.203
Replace the existing text of the term and definition by the following:
CRANIAL-BONE THERMAL INDEX
TIC
THERMAL INDEX for applications in which the ultrasound beam passes through bone near the
beam entrance into the body, such as paediatric and adult cranial or neonatal cephalic
applications
Unit: None
[SOURCE: IEC 62359:2010, 3.21, modified – The definition now includes a reference to
neonatal cephalic applications, and the original notes have been deleted.]
201.3.211
PRUDENT USE STATEMENT
Replace the existing text of the definition by the following:
affirmation of the principle that only necessary clinical information should be acquired and
that high exposure levels and long exposure times should be avoided
[SOURCE: IEC 62359:2010, 3.40, modified – The definition has been reworded.]
201.3.213
Replace the existing text of the term and definition by the following:
SOFT TISSUE THERMAL INDEX
TIS
THERMAL INDEX related to soft tissues
Unit: None.
[SOURCE: IEC 62359:2010, 3.52, modified – The original notes have been deleted.]
201.3.214
Replace the existing text of the term and definition by the following:
THERMAL INDEX
TI
ratio of ATTENUATED OUTPUT POWER at a specified point to the ATTENUATED OUTPUT POWER
required to raise the temperature at that point in a specific tissue model by 1 °C
Unit: None
[SOURCE: IEC 62359:2010, 3.56, modified – The term "ATTENUATED ACOUSTIC POWER" has
been replaced twice by the term "ATTENUATED OUTPUT POWER", and the original note has been
deleted.]
201.3.215
TRANSDUCER ASSEMBLY
Replace the existing text of the definition by the following:
those parts of ULTRASONIC DIAGNOSTIC EQUIPMENT comprising the ULTRASONIC TRANSDUCER
and/or ULTRASONIC TRANSDUCER ELEMENT GROUP, together with any integral components, such
as an acoustic lens or integral stand-off
Note 1 to entry: The TRANSDUCER ASSEMBLY is usually separable from the ultrasound instrument console.

© IEC 2015
[SOURCE: IEC 62127-1:2007, 3.69, modified – the original term "medical diagnostic
ultrasound equipment" has been replaced by "ULTRASONIC DIAGNOSTIC EQUIPMENT" in the
definition.]
201.3.216
TRANSMIT PATTERN
Add, at the end of the term and definition, the following source reference:
[SOURCE: IEC 62359:2010, 3.58]
201.3.218
ULTRASONIC TRANSDUCER
Replace the existing text of the term and definition by the following:
device capable of converting electrical energy to mechanical energy within the ultrasonic
frequency range and/or reciprocally of converting mechanical energy to electrical energy
[SOURCE: IEC 62127-1:2007/AMD1:2013, 3.73]
Add the following new definitions:
201.3.219
ATTENUATED PULSE-AVERAGE INTENSITY
I
pa,a
value of the acoustic PULSE-AVERAGE INTENSITY after attenuation and at a specified point, and
given by
(−azf /10 dB)
awf
I = I (z)10
pa,a pa
where
a is the ACOUSTIC ATTENUATION COEFFICIENT as defined in IEC 62359:2010, definition 3.1;
z is the distance from the EXTERNAL TRANSDUCER APERTURE to the point of interest;
f is the ACOUSTIC WORKING FREQUENCY as defined in IEC 62359:2010, definition 3.4;
awf
I (z) is the PULSE-AVERAGE INTENSITY measured in water as defined in IEC 62127-1:2007
pa
and IEC 62127-1:2007/AMD1:2013, definition 3.47.
–2
Unit: W m
201.3.220
NUMBER OF PULSES PER ULTRASONIC SCAN LINE
the number of acoustic pulses travelling along a particular ULTRASONIC SCAN LINE
Note 1 to entry: Here ULTRASONIC SCAN LINE refers to the path of acoustic pulses on a particular BEAM AXIS in
SCANNING and NON-SCANNING MODES.
Note 2 to entry: This number can be used in the calculation of any ultrasound temporal average value from
HYDROPHONE measurements.
Note 3 to entry: The following shows an example of the NUMBER OF PULSES PER ULTRASONIC SCAN LINE and the
NUMBER OF ULTRASONIC SCAN LINES (“;” indicates the end of a frame):
1 2 3 4; 1 2 3 4; 1 2 3 4… n =1; n = 4
pps sl
1 1 2 2 3 3 4 4; 1 1 2 2 3 3 4 4; … n =2; n = 4
pps sl
1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4; 1 1 1 1 2 2 2 2 3 3 3 3 4 4 4 4; … n = 4; n = 4
pps sl
1 1 2 2 3 3 4 4 1 1 1 2 2 2 3 3 3 4 4 4; 1 1 2 2 3 3 4 4 1 1 1 2 2 2 3 3 3 4 4 4; … n = 5; n = 4 (within one frame
pps sl
the pulses down each line
...
