– 2 – IEC 61784-5-15:2010/AMD1:2015
 IEC 2015

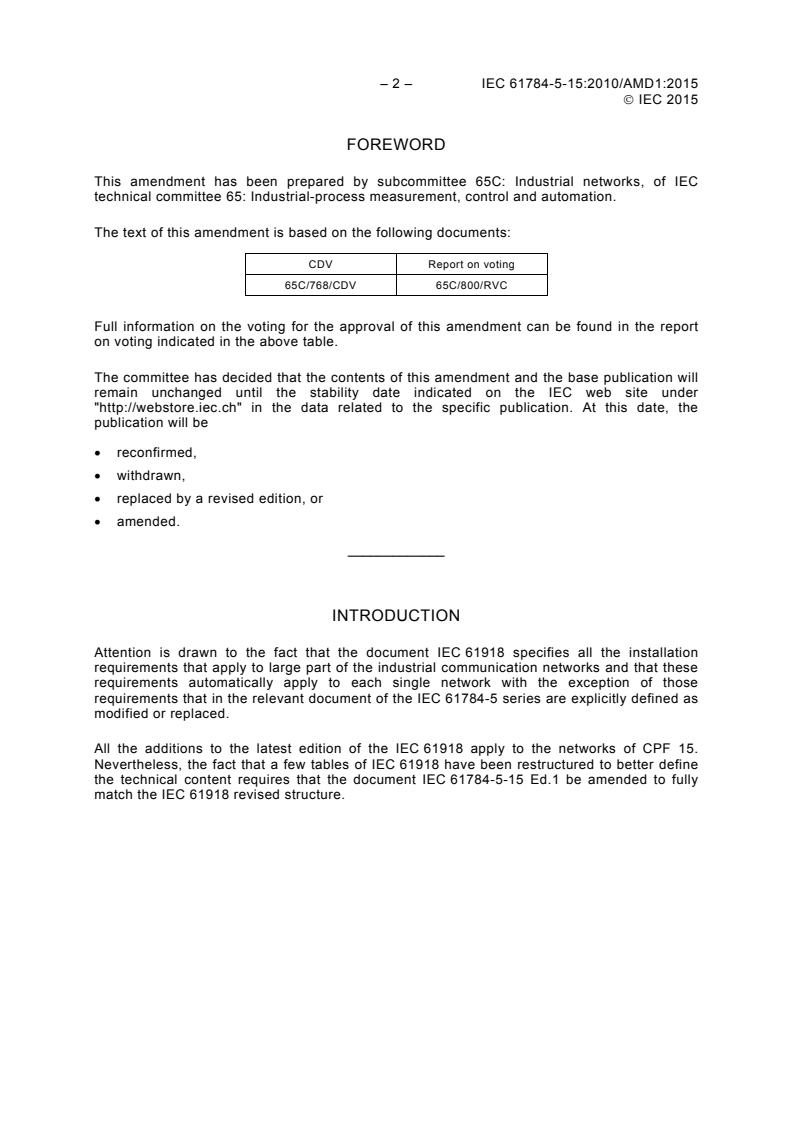

FOREWORD
This amendment has been prepared by subcommittee 65C: Industrial networks, of IEC
technical committee 65: Industrial-process measurement, control and automation.
The text of this amendment is based on the following documents:
CDV Report on voting
65C/768/CDV 65C/800/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION
Attention is drawn to the fact that the document IEC 61918 specifies all the installation
requirements that apply to large part of the industrial communication networks and that these
requirements automatically apply to each single network with the exception of those
requirements that in the relevant document of the IEC 61784-5 series are explicitly defined as
modified or replaced.
All the additions to the latest edition of the IEC 61918 apply to the networks of CPF 15.
Nevertheless, the fact that a few tables of IEC 61918 have been restructured to better define
the technical content requires that the document IEC 61784-5-15 Ed.1 be amended to fully
match the IEC 61918 revised structure.

 IEC 2015
GENERAL REPLACEMENT
In all occurrences of “IEC 61918:2010” replace it with “IEC 61918:2013”.
OTHER REPLACEMENTS
2 Normative references
Add the following references to the existing list:
IEC 60603-7-3, Connectors for electronic equipment – Part 7-3: Detail specification for 8-way,
shielded, free and fixed connectors, for data transmission with frequencies up to 100 MHz
IEC 60793-2 (all subparts), Optical fibres – Part 2: Product specifications
6 Conformance to installation profiles
Replace the following existing text:
Compliance to IEC 61784-5-15:2010 for CP 15/ or
Compliance to IEC 61784-5-15 (Ed.2.0) for CP 15/m
with the following new text:
Compliance to IEC 61784-5-15:2010 and Am.1 for CP 15/m or
Compliance to IEC 61784-5-15 (Ed.1.0 and Am.1) for CP 15/m

Annex A – CP 15/1 (MODBUS™-TCP) and CP 15/2 (RTPS) specific installation profile
A.4.3.2.3 Network characteristics for balanced cabling based on Ethernet
Replace footnote a of Table A.1 with the following:
a See A.4.4.3.2.
A.4.3.2.4 Network characteristics for optical fibre cabling
Replace the existing Table A.2 with the following Table A.2:
________________
The date should not be used when the edition number is used.

– 4 – IEC 61784-5-15:2010/AMD1:2015
 IEC 2015
Table A.2 – Network characteristics for optical fibre cabling
CP 15/1 and CP 15/2
Optical fibre type Description
Single mode silica Bandwidth (MHz) or 500 at 1 310
equivalent at λ (nm)
Minimum length (m) 0
a
Maximum length (m) 14 000
Maximum channel insertion 8,5
loss/optical power budget
(dB)
Connecting hardware See A.4.4.2.5
Multimode silica 600 at 1 310
Modal bandwidth (MHz × km)
at λ (nm)
Minimum length (m) 0
a
Maximum length (m)
...
