IEC 60745-2-11
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-11: Particular requirements for reciprocating saws (jig and sabre saws)

Outils électroportatifs à moteur – Sécurité –
Partie 2-11: Règles particulières pour les scies alternatives (scies sauteuses et
scies sabres)
IEC 60745-2-11:2003+A1:2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60745-2-11
Edition 2.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Hand-held motor-operated electric tools – Safety –
Part 2-11: Particular requirements for reciprocating saws (jig and sabre saws)

Outils électroportatifs à moteur – Sécurité –
Partie 2-11: Règles particulières pour les scies alternatives (scies sauteuses et
scies sabres)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CD
CODE PRIX
ICS 25.140.20 ISBN 2-8318-9867-6

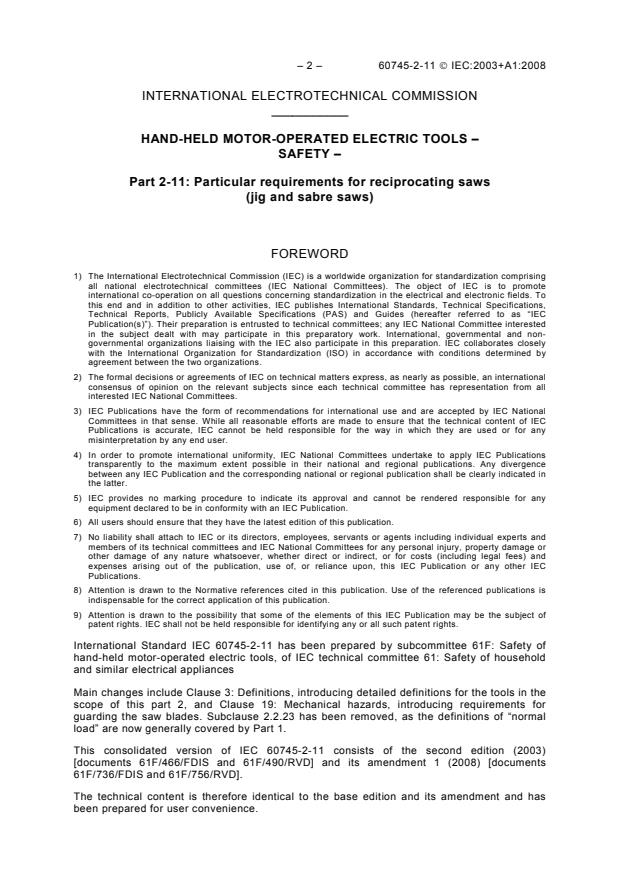

– 2 – 60745-2-11 © IEC:2003+A1:2008
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-11: Particular requirements for reciprocating saws
(jig and sabre saws)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60745-2-11 has been prepared by subcommittee 61F: Safety of
hand-held motor-operated electric tools, of IEC technical committee 61: Safety of household
and similar electrical appliances
Main changes include Clause 3: Definitions, introducing detailed definitions for the tools in the
scope of this part 2, and Clause 19: Mechanical hazards, introducing requirements for
guarding the saw blades. Subclause 2.2.23 has been removed, as the definitions of “normal
load” are now generally covered by Part 1.
This consolidated version of IEC 60745-2-11 consists of the second edition (2003)
[documents 61F/466/FDIS and 61F/490/RVD] and its amendment 1 (2008) [documents
61F/736/FDIS and 61F/756/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.

60745-2-11 © IEC:2003+A1:2008 – 3 –
It bears the edition number 2.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The French version of this standard has not been voted upon.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-11 is to be used in conjunction with the third edition of IEC 60745-1: Safety of
hand-held motor-operated electric tools – Part 1: General requirements. When this standard
states “addition”, “modification” or “replacement”, the relevant text in Part 1 is to be adapted
accordingly.
With amendment 1, this part 2 is established on the basis of the fourth edition (2006) of IEC
60745-1, Hand-held motor-operated electric tools – Safety – Part 1: General requirements.
Main changes include editorial modifications to match with the fourth edition of IEC 60745-1,
addition of a new safety warning to Clause 8: Marking and instructions, and clarifications in
Annex K.
NOTE In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.
Subclauses, tables and figures which are additional to those in Part 1 are numbered starting from 101; additional
annexes are lettered AA, BB, etc.
IEC 60745 consists of the following parts, under the general title Hand-held motor-operated
electric tools – Safety:
Part 1: General requirements
Part 2-1: Particular requirements for drills and impact drills
Part 2-2: Particular requirements for screwdrivers and impact wrenches
Part 2-3: Particular requirements for grinders, polishers and disk-type sanders
Part 2-4: Particular requirements for sanders and polishers other than disk type
Part 2-5: Particular requirements for circular saws and circular knives
Part 2-6: Particular requirements for hammers
Part 2-7: Particular requirements for spray guns for non-flammable liquids
Part 2-8: Particular requirements for shears and nibblers
Part 2-9: Particular requirements for tappers
Part 2-11: Particular requirements for reciprocating saws (jig and sabre saws)
Part 2-12: Particular requirements for concrete vibrators
Part 2-13: Particular requirements for chain saws
Part 2-14: Particular requirements for planers
Part 2-15: Particular requirements for hedge trimmers
Part 2-16: Particular requirements for tackers
Part 2-17: Particular requirements for routers and trimmers
Part 2-18: Particular requirements for strapping tools
Part 2-19: Particular requirements for jointers
Part 2-20: Particular requirements for band saws
Part 2-21: Particular requirements for drain cleaners

– 4 – 60745-2-11 © IEC:2003+A1:2008
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60745-2-11 © IEC:2003+A1:2008 – 5 –
HAND-HELD MOTOR-OPERATED ELECTRIC TOOLS –
SAFETY –
Part 2-11: Particular requirements for reciprocating saws
(jig and sabre saws)
1 Scope
This clause of Part 1 is applicable, except as follows:
Addition:
This standard applies to reciprocating saws such as jig saws and sabre saws.
2 Normative references
This clause of Part 1 is applicable.
3 Terms and definitions
This clause of Part 1 is applicable, except as follows:
Additional definitions:
3.101
reciprocating saw
tool intended for cutting various material with a blade or blades acting in a reciprocating or
oscillating motion
3.102
jigsaw
reciprocating saw with a base plate that may allow bevel adjustments
NOTE Typical designs of jigsaws are shown in Figure 102.
3.103
sabre saw
reciprocating saw with a guide plate that may allow tilting movements
NOTE Typical designs of sabre saws are shown in Figure 103.
4 General requirements
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable.

– 6 – 60745-2-11 © IEC:2003+A1:2008
6 Void
7 Classification
This clause of Part 1 is applicable.
8 Marking and instructions
This clause of Part 1 is applicable, except as follows:
8.12.1.1 Addition:
− Hold power tool by insulated gripping surfaces, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a "live" wire may make exposed metal parts of the power tool "live"
and could give the operator an electric shock.
9 Protection against access to live parts
This clause of Part 1 is applicable.
10 Starting
This clause of Part 1 is applicable.
11 Input and current
This clause of Part 1 is applicable.
12 Heating
This clause of Part 1 is applicable.
13 Leakage current
This clause of Part 1 is applicable.
14 Moisture resistance
This clause of Part 1 is applicable.
15 Electric strength
This clause of Part 1 is applicable.
16 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.

60745-2-11 © IEC:2003+A1:2008 – 7 –
17 Endurance
This clause of Part 1 is applicable.
18 Abnormal operation
This clause of Part 1 is applicable.
19 Mechanical hazards
This clause of Part 1 is applicable except as follows:
19.1 Replacement:
a) For jig saws
A guard shall be provided to prevent inadvertent contact with the cutting edge of the saw
blade above the base plate.
Compliance is checked by inspection and the following test.
The jig saw is set for the right-angled cut. The test probe of Figure 101a) is positioned above
the base plate as shown in Figure 101b) and Figure 101c). The longitudinal axis of the test
probe shall be perpendicular to the toothed edge of the saw blade. The test probe shall be
equally shared about the central plane of the saw blade. When the test probe is moved
towards the saw blade, it shall not be able to touch its toothed edge.
b) For other types of reciprocating saws
If a reciprocating saw is designed with a grip zone adjacent and behind the reciprocating saw
blade, a barrier shall be provided to prevent inadvertent contact with the saw blade. The
barrier shall have a minimum height of 6 mm as measured from the grip surface and be
located between the grip zone and the saw blade. A barrier is not required if the tool is
supplied with an auxiliary front handle.
Compliance is checked by inspection and measurement.
20 Mechanical strength
This clause of Part 1 is applicable.
21 Construction
This clause of Part 1 is applicable.
22 Internal wiring
This clause of Part 1 is applicable.
23 Components
This clause of Part 1 is applicable.

– 8 – 60745-2-11 © IEC:2003+A1:2008
24 Supply connection and external flexible cords
This clause of Part 1 is applicable.
25 Terminals for external conductors
This clause of Part 1 is applicable.
26 Provision for earthing
This clause of Part 1 is applicable.
27 Screws and connections
This clause of Part 1 is applicable.
28 Creepage distances, clearances and distances through insulation
This clause of Part 1 is applicable.
29 Resistance to heat, fire and tracking
This clause of Part 1 is applicable.
30 Resistance to rusting
This clause of Part 1 is applicable.
31 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60745-2-11 © IEC:2003+A1:2008 – 9 –
IEC  2668/05
a
a) Details of test probe
a
b
IEC  2669/05
NOTE Upper struc
...
