Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-7: Particular requirements for fans

IEC 60704-2-7:2020 is available as IEC 60704-2-7:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 60704-2-7:2020 applies to electrical fans (including their accessories and their component parts) for household and similar use, designed for AC or DC supply. The motor, the impeller and their housing, if any, form a single unit. These particular requirements apply to:
– conventional fans,
– table fans,
– pedestal fans,
– ceiling fans,
– bladeless fans,
– wall bracket fans,
– ceiling bracket fans,
– louver fans,
– tower fans,
– ventilating and partition ventilating fans.
This standard does not apply to:
– fans that are part of a ventilation system,
– fans designed exclusively for industrial purposes,
– fans that are part of an appliance (for example cooling fans),
– fans with additional functions (for example heating, humidifying).
Limitations for the use of this test code are given in the scope of IEC 60704-1.
This second edition cancels and replaces the first edition published in 1997. This edition constitutes a technical revision.
This edition includes the following significant changes with respect to the previous edition:
a) it includes additional fan categories as defined in IEC 60879:2019 and IEC 60665:2018;
b) it includes standard deviations of sound power levels in 1.3;
c) a comparison method has been added;
d) the normative references have been updated (ISO 3744:2010 and ISO 3743-1:2010);
e) it has been adjusted with regard to IEC 60704-1:2010.
This International Standard is to be used in conjunction with IEC 60704 1:2010, Household and similar electrical appliances – Test code for the determination of airborne acoustical noise – Part 1: General requirements. This Part 2-7 supplements or modifies the corresponding clauses in IEC 60704-1:2010, so as to establish the test code for fans.

Appareils électrodomestiques et analogues - Code d'essai pour la détermination du bruit aérien - Partie 2-7: Exigences particulières pour les ventilateurs

IEC 60704-2-7:2020 est disponible sous forme de IEC 60704-2-7:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 60704-2-7:2020 s'applique aux ventilateurs électriques (y compris leurs accessoires et composants) qui sont destinés à des usages domestiques et analogues et conçus pour une alimentation en courant alternatif ou en courant continu. Le moteur, les pales et leur boîtier, le cas échéant, constituent un bloc. Ces exigences particulières s'appliquent aux:
– ventilateurs conventionnels;
– ventilateurs de table;
– ventilateurs sur pied;
– ventilateurs de plafond;
– ventilateurs sans pales;
– ventilateurs à applique murale;
– ventilateurs à applique au plafond;
– ventilateurs rotatifs;
– ventilateurs à colonne;
– aérateurs et aérateurs de cloison.
La présente norme ne s'applique pas aux:
– ventilateurs qui font partie intégrante d'un système de ventilation;
– ventilateurs conçus exclusivement pour des usages industriels;
– ventilateurs qui font partie d'un appareil (par exemple les ventilateurs de refroidissement);
– ventilateurs avec des fonctions supplémentaires (par exemple chauffage, humidification).
Les limites d'utilisation de ce code d'essai sont données dans le domaine d'application de l'IEC 60704-1.
Cette deuxième édition annule et remplace la première édition parue en 1997. Cette édition constitue une révision technique.
Cette édition inclut les modifications majeures suivantes par rapport à l'édition précédente:
a) elle inclut des catégories de ventilateurs supplémentaires, définies dans l'IEC 60879:2019 et l'IEC 60665:2018;
b) des écarts-types sont fournis pour les niveaux de puissance acoustique en 1.3;
c) une méthode comparative a été ajoutée;
d) les références normatives ont été mises à jour (ISO 3744:2010 et ISO 3743-1:2010);
e) le présent document a fait l'objet de réajustements par rapport à l'IEC 60704-1:2010.
Cette Norme Internationale doit être utilisée conjointement avec l'IEC 60704-1:2010, Appareils électrodomestiques et analogues – Code d'essai pour la détermination du bruit aérien – Partie 1: Règles générales. La présente Partie 2-7 complète ou modifie les articles correspondants de l'IEC 60704-1:2010 de façon à établir le code d'essai pour les ventilateurs.

General Information

Status
Published
Publication Date
22-Jan-2020
Current Stage
PPUB - Publication issued
Completion Date
23-Jan-2020
Ref Project

Buy Standard

Standard
IEC 60704-2-7:2020 - Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-7: Particular requirements for fans
English and French language
30 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

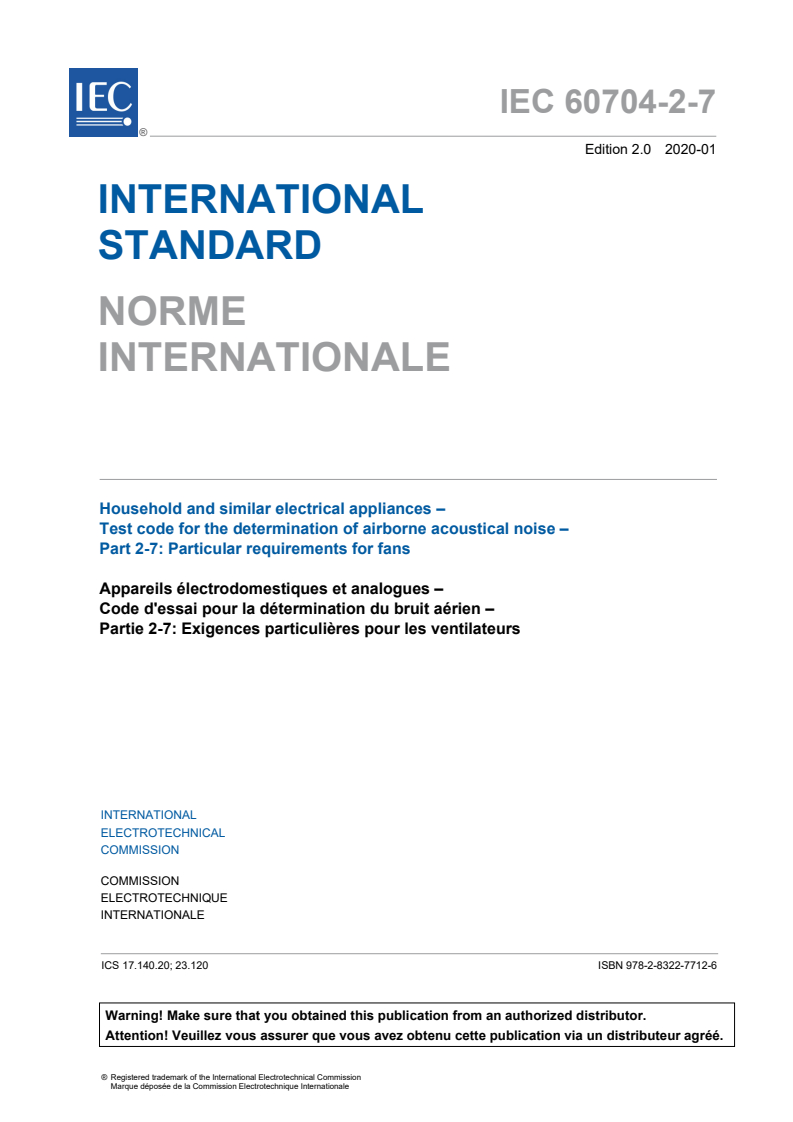

IEC 60704-2-7
Edition 2.0 2020-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances –
Test code for the determination of airborne acoustical noise –
Part 2-7: Particular requirements for fans
Appareils électrodomestiques et analogues –
Code d'essai pour la détermination du bruit aérien –
Partie 2-7: Exigences particulières pour les ventilateurs
IEC 60704-2-7:2020-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------
IEC 60704-2-7
Edition 2.0 2020-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances –
Test code for the determination of airborne acoustical noise –
Part 2-7: Particular requirements for fans
Appareils électrodomestiques et analogues –
Code d'essai pour la détermination du bruit aérien –
Partie 2-7: Exigences particulières pour les ventilateurs
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.140.20; 23.120 ISBN 978-2-8322-7712-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60704-2-7:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope and object ............................................................................................................. 6

2 Normative references ...................................................................................................... 7

3 Terms and definitions ...................................................................................................... 8

4 Measurement methods and acoustical environments ..................................................... 10

5 Instrumentation .............................................................................................................. 10

6 Operation and location of appliances under test ............................................................ 10

7 Measurement of sound pressure levels .......................................................................... 12

8 Calculation of sound pressure and sound power levels .................................................. 13

9 Information to be recorded ............................................................................................. 13

10 Information to be reported ............................................................................................. 13

Annexes ............................................................................................................................... 15

Annex B (normative) Test enclosure .................................................................................... 15

Bibliography .......................................................................................................................... 15

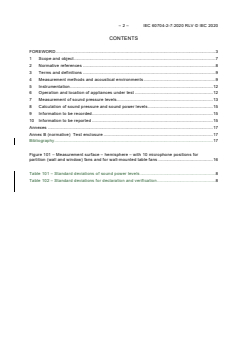

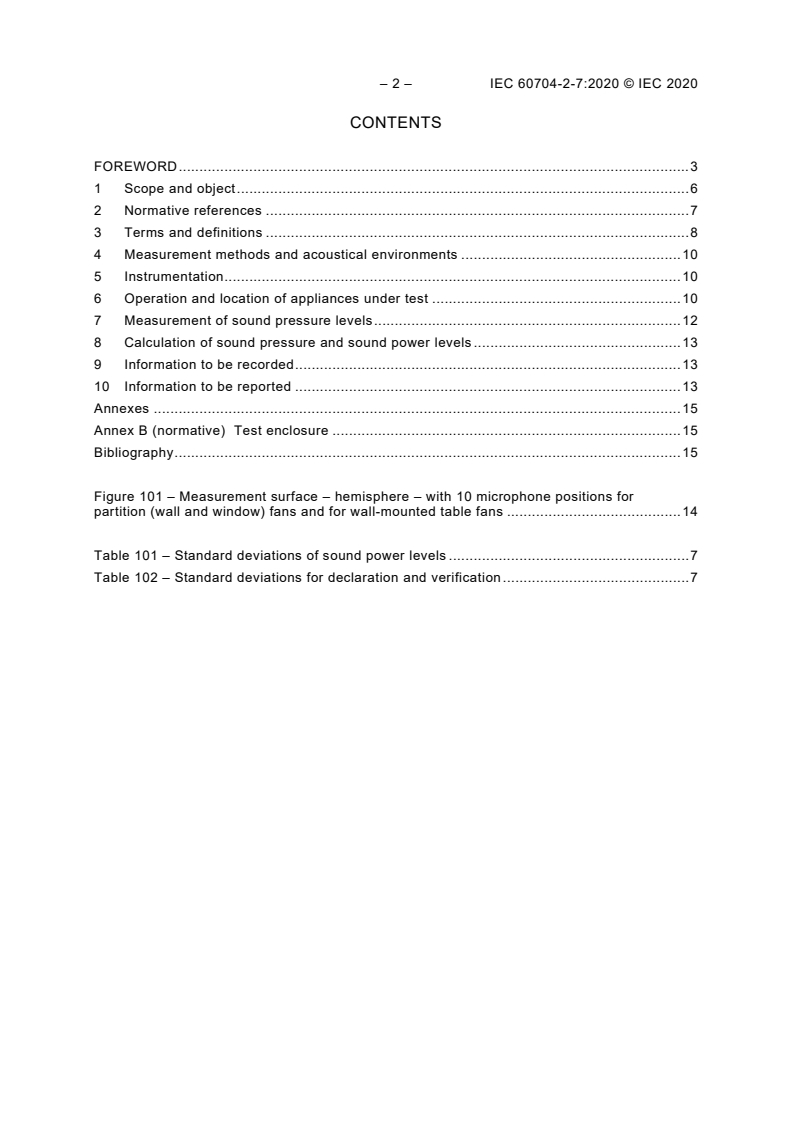

Figure 101 – Measurement surface – hemisphere – with 10 microphone positions for

partition (wall and window) fans and for wall-mounted table fans .......................................... 14

Table 101 – Standard deviations of sound power levels .......................................................... 7

Table 102 – Standard deviations for declaration and verification ............................................. 7

---------------------- Page: 4 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
_________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION OF
AIRBORNE ACOUSTICAL NOISE –
Part 2-7: Particular requirements for fans
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60704-2-7 has been prepared by subcommittee 59L: Small

household appliances, of IEC technical committee 59: Performance of household and similar

electrical appliances.

This second edition cancels and replaces the first edition published in 1997. This edition

constitutes a technical revision.

This edition includes the following significant changes with respect to the previous edition:

a) it includes additional fan categories as defined in IEC 60879:2019 and IEC 60665:2018;

b) it includes standard deviations of sound power levels in 1.3;
c) a comparison method has been added;

d) the normative references have been updated (ISO 3744:2010 and ISO 3743-1:2010);

e) it has been adjusted with regard to IEC 60704-1:2010.
---------------------- Page: 5 ----------------------
– 4 – IEC 60704-2-7:2020 © IEC 2020
The text of this standard is based on the following documents:
CDV Report on voting
59L/168/CDV 59L/174/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all parts in the IEC 60704 series, published under the general title Household and

similar electrical appliances – Test code for the determination of airborne acoustical noise,

can be found on the IEC website.

This International Standard is to be used in conjunction with IEC 60704-1:2010, Household

and similar electrical appliances – Test code for the determination of airborne acoustical noise

– Part 1: General requirements.
NOTE When “Part 1” is mentioned in this standard, it refers to IEC 60704-1:2010.

The relevant text of Part 1 as amended by this standard establishes the test code for fans.

This Part 2-7 supplements or modifies the corresponding clauses in IEC 60704-1:2010, so as

to establish the test code for fans. When a particular subclause of Part 1 is not mentioned in

this Part 2-7, that subclause is applicable as far as reasonable. Where this standard states

"addition", "modification" or "replacement", the relevant requirements, test specifications or

explanatory matter in Part 1 should be adapted accordingly.

Subclauses, tables and figures that are numbered starting from 101 are additional to those in

Part 1.

Unless notes are in a new subclause or involve notes in Part 1, they are numbered starting

from 101, including those in a replaced clause or subclause.
Additional annexes are lettered AA, BB, etc.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 5 –
INTRODUCTION

The measuring conditions specified in this Part 2-7 provide for sufficient accuracy in

determining the noise emitted and the comparison of the results of measurements taken by

different laboratories, whilst simulating as far as possible the practical use of household fans.

It is recommended to consider the determination of noise levels as part of a comprehensive

testing procedure covering many aspects of the properties and performance of household

fans.

NOTE As stated in the introduction to IEC 60704-1, this test code is concerned with airborne noise only.

---------------------- Page: 7 ----------------------
– 6 – IEC 60704-2-7:2020 © IEC 2020
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION OF
AIRBORNE ACOUSTICAL NOISE –
Part 2-7: Particular requirements for fans
1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1 Scope
1.1.1 General
Replacement:

This document applies to electrical fans (including their accessories and their component

parts) for household and similar use, designed for AC or DC supply.
The motor, the impeller and their housing, if any, form a single unit.
These particular requirements apply to:
– conventional fans,
– table fans,
– pedestal fans,
– ceiling fans,
– bladeless fans,
– wall bracket fans,
– ceiling bracket fans,
– louver fans,
– tower fans,
– ventilating and partition ventilating fans.
This standard does not apply to:
– fans that are part of a ventilation system,
– fans designed exclusively for industrial purposes,
– fans that are part of an appliance (for example cooling fans),
– fans with additional functions (for example heating, humidifying).
Limitations for the use of this test code are given in the scope of IEC 60704-1.
1.1.2 Type of noise
Replacement:

The methods specified in ISO 3743-1, ISO 3743-2 and ISO 3744 can be used for measuring

noise emitted by fans.
---------------------- Page: 8 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 7 –
1.1.3 Size of source
Replacement:

The method specified in ISO 3744 is applicable to noise sources of any size. When applying

ISO 3743-1 and ISO 3743-2, care should be taken to ensure that the maximum size of the

appliance under test fulfils the requirements specified in 1.2 of ISO 3743-1:2010 and 1.3 of

ISO 3743-2:1994.
1.2 Object
Addition:

This document describes the determination of the noise emission of household fans in normal

operation at maximum speed. Other speeds can, in addition, be used. Requirements for the

declaration of noise emission values are not within the scope of this document.

The aim of this document is to give direction for measuring the noise in a room resulting from

the operation of a fan.

NOTE 101 For determining and verifying noise emission values declared in product specifications, see

IEC 60704-3.
1.3 Measurement uncertainty
Replacement:

The estimated values of standard deviations of sound power levels determined in accordance

with this document are given in Table 101:
Table 101 – Standard deviations of sound power levels
Standard deviation (dB)
σ (repeatability) σ (reproducibility)
r R
0,4 1,0
Addition:
1.101 Standard deviation for declaration and verification

For the purpose of determining and verifying declared noise emission values in accordance

with IEC 60704-3, the values in Table 102 apply:
Table 102 – Standard deviations for declaration and verification
Standard deviation (dB)
σ (production) σ (total) σ (reference)
P t M
0,5 to 1,0 1,0 to 1,4 1,5
2 Normative references
This clause of Part 1 is applicable except as follows:
Replacement:
---------------------- Page: 9 ----------------------
– 8 – IEC 60704-2-7:2020 © IEC 2020

ISO 3743-1:2010, Acoustics – Determination of sound power levels and sound energy levels

of noise sources using sound pressure – Engineering methods for small movable sources in

reverberant fields – Part 1: Comparison method for a hard-walled test room

ISO 3744:2010, Acoustics – Determination of sound power levels and sound energy levels of

noise sources using sound pressure – Engineering methods for an essentially free field over a

reflecting plane
Addition:

IEC 60704-1:2010, Household and similar electrical appliances – Test code for the

determination of airborne acoustical noise – Part 1: General requirements
3 Terms and definitions
This clause of Part 1 is applicable except as follows:
Addition:
3.101
conventional fan

comfort fan with a propeller having two or more blades, with free inlet and outlet of air

[SOURCE: IEC 60879:2019, 3.2]
3.102
tower fan

comfort fan for use directly on the floor having a vertically elongated design of the cross flow

type, tangential type or centrifugal type or impeller type with a free inlet and outlet of air

[SOURCE: IEC 60879:2019, 3.3]
3.103
bladeless fan
comfort fan of any type that is not fitted with a propeller
[SOURCE: IEC 60879:2019, 3.4]
3.104
ceiling fan

conventional fan provided with a device for suspension from the ceiling of a room so that the

blades rotate in a horizontal plane with the diameter of the blade not larger than 1800 mm

[SOURCE: IEC 60879:2019, 3.5]
3.105
table fan
comfort fan intended for use on a table

Note 1 to entry: Table fans have a maximum adjustable or non-adjustable height not greater than 1200mm

Note 2 to entry: Adjustment of height, position and oscillation can be possible.

Note 3 to entry: It can be a table fan or bracket-mounted fan for wall or ceiling mounting.

[SOURCE: IEC 60879:2019, 3.6, modified − Note 2 to entry and Note 3 to entry added]

---------------------- Page: 10 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 9 –
3.106
pedestal fan
comfort fan mounted on a pedestal of fixed or variable height

Note 1 to entry: Pedestal fans have a maximum adjustable height or non-adjustable height greater than 1 200 mm

Note 2 to entry: Adjustment of position and oscillation can be possible.
[SOURCE: IEC 60879:2019, 3.7, modified – Note 2 to entry added]
3.107
wall bracket fan
comfort fan for mounting on the wall
[SOURCE: IEC 60879:2019, 3.8]
3.108
ceiling bracket fan
comfort fan for mounting on the ceiling
[SOURCE: IEC 60879:2019, 3.9]
3.109
louvre fan

comfort fan having a moving louvre which provides a continuously changing multi-directional

air flow
[SOURCE: IEC 60879:2019, 3.10]
3.110
ventilating fan

fan intended to displace air either from one side of a partition to the other, or within a duct

installed either on the fan inlet or on the fan outlet or both
[SOURCE: IEC 60665:2018, 3.2]
3.111
partition ventilating fan
type A ventilating fan

ventilating fan installed in or upon the aperture of a partition in order to displace air from one

side of the partition to the other side, both the sides being free spaces
[SOURCE: IEC 60665:2018, 3.3]
3.112
free inlet partition ventilating fan
type B ventilating fan
ventilating fan with a direct inlet from free space and with ducted outlet
[SOURCE: IEC 60665:2018, 3.4]
3.113
free outlet partition ventilating fan
type C ventilating fan
ventilating fan with ducted inlet, and with direct outlet to free space
[SOURCE: IEC 60665:2018, 3.5]
---------------------- Page: 11 ----------------------
– 10 – IEC 60704-2-7:2020 © IEC 2020
3.114
fully ducted ventilating fan
type D ventilating fan
ventilating fan with ducted inlet and ducted outlet
[SOURCE: IEC 60665:2018, 3.6]
4 Measurement methods and acoustical environments
This clause of Part 1 is applicable except as follows:
4.2 Direct method
Addition:

If pure tone components are present in the noise emitted by the source, the estimated

standard deviation of the measured sound pressure levels in the special reverberation room

can increase. In such cases, additional microphone positions or source positions can be

necessary, such as those specified in ISO 3743-2.
4.3 Comparison method
Addition:

If pure tone components are present in the noise emitted by the source, the estimated

standard deviation of the measured sound pressure levels in the hard-walled test room or in

the special reverberation room can increase. In such cases, additional microphone positions

or source positions can be necessary, such as those specified in ISO 3743-1 or ISO 3743-2.

5 Instrumentation
This clause of Part 1 is applicable except as follows:
Addition:

The use of a windscreen is mandatory, and necessary corrections for changes in the

microphone sensitivity shall be added to the observed sound pressure levels.
6 Operation and location of appliances under test
This clause of Part 1 is applicable except as follows:
6.2 Supply of electricity and of water or gas
6.2.3
Not applicable.
6.2.4
Not applicable.
---------------------- Page: 12 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 11 –
6.4 Loading and operating of appliances during tests
6.4.1
Replacement:

Load and operation should simulate normal use. Fans that can be tilted during normal use

shall be located in the position with the highest emitted noise level, and the duration of the

measurement shall be at least 10 s.

Fans that can oscillate automatically shall operate when oscillating. In the case of oscillating

appliances, the A-weighted sound pressure level shall be averaged on at least one complete

cycle.
6.4.3
Not applicable.
6.5 Location and mounting of appliances
6.5.1
Addition:

Ceiling fans may be hung from a special support instead of from the ceiling. In this case, care

shall be taken to ensure that the means of suspension or clamping do not change the sound

output of the appliance. In order not to restrict the airflow, the distance between the lowest

edge of the appliance and the reflecting plane (usually the floor) shall be at least 1,5 m.

Alternatively, ceiling fans can be mounted in the reverse working position on the reflecting

plane, providing this does not affect sound radiation.
6.5.2
Not applicable.
6.5.3
Not applicable.
6.5.4
Replacement:
Partition (wall and window) fans shall be mounted in an opening made either:
– in a wall of the special reverberation test room; or

– on the second reflecting plane of the free field over a reflecting plane environment.

The height between the centre of the appliance and the floor shall be 1,5 m ± 0,05 m.

In all cases, care shall be taken to follow the instructions given by the manufacturer and to

avoid any structure-borne noise.
Care shall be taken to avoid any restriction of the airflow.

Attention shall be paid to avoid any difference of pressure between the rooms concerned (or

atmosphere), in order to avoid an unwanted load on the fan.
---------------------- Page: 13 ----------------------
– 12 – IEC 60704-2-7:2020 © IEC 2020
6.5.5
Not applicable.
6.5.7
Not applicable.
7 Measurement of sound pressure levels
This clause of Part 1 is applicable except as follows:
7.1 Microphone array, measurement surface and RSS location for essentially free-
field conditions over reflecting plane(s)
7.1.1
Addition:

This measurement surface shall be used for table, pedestal, louver, tower, bladeless, ceiling

bracket and ceiling fans. Table fans are placed on the floor.

This measurement surface shall not be used for wall bracket fans and window fans.

The use of a windscreen is mandatory.
7.1.2
Not applicable.
7.1.3
Not applicable.
7.1.4
Replacement:

For partition (wall and window) fans and wall-mounted table fans, the measurement surface is

a hemisphere, with 10 microphone positions as specified in Figure 101, centred in the

projection of the geometrical centre of the reference box on the vertical plane, the coordinate

system describing the microphone positions being located with the x- and y-axes in the

vertical reflecting plan and the z-axis horizontally perpendicular to it. The x-axis lies in the

horizontal central plane of the reference box. The front of the fan is directed towards the z-

axis.
The area of this measurement surface is S = 2πR .
The radius of the hemisphere is 1 m.
7.1.5
Not applicable.
7.1.6
Addition:
---------------------- Page: 14 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 13 –
This measurement surface shall be used for tall pedestal fans.
7.2 Microphone array and RSS location in hard-walled test rooms
Not applicable.
7.4 Measurements
7.4.4
Not applicable.
8 Calculation of sound pressure and sound power levels
This clause of Part 1 is applicable.
9 Information to be recorded
This clause of Part 1 is applicable except as follows:
9.7 Electric supply, water supply, etc.
9.7.3
Not applicable.
9.7.4
Not applicable.
10 Information to be reported
This clause of Part 1 is applicable, except as follows:
10.3 Test conditions for the appliance
10.3.4
Not applicable.
10.3.5
Not applicable.
---------------------- Page: 15 ----------------------
– 14 – IEC 60704-2-7:2020 © IEC 2020
Coordinates of microphone positions:
N° x/R y/R z/R
1 0 -0,99 0,15
2 0,86 0,50 0,15
3 -0,86 0,50 0,15
4 -0,77 -0,45 0,45
5 0,77 -0,45 0,45
6 0 0,89 0,45
7 -0,57 0,33 0,75
8 0 -0,66 0,75
9 0,57 0,33 0,75
10 0 0 1,0
Measurement surface area:
S = 2πR
Figure 101 – Measurement surface – hemisphere – with 10 microphone positions for
partition (wall and window) fans and for wall-mounted table fans
---------------------- Page: 16 ----------------------
IEC 60704-2-7:2020 © IEC 2020 – 15 –
Annexes
The annexes of Part 1 apply with the following exception:
Annex B
(normative)
Test enclosure
This annex of Part 1 is not applicable.
Bibliography
Addition:

IEC 60665:2018, A.C. ventilating fans and regulators for household and similar purposes –

Methods for measuring performance

IEC 60879:2019, Comfort fans and regulators for household and similar purposes – Methods

for measuring performance
___________
---------------------- Page: 17 ----------------------
– 16 – IEC 60704-2-7:2020 © IEC 2020
