Amendment 2 - Powertrack systems - Part 1: General requirements

Amendement 2 - Systèmes de conducteurs préfabriqués - Partie 1: Exigences générales

General Information

Status
Published
Publication Date
02-Jul-2020
Current Stage
PPUB - Publication issued
Completion Date
03-Jul-2020
Ref Project

Buy Standard

Standard
IEC 61534-1:2011/AMD2:2020 - Amendment 2 - Powertrack systems - Part 1: General requirements
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

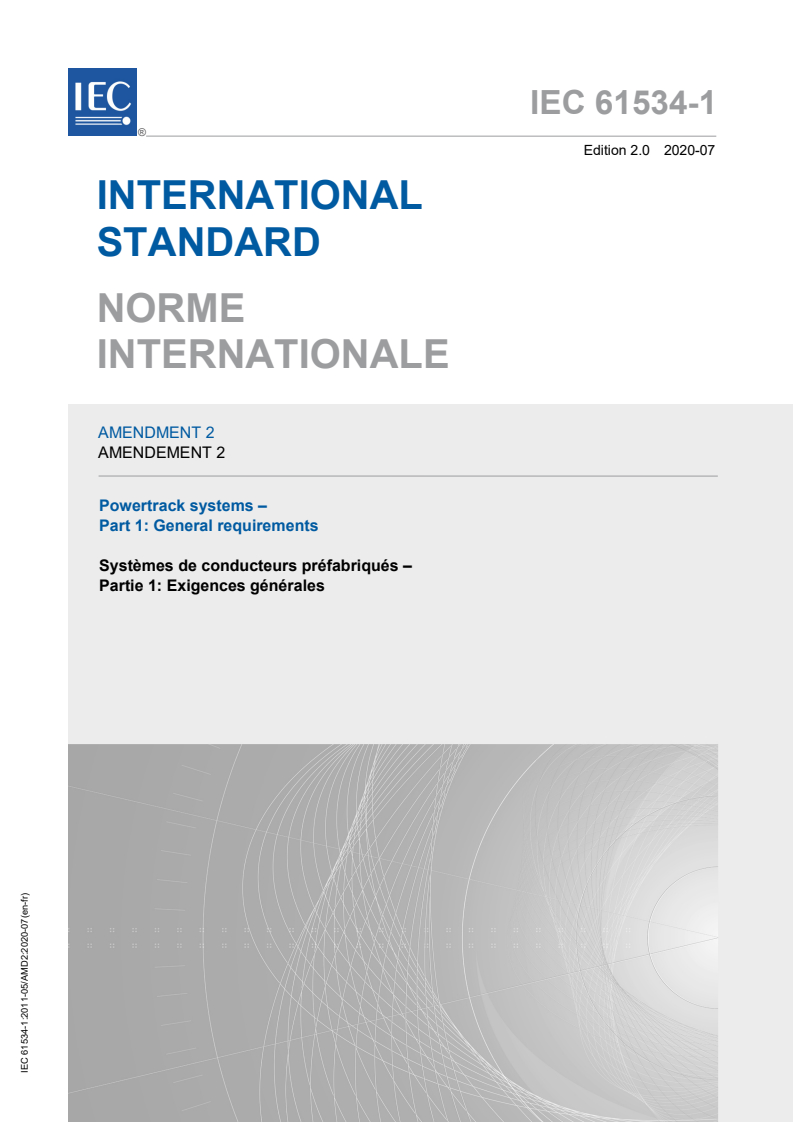

IEC 61534-1
Edition 2.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Powertrack systems –
Part 1: General requirements
Systèmes de conducteurs préfabriqués –
Partie 1: Exigences générales
IEC 61534-1:2011-05/AMD2:2020-07(en-fr)
---------------------- Page: 1 ----------------------

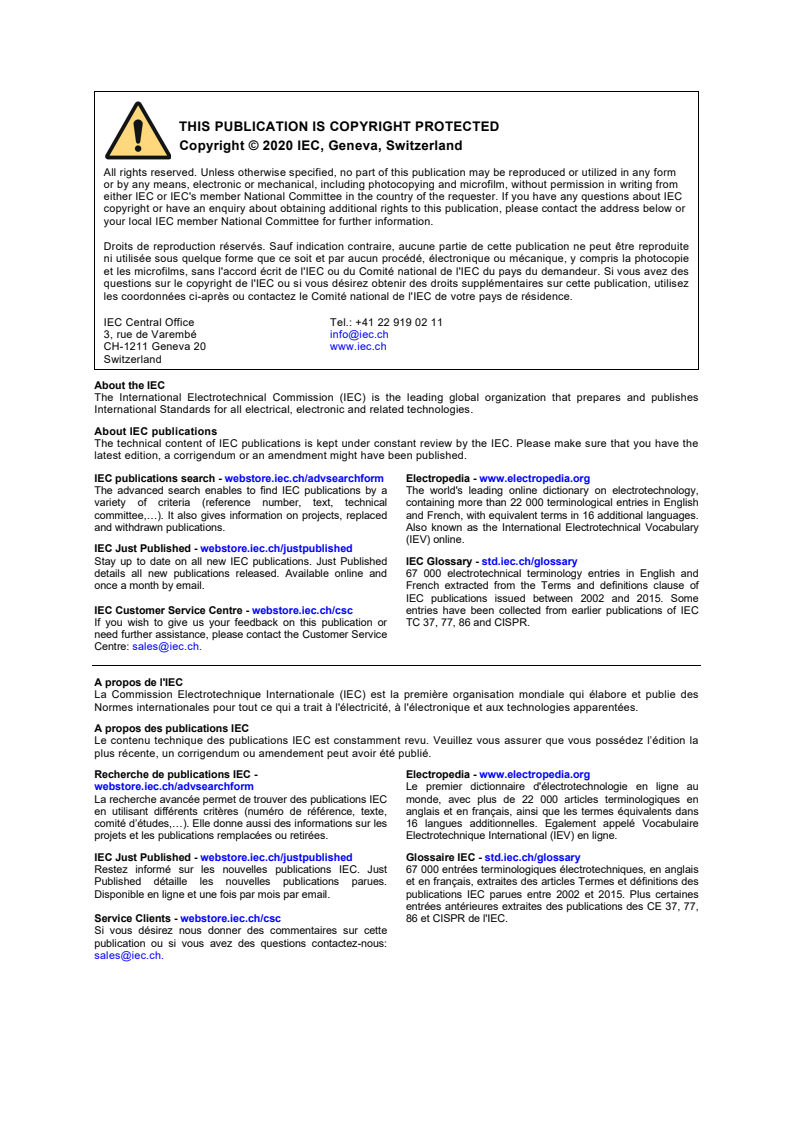

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and definitions clause of

IEC publications issued between 2002 and 2015. Some

IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC

If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines

entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

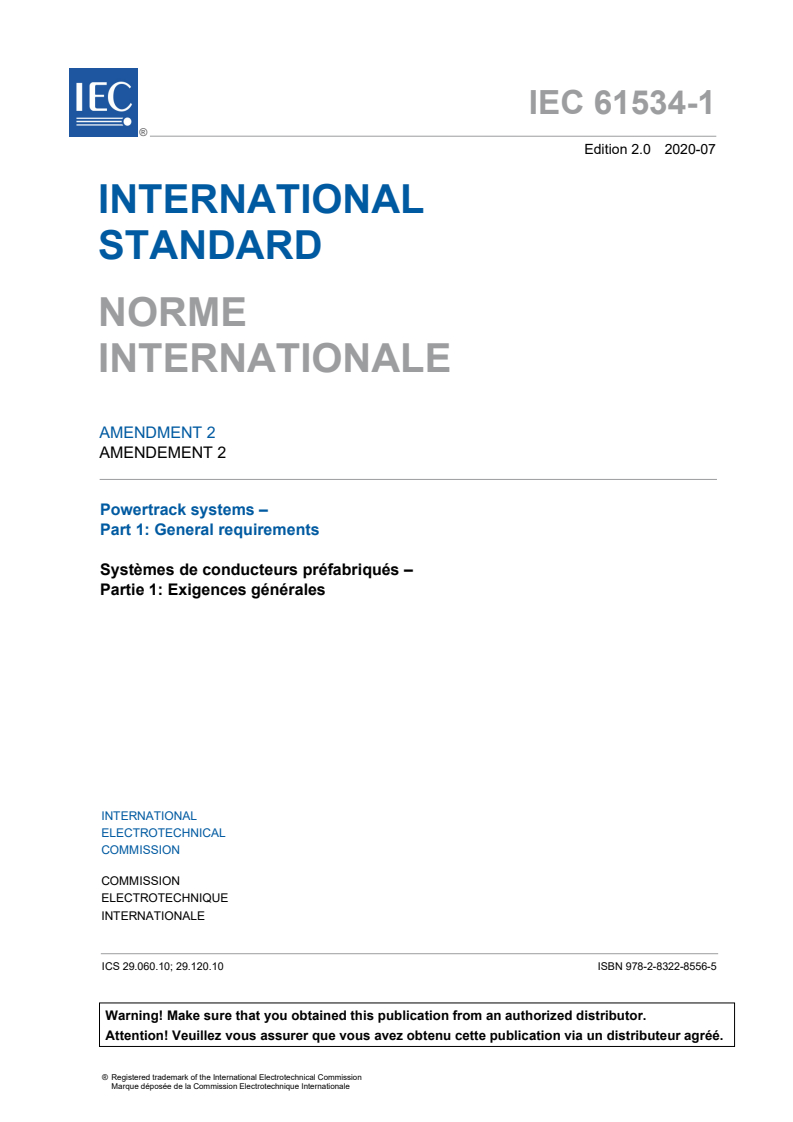

IEC 61534-1
Edition 2.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Powertrack systems –
Part 1: General requirements
Systèmes de conducteurs préfabriqués –
Partie 1: Exigences générales
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10; 29.120.10 ISBN 978-2-8322-8556-5

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

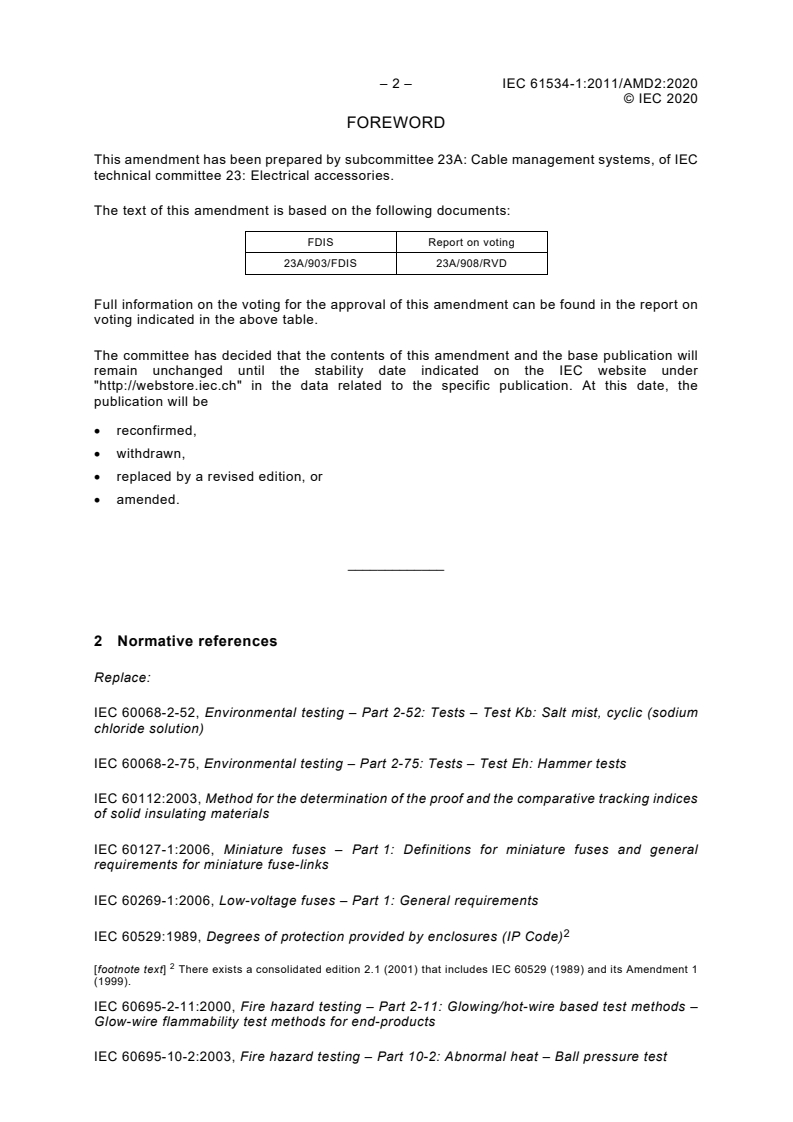

– 2 – IEC 61534-1:2011/AMD2:2020
© IEC 2020
FOREWORD

This amendment has been prepared by subcommittee 23A: Cable management systems, of IEC

technical committee 23: Electrical accessories.
The text of this amendment is based on the following documents:
FDIS Report on voting
23A/903/FDIS 23A/908/RVD

Full information on the voting for the approval of this amendment can be found in the report on

voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
2 Normative references
Replace:

IEC 60068-2-52, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic (sodium

chloride solution)
IEC 60068-2-75, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests

IEC 60112:2003, Method for the determination of the proof and the comparative tracking indices

of solid insulating materials

IEC 60127-1:2006, Miniature fuses – Part 1: Definitions for miniature fuses and general

requirements for miniature fuse-links
IEC 60269-1:2006, Low-voltage fuses – Part 1: General requirements
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)

[footnote text] There exists a consolidated edition 2.1 (2001) that includes IEC 60529 (1989) and its Amendment 1

(1999).

IEC 60695-2-11:2000, Fire hazard testing – Part 2-11: Glowing/hot-wire based test methods –

Glow-wire flammability test methods for end-products

IEC 60695-10-2:2003, Fire hazard testing – Part 10-2: Abnormal heat – Ball pressure test

---------------------- Page: 4 ----------------------
IEC 61534-1:2011/AMD2:2020 – 3 –
© IEC 2020

IEC 60695-11-2:2003, Fire hazard testing – Part 11-2: Test flames – 1 kW nominal pre-mixed

flame – Apparatus, confirmatory test arrangement and guidance

IEC 60884-1:2002, Plugs and socket outlets for household and similar purposes – Part 1:

General requirements
Amendment 1 (2006)

[footnote text] There exists a consolidated edition 3.1 (2006) that includes IEC 60884-1 (2002) and its Amendment 1

(2006).

ISO 2081:2008, Metallic and other inorganic coatings – Electroplated coatings of zinc with

supplementary treatments on iron or steel
with the following:

IEC 60068-2-52:2017, Environmental testing – Part 2-52: Tests – Test Kb: Salt mist, cyclic

(sodium chloride solution)

IEC 60068-2-75:2014, Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests

IEC 60112:2003, Method for the determination of the proof and the comparative tracking

indices of solid insulating materials
IEC 60112:2003/AMD1:2009

IEC 60127-1:2006, Miniature fuses – Part 1: Definitions for miniature fuses and general

requirements for miniature fuse-links
IEC 60127-1:2006/AMD1:2011
IEC 60127-1:2006/AMD2:2015
IEC 60269-1:2006, Low-voltage fuses – Part 1: General requirements
IEC 60269-1:2006/AMD1:2009
IEC 60269-1:2006/AMD2:2014
IEC 60529:1989, Degrees of protection provided by enclosures (IP Code)
IEC 60529:1989/AMD1:1999
IEC 60529:1989/AMD2:2013

[footnote text] A consolidated version of this publication exists, comprising IEC 60529:1989,

IEC 60529:1989/AMD1:1999 and IEC 60529:1989/AMD2:2013.

IEC 60695-2-11:2014, Fire hazard testing – Part 2-11: Glowing/hot-wire based test methods –

Glow-wire flammability test method for end-products (GWEPT)

IEC 60695-10-2:2014, Fire hazard testing – Part 10-2: Abnormal heat – Ball pressure test

method

IEC 60695-11-2:2017, Fire hazard testing – Part 11-2: Test flames – 1 kW nominal pre-mixed

flame – Apparatus, confirmatory test arrangement and guidance

IEC 60884-1:2002, Plugs and socket-outlets for household and similar purposes – Part 1:

General requirements
IEC 60884-1:2002/AMD1:2006
IEC 60884-1:2002/AMD2:2013

[footnote text] A consolidated version of this publication exists, comprising IEC 60884-1:2002,

IEC 60884-1:2002/AMD1:2006 and IEC 60884-1:2002/AMD2:2013.

ISO 2081:2018, Metallic and other inorganic coatings – Electroplated coatings of zinc with

supplementary treatments on iron or steel
---------------------- Page: 5 ----------------------
– 4 – IEC 61534-1:2011/AMD2:2020
© IEC 2020
Add the following reference:

ISO 4628-3:2016, Paints and varnishes – Evaluation of degradation of coatings – Designation

of quantity and size of defects, and of intensity of uniform changes in appearance – Part 3:

Assessment of degree of rusting
3 Terms and definitions
Delete the following term entry:
3.21
routine test
4 General requirements
4.1 Replace the existing text with the following new text:

PT systems shall be so designed and constructed that in normal use their performance is

reliable and without unreasonable hazard to the user, domestic animals or the surroundings.

4.3 Replace the existing text with the following new text:

Accessories associated with or incorporated in a system component shall comply with their own

IEC International Standard or, when an IEC International Standard is unavailable, with their

own relevant national standard.
5 General notes on tests

5.3 Replace "14.1(10/11.1/11.3/15.3) " in the second row beneath the column title "Clause

number" with:
14.2(10/11.1/11.3/15.3)
as follows:
Number of Clause number
samples
b b
3 8 9 11
10 (15) 14 (10/ 11.1/ 11.3/15.3)
a b
1 14.2(10/11.1/11.3/15.3)
8 Marking and documentation

8.8 Replace all existing paragraphs with the following new paragraphs, and add new

Figure 8:

The marking according to 8.2, 8.3 and 8.4 shall not be placed on easily removable parts such

as screws or washers.

Laser marking directly on the product and marking made by moulding, pressing or engraving

are not subjected to this test.
---------------------- Page: 6 ----------------------
IEC 61534-1:2011/AMD2:2020 – 5 –
© IEC 2020

Compliance is checked by the tests in 8.9 and 8.10 and by inspection, using normal or corrected

vision, without additional magnification and by rubbing the label using the equipment shown in

Figure 8. New samples shall be used for 8.9 and 8.10.
Key
A Diameter of the piston (20 ± 1) mm
B Radius of the piston head (20 ± 1) mm
C Gap between piston head and cylinder (2 + 1/− 0) mm
Figure 8 – Piston for durability of marking test

The test piston head shall be made of an elastic material which is inert against the test liquids

and has a Shore-A hardness of 47 ± 5 (for example synthetic rubber). The piston shall be

wrapped with cotton comprising cotton wool covered by a piece of cotton medical gauze.

When it is not possible to carry out the test on the specimens due to the shape/size of the

product, a suitable piece of the product having the same characteristics can be submitted to

the test.

The test shall be carried out on one sample. If the sample does not satisfy the test, the test

shall be repeated on two new samples, both of which shall comply with the requirements.

Add the following two new subclauses:
8.9 Durability of marking

The sample shall be rubbed by applying a compression force of (5 ± 1) N at a rate of one cycle

per second for 15 s (a cycle comprising a forward and backward movement along the length of

the marking) by means of the test piston shown in Figure 8.

Rubbing shall commence immediately after soaking the piece of cotton with water. For markings

longer than 20 mm, rubbing can be limited to a part of the marking, over a path of at least

20 mm length.

The sample surface shall then be dried, and the test repeated on the same sample using new

cotton soaked in n-hexane 95 % solvent.

When using this liquid, precautions as stated in the relevant material safety datasheet provided

by the chemical supplier shall be taken to safeguard the person performing the test.

NOTE n-hexane 95 % (Chemical Abstracts Service Registry Number, CAS RN, 110-54-3) is available from a variety

of chemical suppliers as a high pressure liquid chromatography (HPLC) solvent.
After the test, the marking shall be legible.
---------------------- Page: 7 ----------------------
– 6 – IEC 61534-1:2011/AMD2:2020
© IEC 2020
8.10 Durability of label adhesion
Under consideration.
9 Construction
Add the following new subclause:
9.9 Requirements for PT system with more than one circuit

When a PT system with tap-off facilities is intended to supply several circuits in the same

powertrack, the system shall be designed and constructed to prevent tap-off units from being

connected to the wrong circuit.
Compliance is checked by inspection.
20 Fire hazard
20.2 Flame spread
Replace the third paragraph with the following new paragraph:

The test is made on a single straight length of powertrack as supplied by the manufacturer

together with at least one tap-off outlet and any associated covers. The overall length of the

sample shall be (675 ± 10) mm.
Replace the seventh paragraph with the following new paragraph:

The flame shall be applied to the front face of the tap-off outlet as shown in Figure 3. The

sample is exposed to the flame for (60 ± 2) s.

Figure 3: Replace existing Figure 3 and its Key with the following new Figure 3 and Key and

move the new Figure 3 and Key to the end of this Subclause 20.2 as follows:
---------------------- Page: 8 ----------------------
IEC 61534-1:2011/AMD2:2020 – 7 –
© IEC 2020
Dimensions in millimetres
Key
1 Vertically mounted sample
2 Clamp
3 Flame
4 Back face
5 Wrapping tissue
700
6 10 mm soft white-wood board of width
−25
7 Maximum height limit for evidence of burning or charring
8 Tap-off outlet

NOTE This drawing is not intended to govern design except as regards the dimensions and specific requirements

shown.
Figure 3 – Arrangement for flame test
21 External influences
21.1.2 Corrosion test for dry non-aggressive environments
Replace the existing first paragraph with the following two new paragraphs:
---------------------- Page: 9 ----------------------
– 8 – IEC 61534-1:2011/AMD2:2020
© IEC 2020

All grease shall be removed from the sample to be tested by cleaning with n-hexane 95 %

(Chemical Abstracts Service Registry Number, CAS RN, 110-54-3), after which all parts shall

be dried.

When using the liquid specified for the test, precautions as stated in the relevant material safety

datasheet provided by the chemical supplier shall be taken to safeguard the person performing

the test.

Replace the existing third paragraph, i.e. the paragraph directly preceding the note, with the

following new paragraphs:

Without drying, but after shaking off any drops, the parts shall then be immediately placed for

min in a box containing air saturated with moisture at a temperature of (20 ± 5) °C. The

( −0)

parts shall then be dried for 10 min in a heating cabinet at a temperature of (100 ± 5) °C. After

removal from the heating cabinet, any traces of rust and/or yellowish film may be removed by

rubbing the appropriate area for s with an applied force of N, using a cotton cloth

( −0)
( −0)
lightly moistened with methylated spirit.

Compliance is checked by visual inspection to determine that there is no evidence of iron oxide,

cracking or other deterioration more than that allowed by ISO 4628-3 for a degree of rusting

Ri1.
21.2.2 Protection against ingress of solid foreign objects
Replace the existing two paragraphs with the following new two paragraphs:
An assembled system declared by the manufacturer is tested i
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
