Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 19378
First edition
2003-03-01


Lubricants, industrial oils and related
products (class L) — Machine-tool
lubricants — Categories and
specifications
Lubrifiants, huiles industrielles et produits connexes (classe L) —
Lubrifiants pour machines outils — Catégories et spécifications




Reference number
ISO 19378:2003(E)
©
ISO 2003

---------------------- Page: 1 ----------------------
ISO 19378:2003(E)

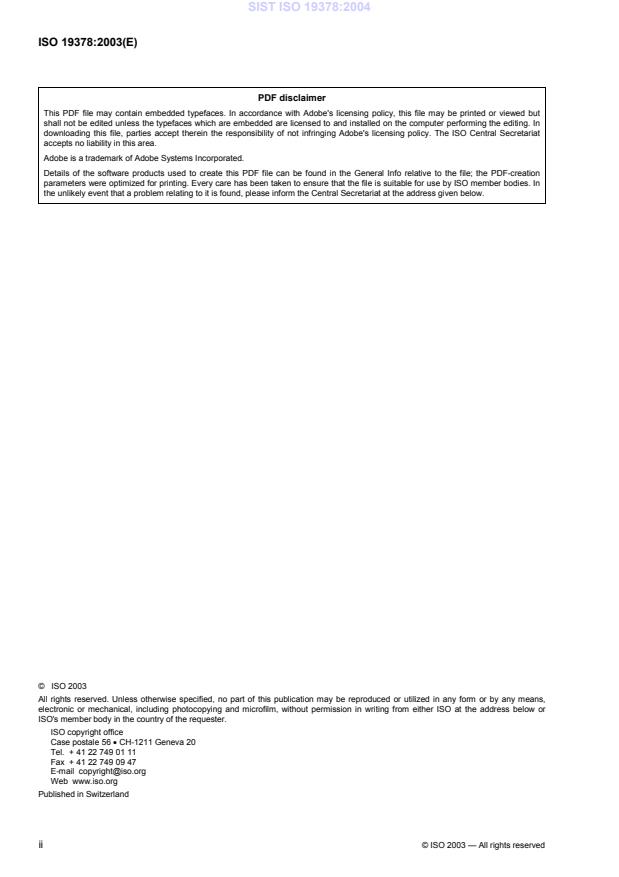

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2003
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2003 — All rights reserved

---------------------- Page: 2 ----------------------
ISO 19378:2003(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references . 1
3 Sampling . 2
4 Categories of products for the lubrication of machine tools — Criteria for the choice . 3
5 Specifications of products. 3
6 Packaging and labelling . 3
Annex A (informative) Preliminary information about the future International Standard for
specifications of greases . 9
Bibliography . 10

© ISO 2003 — All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 19378:2003(E)

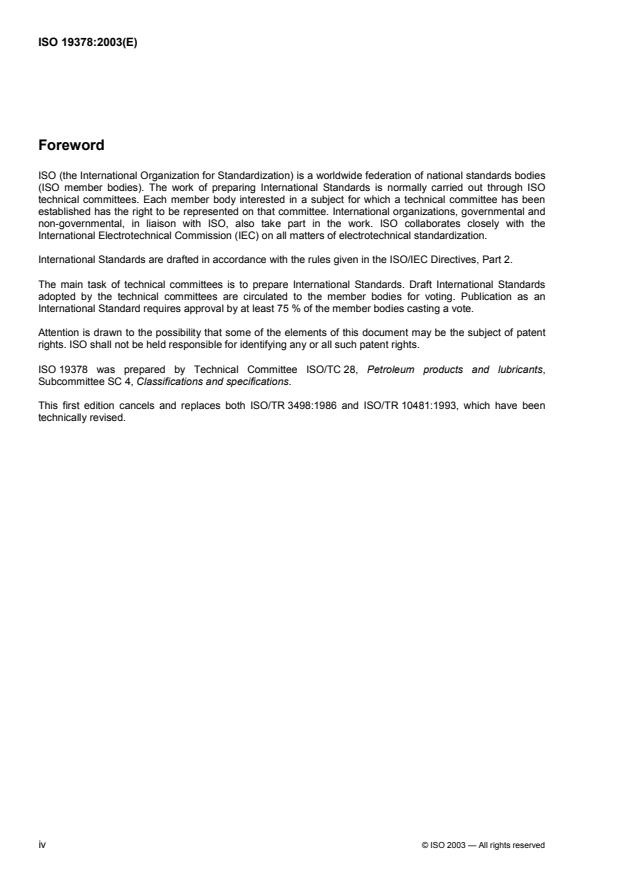

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 19378 was prepared by Technical Committee ISO/TC 28, Petroleum products and lubricants,
Subcommittee SC 4, Classifications and specifications.
This first edition cancels and replaces both ISO/TR 3498:1986 and ISO/TR 10481:1993, which have been
technically revised.

iv © ISO 2003 — All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 19378:2003(E)

Lubricants, industrial oils and related products (class L) —
Machine-tool lubricants — Categories and specifications
WARNING — The handling and use of products specified in this International Standard may be
hazardous, if suitable precautions are not observed. This International Standard does not purport to
address all of the safety problems associated with its use. It is the responsibility of the users of this
standard to establish appropriate safety and health practices and determine the applicability of
regulatory limitations prior to use.
1 Scope
This International Standard provides the manufacturers and users of machine tools with criteria for the choice
among the various categories of lubricants and gives specifications for these lubricants. This International
Standard facilitates the application of ISO 5169 relating to the presentation of lubrication instructions for
machine tools.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 1817:1999, Rubber, vulcanized — Determination of the effect of liquids
ISO 2160:1998, Petroleum products — Corrosiveness to copper — Copper strip test
ISO 2592:2000, Determination of flash and fire points — Cleveland open cup method
ISO 2719:2002, Determination of flash point — Pensky-Martens closed cup method
ISO 2909:2002, Petroleum products — Calculation of viscosity index from kinematic viscosity
ISO 3016:1994, Petroleum products — Determination of pour point
ISO 3104:1994, Petroleum products — Transparent and opaque liquids — Determination of kinematic
viscosity and calculation of dynamic viscosity
ISO 3104:1994, Technical Corrigendum 1:1997
1)
ISO 3170:— , Petroleum liquids — Manual sampling
ISO 3448:1992, Industrial liquid lubricants — ISO viscosity classification
ISO 3675:1998, Crude petroleum and liquid petroleum products — Laboratory determination of density —
Hydrometer method

1) To be published. (Revision of ISO 3170:1988)
© ISO 2003 — All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 19378:2003(E)
ISO 4259:1992, Petroleum products — Determination and application of precision data in relation to methods
of test [incl. Tech. Cor. 1:1993 (English only)]
ISO 4263-1:2003, Petroleum and related products — Determination of the ageing behaviour of inhibited oils
and fluids — TOST test — Part: Procedure for mineral oils
ISO 5169:1977, Machine tools — Presentation of lubrication instructions
ISO 6247:1998, Petroleum products — Determination of foaming characteristics of lubricating oils
ISO 6614:1994, Petroleum products — Determination of water separability of petroleum oils and synthetic
fluids
ISO 6618:1997, Petroleum products and lubricants — Determination of acid or base number — Colour-
indicator titration method
ISO 6743-1:2002, Lubricants, industrial oils and related products (class L) — Classification — Part 1: Family A
(Total loss systems)
ISO 6743-2:1981, Lubricants, industrial oils and related products (class L) — Classification — Part 2: Family F
(Spindle bearings, bearings and associated clutches)
ISO 6743-4:1999, Lubricants, industrial oils and related products (class L) — Classification — Part 4: Family H
(Hydraulic systems)
ISO 6743-6:1990, Lubricants, industrial oils and related products (class L) — Classification — Part 6: Family C
(Gears)
ISO 6743-9:2003, Lubricants, industrial oils and related products (class L) — Classification — Part 9: Family X
(Greases)
ISO 6743-13:2002, Lubricants, industrial oils and related products (class L) — Classification — Part 13:
Family G (Slideways)
ISO 6743-99:2002, Lubricants, industrial oils and related products (class L) — Classification — Part 99:
General
ISO 7120:1987, Petroleum products and lubricants — Petroleum oils and other fluids — Determination of rust-
preventing characteristics in the presence of water
ISO 11158:1997, Lubricants, industrial oils and related products (class L) — Family H (Hydraulic systems) —
Specifications for categories HH, HL, HM, HR, HV and HG
ISO 12925-1:1996, Lubricants, industrial oils and related products (class L) — Family C (Gears) — Part 1:
Specifications for lubricants for enclosed gear systems
ISO 12925-1:1996, Technical Corrigendum 1:2002
XP T 60-183:1994, Lubricants, industrials oils and related products — Lubricants for slideways — Anti-slick
slip lubricating ability
ASTM D4172-94, Standard test method for wear preventive characteristics of lubricating fluid (Four-ball
method)
3 Sampling
Unless otherwise specified in a commodity specification, samples of lubricants shall be taken in accordance
with ISO 3170.
2 © ISO 2003 — All rights reserved

---------------------- Page: 6 ----------------------
ISO 19378:2003(E)
4 Categories of products for the lubrication of machine tools — Criteria for the
choice
The various mechanical parts of machine tools shall be lubricated with certain families of products defined and
described in ISO 6743-1, ISO 6743-2, ISO 6743-4, ISO 6743-6, ISO 6743-9, ISO 6743-13 and ISO 6743-99.
Each part of ISO 6743 defines categories inside a lubricant family. Within each category, all the grades
defined in accordance with ISO 3448 for liquid lubricants or ISO 6743-9 for greases are possible. For the
lubrication of machine tools, all the categories of products and all the possible grades in each category are not
useful. Therefore, to facilitate the selection by the manufacturers or the users of machine tools, it is advisable
to limit the number of categories and grades of products.
Table 1 gives criteria for the applications and defines a limited range of products appearing underlined. It is
recommended to the manufacturers of machine tools, whenever possible, to select the lubricants in the limited
range.
Table 1 does not cover special applications requiring the use of specific lubricants. These special applications
should be examined separately, case by case, by the manufacturers or users of machine tools.
5 Specifications of products
The products of Family H, classified in ISO 6743-4, are specified in ISO 11158 and the products of Family C,
classified in ISO 6743-6, are specified in ISO 12925-1.
There is presently no specification covering the products of Family X, classified in ISO 6743-9.
NOTE At the time of publication of this International Standard, an International Standard for specifications of greases
is in the course of development at the preliminary stage (see Annex A).
Table 2 gives the requirements of the categories of lubricants L-AN (ISO 6743-1), L-FC and L-FD
(ISO 6743-2) and L-G (ISO 6743-13) covered by Table 1.
The properties are those applying to the products at the time of their delivery. The application of the accuracy
in interpreting the results of tests is described in ISO 4259. This procedure shall be applied in case of dispute.
6 Packaging and labelling
6.1 Packaging
The lubricants shall be packed in suitable packaging and according to the regulations in use.
6.2 Labelling
The labelling shall comprise at least the following information:
a) the commercial name of the product;
b) the ISO designation code (including the viscosity grade);
c) the batch number;
d) the date of manufacturing;
e) the legal labelling (transportation, safety) if the product is liable for this labelling.
© ISO 2003 — All rights reserved 3

---------------------- Page: 7 ----------------------
ISO 19378:2003(E)
4 © ISO 2003 — All rights reserved
Table 1 — Range of machine-tool lubricants
Code General Particular More specific Product type and/or
a
Symbol ISO L Typical applications Remarks
letter application application application performance requirements
A Total loss  Refined mineral oils AN 32 Lightly loaded parts
systems
AN 68
AN 220
C Gears Enclosed Continuous Refined mineral oils CKB 32 Enclosed gears, operating CKB 32 and CKB 68 oils can
gears lubrication: exhibiting improved under moderate loads (see also be used for flood-
CKB 68
splash properties of oxidation ISO 6743-6) lubricated, mechanically
CKB 100
lubrication, stability, corrosion protection controlled clutches
Bearings, headstocks, feed-
CKB 150
lubrication by (ferrous and non-ferrous
boxes, carriages CKB 68 may replace AN 68
circulation or metals), and foaming
spray
  Refined mineral oils CKC 68 Enclosed gears, whose These oils can also be used for
exhibiting improved stabilized temperature of oil in manual or centralized
CKC 100
properties of oxidation service remains normal or lubrication of lead and feed
CKC 150
stability, corrosion protection average, and operating under screws and slideways
CKC 220
(ferrous and non-ferrous high loads (see ISO 6743-6) operating under light loads, or
CKC 320
metals), extreme-pressure, whose conditions of use do not
All types of enclosed gears
anti-wear and foaming require any particular anti-
CKC 460
(except hypoid gears)
stick-slip properties
Heavily loaded plain and roller
bearings
F Spindle Spindle Refined mineral oils FC 2 Lubrication by recirculation, These oils are intended for the
bearings, bearings, exhibiting improved splash or oil mist of plain lubrication of parts including
FC 5
bearings bearings and properties of oxidation bearings, roller bearings and clutche
...

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Maziva, industrijska olja in sorodni proizvodi (razred L) – Maziva za orodja – Kategorije in specifikacijeLubrifiants, huiles industrielles et produits connexes (classe L) --
Lubrifiants pour machines outils -- Catégories et spécificationsLubricants, industrial oils and related products (class L) -- Machine-tool lubricants -- Categories and specifications75.100MazivaLubricants, industrial oils and related productsICS:Ta slovenski standard je istoveten z:ISO 19378:2003SIST ISO 19378:2004en01-november-2004SIST ISO 19378:2004SLOVENSKI
STANDARD



SIST ISO 19378:2004



Reference numberISO 19378:2003(E)© ISO 2003
INTERNATIONAL STANDARD ISO19378First edition2003-03-01Lubricants, industrial oils and related products (class L) — Machine-tool lubricants — Categories and specifications Lubrifiants, huiles industrielles et produits connexes (classe L) — Lubrifiants pour machines outils — Catégories et spécifications
SIST ISO 19378:2004



ISO 19378:2003(E) PDF disclaimer This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this area. Adobe is a trademark of Adobe Systems Incorporated. Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
©
ISO 2003 All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body in the country of the requester. ISO copyright office Case postale 56 • CH-1211 Geneva 20 Tel.
+ 41 22 749 01 11 Fax
+ 41 22 749 09 47 E-mail
copyright@iso.org Web
www.iso.org Published in Switzerland
ii © ISO 2003 — All rights reserved
SIST ISO 19378:2004



ISO 19378:2003(E) © ISO 2003 — All rights reserved iii Contents Page Foreword.iv 1 Scope.1 2 Normative references.1 3 Sampling.2 4 Categories of products for the lubrication of machine tools — Criteria for the choice.3 5 Specifications of products.3 6 Packaging and labelling.3 Annex A (informative)
Preliminary information about the future International Standard for specifications of greases.9 Bibliography.10
SIST ISO 19378:2004



ISO 19378:2003(E) iv © ISO 2003 — All rights reserved Foreword ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO member bodies). The work of preparing International Standards is normally carried out through ISO technical committees. Each member body interested in a subject for which a technical committee has been established has the right to be represented on that committee. International organizations, governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization. International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2. The main task of technical committees is to prepare International Standards. Draft International Standards adopted by the technical committees are circulated to the member bodies for voting. Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. ISO shall not be held responsible for identifying any or all such patent rights. ISO 19378 was prepared by Technical Committee ISO/TC 28, Petroleum products and lubricants, Subcommittee SC 4, Classifications and specifications. This first edition cancels and replaces both ISO/TR 3498:1986 and ISO/TR 10481:1993, which have been technically revised.
SIST ISO 19378:2004



INTERNATIONAL STANDARD ISO 19378:2003(E) © ISO 2003 — All rights reserved 1 Lubricants, industrial oils and related products (class L) — Machine-tool lubricants — Categories and specifications WARNING — The handling and use of products specified in this International Standard may be hazardous, if suitable precautions are not observed. This International Standard does not purport to address all of the safety problems associated with its use. It is the responsibility of the users of this standard to establish appropriate safety and health practices and determine the applicability of regulatory limitations prior to use. 1 Scope This International Standard provides the manufacturers and users of machine tools with criteria for the choice among the various categories of lubricants and gives specifications for these lubricants. This International Standard facilitates the application of ISO 5169 relating to the presentation of lubrication instructions for machine tools. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. ISO 1817:1999, Rubber, vulcanized — Determination of the effect of liquids ISO 2160:1998, Petroleum products — Corrosiveness to copper — Copper strip test ISO 2592:2000, Determination of flash and fire points — Cleveland open cup method ISO 2719:2002, Determination of flash point — Pensky-Martens closed cup method ISO 2909:2002, Petroleum products — Calculation of viscosity index from kinematic viscosity ISO 3016:1994, Petroleum products — Determination of pour point ISO 3104:1994, Petroleum products — Transparent and opaque liquids — Determination of kinematic viscosity and calculation of dynamic viscosity ISO 3104:1994, Technical Corrigendum 1:1997 ISO 3170:—1), Petroleum liquids — Manual sampling ISO 3448:1992, Industrial liquid lubricants — ISO viscosity classification ISO 3675:1998, Crude petroleum and liquid petroleum products — Laboratory determination of density — Hydrometer method
1) To be published. (Revision of ISO 3170:1988) SIST ISO 19378:2004



ISO 19378:2003(E) 2 © ISO 2003 — All rights reserved ISO 4259:1992, Petroleum products — Determination and application of precision data in relation to methods of test [incl. Tech. Cor. 1:1993 (English only)] ISO 4263-1:2003, Petroleum and related products — Determination of the ageing behaviour of inhibited oils and fluids — TOST test — Part: Procedure for mineral oils ISO 5169:1977, Machine tools — Presentation of lubrication instructions ISO 6247:1998, Petroleum products — Determination of foaming characteristics of lubricating oils ISO 6614:1994, Petroleum products — Determination of water separability of petroleum oils and synthetic fluids ISO 6618:1997, Petroleum products and lubricants — Determination of acid or base number — Colour-indicator titration method ISO 6743-1:2002, Lubricants, industrial oils and related products (class L) — Classification — Part 1: Family A (Total loss systems) ISO 6743-2:1981, Lubricants, industrial oils and related products (class L) — Classification — Part 2: Family F (Spindle bearings, bearings and associated clutches) ISO 6743-4:1999, Lubricants, industrial oils and related products (class L) — Classification — Part 4: Family H (Hydraulic systems) ISO 6743-6:1990, Lubricants, industrial oils and related products (class L) — Classification — Part 6: Family C (Gears) ISO 6743-9:2003, Lubricants, industrial oils and related products (class L) — Classification — Part 9: Family X (Greases) ISO 6743-13:2002, Lubricants, industrial oils and related products (class L) — Classification — Part 13: Family G (Slideways) ISO 6743-99:2002, Lubricants, industrial oils and related products (class L) — Classification — Part 99: General ISO 7120:1987, Petroleum products and lubricants — Petroleum oils and other fluids — Determination of rust-preventing characteristics in the presence of water ISO 11158:1997, Lubricants, industrial oils and related products (class L) — Family H (Hydraulic systems) — Specifications for categories HH, HL, HM, HR, HV and HG ISO 12925-1:1996, Lubricants, industrial oils and related products (class L) — Family C (Gears) — Part 1: Specifications for lubricants for enclosed gear systems ISO 12925-1:1996, Technical Corrigendum 1:2002 XP T 60-183:1994, Lubricants, industrials oils and related products — Lubricants for slideways — Anti-slick slip lubricating ability ASTM D4172-94, Standard test method for wear preventive characteristics of lubricating fluid (Four-ball method) 3 Sampling Unless otherwise specified in a commodity specification, samples of lubricants shall be taken in accordance with ISO 3170. SIST ISO 19378:2004



ISO 19378:2003(E) © ISO 2003 — All rights reserved 3 4 Categories of products for the lubrication of machine tools — Criteria for the choice The various mechanical parts of machine tools shall be lubricated with certain families of products defined and described in ISO 6743-1, ISO 6743-2, ISO 6743-4, ISO 6743-6, ISO 6743-9, ISO 6743-13 and ISO 6743-99. Each part of ISO 6743 defines categories inside a lubricant family. Within each category, all the grades defined in accordance with ISO 3448 for liquid lubricants or ISO 6743-9 for greases are possible. For the lubrication of machine tools, all the categories of products and all the possible grades in each category are not useful. Therefore, to facilitate the selection by the manufacturers or the users of machine tools, it is advisable to limit the number of categories and grades of products. Table 1 gives criteria for the applications and defines a limited range of products appearing underlined. It is recommended to the manufacturers of machine tools, whenever possible, to select the lubricants in the limited range. Table 1 does not cover special applications requiring the use of specific lubricants. These special applications should be examined separately, case by case, by the manufacturers or users of machine tools. 5 Specifications of products The products of Family H, classified in ISO 6743-4, are specified in ISO 11158 and the products of Family C, classified in ISO 6743-6, are specified in ISO 12925-1. There is presently no specification covering the products of Family X, classified in ISO 6743-9. NOTE At the time of publication of this International Standard, an International Standard for specifications of greases is in the course of development at the preliminary stage (see Annex A). Table 2 gives the requirements of the categories of lubricants L-AN (ISO 6743-1), L-FC and L-FD (ISO 6743-2) and L-G (ISO 6743-13) covered by Table 1. The properties are those applying to the products at the time of their delivery. The application of the accuracy in interpreting the results of tests is described in ISO 4259. This procedure shall be applied in case of dispute. 6 Packaging and labelling 6.1 Packaging The lubricants shall be packed in suitable packaging and according to the regulations in use. 6.2 Labelling The labelling shall comprise at least the following information: a) the commercial name of the product; b) the ISO designation code (including the viscosity grade); c) the batch number; d) the date of manufacturing; e) the legal labelling (transportation, safety) if the product is liable for this labelling. SIST ISO 19378:2004



ISO 19378:2003(E) 4 © ISO 2003 — All rights reservedTable 1 — Range of machine-tool lubricants Code letter General applicationParticular application More specific application Product type and/or performance requirementsSymbol ISO La Typical applications Remarks A Total loss systems
Refined mineral oils AN 32 AN 68 AN 220 Lightly loaded parts
C Gears Enclosed gears Continuous lubrication: splash lubrication, lubrication by circulation or spray Refined mineral oils exhibiting improved properties of oxidation stability, corrosion protection (ferrous and non-ferrous metals), and foaming CKB 32 CKB 68 CKB 100 CKB 150 Enclosed gears, operating under moderate loads (see ISO
6743-6) Bearings, headstocks, feed-boxes, carriages CKB 32 and CKB 68 oils can also be used for flood-lubricated, mechanically controlled clutches CKB 68 may replace AN 68
Refined mineral oils exhibiting improved properties of oxidation stability, corrosion protection (ferrous and non-ferrous metals), extreme-pressure, anti-wear and foaming CKC 68 CKC 100 CKC 150 CKC 220 CKC 320 CKC 460 Enclosed gears, whose stabilized temperature of oil in service remains normal or average, and operating under high loads (see ISO 6743-6) All types of enclosed gears (except hypoid gears) Heavily loaded plain and roller bearings These oils can also be used for ma
...

NORME ISO
INTERNATIONALE 19378
Première édition
2003-03-01


Lubrifiants, huiles industrielles et
produits connexes (classe L) —
Lubrifiants pour machines outils —
Catégories et spécifications
Lubricants, industrial oils and related products (class L) — Machine-tool
lubricants — Categories and specifications




Numéro de référence
ISO 19378:2003(F)
©
ISO 2003

---------------------- Page: 1 ----------------------
ISO 19378:2003(F)

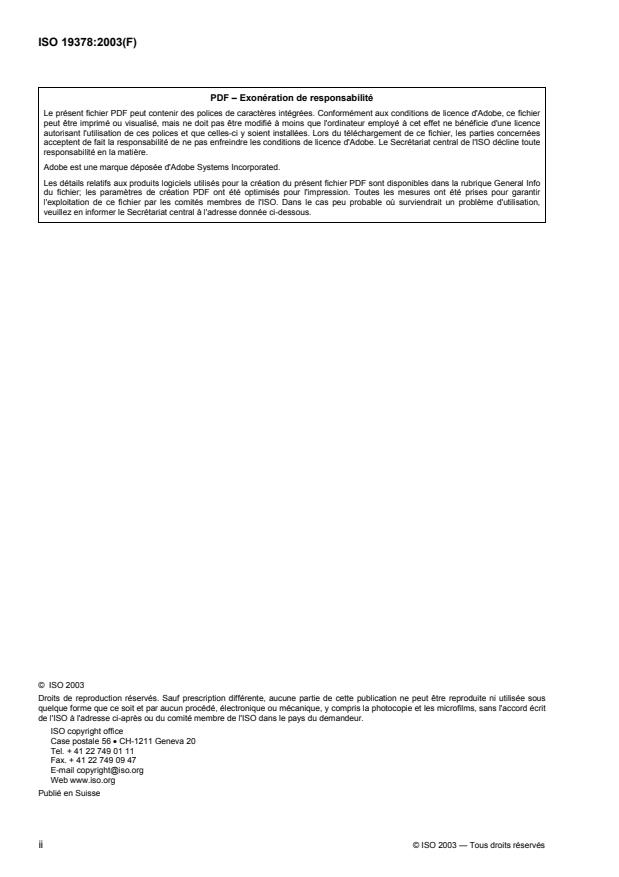

PDF – Exonération de responsabilité
Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.


© ISO 2003
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax. + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Publié en Suisse

ii © ISO 2003 — Tous droits réservés

---------------------- Page: 2 ----------------------
ISO 19378:2003(F)
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives. 1
3 Échantillonnage. 3
4 Catégories de produits pour la lubrification des machines outils — Critères de choix . 3
5 Spécifications des produits . 3
6 Emballage et étiquetage. 4
Annexe A (informative) Informations préliminaires sur la future Norme internationale de
spécifications des graisses . 10
Bibliographie . 11

© ISO 2003 — Tous droits réservés iii

---------------------- Page: 3 ----------------------
ISO 19378:2003(F)

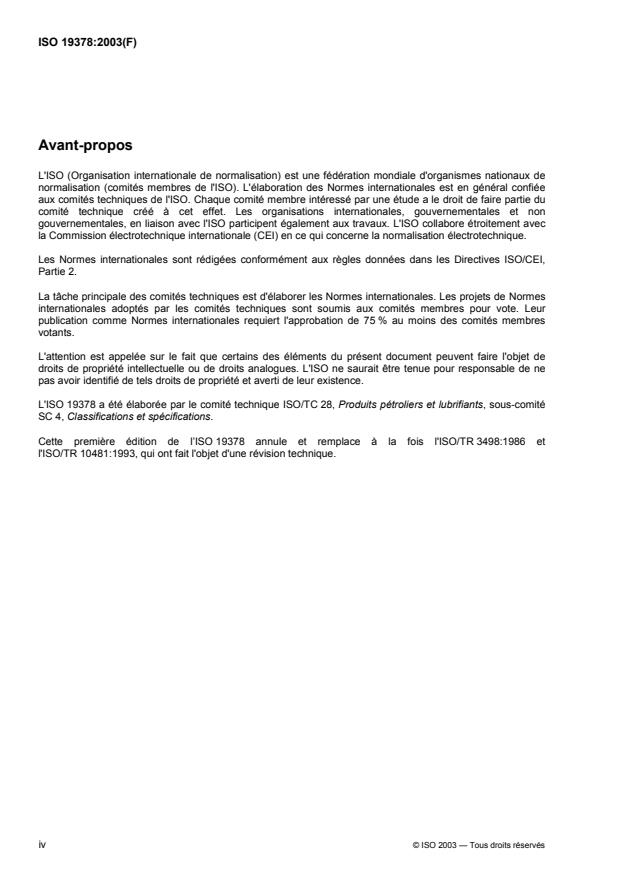

Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 19378 a été élaborée par le comité technique ISO/TC 28, Produits pétroliers et lubrifiants, sous-comité
SC 4, Classifications et spécifications.
Cette première édition de l’ISO 19378 annule et remplace à la fois l'ISO/TR 3498:1986 et
l'ISO/TR 10481:1993, qui ont fait l'objet d'une révision technique.

iv © ISO 2003 — Tous droits réservés

---------------------- Page: 4 ----------------------
NORME INTERNATIONALE ISO 19378:2003(F)

Lubrifiants, huiles industrielles et produits connexes
(classe L) — Lubrifiants pour machines outils — Catégories et
spécifications
AVERTISSEMENT — La manipulation et l'utilisation des produits spécifiés dans la présente Norme
internationale peuvent comporter des risques si aucune précaution n'est prise. La présente Norme
internationale n'est pas censée aborder tous les problèmes de sécurité concernés par son usage. Il
est de la responsabilité de l'utilisateur de consulter et d'établir des règles de sécurité et d'hygiène
appropriées et de déterminer l'applicabilité des restrictions réglementaires avant l'utilisation.
1 Domaine d'application
La présente Norme internationale procure aux fabricants et utilisateurs de machines outils des critères pour le
choix des lubrifiants parmi les différentes catégories existantes, et donne des spécifications pour ces
lubrifiants. La présente Norme internationale facilite par conséquent la mise en œuvre de l'ISO 5169 qui
donne les instructions de lubrification des machines outils.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Toutefois, les parties prenantes aux accords fondés sur ce
document sont invitées à rechercher la possibilité d'appliquer les éditions les plus récentes des documents
normatifs indiqués ci-après. Pour les références non datées, la dernière édition du document de référence
s'applique (y compris les éventuels amendements).
ISO 1817:1999, Caoutchouc vulcanisé — Détermination de l'action des liquides
ISO 2160:1998, Produits pétroliers — Action corrosive sur le cuivre — Essai à la lame de cuivre
ISO 2592:2000, Détermination des points d'éclair et de feu — Méthode Cleveland à vase ouvert
ISO 2719:2002, Détermination du point d'éclair — Méthode Pensky-Martens en vase clos
ISO 2909:2002, Produits pétroliers — Calcul de l'indice de viscosité à partir de la viscosité cinématique
ISO 3016:1994, Produits pétroliers — Détermination du point d'écoulement
ISO 3104:1994, Produits pétroliers — Liquides opaques et transparents — Détermination de la viscosité
cinématique et calcul de la viscosité dynamique
ISO 3104:1994, Rectificatif technique 1:1997
1)
ISO 3170:— , Produits pétroliers liquides — Échantillonnage manuel
ISO 3448:1992, Lubrifiants liquides industriels — Classification ISO selon la viscosité

1) À publier. (Révision de l'ISO 3170:1988)
© ISO 2003 — Tous droits réservés 1

---------------------- Page: 5 ----------------------
ISO 19378:2003(F)
ISO 3675:1998, Pétrole brut et produits pétroliers liquides — Détermination en laboratoire de la masse
volumique — Méthode à l'aréomètre
ISO 4259:1992, Produits pétroliers — Détermination et application des valeurs de fidélité relatives aux
méthodes d'essai [y compris le Rectificatif Technique 1:1993 (en anglais et pour la version anglaise
seulement)]
ISO 4263-1:2003, Produits pétroliers et produits connexes — Détermination des caractéristiques de
vieillissement des huiles et fluides additivés — Essai TOST — Partie 1: Méthode pour les huiles minérales
ISO 5169:1977, Machines outils — Présentation des instructions pour la lubrification
ISO 6247:1998, Produits pétroliers — Détermination des caractéristiques de moussage des huiles lubrifiantes
ISO 6614:1994, Produits pétroliers — Détermination des caractéristiques de séparation d'eau des huiles de
pétrole et fluides synthétiques
ISO 6618:1997, Produits pétroliers et lubrifiants — Détermination de l'indice d'acide ou de l'indice de base —
Méthode par titrage en présence d'un indicateur coloré
ISO 6743-1:2002 Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification — Partie 1:
Famille A (Graissage perdu)
ISO 6743-2:1981, Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification — Partie 2:
Famille F (Paliers de broche, paliers et embrayages associés)
ISO 6743-4:1999, Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification — Partie 4:
Famille H (Systèmes hydrauliques)
ISO 6743-6:1990, Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification — Partie 6:
Famille C (Engrenages)
ISO 6743-9:2003, Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification — Partie 9:
Famille X (Graisses)
ISO 6743-13:2002, Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification —
Partie 13: Famille G (Glissières)
ISO 6743-99:2002, Lubrifiants, huiles industrielles et produits connexes (classe L) — Classification —
Partie 99: Généralités
ISO 7120:1987, Produits pétroliers et lubrifiants — Huiles de pétrole et autres fluides — Détermination des
caractéristiques anti-rouille en présence d'eau
ISO 11158:1997, Lubrifiants, huiles industrielles et produits connexes (classe L) — Famille H (systèmes
hydrauliques) — Spécifications des catégories HH, HL, HM, HR, HV et HG
ISO 12925-1:1996, Lubrifiants, huiles industrielles et produits connexes (classe L) — Famille C
(Engrenages) — Partie 1: Spécifications des lubrifiants pour systèmes d'engrenages sous carter
ISO 12925-1:1996, Rectificatif technique 1:2002
XP T 60-183:1994, Lubricants, industrial oils and related products — Lubricants for slideways — Anti-slick slip
lubricating ability (Lubrifiants, huiles industrielles et produits connexes — Lubrifiants pour glissières — Pouvoir
antisaccade)
ASTM D4172-94, Standard test method for wear preventive characteristics of lubricating fluid (Four-ball
method) [Méthode d'essai pour les caractéristiques de protection contre l'usure des fluides lubrifiants
(Méthode quatre billes)]
2 © ISO 2003 — Tous droits réservés

---------------------- Page: 6 ----------------------
ISO 19378:2003(F)
3 Échantillonnage
Sauf indication contraire dans les spécifications d'usage, les échantillons doivent être prélevés comme décrit
dans l'ISO 3170.
4 Catégories de produits pour la lubrification des machines outils — Critères de
choix
Les éléments mécaniques des machines outils doivent être lubrifiés avec certaines familles de produits qui
sont définies et décrites dans l'ISO 6743-1, l'ISO 6743-2, l'ISO 6743-4, l'ISO 6743-6, l'ISO 6743-9,
l'ISO 6743-13, et l'ISO 6743-99.
Chaque partie de l'ISO 6743 définit des catégories dans chaque famille de lubrifiants. Dans chacune de ces
catégories, tous les grades définis dans l'ISO 3448 pour les lubrifiants liquides, ou dans l'ISO 6743-9 pour les
graisses, sont possibles. En ce qui concerne la lubrification des machines outils, les catégories de produits et
les grades dans chaque catégorie ne sont pas tous utiles. C'est pourquoi, et afin de simplifier le choix pour les
fabricants et pour les utilisateurs de machine outils, il est souhaitable de limiter le nombre des catégories et
des grades de produits.
Le Tableau 1 donne des critères pour les applications et définit une gamme limitée de produits qui
apparaissent soulignés. Il est recommandé aux fabricants de machines outils de choisir les lubrifiants, autant
que faire se peut, parmi ceux de la gamme limitée.
Le Tableau 1 ne couvre pas les applications spéciales qui nécessitent l'emploi de lubrifiants spécifiques. Il
convient que ces applications spéciales soient étudiées séparément, au cas par cas, par les fabricants et par
les utilisateurs de machines outils.
5 Spécifications des produits
Les produits de la famille H, classifiés dans l'ISO 6743-4, sont spécifiés dans l'ISO 11158, et ceux de la
famille C, classifiés dans l'ISO 6743-6, le sont dans l'ISO 12925-1.
Il n'y a pas pour l'instant de spécifications relatives aux produits de la famille X, classifiés dans l'ISO 6743-9.
NOTE Au moment de la publication de la présente Norme internationale, une Norme internationale de spécifications
des graisses est à l'étude et se trouve au stade préliminaire (voir Annexe A).
Le Tableau 2 donne les exigences relatives aux catégories de lubrifiants L-AN (ISO 6743-1), L-FC et L-FD
(ISO 6743-2), et L-G (ISO 6743-13) correspondant au Tableau 1.
Les propriétés définies sont celles des produits au moment de leur livraison. La détermination de l'exactitude
lors de l'interprétation des résultats est décrite dans l'ISO 4259. En cas de conflit, l'arbitrage doit être fait sur
la base de cette procédure.
© ISO 2003 — Tous droits réservés 3

---------------------- Page: 7 ----------------------
ISO 19378:2003(F)
6 Emballage et étiquetage
6.1 Emballage
Les lubrifiants doivent être mis dans des emballages adéquats et conformes aux réglementations en vigueur.
6.2 Étiquetage
L'étiquetage doit donner au minimum les indications suivantes:
a) le nom commercial du produit;
b) le code ISO de désignation (y compris le grade de viscosité);
c) le numéro de lot;
d) la date de fabrication;
e) l'étiquetage réglementaire (transport, sécurité) si le produit est soumis à une réglementation.


4 © ISO 2003 — Tous droits réservés

---------------------- Page: 8 ----------------------
ISO 19378:2003(F)
© ISO 2003 — Tous droits réservés 5
Tableau 1 — Domaine des lubrifiants pour machines outils
Application
Lettre Application Application Produit type et/ou
a
plus Symbole ISO-L Applications typiques Remarques
code générale particulière exigences de performance
spécifique
A Lubrification  Huiles minérales raffinées AN 32 Organes subissant une charge
perdue légère
AN 68
AN 220
C Engrenages Engrenages Lubrification Huiles minérales raffinées CKB 32 Engrenages sous carter, Les huiles CKB 32 et CKB 68
sous carter continue: possédant des propriétés opérant sous charge modérée peuvent également être
CKB 68
lubrification améliorées de stabilité à (voir ISO 6743-6) utilisées pour la lubrification
CKB 100
par barbotage, l'oxydation, de protection des embrayages humides à
Paliers, poupées, boîtes
CKB 150
par circulation contre la corrosion (métaux contrôle mécanique
d'avance, chariots
ou par ferreux et non ferreux) et
L'huile CKB 68 peut remplacer
brouillard antimoussage
l'huile AN 68
  Huiles minérales raffinées CKC 68 Engrenages sous carter, dont Ces huiles peuvent aussi
possédant des propriétés l'huile garde en service une convenir pour la lubrification
CKC 100
améliorées de stabilité à température stabilisée normale manuelle ou centralisée de vis
CKC 150
l'oxydation, de protection ou moyenne, et opérant sous de manœuvre et de glissières
CKC 220
contre la corrosion (métaux charge forte (voir ISO 6743-6) opérant sous charge légère ou
CKC 320
ferreux et non dont les conditions d'utilisation
Toutes les sortes d'engrenages
ferreux),extrême pression, CKC 460 ne requièrent pas de
sous carter (sauf les
antiusure et antimoussage propriétés antisaccade
engrenages hypoïdes)
particulières
Paliers lisses et paliers à
roulements, très chargés
F Paliers à Paliers à Huiles minérales raffinées FC 2 Lubrification par recirculation, Ces huiles sont destinées à la
broche, broche, paliers possédant des propriétés par barbotage ou par brouillard lubrification d'éléments de
FC 5
paliers et et améliorées de stabilité à d'huile, de paliers lisses, paliers machines outils, y compris les
FC 10
embrayages embrayages l'oxydation et de protection à roulements et embrayages embrayages. Les huiles
FC 22
associés associés contre la corrosion associés contenant des additifs extrême
pression ou antiusure ne sont
pas permises
  Paliers à Huiles minérales raff
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
