SIST EN 1504-8:2016
(Main)Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and AVCP - Part 8: Quality control and Assessment and verification of the constancy of performance (AVCP)
Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and AVCP - Part 8: Quality control and Assessment and verification of the constancy of performance (AVCP)
This Part of this European Standard specifies procedures for quality control and evaluation of conformity, including marking and labelling of products and systems for the protection and repair of concrete according to EN 1504, Parts 2 to 7.
Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Definitionen, Anforderungen, Qualitätskontrolle und AVCP - Teil 8: Qualitätskontrolle und Bewertung und Überprüfung der Leistungsbeständigkeit
Dieser Teil von EN 1504 legt Verfahren für die Probenahme, die Qualitätskontrolle und die Bewertung und Überprüfung der Leistungsbeständigkeit (en: assessment and verification of the constancy of performance, AVCP) sowie für die Kennzeichnung und Etikettierung von Produkten und Systemen für den Schutz und die Instandsetzung von Beton entsprechend EN 1504-2 bis EN 1504-7 fest.
Produits et systèmes pour la protection et la réparation de structures en béton - Définitions, prescriptions, maîtrise de la qualité et EVCP - Partie 8 : Maîtrise de la qualité et Évaluation et vérification de la constance des performances
La présente partie de l'EN 1504 prescrit les modes opératoires d'échantillonnage, de maîtrise de la qualité, de l'évaluation et de la vérification de la constance des performances (EVCP) y compris le marquage et l'étiquetage des produits et systèmes de protection et de réparation du béton conformément aux EN 1504 2 à EN 1504-7.
Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Definicije, zahteve, kontrola kakovosti in ocenjevanje ter preverjanje nespremenljivosti lastnosti (AVCP) - 8. del: Kontrola kakovosti in ocenjevanje ter preverjanje nespremenljivosti lastnosti (AVCP)
Ta del tega evropskega standarda določa postopke za kontrolo kakovosti in ocenjevanje skladnosti, vključno z označevanjem in etiketiranjem proizvodov ter sistemov za zaščito in popravilo betonskih konstrukcij v skladu s standardom EN 1504, 2.–7. del.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.PHQOMLYRVWLSUHYHUMDQMHProdukte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Definitionen, Anforderungen, Qualitätskontrolle und AVCP - Teil 8: Qualitätskontrolle und Bewertung und Überprüfung der LeistungsbeständigkeitProduits et systèmes pour la protection et la réparation de structures en béton - Définitions, prescriptions, maîtrise de la qualité et EVCP - Partie 8 : Maîtrise de la qualité et Évaluation et vérification de la constance des performancesProducts and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and AVCP - Part 8: Quality control and Assessment and verification of the constancy of performance (AVCP)91.080.40Betonske konstrukcijeConcrete structuresICS:Ta slovenski standard je istoveten z:EN 1504-8:2016SIST EN 1504-8:2016en,fr,de01-oktober-2016SIST EN 1504-8:2016SLOVENSKI
STANDARDSIST EN 1504-8:20051DGRPHãþD
SIST EN 1504-8:2016
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1504-8
May
t r s x ICS
{ sä r z rä v r Supersedes EN
s w r væ zã t r r vEnglish Version
Products and systems for the protection and repair of concrete structures æ Definitionsá requirementsá quality control and AVCP æ Part
zã Quality control and Assessment Produits et systèmes pour la protection et la réparationde structures en béton æ Définitionsá prescriptionsá maîtrise de la qualité et EVCP æ Partie
z ã Maîtrise de la qualité et évaluation et vérification de la constance des
Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken æ Definitionená Anforderungená Qualitätskontrolle und AVCP æ Teil
zã Qualitätskontrolle und Bewertung und Überprüfung This European Standard was approved by CEN on
s t March
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
9
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s w r væ zã t r s x ESIST EN 1504-8:2016

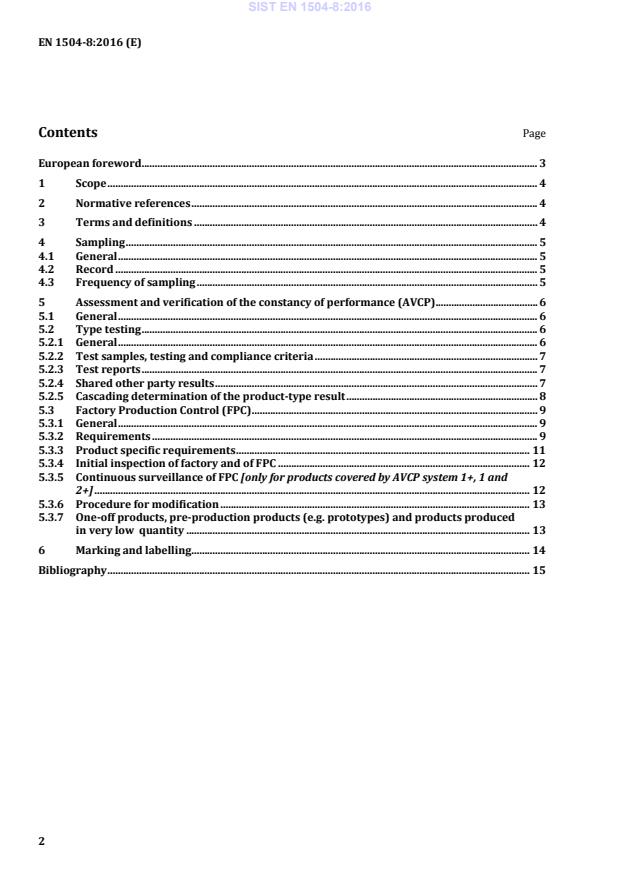

EN 1504-8:2016 (E) 2 Contents Page European foreword . 3 1 Scope . 4 2 Normative references . 4 3 Terms and definitions . 4 4 Sampling . 5 4.1 General . 5 4.2 Record . 5 4.3 Frequency of sampling . 5 5 Assessment and verification of the constancy of performance (AVCP) . 6 5.1 General . 6 5.2 Type testing . 6 5.2.1 General . 6 5.2.2 Test samples, testing and compliance criteria . 7 5.2.3 Test reports . 7 5.2.4 Shared other party results . 7 5.2.5 Cascading determination of the product-type result . 8 5.3 Factory Production Control (FPC) . 9 5.3.1 General . 9 5.3.2 Requirements . 9 5.3.3 Product specific requirements . 11 5.3.4 Initial inspection of factory and of FPC . 12 5.3.5 Continuous surveillance of FPC [only for products covered by AVCP system 1+, 1 and 2+] . 12 5.3.6 Procedure for modification . 13 5.3.7 One-off products, pre-production products (e.g. prototypes) and products produced in very low
quantity . 13 6 Marking and labelling . 14 Bibliography . 15 SIST EN 1504-8:2016
EN 1504-8:2016 (E) 3 European foreword This document (EN 1504-8:2016) has been prepared by Technical Committee CEN/TC 104 “Concrete and related products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by November 2016, and conflicting national standards shall be withdrawn at the latest by February 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1504-8:2004. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. The main changes that have been made in this new edition are as follows: The wording has been adapted to the CPR (Regulation (EU) No. 305/2011). EN 1504 consists of the following parts under the general title Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and AVCP. — Part 1: Definitions — Part 2: Surface protection systems for concrete — Part 3: Repair concrete and mortars — Part 4: Structural bonding — Part 5: Concrete injection — Part 6: Anchoring of reinforcing steel bar — Part 7: Reinforcement corrosion protection — Part 9: General principles for the use of products and systems — Part 10: Site application of products and systems and quality control of the works According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 1504-8:2016
EN 1504-8:2016 (E) 4 1 Scope This Part of EN 1504 specifies procedures for sampling, quality control, assessment and verification of the constancy of performance (AVCP) including marking and labelling of products and systems for the protection and repair of concrete according to EN 1504-2 to EN 1504-7. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1504-1, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 1: Definitions EN 1504-2, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 2: Surface protection systems for concrete EN 1504-3, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 3: Structural and non-structural repair EN 1504-4, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 4: Structural bonding EN 1504-5, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 5: Concrete injection EN 1504-6, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 6: Anchoring of reinforcing steel bar EN 1504-7, Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 7: Reinforcement corrosion protection 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1504-1 and the following apply. 3.1 batch quantity of material made in a single operation, or in the case of continuous production for a defined quantity (in tonnes) which shall be demonstrated by the producer to have a uniform composition and shall not exceed one day’s production 3.2 identification test test carried out to verify a declared value of the composition or property of the product or system in terms of consistency of the production Note 1 to entry: This is to ensure that the product or system being tested corresponds to the product or system subjected to the initial type test, within the permitted tolerances. SIST EN 1504-8:2016
EN 1504-8:2016 (E) 5 3.3 performance test test carried out to verify a value for essential characteristics of the product or system in terms of its specified performance during application and use Note 1 to entry: This is to ensure that the product or system conforms to its specified performance characteristics. 3.4 declared value value declared and documented by the manufacturer for identification or essential characteristics 4 Sampling 4.1 General Sampling shall be carried out in such a way that the resulting sample is homogeneous and representative of the batch or product to be inspected. Samples shall be clearly labelled to uniquely identify the source, location and time of sampling. The sample size shall be sufficient for all the required testing in accordance with the relevant test method standards. A part of the sample should be retained for future reference until the use by date. 4.2 Record All information relevant to the sampling shall be recorded, including in particular: a) date of manufacture and sampling; b) unique identification of the product and of the sample(s); c) type of material and quantity of sample(s); d) name of the manufacturer; e) manufacturer’s batch identification number; f) quantity of batch or product represented by the sample; g) physical state; h) colour or appearance; i) name(s) of the person(s) responsible for sampling; j) method of sampling. 4.3 Frequency of sampling For frequency of sampling see frequency of testing in EN 15042 to EN 15047. SIST EN 1504-8:2016
EN 1504-8:2016 (E) 6 5 Assessment and verification of the constancy of performance (AVCP) 5.1 General The compliance of the products and systems for the protection and repair of concrete structures with the requirement of this standard and with the performances declared by the manufacturer in the DoP shall be demonstrated by: — determination of the product-type; — factory production control by the manufacturer, including product assessment. The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility for the conformity of the product with its declared performance(s). NOTE The assignment of tasks to the notified bodies and the manufacturer is shown in the Annexes ZA (Table ZA.3 and following Tables) of the relevant part of the EN 1504 series. 5.2 Type testing 5.2.1 General All performances related to characteristics included in this standard shall be determined when the manufacturer intends to declare the respective performances unless the standard gives provisions for declaring them without performing tests. (e.g. use of previously existing data, CWFT and conventionally accepted performance). Assessment previously performed in accordance with the provisions of this standard, may be taken into account provided that they were made to the same or a more rigorous test method, under the same AVCP system on the same product or products of similar design, construction and functionality, such that the results are applicable to the product in question. NOTE 1 Same AVCP system means testing by an independent third party [only for products covered by system 1+, 1 and 3], under the responsibility of a notified product certification body [only for products covered by system 1+ and 1]. For the purposes of assessment, the manufacturer's products may be grouped into families, where it is considered that the results for one or more characteristics from any one product within the family are representative for that same characteristics for all products within that same family NOTE 2 Products may be grouped in different families for different characteristics. Reference to the assessment method standards should be made to allow the selection of a suitable representative sample. In addition, the determination of the product-type shall be performed for all characteristics included in the standard for which the manufacturer declares the performance: — at the beginning of the production of a new or modified product or system for the protection and repair of concrete structures (unless a member of the same product range), or — at the beginning of a new or modified method of production (where this may affect the stated properties); or — they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the product or system for the protection and repair of concrete structures design, in the raw material or in the supplier of the components, or in the method of production (subject to the definition of a family), which would affect significantly one or more of the characteristics. SIST EN 1504-8:2016
EN 1504-8:2016 (E) 7 Where components are used whose characteristics have already been determined, by the component manufacturer, on the basis of assessment methods of other product standards, these characteristics need not be re-assessed. The specifications of these components shall be documented. Products bearing regulatory marking in accordance with appropriate harmonized European specifications may be presumed to have the performances declared in the DoP, although this does not replace the responsibility on the product or system for the protection and repair of concrete structures manufacturer to ensure that the product or system for the protection and repair of concrete structures as a whole is correctly manufactured and its component products have the declared performance values. 5.2.2 Test samples, testing and compliance criteria The number of samples of products and systems for the protection and repair of concrete structures to be tested/assessed shall be as specified by the materials specification part of this standard (EN 1504-2 to EN 15047). 5.2.3 Test reports The results of the determination of the product-type shall be documented in test reports. All test reports shall be retained by the manufacturer for at least 10 years after the last date of production of the products and systems for the protection and repair of concrete structures to which they relate. 5.2.4 Shared other party results A manufacturer may use the results of the product-type determination obtained by someone else (e.g. by another manufacturer, as a common service to manufacturers, or by a product developer), to justify his own declaration of performance regarding a product that is manufactured according to the same design (e.g. dimensions) and with raw materials, constituents and manufacturing methods of the same kind, provided that: — the results are known to be valid for products with the same essential characteristics relevant for the product performance; — in addition to any information essential for confirming that the product has such same performances related to specific essential characteristics, the other party who has carried out the determination of the product-type concerned or has had it carried out, has expressly accepted1 to transmit to the manufacturer the results and the test report to be used for the latter’s product-type determination, as well as information regarding production facilities and the production control process that can be taken into account for FPC; — the manufacturer using other party results accepts to remain responsible for the product having the declared performances and he also: a) ensures that the product has the same characteristics relevant for performance as the one that has been subjected to the determination of the product-type, and that there are no significant differences with regard to production facilities and the production control process compared to that used for the product that was subjected to the determination of the product-type; and b) keeps available a copy of the determination of the product-type report that also contains the information needed for verifying that the product is manufactured according to the same design and with raw materials, constituents and manufacturing methods of the same kind. SIST EN 1504-8:2016
EN 1504-8:2016 (E) 8 5.2.5 Cascading determination of the product-type result For some construction products, there are companies (often
...
SLOVENSKI STANDARD
kSIST FprEN 1504-8:2015
01-november-2015
3URL]YRGLLQVLVWHPL]D]DãþLWRLQSRSUDYLOREHWRQVNLKNRQVWUXNFLM'HILQLFLMH
]DKWHYHNRQWURODNDNRYRVWLLQRFHQMHYDQMHWHUSUHYHUMDQMHQHVSUHPHQOMLYRVWL
ODVWQRVWL$9&3GHO.RQWURODNDNRYRVWLLQRFHQMHYDQMHWHUSUHYHUMDQMH
QHVSUHPHQOMLYRVWLODVWQRVWL$9&3
Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and AVCP - Part 8: Quality control and Assessment and
verification of the constancy of performance (AVCP)
Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken -
Definitionen, Anforderungen, Qualitätskontrolle und AVCP - Teil 8: Qualitätskontrolle und
Bewertung und Überprüfung der Leistungsbeständigkeit
Produits et systèmes pour la protection et la réparation de structures en béton -
Définitions, prescriptions, maîtrise de la qualité et EVCP - Partie 8 : Maîtrise de la qualité
et Évaluation et vérification de la constance des performances
Ta slovenski standard je istoveten z: FprEN 1504-8
ICS:
91.080.40 Betonske konstrukcije Concrete structures
kSIST FprEN 1504-8:2015 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
kSIST FprEN 1504-8:2015
---------------------- Page: 2 ----------------------
kSIST FprEN 1504-8:2015
FINAL DRAFT
EUROPEAN STANDARD
FprEN 1504-8
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2015
ICS 91.080.40 Will supersede EN 1504-8:2004
English Version
Products and systems for the protection and repair of
concrete structures - Definitions, requirements, quality
control and AVCP - Part 8: Quality control and Assessment
and verification of the constancy of performance (AVCP)
Produits et systèmes pour la protection et la réparation Produkte und Systeme für den Schutz und die
de structures en béton - Définitions, prescriptions, Instandsetzung von Betontragwerken - Definitionen,
maîtrise de la qualité et EVCP - Partie 8 : Maîtrise de la Anforderungen, Qualitätskontrolle und AVCP - Teil 8:
qualité et Évaluation et vérification de la constance des Qualitätskontrolle und Bewertung und Überprüfung
performances der Leistungsbeständigkeit
This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the
Technical Committee CEN/TC 104.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprEN 1504-8:2015 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Sampling . 5
4.1 General . 5
4.2 Record . 5
4.3 Frequency of sampling . 5
5 Assessment and verification of the constancy of performance (AVCP) . 6
5.1 General . 6
5.2 Type testing . 6
5.2.1 General . 6
5.2.2 Test samples, testing and compliance criteria . 7
5.2.3 Test reports . 7
5.2.4 Shared other party results . 7
5.2.5 Cascading determination of the product type result . 8
5.3 Factory Production Control (FPC) . 9
5.3.1 General . 9
5.3.2 Requirements . 9
5.3.3 Product specific requirements . 11
5.3.4 Initial inspection of factory and of FPC . 12
5.3.5 Continuous surveillance of FPC [only for products covered by AVCP system 1+, 1 and
2+] . 13
5.3.6 Procedure for modification . 13
5.3.7 One-off products, pre-production products (e.g. prototypes) and products produced
in very low quantity . 13
6 Marking and labelling . 14
Bibliography . 15
2
---------------------- Page: 4 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
European foreword
This document (FprEN 1504-8:2015) has been prepared by Technical Committee CEN/TC 104
“Concrete and related products”, the secretariat of which is held by DIN.
This document is currently submitted to the Unique Acceptance Procedure.
This document will supersede EN 1504:8:2004.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
The main changes that have been made in this new edition are as follows:
The wording has been adapted to the CPR (Regulation (EU) No. 305/2011).
EN 1504 consists of the following parts under the general title Products and systems for the protection
and repair of concrete structures — Definitions, requirements, quality control and AVCP.
— Part 1: Definitions
— Part 2: Surface protection products and systems for concrete
— Part 3: Repair concrete and mortars
— Part 4: Structural bonding
— Part 5: Concrete injection
— Part 6: Anchoring of reinforcing steel bar
— Part 7: Reinforcement corrosion protection
— Part 9: General principles for the use of products and systems
— Part 10: Site application of products and systems and quality control of the works
3
---------------------- Page: 5 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
1 Scope
This Part of EN 1504 specifies procedures for sampling, quality control, assessment and verification of
the constancy of performance (AVCP) including marking and labelling of products and systems for the
protection and repair of concrete according to EN 1504-2 to −7.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 1504-1, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 1: Definitions
EN 1504-2, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 2: Surface protection systems for
concrete
EN 1504-3, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 3: Structural and non-structural repair
EN 1504-4, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 4: Structural bonding
EN 1504-5, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 5: Concrete injection
EN 1504-6, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 6: Anchoring of reinforcing steel bar
EN 1504-7, Products and systems for the protection and repair of concrete structures - Definitions,
requirements, quality control and evaluation of conformity - Part 7: Reinforcement corrosion protection
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1504-1 and the following
apply.
3.1
batch
quantity of material made in a single operation, or in the case of continuous production for a defined
quantity (in tonnes) which shall be demonstrated by the producer to have a uniform composition and
shall not exceed one day’s production
3.2
identification test
test carried out to verify a declared value of the composition or property of the product or system in
terms of consistency of the production
Note 1 to entry: This is to ensure that the product or system being tested corresponds to the product or system
subjected to the initial type test, within the permitted tolerances.
4
---------------------- Page: 6 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
3.3
performance test
test carried out to verify a value for a required property of the product or system in terms of its
specified performance during application and use
Note 1 to entry: This is to ensure that the product or system conforms to its specified performance
characteristics.
3.4
declared value
value declared and documented by the manufacturer for identification or performance requirements
4 Sampling
4.1 General
Sampling shall be carried out in such a way that the resulting sample is homogeneous and
representative of the batch or product to be inspected. Samples shall be clearly labelled to uniquely
identify the source, location and time of sampling. The sample size shall be sufficient for all the required
testing in accordance with the relevant test method standards.
A part of the sample should be retained for future reference until the use by date.
4.2 Record
All information relevant to the sampling shall be recorded, including in particular:
a) date of manufacture and sampling;
b) unique identification of the product and of the sample(s);
c) type of material and quantity of sample(s);
d) name of the manufacturer;
e) manufacturer’s batch identification number;
f) quantity of batch or product represented by the sample;
g) physical state;
h) colour or appearance;
i) name(s) of the person(s) responsible for sampling;
j) method of sampling.
4.3 Frequency of sampling
For frequency of sampling see frequency of testing in EN 1504 −2 to −6.
5
---------------------- Page: 7 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
5 Assessment and verification of the constancy of performance (AVCP)
5.1 General
The compliance of the products and systems for the protection and repair of concrete structures with
the requirement of this standard and with the performances declared by the manufacturer in the DoP
shall be demonstrated by:
— determination of the product type;
— factory production control by the manufacturer, including product assessment.
The manufacturer shall always retain the overall control and shall have the necessary means to take
responsibility for the conformity of the product with its declared performance(s).
NOTE The assignment of tasks to the notified bodies and the manufacturer is shown in Annex ZA, Tables
ZA.3ff of the relevant part of this standard.
5.2 Type testing
5.2.1 General
All performances related to characteristics included in this standard shall be determined when the
manufacturer intends to declare the respective performances unless the standard gives provisions for
declaring them without performing tests. (e.g. use of previously existing data, CWFT and conventionally
accepted performance).
Assessment previously performed in accordance with the provisions of this standard, may be taken into
account provided that they were made to the same or a more rigorous test method, under the same
AVCP system on the same product or products of similar design, construction and functionality, such
that the results are applicable to the product in question.
NOTE 1 Same AVCP system means testing by an independent third party [only for products covered by system
1+, 1 and 3], under the responsibility of a notified product certification body [only for products covered by system
1+ and 1].
For the purposes of assessment, the manufacturer's products may be grouped into families, where it is
considered that the results for one or more characteristics from any one product within the family are
representative for that same characteristics for all products within that same family
NOTE 2 Products may be grouped in different families for different characteristics.
Reference to the assessment method standards should be made to allow the selection of a suitable
representative sample.
In addition, the determination of the product type shall be performed for all characteristics included in
the standard for which the manufacturer declares the performance:
— at the beginning of the production of a new or modified product or system for the protection and
repair of concrete structures (unless a member of the same product range), or
— at the beginning of a new or modified method of production (where this may affect the stated
properties); or
— they shall be repeated for the appropriate characteristic(s), whenever a change occurs in the
product or system for the protection and repair of concrete structures design, in the raw material
or in the supplier of the components, or in the method of production (subject to the definition of a
family), which would affect significantly one or more of the characteristics.
6
---------------------- Page: 8 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
Where components are used whose characteristics have already been determined, by the component
manufacturer, on the basis of assessment methods of other product standards, these characteristics
need not be re-assessed. The specifications of these components shall be documented.
Products bearing regulatory marking in accordance with appropriate harmonized European
specifications may be presumed to have the performances declared in the DoP, although this does not
replace the responsibility on the product or system for the protection and repair of concrete structures
manufacturer to ensure that the product or system for the protection and repair of concrete structures
as a whole is correctly manufactured and its component products have the declared performance
values.
5.2.2 Test samples, testing and compliance criteria
The number of samples of products and systems for the protection and repair of concrete structures to
be tested/assessed shall be as specified by the materials specification part of this standard (EN 1504-2
to −7).
5.2.3 Test reports
The results of the determination of the product type shall be documented in test reports. All test reports
shall be retained by the manufacturer for at least 10 years after the last date of production of the
products and systems for the protection and repair of concrete structures to which they relate.
5.2.4 Shared other party results
A manufacturer may use the results of the product type determination obtained by someone else (e.g.
by another manufacturer, as a common service to manufacturers, or by a product developer), to justify
his own declaration of performance regarding a product that is manufactured according to the same
design (e.g. dimensions) and with raw materials, constituents and manufacturing methods of the same
kind, provided that:
— the results are known to be valid for products with the same essential characteristics relevant for
the product performance;
— in addition to any information essential for confirming that the product has such same
performances related to specific essential characteristics, the other party who has carried out the
determination of the product type concerned or has had it carried out, has expressly accepted1 to
transmit to the manufacturer the results and the test report to be used for the latter’s product type
determination, as well as information regarding production facilities and the production control
process that can be taken into account for FPC;
— the manufacturer using other party results accepts to remain responsible for the product having
the declared performances and he also:
— ensures that the product has the same characteristics relevant for performance as the one that
has been subjected to the determination of the product type, and that there are no
significant differences with regard to production facilities and the production control
process compared to that used for the product that was subjected to the determination of
the product type; and
— keeps available a copy of the determination of the product type report that also contains the
information needed for verifying that the product is manufactured according to the same
design and with raw materials, constituents and manufacturing methods of the same kind.
7
---------------------- Page: 9 ----------------------
kSIST FprEN 1504-8:2015
FprEN 1504-8:2015 (E)
5.2.5 Cascading determination of the product type result
For some
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
