SIST EN 60317-37:2014/A1:2024

Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer (IEC 60317-37:2013/AMD1:2024)

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 37: Runddrähte aus Kupfer, verbackbar, lackisoliert mit Polyester oder Polyesterimid, Klasse 180 (IEC 60317-37:2013/AMD1:2024)

Spécifications pour types particuliers de fils de bobinage - Partie 37: Fil de section circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente (IEC 60317-37:2013/AMD1:2024)

Specifikacije za posebne vrste navijalnih žic - 37. del: S poliesterimidom emajlirana okrogla bakrena žica, razred 180, s spajalno plastjo - Dopolnilo A1 (IEC 60317-37:2013/AMD1:2024)

General Information

• Status: Published
• Public Enquiry End Date: 30-Oct-2023
• Publication Date: 18-Aug-2024
• ICS: 29.060.10 - Wires
• ICS: 77.150.30 - Copper products
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Aug-2024
• Due Date: 12-Oct-2024
• Completion Date: 19-Aug-2024
• Ref Project: EN 60317-37:2014/A1:2024 - Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer

Relations

• Amends: SIST EN 60317-37:2014 - Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 01-Sep-2024

Overview

EN 60317-37:2014/A1:2024 (identical to IEC 60317-37:2013/AMD1:2024) specifies requirements for polyesterimide enamelled round copper wire, class 180, with a bonding layer. This European amendment updates Part 37 of the IEC 60317 series and is intended to be used together with IEC 60317-0-1:2013 (and its Amendment 1:2019). The standard defines material, insulation and bonding-layer characteristics, and references general test and measurement methods from the Part 0-1 document.

Key Topics

• Scope: Specifications for polyesterimide enamel coating on round copper winding wire with an integrated bonding layer; thermal classification class 180 (180 °C rating implied by class).
• Normative references: Uses IEC 60317-0-1:2013 and IEC 60317-0-1:2013/AMD1:2019 as the general requirements and test-method baseline. A consolidated edition (4.1:2021) exists.
• Terms and definitions: Terms are aligned with IEC 60317-0-1 terminology and accessible via IEC Electropedia and ISO OBP.
• Methods of test: Test methods and measurement procedures are those specified in IEC 60317-0-1; in case of inconsistencies, the Part 37 text prevails.
• Electrical resistance and other electrical requirements: Refer to Clause 5 of IEC 60317-0-1 for resistance requirements and measurement procedures.
• Solvent bonding: This amendment specifies that no additional solvent-bonding requirements apply for this wire type.
• Regulatory status: Amendment A1 was approved by CENELEC in July 2024 and must be adopted at national level per the implementation dates published.

Applications

This standard is relevant wherever high-performance insulated winding wire is required:

• Motor and generator windings (industrial and traction applications)
• Transformers and power inductors
• Solenoids, relays and electrical actuators
• High-temperature or high-reliability electrotechnical equipment where polyesterimide enamel and an integrated bonding layer improve insulation integrity and coil stability

Who should use this standard

• Winding wire manufacturers and quality engineers
• Motor, transformer and coil designers specifying wire insulation systems
• Test laboratories performing compliance testing against winding-wire standards
• Procurement and compliance teams sourcing insulated copper wire to international/european specifications

Related standards

• IEC 60317-0-1:2013 (+ AMD1:2019) - General requirements and test methods for enamelled round copper wire (consolidated edition 4.1:2021)
• Other parts of the IEC 60317 series covering different enamel systems and wire forms

Keywords: EN 60317-37:2014/A1:2024, IEC 60317-37, polyesterimide enamelled round copper wire, class 180, winding wires, bonding layer, winding wire standards, insulation specifications.

Standards Content (Sample)

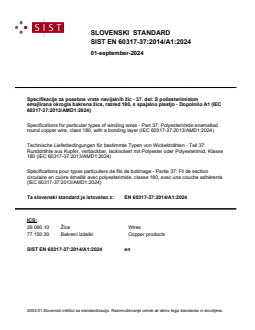

SLOVENSKI STANDARD
01-september-2024
Specifikacije za posebne vrste navijalnih žic - 37. del: S poliesterimidom
emajlirana okrogla bakrena žica, razred 180, s spajalno plastjo - Dopolnilo A1 (IEC
60317-37:2013/AMD1:2024)
Specifications for particular types of winding wires - Part 37: Polyesterimide enamelled
round copper wire, class 180, with a bonding layer (IEC 60317-37:2013/AMD1:2024)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 37:
Runddrähte aus Kupfer, verbackbar, lackisoliert mit Polyester oder Polyesterimid, Klasse
180 (IEC 60317-37:2013/AMD1:2024)
Spécifications pour types particuliers de fils de bobinage - Partie 37: Fil de section
circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente
(IEC 60317-37:2013/AMD1:2024)
Ta slovenski standard je istoveten z: EN 60317-37:2014/A1:2024
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60317-37:2014/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM August 2024
ICS 29.060.10
English Version
Specifications for particular types of winding wires - Part 37:
Polyesterimide enamelled round copper wire, class 180, with a
bonding layer
(IEC 60317-37:2013/AMD1:2024)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 37: Fil de section circulaire en cuivre émaillé avec Wickeldrähten - Teil 37: Runddrähte aus Kupfer,
polyesterimide, classe 180, avec une couche adhérente verbackbar, lackisoliert mit Polyester oder Polyesterimid,
(IEC 60317-37:2013/AMD1:2024) Klasse 180
(IEC 60317-37:2013/AMD1:2024)
This amendment A1 modifies the European Standard EN 60317-37:2014; it was approved by CENELEC on 2024-07-19. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60317-37:2014/A1:2024 E

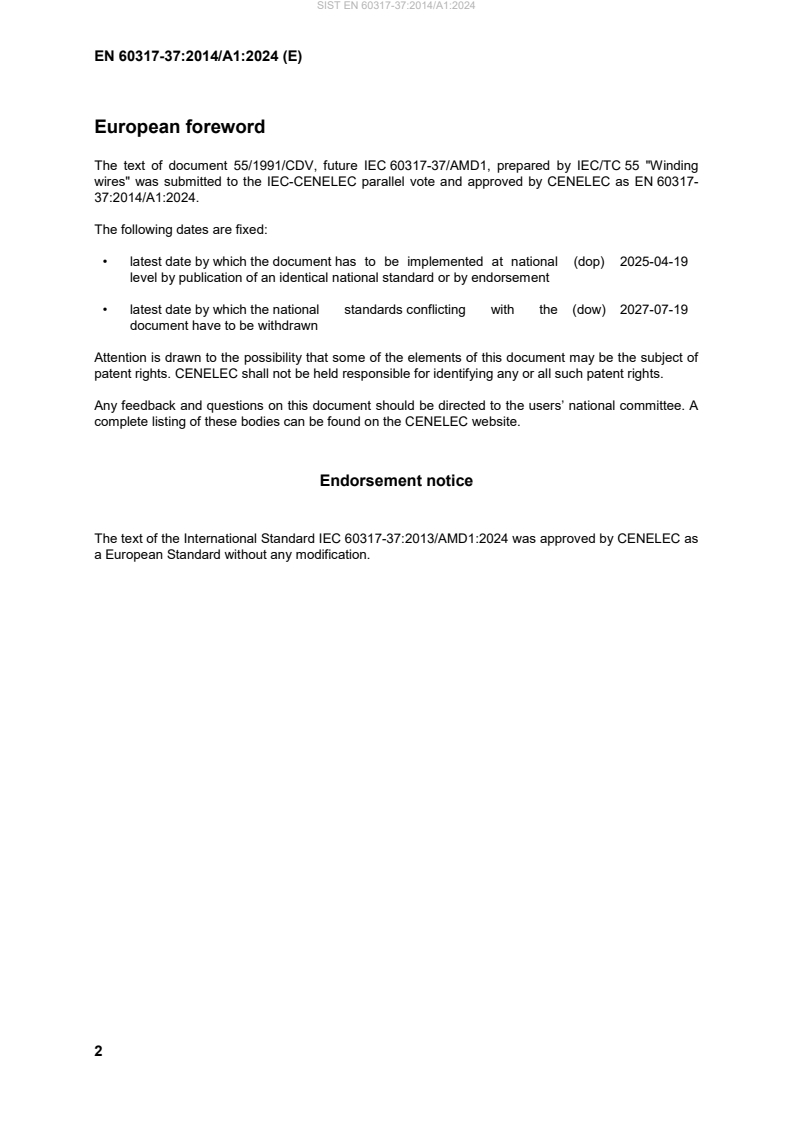

European foreword
The text of document 55/1991/CDV, future IEC 60317-37/AMD1, prepared by IEC/TC 55 "Winding
wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 60317-
37:2014/A1:2024.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2025-04-19
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2027-07-19
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60317-37:2013/AMD1:2024 was approved by CENELEC as
a European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cencenelec.eu.
Replace the references with:
Publication Year Title EN/HD Year
IEC 60317-0-1 2013 Specifications for particular types of EN 60317-0-1 2014
winding wires - Part 0-1: General
requirements - Enamelled round copper
wire
+ AMD1 2019 + A1 2019
