SIST EN 1464:2010
(Main)Adhesives - Determination of peel resistance of adhesive bonds - Floating roller method
Adhesives - Determination of peel resistance of adhesive bonds - Floating roller method
This European Standard specifies a floating roller method for the determination of the peel resistance of adhesive bonds between one rigid adherend and one flexible adherend when tested under specified conditions of preparation and testing. SAFETY STATEMENT- Persons using this document should be familiar with the normal laboratory practice, if applicable. This document does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user to establish appropriate safety and health practices and to ensure compliance with any regulatory conditions. ENVIRONMENTAL STATEMENT - It is understood that some of the material permitted in this standard may have negative environmental impact. As technological advantages lead to acceptable alternatives for these materials, they will be eliminated from this standard to the extent possible. At the end of the test, the user of the standard should take care to carry out an appropriate disposal of the wastes, according to local regulation.
Klebstoffe - Bestimmung des Schälwiderstandes von Klebungen - Rollenschälversuch
Diese Europäische Norm legt ein Rollenschälverfahren für die Bestimmung des Schälwiderstandes von
Klebungen zwischen einem starren Fügeteil und einem flexiblen Fügeteil bei der Prüfung unter vorgeschriebenen
Vorbehandlungs- und Prüfbedingungen fest.
ANMERKUNG Die Verwendung der Pendelrolle liefert gleichbleibendere Zahlenangaben als andere Verfahren, jedoch
sollte nicht erwartet werden, dass sich das flexible Fügeteil an die Rollenoberfläche anpasst.
Adhésifs - Détermination de la résistance au pelage des assemblages - Méthode des galets mobiles
La présente Norme européenne spécifie une méthode faisant appel à des galets mobiles pour la
détermination de la résistance au pelage des assemblages adhésifs réalisés entre un support rigide et un
support flexible, dans des conditions définies de préparation et d’essai.
NOTE L’emploi de galets mobiles permet l’obtention de valeurs numériques plus constantes qu’avec d’autres
méthodes de pelage, mais il convient d’admettre que le support flexible ne s’applique pas rigoureusement en tout point
sur la surface du galet.
Lepila - Določanje odpornosti proti odluščenju lepljenih stikov - Metoda s pomičnimi valji
Ta evropski standard določa metodo s pomičnimi valji za določanje odpornosti proti odluščenju lepljenih stikov med togim in mehkim lepljencem pri preskušanju pod posebnimi pogoji priprave in preskušanja. IZJAVA O VARNOSTI – Kjer je to primerno, morajo biti osebe, ki uporabljajo ta dokument, seznanjene z običajnimi laboratorijskimi praksami. Ta dokument nima namena obravnavati vseh varnostnih problemov, ki bi lahko bili povezani z njegovo uporabo. Odgovornost uporabnika je, da vzpostavi primerne varnostne in zdravstvene prakse in zagotovi skladnosti z vsemi regulativnimi pogoji. OKOLJSKA IZJAVA – Razume se, da lahko imajo nekateri materiali, ki jih dovoljuje ta standard, negativen učinek na okolje. Ko bo tehnološki napredek omogočil sprejemljive alternative za te materiale, bodo v največji mogoči meri izločeni iz tega standarda. Ob koncu preskusa mora uporabnik standarda poskrbeti, da odstrani odpadke na primeren način, v skladu z lokalnimi predpisi.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Klebstoffe - Bestimmung des Schälwiderstandes von Klebungen - RollenschälversuchAdhésifs - Détermination de la résistance au pelage des assemblages - Méthode des galets mobilesAdhesives - Determination of peel resistance of adhesive bonds - Floating roller method83.180LepilaAdhesivesICS:Ta slovenski standard je istoveten z:EN 1464:2010SIST EN 1464:2010en,fr,de01-maj-2010SIST EN 1464:2010SLOVENSKI
STANDARDSIST EN 1967:2003/AC:2006SIST EN 1967:2003SIST EN 1464:19981DGRPHãþD
SIST EN 1464:2010
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1464
February 2010 ICS 83.180 Supersedes EN 1464:1994, EN 1967:2002English Version
Adhesives - Determination of peel resistance of adhesive bonds - Floating roller method
Adhésifs - Détermination de la résistance au pelage des assemblages - Méthode des galets mobiles
Klebstoffe - Bestimmung des Schälwiderstandes von Klebungen - Rollenschälversuch This European Standard was approved by CEN on 28 December 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1464:2010: ESIST EN 1464:2010

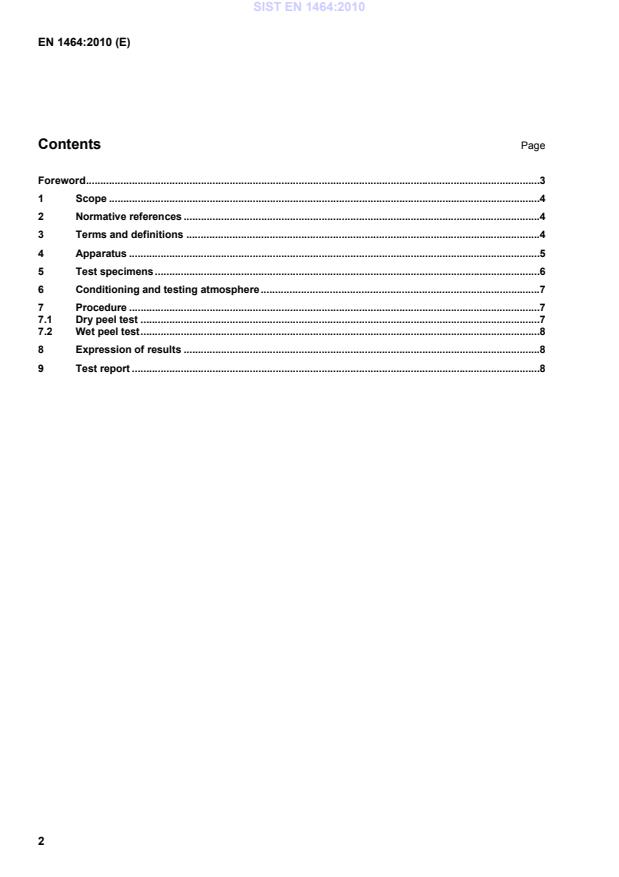

EN 1464:2010 (E) 2 Contents Page Foreword .31Scope .42Normative references .43Terms and definitions .44Apparatus .55Test specimens .66Conditioning and testing atmosphere .77Procedure .77.1Dry peel test .77.2Wet peel test .88Expression of results .89Test report .8 SIST EN 1464:2010
EN 1464:2010 (E) 3 Foreword This document (EN 1464:2010) has been prepared by Technical Committee CEN/TC 193 “Adhesives”, the secretariat of which is held by AENOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2010, and conflicting national standards shall be withdrawn at the latest by August 2010. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1464:1994 and EN 1967:2002. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EC Directive(s). According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. SIST EN 1464:2010
EN 1464:2010 (E) 4 1 Scope This European Standard specifies a floating roller method for the determination of the peel resistance of adhesive bonds between one rigid adherend and one flexible adherend when tested under specified conditions of preparation and testing. NOTE The use the floating roller produces more constant numerical data than other peel methods, but it should not be expected that the flexible adherend will conform to the surface of the roller. SAFETY STATEMENT— Persons using this document should be familiar with the normal laboratory practice, if applicable. This document does not purport to address all of the safety problems, if any, associated with its use. It is the responsibility of the user to establish appropriate safety and health practices and to ensure compliance with any regulatory conditions. ENVIRONMENTAL STATEMENT — It is understood that some of the material permitted in this standard may have negative environmental impact. As technological advantages lead to acceptable alternatives for these materials, they will be eliminated from this standard to the extent possible. At the end of the test, the user of the standard should take care to carry out an appropriate disposal of the wastes, according to local regulation. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 923:2005, Adhesives — Terms and definitions EN ISO 291, Plastics - Standard atmospheres for conditioning and testing (ISO 291:2008) EN ISO 10365, Adhesives - Designation of main failure patterns (ISO 10365:1992) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 923:2005 and the following apply. 3.1 peel resistance average force per unit test specimen width, measured along the bond line, required to separate progressively the two members of a bonded test specimen under specified conditions of test
NOTE It is expressed in newtons per millimetre of width (N/mm). 3.2 wet-peel resistance peel resistance after application of water containing a wetting agent SIST EN 1464:2010
EN 1464:2010 (E) 5 4 Apparatus 4.1 Tensile testing machine1), capable of maintaining a pre-determined constant crosshead rate
...
