Woodworking machines - Safety - Part 21: Double blade circular sawing machines for cross-cutting with integrated feed (ISO/DIS 19085-21:2024)

Woodworking machines - Safety - Part 21: Double blade circular sawing machines for cross-cutting with integrated feed (ISO/DIS 19085-21:2024)

This document specifies the safety requirements and measures for double blade circular sawing machines for cross-cutting with integrated feed of the cutting-stroke, with manual loading and/or unloading of the workpiece and capable of continuous production use, hereinafter referred to also as “machines”.

Sicherheit von Holzbearbeitungsmaschinen - Kreissägemaschinen - Teil 9: Doppelgehrungskreissägemaschinen mit mechanischem Vorschub und Handbeschickung und/oder Handentnahme

Machines à bois - Sécurité - Partie 21: Machines à scier à deux lames de scie circulaires pour tronçonnage avec avance mécanisée (ISO/DIS 19085-21:2024)

Lesnoobdelovalni stroji - Varnost - Krožne žage - 21. del: Dvolistne krožne žage za prečni rez z vgrajenim podajalnikom

General Information

Status
Not Published
Public Enquiry End Date
29-Nov-2024
ICS
13.110 - Safety of machinery
25.080.60 - Sawing machines
79.120.10 - Woodworking machines
Technical Committee
VSN - Safety of machinery
Current Stage
4020 - Public enquire (PE) (Adopted Project)
Start Date
30-Sep-2024
Due Date
17-Feb-2025
Directive
2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
2023/1230 - Regulation (EU) 2023/1230 of the European Parliament and of the Council of 14 June 2023 on machinery and repealing Directive 2006/42/EC of the European Parliament and of the Council and Council Directive 73/361/EEC (Text with EEA relevance)
Mandate
M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
Ref Project
prEN ISO 19085-21 - Woodworking machines - Safety - Part 21: Double blade circular sawing machines for cross-cutting with integrated feed (ISO/DIS 19085-21:2024)

Relations

Revises
SIST EN 1870-9:2012 - Safety of woodworking machines - Circular sawing machines - Part 9: Double blade circular sawing machines for cross-cutting with integrated feed and with manual loading and/or unloading
Effective Date
10-Apr-2024

Buy Standard

prEN ISO 19085-21:2024prEN ISO 19085-21:2024
PreviousNext
Draft
prEN ISO 19085-21:2024
English language
40 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

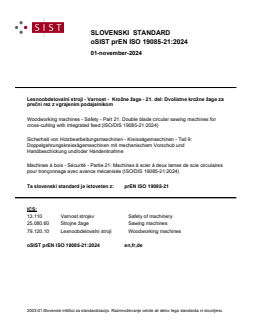

SLOVENSKI STANDARD
