Residential solid fuel burning appliances - Part 2-4: Independent boilers - Nominal heat output up to 50 kW

This Part 2-4 of EN 16510 is applicable to hand and automatically fired residential independent boilers having nominal heat outputs up to 50 kW, the primary function of which is to provide hot water for central heating and/or domestic use, and which are designed for use only with open vented systems at a working pressure not exceeding 2 bar. In addition to their primary function of providing hot water these appliances also provide space heating to the place of installation.
The appliances covered by this Part 2-4 of EN 16510 may burn either solid mineral fuels, peat briquettes or natural or manufactured wood logs or be multi-fuel in accordance with the appliance manufacturer’s instructions.
This Part 2-4 of EN 16510 is not applicable to independent boilers for hot water only production and having heat outputs of less than 5 kW.
This Part 2-4 of EN 16510 is also not applicable to the design and construction of automatic stoking devices.

Häusliche Heizgeräte für feste Brennstoffe - Teil 2-4: Heizkessel für feste Brennstoffe - Nennwärmeleistung bis 50 kW

Diese Norm gilt für hand- und automatisch beschickte Feuerstätten bis zu einer Nennwärmeleistung von 50 kW, deren Hauptfunktion die Erwärmung von Heiz- und/oder Brauchwasser ist und die ausschließlich für den Einbau in offene Systeme mit einem Arbeitsdruck von höchstens 2 bar verwendet werden. Außer ihrer Hauptfunktion der Erwärmung von Heiz- und Brauchwasser ist die Feuerstätte auch für die Beheizung des Aufstellungsraumes vorgesehen.
Diese Feuerstätten, die mit diesem Teil 2-4 der EN 16510 abgedeckt werden, können entsprechend der Bedienungsanleitung des Herstellers entweder feste mineralische Brennstoffe, Torfbriketts, Holzscheite, Holzbriketts oder mehrere dieser Brennstoffe verfeuern.
Diese Norm gilt nicht für Heizkessel, die nur Heiz- und Brauchwasser erwärmen und solche mit einer Nennwärmeleistung von weniger als 5 kW.
Diese Norm gilt nicht für die Auslegung und Ausführung von automatischen Fördersystemen.

Equipement de chauffage domestique - Partie 2-4 : Chaudières domestiques à combustible solide - Puissance calorifique nominale inférieure ou égale à 50 kW

La présente Partie 2-4 de l'EN 16510 s’applique aux bouilleurs domestiques à installer dans le volume habitable à alimentation manuelle et automatique ayant une puissance thermique nominale inférieure ou égale à 50 kW, dont la fonction principale est de fournir de l’eau chaude à des fins de chauffage central et/ou pour usage domestique. Ils ne sont conçus que pour être utilisés avec des systèmes à expansion ouverts à une pression de service ne dépassant pas 2 bar. Outre leur fonction principale de fournir de l’eau chaude, ces appareils produisent également de la chaleur dans l'espace où ils sont installés.
Les appareils couverts par la présente Partie 2-4 de l'EN 16510 peuvent fonctionner avec des combustibles minéraux solides, des briquettes de tourbe, des bûches de bois naturelles ou manufacturées ; ils peuvent également fonctionner avec plusieurs combustibles conformément aux instructions du fabricant de l'appareil.
La présente Partie 2-4 de l'EN 16510 ne s’applique pas aux bouilleurs à installer dans le volume habitable uniquement destinés à la production d’eau chaude ayant une puissance thermique inférieure à 5 kW.
La présente Partie 2-4 de l'EN 16510 ne s’applique pas non plus à la conception et à la construction des dispositifs à chargement automatique.

Stanovanjske grelne naprave na trdna goriva - 2-4. del: Grelni kotli - Nazivna grelna moč do 50 kW

General Information

Status
Not Published
Public Enquiry End Date
30-Mar-2013
Technical Committee
Current Stage
98 - Abandoned project (Adopted Project)
Start Date
12-Jan-2018
Due Date
17-Jan-2018
Completion Date
12-Jan-2018

RELATIONS

Buy Standard

Draft
oSIST prEN 16510-2-4:2013
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
oSIST prEN 16510-2-4:2013
01-marec-2013
6WDQRYDQMVNHJUHOQHQDSUDYHQDWUGQDJRULYDGHO*UHOQLNRWOL1D]LYQD
JUHOQDPRþGRN:

Residential solid fuel burning appliances - Part 2-4: Independent boilers - Nominal heat

output up to 50 kW

Häusliche Heizgeräte für feste Brennstoffe - Teil 2-4: Heizkessel für feste Brennstoffe -

Nennwärmeleistung bis 50 kW
Equipement de chauffage domestique - Partie 2-4 : Chaudières domestiques à
combustible solide - Puissance calorifique nominale inférieure ou égale à 50 kW
Ta slovenski standard je istoveten z: prEN 16510-2-4
ICS:
97.100.30 Grelniki na trdo gorivo Solid fuel heaters
oSIST prEN 16510-2-4:2013 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 16510-2-4:2013
---------------------- Page: 2 ----------------------
oSIST prEN 16510-2-4:2013
EUROPEAN STANDARD
DRAFT
prEN 16510-2-4
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2013
ICS 97.100.30 Will supersede EN 12809:2001
English Version
Residential solid fuel burning appliances - Part 2-4: Independent
boilers - Nominal heat output up to 50 kW

Equipement de chauffage domestique - Partie 2-4 : Häusliche Heizgeräte für feste Brennstoffe - Teil 2-4:

Chaudières domestiques à combustible solide - Puissance Heizkessel für feste Brennstoffe - Nennwärmeleistung bis

calorifique nominale inférieure ou égale à 50 kW 50 kW

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 295.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which

stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language

made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United

Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to

provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and

shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 16510-2-4:2013: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)

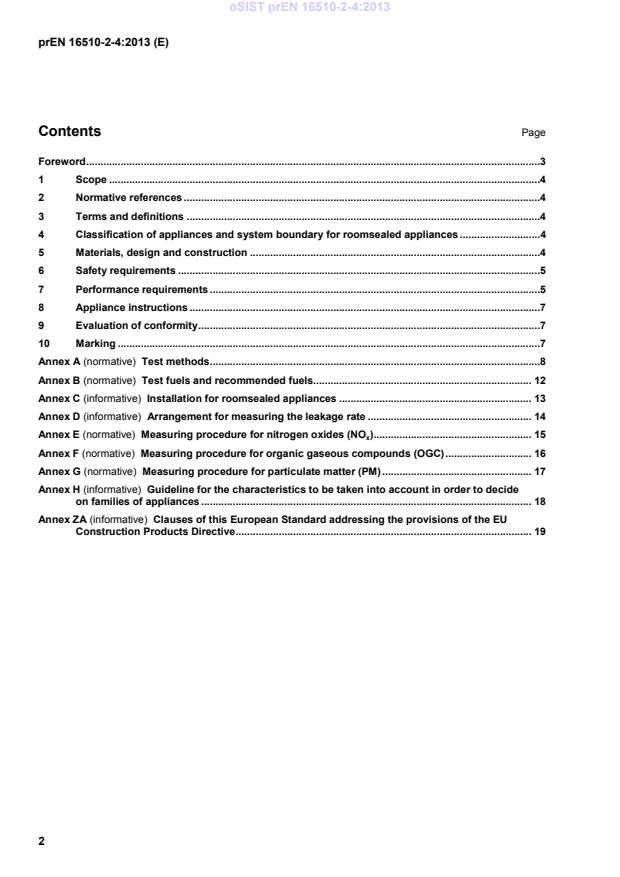

Contents Page

Foreword ..............................................................................................................................................................3

1 Scope ......................................................................................................................................................4

2 Normative references ............................................................................................................................4

3 Terms and definitions ...........................................................................................................................4

4 Classification of appliances and system boundary for roomsealed appliances ............................4

5 Materials, design and construction .....................................................................................................4

6 Safety requirements ..............................................................................................................................5

7 Performance requirements ...................................................................................................................5

8 Appliance instructions ..........................................................................................................................7

9 Evaluation of conformity .......................................................................................................................7

10 Marking ...................................................................................................................................................7

Annex A (normative) Test methods ...................................................................................................................8

Annex B (normative) Test fuels and recommended fuels............................................................................ 12

Annex C (informative) Installation for roomsealed appliances ................................................................... 13

Annex D (informative) Arrangement for measuring the leakage rate ......................................................... 14

Annex E (normative) Measuring procedure for nitrogen oxides (NO )....................................................... 15

Annex F (normative) Measuring procedure for organic gaseous compounds (OGC) .............................. 16

Annex G (normative) Measuring procedure for particulate matter (PM) .................................................... 17

Annex H (informative) Guideline for the characteristics to be taken into account in order to decide

on families of appliances ................................................................................................................... 18

Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU

Construction Products Directive ....................................................................................................... 19

---------------------- Page: 4 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
Foreword

This document (prEN 16510-2-4:2013) has been prepared by Technical Committee CEN/TC 295 “Residential

solid fuel burning appliances”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 12809:2001.

EN 13240:2001, EN 13229:2001, EN 12815:2001 and EN 12809:2001 will be totally superseded by EN 16510

series. The revision of these European Standards takes into account the comments received at their 5-year

review.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive 89/106/EEC, see informative Annex ZA, which is an integral part of this

document.

The structure of EN 16510, Residential solid fuel burning appliances, is as follows:

 Part 1: General requirements and test methods;
 Part 2-1: Roomheaters;
 Part 2-2: Inset appliances including open fires;
 Part 2-3: Cookers;
 Part 2-4: Independent boilers – Nominal heat output up to 50 kW.

Principally it is possible to add further parts 2 at a later stage in order to cover other residential solid fuel

burning appliances such as pellet stoves or slow heat release appliances.

This Part 2-4 is to be used in conjunction with the latest edition of EN 16510-1 and its amendments. It was

established on the basis of prEN 16510-1:2013.

This Part 2-4 supplements or modifies the corresponding clauses in EN 16510-1, so as to convert that

publication into the European Standard: Residential solid fuel burning appliances – Requirements and test

methods for independent boilers – Nominal heat output up to 50 kW .

When a particular subclause of Part 1 is not mentioned in this Part 2-4, that subclause applies as far as is

reasonable. When this Part 2-4 states "addition", "modification" or "replacement", the relevant text in Part 1 is

to be adapted accordingly.
NOTE The following numbering system is used:

 subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;

 unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including those

in a replaced clause or subclause;
 additional annexes are lettered AA, BB, etc.
---------------------- Page: 5 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
1 Scope

This Part 2-4 of EN 16510 is applicable to hand and automatically fired residential independent boilers having

nominal heat outputs up to 50 kW, the primary function of which is to provide hot water for central heating

and/or domestic use, and which are designed for use only with open vented systems at a working pressure

not exceeding 2 bar. In addition to their primary function of providing hot water these appliances also provide

space heating to the place of installation.

The appliances covered by this Part 2-4 of EN 16510 may burn either solid mineral fuels, peat briquettes or

natural or manufactured wood logs or be multi-fuel in accordance with the appliance manufacturer’s

instructions.

This Part 2-4 of EN 16510 is not applicable to independent boilers for hot water only production and having

heat outputs of less than 5 kW.

This Part 2-4 of EN 16510 is also not applicable to the design and construction of automatic stoking devices.

2 Normative references
prEN 16510-1:2013, Clause 2, is applicable.
3 Terms and definitions
prEN 16510-1:2013, Clause 3 is applicable.
4 Classification of appliances and system boundary for roomsealed appliances
prEN 16510-1:2013, Clause 4, is applicable.
5 Materials, design and construction
5.2 General construction requirements
prEN 16510-1:2013, 5.2 is applicable with the following modifications.
5.2.7 Bottomgrate
prEN 16510-1:2013, 5.2.7 is applicable with the following modification.
Addition:

For independent boilers a de-ashing mechanism shall be fitted where fuels other than wood are burned.

5.2.8 Combustion air supply
prEN 16510-1:2013, 5.2.8 is applicable with the following modification.
Addition of the following new subclauses
5.2.8.101 Combustion air supply for independent boilers

The supply of combustion air shall be either by natural draught or by fan assistance.

NOTE A manually adjustable air by-pass capable of being completely closed is advisable for natural draught boilers

fitted with thermostatic air control.
---------------------- Page: 6 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
Addition of the following new subclauses
5.2.101 Flue draught test point

A test tapping for the measurement of the flue draught shall be provided either in the boiler flueway or in the

flue gas connector.

If a draught regulator is incorporated, the test measurement point shall be taken before the draught regulator.

5.2.102 Fan cut-out safety device

If the appliance is fitted with a forced draught fan to provide combustion air, then a cut-out safety device shall

be provided to switch off the fan in the event of a flue blockage (see 6.101).
6 Safety requirements
prEN 16510-1:2013, Clause 6, is applicable with the following modification.
Addition of the following new subclause:
6.101 Fan cut-out safety device

Where a safety cut-out device is provided for a fan supplying forced draught combustion air as specified

in 5.2.18 then when tested in accordance with A.4.101, the safety device shall switch off the fan within 15 min

following obstruction of the flue.
7 Performance requirements
prEN 16510-1:2013, Clause 7, is applicable with the following modifications.
7.3 Efficiency
prEN 16510-1:2013, 7.3, is applicable with the following modification.
Addition after the 1 paragraph:

The manufacturer’s declared efficiency value shall be equal to or exceed the value given by the following

Figure 101.
---------------------- Page: 7 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
Key
X nominal heat output (kW)
Y efficiency (%)
1 test fuels other than 2 or 3
2 bituminous coal, lignite briquettes & peat briquettes
3 wood logs
Figure 101 — Efficiency at nominal heat output
7.4 Flue draught
prEN 16510-1:2013, 7.4, is applicable with the following modifications.
Replacement of Figure 2:
Key
X nominal heat output (kW)
Y flue draught (Pa)
1 nominal heat output test
2 slow combustion test
Figure 2 — Flue draught values
Replacement of paragraphs 4 to 6:

When undertaking the nominal heat output test in accordance with A.4.7 the flue static pressure shall be set to

the value based upon the claimed nominal heat output as given in Figure 2 or, if necessary, such higher value

specified by the manufacturer and the mean value shall be within ± 1 Pa of this specified flue draught value.

During the test the individual measurements shall be kept within ± 2 Pa of this specified flue draught value.

NOTE 2 It is not allowed to set the value below that given in Figure 2 e.g. 19 Pa for a given value of 20 Pa.

---------------------- Page: 8 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)

For the slow combustion test in accordance with A.4.8 the static pressure shall be a target value of 6 Pa as

given in Figure 1 and shall be kept within ± 1 Pa of this specified value.

For appliances having a fan assisted primary air supply, the static pressure in the measurement section shall

be set to that value which gives the manufacturer’s declared over-firebed pressure.

7.5 Recovery test
prEN 16510-1:2013, 7.5, is applicable with the following modification.
Replacement of paragraph 2:

Recovery shall be deemed satisfactory if a small part of the fuel is visibly ignited within 30 min with a flue

draught of (6 ± 1) Pa under the test conditions specified in A.4.8.4.
7.6 Refuelling intervals
prEN 16510-1:2013, 7.6, is applicable with the following modification.
Replacement of Table 8:
Table 8 — Minimum refuelling intervals
Appliance type Test fuel type Minimum refuelling
(as detailed in Table B.1) interval hours
at nominal heat output
Batch fed appliances Wood logs or peat briquettes 2
All other test fuels 4
Hopper fed appliances Anthracite 10
at slow combustion
Batch fed appliances Wood logs or peat briquettes 10
All other test fuels 15
Hopper fed appliances Anthracite 48
8 Appliance instructions
prEN 16510-1:2013, Clause 8, is applicable.
9 Evaluation of conformity
prEN 16510-1:2013, Clause 9, is applicable.
10 Marking
prEN 16510-1:2013, Clause 10, is applicable.
---------------------- Page: 9 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
Annex A
(normative)
Test methods
A.1 Test environment
prEN 16510-1:2013, A.1 is applicable.
A.2 Test assembly
prEN 16510-1:2013, A.2 is applicable.
A.3 Measurement equipment
prEN 16510-1:2013, A.3 is applicable.
A.4 Test procedures
prEN 16510-1:2013, A.4 is applicable with the following modifications.
A.4.7 Performance test at nominal heat output
prEN 16510-1:2013, A.4.7, is applicable with the following modifications.
A.4.7.1 General
prEN 16510-1:2013, A.4.7.1, is applicable with the following modifications.
Deletion of the 2 paragraph
Replacement of the 4 paragraph:

The test may start from cold or may follow another test provided that the fire has been de-ashed in

accordance with A.4.3 at the termination of that test. If the test is started from cold the pre-test period shall be

preceded by an initial ignition and pre-test at nominal heat output. In either case the appliance is then

operated for a further pre-test period or periods before commencing the test period. The duration of the pre-

test period shall be sufficient to ensure that normal working conditions and a basic firebed are established.

Addition of the following last paragraph:

For appliances with fan assisted combustion air, the test shall be carried out with the fan operating

continuously during the test period.
A.4.7.2 Ignition and pre-test period
prEN 16510-1:2013, A.4.7.2, is applicable with the following modifications.
Addition after the 1 paragraph:

For appliances using fan assisted combustion air supply, set the static pressure in the measurement section

to that value which gives the appliance manufacturer’s declared over-firebed pressure.

---------------------- Page: 10 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
Addition before the last paragraph:

NOTE 101 For convenience of testing hopper fed appliances, it is permissible to operate the appliance at between 50 %

and 100 % of the claimed water heating output for part of the pre-test period, and to extend the pre-test period so that the

total mass of fuel consumed is the same as would be consumed by operating continuously at the claimed water heating

output. If the appliance is operated at reduced water heating output during part of the pre-test period, the appliance

controls and water flow rate should be adjusted to give the claimed water heating output for a period of at least 30 min

prior to the end of the pre-test period.
A.4.8.3 Recovery test period
prEN 16510-1:2013, A.4.8.3, is applicable with the following modification.
Replacement:

At the end of the slow combustion test period, reset the appliance controls in accordance with the appliance

manufacturer's operating instructions to give the nominal heat output. Adjust the water flow rate to that

required for nominal heat output operation. De-ash and/or refuel the appliance as necessary to allow the fire

to recover. Record whether the fire recovers in accordance with 7.5 and record the time taken.

A.4.9 Safety tests
prEN 16510-1:2013, A.4.9, is not applicable.
Addition of the following new subclauses
A.4.101 Test for fan cut-out safety device
A.4.101.1 General

This test is applicable only to hopper fed appliances, burning small anthracite, which are fitted with a forced

draught fan providing the combustion air supply.

Install the appliance in accordance with A.2.2 taking into account the manufacturer’s installation instructions.

Connect the appliance to the test measurement section in accordance with A.2.3 but with the following

modification:

 install a sliding flue cut-off damper assembly immediately above the appliance flue outlet as shown in

Figure A.101. The hole in the damper plate shall be 5 % of the cross sectional area of the fluepipe

recommended by the manufacturer.

The test shall be started from cold and consist of two parts, namely, an ignition and pre-test period, and a test

period.
A.4.101.2 Ignition and pre-test period

Fill the hopper and ignite the fire in accordance with the manufacturer’s operating instructions and run the

appliance for a preliminary period of about 3 h with the applied draught set at (12 ± 2) Pa. Set the primary air

control thermostat to give a flow temperature (16 ± 3) K above the return temperature, which shall be

controlled between 50 °C and 55 °C. Adjust the water flow rate to give a water heating output of approximately

50 % of the manufacturer’s claimed nominal water heating output.

At the end of the 3 h preliminary period, maintain the thermostat at the previously established setting and

reduce the water heating output, by reducing the water flow rate in stages over a few hours, to give (10 ± 2) %

of the manufacturer’s claimed nominal water heating output. Adjust the applied draught so that the static

pressure in the measurement section is set to the value required for slow combustion as stated in 6.6 and

maintain within ± 1 Pa of this value.
---------------------- Page: 11 ----------------------
oSIST prEN 16510-2-4:2013
prEN 16510-2-4:2013 (E)
A.4.101.3 Test period

Refill the hopper at the start of the test period to between one half and three-quarters of its capacity and allow

it to operate for 16 h under the conditions established at the end of the pre-test period (see A.4.101.2).

Measure the water flow rate in accordance with A.4.5 and maintain it within ± 5 % of the value obtained at the

end of the pre-test period.

Record the inlet and outlet water temperatures in accordance with A.4.5 and check that the mean water

heating output is within the limits of (10 ± 2) % of the nominal water heating output.

After 16 h, carry out the flue blockage test immediately on commencement of the next “fan-on” period, by

pushing the blockage damper securely into position to simulate a chimney blockage condition. Measure and

record the time from blockage of the flue to operation of the fan cut-out safety device. Remove the blockage

damper to clear the flue.
WARNING — Care has to be taken to ensure adequate ven
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
