Residential solid fuel burning appliances - Part 2-3: Cookers

This Part 2-3 of EN 16510 is applicable to hand fired residential cookers whose primary function is to cook and whose secondary function is to provide heat into the space in which they are installed. Additionally, where fitted with a boiler, they also provide domestic hot water and/or central heating. These appliances may burn one or more types of the following solid fuels in accordance with the appliance manufacturer’s instructions:
− wood logs
− compressed untreated wood
− wood pellets
− solid mineral fuels
− peat briquettes.
This Part 2-3 of EN 16510 is not applicable to appliances with fan assisted combustion air or appliances that are mechanically fired.
This Part 2-3 of EN 16510 is to be used in conjunction with EN 16510-1 of which it is an integral part.

Häusliche Heizgeräte für feste Brennstoffe - Teil 2-3: Herde

Dieses Dokument ist anzuwenden auf Herde für feste Brennstoffe (handbeschickte Haushaltsherde).
Der Verwendungszweck der Geräte ist Kochen und Raumheizung in Wohngebäuden. Sie können mit wasserführenden Bauteilen (als feste Bestandteile des Gerätes mit zu erhitzendem Wasser) zur Warmwasserbereitung der Zentralheizung ausgestattet sein.
Diese Geräte können wie angegeben einen oder mehrere der folgenden festen Brennstoffe verfeuern:
-   Scheitholz;
-   Holzbriketts;
-   Holzpellets;
-   Braunkohlebriketts;
-   feste mineralische Brennstoffe;
-   Torfbriketts.
Dieses Dokument gilt nicht für Feuerstätten mit Verbrennungsluftgebläse oder mechanisch beschickte Feuerstätten.
Dieses Dokument legt das Verfahren für die Bewertung und Überprüfung der Leistungsbeständigkeit (AVCP) der Eigenschaften von Raumheizern für feste Brennstoffe fest.

Equipement de chauffage domestique - Partie 2-3 : Cuisiniéres

Le présent document s’applique aux cuisinières à combustible solide (cuisinières domestiques à alimentation manuelle).
Les usages prévus des appareils sont la cuisson et le chauffage des locaux dans les bâtiments résidentiels. Ils peuvent être équipés d’un bouilleur (faisant partie intégrante de l’appareil et contenant de l’eau à chauffer) pour fournir de l’eau chaude aux systèmes de chauffage central.
Ces appareils peuvent utiliser un ou plusieurs des types de combustibles solides suivants, comme spécifié :
-   bûches de bois ;
-   bois compressé non traité ;
-   granulés de bois ;
-   briquettes de lignite ;
-   combustibles minéraux solides ;
-   briquettes de tourbe.
Le présent document ne s’applique pas aux appareils équipés d’un ventilateur pour l’alimentation en air de combustion ou aux appareils à alimentation mécanique.
Le présent document spécifie des modes opératoires pour l’évaluation et la vérification de la constance des performances (EVCP) des caractéristiques des cuisinières à combustible solide.

Grelne naprave na trdna goriva za stanovanjske stavbe - 2-3. del: Štedilniki

Ta del 2-3 standarda EN 16510 se uporablja za ročne štedilnike v stanovanjih, katerih primarna funkcija je kuhanje, sekundarna pa zagotavljanje toplote v prostoru, v katerem so nameščeni. Če so opremljeni s kotlom, zagotavljajo tudi sanitarno vodo in/ali centralno ogrevanje. V skladu z navodili proizvajalca je v teh napravah mogoče kuriti eno ali več vrst naslednjih trdnih goriv:
– lesena polena
– stisnjen neobdelan les
– lesne pelete
– trdna mineralna goriva
– šotne brikete.
Ta del 2-3 standarda EN 16510 se ne uporablja za naprave z ventilatorjem za zgorevalni zrak ali naprave z mehanskim kurjenjem.
Ta del 2-3 standarda EN 16510 je sestavni del standarda EN 16510-1 in ga je treba uporabljati v povezavi z njim.

General Information

Status
Published
Public Enquiry End Date
04-May-2021
Publication Date
22-Jan-2023
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
28-Dec-2022
Due Date
04-Mar-2023
Completion Date
23-Jan-2023

Relations

Buy Standard

Standard
EN 16510-2-3:2023 - BARVE
English language
41 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
prEN 16510-2-3:2021 - BARVE
English language
36 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 16510-2-3:2023
01-marec-2023
Nadomešča:
SIST EN 12815:2003
SIST EN 12815:2003/A1:2005
SIST EN 12815:2003/A1:2005/AC:2006
SIST EN 12815:2003/A1:2005/AC:2008
SIST EN 12815:2003/AC:2004
SIST EN 12815:2003/AC:2006
Grelne naprave na trdna goriva za stanovanjske stavbe - 2-3. del: Štedilniki
Residential solid fuel burning appliances - Part 2-3: Cookers
Häusliche Heizgeräte für feste Brennstoffe - Teil 2-3: Herde
Equipement de chauffage domestique - Partie 2-3 : Cuisiniéres
Ta slovenski standard je istoveten z: EN 16510-2-3:2022
ICS:
97.040.20 Štedilniki, delovni pulti, Cooking ranges, working
pečice in podobni aparati tables, ovens and similar
appliances
97.100.30 Grelniki na trdo gorivo Solid fuel heaters
SIST EN 16510-2-3:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 16510-2-3:2023

---------------------- Page: 2 ----------------------
SIST EN 16510-2-3:2023


EN 16510-2-3
EUROPEAN STANDARD

NORME EUROPÉENNE

December 2022
EUROPÄISCHE NORM
ICS 97.040.20; 97.100.30 Supersedes EN 12815:2001
English Version

Residential solid fuel burning appliances - Part 2-3:
Cookers
Appareils de chauffage domestiques à combustible Häusliche Feuerstätten für feste Brennstoffe - Teil 2-3:
solide - Partie 2-3 : Cuisinières Herde
This European Standard was approved by CEN on 23 October 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16510-2-3:2022 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)

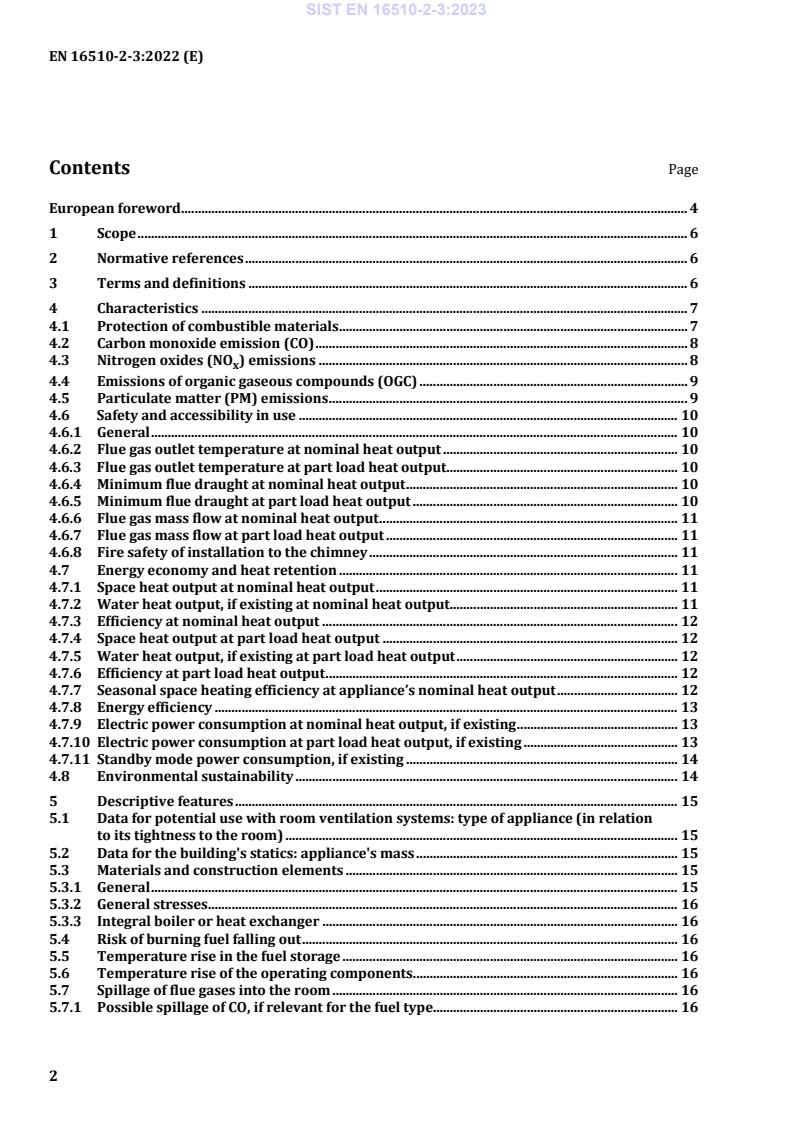

Contents Page

European foreword . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Characteristics . 7
4.1 Protection of combustible materials . 7
4.2 Carbon monoxide emission (CO) . 8
4.3 Nitrogen oxides (NO ) emissions . 8
x
4.4 Emissions of organic gaseous compounds (OGC) . 9
4.5 Particulate matter (PM) emissions . 9
4.6 Safety and accessibility in use . 10
4.6.1 General . 10
4.6.2 Flue gas outlet temperature at nominal heat output . 10
4.6.3 Flue gas outlet temperature at part load heat output. 10
4.6.4 Minimum flue draught at nominal heat output . 10
4.6.5 Minimum flue draught at part load heat output . 10
4.6.6 Flue gas mass flow at nominal heat output . 11
4.6.7 Flue gas mass flow at part load heat output . 11
4.6.8 Fire safety of installation to the chimney . 11
4.7 Energy economy and heat retention . 11
4.7.1 Space heat output at nominal heat output . 11
4.7.2 Water heat output, if existing at nominal heat output. 11
4.7.3 Efficiency at nominal heat output . 12
4.7.4 Space heat output at part load heat output . 12
4.7.5 Water heat output, if existing at part load heat output . 12
4.7.6 Efficiency at part load heat output . 12
4.7.7 Seasonal space heating efficiency at appliance’s nominal heat output . 12
4.7.8 Energy efficiency . 13
4.7.9 Electric power consumption at nominal heat output, if existing . 13
4.7.10 Electric power consumption at part load heat output, if existing . 13
4.7.11 Standby mode power consumption, if existing . 14
4.8 Environmental sustainability . 14
5 Descriptive features . 15
5.1 Data for potential use with room ventilation systems: type of appliance (in relation
to its tightness to the room) . 15
5.2 Data for the building's statics: appliance's mass . 15
5.3 Materials and construction elements . 15
5.3.1 General . 15
5.3.2 General stresses . 16
5.3.3 Integral boiler or heat exchanger . 16
5.4 Risk of burning fuel falling out . 16
5.5 Temperature rise in the fuel storage . 16
5.6 Temperature rise of the operating components . 16
5.7 Spillage of flue gases into the room . 16
5.7.1 Possible spillage of CO, if relevant for the fuel type. 16
2

---------------------- Page: 4 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
5.7.2 Open operation . 16
5.8 Cleanability . 16
5.8.1 Heating surfaces . 16
5.8.2 Flueways . 16
5.8.3 Ashpan . 17
5.8.4 Bottomgrate . 17
5.8.5 Damper . 17
5.8.6 Fan-cut-out-device . 17
5.9 Strength and leak tightness of boiler shells . 18
6 Assessment and verification of constancy of performance - AVCP . 18
6.1 General . 18
6.2 Assessment of performance . 18
6.2.1 General . 18
6.2.2 Test samples, testing and compliance criteria . 19
6.3 Verification of constancy of performance . 20
6.3.1 Factory production control (FPC) . 20
Annex A (normative) Test methods . 25
A.1 Test environment . 25
A.2 Test assembly . 25
A.3 Measurement equipment. 25
A.4 Test procedures . 25
A.5 Test results . 32
A.6 Calculation methods . 32
A.7 Test report . 32
Annex CA (normative) Browning chart for oven heating test. 36
Annex ZA (informative) Relationship of this European Standard with Regulation (EU) No.
305/2011 . 37
ZA.1 Scope and relevant characteristics . 37
ZA.2 System of Assessment and Verification of Constancy of Performance (AVCP) . 40
ZA.3 Assignment of AVCP tasks . 40

3

---------------------- Page: 5 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
European foreword
This document (EN 16510-2-3:2022) has been prepared by Technical Committee CEN/TC 295
“Residential solid fuel burning appliances”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2023, and conflicting national standards shall be
withdrawn at the latest by November 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12815:2001 as amended and corrected. In relation to EN 12815:2001 as
amended and corrected the following changes have been made:
— measurement methods for NO , hydrocarbon and particulate matter emissions for solid fuel burning
x
appliances;
— specifications for classification of solid fuel burning appliances and system boundaries for room
sealed appliances;
— requirements for the safety of solid fuel burning appliances with water-bearing components added;
— Annex ZA updated according to requirements of M/577;
— energy efficiency and energy class labelling and seasonal space heating efficiency added;
— requirements for environmental sustainability added.
This document has been prepared under a standardization request given to CEN by the European
Commission and the European Free Trade Association.
For relationship with (EU) Regulation 305/2011, see informative Annex ZA, which is an integral part of
this document.
The structure of EN 16510, Residential solid fuel burning appliances, is as follows:
— Part 1: General requirements and test methods;
— Part 2-1: Roomheaters;
— Part 2-2: Inset appliances including open fires;
— Part 2-3: Cookers;
— Part 2-4: Independent boilers — Nominal heat output up to 50 kW;
— Part 2-5: Slow heat release appliances;
— Part 2-6: Mechanically by wood pellets fed roomheaters, inset appliances and cookers.
Other sections of Part 2 will be added to cover residential solid fuel burning appliances not included in
parts 2-1 to 2-6.
4

---------------------- Page: 6 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
Subclauses and Figures which are additional to those in EN 16510-1:2022 are numbered starting with
301. Annexes which are additional to those in EN 16510-1:2022 are numbered starting with CA.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
5

---------------------- Page: 7 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
1 Scope
This document is applicable to cookers for solid fuel (hand fired residential cookers).
The intended use of the appliances is cooking and space heating in residential buildings. They can be
fitted with a boiler (integral part of the appliance containing water to be heated up) for the supply of hot
water for central heating systems.
These appliances can burn one or more types of the following solid fuels as specified:
— wood logs;
— compressed untreated wood;
— wood pellets;
— lignite briquettes;
— solid mineral fuels;
— peat briquettes.
This document is not applicable to appliances with fan assisted combustion air or appliances that are
mechanically fed.
This document specifies procedures for assessment and verification of constancy of performance (AVCP)
of characteristics of solid fuel burning cookers.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document.
EN 15804:2012+A2:2019, Sustainability of construction works — Environmental product declarations —
Core rules for the product category of construction products
EN 16510-1:2022, Residential solid fuel burning appliances — Part 1: General requirements and test
methods
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 16510-1:2022 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at https://www.electropedia.org/
Add the following new clauses:
3.301
dry cooker
appliance without water boiler which primarily provides the facility to cook by means of a hotplate
and/or oven
Note 1 to entry: It also provides heat to the room in which it is installed.
6

---------------------- Page: 8 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
3.302
wet cooker
appliance that provides the facility to cook by means of a hotplate and/or an oven but which is also fitted
with a boiler that provides hot water for central heating
Note 1 to entry: The cooker also provides heat to the room in which it is installed.
3.303
winter/summer mode operation
alternative methods of operating certain appliances by a suitable control or by adaptation to give a lower
output for summer usage or a higher output in winter
3.304
top plate
top of the appliance including and surrounding the hotplate of a cooker
4 Characteristics
4.1 Protection of combustible materials
The performance of the appliance in relation to protection of combustible materials shall be determined
in accordance with EN 16510-1:2022, 5.6.
When tested in accordance with EN 16510-1:2022, 5.6, the protection measure(s) as specified according
to Table 1 shall be given as minimum distance to combustible materials and if appropriate as material
type and thickness of protective insulation material.
The protection measures as specified shall be given in [mm] as an integer according to EN 16510-1:2022,
Table 22, no. 33, 34, 35, 36, 37, 38, 39 and 41 (d , d , d , d , d , d , d , s).
R S C P F L B
Table 1— Protection of combustible materials
Protection measure Declared clearance distance to Protective
combustible material or thickness insulation material
of protective insulation material if any
[mm]
Minimum distance to  -
combustible materials –
bottom (d )
B
Minimum distance to  -
combustible materials –
floor in front (d )
F
Minimum distance to  -
combustible materials –
ceiling (d )
C
Minimum distance to  -
combustible materials – rear
(d )
R
Minimum distance to  -
combustible materials – side
(d )
S
7

---------------------- Page: 9 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
Protection measure Declared clearance distance to Protective
combustible material or thickness insulation material
of protective insulation material if any
[mm]
Minimum distance to  -
combustible materials – side
radiation area (d )
L
Minimum distance to  -
adjacent combustible
materials (e.g. furniture)
(d )
P
Protective insulation
material (s)
4.2 Carbon monoxide emission (CO)
The performance of the appliance in relation to carbon monoxide emission at nominal heat output and at
part load heat output (if part load is specified) shall be determined in accordance with EN 16510-1:2022,
6.3.1 and 6.3.2.
The CO value if specified at nominal heat output and at part load heat output (if part load is specified) is
3
to be given in [mg/m ] as an integer according to EN 16510-1:2022, Table 22, no. 17 (CO (13 % O )).
nom 2
When tested in accordance with EN 16510-1:2022, 6.3.2 the CO emission at nominal heat output shall not
exceed the threshold levels as given in Table 2.
Table 2 — Threshold levels for CO emission
Appliance type Threshold level at 13 % O
2
3
open fronted solid fuel local space heaters 2000 mg/m
closed fronted solid fuel local space heaters using
3
solid fuel other than compressed wood in the form
1500 mg/m
of pellets including cookers
closed fronted solid fuel local space heaters using
3
compressed wood in form of pellets including
300 mg/m
cookers
4.3 Nitrogen oxides (NO ) emissions
x
The performance of the appliance in relation to nitrogen oxides emissions at nominal heat output and at
part load heat output (if part load is specified) shall be determined in accordance with EN 16510-1:2022,
6.3.1 and 6.3.3.
The NO value if specified at nominal heat output and at part load heat output (if part load is specified) is
x
3
to be given in [mg/m ] as an integer according to EN 16510-1:2022, Table 22, no. 20 (NO (13 % O )).
xnom 2
When tested in accordance with EN 16510-1:2022, 6.3.3 the NO emissions at nominal heat output shall
x
not exceed the threshold levels as given in Table 3.
8

---------------------- Page: 10 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
Table 3 — Threshold levels for NO emission (expressed as NO )
x 2
Appliance type Threshold level at 13 % O
2
open fronted solid fuel local space heaters, closed
3
fronted solid fuel local space heaters and cookers
200 mg/m
using biomass
open fronted solid fuel local space heaters, closed
3
fronted solid fuel local space heaters and cookers
300 mg/m
using fossil solid fuel
4.4 Emissions of organic gaseous compounds (OGC)
The performance of the appliance in relation to organic gaseous compounds emission at nominal heat
output and at part load heat output (if part load is specified) shall be determined in accordance with
EN 16510-1:2022, 6.3.1 and 6.3.4.
The OGC value if specified at nominal heat output and at part load heat output (if part load is specified)
3
is to be given in [mg/m ] as an integer according to EN 16510-1:2022, Table 22, no. 23 (OGC
nom
(13 % O )).
2
When tested in accordance with EN 16510-1:2022, 6.3.4 the OGC emission at nominal heat output shall
not exceed the threshold levels as given in Table 4.
Table 4 — Threshold levels for OGC emission (expressed as C)
Appliance type Threshold level at 13 % O
2
3
open fronted solid fuel local space heaters
120 mg C/m
closed fronted solid fuel local space heaters using
3
solid fuel other than compressed wood in the form
120 mg C/m
of pellets including cookers
closed fronted solid fuel local space heaters using
3
compressed wood in form of pellets including
60 mg C/m
cookers
4.5 Particulate matter (PM) emissions
The performance of the appliance in relation to particulate matter emissions at nominal heat output and
at part load heat output (if part load is specified) shall be determined in accordance with
EN 16510-1:2022,6.3.1 and 6.3.5.
The particulate matter value if specified at nominal heat output and at part load heat output (if part load
3
is specified) is to be given in [mg/m ] as an integer according to EN 16510-1:2022, Table 22, no. 26
(PM (13 % O )).
nom 2
When tested in accordance with EN 16510-1:2022, 6.3.5 the particulate matter (PM) emissions at
nominal heat output shall not exceed the threshold levels as given in Table 5.
9

---------------------- Page: 11 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
Table 5 — Threshold levels for PM emission
Appliance type Threshold level at 13 % O
2
3
open fronted solid fuel local space heaters
50 mg/m
closed fronted solid fuel local space heaters using
3
solid fuel other than compressed wood in the form
40 mg/m
of pellets and cookers
closed fronted solid fuel local space heaters using
3
20 mg/m
compressed wood in form of pellets
4.6 Safety and accessibility in use
4.6.1 General
The data for the installation to a chimney are to be evaluated at nominal heat output. Specific data are to
be evaluated at safety test heat output. Additional data are to be evaluated at part load heat output, if part
load is specified.
4.6.2 Flue gas outlet temperature at nominal heat output
The performance of the appliance in relation to flue gas outlet temperature at nominal heat output shall
be determined in accordance with EN 16510-1:2022, 6.2.1.
The value of the flue gas outlet temperature for the installation of the appliance to a chimney if specified
is to be given in [°C] as an integer according to EN 16510-1:2022, Table 22, no. 47 (T ).
snom
4.6.3 Flue gas outlet temperature at part load heat output
The performance of the appliance in relation to flue gas outlet temperature at part load heat output (if
part load is specified) shall be determined in accordance with EN 16510-1:2022, 6.2.1.
The value of the flue gas outlet temperature at part load heat output (if part load is specified) for the
installation of the appliance to a chimney if specified is to be given in [°C] as an integer according to
EN 16510-1:2022, Table 22, no. 48 (T ).
spart
4.6.4 Minimum flue draught at nominal heat output
The performance of the appliance in relation to the minimum flue draught at nominal heat output shall
be determined in accordance with EN 16510-1:2022, 6.5.
The value of the minimum flue draught if specified at nominal heat output for the installation of the
appliance to a chimney is to be given in [Pa] as an integer according to EN 16510-1:2022, Table 22, no.
29 (p ).
nom
4.6.5 Minimum flue draught at part load heat output
The performance of the appliance in relation to the minimum flue draught at part load heat output (if part
load is specified) shall be determined in accordance with EN 16510-1:2022, 6.5.
The minimum value of the flue draught if specified at part load heat output (if part load is specified) for
the installation of the appliance to a chimney is to be given in [Pa] as an integer according to
EN 16510-1:2022, Table 22, no. 30 (p ).
part
10

---------------------- Page: 12 ----------------------
SIST EN 16510-2-3:2023
EN 16510-2-3:2022 (E)
4.6.6 Flue gas mass flow at nominal heat output
The performance of the appliance in relation to the flue gas mass flow at nominal heat output shall be
determined in accordance with EN 16510-1:2022, 6.12.
The flue gas mass flow value if specified at nominal heat output for the installation of the appliance to a
chimney is to be given in [g/s] with 1 decimal according to EN 16510-1:2022, Table 22, no. 50 (ϕ ).
f,g nom
4.6.7 Flue gas mass flow at part load heat output
The performance of the appliance in relation to the flue gas mass flow at part load heat output (if part
load is specified) shall be determined in accordance with EN 16510-1:2022, 6.12.
The flue gas mass flow value if specified at part load heat output (if part load is specified) for the
installation of the appliance to a chimney is to be given in [g/s] with 1 decimal according to
EN 16510-1:2022, Table 22, no. 51 (ϕ ).
f,g part
4.6.8 Fire safety of installation to the chimney
The performance of the appliance in relation to the flue gas temperature (mean value) at safety test shall
be determined in accordance with EN 16510-1:2022, A.4.10.4.
The data for installation of the appliance to a chimney with regards to the fire safety if specified is to be
given as the Tclass of the chimney requ
...
