SIST EN 13044-1:2011

Intermodal Loading Units - Marking - Part 1: Markings for identification

This European Standard provides a system for the identification and presentation of information about the ILU. The identification system is intended for general application, for example in documentation, control and communications (including automatic data processing systems), as well as for display on an ILU and other non ISO containers (i.e. which dimensions and testing parameters differ from those defined by the applicable ISO standards) used in European transport.
The methods of displaying identification and certain other data (including operational data) on ILUs by means of permanent marks are included.
This European Standard specifies:
a)   an ILU identification system with an associated system for verifying the accuracy of its use, having mandatory marks for the presentation of the identification system for visual interpretation, and
b)   a coding system for data on ILU size and type, with corresponding marks for their display;
c)   mandatory operational marks;
d)   physical presentation of the marks on the ILU.
This part of EN 13044 specifies a system to identify the owner of the ILU, which includes an associated system for verifying the accuracy of its use.
This European Standard does not cover temporary operational marks of any kind, permanent marks, data plates, etc. which may be required by intergovernmental agreements, national legislation or non-governmental organisations other than CEN.

Intermodale Ladeeinheiten - Kennzeichnung - Teil 1: Kennzeichnungen für die Identifizierung

Diese Europäische Norm beschreibt ein System zur Identifizierung und Kennzeichnung von ILU. Das Identifizierungssystem ist für die allgemeine Anwendung zu benutzen, wie beispielsweise bei der Dokumentation, Steuerung und Kommunikation (einschließlich automatischer Datenverarbeitungssysteme) und auch für das Anzeigen der Informationen an ILU und anderen „Nicht-ISO-Containern“ (z.B. deren Abmessungen und Prüfparameter sich von den in den anwendbaren ISO Standards unterscheiden) die im europäischen Transport benutzt werden.
Die Art der Anbringung der Kennzeichnung und anderer Informationen (einschließlich betrieblicher Daten) an ILU mittels permanenter Kennzeichen ist eingeschlossen.
Diese Europäische Norm beschreibt:
a)   ein System der Kennzeichnung von ILU, einschließlich eines Systems zur Kontrolle der korrekten Nutzung des Systems mit obligatorischen Kennzeichnungen für die Identifizierung zur visuellen Erkennbarkeit und
b)   ein Kodierungssystem für die Daten zur Größe und zum Type der ILU mit den dazugehörigen Hinweisen zur Anbringung der Kennzeichen;
c)   obligatorische betriebliche Kennzeichen;
d)   die physikalische Anbringungsmethode an der ILU
Dieser Teil der EN 13044 spezifiziert ein System zur Identifizierung des Eigentümers der ILU, einschließlich eines Systems zur Prüfung der Richtigkeit seiner Anwendung.
Diese Europäische Norm erfasst nicht vorübergehende betriebliche Kennzeichen irgendwelcher Art, bleibende Kennzeichnungen, Datenschilder usw., die durch Vereinbarungen zwischen Regierungen, nationale Gesetzgebung oder durch private Organisationen außer CEN eventuell gefordert werden.
ANMERKUNG      Einige der bedeutendsten internationalen Konventionen, welche die Kennzeichnung von ILU betreffen, sind nicht von dieser Europäischen Norm erfasst. Es sind dies die folgenden:

Unités de chargement intermodales - Marquage - Partie 1: Marquages d'identification

La présente Norme européenne établit un système pour l’identification et la présentation d’informations
relatives aux UCI. Ce système d’identification est prévu pour une application générale, par exemple pour la
documentation, le contrôle et les communications (y compris les systèmes de traitement informatique des
données), aussi bien que pour l’affichage sur une UCI et autres conteneurs non ISO (c’est-à-dire ceux dont
les dimensions et les valeurs d’essai diffèrent de celles définies par les normes ISO en vigueur) utilisés en
transport européen.
Les méthodes d’inscription de l’identification et de certaines autres données (y compris les données
d’exploitation) sur les UCI au moyen de marques permanentes sont également abordées.
La présente Norme européenne prescrit :
a) un système d’identification des UCI associé à un système permettant de vérifier l’exactitude de son
utilisation, comprenant des marques obligatoires pour la présentation du système d’identification à des
fins d’interprétation visuelle, et
b) un système de codage des données relatives aux dimensions et aux types d’UCI, avec les marques
correspondantes pour leur inscription ;
c) des marques d’exploitation obligatoires ;
d) la présentation concrète des marques sur l’UCI.
La présente Partie de l’EN 13044 spécifie un système permettant d’identifier le propriétaire de l’UCI, en
association avec un système de vérification de l’exactitude de son utilisation.
La présente Norme européenne ne couvre pas les marques temporaires d’exploitation quel que soit leur type,
les marques permanentes, les plaques de données, etc. qui peuvent être exigées par des accords
intergouvernementaux, des législations nationales ou des organisations non-gouvernementales autres que le
CEN.
NOTE Une liste des principales conventions internationales dont les exigences en termes de marque de conteneurs
ne sont pas abordées par la présente Norme européenne, est donnée ci-dessous :

Referenčne obremenilne enote - Označevanje - 1. del: Identifikacijske oznake

Ta evropski standard podaja sistem za identifikacijo in predstavitev informacij o referenčnih obremenilnih enotah (ILU). Identifikacijski sistem je namenjen splošni uporabi, na primer pri dokumentiranju, nadzoru in komunikacijah (vključno z avtomatskimi sistemi za obdelavo podatkov), ter prikazu na ILU in drugih zabojnikih, ki niso v skladu s standardi ISO (tj. katerih mere in preskusni parametri se razlikujejo od tistih, opredeljenih v veljavnih standardih ISO), ki se uporabljajo pri evropskem prevozu. Vključene so metode prikaza identifikacijskih in nekaterih drugih podatkov (vključno z obratovalnimi podatki) na ILU s trajnimi oznakami. Ta evropski standard določa: a) identifikacijski sistem ILU s povezanim sistemom za preverjanje natančnosti njegove uporabe, ki ima obvezne oznake za predstavitev identifikacijskega sistema za vidno interpretacijo; b) kodirni sistem za podatke o velikosti in tipu ILU z ustreznimi oznakami za njihov prikaz; c) obvezne obratovalne oznake; d) fizično predstavitev oznak na ILU. Ta del EN 13044 določa sistem za identifikacijo lastnika ILU, kar vključuje povezan sistem za preverjanje natančnosti njegove uporabe. Ta evropski sistem ne zajema začasnih obratovalnih oznak kakršne koli vrste, trajnih oznak, podatkovnih tablic itd., ki jih morda zahtevajo medvladni sporazumi, nacionalna zakonodaja ali nevladne organizacije, ki niso CEN.

General Information

• Status: Published
• Public Enquiry End Date: 08-Mar-2009
• Publication Date: 03-Oct-2011
• ICS: 35.240.60 - IT applications in transport
• ICS: 55.180.10 - General purpose containers
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 13-Sep-2011
• Due Date: 18-Nov-2011
• Completion Date: 04-Oct-2011
• Directive: 2016/797/EU - Directive (EU) 2016/797 of the European Parliament and of the Council of 11 May 2016 on the interoperability of the rail system within the European Union (Text with EEA relevance)
• Ref Project: EN 13044-1:2011 - Intermodal Loading Units - Marking - Part 1: Markings for identification

Relations

• Replaces: SIST EN 13044:2000 - Swap bodies - Coding, identification and marking
• Effective Date: 01-Nov-2011
• Amended By: SIST EN 13044-1:2011/AC:2014 - Intermodal Loading Units - Marking - Part 1: Markings for identification
• Effective Date: 01-Jul-2014
• Corrected By: SIST EN 13044-1:2011/AC:2014 - Intermodal Loading Units - Marking - Part 1: Markings for identification
• Effective Date: 09-Jul-2014

Overview

EN 13044-1:2011 - Intermodal Loading Units (ILU) - Part 1: Markings for identification is a CEN European Standard that defines a uniform identification and marking system for non‑ISO intermodal units (for example swap bodies and semi‑trailers) used in European transport. The standard specifies mandatory visual marks, a coding format (owner code, serial number, check digit), rules for physical presentation (size, colour, location) and a verification method to ensure identification accuracy. It is intended for use in documentation, control, communications and automatic data processing systems.

Key topics and requirements

• ILU identification elements: owner code (4 capital letters), serial number (6 numerals - leading zeros if needed) and a single check digit.
• Owner code rules: four‑letter code where the fourth letter identifies the unit as an ILU (one of A, B, D, E or K). Owner codes must be registered and maintained by UIRR.
• Check digit: validation digit calculated using numerical equivalents, positional weighting (powers of 2), and a modulus 11 operation (see Annex A of the standard). Serial numbers yielding ambiguous remainders are discouraged.
• Physical marking:
  • Minimum character height: 100 mm, proportionate width.
  • Colour must contrast with the ILU background and be durable.
  • Layout: owner code, serial number and check digit on a single horizontal line (check digit shown in a box); at least one character space between groups.
  • Location: as far as practicable on both side walls and the roof; rear end (door) optional.
• Scope limits: excludes temporary operational marks, certain data plates required by other national/international rules, and technical data for swap tanks.

Applications and who uses it

EN 13044-1:2011 is used by:

• ILU manufacturers (swap bodies, semi‑trailers) for compliant marking
• Intermodal operators, logistics providers and freight forwarders for asset identification and tracking
• Terminal operators and railway/road carriers for handling, inspections and communication
• IT and asset‑management systems integrating ILU identifiers for documentation and automatic data processing
• Regulators and operators seeking interoperability with container marking practice

Practical uses include asset identification, error‑checking of transmitted IDs (via the check digit), standardised labelling for cross‑modal handling, and improved data integrity in transport systems.

Related standards

• EN ISO 6346 - Freight containers: coding, identification and marking (format compatibility and reference methodology)
• EN 1432 - Swap tanks (excludes technical data marking covered by EN 13044-1)
• International conventions (CSC, customs conventions) define other marking/plate requirements not covered by EN 13044-1:2011.

Keywords: EN 13044-1:2011, Intermodal Loading Units, ILU marking, owner code, serial number, check digit, UIRR, BIC, EN ISO 6346.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Intermodale Ladeeinheiten - Kennzeichnung - Teil 1: Kennzeichnungen für die IdentifizierungUnités de chargement intermodales - Marquage - Partie 1: Marquages d'identificationIntermodal Loading Units - Marking - Part 1: Markings for identification55.180.10General purpose containers35.240.60Uporabniške rešitve IT v transportu in trgoviniIT applications in transport and tradeICS:Ta slovenski standard je istoveten z:EN 13044-1:2011SIST EN 13044-1:2011en,fr,de01-november-2011SIST EN 13044-1:2011SLOVENSKI
STANDARDSIST EN 13044:20001DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13044-1
January 2011 ICS 55.180.10; 35.240.60 Supersedes EN 13044:2000English Version
Intermodal Loading Units - Marking - Part 1: Markings for identification
Unités de chargement intermodales - Marquage - Partie 1: Marquages d'identification
Intermodale Ladeeinheiten - Kennzeichnung - Teil 1: Kennzeichnungen für die Identifizierung This European Standard was approved by CEN on 30 November 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13044-1:2011: ESIST EN 13044-1:2011

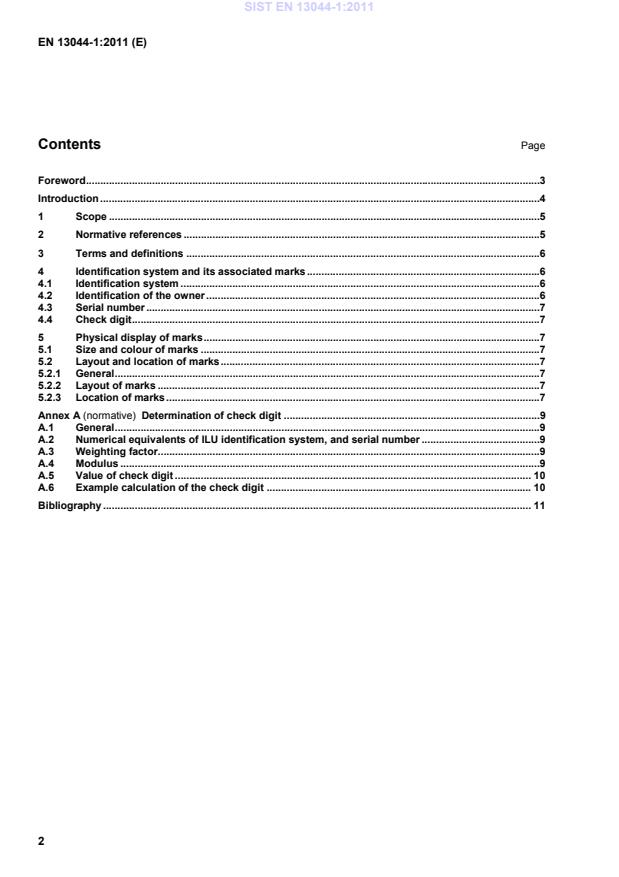

Determination of check digit .9A.1General .9A.2Numerical equivalents of ILU identification system, and serial number .9A.3Weighting factor .9A.4Modulus .9A.5Value of check digit . 10A.6Example calculation of the check digit . 10Bibliography . 11 SIST EN 13044-1:2011

The methods of displaying identification and certain other data (including operational data) on ILUs by means of permanent marks are included. This European Standard specifies: a) an ILU identification system with an associated system for verifying the accuracy of its use, having mandatory marks for the presentation of the identification system for visual interpretation; b) a coding system for data on ILU size and type, with corresponding marks for the
...
