Independent closed-fronted gas-fired type B11, type C11, type C31 and type C91 heaters

This document specifies the requirements and test methods for the construction, safety, marking and rational use of energy.
This standard is applicable to types B11, type C11, type C31 and type C91 appliances that burn gas and:
-   are closed-fronted;
-   incorporate a natural draught burner;
-   are connected directly to an open flue or to a device to evacuate the products of combustion (open-flued appliances, balanced-flued appliances);
-   are wall mounted, free-standing or built-in;
-   have a nominal heat input not exceeding 20 kW (based on the net calorific value).
This document is not applicable to:
-   open fronted appliances as specified in EN 13278;
-   decorative fuel effect appliances as specified in EN 509;
-   catalytic combustion appliances;
-   appliances in which the supply of combustion air and/or evacuation of products of combustion is achieved by mechanical means as specified in EN 1266;
-   ducted-air appliances;
-    appliances installed by means of a closure plate (see 3.3.3.3).
Matters related to quality assurance systems, tests during production and to certificates of conformity of auxiliary devices are not dealt with by this standard.

Konvektions-Raumheizer für gasförmige Brennstoffe der Geräte Art B11, Art C11, Art C31 und Art C91

Dieses Dokument legt Anforderungen und Prüfverfahren für Bau, Sicherheit, Kennzeichnung und rationelle Energienutzung fest.
Dieses Dokument ist anzuwenden für Geräte der Arten B11AS, B11BS, B11CS, C11 und C31 und C91 (siehe 4.2) und die:
—   eine geschlossene Vorderseite;
—   einen atmosphärischen Brenner;
—   direkt oder mittels Zwischenstücks an einem offenen Schornstein oder an eine Einrichtung zur Abführung der Abgase angeschlossen sind (Geräte mit offener Verbrennung, Geräte mit Luftabgassystem (LAS));
—   an der Wand befestigt, freistehend oder eingebaut sind;
—   eine Nennwärmeleistung kleiner oder gleich 20 kW (bezogen auf den Heizwert) haben.
Dieses Dokument ist nicht anzuwenden für:
—   Geräte mit offener Verbrennungskammer nach EN 13278:2013;
—   Geräte mit dekorativem Brennstoffeffekt nach EN 509:1999/A1:2003;
—   Geräte mit katalytischer Verbrennung;
—   Geräte bei denen die Zufuhr von Verbrennungsluft und/oder die Ableitung von Abgasen durch mechanische Mittel nach EN 1266:2002 erfolgt;
—   Luftgeräte mit Kanalanschluss;
—   Geräte, die mit einer Verschlussplatte installiert werden (siehe 3.3.3.3).
Fragen im Zusammenhang mit Qualitätssicherung, Kontrollprüfungen während der Produktion und Konformitätszertifikate von Hilfsgeräten werden nicht in dieser Norm behandelt.

Appareils de chauffage indépendants à foyer fermé utilisant les combustibles gazeux de types B11, C11, C31 et C91

Le présent document spécifie les exigences et méthodes d’essais pour la construction, la sécurité, le marquage et l’utilisation rationnelle de l’énergie.
La présente norme s’applique aux appareils de types B11, C11, C31 et C91 utilisant les combustibles gazeux et :
-   à foyer fermé ;
-   comportant un brûleur atmosphérique ;
-   raccordés directement à un conduit ou à un dispositif d’évacuation des produits de combustion (appareils pour conduits à tirage naturel, appareils à ventouse) ;
-   posés, fixés au mur ou encastrés ;
-   ayant un débit calorifique nominal inférieur ou égal à 20 kW (sur le pouvoir calorifique inférieur).
Le présent document ne s’applique pas :
-   aux appareils à foyer ouvert, comme ceux spécifiés dans l’EN 13278 ;
-   aux appareils à effet décoratif, comme ceux spécifiés dans l’EN 509 ;
-   aux appareils à combustion catalytique ;
-   aux appareils dans lesquels l’amenée d’air comburant et/ou l’évacuation des produits de combustion est effectuée par un moyen mécanique comme spécifié dans l’EN 1266 ;
-   aux appareils de distribution d’air par gaine ;
-    aux appareils installés au moyen d’une plaque de fermeture (voir 3.3.3.3).
Les points relatifs aux systèmes d’assurance qualité, aux essais en production et aux certificats de conformité aux équipements auxiliaires ne sont pas traités dans la présente norme.

Plinski grelniki z zaprtim kuriščem tipov B11, C11, C31 in C91

Plinski grelniki z zaprtim kuriščem tipov B11, C11, C31 in C91
Independent closed-fronted gas-fired type B11, type C11, type C31 and type C91 heaters
Osnova:   EN 613:2021
ICS:   97.100.20
Ta dokument določa zahteve in preskusne metode za izdelavo, varnost, označevanje in racionalno rabo energije.
Ta standard se uporablja za aparate na plin tipov B11, C11, C31 in C91 ter:
–   aparate z zaprtim kuriščem;
–   aparate, ki vključujejo gorilnik z naravnim vlekom;
–   aparate, ki so neposredno povezani z odprto odvodno cevjo ali z napravo za odvajanje produktov zgorevanja (aparati z odprto odvodno cevjo, tlačno izravnani aparati);
–   stenske, prostostoječe ali vgrajene aparate;
–   aparate z nazivno vhodno toplotno močjo, ki ne presega 20 kW (glede na neto kalorično vrednost).
Ta dokument se ne uporablja za:
–   aparate z odprtim kuriščem iz standarda EN 13278;
–   plinske aparate z dekorativnim plamenom iz standarda EN 509;
–   aparate s katalitičnim izgorevanjem;
–   aparate, v katerih se dovajanje zgorevalnega zraka in/ali odvajanje produktov zgorevanja doseže z mehanskimi sredstvi, kot je določeno v standardu EN 1266;
–   aparate z vodenim zrakom;
–    aparate, vgrajene z zapiralno ploščo (glej točko 3.3.3.3).
Ta standard ne obravnava vsebine, ki se navezuje na sisteme zagotavljanja kakovosti, preskuse med proizvodnjo in potrdila o skladnosti pomožnih naprav.

General Information

Status
Published
Public Enquiry End Date
06-Aug-2018
Publication Date
14-Mar-2022
Current Stage
9000 - Revision (Adopted Project)
Start Date
09-Nov-2022
Due Date
02-Feb-2023
Completion Date
09-Nov-2022

Relations

Buy Standard

Standard
EN 613:2022
English language
82 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
prEN 613:2018
English language
93 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 613:2022
01-april-2022
Nadomešča:
SIST EN 613:2002
SIST EN 613:2002/A1:2004
Plinski grelniki z zaprtim kuriščem tipov B11, C11, C31 in C91
Independent closed-fronted gas-fired type B11, type C11, type C31 and type C91
heaters
Konvektions-Raumheizer für gasförmige Brennstoffe der Geräte Art B11, Art C11, Art
C31 und Art C91
Appareils de chauffage indépendants à foyer fermé utilisant les combustibles gazeux de
types B11, C11, C31 et C91
Ta slovenski standard je istoveten z: EN 613:2021
ICS:
97.100.20 Plinski grelniki Gas heaters
SIST EN 613:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 613:2022

---------------------- Page: 2 ----------------------
SIST EN 613:2022


EN 613
EUROPEAN STANDARD

NORME EUROPÉENNE

December 2021
EUROPÄISCHE NORM
ICS 97.100.20 Supersedes EN 613:2000
English Version

Independent closed-fronted gas-fired type B11, type C11,
type C31 and type C91 heaters
Appareils de chauffage indépendants à foyer fermé Konvektions-Raumheizer für gasförmige Brennstoffe
utilisant les combustibles gazeux de types B11, C11, der Geräte Art B11, Art C11, Art C31 und Art C91
C31 et C91
This European Standard was approved by CEN on 12 April 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 613:2021 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 613:2022
EN 613:2021 (E)

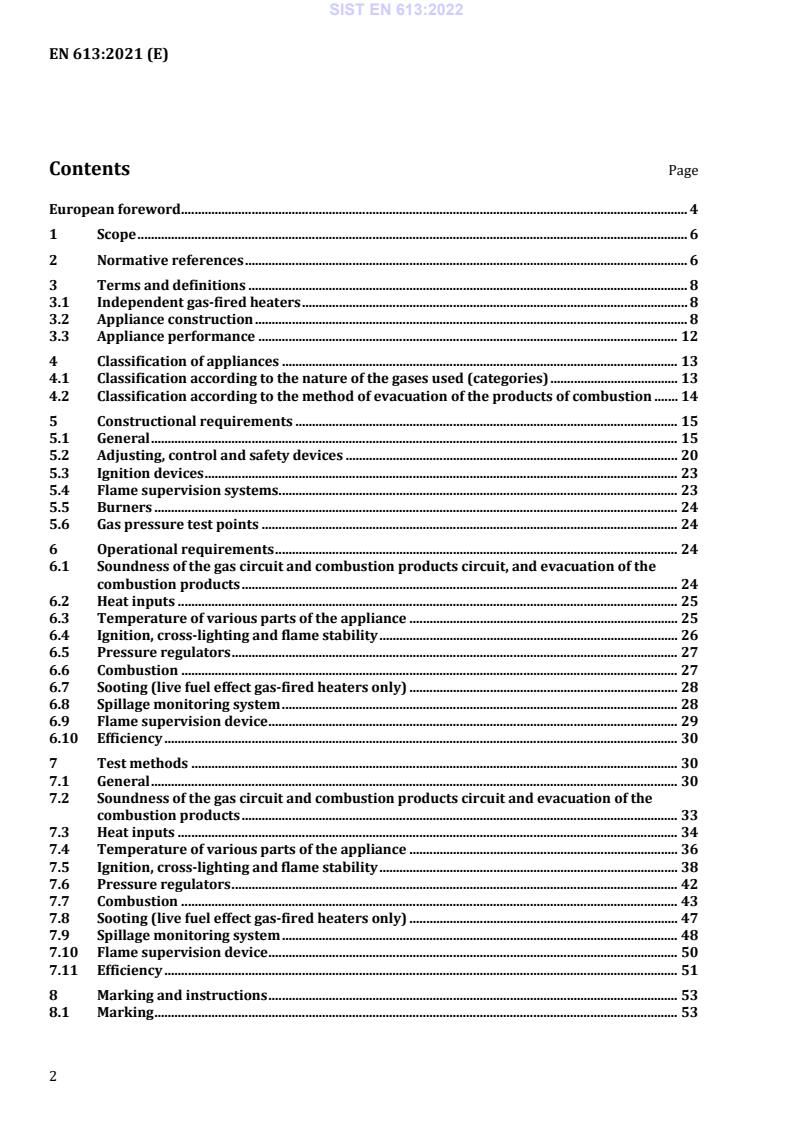

Contents Page
European foreword . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 8
3.1 Independent gas-fired heaters . 8
3.2 Appliance construction . 8
3.3 Appliance performance . 12
4 Classification of appliances . 13
4.1 Classification according to the nature of the gases used (categories) . 13
4.2 Classification according to the method of evacuation of the products of combustion . 14
5 Constructional requirements . 15
5.1 General . 15
5.2 Adjusting, control and safety devices . 20
5.3 Ignition devices . 23
5.4 Flame supervision systems. 23
5.5 Burners . 24
5.6 Gas pressure test points . 24
6 Operational requirements . 24
6.1 Soundness of the gas circuit and combustion products circuit, and evacuation of the
combustion products . 24
6.2 Heat inputs . 25
6.3 Temperature of various parts of the appliance . 25
6.4 Ignition, cross-lighting and flame stability . 26
6.5 Pressure regulators . 27
6.6 Combustion . 27
6.7 Sooting (live fuel effect gas-fired heaters only) . 28
6.8 Spillage monitoring system . 28
6.9 Flame supervision device . 29
6.10 Efficiency . 30
7 Test methods . 30
7.1 General . 30
7.2 Soundness of the gas circuit and combustion products circuit and evacuation of the
combustion products . 33
7.3 Heat inputs . 34
7.4 Temperature of various parts of the appliance . 36
7.5 Ignition, cross-lighting and flame stability . 38
7.6 Pressure regulators . 42
7.7 Combustion . 43
7.8 Sooting (live fuel effect gas-fired heaters only) . 47
7.9 Spillage monitoring system . 48
7.10 Flame supervision device . 50
7.11 Efficiency . 51
8 Marking and instructions . 53
8.1 Marking . 53
2

---------------------- Page: 4 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
8.2 Instructions . 56
Annex A (normative) Hood test method (type B appliances) . 71
Annex B (informative) Gas designations in force in the various EU countries . 75
Annex C (normative) Apparatus for the determination of the smoke number . 77
Annex D (informative) Symbols and abbreviations . 78
Annex E (normative) Calculation of conversions of NOx . 79
Annex F (normative) Arrangement for measuring the leakage rate . 80
Annex G (normative) Special national conditions . 81
Bibliography . 82

3

---------------------- Page: 5 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
European foreword
This document (EN 613:2021) has been prepared by Technical Committee CEN/TC 62 “Independent
gas-fired space heaters”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2022, and conflicting national standards shall be
withdrawn at the latest by June 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 613:2000.
The main changes compared to EN 613:2000 are the following:
• Clause 1 – the Scope has been extended to cover type C and type C appliances;
31 91
• Clause 3.2 – all terms and definitions related to gas in EN 613:2000, cl. 3.2, have been deleted and
replaced by reference to EN 437;
• EN 613:2000, Clauses 3.4 and 3.5 – have been deleted;
• EN 613:2000, Clause 3.6 – has been deleted;
• Clause 4.1 – original replaced by reference to EN 437;
• Clause 4.2 – classification extended to type C and type C appliances;
31 91
• EN 613:2000, Clauses 5.1.1.4, 5.2.7 and 5.6 – have been deleted;
• Clauses 7.1.1 and 7.1.2 – original replaced by reference to EN 437;
• Clause 6.2.2.2 and 7.2.2.2 – have been extended to cover type C and type C appliances;
31 91
• Clause 6.5.2.3 and 7.5.4 – have been extended to cover type C and type C appliances;
31 91
• Clause 7.1.5.3 – has been extended to cover type C and type C appliances;
31 91
• Clause 7.5.2 – has been extended to cover type C and type C appliances
31 91
• Clause 7.7.1.2 and 7.7.3.3 – have been extended to cover type C and type C appliances;
31 91
• Clause 7.11.1.3 – has been extended to cover type C and type C appliances;
31 91
• EN 613:2000, Annexes A, B, F and L – have been deleted;
• Annex G – new Annex to cover arrangement for measuring the leakage rate.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
4

---------------------- Page: 6 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
5

---------------------- Page: 7 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
1 Scope
This document specifies the requirements and test methods for the construction, safety, marking and
rational use of energy.
This document is applicable to types B B , B , C , C and C appliances (see 4.2) and those
11AS, 11BS 11CS 11 31 91
that:
— are closed-fronted;
— incorporate a natural draught burner;
— are connected directly to an open flue or to a device to evacuate the products of combustion (open-
flued appliances, balanced-flued appliances);
— are wall mounted, free-standing or built-in;
— have a nominal heat input not exceeding 20 kW (based on the net calorific value).
This document is not applicable to:
— open fronted appliances as specified in EN 13278:2013;
— decorative fuel effect appliances as specified in EN 509:1999/A1:2003;
— catalytic combustion appliances;
— appliances in which the supply of combustion air and/or evacuation of products of combustion is
achieved by mechanical means as specified in EN 1266:2002;
— ducted-air appliances;
— appliances installed by means of a closure plate (see 3.3.3.3).
Matters related to quality assurance systems, tests during production and to certificates of conformity
of auxiliary devices are not dealt with by this standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 88-1:2011+A1:2016, Pressure governors for gas appliances for inlet pressure up to 200 mbar
EN 125:2010+A1:2015, Flame supervision devices for gas burning appliances — Thermoelectric flame
supervision devices
EN 126:2012, Multifunctional controls for gas burning appliances
EN 161:2011+A3:2013, Automatic shut-off valves for gas burners and gas appliances
EN 257:2010, Mechanical thermostats for gas-burning appliances
EN 298:2012, Automatic burner control systems for burners and appliances burning gaseous or liquid
fuels
6

---------------------- Page: 8 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
EN 437:2021, Test gases — Test pressures — Appliance categories
EN 751-1:1996, Sealing materials for metallic threaded joints in contact with 1st, 2nd and 3rd family
gases and hot water — Part 1: Anaerobic jointing compounds
EN 751-2:1996, Sealing materials for metallic threaded joints in contact with 1st, 2nd and 3rd family
gases and hot water — Part 2: Non-hardening jointing compounds
EN 10226-1:2004, Pipe threads where pressure tight joints are made on the threads — Part 1: Taper
external threads and parallel internal threads — Dimensions, tolerances and designation
EN 10226-2:2005, Pipe threads where pressure tight joints are made on the threads — Part 2: Taper
external threads and taper internal threads — Dimensions, tolerances and designation
EN 1106:2010, Manually operated taps for gas burning appliances
EN 10305-1:2016, Steel tubes for precision applications — Technical delivery conditions — Part 1:
Seamless cold drawn tubes
EN 23166:1993, Codes for the representation of names of countries (ISO 3166:1993)
EN ISO 3166-1:2020, Codes for the representation of names of countries and their subdivisions — Part 1:
Country Codes (ISO 3166-1:2020)
EN 60335-1:2012/A2:2019, Household and similar electrical appliances — Part 1: Safety. General
requirements
EN 60335-2-102:2016, Household and similar electrical appliances — Safety — Part 2-102: Particular
requirements for gas, oil and solid-fuel burning appliances having electrical connections
EN 60529:1991/A2:2013, Degrees of protection provided by enclosures (IP code)
EN IEC 60730-2-9:2019/A1:2019, Automatic electrical controls — Part 2-9: Particular requirements for
temperature sensing control
EN 60730-1:2016, Automatic electrical controls — Part 1: General requirements
ISO 7-1:1994, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions,
tolerances and designation
EN ISO 228-1:2003, Pipe threads where pressure-tight joints are not made on the threads — Part 1:
Dimensions, tolerances and designation (ISO 228-1:2000)
CR 1404:1994, Determination of emissions from appliances burning gaseous fuels during type-testing
7

---------------------- Page: 9 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 437 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1 Independent gas-fired heaters
3.1.1
closed-fronted appliance
appliance which does not have exposed flames or exposed incandescent areas
Note 1 to entry: Access to the flame is prevented by a panel made of glass, metal or a suitable material.
Note 2 to entry: Type C1 and type C3 appliances are room-sealed appliances.
3.1.2
forced gas-fired heater
appliance that incorporates a fan and thus allows an acceleration of the circulation of the air in contact
with the heating body
Note 1 to entry: Such an appliance is designed to discharge heated air directly into the room in which the
appliance is installed.
3.1.3
live fuel effect gas-firedheater
appliance which has a visual flame effect
3.1.4
working surfaces
area of the appliance that generates and emits heat
Note 1 to entry: Examples of working surfaces include fire bricks, refractories, imitation fuel, fire fronts, fire
baskets, burners, burner trays and bracketry.
3.1.5
convection fan
device to assist in the distribution of heated air
3.2 Appliance construction
3.2.1 The gas circuit
3.2.1.1
inlet connection
part of the appliance intended to be connected to the gas supply
8

---------------------- Page: 10 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
3.2.1.2
mechanical joint
connection device assuring soundness in an assembly of several parts, generally of metal
Note 1 to entry: For example the following:
— cone seat joints;
— flat joints;
— metal to metal joints.
3.2.1.3
gas circuit
part of an appliance that conveys or contains the gas between the appliance gas inlet connection and the
burner(s)
3.2.1.4
gas restrictor
non-adjustable device which is placed in the gas circuit so as to create a pressure drop and thus reduce
the gas pressure at the burner to a predetermined value for a given supply pressure and rate
3.2.1.5
gas rate adjuster
component intended to set the gas rate to each burner at a predetermined value according to the supply
conditions
Note 1 to entry: The adjustment can be progressive (screw adjuster) or discontinuous (changing restrictors).
Note 2 to entry: The adjuster of an adjustable governor is regarded as a gas rate adjuster.
Note 3 to entry: The action of setting this device is called 'setting the gas rate'.
3.2.1.6
gas rate control
component allowing the user to open or close the gas supply to one or more burners
Note 1 to entry: It may also be used to adjust the gas rate of certain burners to a predetermined value, called the
'reduced rate'. This device can be a 'tap'.
3.2.1.7
injector
component that admits the gas into a burner, where the section of the outlet orifice is fixed
3.2.1.8
start gas
initial quantity of gas ignited to give a flame which is used to ignite the main burner
Note 1 to entry: It can be discharged through a separate ignition burner or part of the main burner.
3.2.2 Burner
3.2.2.1
main burner
burner that provides the primary thermal function of the appliance
9

---------------------- Page: 11 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
3.2.2.2
pilot burner
burner intended to light the main burner and that supplements the main burner in providing a thermal
function of the appliance
3.2.2.2.1
permanent pilot
pilot burner that operates continuously throughout the whole period that the appliance is in use,
independent of the main burner, and has to be extinguished by manual intervention
3.2.2.2.2
non-permanent pilot
pilot burner that is extinguished automatically when there is no heat demand
3.2.2.2.3
fixed primary aeration restrictor
non-adjustable device which limits the supply of primary air to a burner
3.2.3 Combustion products circuit
3.2.3.1
flue outlet
part of a type B appliance that connects with a flue to evacuate the products of combustion
3.2.3.2
draught diverter
device placed in the combustion product's circuit to reduce the influence of flue-pull and to minimize
the effect of down-draught on the burner flame stability and combustion
3.2.3.3
closure plate
non-combustible plate used to cover and seal the front plane of a builder's opening, or fireplace
opening, such that when the appliance is installed, any air flowing from the room into the flue does so in
accordance with the design requirements of the appliance
Note 1 to entry: This plate contains an aperture through which the flue outlet spigot of the appliance projects
into the cavity of the builder's opening, or fireplace recess, but is not connected to the flue.
Note 2 to entry: The plate can be a separate component, or an integral part of the appliance, e.g. the back panel,
but in either case it is to be considered as part of the appliance.
3.2.3.4
builder's opening
enclosure constructed to accommodate fireplace components
3.2.3.5
fireplace opening
aperture formed in the face of the builder's opening, the fireplace recess or fire surround if fitted
3.2.3.6
fireplace recess
recess formed by the inclusion of fireplace components in the builder's opening
10

---------------------- Page: 12 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
3.2.4 Auxiliary equipment
3.2.4.1
pressure governor
device that maintains, within a fixed range, a constant downstream pressure, independent of the
upstream pressure and/or the gas rate
3.2.4.2
ignition device
device that ignites one or more burners
3.2.4.3
flame supervision device
device that senses the absence or presence of a flame
3.2.4.4
combustion products discharge safety device
device that automatically shuts off the gas supply to the main burner, and perhaps to the ignition
burner, when there is unacceptably high spillage of combustion products from the draught diverter
3.2.4.5
atmosphere sensing device
device that reacts to the lack of oxygen in the surrounding atmosphere
3.2.4.6
control knob
component designed to be moved by hand in order to operate an appliance control (tap, thermostat,
etc.)
3.2.4.7
programming unit
unit which reacts to signals from control and safety devices, gives control commands, controls the start-
up sequence, supervises the burner operation and causes controlled shut-down, and if necessary safety
shut-down and lock-out
Note 1 to entry: The programming unit follows a predetermined sequence of actions and always operates in
conjunction with a flame detector device.
3.2.4.8
flame detector device
device by which the presence of a flame is detected and signalled
Note 1 to entry: It can consist of a flame sensor, an amplifier and a relay for signal transmission. These parts,
with the possible exception of the actual flame sensor, may be assembled in a single housing for use in conjunction
with a programming unit.
3.2.4.9
automatic burner system
burner system in which, when starting from the completely shut-down condition, the gas is ignited and
the flame is detected and proved and the main gas valve(s) is actuated without manual intervention
11

---------------------- Page: 13 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
3.2.4.10
restart interlock
device which prevents the restoration of the gas supply to the main burner, or to the main burner and
ignition burner, until the end of the extinction delay time
3.3 Appliance performance
3.3.1 Gas rates
3.3.1.1
nominal heat input
Q
n
value of the heat input declared in the technical specification
Note 1 to entry: Unit: kilowatt (kW).
3.3.2 Gas combustion
3.3.2.1
flame stability
state of the flames resting in a stable manner on the burner ports or the flame contact area provided by
the design with no flame lift or light-back
3.3.2.2
flame lift
phenomenon characterized by the total or partial lifting of the base of the flame from the burner port or
the flame contact area provided by the design
3.3.2.3
light-back
phenomenon characterized by the entry of a flame into the body of a burner
3.3.2.4
light-back at the injector
phenomenon characterized by ignition of the gas at the injector, either as a result of the flame entering
the burner or by the propagation of a flame around the outside of the burner
3.3.2.5
sooting
phenomenon characterized by deposits of soot on the surfaces of parts of the appliance in contact with
the products of combustion or with the flame, or as particulate matter in the combustion products
3.3.2.6
yellow tipping
phenomenon characterized by the appearance of yellow colouring at the top of the blue cone of an
aerated flame
3.3.3
safety time
interval between the ignition burner gas valve, the start gas valve or main gas valve, as applicable, being
energized and the ignition burner gas valve, start gas valve or main gas valve, as applicable, being de-
energized if the flame detector signals the absence of a flame
12

---------------------- Page: 14 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
3.3.4
extinction delay time
time that elapses between the disappearance of the flame and the interruption of the gas supply
3.3.5
ignition delay time
time that elapses between ignition of the supervised flame and the moment when the closure element is
held open by the flame signal
Note 1 to entry: This applies to a thermoelectric flame supervision device.
3.3.6
thermal equilibrium
operating state of the appliance, corresponding to a particular setting of the input, in which the flue gas
temperature does not change by more than ± 2 K over a period of 10 min
3.3.7
controlled shutdown
process by which a control device (on the appliance or external to it) causes the gas supply to the main
burner to be stopped immediately
3.3.8
safety shutdown
process which is initiated immediately in response to the signal from a limiting device or sensor and
which causes any burner to shut down
3.3.9
non-volatile lockout
shutdown condition so that a start can only be accomplished by a manual reset
3.3.10
volatile lockout
shutdown condition so that a start can be accomplished by restoration of the electrical supply after its
loss
3.3.11
smoke number
qualitative scale of the soot emission
4 Classification of appliances
4.1 Classification according to the nature of the gases used (categories)
4.1.1 Classification of gases
Gases are classified into three families, possibly divided into groups as a function of the Wobbe index in
accordance with the values given in EN 437:2021, Table 1.
4.1.2 Appliance categories
Appliance are classified into categories defined according to the gases and the pressures for which they
are designed as given in EN 437:2021, 6.1.
13

---------------------- Page: 15 ----------------------
SIST EN 613:2022
EN 613:2021 (E)
4.2 Classification according to the method of evacuation of the products of combustion
Appliances are classified into types according to the method of evacuation of the products of
combustion and of admission of the combustion air:
• Type B: An appliance intended to be connected to a flue which evacuates the products of
combustion to the outside of the room containing the appliance. The combustion air is drawn
directly from the room.
• Type B : A type B appliance incorporating a draught diverter.
1
• For the purposes of this standard a type B appliance is an a
...

SLOVENSKI STANDARD
oSIST prEN 613:2018
01-julij-2018
[Not translated]
Independent closed-fronted gas-fired type B11, type C11, type C31 and type C91
heaters
Konvektions-Raumheizer für gasförmige Brennstoffe
Appareils de chauffage indépendants à foyer fermé utilisant les combustibles gazeux de
types B11, C11, C31 et C91
Ta slovenski standard je istoveten z: prEN 613
ICS:
97.100.20 Plinski grelniki Gas heaters
oSIST prEN 613:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 613:2018

---------------------- Page: 2 ----------------------
oSIST prEN 613:2018


DRAFT
EUROPEAN STANDARD
prEN 613
NORME EUROPÉENNE

EUROPÄISCHE NORM

May 2018
ICS 97.100.20 Will supersede EN 613:2000
English Version

Independent closed-fronted gas-fired type B11, type C11,
type C31 and type C91 heaters
Appareils de chauffage indépendants à foyer fermé
utilisant les combustibles gazeux de types B11, C11,
C31 et C91
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 62.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
