SIST EN 60317-36:2014/A2:2024

Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer (IEC 60317-36:2013/AMD2:2024)

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 36: Runddrähte aus Kupfer, verzinnbar und verbackbar, lackisoliert mit Polyesterimid, Klasse 180 (IEC 60317-36:2013/AMD2:2024)

Spécifications pour types particuliers de fils de bobinage - Partie 36: Fil brasable de section circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche adhérente (IEC 60317-36:2013/AMD2:2024)

Specifikacije za posebne vrste navijalnih žic - 36. del: S poliesterimidom emajlirana okrogla bakrena žica, za spajkanje, razred 180, s spajalno plastjo - Dopolnilo A2 (IEC 60317-36:2013/AMD2:2024)

General Information

• Status: Published
• Public Enquiry End Date: 30-Oct-2023
• Publication Date: 18-Aug-2024
• ICS: 29.060.10 - Wires
• ICS: 77.150.30 - Copper products
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Aug-2024
• Due Date: 12-Oct-2024
• Completion Date: 19-Aug-2024
• Ref Project: EN 60317-36:2014/A2:2024 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer

Relations

• Amends: SIST EN 60317-36:2014 - Specifications for particular types of winding wires - Part 36: Solderable polyesterimide enamelled round copper wire, class 180, with a bonding layer
• Effective Date: 01-Sep-2024

Overview

EN 60317-36:2014/A2:2024 (IEC 60317-36:2013/AMD2:2024) specifies requirements for solderable polyesterimide enamelled round copper winding wire, class 180, with a bonding layer. This Amendment A2 to EN 60317-36 updates the European adoption approved by CENELEC in July 2024 and is to be implemented nationally by April 19, 2025. The standard is part of the IEC 60317 series for particular types of winding wires and is intended to be used together with IEC 60317-0-1 (general requirements for enamelled round copper wire).

Key topics and requirements

• Material and construction: Defines the specific type - round copper conductor with a polyesterimide enamel coating that is solderable and includes a bonding (adhesive) layer.
• Thermal classification: Designated class 180, indicating a high thermal performance ranking appropriate for demanding electrotechnical applications.
• Test methods and conformity: References test methods in IEC 60317-0-1:2013 and its Amendment 1:2019 (consolidated edition available). Where inconsistencies exist between the general part and Part 36, EN 60317-36 takes precedence.
• Electrical resistance: Measurement and requirements refer to Clause 5 of IEC 60317-0-1.
• Bonding/solvent bonding: Amendment A2 clarifies that no solvent bonding requirements apply for this wire type.
• Normative references and alignment with international documents are listed in Annex ZA; implementers should consult these for full testing and dimensional details.

Applications and users

This standard is relevant to professionals and organizations involved in:

• Magnet wire manufacturers producing solderable polyesterimide enamelled copper wire.
• Motor, transformer and coil designers specifying winding materials for high-temperature or high-reliability equipment.
• Quality managers, test laboratories and procurement teams verifying conformity to European and IEC winding wire standards.
• Certification and compliance bodies assessing product conformity and performance claims.

Practical applications include motor windings, transformers, inductors and other electromagnetic devices where solderability, thermal endurance and reliable bonding of enamel layers are required.

Related standards

• IEC 60317-0-1:2013 (+ AMD1:2019) - General requirements and test methods for enamelled round copper wire (mandatory companion document).
• Other parts of the IEC 60317 series covering different enamel systems, coatings and conductor geometries.

Keywords: EN 60317-36:2014/A2:2024, IEC 60317-36, solderable polyesterimide enamelled wire, winding wires, class 180, bonding layer, magnet wire standard, electrotechnical standards.

Standards Content (Sample)

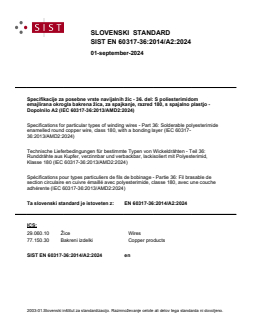

SLOVENSKI STANDARD
01-september-2024
Specifikacije za posebne vrste navijalnih žic - 36. del: S poliesterimidom
emajlirana okrogla bakrena žica, za spajkanje, razred 180, s spajalno plastjo -
Dopolnilo A2 (IEC 60317-36:2013/AMD2:2024)
Specifications for particular types of winding wires - Part 36: Solderable polyesterimide
enamelled round copper wire, class 180, with a bonding layer (IEC 60317-
36:2013/AMD2:2024)
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 36:
Runddrähte aus Kupfer, verzinnbar und verbackbar, lackisoliert mit Polyesterimid,
Klasse 180 (IEC 60317-36:2013/AMD2:2024)
Spécifications pour types particuliers de fils de bobinage - Partie 36: Fil brasable de
section circulaire en cuivre émaillé avec polyesterimide, classe 180, avec une couche
adhérente (IEC 60317-36:2013/AMD2:2024)
Ta slovenski standard je istoveten z: EN 60317-36:2014/A2:2024
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

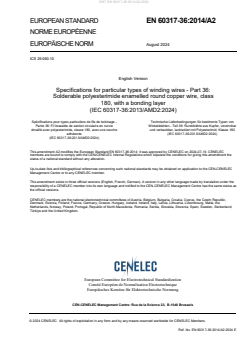

EUROPEAN STANDARD EN 60317-36:2014/A2

NORME EUROPÉENNE
EUROPÄISCHE NORM August 2024
ICS 29.060.10
English Version
Specifications for particular types of winding wires - Part 36:
Solderable polyesterimide enamelled round copper wire, class
180, with a bonding layer
(IEC 60317-36:2013/AMD2:2024)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 36: Fil brasable de section circulaire en cuivre Wickeldrähten - Teil 36: Runddrähte aus Kupfer, verzinnbar
émaillé avec polyesterimide, classe 180, avec une couche und verbackbar, lackisoliert mit Polyesterimid, Klasse 180
adhérente (IEC 60317-36:2013/AMD2:2024)
(IEC 60317-36:2013/AMD2:2024)
This amendment A2 modifies the European Standard EN 60317-36:2014; it was approved by CENELEC on 2024-07-19. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60317-36:2014/A2:2024 E

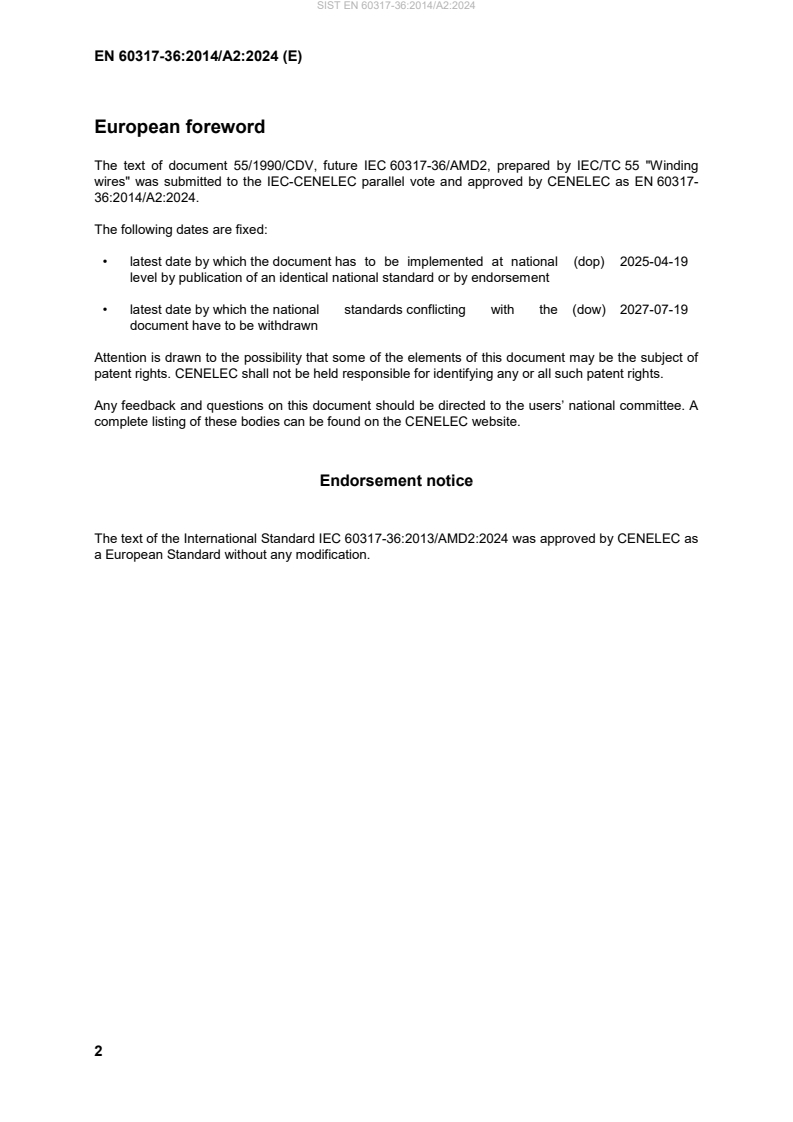

European foreword
