SIST EN 13617-2:2021
(Main)Petrol filling stations - Part 2: Safety requirements for construction and performance of safe breaks for use on metering pumps and dispensers
Petrol filling stations - Part 2: Safety requirements for construction and performance of safe breaks for use on metering pumps and dispensers
This European Standard specifies safety requirements for the construction and performance of safe breaks to be fitted to metering pumps and dispensers installed at filling stations and used to dispense liquid fuels into the tanks of motor vehicles, boats and light aircraft and into portable containers at flow rates up to 200 l min-1.
The requirements apply to safe breaks at ambient temperatures from –20 °C to +40 °C with the possibility for an extended temperature range.
It pays particular attention to electrical, mechanical and hydraulic characteristics of, and electrical apparatus incorporated within or mounted on, the safe break.
This European Standard applies mainly to hazards related to the ignition of liquid fuels being dispensed or their vapour. This European Standard also addresses electrical and mechanical hazards.
NOTE 1 This European Standard does not apply to equipment for use with liquefied petroleum gas (LPG) or liquefied natural gas (LNG) or compressed natural gas (CNG).
NOTE 2 Fuels other than of Explosion Group IIA are excluded from this European Standard.
Tankstellen - Teil 2: Sicherheitstechnische Anforderungen an Bau- und Arbeitsweise von Abreißkupplungen für Zapfsäulen und druckversorgte Zapfsäulen
Dieses Dokument legt die sicherheitstechnischen Anforderungen an Bau und Arbeitsweise von Abreißkupplungen an Zapfsäulen und druckversorgten Zapfsäulen fest, die an Tankstellen installiert werden für die Abgabe von flüssigen Kraftstoffen und wässriger Harnstofflösung in Tanks von Kraftfahrzeugen, Booten und Leichtflugzeugen sowie in tragbare Behälter bei Durchflussraten von bis zu 200 l · min−1.
Dieses Dokument gilt für Kraftstoffe der Explosionsgruppe IIA sowie für wässrige Harnstofflösung nach ISO 22241-1.
ANMERKUNG Diese Europäische Norm gilt nicht für Kraftstoffe, die nicht zur Explosionsgruppe IIA gehören.
Die Anforderungen gelten für Abreißkupplungen bei Umgebungstemperaturen zwischen –20 °C und +40 °C, wobei ein erweiterter Temperaturbereich möglich ist.
Dieses Dokument berücksichtigt insbesondere die elektrischen, mechanischen und hydraulischen Eigenschaften von Abreißkupplungen und von den zugehörigen oder an ihnen angebrachten elektrischen Betriebsmitteln.
Dieses Dokument ist hauptsächlich auf die Gefährdungen durch Entzünden von flüssigen Kraftstoffen oder deren Dämpfen während des Abfüllvorgangs anwendbar. Dieses Dokument berücksichtigt auch die elektrischen und mechanischen Gefährdungen.
Dieses Dokument gilt nicht für Ausrüstung, die für die Abgabe von verflüssigten oder verdichteten Gasen vorgesehen ist.
Stations-service - Partie 2 : Exigences de sécurité relatives à la construction et aux performances des raccords cassants utilisés pour les distributeurs de carburants
Le présent document spécifie les exigences relatives à la construction et aux performances en matière de
sécurité des raccords cassants montés sur les distributeurs installés en stations-service et utilisés pour
distribue des carburants liquides et de solution aqueuse d'urée dans des réservoirs de véhicules à moteur,
de bateaux, d’avions légers et dans des réservoirs portables, dont les débits sont inférieurs à 200 l∙min-1.
Le présent document s'applique aux carburants du Groupe d'Explosion IIA et aussi aux solutions
aqueuses d'urée conformément à l'ISO 22241-1.
NOTE Les carburants autres que ceux du Groupe d’Explosion IIA sont exclus de la présente Norme européenne.
Les exigences s'appliquent aux raccords cassants à des températures comprises entre –20 °C et +40 °C
avec la possibilité d'étendre la plage de température.
Le présent document accorde une attention toute particulière aux caractéristiques électriques,
mécaniques et hydrauliques ainsi qu’aux appareillages électriques installés dans ou montés sur les
raccords cassants.
Le présent document concerne principalement les phénomènes dangereux liés à l’inflammation des
carburants liquides distribués ou de leurs vapeurs. Le présent document concerne également les risques
de nature électrique ou mécanique.
Le présent document ne s’applique pas aux équipements mettant en oeuvre du gaz de pétrole liquéfié ou
compressé.
Bencinski servisi - 2. del: Varnostne zahteve za izdelavo in lastnosti varnostnih zapor za tlačne in sesalne naprave za točenje goriva
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 13617-2:2021
01-december-2021
Nadomešča:
SIST EN 13617-2:2012
Bencinski servisi - 2. del: Varnostne zahteve za izdelavo in lastnosti varnostnih
zapor za tlačne in sesalne naprave za točenje goriva
Petrol filling stations - Part 2: Safety requirements for construction and performance of
safe breaks for use on metering pumps and dispensers
Tankstellen - Teil 2: Sicherheitstechnische Anforderungen an Bau- und Arbeitsweise von
Abreißkupplungen für Zapfsäulen und druckversorgte Zapfsäulen
Stations-service - Partie 2 : Exigences de sécurité relatives à la construction et aux
performances des raccords cassants utilisés pour les distributeurs de carburants
Ta slovenski standard je istoveten z: EN 13617-2:2021
ICS:
75.200 Oprema za skladiščenje Petroleum products and
nafte, naftnih proizvodov in natural gas handling
zemeljskega plina equipment
SIST EN 13617-2:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 13617-2:2021
---------------------- Page: 2 ----------------------
SIST EN 13617-2:2021
EN 13617-2
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2021
EUROPÄISCHE NORM
ICS 75.200 Supersedes EN 13617-2:2012
English Version
Petrol filling stations - Part 2: Safety requirements for
construction and performance of safe breaks for use on
metering pumps and dispensers
Stations-service - Partie 2 : Exigences de sécurité Tankstellen - Teil 2: Sicherheitstechnische
relatives à la construction et aux performances des Anforderungen an Bau- und Arbeitsweise von
raccords cassants utilisés pour les distributeurs de Abreißkupplungen für Zapfsäulen und druckversorgte
carburants Zapfsäulen
This European Standard was approved by CEN on 14 June 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13617-2:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)

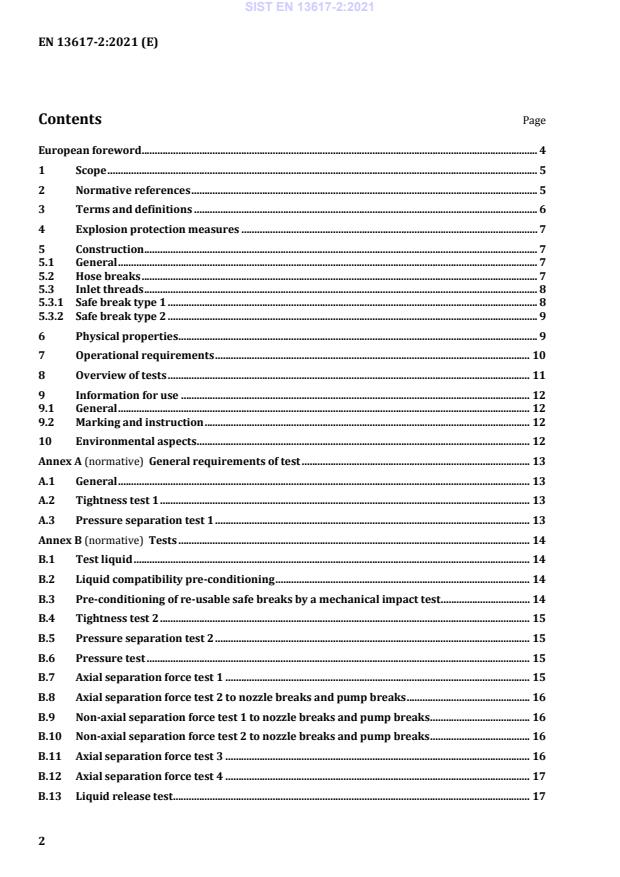

Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Explosion protection measures . 7
5 Construction . 7
5.1 General . 7
5.2 Hose breaks . 7
5.3 Inlet threads . 8
5.3.1 Safe break type 1 . 8
5.3.2 Safe break type 2 . 9
6 Physical properties . 9
7 Operational requirements . 10
8 Overview of tests . 11
9 Information for use . 12
9.1 General . 12
9.2 Marking and instruction . 12
10 Environmental aspects . 12
Annex A (normative) General requirements of test . 13
A.1 General . 13
A.2 Tightness test 1 . 13
A.3 Pressure separation test 1 . 13
Annex B (normative) Tests . 14
B.1 Test liquid . 14
B.2 Liquid compatibility pre-conditioning . 14
B.3 Pre-conditioning of re-usable safe breaks by a mechanical impact test . 14
B.4 Tightness test 2 . 15
B.5 Pressure separation test 2 . 15
B.6 Pressure test . 15
B.7 Axial separation force test 1 . 15
B.8 Axial separation force test 2 to nozzle breaks and pump breaks . 16
B.9 Non-axial separation force test 1 to nozzle breaks and pump breaks . 16
B.10 Non-axial separation force test 2 to nozzle breaks and pump breaks . 16
B.11 Axial separation force test 3 . 16
B.12 Axial separation force test 4 . 17
B.13 Liquid release test . 17
2
---------------------- Page: 4 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
B.14 Re-connection test 1 . 17
B.15 Re-connection test 2 . 17
B.16 Electrical resistance test . 18
Annex C (informative) Environmental aspects . 19
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/34/EU aimed to be covered . 21
Bibliography . 23
3
---------------------- Page: 5 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
European foreword
This document (EN 13617-2:2021) has been prepared by Technical Committee CEN/TC 393 “Equipment
for storage tanks and for filling stations”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2022, and conflicting national standards shall be
withdrawn at the latest by March 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13617-2:2012.
In comparison with the 2012 edition, the following significant changes were made:
— safe breaks for aqueous urea solution added;
— Table 1 corrected to ensure compatibility between components according to EN 13012:2021,
EN 13617-2:2021, EN 13617-4:2021 and EN 1360:2013;
th
— the production acceptance tests are modified to test at least every 500 unit;
— the liquid compatibility preconditioning fluid for fuel safe breaks is defined in EN 13617-1.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 2014/34/EU.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
EN 13617 consists of four parts:
— Part 1: Safety requirements for construction and performance of metering pumps, dispensers and
remote pumping units;
— Part 2: Safety requirements for construction and performance of safe breaks for use on metering pumps
and dispensers;
— Part 3: Safety requirements for construction and performance of shear valves;
— Part 4: Safety requirements for construction and performance of swivels for use on metering pumps and
dispensers.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United
Kingdom.
4
---------------------- Page: 6 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
1 Scope
This document specifies safety requirements for the construction and performance of safe breaks to be
fitted to metering pumps and dispensers installed at filling stations and used to dispense liquid fuels and
aqueous urea solution into the tanks of motor vehicles, boats and light aircraft and into portable
−1
.
containers at flow rates up to 200 l · min
This document applies to fuels of subdivision Group IIA according to EN ISO/IEC 80079-20-1 and also
aqueous urea solution according to ISO 22241-1.
The requirements apply to safe breaks at ambient temperatures from −20 °C to +40 °C with the possibility
for an extended temperature range.
This document pays particular attention to electrical, mechanical and hydraulic characteristics of, and
electrical equipment incorporated within or mounted on, the safe break.
This document applies mainly to hazards related to the ignition of liquid fuels being dispensed or their
vapour. This document also addresses electrical and mechanical hazards.
This document does not apply to equipment dispensing compressed or liquefied gases.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 1127-1:2019, Explosive atmospheres - Explosion prevention and protection - Part 1: Basic concepts and
methodology
EN 1360:2013, Rubber and plastic hoses and hose assemblies for measured fuel dispensing systems -
Specification
EN 13483:2013, Rubber and plastic hoses and hose assemblies with internal vapour recovery for measured
fuel dispensing systems - Specification
EN 13617-1:2021, Petrol filling stations - Part 1: Safety requirements for construction and performance of
metering pumps, dispensers and remote pumping units
EN IEC 60079-0:2018, Explosive atmospheres - Part 0: Equipment - General requirements
(IEC 60079-0:2017)
EN ISO 228-1:2003, Pipe threads where pressure-tight joints are not made on the threads - Part 1:
Dimensions, tolerances and designation (ISO 228-1:2000)
EN ISO 1825:2017, Rubber hoses and hose assemblies for aircraft ground fuelling and defuelling -
Specification (ISO 1825:2017)
EN ISO 8031:2020, Rubber and plastics hoses and hose assemblies - Determination of electrical resistance
and conductivity (ISO 8031:2020)
EN ISO 80079-36:2016, Explosive atmospheres - Part 36: Non-electrical equipment for explosive
atmospheres - Basic method and requirements (ISO 80079-36:2016)
ISO 261:1998, ISO general purpose metric screw threads — General plan
5
---------------------- Page: 7 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
ISO 965-2:1998, ISO general purpose metric screw threads — Tolerances — Part 2: Limits of sizes for
general purpose external and internal screw threads — Medium quality
ISO 11925-3:1997, Reaction to fire tests — Ignitability of building products subjected to direct impingement
of flame — Part 3: Multi-source test
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13617-1:2021 and the following
apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
safe break
device to minimize fuel spillage and to stop fuel flow achieved by separation between nozzle and metering
pump or dispenser within a defined range of forces
3.2
safe break type 1
safe break constructed for liquid lines only
3.3
safe break type 2
safe break constructed for liquid lines combined with vapour recovery lines
3.4
nozzle break
safe break fitted directly into the nozzle inlet, or integral with the nozzle
3.5
hose break
safe break fitted within the delivery hose circuit
3.6
pump break
safe break fitted directly to the fixed hydraulics
3.7
re-usable safe break
safe break that, once operated, can be re-assembled for further use
3.8
non re-usable safe break
safe break that, once operated, cannot be re-assembled for further use
6
---------------------- Page: 8 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
4 Explosion protection measures
4.1 Explosion protection measures shall be taken in accordance with EN 1127-1:2019 and
EN 13617-1:2021, Annex B.
4.2 The safe break shall be explosion protected and shall be Category 2G, Group II, EPL Gb in
accordance with EN ISO 80079-36:2016. The vapour path of a vapour recovery safe break shall be
Category 1G, Group II, EPL Ga in accordance with EN ISO 80079-36:2016. The safe break shall fulfil the
requirements for temperature class T3 and Group IIA according to EN IEC 60079-0:2018 or
EN ISO 80079-36:2016.
5 Construction
5.1 General
5.1.1 All electrical and non-electrical equipment and components, intended for use in potentially
explosive atmospheres, shall be designed and constructed according to good engineering practice and in
conformity with the required categories/EPLs for group II equipment to ensure avoidance of any ignition
source. To classify the category/EPL of the equipment it shall be subjected to an ignition hazard
assessment in accordance with EN ISO 80079-36:2016, 5.2.
5.1.2 All materials used in the construction shall be chemically and dimensionally stable under known
service conditions. Materials likely to come into contact with fuels in both liquid and vapour phases shall
be resistant to attack by these fuels. Compliance shall be demonstrated by manufacturer's declaration
and compliance with the tests B.1 to B.16 inclusive.
5.1.3 Light alloys when used shall conform to the requirements of EN IEC 60079-0:2018, 8.3. If other
specifications for explosion protected equipment impose more stringent requirements then the more
stringent requirement shall apply.
5.1.4 Outside surfaces likely to be handled shall be free of sharp edges.
5.1.5 If protective covers are fitted they shall be constructed such that they allow ventilation and
evaporation of fuel even if some shrinkage occurs. They shall not affect the performance of the safe break.
5.1.6 Safe breaks Type 1 and Type 2, except nozzle breaks, when operated shall close liquid lines both
upstream and downstream of the break.
5.1.7 For safe breaks Type 2 it is not required to close vapour lines. A means to close off vapour lines
may be included.
5.1.8 On re-usable safe breaks, the sections that break away shall be constructed so that the means of
reconnection cannot be damaged by impacts according to test B.3.
5.1.9 The construction shall be such that on reconnection of a re-usable device, or attempted
reconnection of a non re-usable device, fluid shall not be sprayed out during the reconnection action.
5.2 Hose breaks
Hose breaks which incorporate hose shall use hose conforming to EN 1360:2013, EN ISO 1825:2017 or
EN 13483:2013.
7
---------------------- Page: 9 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
5.3 Inlet threads
5.3.1 Safe break type 1
Safe break type 1 threads for the hose connection shall be parallel threads according to
EN ISO 228-1:2003 according to Table 1. The sealing surfaces of the internal and external threads shall
be designed such that they are suitable for use with an appropriate seal.
Table 1 — Safe break type 1 Thread specifications
Nominal inlet size Female threads Male threads
a b
Thread depth Minimum engagement
l l
a b
mm mm
d See Figure 1. See Figure 2.
0
12,0
3/4” 12,0
−05,
0
13,0
1” 13,0
−05,
0
15,0
1 1/4” 15,0
−05,
0
18,0
1 1/2” 18,0
−05,
a
The thread depth, measured from the outer fore-part to the metallic inner sealing face.
b
The stated minimum length only applies if the female thread of the hose fitting includes an inner flat gasket.
In case of using an outer flat gasket, the male threads may be shorter than the dimensions in this table.
Dimensions in millimetres
Key
l
female thread depth
a
d nominal inlet size
Figure 1 — Female inlet thread
8
---------------------- Page: 10 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
Key
l male thread minimum engagement
b
d nominal inlet size
Figure 2 — Male inlet thread
5.3.2 Safe break type 2
Threads shall be M 34 × 1,5 female or male according to ISO 261:1998 and ISO 965-2:1998, and be in
accordance with EN 13483:2013.
The total thread depth shall be not less than 15,0 mm. The inlet end shall be controlled to a diameter of
(35,0 ± 0,05) mm for a length (6,0 ± 0,1) mm.
6 Physical properties
The physical properties of the safe break shall be according to Table 2.
Table 2 —Physical properties of safe break
Property Requirement Test Method
Electrical resistance of inlet thread to outlet
5
All readings to be < 10 Ω. B.16
thread when fully assembled
Electrostatic properties EN ISO 80079-36:2016, 6.7 EN ISO 80079-36:2016
Fuel compatibility of fuel safe breaks Clause 7 B.2
Ignitability of composites on safe break, Ignition
The material tested shall not
source C; Effect time 20 s; Surface flame ISO 11925-3:1997
afterflame.
impingement
Characteristics of safe break body and/or cover
Metallic enclosure requirements
to prevent dangerous, mechanically generated, —
of EN IEC 60079-0:2018, 8.3.
sparks (resistance to sparking).
9
---------------------- Page: 11 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
7 Operational requirements
The safe break shall comply with the operational requirements of Table 3 when tested by the indicated
methods; and with a frequency of tests as specified in Clause 8.
Table 3 — Operational requirements
Operational Test
Requirement
Requirement Method
No quantifiable sign of leakage visible to an eye with normal
Tightness test 1 A.2
visual acuity.
Pressure separation There shall be no separation of the safe break and no
A.3
test 1 continuous flow of liquid
Liquid release ≤ 120ml. There shall not be sufficient mechanical
Pre-conditioning damage to prevent the re-assembly of the safe break when
B.3
mechanical impact test applying maximum re-assembly forces specified by the
manufacturer.
No quantifiable sign of leakage visible to an eye with normal
Tightness test 2 B.4
visual acuity.
Pressure separation There shall be no separation of the safe break and no
B.5
test 2 continuous release of liquid
Pressure test There shall be no catastrophic damage B.6
Axial separation force Separation shall occur for an applied force F such that
B.7
test 1 650 N ≤ F ≤ 1500 N
Axial separation force Separation shall occur for an applied force F such that
B.8
test 2 650 N ≤ F ≤ 1500 N
Non-axial separation Separation shall occur for an applied force F such that
B.9
force test 1 650 N ≤ F ≤ 1500 N
Non-axial separation Separation shall occur for an applied force F such that
B.10
force test 2 650 N ≤ F ≤ 1500 N
Axial separation force Separation shall occur for an applied force F such that
B.11
test 3 650 N ≤ F ≤ 1500 N
Axial separation force Separation shall occur for an applied force F such that
B.12
test 4 650 N ≤ F ≤ 1500 N
−1
Liquid release ≤ 10 ml (for maximum flow rate ≤ 80 l · min )
Liquid release ≤ 25 ml (for maximum flow
Liquid release test B.13
−1 −1
rate > 80 l · min ; ≤ 200 l · min )
For nozzle breaks, liquid release ≤ 120 ml for the nozzle itself
Re-connection test 1 Liquid release ≤ 120 ml B.14
Re-connection test 2 Liquid release ≤ 120 ml B.15
Electrical resistance of
inlet thread to outlet
5
B.16
All readings to be < 10 Ω
thread when fully
assembled.
10
---------------------- Page: 12 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
8 Overview of tests
Tests shall be performed in accordance with Table 4 and using the test methods of Annex A and Annex B
NOTE Pneumatic testing is potentially a much more dangerous operation than hydraulic testing.
Type tests are those tests required to evaluate conformity. Four safe breaks shall each be subjected to
the type tests as set out below.
All fuel safe breaks for type test shall be pre-conditioned according to B.2 and B.3.
All aqueous urea solution safe breaks for type test shall be pre-conditioned according to B.3.
For fuel safe breaks, the preconditioning mechanical impact test according to B.3 shall be done
immediately after removal from saturated atmosphere and shall be commenced within 30 min of removal
from saturated atmosphere. Tests B.4, B.5, B.7 to B.16 shall then be performed without delay and shall be
completed within 6 h of the commencement of the pressure test and finally in accordance with B.6.
Production acceptance tests shall be carried out on the first unit produced on a production run, the last
th
) unit during the
unit manufactured on a production run and at least every five hundredth (500
production run.
Routine tests shall be carried out on each finished safe break.
Table 4 — Tests
Production
Property/Requirement Type Tests Routine tests
acceptance test
Physical property —
Electrostatic properties
Manufacturers declaration
according to Table 2
Resistance to sparking
Operational requirement —
According to
Ignitability of composites on safe break — —
Table 2
Pre-conditioning mechanical impact test B.3 — —
Tightness test 1 — — A.2
Tightness test 2 B.4 B.4 –
Pressure separation test 1 — — A.3
Pressure separation test 2 B.5 B.5 —
Pressure test B.6 — —
Axial separation force test 1 B.7 B.7 —
Axial separation force test 2 B.8 — —
Non-axial separation force test 1 B.9 B.9 —
Non-axial separation force test 2 B.10 — —
Axial separation force test 3 B.11 B.11 —
Axial separation force test 4 B.12 — —
Liquid release test B.13 B.13 —
11
---------------------- Page: 13 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
Production
Property/Requirement Type Tests Routine tests
acceptance test
Re-connection test 1 B.14 B.14 —
Re-connection test 2 B.15 — —
a
Electrical resistance B.16 B.16
B.16
a
Where there is low resistance material from inlet thread, across the break to the output then this routine test
shall not be required.
9 Information for use
9.1 General
Information for use shall be according to EN 13617-1:2021.
9.2 Marking and instruction
If the size of the safe breaks is not large enough for the marking, then marking shall be in accordance with
EN IEC 60079-0:2018.
Safe breaks shall be marked legibly and indelibly during the manufacturing process; where necessary this
marking may be made visible for inspection by the easy removal of plastic covers. Marking shall include
at least the following information:
— manufacturer’s name or identification;
— manufacturer’s type indication;
— the ambient temperature range if it is outside the temperature range of −20 °C to +40 °C;
— serial number, batch code or date code with a precision of at least year and quarter;
— direction of flow; if necessary;
— EN-number.
Instructions shall be included for re-usable safe breaks, and concerning the maximum flow rate.
Instructions shall be provided by the manufacturer for the safe installation, operation and maintenance
of the safe break.
10 Environmental aspects
Environmental aspects should be considered in accordance with Annex C.
12
---------------------- Page: 14 ----------------------
SIST EN 13617-2:2021
EN 13617-2:2021 (E)
Annex A
(normative)
General requirements of test
A.1 General
All pressures shall be gauge (over pressure) readings.
All tests shall be carried out at (20 ± 5) °C unless otherwise noted.
All tests shall be carried out using a test liquid according to B.1 unless otherwise noted.
A.2 Tightness test 1
A.2.1 To determine whether the safe break does not leak.
+10
+01,
A.2.2 The fully assembled safe break shall be tested with a pressure of ( 525 ) kPa [( 5,25 ) bar],
0 0
+1
the pressure shall be maintained for not less than 10 s.
( )
0
+1
A.2.3 During the 10 s of the applied pressure observe for leakage and record results.
( )
0
A.2.4 The pressure shall be reduced to 0 Pa [0 bar].
A.2.5 Alternatively to this test, for instance a pressure differential test, may be applied provided the
results are comparable to those achieved by this test.
A.3 Pressure separation test 1
A.3.1 To determine whether the safe break does not separate under a stated applied pressure.
+10 +01,
A.3.2 The fully assembled safe break shall be tested with a pressure of ( 525 ) kPa [( ) bar],
5,25
0 0
+1
the pressure shall be maintained for not less than 10 s.
( )
0
A.3.3 Observe and record the state of the safe break.
A.3.4 Alternatively to this test, for instance the application of an external pulling force identical to the
+10 +01,
internal force created by a liquid
...
SLOVENSKI STANDARD
oSIST prEN 13617-2:2018
01-november-2018
%HQFLQVNLVHUYLVLGHO 9DUQRVWQH]DKWHYH]DL]GHODYRLQODVWQRVWLYDUQRVWQLK
]DSRU]DWODþQHLQVHVDOQHQDSUDYH]DWRþHQMHJRULYD
Petrol filling stations - Part 2: Safety requirements for construction and performance of
safe breaks for use on metering pumps and dispensers
Tankstellen - Teil 2: Sicherheitstechnische Anforderungen an Bau- und Arbeitsweise von
Abreißkupplungen für Zapfsäulen und druckversorgte Zapfsäulen
6WDWLRQV"VHUYLFH3DUWLH ([LJHQFHVGHVpFXULWpUHODWLYHVjODFRQVWUXFWLRQHWDX[
SHUIRUPDQFHVGHVUDFFRUGVFDVVDQWVXWLOLVpVSRXUOHVGLVWULEXWHXUVGHFDUEXUDQWV
Ta slovenski standard je istoveten z: prEN 13617-2
ICS:
75.200 2SUHPD]DVNODGLãþHQMH Petroleum products and
QDIWHQDIWQLKSURL]YRGRYLQ natural gas handling
]HPHOMVNHJDSOLQD equipment
oSIST prEN 13617-2:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 13617-2:2018
---------------------- Page: 2 ----------------------
oSIST prEN 13617-2:2018
DRAFT
EUROPEAN STANDARD
prEN 13617-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2018
ICS 75.200 Will supersede EN 13617-2:2012
English Version
Petrol filling stations - Part 2: Safety requirements for
construction and performance of safe breaks for use on
metering pumps and dispensers
Stations-service - Partie 2 : Exigences de sécurité Tankstellen - Teil 2: Sicherheitstechnische
relatives à la construction et aux performances des Anforderungen an Bau- und Arbeitsweise von
raccords cassants utilisés pour les distributeurs de Abreißkupplungen für Zapfsäulen und druckversorgte
carburants Zapfsäulen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 393.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13617-2:2018 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
Contents Page
European foreword . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Explosion protection measures . 7
5 Construction . 7
5.1 General . 7
5.2 Hose breaks . 7
5.3 Inlet threads . 8
5.3.1 Safe break type 1 . 8
5.3.2 Safe break type 2 . 10
6 Physical properties . 10
7 Operational requirements . 10
8 Overview of tests . 11
9 Information for use . 13
9.1 General . 13
9.2 Marking and instruction . 13
Annex A (normative) General requirements of test . 14
A.1 General . 14
A.2 Tightness test 1 . 14
A.3 Pressure separation test 1 . 14
Annex B (normative) Tests . 15
B.1 Test liquid . 15
B.2 Liquid compatibility pre-conditioning . 15
B.3 Pre-conditioning mechanical impact test of re-usable safe breaks . 15
B.4 Tightness test 2 . 16
B.5 Pressure separation test 2 . 16
B.6 Pressure test . 16
B.7 Axial separation force test 1 . 16
B.8 Axial separation force test 2 to nozzle breaks and pump breaks . 17
B.9 Non-axial separation force test 1 to nozzle breaks and pump breaks . 17
B.10 Non-axial separation force test 2 to nozzle breaks and pump breaks . 17
B.11 Axial separation force test 3 . 17
B.12 Axial separation force test 4 . 18
B.13 Liquid release test . 18_Toc519791258
2
---------------------- Page: 4 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
B.14 Re-connection test 1 . 18
B.15 Re-connection test 2 . 19
B.16 Electrical resistance test . 19
Annex C (informative) Environmental aspects . 20
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2014/34/EU. 22
Bibliography . 23
3
---------------------- Page: 5 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
European foreword
This document (prEN 13617-2:2018) has been prepared by Technical Committee CEN/TC 393
“Equipment for tanks and filling stations”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13617-2:2012.
In comparison with the 2012 edition, the following fundamental changes were made:
— Safe breaks for aqueous urea solution added.
— Table 1 corrected to ensure compatibility between components according to EN 13012,
EN 13617-2, EN 13617-4 and EN 1360.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent
rights of which they are aware and to provide supporting documentation.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
This European Standard Petrol filling stations consists of four parts:
— Part 1: Safety requirements for construction and performance of metering pumps, dispensers and
remote pumping units;
— Part 2: Safety requirements for construction and performance of safe breaks for use on metering
pumps and dispensers;
— Part 3: Safety requirements for construction and performance of shear valves;
— Part 4: Safety requirements for construction and performance of swivels for use on metering pumps
and dispensers.
4
---------------------- Page: 6 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
1 Scope
This document specifies safety requirements for the construction and performance of safe breaks to be
fitted to metering pumps and dispensers installed at filling stations and used to dispense liquid fuels
and aqueous urea solution into the tanks of motor vehicles, boats and light aircraft and into portable
-1
containers at flow rates up to 200 l · min .
This document applies to fuels of Explosion Group IIA and also aqueous urea solution according to
ISO 22241-1.
NOTE Fuels other than of Explosion Group IIA are excluded from this European Standard.
The requirements apply to safe breaks at ambient temperatures from –20 °C to +40 °C with the
possibility for an extended temperature range.
This document pays particular attention to electrical, mechanical and hydraulic characteristics of, and
electrical apparatus incorporated within or mounted on, the safe break.
This document applies mainly to hazards related to the ignition of liquid fuels being dispensed or their
vapour. This document also addresses electrical and mechanical hazards.
This document does not apply to equipment dispensing compressed or liquefied gases.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 976-1:1997, Underground tanks of glass-reinforced plastics (GRP) - Horizontal cylindrical tanks for
the non-pressure storage of liquid petroleum based fuels - Part 1: Requirements and test methods for single
wall tanks
EN 1127-1, Explosive atmospheres - Explosion prevention and protection - Part 1: Basic concepts and
methodology
EN 1360, Rubber and plastic hoses and hose assemblies for measured fuel dispensing systems -
Specification
EN 13483, Rubber and plastic hoses and hose assemblies with internal vapour recovery for measured fuel
dispensing systems - Specification
prEN 13617-1:2018, Petrol filling stations — Part 1: Safety requirements for the construction and
performance of metering pumps, dispensers and remote pumping units
EN 60079-0:2012, Explosive atmospheres - Part 0: Equipment - General requirements (IEC 60079-0:2011,
modified)
EN ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads - Part 1: Dimensions,
tolerances and designation (ISO 228-1:2000)
EN ISO 1825, Rubber hoses and hose assemblies for aircraft ground fuelling and defuelling - Specification
(ISO 1825:2017)
EN ISO 8031:2009, Rubber and plastics hoses and hose assemblies - Determination of electrical resistance
and conductivity (ISO 8031:2009)
5
---------------------- Page: 7 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
EN ISO 80079-36:2016, Explosive atmospheres - Part 36: Non-electrical equipment for explosive
atmospheres - Basic method and requirements (ISO 80079-36:2016)
ISO 261, ISO general purpose metric screw threads — General plan
ISO 965-2, ISO general purpose metric screw threads — Tolerances — Part 2: Limits of sizes for general
purpose external and internal screw threads — Medium quality
ISO 11925-3, Reaction to fire tests — Ignitability of building products subjected to direct impingement of
flame — Part 3: Multi-source test
ISO 22241-1, Diesel engines — NOx reduction agent AUS 32 — Part 1: Quality requirements
3 Terms and definitions
For the purposes of this document, the terms and definitions given in prEN 13617-1:2018 and the
following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
safe break
device to minimize fuel spillage and to stop fuel flow achieved by separation between nozzle and
metering pump or dispenser within a defined range of forces
3.2
safe break type 1
safe break constructed for liquid lines only
3.3
safe break type 2
safe break constructed for liquid lines combined with vapour recovery lines
3.4
nozzle break
safe break fitted directly into the nozzle inlet, or integral with the nozzle
3.5
hose break
safe break fitted within the delivery hose circuit
3.6
pump break
safe break fitted directly to the fixed hydraulics
3.7
re-usable safe break
safe break that, once operated, can be re-assembled for further use
6
---------------------- Page: 8 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
3.8
non re-usable safe break
safe break that, once operated, cannot be re-assembled for further use
4 Explosion protection measures
4.1 Explosion protection measures shall be taken in accordance with EN 1127-1 and Annex B of
prEN 13617-1:2018.
4.2 The safe break shall be explosion protected and shall be Category 2G, Group II, EPL Gb in
accordance with EN ISO 80079-36. The vapour path of a vapour recovery safe break shall be Category 1,
Group II, EPL Ga in accordance with EN ISO 80079-36. The safe break shall fulfil the requirements for
temperature class T3 and Group IIA to EN 60079-0 or EN ISO 80079-36.
5 Construction
5.1 General
5.1.1 All electrical and non-electrical equipment and components, intended for use in potentially
explosive atmospheres, shall be designed and constructed according to good engineering practice and
in conformity with the required categories/EPLs for group II equipment to ensure avoidance of any
ignition source. To classify the category/EPL of the equipment it shall be subjected to an ignition hazard
assessment in accordance with 5.2 of EN ISO 80079-36:2016.
5.1.2 All materials used in the construction shall be chemically and dimensionally stable under known
service conditions. Materials likely to come into contact with fuels in both liquid and vapour phases
shall be resistant to attack by these fuels. Compliance shall be demonstrated by manufacturer's
declaration and compliance with the tests B.1 to B.16 inclusive.
5.1.3 Light alloys when used shall conform to the requirements of EN 60079-0:2012, 8.3. If other
specifications for explosion protected equipment impose more stringent requirements then the more
stringent requirement shall apply.
5.1.4 Outside surfaces likely to be handled shall be free of sharp edges.
5.1.5 If protective covers are fitted they shall be constructed such that they allow ventilation and
evaporation of fuel even if some shrinkage occurs. They shall not affect the performance of the safe
break.
5.1.6 Safe breaks Type 1 and Type 2, except nozzle breaks, when operated shall close liquid lines both
upstream and downstream of the break.
5.1.7 For safe breaks Type 2 it is not required to close vapour lines. A means to close off vapour lines
may be included.
5.1.8 On re-usable safe breaks, the sections that break away shall be constructed so that the means of
reconnection cannot be damaged by impacts according to test B.3.
5.1.9 The construction shall be such that on reconnection of a re-usable device, or attempted
reconnection of a non re-usable device, fluid shall not be sprayed out during the reconnection action.
5.2 Hose breaks
Hose breaks which incorporate hose shall use hose conforming to EN 1360, EN ISO 1825 or EN 13483.
7
---------------------- Page: 9 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
5.3 Inlet threads
5.3.1 Safe break type 1
Safe break type 1 threads for the hose connection shall be parallel threads according to EN ISO 228-1
according to Table 1. The sealing surfaces of the internal and external threads shall be designed such
that they are suitable for use with an appropriate seal.
Table 1 — Safe break type 1 Thread specifications
Female threads Male threads
a b
Thread depth Minimum engagement
Nominal inlet size
l l
a b
d
mm mm
See Figure 1 See Figure 2
12,0
3/4” 12,0
-0.5
13,0
1” 13,0
-0.5
15,0
1 1/4” 15,0
-0.5
18,0
1 1/2” 18,0
-0.5
a
The thread depth, measured from the outer fore-part to the metallic inner sealing face.
b
The stated minimum length only applies if the female thread of the hose fitting includes an inner flat gasket.
In case of using an outer flat gasket, the male threads may be shorter than the dimensions in this table.
8
---------------------- Page: 10 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
Key
l female thread depth
a
d nominal inlet size
Figure 1 — Female inlet thread
Key
l male thread minimum engagement
b
d nominal inlet size
Figure 2 — Male inlet thread
9
---------------------- Page: 11 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
5.3.2 Safe break type 2
Threads shall be M 34 × 1,5 female or male according to ISO 261 and ISO 965-2, and be in accordance
with EN 13483.
The total thread depth shall be not less than 15,0 mm. The inlet end shall be controlled to a diameter of
(35,0 ± 0,05) mm for a length (6,0 ± 0,1) mm.
6 Physical properties
The physical properties of the safe break shall be according to Table 2.
Table 2 — Physical properties of safe break
Property Requirement Test Method
Electrical resistance of inlet thread to
5
B.16
All readings to be < 10 Ω
outlet thread when fully assembled
Electrostatic properties EN ISO 80079-36:2016, 6.7 EN ISO 80079-36
Fuel compatibility of fuel safe breaks Clause 7 B.2
Ignitability of composites on safe break,
The material tested shall not
Ignition source C; Effect time 20 s; ISO 11925-3
afterflame
Surface flame impingement
Characteristics of safe break body and/or
cover to prevent dangerous, Metallic enclosure requirements of
–––
mechanically generated, sparks EN 60079-0:2012, 8.3
(resistance to sparking).
7 Operational requirements
The safe break shall comply with the operational requirements of Table 3 when tested by the indicated
methods; and with a frequency of tests as specified in Clause 8.
Table 3 — Operational requirements
Test
Operational Requirement Requirement
Method
No quantifiable sign of leakage visible to an eye with
Tightness test 1 A.2
normal visual acuity.
There shall be no separation of the safe break and no
Pressure separation test 1 A.3
continuous flow of liquid
Liquid release ≤ 120ml. There shall not be sufficient
Pre-conditioning mechanical mechanical damage to prevent the re-assembly of the
B.3
impact test safe break when applying maximum re-assembly forces
specified by the manufacturer.
No quantifiable sign of leakage visible to an eye with
Tightness test 2 B.4
normal visual acuity.
There shall be no separation of the safe break and no
Pressure separation test 2 B.5
continuous release of liquid
10
---------------------- Page: 12 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
Test
Operational Requirement Requirement
Method
Pressure test There shall be no catastrophic damage B.6
Separation shall occur for an applied force F such that
Axial separation force test 1 B.7
650 N ≤ F ≤ 1500 N
Separation shall occur for an applied force F such that
Axial separation force test 2 B.8
650 N ≤ F ≤ 1500 N
Non-axial separation force Separation shall occur for an applied force F such that
B.9
test 1 650 N ≤ F ≤ 1500 N
Non-axial separation force Separation shall occur for an applied force F such that
B.10
test 2 650 N ≤ F ≤ 1500 N
Separation shall occur for an applied force F such that
Axial separation force test 3 B.11
650 N ≤ F ≤ 1500 N
Separation shall occur for an applied force F such that
Axial separation force test 4 B.12
650 N ≤ F ≤ 1500 N
Liquid release ≤ 10 ml (for maximum flow
-1
rate ≤ 80 l · min ),
Liquid release ≤ 25 ml (for maximum flow
Liquid release test B.13
-1 -1
rate > 80 l · min ; ≤ 200 l · min ),
For nozzle breaks, liquid release ≤ 120 ml for the nozzle
itself
Re-connection test 1 Liquid release ≤ 120 ml B.14
Re-connection test 2 Liquid release ≤ 120 ml B.15
Electrical resistance of inlet
thread to outlet thread when All readings to be < 105 Ω B.16
fully assembled.
8 Overview of tests
Tests shall be performed in accordance with Table 4.
NOTE Pneumatic testing is potentially a much more dangerous operation than hydraulic testing.
Type tests are those tests required to evaluate conformity. Four safe breaks shall each be subjected to
the type tests as set out below.
All fuel safe breaks for type test shall be pre-conditioned according to B.2 and B.3.
All aqueous urea solution safe breaks for type test shall be pre-conditioned according to B.3.
For fuel safe breaks, the preconditioning mechanical impact test according to B.3 shall be done
immediately after removal from saturated atmosphere and shall be commenced within 30 min of
removal from saturated atmosphere. Tests B.4, B.5, B.7 to B.16 shall then be performed without delay
and shall be completed within 6 h of the commencement of the pressure test and finally in accordance
with B.6.
11
---------------------- Page: 13 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
Production acceptance tests shall be carried out on the first unit produced on a production run, the
th
last unit manufactured on a production run and at least every five hundredth (500 ) unit during the
production run.
Routine tests shall be carried out on each finished safe break.
Table 4 — Tests
Production
Property/Requirement Type Tests Routine tests
acceptance test
Physical property –
Electrostatic properties
Manufacturers declaration according to
Table 2
Resistance to sparking
Operational requirement –
According to
Ignitability of composites on safe break – –
Table 2
Pre-conditioning mechanical impact test B.3 – –
Tightness test 1 – – A.2
Tightness test 2 B.4 B.4 –
Pressure separation test 1 – – A.3
Pressure separation test 2 B.5 B.5 –
Pressure test B.6 – –
Axial separation force test 1 B.7 B.7 –
Axial separation force test 2 B.8 – –
Non-axial separation force test 1 B.9 B.9 –
Non-axial separation force test 2 B.10 – –
Axial separation force test 3 B.11 B.11 –
Axial separation force test 4 B.12 - –
Liquid release test B.13 B.13 –
Re-connection test 1 B.14 B.14 –
Re-connection test 2 B.15 – –
a
Electrical resistance B.16 B.16
B.16
a
Where there is low resistance material from inlet thread, across the break to the output then this routine
test shall not be required.
12
---------------------- Page: 14 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
9 Information for use
9.1 General
Information for use shall be according to prEN 13617-1:2018.
9.2 Marking and instruction
If the size of the safe breaks is not large enough for the marking, then marking shall be in accordance
with EN 60079-0.
Safe breaks shall be marked legibly and indelibly during the manufacturing process; where necessary
this marking may be made visible for inspection by the easy removal of plastic covers. Marking shall
include at least the following information:
— manufacturer's name or identification;
— manufacturer’s type indication;
— the ambient temperature range if it is outside the temperature range of −20 °C to +40 °C;
— serial number, batch code or date code with a precision of at least year and quarter;
— direction of flow; if necessary.
— EN-number;
Instructions shall be included for re-usable safe breaks, and concerning the maximum flow rate.
Instructions shall be provided by the manufacturer for the safe installation, operation and maintenance
of the safe break.
13
---------------------- Page: 15 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
Annex A
(normative)
General requirements of test
A.1 General
All pressures shall be gauge (over pressure) readings.
All tests shall be carried out at (20 ± 5) °C unless otherwise noted.
All tests shall be carried out using a test liquid according to B.1 unless otherwise noted.
A.2 Tightness test 1
A.2.1 To determine whether the safe break does not leak.
+10 +0,1
0 0
A.2.2 The fully assembled safe break shall be tested with a pressure of (525 ) kPa [( 5,25 5) bar],
+1
0
the pressure shall be maintained for not less than (10 ) s.
+1
0
A.2.3 During the (10 ) s of the applied pressure observe for leakage and record results.
A.2.4 The pressure shall be reduced to 0 Pa [0 bar].
A.2.5 Alternatively to this test, for instance a pressure differential test, may be applied provided the
results are comparable to those achieved by this test.
A.3 Pressure separation test 1
A.3.1 To determine whether the safe break does not separate under a stated applied pressure.
+10 +0,1
0 0
A.3.2 The fully assembled safe break shall be tested with a pressure of (525 ) kPa [(5, 25 ) bar],
+1
0
the pressure shall be maintained for not less than (10 ) s.
A.3.3 Observe and record the state of the safe break.
A.3.4 Alternatively to this test, for instance the application of an external pulling force identical to the
+10 +0,1
0 0
internal force created by a liquid pressure of (525 ) kPa [( 5, 25 ) bar], where this does not
exceed 650 N, may be applied provided the results are comparable to those achieved by this test.
14
---------------------- Page: 16 ----------------------
oSIST prEN 13617-2:2018
prEN 13617-2:2018 (E)
Annex B
(normative)
Tests
B.1 Test liquid
Where a test liquid is required for the testing of fuel safe breaks, it shall be an odourless kerosene
except where otherwise noted. Water, or a mixture of water and glycol up to 15 % by volume, shall be
used for the testing of aqueous urea solution safe breaks except where otherwise noted.
B.2 Liquid compatibility pre-conditioning
B.2.1 The materials used in the construction of the safe breaks shall be precond
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
