SIST EN 62386-302:2018
(Main)Digital addressable lighting interface - Part 302: Particular requirements - Input devices - Absolute input devices (IEC 62386-302:2017)
Digital addressable lighting interface - Part 302: Particular requirements - Input devices - Absolute input devices (IEC 62386-302:2017)
This part of IEC 62386 specifies a bus system for control by digital signals of electronic
lighting equipment which is in line with the requirements of IEC 61347, with the addition of DC
supplies.
This document is only applicable to IEC 62386-103:2014 and IEC 62386103:
2014/AMD1:—
input devices that make the lighting control system sensitive to absolute input devices such as
switches or sliders. An absolute input device always has a deterministic state, such as a
position between start and end point.
NOTE Requirements for testing individual products during production are not included.
Digital adressierbare Schnittstelle für die Beleuchtung - Teil 302: Besondere Anforderungen - Eingabegeräte - Absolut-Eingabegeräte
Interface d'éclairage adressable numérique - Partie 302: Exigences particulières - Dispositifs d'entrée - Dispositifs d'entrée absolus
L'IEC 62386-302:2017 spécifie un système à bus pour la commande par signaux numériques des appareils d'éclairage électroniques conformes aux exigences de l'IEC 61347, en ajoutant les alimentations en courant continu.
Le présent document s'applique uniquement aux dispositifs d'entrée couverts par l'IEC 62386-103:2014 et l'IEC 62386-103:2014/AMD1:—, qui rendent le système de commande d'éclairage sensible aux dispositifs d'entrée absolus tels que les commutateurs ou les curseurs. Un dispositif d'entrée absolu a toujours un état déterministe, comme une position entre le point de démarrage et le point d'arrêt.
Digitalni naslovljivi vmesnik za razsvetljavo - 302. del: Posebne zahteve - Vhodne naprave - Absolutne vhodne naprave (IEC 62386-302:2017)
Ta del standarda IEC 62386 določa sistem vodil za krmiljenje elektronske opreme za razsvetljavo z digitalnimi signali, ki je v skladu z zahtevami standarda IEC 61347, z dodatkom DC napajalnih enot.
Ta dokument se uporablja samo s standardoma IEC 62386-103:2014 in IEC 62386103:
2014/AMD1:–
vhodne naprave, ki omogočajo upravljanje sistema za krmiljenje razsvetljave z absolutnimi vhodnimi napravami, kot so stikala ali drsniki. Absolutna vhodna naprava ima vedno deterministično stanje, kot je položaj med začetno in zaključno točko.
OPOMBA: Zahteve za preskušanje posameznih proizvodov med proizvodnjo niso vključene.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 62386-302:2018
01-januar-2018
Digitalni naslovljivi vmesnik za razsvetljavo - 302. del: Posebne zahteve - Vhodne
naprave - Absolutne vhodne naprave (IEC 62386-302:2017)
Digital addressable lighting interface - Part 302: Particular requirements - Input devices -
Absolute input devices (IEC 62386-302:2017)
Ta slovenski standard je istoveten z: EN 62386-302:2017
ICS:
29.140.50 Instalacijski sistemi za Lighting installation systems
razsvetljavo
35.200 Vmesniška in povezovalna Interface and interconnection
oprema equipment
SIST EN 62386-302:2018 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 62386-302:2018
---------------------- Page: 2 ----------------------
SIST EN 62386-302:2018
EUROPEAN STANDARD EN 62386-302
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2017
ICS 29.140.50; 29.140.99
English Version
Digital addressable lighting interface -
Part 302: Particular requirements - Input devices -
Absolute input devices
(IEC 62386-302:2017)
Interface d'éclairage adressable numérique - Digital adressierbare Schnittstelle für die Beleuchtung -
Partie 302: Exigences particulières - Dispositifs d'entrée - Teil 302: Besondere Anforderungen - Eingabegeräte -
Dispositifs d'entrée absolus Absolut-Eingabegeräte
(IEC 62386-302:2017) (IEC 62386-302:2017)
This European Standard was approved by CENELEC on 2017-06-23. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 62386-302:2017 E
---------------------- Page: 3 ----------------------
SIST EN 62386-302:2018
EN 62386-302:2017

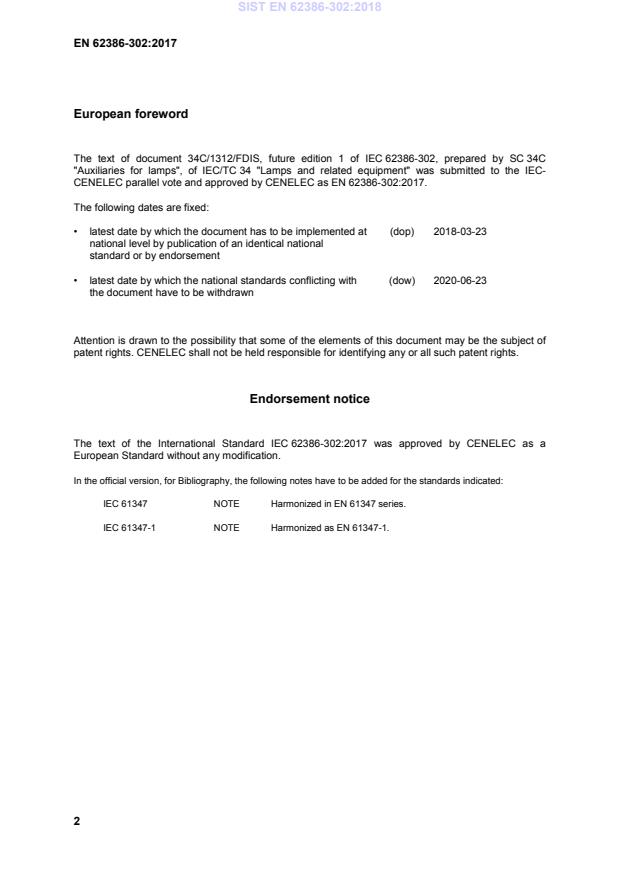

European foreword
The text of document 34C/1312/FDIS, future edition 1 of IEC 62386-302, prepared by SC 34C
"Auxiliaries for lamps", of IEC/TC 34 "Lamps and related equipment" was submitted to the IEC-
CENELEC parallel vote and approved by CENELEC as EN 62386-302:2017.
The following dates are fixed:
• latest date by which the document has to be implemented at (dop) 2018-03-23
national level by publication of an identical national
standard or by endorsement
• latest date by which the national standards conflicting with (dow) 2020-06-23
the document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Endorsement notice
The text of the International Standard IEC 62386-302:2017 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61347 NOTE Harmonized in EN 61347 series.
IEC 61347-1 NOTE Harmonized as EN 61347-1.
2
---------------------- Page: 4 ----------------------
SIST EN 62386-302:2018
EN 62386-302:2017
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is
available here: www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 62386-101 2014 Digital addressable lighting interface - EN 62386-101 2014
Part 101: General requirements -
1)
+ A1 — - -
System components
IEC 62386-103 2014 Digital addressable lighting interface - EN 62386-103 2014
Part 103: General requirements -
2)
+ A1 — - -
Control devices
3) 4)
IEC 62386-333 — Digital addressable lighting interface - EN 62386-333 —
Part 333: Particular requirements for
control devices - Manual configuration
(feature type 33)
1) Under preparation. Stage at the time of publication: IEC ACDV 62386-101/AMD1:2017.
2) Under preparation. Stage at the time of publication: IEC ACDV 62386-103/AMD1:2017.
3) Under preparation. Stage at the time of publication: IEC CCDV 62386-333:2017.
4) Under preparation. Stage at the time of publication: prEN 62386-333:2016.
3
---------------------- Page: 5 ----------------------
SIST EN 62386-302:2018
---------------------- Page: 6 ----------------------
SIST EN 62386-302:2018
IEC 62386-302
®
Edition 1.0 2017-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Digital addressable lighting interface –
Part 302: Particular requirements – Input devices – Absolute input devices
Interface d'éclairage adressable numérique –
Partie 302: Exigences particulières – Dispositifs d'entrée – Dispositifs d'entrée
absolus
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.50; 29.140.99 ISBN 978-2-8322-4342-8
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN 62386-302:2018
– 2 – IEC 62386-302:2017 © IEC 2017
CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 8
2 Normative references . 8
3 Terms and definitions . 8
4 General . 9
4.1 General . 9
4.2 Version number . 9
4.3 Insulation . 10
5 Electrical specification . 10
6 Interface power supply . 10
7 Transmission protocol structure . 10
8 Timing . 10
9 Method of operation . 10
9.1 General . 10
9.2 Instance type . 10
9.3 Input signal and value . 10
9.3.1 General . 10
9.3.2 Binary inputs . 11
9.3.3 Analogue inputs . 11
9.4 Events . 12
9.4.1 Priority use . 12
9.4.2 Bus usage . 12
9.4.3 Encoding . 12
9.4.4 Event configuration . 12
9.4.5 Event generation . 13
9.5 Configuring the input device . 13
9.5.1 Using the report timer . 13
9.5.2 Using the deadtime timer . 13
9.5.3 Setting the timers . 13
9.5.4 Manual configuration . 14
9.6 Exception handling. 14
9.6.1 Manufacturer specific errors . 14
9.6.2 Error value . 14
10 Declaration of variables . 15
11 Definition of commands . 16
11.1 General . 16
11.2 Overview sheets . 16
11.2.1 General . 16
11.2.2 Standard commands . 16
11.3 Event messages . 16
11.3.1 INPUT NOTIFICATION (device/instance, event) . 16
11.3.2 POWER NOTIFICATION (device) . 16
11.4 Device control instructions . 17
11.5 Device configuration instructions . 17
11.6 Device queries . 17
---------------------- Page: 8 ----------------------
SIST EN 62386-302:2018
IEC 62386-302:2017 © IEC 2017 – 3 –
11.7 Instance control instructions . 17
11.8 Instance configuration instructions . 17
11.8.1 General . 17
11.8.2 SET REPORT TIMER (DTR0) . 17
11.8.3 SET DEADTIME TIMER (DTR0) . 17
11.8.4 SET EVENT FILTER (DTR0) . 17
11.9 Instance queries . 17
11.9.1 General . 17
11.9.2 QUERY INSTANCE ERROR . 17
11.9.3 QUERY DEADTIME TIMER . 17
11.9.4 QUERY REPORT TIMER . 18
11.9.5 QUERY SWITCH . 18
11.10 Special commands . 18
Annex A (normative) Examples of connecting external switches or sliders . 19
A.1 Single switch. 19
A.2 Single switch, two positions . 19
A.3 Single switch with neutral position. 19
A.4 Rotary switch . 19
A.5 Slider . 20
Bibliography . 21
Figure 1 – IEC 62386 graphical overview . 6
Figure A.1 – Single switch (single-pole, single-throw) . 19
Figure A.2 – Single switch double throw (single-pole, double-throw) . 19
Figure A.3 – Single switch (single-pole, double-throw) with neutral position . 19
Figure A.4 – Rotary switch . 20
Figure A.5 – Slider . 20
Table 1 – Relation of input signal and "inputValue" . 11
Table 2 – Position events . 12
Table 3 – Event filter . 13
Table 4 – Event timer setting . 14
Table 5 – “manualCapabilityInstance3xx” values . 14
Table 6 – “instanceErrorByte” values . 15
Table 7 – Declaration of device variables . 15
Table 8 – Restrictions to instance variables defined in IEC 62386-103:2014 and
IEC 62386-103:2014/AMD1:— . 15
Table 9 – Declaration of instance variables . 16
Table 10 – Standard commands . 16
---------------------- Page: 9 ----------------------
SIST EN 62386-302:2018
– 4 – IEC 62386-302:2017 © IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DIGITAL ADDRESSABLE LIGHTING INTERFACE –
Part 302: Particular requirements – Input devices –
Absolute input devices
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62386-302 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/1312/FDIS 34C/1332/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 302 of IEC 62386 is intended to be used in conjunction with:
---------------------- Page: 10 ----------------------
SIST EN 62386-302:2018
IEC 62386-302:2017 © IEC 2017 – 5 –
• Part 101, which contains general requirements for system components;
• Part 103, which contains general requirements for control devices.
A list of all parts in the IEC 62386 series, published under the general title: Digital
addressable lighting interface, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
---------------------- Page: 11 ----------------------
SIST EN 62386-302:2018
– 6 – IEC 62386-302:2017 © IEC 2017
INTRODUCTION
IEC 62386 contains several parts, referred to as series. The 1xx series includes the basic
specifications. Part 101 contains general requirements for system components, Part 102
extends this information with general requirements for control gear and Part 103 extends it
further with general requirements for control devices.
The 2xx parts extend the general requirements for control gear with lamp specific extensions
(mainly for backward compatibility with Edition 1 of IEC 62386) and with control gear specific
features.
The 3xx parts extend the general requirements for control devices with input device specific
extensions describing the instance types as well as some common features that can be
combined with multiple instance types.
This first edition of IEC 62386-302 is intended to be used in conjunction with
IEC 62386-101:2014, IEC 62386-101:2014/AMD1:—, IEC 62386-103:2014 and
IEC 62386-103:2014/AMD1:—. The division of IEC 62386 into separately published parts
provides for ease of future amendments and revisions. Additional requirements will be added
as and when a need for them is recognized.
The setup of the standards is graphically represented in Figure 1 below.
2xx 2xx 2xx 2xx 2xx 3xx 3xx 3xx 3xx 3xx
102 General requirements - 103 General requirements -
Control gear Control devices
101 General requirements -
System components
IEC
Figure 1 – IEC 62386 graphical overview
This document, and the other parts that make up the IEC 62386-300 series, in referring to any
of the clauses of IEC 62386-1XX, specifies the extent to which such a clause is; the parts also
include additional requirements, as necessary.
Where the requirements of any of the clauses of IEC 62386-1XX are referred to in this
document by the sentence “The requirements of IEC 62386-1XX, Clause “n” apply”, this
sentence is to be interpreted as meaning that all requirements of the clause in question of
Part 1XX apply, except any which are clearly inapplicable.
The standardization of the control interface for control devices is intended to achieve
compatible co-existence and multi-master operation between electronic control gear and
lighting control devices, below the level of building management systems. This document
describes a method of implementing control devices.
All numbers used in this document are decimal numbers unless otherwise noted. Hexadecimal
numbers are given in the format 0xVV, where VV is the value. Binary numbers are given in
---------------------- Page: 12 ----------------------
SIST EN 62386-302:2018
IEC 62386-302:2017 © IEC 2017 – 7 –
the format XXXXXXXXb or in the format XXXX XXXX, where X is 0 or 1; “x” in binary numbers
means “don't care”.
The following typographic expressions are used:
Variables: “variableName” or “variableName[3:0]”, giving only bits 3 to 0 of “variableName”.
Range of values: [lowest, highest]
Command: “COMMAND NAME”
---------------------- Page: 13 ----------------------
SIST EN 62386-302:2018
– 8 – IEC 62386-302:2017 © IEC 2017
DIGITAL ADDRESSABLE LIGHTING INTERFACE –
Part 302: Particular requirements – Input devices –
Absolute input devices
1 Scope
This part of IEC 62386 specifies a bus system for control by digital signals of electronic
lighting equipment which is in line with the requirements of IEC 61347, with the addition of DC
supplies.
This document is only applicable to IEC 62386-103:2014 and IEC 62386-103:2014/AMD1:—
input devices that make the lighting control system sensitive to absolute input devices such as
switches or sliders. An absolute input device always has a deterministic state, such as a
position between start and end point.
NOTE Requirements for testing individual products during production are not included.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
IEC 62386-101:2014, Digital addressable lighting interface – Part 101: General requirements
– System components
1
IEC 62386-101:2014/AMD1:—
IEC 62386-103:2014, Digital addressable lighting interface – Part 103: General requirements
– Control devices
2
IEC 62386-103:2014/AMD1—
3
IEC 62386-333:— , Digital addressable lighting interface – Part 333: Particular requirements
for control devices – Manual configuration (feature type 33)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 62386-101 and
IEC 62386-103 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
______________
1
Under preparation. Stage at the time of publication: IEC ACDV 62386-101/AMD1:2017.
2
Under preparation. Stage at the time of publication: IEC ACDV 62386-103/AMD1:2017.
3
Under preparation. Stage at the time of publication: IEC CCDV 62386-333:2017.
---------------------- Page: 14 ----------------------
SIST EN 62386-302:2018
IEC 62386-302:2017 © IEC 2017 – 9 –
3.1
instance
analogue or binary signal processing unit of an input device
[SOURCE: IEC 62386-101:2014, 3.29, modified — addition of “analogue or binary”]
3.2
analogue input
means for the environment to interact with the lighting control system and known to be
represented by a specific value relative to the known upper and lower boundary
3.3
binary input
means for the environment to interact with the lighting control system and known to be in
open or closed state
3.4
bouncing
tendency of any two contacts in an electronic device to generate multiple signals as the
contacts close or open
3.5
debouncing
any kind of hardware device or software that ensures that only a single signal will be acted
upon for a single opening or closing of a contact
3.6
slider
means for the end user to interact with a control lighting system and known to be in a specific
position
3.7
strictly monotonic
either entirely increasing or decreasing without repeating values
Note 1 to entry: Function f defined on a subset of the real numbers with real values is called monotonically
increasing, if for all x and y such that x < y one has f(x) < f(y), so f preserves the order. Likewise, a function is
called monotonically decreasing if, whenever x < y, then f(x) > f(y) so it reverses the order. For this document
strictly monotonic is defined as either monotonically increasing or monotonically decreasing.
3.8
switch
means for the end user to interact with the lighting control system and known to be in open or
closed state
4 General
4.1 General
The requirements of IEC 62386-103:2014 and IEC 62386-103:2014/AMD1:—, Clause 4 apply,
with the restrictions, changes and additions identified below.
4.2 Version number
In 4.2 of IEC 62386-103:2014 and IEC 62386-103:2014/AMD1:—, “103” shall be replaced by
“302”, “version number” shall be
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
