SIST EN 12617-3:2002

Products and systems for the protection and repair of concrete structures - Test methods - Part 3: Determination of early age linear shrinkage for structural bonding agents

This European Standard specifies a method for the determination of the early age linear shrinkage of structural bonding agents covered by EN 1501-1 and EN 1504-4. It describes the procedures for the measurement of linear shrinkage from initial gel of polymer, in the form of unrestrained thin strips less than 10 mm in thickness. It is intended for measurement of early age shrinkage, for example up to 24 hours.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Teil 3: Bestimmung des zeitlichen Verlaufs des linearen Schrumpfens von Klebstoffen

Diese Europäische Norm beschreibt ein Verfahren zur Bestimmung der zeitlichen Verlaufs des linearen Schwindens von Klebstoffen und Mörteln nach EN 1501-1 und prEN 1504-4. Sie beschreibt die Durchführung der Messung des unbehinderten linearen Schwindens von dünnen (20 mm) Mörtelproben vom Stadium der Gelb- bildung an (bis zu mehreren Stunden). Das Verfahren dient der Messung des frühzeitigen Schwindens, z.B. bis zu 24 h. Das Verfahren gilt auch für Polymer-/Zementmörtel für die Instandsetzung mit einem Größtkorn des Zuschlags von nicht mehr als 5 mm.

Produits et systemes pour la protection et la réparation des structures en béton - Méthodes d'essai - Partie 3: Détermination du retrait linéaire au jeune âge pour les produits de collage structural

La présente Norme européenne décrit une méthode permettant de déterminer le retrait linéaire au jeune âge des produits de collage structural couverts par les normes EN 1501-1 et EN 1504-4. Elle décrit les procédures de mesurage du retrait linéaire à partir du gel initial du polymère, sous la forme de minces bandes non-bridées d'une épaisseur inférieure à 10 mm. Elle est prévue pour le mesurage du retrait au jeune âge, par exemple jusqu'à 24 h.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Preskusne metode - 3. del: Določevanje zgodnjega linearnega krčenja konstrukcijskih lepil

General Information

• Status: Published
• Publication Date: 31-Oct-2002
• ICS: 91.080.40 - Concrete structures
• ICS: 91.100.10 - Cement. Gypsum. Lime. Mortar
• Technical Committee: BBB - Concrete, reinforced concrete and prestressed concrete
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Nov-2002
• Due Date: 01-Nov-2002
• Completion Date: 01-Nov-2002
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: EN 12617-3:2002 - Products and systems for the protection and repair of concrete structures - Test methods - Part 3: Determination of early age linear shrinkage for structural bonding agents

Relations

• Parent: SIST EN 12617-1:2003 - Products and systems for the protection and repair of concrete structures - Test methods - Part 1: Determination of linear shrinkage for polymers and surface protection systems (SPS)
• Effective Date: 22-Dec-2008

Overview

SIST EN 12617-3:2002 is a European standard developed by CEN that specifies a precise test method for determining the early age linear shrinkage of structural bonding agents used in concrete repair and protection. This standard applies to bonding agents covered by EN 1504-1 and EN 1504-4 standards. It is focused on measuring linear shrinkage from the initial polymer gel stage, particularly within the critical early curing period of up to 24 hours. By providing standardized procedures and equipment specifications, SIST EN 12617-3:2002 ensures reliable and consistent evaluation of dimensional stability in bonding agents, vital for concrete structure durability and performance.

Key Topics

• Purpose: Measures early age linear shrinkage of structural bonding polymers, critical for assessing shrinkage-induced stress risks during curing.
• Scope: Applies to bonding agents less than 10 mm thick, in unrestrained thin strips.
• Test Principle: A polymer sample is placed in a steel trough with sliding ends; linear displacement transducers track contraction or expansion as polymer cures.
• Equipment Requirements:
  • Steel mould lined with PTFE to prevent adhesion.
  • Sliding end parts with prepared surfaces for polymer adherence.
  • Linear displacement transducers with ±0.01 mm accuracy.
  • Thermocouples for temperature monitoring.
  • Environmental cabinet maintaining precise temperature (21 ± 2 °C) and humidity (60 ± 10 %) conditions.
• Test Procedure:
  • Sample preparation following manufacturer’s instructions.
  • Conditioning in environmental cabinet.
  • Real-time recording of specimen contraction and temperature up to 48 hours, with frequent data intervals in first 24 hours.
• Calculations:
  • Thermal expansion of the mould is accounted for.
  • Shrinkage strain expressed as a percentage of effective hardened specimen length.
• Test Report Requirements:
  • Detailed test conditions, sample data, equipment details, and results including shrinkage over time curves and maximum shrinkage strain.

Applications

SIST EN 12617-3:2002 is essential for manufacturers, testing laboratories, and construction professionals involved in the development, quality control, and certification of structural bonding agents for concrete protection and repair. Its practical applications include:

• Quality Assurance: Ensures bonding agents meet dimensional stability requirements to prevent premature cracking and bond failure.
• Product Development: Assists manufacturers in optimizing polymer formulations for reduced shrinkage during early curing.
• Structural Safety: Helps engineers assess potential risks of shrinkage-induced stresses affecting repaired concrete elements.
• Compliance Testing: Supports conformity assessment in line with EN 1504 series standards on structural bonding and concrete repair products.
• Research: Facilitates comparative studies and innovation in polymer-based bonding agents used in infrastructure maintenance.

Related Standards

• EN 1504-1: Definitions, requirements, and conformity evaluation for products and systems used to protect and repair concrete structures.
• prEN 1504-4: Specifies requirements for structural bonding products for concrete.
• EN 12617-1: Test methods for determination of linear shrinkage of repair products.
• EN 12617-2: Methods for measurement of volumetric shrinkage in concrete repair materials.
• EN 12617-4: Procedures for testing shrinkage and expansion behaviors in repair products.

Summary

Adhering to SIST EN 12617-3:2002 enables reliable and standardized measurement of early age linear shrinkage in structural bonding agents, a critical factor in the durability of concrete repairs. By providing comprehensive guidelines on equipment, testing environment, and data analysis, this standard supports the construction industry in improving repair product performance and ensuring structural integrity. Incorporating EN 12617-3 testing into product validation and quality control processes is a vital step for manufacturers and engineers committed to high-quality, long-lasting concrete restoration solutions.

Keywords: EN 12617-3, early age linear shrinkage, structural bonding agents, concrete repair, polymer shrinkage test, concrete protection systems, bonding agent testing, dimensional stability, CEN standard, polymer curing shrinkage.

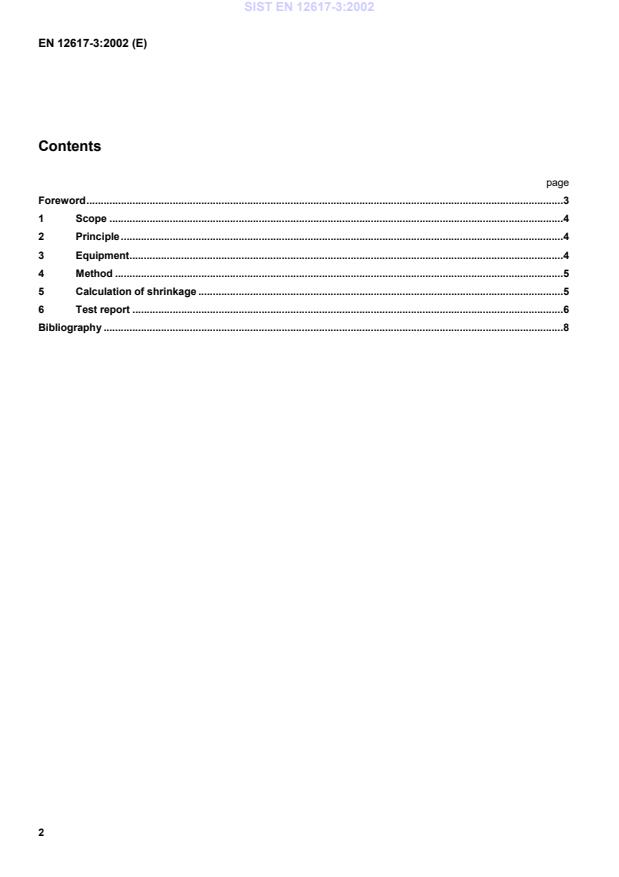

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Teil 3: Bestimmung des zeitlichen Verlaufs des linearen Schrumpfens von KlebstoffenProduits et systemes pour la protection et la réparation des structures en béton - Méthodes d'essai - Partie 3: Détermination du retrait linéaire au jeune âge pour les produits de collage structuralProducts and systems for the protection and repair of concrete structures - Test methods - Part 3: Determination of early age linear shrinkage for structural bonding agents91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. Mortar91.080.40Betonske konstrukcijeConcrete structuresICS:Ta slovenski standard je istoveten z:EN 12617-3:2002SIST EN 12617-3:2002en01-november-2002SIST EN 12617-3:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 12617-3May 2002ICS 91.080.40; 91.100.10English versionProducts and systems for the protection and repair of concretestructures - Test methods - Part 3: Determination of early agelinear shrinkage for structural bonding agentsProduits et systèmes pour la protection et la réparation desstructures en béton - Méthodes d'essai - Partie 3:Détermination du retrait linéaire au jeune âge pour lesproduits de collage structuralProdukte und Systeme für den Schutz und dieInstandsetzung von Betontragwerken - Prüfverfahren - Teil3: Bestimmung des zeitlichen Verlaufs des linearenSchrumpfens von KlebstoffenThis European Standard was approved by CEN on 4 January 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 12617-3:2002 ESIST EN 12617-3:2002
...
