SIST EN 60317-59:2016

Specifications for particular type of winding wires - Part 59: Polyamideimide enameled round copper wire, class 240

IEC 60317-59:2015 specifies the requirements of enamelled round copper winding wire of class 240 with a single coating of polyamide-imide resin. The range of nominal conductor diameters covered by this part of IEC 60317 is:
- grade 1: 0,180 mm up to and including 1,600 mm;
- grade 2: 0,180 mm up to and including 1,600 mm. The nominal conductor diameters are specified in Clause 4 of IEC 60317-0-1:2013.
Keywords: insulated wires used for windings, enamelled round copper winding wire of class 240

Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 59: Runddrähte aus Kupfer, lackisoliert mit Polyamidimid, Klasse 240

Spécifications pour types particuliers de fils de bobinage - Partie 59: Fil de section circulaire en cuivre émaillé avec polyamide-imide, classe 240

L'IEC 60317-59:2015 spécifie les exigences relatives aux fils de bobinage de section circulaire en cuivre émaillé de classe 240 avec un seul revêtement en résine polyamide-imide. La gamme des diamètres nominaux des conducteurs couverte par la présente partie de l'IEC 60317 est:
- grade 1: 0,180 mm jusques et y compris 1,600 mm;
- grade 2: 0,180 mm jusques et y compris 1,600 mm. Les diamètres nominaux des conducteurs sont spécifiés dans l'Article 4 de l'IEC 60317-0-1:2013.
Mots clés: fils isolés utilisés pour les enroulements, fils de bobinage de section circulaire en cuivre émaillé de classe 240

Zahteve za posebne vrste žic za navijanje - 59. del: Okrogla bakrena žica, lakirana s poliamid-imidnim lakom, razred 240

Ta del standarda IEC 60317 določa zahteve za emajlirane okrogle bakrene navijalne žice razreda 240 z enojno prevleko iz poliamid-imidne smole.
Razpon nazivnega premera prevodnika, ki ga zajema ta del standarda IEC 60317, je:
– tip 1: 0,180 mm do in vključno s 1600 mm;
– tip 2: 0,180 mm do in vključno s 1600 mm.
Nazivni premeri prevodnika so navedeni v točki 4 standarda IEC 60317-0-1:2013.

General Information

• Status: Published
• Publication Date: 09-Mar-2016
• ICS: 29.060.10 - Wires
• ICS: 77.150.30 - Copper products
• Technical Committee: I09 - Imaginarni 09
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 02-Mar-2016
• Due Date: 07-May-2016
• Completion Date: 10-Mar-2016
• Ref Project: EN 60317-59:2016 - Specifications for particular type of winding wires - Part 59: Polyamideimide enameled round copper wire, class 240

Relations

• Amended By: SIST EN 60317-59:2016/A1:2024 - Specifications for particular types of winding wires - Part 59: Polyamide-imide enamelled round copper wire, class 240 (IEC 60317-59:2015/AMD1:2024)
• Effective Date: 01-Oct-2024

Overview

EN 60317-59:2016 (CLC adoption of IEC 60317-59:2015) specifies requirements for polyamide‑imide enameled round copper winding wire, class 240. It applies to single‑coated enamelled round copper wires used for electrical windings, covering nominal conductor diameters from 0.180 mm up to and including 1.600 mm for both grade 1 and grade 2. The standard defines performance, test methods, and acceptance criteria for insulation, mechanical and thermal properties relevant to wound electrical equipment.

Key Topics and Requirements

• Thermal class and heat resistance: Class 240 requires a minimum temperature index of 240 and a minimum heat shock temperature of 260 °C. The elevated temperature for breakdown voltage tests is specified as 240 °C.
• Dimensions and electrical resistance: Nominal diameters follow Clause 4 of IEC 60317-0-1:2013; electrical resistance requirements reference the general part.
• Mechanical properties: Tests for elongation, springiness, flexibility and adherence reference IEC 60317-0-1; the peel test uses a constant K = 75 mm.
• Cut‑through and abrasion resistance:
  • Cut‑through: No failure within 2 minutes at 450 °C.
  • Resistance to abrasion: Table 1 lists minimum average forces and minimum forces per measurement to failure for nominal diameters between 0.250 mm and 1.600 mm for grades 1 and 2.
• Chemical and electrical endurance: Requirements include resistance to solvents, continuity of insulation, breakdown voltage, resistance to refrigerants and transformer oil, solderability, and pin hole tests.
• Packaging: Clause 30 addresses packaging and delivery conditions.
• Normative references: This part is to be read in conjunction with IEC 60317-0-1:2013 and related IEC test-method standards (e.g., IEC 60851 series).

Applications and Practical Use

This standard is intended for manufacturers, specifiers and test laboratories involved with:

• Motor and transformer manufacturers specifying enamelled copper winding wire with high thermal stability.
• Design engineers who select winding wire for high‑temperature or demanding insulation environments.
• Quality assurance and testing labs performing acceptance tests on enameled winding wire.
• Procurement teams requiring compliance verification for insulated wires used for windings.

Use cases include high‑temperature motors, power transformers, aerospace and industrial equipment where polyamide‑imide enamel provides superior thermal and mechanical performance.

Related Standards

• IEC 60317 series - Specifications for particular types of winding wires
• IEC 60317-0-1:2013 - General requirements for enamelled round copper wire
• IEC 60851 series - Test methods for winding wires
• IEC 60264 series - Packaging of winding wires

Keywords: polyamide-imide enameled round copper wire, class 240, enamelled round copper winding wire, insulated wires used for windings, IEC 60317-59, winding wires.

Standards Content (Sample)

SLOVENSKI STANDARD
01-april-2016
Zahteve za posebne vrste žic za navijanje - 59. del: Okrogla bakrena žica, lakirana
s poliamid-imidnim lakom, razred 240
Specifications for particular type of winding wires - Part 59: Polyamideimide enameled
round copper wire, class 240
Ta slovenski standard je istoveten z: EN 60317-59:2016
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60317-59

NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2016
ICS 29.060.10
English Version
Specifications for particular type of winding wires - Part 59:
Polyamideimide enameled round copper wire, class 240
(IEC 60317-59:2015)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 59: Fil de section circulaire en cuivre émaillé avec Wickeldrähten - Teil 59: Runddrähte aus Kupfer, lackisoliert
polyamide-imide, classe 240 mit Polyamidimid, Klasse 240
(IEC 60317-59:2015) (IEC 60317-59:2015)
This European Standard was approved by CENELEC on 2015-12-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60317-59:2016 E

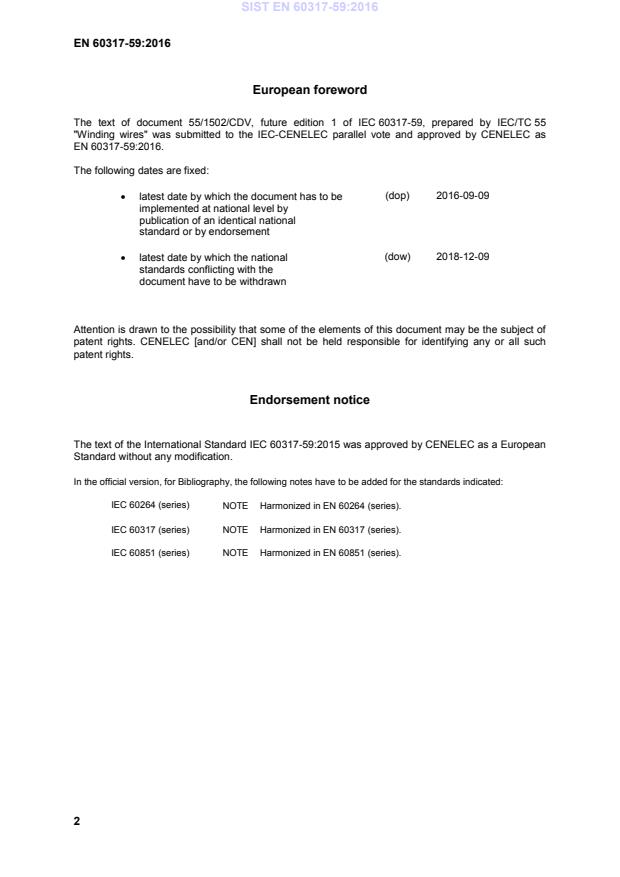

European foreword
The text of document 55/1502/CDV, future edition 1 of IEC 60317-59, prepared by IEC/TC 55
"Winding wires" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2016-09-09
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
(dow) 2018-12-09
• latest date by which the national
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
Endorsement notice
The text of the International Standard IEC 60317-59:2015 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 60264 (series)
NOTE Harmonized in EN 60264 (series).
IEC 60317 (series) NOTE Harmonized in EN 60317 (series).
IEC 60851 (series) NOTE Harmonized in EN 60851 (series).

Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60317-0-1 2013 Specifications for particular types of EN 60317-0-1 2014
winding wires -- Part 0-1: General
requirements - Enamelled round copper
wire
IEC 60317-59 ®
Edition 1.0 2015-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Specifications for particular types of winding wires –

Part 59: Polyamide-imide enamelled round copper wire, class 240

Spécifications pour types particuliers de fils de bobinage –

Partie 59: Fil de section circulaire en cuivre émaillé avec polyamide-imide,

classe 240
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.10 ISBN 978-2-8322-2989-7

– 2 – IEC 60317-59:2015 © IEC 2015

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions, general notes and appearence . 6
3.1 Terms and definitions . 6
3.2 General notes . 6
3.2.1 Methods of test . 6
3.2.2 Winding wire . 6
3.3 Appearance . 6
4 Dimensions . 7
5 Electrical resistance . 7
6 Elongation . 7
7 Springiness . 7
8 Flexibility and adherence . 7
9 Heat shock . 7
10 Cut-through . 7
11 Resistance to abrasion . 7
12 Resistance to solvents . 8
13 Breakdown voltage. 8
14 Continuity of insulation . 8
15 Temperature index . 8
16 Resistance to refrigerants . 8
17 Solderability . 9
18 Heat or solvent bonding . 9
19 Dielectric dissipation factor . 9
20 Resistance to transformer oil . 9
21 Loss of mass . 9
23 Pin hole test . 9
30 Packaging . 9
Bibliography . 10

Table 1 – Resistance to abrasi
...
