Electromagnetic Compatibility of Multimedia equipment - Immunity Requirements

NOTE Blue coloured text within this document indicates text aligned with CISPR 32. CISPR 32 contains the
appropriate emission requirements above 150 kHz for the equipment within the scope of this document.
This document applies to multimedia equipment (MME) as defined in 3.1.24 and having a
rated AC or DC supply voltage not exceeding 600 V.
MME within the scope of CISPR 20 or CISPR 24 is within the scope of this document.
MME with a broadcast reception function is within the scope of this document, see Annex A.
MME with non-broadcast wireless interfaces is also within the scope of this document,
however, compliance with this document does not require the assessment of the performance
of these interfaces.
MME intended primarily for professional use is within the scope of this document.
MME for which immunity requirements in the frequency range covered by this document are
explicitly formulated in other CISPR documents (except CISPR 20 and CISPR 24) are
excluded from the scope of this document.
The objectives of this document are:
• to establish requirements which provide an adequate level of intrinsic immunity so that the
MME will operate as intended in its environment in the frequency range 0 kHz to 400 GHz;
• to specify procedures to ensure the reproducibility of tests and the repeatability of results.
Due to technology convergence of the functions of MME, the performance criteria have been
determined on a function-orientated basis rather than on an equipment-orientated basis.

Elektromagnetische Verträglichkeit von Multimediageräten - Anforderungen zur Störfestigkeit

Compatibilité électromagnétique des équipements multimédia - Exigences d'immunité

Elektromagnetna združljivost večpredstavnostne opreme - Zahteve za odpornost opreme

NAVODILO Modro obarvano besedilo v tem dokumentu označuje besedilo, usklajeno s standardom CISPR 32. Standard CISPR 32 vsebuje
ustrezne zahteve glede emisij nad 150 kHz za opremo znotraj področja uporabe tega dokumenta.
Ta dokument velja za večpredstavnostno opremo (MME), kakor je opredeljeno v 3.1.24, z napajalno napetostjo izmeničnega toka (AC) ali enosmernega toka (DC), ki ne presega 600 V.
Večpredstavnostna oprema znotraj področja uporabe standarda CISPR 20 ali CISPR 24 je znotraj področja uporabe tega dokumenta.
Večpredstavnostna oprema s funkcijo sprejemanja oddajanja je znotraj področja uporabe tega dokumenta, glej dodatek A.
Večpredstavnostna oprema z brezžičnimi vmesniki, ki ne oddajajo, je tudi znotraj področja uporabe tega dokumenta, vendar skladnost s tem dokumentom ne zahteva ocenjevanja delovanja teh vmesnikov.
Večpredstavnostna oprema, ki je namenjena predvsem za profesionalno uporabo, sodi v področje uporabe tega dokumenta.
Večpredstavnostna oprema, za katero so zahteve glede odpornosti v frekvenčnem območju, ki ga zajema ta dokument, izrecno navedene v drugih dokumentih CISPR (razen CISPR 20 in CISPR 24), ni vključena v področje uporabe tega dokumenta.
Namen tega dokumenta je:
• pripraviti zahteve, ki zagotavljajo ustrezno stopnjo intrinzične odpornosti, tako da bo večpredstavnostna oprema delovala, kot je bilo predvideno v svojem okolju v frekvenčnem območju od 0 kHz do 400 GHz; • določiti postopke, s katerimi se zagotovi obnavljanje preskusov in ponovljivost rezultatov. Zaradi tehnološke konvergence funkcij večpredstavnostne opreme so bila merila delovanja določena na funkcionalno usmerjeni podlagi in ne na podlagi, usmerjeni v opremo.

General Information

Status
Published
Publication Date
11-Sep-2017
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
29-Aug-2017
Due Date
03-Nov-2017
Completion Date
12-Sep-2017

RELATIONS

Buy Standard

Standard
SIST EN 55035:2017 - BARVE na PDF-str 53,73,76
English language
90 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 55035:2017
01-oktober-2017
(OHNWURPDJQHWQD]GUXåOMLYRVWYHþSUHGVWDYQRVWQHRSUHPH=DKWHYH]DRGSRUQRVW
RSUHPH
Electromagnetic Compatibility of Multimedia equipment - Immunity Requirements
Ta slovenski standard je istoveten z: EN 55035:2017
ICS:
33.100.20 Imunost Immunity
SIST EN 55035:2017 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 55035:2017
---------------------- Page: 2 ----------------------
SIST EN 55035:2017
EUROPEAN STANDARD EN 55035
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2017
ICS 33.100.20
English Version
Electromagnetic compatibility of multimedia equipment -
Immunity requirements
(CISPR 35:2016 , modified)

Compatibilité électromagnétique des équipements Elektromagnetische Verträglichkeit von Multimediageräten -

multimédia - Exigences d'immunité Anforderungen zur Störfestigkeit
(CISPR 35:2016 , modifiée) (CISPR 35:2016 , modifiziert)

This European Standard was approved by CENELEC on 2016-09-26. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,

Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 55035:2017 E
---------------------- Page: 3 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)

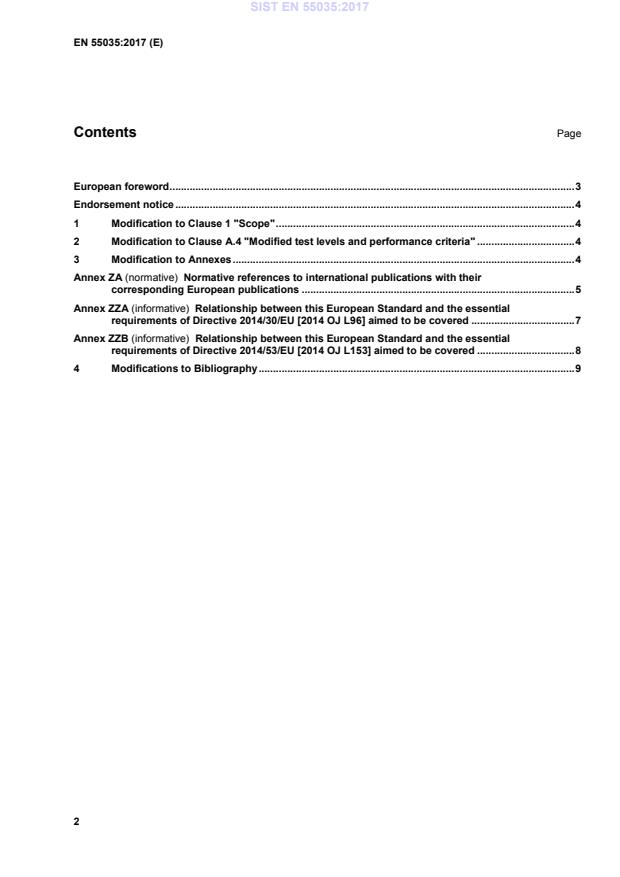

Contents Page

European foreword ............................................................................................................................................. 3

Endorsement notice ........................................................................................................................................... 4

1 Modification to Clause 1 "Scope" ........................................................................................................ 4

2 Modification to Clause A.4 "Modified test levels and performance criteria" .................................. 4

3 Modification to Annexes ....................................................................................................................... 4

Annex ZA (normative) Normative references to international publications with their

corresponding European publications ............................................................................................... 5

Annex ZZA (informative) Relationship between this European Standard and the essential

requirements of Directive 2014/30/EU [2014 OJ L96] aimed to be covered .................................... 7

Annex ZZB (informative) Relationship between this European Standard and the essential

requirements of Directive 2014/53/EU [2014 OJ L153] aimed to be covered .................................. 8

4 Modifications to Bibliography .............................................................................................................. 9

---------------------- Page: 4 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
European foreword

The text of document CISPR/I/522/FDIS, future edition 1 of CISPR 35:2016, prepared by CISPR SC I

"Electromagnetic compatibility of information technology equipment, multimedia equipment and

receivers" of CISPR "International special committee on radio interference" was submitted to the IEC-

CENELEC parallel vote and approved by CENELEC as EN 55035:2017.

A draft amendment, which covers common modifications to CISPR 35:2016 (CISPR/I/522/FDIS), was

prepared by CLC/TC 210 "Electromagnetic Compatibility (EMC)" and approved by CENELEC.

The following dates are fixed:
(dop) 2018-01-28
• latest date by which the document has to be implemented at
national level by publication of an identical national
standard or by endorsement
(dow) 2022-07-28
• latest date by which the national standards conflicting with
the document have to be withdrawn

Clauses, subclauses, notes, tables, figures and annexes which are additional to those in

CISPR 35:2016 are prefixed “Z”.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under mandate(s) given to CENELEC by the European

Commission and the European Free Trade Association, and supports essential requirements of EU

Directive(s).

For the relationship with EU Directive(s) and the standardization request(s), see informative

Annexes ZZA and ZZB, which are integral parts of this document.
---------------------- Page: 5 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
Endorsement notice

The text of the International Standard CISPR 35:2016 was approved by CENELEC as a European

Standard with agreed common modifications.
COMMON MODIFICATIONS
1 Modification to Clause 1 "Scope"

Add the following new paragraph after the sentence "MME within the scope of CISPR 20 or CISPR 24

is within the scope of this document.":

For MME that falls within the scope of EN 300 386 or any part(s) of EN 301 489 series, the

requirements within these product specific/product family standards take precedence over the

requirements within this document.
2 Modification to Clause A.4 "Modified test levels and performance criteria"

In Table A.2 "Modified test levels for performance criterion A for the broadcast reception function",

replace the following:

The tuned channel ± 0,5 MHz (lower edge frequency - 0,5 MHz up to the upper edge frequency

+ 0,5 MHz of the tuned channel) is excluded from testing.
by the following:

Except for DVB-C, the tuned channel ± 0,5 MHz (lower edge frequency - 0,5 MHz up to the upper

edge frequency + 0,5 MHz of the tuned channel) is excluded from testing. For DVB-C, the disturbance

levels are 3 V/m or 3 V, except in the tuned channel ± 0,5 MHz (lower edge frequency - 0,5 MHz up to

the upper edge frequency + 0,5 MHz of the tuned channel), where the disturbance level is 1 V/m.

3 Modification to Annexes
Add the following new annexes.
---------------------- Page: 6 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod),

the relevant EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is

available here: www.cenelec.eu.
Publication Year Title EN/HD Year
CISPR 16-1-2 2014 Specification for radio disturbance and EN 55016-1-2 2014
immunity measuring apparatus and
methods -
Part 1-2: Radio disturbance and
immunity measuring apparatus -
Coupling devices for conducted
disturbance measurements
IEC 61000-4-2 2008 Electromagnetic compatibility (EMC) - EN 61000-4-2 2009
Part 4-2: Testing and measurement
techniques - Electrostatic discharge
immunity test
IEC 61000-4-3 2006 Electromagnetic compatibility (EMC) - EN 61000-4-3 2006
Part 4-3: Testing and measurement
+ A1 2007 + A1 2008
techniques - Radiated, radio-frequency,
+ A2 2010 electromagnetic field immunity test + A2 2010
IEC 61000-4-4 2012 Electromagnetic compatibility (EMC) - EN 61000-4-4 2012
Part 4-4: Testing and measurement
techniques - Electrical fast
transient/burst immunity test
IEC 61000-4-5 2005 Electromagnetic compatibility (EMC) - EN 61000-4-5 2006
Part 4-5: Testing and measurement
techniques - Surge immunity test
IEC 61000-4-6 2008 Electromagnetic compatibility (EMC) - EN 61000-4-6 2009
Part 4-6: Testing and measurement
techniques - Immunity to conducted
disturbances, induced by radio-
frequency fields

1) EN 61000-4-5:2006 is replaced by EN 61000-4-5:2014, Electromagnetic compatibility (EMC) - Part 4-5:

Testing and measurement techniques - Surge immunity test (IEC 61000-4-5:2014).

2) EN 61000-4-6:2009 is replaced by EN 61000-4-6:2014, Electromagnetic compatibility (EMC) - Part 4-6:

Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency

fields (IEC 61000-4-6:2013).
---------------------- Page: 7 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
Publication Year Title EN/HD Year
IEC 61000-4-8 2009 Electromagnetic compatibility (EMC) - EN 61000-4-8 2010
Part 4-8: Testing and measurement
techniques - Power frequency magnetic
field immunity test
IEC 61000-4-11 2004 Electromagnetic compatibility (EMC) - EN 61000-4-11 2004
Part 4-11: Testing and measurement
techniques - Voltage dips, short
interruptions and voltage variations
immunity tests
IEC 61000-4-20 2010 Electromagnetic compatibility (EMC) - EN 61000-4-20 2010
Part 4-20: Testing and measurement
techniques - Emission and immunity
testing in transverse electromagnetic
(TEM) waveguides
IEC 61000-4-21 2011 Electromagnetic compatibility (EMC) - EN 61000-4-21 2011
Part 4-21: Testing and measurement
techniques - Reverberation chamber test
methods
ISO 9241-3 1992 Ergonomic requirements for office work EN 29241-3 1993
with visual display terminals (VDTs) -
Part 3: Visual display requirements
IEEE Standard - IEEE Standard for Ethernet, - -
802.3 Section Three

3) EN 29241-3:1992 is withdrawn and replaced by EN ISO 9241-302:2008, Ergonomics of human-system

interaction - Part 302: Terminology for electronic visual displays (ISO 9241-302:2008).

---------------------- Page: 8 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
Annex ZZA
(informative)
Relationship between this European Standard and the essential requirements
of Directive 2014/30/EU [2014 OJ L96] aimed to be covered

This European Standard has been prepared under the European Commission standardization request

C(2016) 7641 final of 30.11.2016 , ('M/552'), as regards harmonized standards in support of Directive

2014/30/EU relating to electromagnetic compatibility, to provide one voluntary means of conforming to

essential requirements of Directive 2014/30/EU of the European Parliament and of the Council of

26 February 2014 on the harmonization of the laws of the Member States relating to electromagnetic

compatibility [2014 OJ L96].

Once this standard is cited in the Official Journal of the European Union under that Directive,

compliance with the normative clauses of this standard given in Table ZZA.1 confers, within the limits

of the scope of this standard, a presumption of conformity with the corresponding essential

requirements of that Directive, and associated EFTA regulations.
Table ZZA.1 – Correspondence between this European Standard and the Essential
Requirements set out in Directive 2014/30/EU [2014 OJ L96]
Essential requirements of Clause(s) / sub-clause(s) Remarks / Notes
Directive 2014/30/EU of this EN
Annex I. 1(b)
Clause 5 Immunity requirements Not applicable for broadcast
(electromagnetic immunity)
receivers (Annex A) under
Table 1 – Immunity requirements
2014/30/EU
for enclosure ports
Clause 5 Immunity requirements Not applicable for broadcast
receivers (Annex A) under
Table 2 – Immunity requirements
2014/30/EU
for analogue/digital data ports
Clause 5 Immunity requirements Not applicable for broadcast
receivers (Annex A) under
Table 3 – Immunity requirements
2014/30/EU
for DC network power ports
Clause 5 Immunity requirements Not applicable for broadcast
receivers (Annex A) under
Table 4 – Immunity requirements
2014/30/EU
for AC mains power ports

WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European

Standard is maintained in the list published in the Official Journal of the European Union. Users of this

standard should consult frequently the latest list published in the Official Journal of the European

Union.

WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of

this standard.

4) COMMISSION IMPLEMENTING DECISION C(2016) 7641 final of 30.11.2016 on a standardisation request to

the European Committee for Standardisation, to the European Committee for Electrotechnical Standardisation

and to the European Telecommunications Standards Institute as regards harmonised standards in support of

Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the

harmonisation of the laws of the Member States relating to electromagnetic compatibility.

---------------------- Page: 9 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
Annex ZZB
(informative)
Relationship between this European Standard and the essential requirements
of Directive 2014/53/EU [2014 OJ L153] aimed to be covered

This European Standard has been prepared under the European Commission standardization request

C(2015) 5376 final of 4.8.2015 (‘M/536’), as regards harmonized standards in support of Directive

2014/53/EU relating to radio equipment, to provide one voluntary means of conforming to essential

requirements of Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014

on the harmonisation of the laws of the Member States relating to the making available on the market

of radio equipment and repealing Directive 1999/5/EC [2014 OJ L153].

Once this standard is cited in the Official Journal of the European Union under that Directive,

compliance with the normative clauses of this standard given in Table ZZB.1 confers, within the limits

of the scope of this standard, a presumption of conformity with the corresponding essential

requirements of that Directive, and associated EFTA regulations.
Table ZZB.1 – Correspondence between this European Standard
and Article 3 of Directive 2014/53/EU [2014 OJ L153]
Essential requirements of Clause(s) / sub-clause(s) Remarks / Notes
Directive 2014/53/EU of this EN

Article 3 1.(b) (electromagnetic Clause 5 Immunity requirements Only applicable for broadcast

compatibility), immunity receivers (Annex A) under
Table 1 – Immunity requirements
2014/53/EU
for enclosure ports
Clause 5 Immunity requirements Only applicable for broadcast
receivers (Annex A) under
Table 2 – Immunity requirements
2014/53/EU
for analogue/digital data ports
Clause 5 Immunity requirements Only applicable for broadcast
receivers (Annex A) under
Table 3 – Immunity requirements
2014/53/EU
for DC network power ports
Clause 5 Immunity requirements Only applicable for broadcast
receivers (Annex A) under
Table 4 – Immunity requirements
2014/53/EU
for AC mains power ports

WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European

Standard is maintained in the list published in the Official Journal of the European Union. Users of this

standard should consult frequently the latest list published in the Official Journal of the European

Union.

WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of

this standard.

5) COMMISSION IMPLEMENTING DECISION C(2015) 5376 final of 4.8.2015 on a standardisation request to

the European Committee for Electrotechnical Standardisation and to the European Telecommunications

Standards Institute as regards radio equipment in support of Directive 2014/53/EU of the European Parliament

and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the

making available on the market of radio equipment. [2014 OJ L153].
---------------------- Page: 10 ----------------------
SIST EN 55035:2017
EN 55035:2017 (E)
4 Modifications to Bibliography
Add the following before EN 300 421:

EN 300 386, Electromagnetic compatibility and Radio spectrum Matters (ERM); Telecommunication

network equipment; ElectroMagnetic Compatibility (EMC) requirements
Add the following after EN 300 744:

EN 301 489 series, Electromagnetic compatibility and Radio spectrum Matters (ERM);

ElectroMagnetic Compatibility (EMC) standard for radio equipment and services
Add the following after EN 302 878:

EN 303 340 Digital Terrestrial TV Broadcast Receivers; Harmonised Standard covering the essential

requirements of article 3.2 of Directive 2014/53/EU
Add the following notes for the standards indicated:
CISPR 16-2-1:2014 NOTE Harmonized as EN 55016-2-1:2014 (not modified).
CISPR 20:2006 & NOTE Harmonized as EN 55020:2007 (not modified) and
CISPR 20:2006/A1:2013 as EN 55020:2007/A1:201X (not modified) .
CISPR 24:2010 NOTE Harmonized as EN 55024:2010 (not modified).
CISPR 32:2015 NOTE Harmonized as EN 55032:2015 (not modified).
IEC 60942:2003 NOTE Harmonized as EN 60942:2003 (not modified).
IEC 61672-1:2013 NOTE Harmonized as EN 61672-1:2013 (not modified).
ISO/IEC 17025:2005 NOTE Harmonized as EN ISO/IEC 17025:2005 (not modified).

6) EN 55020:2007 is also amended by EN 55020:2007/A11:2011 and by EN 55020:2007/A12:2016.

7) At publication stage.
---------------------- Page: 11 ----------------------
SIST EN 55035:2017
---------------------- Page: 12 ----------------------
SIST EN 55035:2017
CISPR 35
Edition 1.0 2016-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
IN TERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
C OMITÉ INTERNATIONAL SPÉCIAL DES PERTURBATIONS RADIOÉLECTRIQUES
Electromagnetic compatibility of multimedia equipment – Immunity
requirements
Compatibilité électromagnétique des équipements multimédia – Exigences
d'immunité
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.100.20 ISBN 978-2-8322-3591-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 13 ----------------------
SIST EN 55035:2017
– 2 – CISPR 35:2016 © IEC 2016
CONTENTS

FOREWORD ......................................................................................................................... 6

INTRODUCTION ................................................................................................................... 8

1 Scope ............................................................................................................................ 9

2 Normative references..................................................................................................... 9

3 Terms, definitions and abbreviations ............................................................................ 10

3.1 Terms and definitions .......................................................................................... 10

3.2 Abbreviations ...................................................................................................... 15

4 Requirements .............................................................................................................. 18

4.1 General requirements .......................................................................................... 18

4.2 Particular requirements ....................................................................................... 19

4.2.1 Electrostatic discharges (ESD) ..................................................................... 19

4.2.2 Continuous RF disturbances ......................................................................... 19

4.2.3 Power frequency magnetic field .................................................................... 21

4.2.4 Electrical fast transients/burst (EFT/B).......................................................... 21

4.2.5 Surges ......................................................................................................... 21

4.2.6 Voltage dips and interruptions ...................................................................... 21

4.2.7 Broadband impulsive conducted disturbances ............................................... 21

5 Immunity requirements ................................................................................................ 23

6 Documentation ............................................................................................................ 28

6.1 Test report .......................................................................................................... 28

6.2 Advice to end-users ............................................................................................ 28

7 Test configuration ........................................................................................................ 28

8 General performance criteria ........................................................................................ 29

8.1 General ............................................................................................................... 29

8.2 Performance criterion A ....................................................................................... 29

8.3 Performance criterion B ....................................................................................... 30

8.4 Performance criterion C ....................................................................................... 30

9 Compliance with this document .................................................................................... 30

10 Test uncertainty ........................................................................................................... 30

Annex A (normative) Broadcast reception function .............................................................. 31

A.1 General ............................................................................................................... 31

A.2 Applicability ........................................................................................................ 31

A.3 Mode of operation ............................................................................................... 31

A.4 Modified test levels and performance criteria ....................................................... 33

Annex B (normative) Print function ..................................................................................... 35

B.1 Applicability ........................................................................................................ 35

B.2 Mode of operation ............................................................................................... 35

B.3 Performance criteria ............................................................................................ 35

B.3.1 Performance criterion A ................................................................................ 35

B.3.2 Performance criterion B ................................................................................ 36

B.3.3 Performance criterion C ............................................................................... 36

Annex C (normative) Scan function .................................................................................... 37

C.1 Applicability ........................................................................................................ 37

C.2 Mode of operation ............................................................................................... 37

C.3 Performance criteria ............................................................................................ 37

---------------------- Page: 14 ----------------------
SIST EN 55035:2017
CISPR 35:2016 © IEC 2016 – 3 –

C.3.1 Performance criterion A ................................................................................ 37

C.3.2 Performance criterion B ................................................................................ 37

C.3.3 Performance criterion C ............................................................................... 38

Annex D (normative) Display and display output functions .................................................. 39

D.1 Applicability ........................................................................................................ 39

D.2 Mode of operation ............................................................................................... 39

D.2.1 Test signals and conditions .......................................................................... 39

D.2.2 Display evaluation, for continuous disturbances ............................................ 41

D.2.3 Display evaluation for power frequency magnetic field testing ....................... 43

D.3 Performance criteria ............................................................................................ 44

D.3.1 Performance criterion A for continuous radiated and conducted

disturbances tests ........................................................................................ 44

D.3.2 Performance criterion A for the power frequency magnetic field tests ............ 44

D.3.3 Performance criterion B ................................................................................ 44

D.3.4 Performance criterion C ............................................................................... 44

Annex E (normative) Musical tone generating function ........................................................ 45

E.1 Applicability ........................................................................................................ 45

E.2 Mode of operation ............................................................................................... 45

E.3 Performance criteria ............................................................................................ 45

E.3.1 General ....................................................................................................... 45

E.3.2 Performance criterion A ................................................................................ 45

E.3.3 Performance criterion B ................................................................................ 46

E.3.4 Performance criterion C ............................................................................... 46

Annex F (normative) Networking functions .......................................................................... 47

F.1 Applicability ........................................................................................................ 47

F.1.1 General ....................................................................................................... 47

F.1.2 Switching and routing function ...................................................................... 47

F.1.3 Data transmission function ........................................................................... 47

F.1.4 Supervisory function .................................................................................... 47

F.2 Specific terminology for use within Annex F ......................................................... 47

F.3 General requirements for network functions ......................................................... 48

F.3.1 General ....................................................................................................... 48

F.3.2 Configuration ............................................................................................... 48

F.3.3 Performance criteria ..................................................................................... 48

F.4 Requirements for CPE containing xDSL ports ...................................................... 50

F.4.1 Configuration and mode of operation ............................................................ 50

F.4.2 Performance criterion A ................................................................................ 51

F.4.3 Performance criterion B ............................
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
