kSIST prEN 13043:2017
(Main)Aggregates for bituminous mixtures and surface treatments for roads, airfields and other trafficked areas
Aggregates for bituminous mixtures and surface treatments for roads, airfields and other trafficked areas
This European Standard specifies the properties of aggregates and filler aggregates obtained by processing natural, manufactured or recycled materials and mixtures of these aggregates for use in bituminous mixtures and surface treatments for roads, airfields and other trafficked areas.
It covers aggregates having an oven dried particle density greater than 2,00 Mg/m3. It also covers coarse recycled aggregates with particle densities greater than 1,50 Mg/m3 with appropriate caveats and recycled fine aggregate with appropriate caveats (see Annex A).
NOTE 1 Requirements for lightweight aggregates are specified in prEN 13055.
This European Standard does not cover the use of reclaimed bituminous mixtures (see NOTE 2).
A list of the source materials that have been considered and indicating those which are within the scope of this European Standard is given in Annex A (normative).
Requirements for the Assessment and Verification of the Constancy of Performance (AVCP) of aggregates to this European Standard are given in prEN 16236.
Aggregates used in construction shall conform with all the requirements of the relevant European Standards for aggregates. These standards include comprehensive and specific requirements for natural aggregates, iron and steel making slag and recycled aggregates, dealing with, for example, the stability of certain basalts, the expansion of certain slags and the constitution of recycled aggregates.
NOTE 2 Requirements for reclaimed asphalt for use as a constituent of asphalt mixtures are specified in prEN 13108-8 and are therefore not covered in detail in this standard. prEN 13108-8 does however call up the general requirements of prEN 13043 for the aggregate component of reclaimed asphalt.
NOTE 3 Guidance on selection of appropriate categories for specific applications can be found in national provisions in the place of use of the aggregate.
Gesteinskörnungen für Asphalt und Oberflächenbehandlungen für Straßen, Flugplätze und andere Verkehrsflächen
Diese Europäische Norm legt die Merkmale von Gesteinskörnungen und Füllern fest, die durch Aufbereitung natürlicher, industriell hergestellter oder rezyklierter Materialien für die Verwendung in Asphalt und Oberflächenbehandlungen für Straßen, Flugplätze und andere Verkehrsflächen gewonnen werden.
Sie gilt für Gesteinskörnungen mit einer Trockenrohdichte größer 2,00 Mg/m3. Die Norm behandelt ebenfalls rezyklierte industriell hergestellte Gesteinskörnungen mit einer Rohdichte größer als 1,50 Mg/m3, wobei entsprechende Vorbehalte gelten (siehe Anhang A). Die Bewertung der Dichte rezyklierter Gesteins¬körnung erfolgt üblicherweise an groben Fraktionen.
ANMERKUNG 1 Zu Eigenschaften von leichten Gesteinskörnungen siehe prEN 13055.
Der Einsatz von Gesteinskörnungen als Boden wird in dieser Norm nicht behandelt.
ANMERKUNG 2 Wegen der großen Unterschiede in den geologischen und petrologischen Gegebenheiten in Europa, können genaue Definitionen zu Boden in Dokumenten gefunden werden, die sich mit ihrer Verwendung am jeweiligen Einsatzort befassen.
Diese Europäische Norm gilt nicht für die Verwendung von Ausbauasphalt (siehe ANMERKUNG 3).
Anhang A (normativ) enthält eine Liste von betrachteten Ausgangsstoffen, die in den Anwendungsbereich der Norm fallen.
Festlegungen hinsichtlich der Bewertung und Überprüfung der Leistungsbeständigkeit (AVCP) von Gesteins¬körnungen nach dieser Norm sind in EN 16236 zu finden.
Gesteinskörnungen für die Verwendung im Bauwesen müssen alle Anforderungen der einschlägigen Europäischen Normen zu Gesteinskörnungen erfüllen. Diese Normen legen allgemeine und besondere Anforderungen an natürliche Gesteinskörnungen, industriell hergestellte Gesteinskörnungen und rezyklierte Gesteinskörnungen, wie beispielsweise hinsichtlich der Stabilität bestimmter Arten von Basalt, des Ausdehnungsverhaltens bestimmter Schlacken und der Zusammensetzung rezyklierter Gesteins-körnungen fest.
ANMERKUNG 3 Da Anforderungen an Ausbauasphalt als Bestandteil von Asphaltmischungen in EN 13108-8 festgelegt werden, werden sie in dieser Norm nicht im Einzelnen behandelt. EN 13108-8 bezieht sich jedoch auf die allgemeinen Fest¬legungen für Gesteinskörnungen als Bestandteil von Ausbauasphalt nach EN 13043.
Granulats pour mélanges hydrocarbonés et pour enduits superficiels utilisés dans la construction des chaussées, aérodromes et autres zones de circulation
La présente Norme européenne spécifie les caractéristiques des granulats et des fillers élaborés à partir de matériaux naturels, artificiels ou de recyclage et des mélanges de ces granulats afin d'être incorporés dans les mélanges hydrocarbonés et les enduits superficiels utilisés dans la construction des chaussées, aérodromes et autres zones de circulation.
Elle s'applique aux granulats dont la masse volumique réelle des particules séchées à l’étuve est supérieure à 2,00 Mg/m3. Elle s'applique également aux gravillons recyclés et artificiels dont la masse volumique réelle est supérieure à 1,50 Mg/m3, avec les mises en garde appropriées (voir Annexe A). L’évaluation de la densité des granulats recyclés est typiquement effectuée sur les gravillons.
NOTE 1 Les caractéristiques des granulats légers sont spécifiées dans le prEN 13055.
L’utilisation des granulats en tant que sols n’est pas couverte par cette norme.
NOTE 2 En raison de l’importante variabilité des conditions géologiques et pédologiques en Europe, la définition précise du sol peut être trouvée dans les documents relatifs à l’application sur le lieu d’utilisation
La présente norme ne traite pas de l'utilisation de mélanges hydrocarbonés recyclés (voir NOTE 3).
Une liste des origines des matériaux qui ont été pris en considération et relèvent du domaine d'application de la présente norme est donnée à l'Annexe A (normative).
Les exigences relatives à l’Evaluation et la Vérification de la Constance des Performances (EVCP) des produits de cette norme européenne sont spécifiées dans le FprEN 16236.
Les granulats utilisés dans la construction doivent respecter toutes les exigences des Normes européennes concernées pour les granulats. Ces dernières contiennent les exigences générales et particulières relatives aux granulats naturels, artificiels et recyclés, et traitent par exemple de la stabilité de certains basaltes, de l'expansion de certains laitiers et de la composition des granulats recyclés.
NOTE 3 Les exigences sur les agrégats d’enrobés utilisés en tant que constituants des mélanges hydrocarbonés sont spécifiées dans l’EN 13108-8 et ne sont pas, par conséquent, couverts en détail par cette norme. L’EN 13108-8 fait, cependant, appel aux exigences générales de l’EN 13043 pour les granulats contenus dans les agrégats d’enrobés.
Agregati za bitumenske zmesi in površinske prevleke za ceste, letališča in druge prometne površine
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
oSIST prEN 13043:2015
01-julij-2015
$JUHJDWL]DELWXPHQVNH]PHVLLQSRYUãLQVNHSUHYOHNH]DFHVWHOHWDOLãþDLQGUXJH
SURPHWQHSRYUãLQH
Aggregates for bituminous mixtures and surface treatments for roads, airfields and other
trafficked areas
Gesteinskörnungen für Asphalt und Oberflächenbehandlungen für Straßen, Flugplätze
und andere Verkehrsflächen
Granulats pour mélanges hydrocarbonés et pour enduits superficiels utilisés dans la
construction des chaussées, aérodromes et autres zones de circulation
Ta slovenski standard je istoveten z: prEN 13043
ICS:
91.100.15 Mineralni materiali in izdelki Mineral materials and
products
93.080.20 Materiali za gradnjo cest Road construction materials
oSIST prEN 13043:2015 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 13043:2015
---------------------- Page: 2 ----------------------
oSIST prEN 13043:2015
EUROPEAN STANDARD
DRAFT
prEN 13043
NORME EUROPÉENNE
EUROPÄISCHE NORM
May 2015
ICS 91.100.15 Will supersede EN 13043:2002
English Version
Aggregates for bituminous mixtures and surface treatments for
roads, airfields and other trafficked areas
Gesteinskörnungen für Asphalt und
Oberflächenbehandlungen für Straßen, Flugplätze und
andere Verkehrsflächen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 154.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2015 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13043:2015 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)

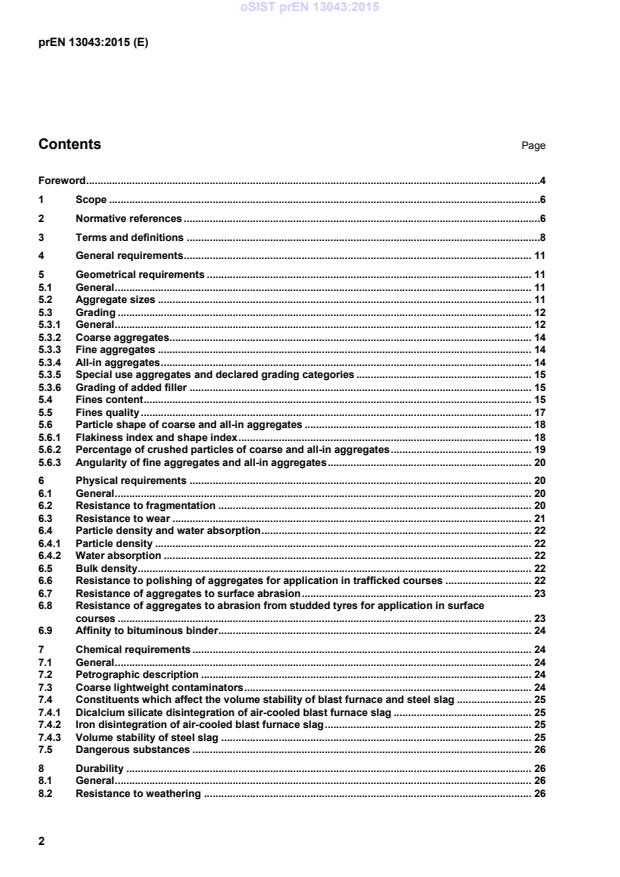

Contents Page
Foreword .4
1 Scope .6
2 Normative references .6
3 Terms and definitions .8
4 General requirements . 11
5 Geometrical requirements . 11
5.1 General . 11
5.2 Aggregate sizes . 11
5.3 Grading . 12
5.3.1 General . 12
5.3.2 Coarse aggregates. 14
5.3.3 Fine aggregates . 14
5.3.4 All-in aggregates . 14
5.3.5 Special use aggregates and declared grading categories . 15
5.3.6 Grading of added filler . 15
5.4 Fines content . 15
5.5 Fines quality . 17
5.6 Particle shape of coarse and all-in aggregates . 18
5.6.1 Flakiness index and shape index . 18
5.6.2 Percentage of crushed particles of coarse and all-in aggregates . 19
5.6.3 Angularity of fine aggregates and all-in aggregates . 20
6 Physical requirements . 20
6.1 General . 20
6.2 Resistance to fragmentation . 20
6.3 Resistance to wear . 21
6.4 Particle density and water absorption . 22
6.4.1 Particle density . 22
6.4.2 Water absorption . 22
6.5 Bulk density . 22
6.6 Resistance to polishing of aggregates for application in trafficked courses . 22
6.7 Resistance of aggregates to surface abrasion . 23
6.8 Resistance of aggregates to abrasion from studded tyres for application in surface
courses . 23
6.9 Affinity to bituminous binder . 24
7 Chemical requirements . 24
7.1 General . 24
7.2 Petrographic description . 24
7.3 Coarse lightweight contaminators . 24
7.4 Constituents which affect the volume stability of blast furnace and steel slag . 25
7.4.1 Dicalcium silicate disintegration of air-cooled blast furnace slag . 25
7.4.2 Iron disintegration of air-cooled blast furnace slag . 25
7.4.3 Volume stability of steel slag . 25
7.5 Dangerous substances . 26
8 Durability . 26
8.1 General . 26
8.2 Resistance to weathering . 26
2
---------------------- Page: 4 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
8.3 Freeze-thaw resistance . 27
8.3.1 Water absorption as a screening test for freeze-thaw resistance . 27
8.3.2 Resistance to freezing and thawing . 28
8.3.3 Resistance to freezing and thawing in the presence of salt (extreme conditions) . 28
8.4 “Sonnenbrand” of basalt . 29
8.5 Resistance to thermal shock . 30
9 Requirements for filler aggregate . 30
9.1 General . 30
9.2 Geometrical requirements . 30
9.2.1 Grading for added filler . 30
9.2.2 Harmful fines . 31
9.3 Physical requirements . 31
9.3.1 Water content . 31
9.3.2 Particle density . 31
9.3.3 Stiffening properties . 32
9.4 Chemical requirements . 32
9.4.1 Water solubility . 32
9.4.2 Water susceptibility . 33
9.4.3 Carbonate content of filler aggregate . 33
9.4.4 Calcium carbonate content of limestone filler aggregate . 33
9.4.5 Calcium hydroxide content of mixed filler . 34
9.5 Requirements for the consistency of filler production . 34
9.5.1 General . 34
9.5.2 “Bitumen number” of added filler . 34
9.5.3 Loss on ignition of coal fly ash . 35
9.5.4 Particle density of added filler . 35
9.5.5 Loose bulk density in kerosene . 35
9.5.6 Specific surface area . 35
10 Assessment and Verification of Constancy of performance . 35
11 Designation . 35
11.1 Designation and description . 35
11.2 Additional information for the description of an aggregate . 36
12 Marking and labelling . 36
Annex A (normative) Source materials considered in the development of prEN 13043 and their
status in respect of the scope of this standard . 37
Annex B (informative) Procedure for the Incorporation of New Source Materials . 40
B.1 General procedure . 40
B.2 Format . 40
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Regulation . 42
ZA.1 Scope and relevant characteristics . 42
ZA.2 Procedure for AVCP of aggregates and filler aggregates . 44
ZA.2.1 Systems of AVCP . 44
ZA.2.2 Declaration of performance (DoP) . 46
ZA.2.2.1 General . 46
ZA.2.2.2 Content. 47
ZA.2.2.3 Examples of DoP . 48
ZA.3 CE marking and labelling. 51
3
---------------------- Page: 5 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
Foreword
This document (prEN 13043:2015) has been prepared by Technical Committee CEN/TC 154 “Aggregates”,
the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13043:2002.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
The most significant technical changes compared to the previous edition include:
a) Harmonization of vocabulary and Annex ZA to be consistent with Construction Products Regulation;
b) Unification of categories which are common across the four main aggregate standards: EN 12620,
EN 13043, EN 13139 and EN 13242;
c) Description of assessment and verification of conformity of performance of aggregates (AVCP) — type
testing and factory production control in a separate new standard prEN 16236;
d) Implementing general sentences on dangerous substances and adding a new normative Annex A dealing
with all source materials considered;
e) Unification of definitions which are common across the four main aggregate standards: EN 12620,
EN 13043, EN 13139 and EN 13242, i.e. for coarse, fine, all-in aggregates and natural graded 0/8
aggregates;
f) Adding categories for the sand equivalent value for fines quality;
g) Adding categories for the methylene blue value for fines quality;
h) Adding categories for angularity and water suction height.
i) Inserting a new clause „General Requirements”
In this document the wordings ‘property’ and ‘characteristic’ have the same meaning.
Requirements for assessment and verification of constancy of performance are given in prEN 16236.
Requirements for other end uses of aggregates are specified in the following European Standards:
— prEN 12620, Aggregates for concrete
— prEN 13055, Lightweight aggregates
— prEN 13139, Aggregates for mortar
— prEN 13242, Aggregates for unbound and hydraulically bound materials for use in civil engineering work
and road construction
— prEN 13383-1, Armourstone — Part 1: Specification
4
---------------------- Page: 6 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
— prEN 13450, Aggregates for railway ballast
Note: Due to fact that the EC has not yet been able to confirm the financial commitment for the New
Approach Consultants’ work in 2015, there are currently no New Approach Consultants in place for 2015.
Therefore the provisions of CEN-CENELEC Guide 15 cannot be met.
This shall not prevent the processing of draft standards nor the offering of harmonized standards to the
European Commission. In particular, draft standards can be sent to vote without Consultant assessment.
This note will be removed from the Foreword of the finalized publication.
5
---------------------- Page: 7 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
1 Scope
This European Standard specifies the properties of aggregates and filler aggregates obtained by processing
natural, manufactured or recycled materials and mixtures of these aggregates for use in bituminous mixtures
and surface treatments for roads, airfields and other trafficked areas.
3
It covers aggregates having an oven dried particle density greater than 2,00 Mg/m . It also covers coarse
3
recycled aggregates with particle densities greater than 1,50 Mg/m with appropriate caveats and recycled
fine aggregate with appropriate caveats (see Annex A).
NOTE 1 Requirements for lightweight aggregates are specified in prEN 13055.
This European Standard does not cover the use of reclaimed bituminous mixtures (see NOTE 2).
A list of the source materials that have been considered and indicating those which are within the scope of this
European Standard is given in Annex A (normative).
Requirements for the Assessment and Verification of the Constancy of Performance (AVCP) of aggregates to
this European Standard are given in prEN 16236.
Aggregates used in construction shall conform with all the requirements of the relevant European Standards
for aggregates. These standards include comprehensive and specific requirements for natural aggregates,
iron and steel making slag and recycled aggregates, dealing with, for example, the stability of certain basalts,
the expansion of certain slags and the constitution of recycled aggregates.
NOTE 2 Requirements for reclaimed asphalt for use as a constituent of asphalt mixtures are specified in prEN 13108-8
and are therefore not covered in detail in this standard. prEN 13108-8 does however call up the general requirements of
prEN 13043 for the aggregate component of reclaimed asphalt.
NOTE 3 Guidance on selection of appropriate categories for specific applications can be found in national provisions in
the place of use of the aggregate.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 196-2, Method of testing cement - Part 2: Chemical analysis of cement
EN 196-6, Methods of testing cement - Part 6: Determination of fineness
EN 459-2, Building lime - Part 2: Test methods
EN 932-3, Tests for general properties of aggregates - Part 3: Procedure and terminology for simplified
petrographic description
EN 933-1, Tests for geometrical properties of aggregates - Part 1: Determination of particle size distribution -
Sieving method
EN 933-3, Tests for geometrical properties of aggregates - Part 3: Determination of particle shape - Flakiness
index
6
---------------------- Page: 8 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
EN 933-4, Tests for geometrical properties of aggregates - Part 4: Determination of particle shape - Shape
index
EN 933-5, Tests for geometrical properties of aggregates - Part 5: Determination of percentage of crushed
and broken surfaces in coarse aggregate particles
EN 933-6, Tests for geometrical properties of aggregates - Part 6: Assessment of surface characteristics -
Flow coefficient of aggregates
EN 933-8, Tests for geometrical properties of aggregates - Part 8: Assessment of fines - Sand equivalent test
EN 933-9, Tests for geometrical properties of aggregates — Part 9: Assessment of fines — Methylene blue
test
EN 933-10, Tests for geometrical properties of aggregates - Part 10: Assessment of fines - Grading of filler
aggregates (air jet sieving)
EN 1097-1, Tests for mechanical and physical properties of aggregates - Part 1: Determination of the
resistance to wear (micro-Deval)
EN 1097-2, Tests for mechanical and physical properties of aggregates - Part 2: Methods for the
determination of resistance to fragmentation
EN 1097-3:1998, Tests for mechanical and physical properties of aggregates — Part 3: Determination of
loose bulk density and voids
EN 1097-4, Tests for mechanical and physical properties of aggregates - Part 4: Determination of the voids of
dry compacted filler
EN 1097-5, Tests for mechanical and physical properties of aggregates - Part 5: Determination of the water
content by drying in a ventilated oven
EN 1097-6:2013, Tests for mechanical and physical properties of aggregates - Part 6: Determination of
particle density and water absorption
EN 1097-7, Tests for mechanical and physical properties of aggregates - Part 7: Determination of the particle
density of filler - Pyknometer method
EN 1097-8, Tests for mechanical and physical properties of aggregates - Part 8: Determination of the polished
stone value
EN 1097-9, Tests for mechanical and physical properties of aggregates - Part 9: Determination of the
resistance to wear by abrasion from studded tyres - Nordic test
EN 1367-1, Tests for thermal and weathering properties of aggregates - Part 1: Determination of resistance to
freezing and thawing
EN 1367-2, Tests for thermal and weathering properties of aggregates - Part 2: Magnesium sulfate test
EN 1367-3, Tests for thermal and weathering properties of aggregates - Part 3 : Boiling test for "Sonnenbrand
basalt"”
EN 1367-5, Tests for thermal and weathering properties of aggregates - Part 5: Determination of resistance to
thermal shock
EN 1367-6, Tests for thermal and weathering properties of aggregates - Part 6: Determination of resistance to
freezing and thawing in the presence of salt (NaCl)
7
---------------------- Page: 9 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
EN 1744-1, Tests for chemical properties of aggregates — Part 1: Chemical analysis
EN 1744-4, Tests for chemical properties of aggregates - Part 4: Determination of water susceptibility of fillers
for bituminous mixtures
EN 12697-11, Bituminous mixtures - Test methods for hot mix asphalt - Part 11: Determination of the affinity
between aggregate and bitumen
EN 13179-1, Tests for filler aggregate used in bituminous mixtures - Part 1: Delta ring and ball test
EN 13179-2, Tests for filler aggregate used in bituminous mixtures - Part 2: Bitumen number
prEN 12620, Aggregates for concrete
prEN 13055, Lightweight aggregates for concrete, mortar, grout, bituminous mixtures, surface treatments and
for unbound and bound applications
prEN 13139, Aggregates for mortar
prEN 13242, Aggregates for unbound and hydraulically bound materials for use in civil engineering work and
road construction
prEN 13383-1, Armourstone — Part 1: Specification
prEN 13450, Aggregates for railway ballast
prEN 16236, Assessment and Verification of the Constancy of Performance (AVCP) of aggregates — Type
Testing and Factory Production Control
ISO 565, Test sieves — Metal wire cloth, perforated metal plate and electroformed sheet — Nominal sizes of
openings
ISO 9277, Determination of the specific surface area of solids by gas adsorption — BET method
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
aggregate
granular material of natural, manufactured or recycled origin used in construction
3.2
natural aggregate
aggregate from mineral sources which has been subjected to nothing more than mechanical processing
3.3
manufactured aggregate
aggregate of mineral origin resulting from an industrial process involving thermal or other modification
3.4
recycled aggregate
aggregate resulting from the processing of inorganic or mineral material previously used in construction
8
---------------------- Page: 10 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
3.5
level
result of the assessment of the performance of an aggregate in relation to its essential characteristics,
expressed as a numerical value
EXAMPLE WA = 0,5 %
24 Declared
3.6
class
range of levels, delimited by a minimum and a maximum value, of performance of an aggregate
EXAMPLE G 85/15
C
3.7
category
level or class of a property of an aggregate expressed as a range of values (class) or a threshold value (level
for individual value or declared category)
EXAMPLE FI 50, f 25 (Declared Category)
Declared
3.8
declared value
level of a property declared by the manufacturer
EXAMPLE ρ 1,5 (Declared value)
rd Declared
3.9
aggregate size
designation of aggregate in terms of lower (d) and upper (D) sieve sizes expressed as d/D
Note 1 to entry: This designation accepts the presence of some particles which are retained on the upper sieve
(oversize) and some which pass the lower sieve (undersize).
3.10
grading
particle size distribution expressed as the percentages by mass passing a specified set of sieves
Note 1 to entry: In this standard grading categories are used and expressed as G X/Y in which:
n
n = type of grading defined below:
C = coarse
CA = coarse for aggregates for bituminous mixtures only;
G = Grit (D ≤ 4 and d ≥ 1)
F = fine
NG = natural graded
A = all-in
X = lower limit passing D
Y = upper limit passing d
9
---------------------- Page: 11 ----------------------
oSIST prEN 13043:2015
prEN 13043:2015 (E)
3.11
fines
particle size fraction of an aggregate that passes the 0,063 mm sieve
3.12
coarse aggregate
designation given to the larger aggregate sizes with D greater than 4 mm and d greater than or equal to 1 mm
Note 1 to entry: Aggregates that do not fit the definitions for fine or coarse (like grit — see 3.10) are treated as coarse
aggregate.
3.13
fine aggregate
designation given to the smaller aggregate sizes with D less than or equal
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
