Copper and copper alloys - Copper profiles and profiled wire for electrical purposes

This European Standard specifies the composition, property requirements including electrical properties, and tolerances on dimensions and form for copper profiles and profiled wire for electrical purposes, which would fit within a circumscribing circle of maximum 180 mm diameter.
The sampling procedures, the test methods for verification of conformity to the requirements of this standard, and the delivery conditions are also specified.

Kupfer und Kupferlegierungen - Profile und profilierte Drähte aus Kupfer für die Anwendung in der Elektrotechnik

Dieses Dokument legt die Zusammensetzung, die Anforderungen an die Eigenschaften, einschließlich elektrischer Eigenschaften, Grenzabmaße und Formtoleranzen von Profilen und profilierten Drähten für die Anwendung in der Elektrotechnik mit einem Durchmesser des umschreibenden Kreises von maximal 180 mm fest.
Der Ablauf der Probenentnahme, die Prüfverfahren zur Feststellung der Übereinstimmung mit den Anforderungen des Dokuments und die Lieferbedingungen sind ebenfalls festgelegt.

Cuivre et alliages de cuivre - Profilés et fils profilés en cuivre pour usages électriques

Le présent document spécifie la composition, les exigences relatives aux propriétés, notamment les propriétés électriques, et les tolérances sur les dimensions et la forme des profilés et fils profilés en cuivre pour usages électriques qui sont compris dans un cercle circonscrit d’un diamètre maximum de 180 mm.
Les modes opératoires d’échantillonnage, les méthodes d’essai pour la vérification de la conformité aux exigences du présent document et les conditions de livraison sont également spécifiés.

Baker in bakrove zlitine - Profili in profilirana žica iz bakra za uporabo v elektrotehniki

General Information

Status
Published
Public Enquiry End Date
19-Apr-2020
Publication Date
16-Jun-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
10-Jun-2021
Due Date
15-Aug-2021
Completion Date
17-Jun-2021

RELATIONS

Buy Standard

Standard
SIST EN 13605:2021
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
oSIST prEN 13605:2020
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 13605:2021
01-september-2021
Nadomešča:
SIST EN 13605:2013
Baker in bakrove zlitine - Profili in profilirana žica iz bakra za uporabo v
elektrotehniki

Copper and copper alloys - Copper profiles and profiled wire for electrical purposes

Kupfer und Kupferlegierungen - Profile und profilierte Drähte aus Kupfer für die
Anwendung in der Elektrotechnik

Cuivre et alliages de cuivre - Profilés et fils profilés en cuivre pour usages électriques

Ta slovenski standard je istoveten z: EN 13605:2021
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
SIST EN 13605:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13605:2021
---------------------- Page: 2 ----------------------
SIST EN 13605:2021
EN 13605
EUROPEAN STANDARD
NORME EUROPÉENNE
May 2021
EUROPÄISCHE NORM
ICS 77.150.30 Supersedes EN 13605:2013
English Version
Copper and copper alloys - Copper profiles and profiled
wire for electrical purposes

Cuivre et alliages de cuivre - Profilés et fils profilés en Kupfer und Kupferlegierungen - Profile und profilierte

cuivre pour usages électriques Drähte aus Kupfer für die Anwendung in der
Elektrotechnik
This European Standard was approved by CEN on 12 April 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13605:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)

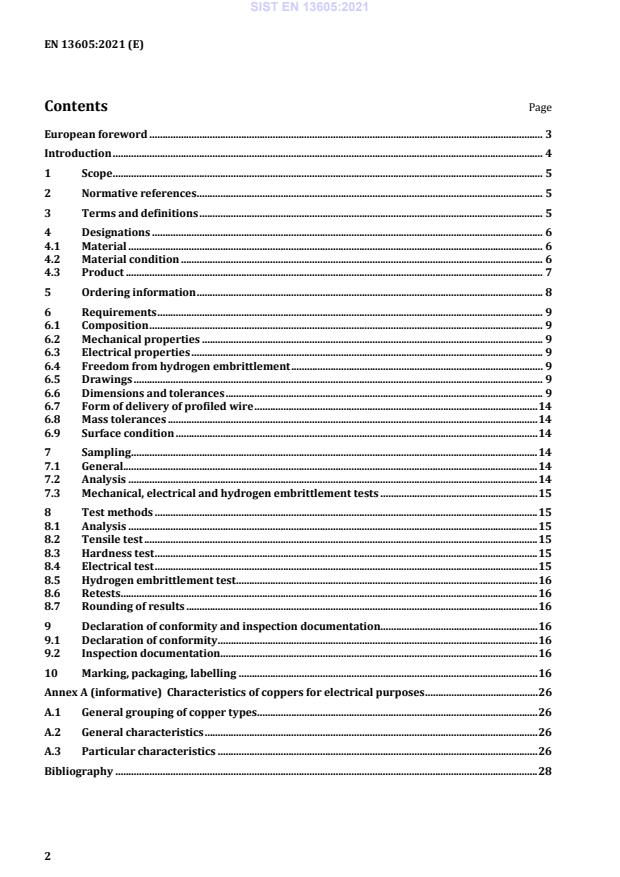

Contents Page

European foreword ...................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Designations ..................................................................................................................................................... 6

4.1 Material .............................................................................................................................................................. 6

4.2 Material condition .......................................................................................................................................... 6

4.3 Product ............................................................................................................................................................... 7

5 Ordering information .................................................................................................................................... 8

6 Requirements ................................................................................................................................................... 9

6.1 Composition ...................................................................................................................................................... 9

6.2 Mechanical properties .................................................................................................................................. 9

6.3 Electrical properties ...................................................................................................................................... 9

6.4 Freedom from hydrogen embrittlement ................................................................................................ 9

6.5 Drawings ............................................................................................................................................................ 9

6.6 Dimensions and tolerances ......................................................................................................................... 9

6.7 Form of delivery of profiled wire ............................................................................................................ 14

6.8 Mass tolerances ............................................................................................................................................. 14

6.9 Surface condition .......................................................................................................................................... 14

7 Sampling ........................................................................................................................................................... 14

7.1 General.............................................................................................................................................................. 14

7.2 Analysis ............................................................................................................................................................ 14

7.3 Mechanical, electrical and hydrogen embrittlement tests ............................................................ 15

8 Test methods .................................................................................................................................................. 15

8.1 Analysis ............................................................................................................................................................ 15

8.2 Tensile test ...................................................................................................................................................... 15

8.3 Hardness test .................................................................................................................................................. 15

8.4 Electrical test .................................................................................................................................................. 15

8.5 Hydrogen embrittlement test ................................................................................................................... 16

8.6 Retests ............................................................................................................................................................... 16

8.7 Rounding of results ...................................................................................................................................... 16

9 Declaration of conformity and inspection documentation............................................................ 16

9.1 Declaration of conformity .......................................................................................................................... 16

9.2 Inspection documentation......................................................................................................................... 16

10 Marking, packaging, labelling .................................................................................................................. 16

Annex A (informative) Characteristics of coppers for electrical purposes ........................................... 26

A.1 General grouping of copper types ........................................................................................................... 26

A.2 General characteristics ............................................................................................................................... 26

A.3 Particular characteristics .......................................................................................................................... 26

Bibliography ................................................................................................................................................................. 28

---------------------- Page: 4 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
European foreword

This document (EN 13605:2021) has been prepared by Technical Committee CEN/TC 133 “Copper and

copper alloys”, the secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by November 2021, and conflicting national standards

shall be withdrawn at the latest by November 2021.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document supersedes EN 13605:2013.

In comparison with the previous edition, the following technical modifications have been made:

— In 6.4, Freedom from hydrogen embrittlement, the alloys Cu-OFE (CW009A) and Cu-PHCE

(CW022A) have been added.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
Introduction

The products specified in this document are those which are especially suitable for electrical purposes,

i.e. with specified electrical properties. Profiles for general purposes are specified in EN 12167.

Annex A (informative) gives guidance on the characteristics of coppers for electrical purposes.

This is one of a series of European Standards for copper products for electrical purposes. Other copper

products are specified as follows:

— EN 13599, Copper and copper alloys — Copper plate, sheet and strip for electrical purposes;

— EN 13600, Copper and copper alloys — Seamless copper tubes for electrical purposes;

— EN 13601, Copper and copper alloys — Copper rod, bar and wire for general electrical purposes;

— EN 13602, Copper and copper alloys — Drawn, round copper wire for the manufacture of electrical

conductors;

— EN 13604, Copper and copper alloys — Semiconductor devices, electronic and vacuum products made

from high conductivity copper.
---------------------- Page: 6 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
1 Scope

This document specifies the composition, property requirements including electrical properties, and

tolerances on dimensions and form for copper profiles and profiled wire for electrical purposes, which

would fit within a circumscribing circle of maximum 180 mm diameter.

The sampling procedures, the test methods for verification of conformity to the requirements of this

document, and the delivery conditions are also specified.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 1976, Copper and copper alloys - Cast unwrought copper products
EN ISO 2626, Copper - Hydrogen embrittlement test (ISO 2626)

EN ISO 6506-1, Metallic materials - Brinell hardness test - Part 1: Test method (ISO 6506-1)

EN ISO 6507-1, Metallic materials - Vickers hardness test - Part 1: Test method (ISO 6507-1)

EN ISO 6892-1, Metallic materials - Tensile testing - Part 1: Method of test at room temperature

(ISO 6892-1)
EN ISO 7438, Metallic materials - Bend test (ISO 7438)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
profile

wrought product of uniform cross-section along its whole length, supplied in straight lengths

Note 1 to entry: It can be solid or hollow:
— if solid, the contour of its cross-section is complex;

— if hollow, the external contour and/or the internal contour of its cross-section is (are) complex.

---------------------- Page: 7 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
3.2
profiled wire

particular type of wire, i.e. a wrought product of uniform cross-section along its whole length, supplied

in coiled form
Note 1 to entry: It can be solid or hollow:
— if solid, the contour of its cross-section is complex;

— if hollow the external contour and/or the internal contour of its cross-section is (are) complex.

3.3
circumscribing circle

smallest circle which completely encloses the contour of the cross-sections of the profile or profiled

wire
4 Designations
4.1 Material
4.1.1 General

The material is designated either by symbol or by number (see Table 1 and Table 2).

4.1.2 Symbols

The material symbol designation is based on the designation system given in ISO 1190-1.

NOTE Although material symbol designations used in this document can be the same as those in other

standards using the designation system given in ISO 1190-1, the detailed composition requirements are not

necessarily the same.
4.1.3 Number

The material number designation is in accordance with the system given in EN 1412.

4.2 Material condition

For the purposes of this document, the following designations, which are in accordance with the system

given in EN 1173, apply for the material condition:

D Material condition for the product as cold worked without specified mechanical properties;

H... Material condition designated by the minimum value of hardness requirement for the product

with mandatory hardness requirements;

R... Material condition designated by the minimum value of tensile strength requirement for the

product with mandatory tensile strength, 0,2 % proof strength and elongation requirements.

Products in the H... condition may be specified to Vickers or Brinell hardness. The material condition

designation H... is the same for both hardness test methods.

Exact conversion between the material conditions designated H... and R... is not possible.

Material condition is designated by only one of the above designations.
---------------------- Page: 8 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
4.3 Product

The product designation provides a standardized pattern of designation from which a rapid and

unequivocal description of a product can be conveyed in communication. It provides mutual

comprehension at the international level with regard to products which meet the requirements of the

relevant European Standard.
The product designation is no substitute for the full content of the document.
The product designation for products to this document shall consist of:
a) denomination (profile or profiled wire);
b) number of this document (EN 13605);
c) material designation, either symbol or number (see Table 1 and Table 2);
d) material condition designation (see Table 3);

e) for profiles or profiled wire, a number, or the number of a fully dimensioned and toleranced

drawing;

f) for profiles, length, either as manufactured length (ML) or fixed length (FL);

g) for profiled wire, form of delivery: coil (Y) or spool (Z).

The derivation of a product designation is shown in Example 1 and another typical product designation

is shown in Example 2.

EXAMPLE 1 Profile for electrical purposes conforming to this document, in material designated either Cu-ETP

or CW004A, in material condition H080, drawing number XY000, manufactured length 3 000 mm, will be

designated as follows:
Profile—EN 13605—Cu-ETP—H080—XY000—3000ML

EXAMPLE 2 Profiled wire for electrical purposes conforming to this document, in material designated either

CuAg0,10 or CW013A in material condition H035, drawing number BC000, in coils, will be designated as follows:

Profiled wire EN 13605—CuAg0,10—H035—BC000—Y
Profiled wire EN 13605—CW013A—H035—BC000—Y
---------------------- Page: 9 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
5 Ordering information

In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser

and the supplier, the purchaser shall state on his enquiry and order the following information:

a) quantity of product required (mass, number of profiles or number of coils or spools);

b) denomination (profile or profiled wire);
c) number of this document (EN 13605);
d) material designation (see Table 1 and Table 2);
e) material condition designation (see 4.2 and Table 3);
f) number of the profile or fully dimensioned and toleranced drawing;

g) for profiles, nominal length, either as manufactured length (ML) or fixed length (FL), (see 6.6.4);

h) for profiled wire, form of delivery: pancake, traverse wound, bunched coils or on spools (see 6.7);

i) coil dimensions, mass or spool type;

j) for profiled wire, the direction of coiling to be indicated on the drawing (see 6.5);

k) whether Brinell or Vickers hardness test is mandatory;

It is recommended that the product designation as described in 4.3 is used for b) to h).

In addition, the purchaser shall also state on the enquiry and order any of the following, if required:

l) whether first articles are required (see 6.5);
m) for profiles, whether sawn or sheared ends are required (see 6.6.4);
n) whether special surface conditions are required (see 6.9);
o) for profiled wire, whether form tolerances are required;
p) for profiled wire, whether specific length is required;
q) whether a declaration of conformity is required (see 9.1);
r) whether an inspection document is required, and if so, which type (see 9.2);

s) whether there are any special requirements for marking, packaging or labelling (see Clause 10).

EXAMPLE 1 Ordering details for 1 000 pieces of profiles for electrical purposes conforming to EN 13605, in

material designated either Cu-ETP or CW004A, in material condition H080, drawing number XY123,

manufactured length 3 000 mm:
1 000 pieces Profile EN 13605—Cu-ETP—H080—XY123—3 000ML
1 000 pieces Profile EN 13605—CW004A—H080—XY123—3 000ML
---------------------- Page: 10 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)

EXAMPLE 2 Ordering details for 2 000 kg of profiled wire for electrical purposes conforming to EN 13605, in

material designated either CuAg0,10 or CW013A, in material condition H035, drawing number BC123, in 250 kg

coils:
2 000 kg Profiled wire EN 13605—CuAg0,10—H035—BC123—Y—250
2 000 kg Profiled wire EN 13605—CW013A—H035—BC123—Y—250
6 Requirements
6.1 Composition

The composition shall conform to the requirements for the appropriate material given in Table 1 and

Table 2.
NOTE For characteristics of coppers for electrical purposes, see Annex A.
6.2 Mechanical properties

The mechanical properties shall conform to the appropriate requirements given in Table 3. The tests

shall be carried out in accordance with either 8.2 (tensile test) or 8.3 (hardness test).

6.3 Electrical properties

The electrical properties shall conform to the appropriate requirements given in Table 4. The tests shall

be carried out in accordance with 8.4.
6.4 Freedom from hydrogen embrittlement

Profiles and profiled wire in copper grades Cu-OF1 (CW007A), Cu-OF (CW008A), Cu-OFE (CW009A),

CuAg0,04P (CW014A), CuAg0,07P (CW015A), CuAg0,10P (CW016A), CuAg0,04(OF) (CW017A),

CuAg0,07(OF) (CW018A), CuAg0,10(OF) (CW019A), Cu-PHC (CW020A), Cu-HCP (CW021A) and Cu-

PHCE (CW022A), shall show no evidence of cracking, when tested and visually examined in accordance

with 8.5.
6.5 Drawings

Unless the profile or profiled wire can be described by nominal dimensions, the purchaser shall supply

a drawing of the profile or profiled wire showing the dimensions and tolerances and in the case of

profiled wire, the direction of coiling and position of the cross-section within the coil.

Special surface requirements, e.g. contact areas, shall be indicated on the drawing.

From the data submitted, the manufacturer of the profile or profiled wire shall prepare a drawing which

includes the dimensions and tolerances. This drawing shall be checked and approved by the customer

and returned to the manufacturer before die-sinking is started.

By agreement between the purchaser and the manufacturer, first articles shall be sent to the purchaser

for approval before commencing bulk production.
6.6 Dimensions and tolerances
6.6.1 General

The tolerances on dimensions and form apply to profiles and tolerances on dimensions apply to profiled

wires, within a circumscribing circle with a maximum diameter of 180 mm (see Figure 1).

---------------------- Page: 11 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
Dimensions in millimetres
Figure 1 — Profile within a circumscribing circle

The tolerances specified on drawings shall conform to the requirements of this document. If no

tolerances are specified on the drawings of profiles, the specifications in this document apply. It is

recommended that to make a suitable reference to this document on the drawings.

If required, tighter tolerances than those specified shall be agreed between the purchaser and the

supplier.

NOTE Dimensional tolerances are influenced by the fabrication accuracy of the tools, tool wear, and

unavoidable deviations caused by fabrication.
6.6.2 Tolerances on cross-sectional dimensions

6.6.2.1 Profiles and profiled wires with a ratio b or h to s less than 20 : 1 shall conform to

max. max. min.
the requirements given in Table 5 (see Figure 2).

6.6.2.2 Profiles and profiled wires with a ratio b or h to s equal to or greater than 20 : 1

max. max. min.
shall conform to the requirements given in Table 6 (see Figure 2).
Figure 2 — Cross-sectional dimensions

6.6.2.3 The thicknesses of profiles and profiled wires shall conform to the tolerances given in

Table 7.

For hollow profiles and hollow profiled wires the wall thickness shall conform to a tolerance of ± 10 %

of its nominal dimension.

6.6.2.4 Radii, dimensioned in the drawing, shall conform to the tolerances given in Table 8.

6.6.2.5 The radii of sharp corners shall conform to the maximum values given in Table 9.

---------------------- Page: 12 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
6.6.3 Tolerances on form
6.6.3.1 General
The form tolerances given in 6.6.3.2 to 6.6.3.7 apply to:

a) profiles, but not profiled wires, whose cross-sections would fit within a circumscribing circle from

15 mm up to and including 180 mm; if necessary form tolerances for profiled wire shall be agreed

between the supplier and the purchaser;
b) all material conditions except those designated H035/R200 (annealed).

The deviation shall be measured with the profile supported on a horizontal reference plane such that

the deviation is minimized by the mass of the profile.
6.6.3.2 Twist

Profiles shall be straightened to conform to the twist tolerance v which is determined by multiplying the

width b of the profile with the coefficient f given in Table 10 as a function of the diameter of the

circumscribing circle (see Figure 3).
Key
1 reference plane twist tolerances v = b × f
Y definition for Y
b width
f coefficient
l length
Figure 3 — Twist of a profile
---------------------- Page: 13 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
6.6.3.3 Flatness

The flatness of profiles shall conform to the appropriate tolerance illustrated in Figure 4 and Figure 5.

Figure 4 — Indication of flatness on a U-Profile
Figure 5 — Indication of flatness on a H-Profile
6.6.3.4 Perpendicularity and angularity

The perpendicularity and angularity of profiles shall conform to the appropriate tolerance illustrated in

Figure 6 and Figure 7.
Figure 6 — Indication of angularity
---------------------- Page: 14 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
Figure 7 — Indication of perpendicularity
6.6.3.5 Deviation from circular form

In the case of round hollow profiles, the tolerance of the outside diameter includes the deviation from

circular form.
6.6.3.6 Concentricity

The concentricity tolerance of symmetrical hollow profiles is included in the wall thickness tolerance

(see 6.6.2.3).
6.6.3.7 Straightness

Profiles shall be straightened to conform to the straightness tolerances h and h given in Table 11 (see

1 2
Figure 8).
Figure 8 — Indication of straightness tolerances
6.6.4 Length of profiles
6.6.4.1 General

Profiles in accordance with this document shall be supplied either in manufactured lengths or in fixed

lengths, with ends either sawn or sheared.
6.6.4.2 Tolerances on manufactured lengths

Manufactured lengths (ML) shall be supplied in the size ranges and with the tolerances and shorter

lengths as given in Table 12.
6.6.4.3 Tolerances on fixed lengths

The lengths supplied as fixed lengths (FL) shall conform to the tolerances given in Table 13.

The deviation from squareness of the cut shall be a maximum of 2 % of the width or diameter and is

included in the fixed length tolerance.
---------------------- Page: 15 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
6.7 Form of delivery of profiled wire
Profiled wire shall be delivered in coiled form of the following types:
— pancake;
— traverse wound;
— bunched;
— on spools.

The direction of coiling and the position of the cross-section within the coil shall be indicated on the

drawing.

The type of coil, its inside and/or outside diameter, its width or its mass shall be specified by the

purchaser at the time of enquiry and order [see Clause 5 list entry h) and Clause 5 list entry i)].

6.8 Mass tolerances

The mass of a consignment shall not exceed ± 10 % referred to the ordered quantity.

6.9 Surface condition

The products shall be clean and free from injurious defects, which shall be specified by agreement

between the purchaser and the supplier at the time of enquiry and order. A superficial film of residual

lubricant is normally present on cold worked products and is permissible unless otherwise specified.

Discolouration is permissible as long as it does not impair utilization.

Special requirements shall be agreed between the purchaser and the supplier [see Clause 5 list

entry m)] and shall then be indicated on the drawing as appropriate.
7 Sampling
7.1 General

When required (e.g. if necessary in accordance with specified procedures of a supplier's quality

management system, or when the purchaser requests inspection documents with test results, or for use

in cases of dispute), an inspection lot shall be sampled in accordance with 7.2 and 7.3.

7.2 Analysis

The sampling rate shall be in accordance with Table 14. A test sample, depending on the analytical

technique to be employed, shall be prepared from each sampling unit and used for the determination of

the composition.

When preparing the test sample, care should be taken to avoid contaminating or overheating. Carbide

tipped tools are recommended; steel tools, if used, should be made of magnetic material to assist in the

subsequent removal of extraneous iron. If the test samples are in finely divided form (e.g. drillings,

millings), they should be treated carefully with a strong magnet to remove any particles of iron

introduced during preparation.

In cases of dispute concerning the results of analysis, the full procedure given in ISO 1811-2 should be

followed.

Results may be used from analyses carried out at an earlier stage of manufacturing the product, e.g. at

the casting stage, if the material identity is maintained and if the quality management system of the

manufacturer is certified, e.g. as conforming to EN ISO 9001.
---------------------- Page: 16 ----------------------
SIST EN 13605:2021
EN 13605:2021 (E)
7.3 Mechanical, electrical and hydrogen embrittlement tests
Unless otherwise specified, the sampling rate for
...

SLOVENSKI STANDARD
oSIST prEN 13605:2020
01-april-2020
Baker in bakrove zlitine - Profili in profilirana žica iz bakra za uporabo v
elektrotehniki

Copper and copper alloys - Copper profiles and profiled wire for electrical purposes

Kupfer und Kupferlegierungen - Profile und profilierte Drähte aus Kupfer für die
Anwendung in der Elektrotechnik

Cuivre et alliages de cuivre - Profilés et fils profilés en cuivre pour usages électriques

Ta slovenski standard je istoveten z: prEN 13605
ICS:
29.060.10 Žice Wires
77.150.30 Bakreni izdelki Copper products
oSIST prEN 13605:2020 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 13605:2020
---------------------- Page: 2 ----------------------
oSIST prEN 13605:2020
DRAFT
EUROPEAN STANDARD
prEN 13605
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2020
ICS 77.150.30 Will supersede EN 13605:2013
English Version
Copper and copper alloys - Copper profiles and profiled
wire for electrical purposes

Cuivre et alliages de cuivre - Profilés et fils profilés en Kupfer und Kupferlegierungen - Profile und profilierte

cuivre pour usages électriques Drähte aus Kupfer für die Anwendung in der
Elektrotechnik

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 133.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13605:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
Contents Page

European foreword ...................................................................................................................................................... 4

Introduction .................................................................................................................................................................... 5

1 Scope .................................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 6

4 Designations ..................................................................................................................................................... 7

4.1 Material .............................................................................................................................................................. 7

4.1.1 General................................................................................................................................................................ 7

4.1.2 Symbols .............................................................................................................................................................. 7

4.1.3 Number ............................................................................................................................................................... 7

4.2 1Material condition........................................................................................................................................ 7

4.3 Product ............................................................................................................................................................... 8

5 Ordering information .................................................................................................................................... 9

6 Requirements ................................................................................................................................................. 10

6.1 Composition .................................................................................................................................................... 10

6.2 Mechanical properties ................................................................................................................................ 10

6.3 Electrical properties .................................................................................................................................... 10

6.4 Freedom from hydrogen embrittlement .............................................................................................. 10

6.5 Drawings .......................................................................................................................................................... 10

6.6 Dimensions and tolerances ....................................................................................................................... 11

6.6.1 General.............................................................................................................................................................. 11

6.6.2 Tolerances on cross-sectional dimensions .......................................................................................... 11

6.6.3 Tolerances on form ...................................................................................................................................... 12

6.6.4 Length of profiles .......................................................................................................................................... 14

6.7 Form of delivery of profiled wire ............................................................................................................ 15

6.8 Mass tolerances ............................................................................................................................................. 15

6.9 Surface condition .......................................................................................................................................... 15

7 Sampling ........................................................................................................................................................... 15

7.1 General.............................................................................................................................................................. 15

7.2 Analysis ............................................................................................................................................................ 15

7.3 Mechanical, electrical and hydrogen embrittlement tests ............................................................ 16

8 Test methods .................................................................................................................................................. 16

8.1 Analysis ............................................................................................................................................................ 16

8.2 Tensile test ...................................................................................................................................................... 16

8.3 Hardness test .................................................................................................................................................. 16

8.4 Electrical test .................................................................................................................................................. 16

8.5 Hydrogen embrittlement test ................................................................................................................... 17

8.6 Retests ............................................................................................................................................................... 17

8.7 Rounding of results ...................................................................................................................................... 17

9 Declaration of conformity and inspection documentation............................................................ 17

---------------------- Page: 4 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)

9.1 Declaration of conformity ......................................................................................................................... 17

9.2 Inspection documentation ........................................................................................................................ 17

10 Marking, packaging, labelling .................................................................................................................. 17

Annex A (informative) Characteristics of coppers for electrical purposes .......................................... 27

A.1 General grouping of copper types .......................................................................................................... 27

A.2 General characteristics ............................................................................................................................... 27

A.3 Particular characteristics .......................................................................................................................... 27

Bibliography ................................................................................................................................................................. 29

---------------------- Page: 5 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
European foreword

This document (prEN 13605:2020) has been prepared by Technical Committee CEN/TC 133 “Copper

and copper alloys”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13605:2013.

In comparison with the previous edition, the following technical modifications have been made:

• In 6.4, Freedom from hydrogen embrittlement, the alloys Cu-OFE (CW009A) and Cu-PHCE

(CW022A) have been added.
---------------------- Page: 6 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
Introduction

The products specified in this document are those which are especially suitable for electrical purposes,

i.e. with specified electrical properties. Profiles for general purposes are specified in EN 12167.

Annex A (informative) gives guidance on the characteristics of coppers for electrical purposes.

This is one of a series of European Standards for copper products for electrical purposes. Other copper

products are specified as follows:

• EN 13599, Copper and copper alloys — Copper plate, sheet and strip for electrical purposes

• EN 13600, Copper and copper alloys — Seamless copper tubes for electrical purposes

• EN 13601, Copper and copper alloys — Copper rod, bar and wire for general electrical purposes

• EN 13602, Copper and copper alloys — Drawn, round copper wire for the manufacture of electrical

conductors

• EN 13604, Copper and copper alloys — Semiconductor devices, electronic and vacuum products made

from high conductivity copper
---------------------- Page: 7 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
1 Scope

This document specifies the composition, property requirements including electrical properties, and

tolerances on dimensions and form for copper profiles and profiled wire for electrical purposes, which

would fit within a circumscribing circle of maximum 180 mm diameter.

The sampling procedures, the test methods for verification of conformity to the requirements of this

document, and the delivery conditions are also specified.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 1655, Copper and copper alloys - Declarations of conformity
EN 1976, Copper and copper alloys - Cast unwrought copper products
EN 10204, Metallic products - Types of inspection documents
EN ISO 2626, Copper - Hydrogen embrittlement test (ISO 2626)

EN ISO 6506-1, Metallic materials - Brinell hardness test - Part 1: Test method (ISO 6506-1)

EN ISO 6507-1, Metallic materials - Vickers hardness test - Part 1: Test method (ISO 6507-1)

EN ISO 6892-1, Metallic materials - Tensile testing - Part 1: Method of test at room temperature (ISO

6892-1)
EN ISO 7438, Metallic materials - Bend test (ISO 7438)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
profile

wrought product of uniform cross-section along its whole length, supplied in straight lengths

Note 1 to entry: It may be solid or hollow:
• if solid, the contour of its cross-section is complex;

• if hollow, the external contour and/or the internal contour of its cross-section is (are) complex.

---------------------- Page: 8 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
3.2
profiled wire

particular type of wire, i.e. a wrought product of uniform cross-section along its whole length, supplied

in coiled form
Note 1 to entry: It may be solid or hollow:
• if solid, the contour of its cross-section is complex;

• if hollow the external contour and/or the internal contour of its cross-section is (are) complex.

3.3
circumscribing circle

smallest circle which completely encloses the contour of the cross-sections of the profile or profiled

wire
4 Designations
4.1 Material
4.1.1 General

The material is designated either by symbol or by number (see Table 1 and Table 2).

4.1.2 Symbols

The material symbol designation is based on the designation system given in ISO 1190-1.

NOTE Although material symbol designations used in this standard might be the same as those in other

standards using the designation system given in ISO 1190-1, the detailed composition requirements are not

necessarily the same.
4.1.3 Number

The material number designation is in accordance with the system given in EN 1412.

4.2 1Material condition

For the purposes of this standard, the following designations, which are in accordance with the system

given in EN 1173, apply for the material condition:

D Material condition for the product as drawn without specified mechanical properties;

H... Material condition designated by the minimum value of hardness requirement for the product

with mandatory hardness requirements;

R... Material condition designated by the minimum value of tensile strength requirement for the

product with mandatory tensile strength, 0,2 % proof strength and elongation requirements.

Products in the H... condition may be specified to Vickers or Brinell hardness. The material condition

designation H... is the same for both hardness test methods.

Exact conversion between the material conditions designated H... and R... is not possible.

Material condition is designated by only one of the above designations.
---------------------- Page: 9 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
4.3 Product

The product designation provides a standardized pattern of designation from which a rapid and

unequivocal description of a product can be conveyed in communication. It provides mutual

comprehension at the international level with regard to products which meet the requirements of the

relevant European Standard.
The product designation is no substitute for the full content of the document.
The product designation for products to this document shall consist of:
a) denomination (profile or profiled wire);
b) number of this European Standard (EN 13605);
c) material designation, either symbol or number (see Table 1 and Table 2);
d) material condition designation (see Table 3);

e) for profiles or profiled wire, a number, or the number of a fully dimensioned and toleranced

drawing;

f) for profiles, length, either as manufactured length (ML) or fixed length (FL);

g) for profiled wire, form of delivery: coil (Y) or spool (Z).

The derivation of a product designation is shown in Example 1 and another typical product designation

is shown in Example 2.

EXAMPLE 1 Profile for electrical purposes conforming to this standard, in material designated either Cu-ETP

or CW004A, in material condition H080, drawing number XY000, manufactured length 3 000 mm, will be

designated as follows:
Profile — EN 13605 — Cu-ETP — H080 — XY000 — 3000ML
or
Profile — EN 13605 — CW004A — H080 — XY000 — 3000ML
Denomination
Number of this European
Standard
Material
designation
Material condition
designation
Drawing
number
Length in
millimetres
---------------------- Page: 10 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)

EXAMPLE 2 Profiled wire for electrical purposes conforming to this standard, in material designated either

CuAg0,10 or CW013A in material condition H035, drawing number BC000, in coils, will be designated as follows:

Profiled wire EN 13605 — CuAg0,10 — H035 — BC000 — Y
Profiled wire EN 13605 — CW013A — H035 — BC000 — Y
5 Ordering information

In order to facilitate the enquiry, order and confirmation of order procedures between the purchaser

and the supplier, the purchaser shall state on his enquiry and order the following information:

a) quantity of product required (mass, number of profiles or number of coils or spools);

b) denomination (profile or profiled wire);
c) number of this European Standard (EN 13605);
d) material designation (see Table 1 and Table 2);
e) material condition designation (see 4.2 and Table 3);
f) number of the profile or fully dimensioned and toleranced drawing;

g) for profiles, nominal length, either as manufactured length (ML) or fixed length (FL), see 6.6.4;

h) for profiled wire, form of delivery: pancake, traverse wound, bunched coils or on spools (see 6.7);

i) coil dimensions, mass or spool type;

j) for profiled wire, the direction of coiling to be indicated on the drawing (see 6.5);

k) whether Brinell or Vickers hardness test is mandatory;

It is recommended that the product designation as described in 4.3 is used for b) to h).

In addition, the purchaser shall also state on the enquiry and order any of the following, if required:

l) whether first articles are required (see 6.5);
m) for profiles, whether sawn or sheared ends are required (see 6.6.4);
n) whether special surface conditions are required (see 6.9);
o) for profiled wire, whether form tolerances are required;
p) for profiled wire, whether specific length is required;
q) whether a declaration of conformity is required (see 9.1);
r) whether an inspection document is required, and if so, which type (see 9.2);

s) whether there are any special requirements for marking, packaging or labelling (see Clause 10).

---------------------- Page: 11 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)

EXAMPLE 1 Ordering details for 1 000 pieces of profiles for electrical purposes conforming to EN 13605, in

material designated either Cu-ETP or CW004A, in material condition H080, drawing number XY123,

manufactured length 3 000 mm:
1 000 pieces Profile EN 13605 — Cu-ETP — H080 — XY123 — 3 000ML
1 000 pieces Profile EN 13605 — CW004A — H080 — XY123 — 3 000ML

EXAMPLE 2 Ordering details for 2 000 kg of profiled wire for electrical purposes conforming to EN 13605, in

material designated either CuAg0,10 or CW013A, in material condition H035, drawing number BC123, in 250 kg

coils:
2 000 kg Profiled wire EN 13605 — CuAg0,10 — H035 — BC123 — Y—250
2 000 kg Profiled wire EN 13605 — CW013A — H035 — BC123 — Y—250
6 Requirements
6.1 Composition

The composition shall conform to the requirements for the appropriate material given in Table 1 and

Table 2.
NOTE For characteristics of coppers for electrical purposes, see Annex A.
6.2 Mechanical properties

The mechanical properties shall conform to the appropriate requirements given in Table 3. The tests

shall be carried out in accordance with either 8.2 (tensile test) or 8.3 (hardness test).

6.3 Electrical properties

The electrical properties shall conform to the appropriate requirements given in Table 4. The tests shall

be carried out in accordance with 8.4.
6.4 Freedom from hydrogen embrittlement

Profiles and profiled wire in copper grades Cu-OF1 (CW007A), Cu-OF (CW008A), Cu-OFE (CW009A),

CuAg0,04P (CW014A), CuAg0,07P (CW015A), CuAg0,10P (CW016A), CuAg0,04(OF) (CW017A),

CuAg0,07(OF) (CW018A), CuAg0,10(OF) (CW019A), Cu-PHC (CW020A), Cu-HCP (CW021A) and Cu-

PHCE (CW022A), shall show no evidence of cracking, when tested and visually examined in accordance

with 8.5.
6.5 Drawings

Unless the profile or profiled wire can be described by nominal dimensions, the purchaser shall supply

a drawing of the profile or profiled wire showing the dimensions and tolerances and in the case of

profiled wire, the direction of coiling and position of the cross-section within the coil.

Special surface requirements, e.g. contact areas, shall be indicated on the drawing.

From the data submitted, the manufacturer of the profile or profiled wire shall prepare a drawing which

includes the dimensions and tolerances. This drawing shall be checked and approved by the customer

and returned to the manufacturer before die-sinking is started.
---------------------- Page: 12 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)

By agreement between the purchaser and the manufacturer, first articles shall be sent to the purchaser

for approval before commencing bulk production.
6.6 Dimensions and tolerances
6.6.1 General

The tolerances on dimensions and form apply to profiles and tolerances on dimensions apply to profiled

wires, within a circumscribing circle with a maximum diameter of 180 mm (see Figure 1).

Dimensions in millimetres
Figure 1 — Profile within a circumscribing circle

The tolerances specified on drawings shall conform to the requirements of this standard. If no

tolerances are specified on the drawings of profiles, the specifications in this standard apply. It is

advisable to make a suitable reference to this standard on the drawings.

If required, tighter tolerances than those specified shall be agreed between the purchaser and the

supplier.

NOTE Dimensional tolerances are influenced by the fabrication accuracy of the tools, tool wear, and

unavoidable deviations caused by fabrication.
6.6.2 Tolerances on cross-sectional dimensions

6.6.2.1 Profiles and profiled wires with a ratio b or h to s less than 20 : 1 shall conform to

max. max. min.
the requirements given in Table 5 (see Figure 2).

6.6.2.2 Profiles and profiled wires with a ratio b or h to s equal to or greater than 20 : 1

max. max. min.
shall conform to the requirements given in Table 6 (see Figure 2).
Figure 2 — Cross-sectional dimensions
---------------------- Page: 13 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)

6.6.2.3 The thicknesses of profiles and profiled wires shall conform to the tolerances given in

Table 7.

For hollow profiles and hollow profiled wires the wall thickness shall conform to a tolerance of ± 10 %

of its nominal dimension.

6.6.2.4 Radii, dimensioned in the drawing, shall conform to the tolerances given in Table 8.

6.6.2.5 The radii of sharp corners shall conform to the maximum values given in Table 9.

6.6.3 Tolerances on form
6.6.3.1 General
The form tolerances given in 6.6.3.2 to 6.6.3.7 apply to:

a) profiles, but not profiled wires, whose cross-sections would fit within a circumscribing circle from

15 mm up to and including 180 mm; if necessary form tolerances for profiled wire shall be agreed

between the supplier and the purchaser;
b) all material conditions except those designated H035/R200 (annealed).

The deviation shall be measured with the profile supported on a horizontal reference plane such that

the deviation is minimized by the mass of the profile.
6.6.3.2 Twist

Profiles shall be straightened to conform to the twist tolerance v which is determined by multiplying the

width b of the profile with the coefficient f given in Table 10 as a function of the diameter of the

circumscribing circle (see Figure 3).
Key
X reference plane twist tolerances v = b × f
Y definition for Y
where
b is the width
f is a coefficient
l is the length
Figure 3 — Twist of a profile
---------------------- Page: 14 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
6.6.3.3 Flatness

The flatness of profiles shall conform to the appropriate tolerance illustrated in Figure 4 and Figure 5.

Figure 4 — Indication of flatness on a U-Profile
Figure 5 — Indication of flatness on a H-Profile
6.6.3.4 Perpendicularity and angularity

The perpendicularity and angularity of profiles shall conform to the appropriate tolerance illustrated in

Figure 6 and Figure 7.
Figure 6 — Indication of angularity
---------------------- Page: 15 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
Figure 7 — Indication of perpendicularity
6.6.3.5 Deviation from circular form

In the case of round hollow profiles, the tolerance of the outside diameter includes the deviation from

circular form.
6.6.3.6 Concentricity

The concentricity tolerance of symmetrical hollow profiles is included in the wall thickness tolerance

(see 6.6.2.3).
6.6.3.7 Straightness

Profiles shall be straightened to conform to the straightness tolerances h and h given in Table 11 (see

1 2
Figure 8).
Figure 8 — Indication of straightness tolerances
6.6.4 Length of profiles
6.6.4.1 Tolerances on manufactured lengths

Profiles in accordance with this document shall be supplied either in manufactured lengths or in fixed

lengths, with ends either sawn or sheared.
6.6.4.2 Tolerances on manufactured lengths

Manufactured lengths (ML) shall be supplied in the size ranges and with the tolerances and shorter

lengths as given in Table 12.
6.6.4.3 Tolerances on fixed lengths

The lengths supplied as fixed lengths (FL) shall conform to the tolerances given in Table 13.

The deviation from squareness of the cut shall be a maximum of 2 % of the width or diameter and is

included in the fixed length tolerance.
---------------------- Page: 16 ----------------------
oSIST prEN 13605:2020
prEN 13605:2020 (E)
6.7 Form of delivery of profiled wire
Profiled wire shall be delivered in coiled form of the following types:
• pancake;
• traverse wound;
• bunched;
• on spools.

The direction of coiling and the position of the cross-section within the coil shall be indicated on the

drawing.

The type of coil, its inside and/or outside diameter, its width or its mass shall be specified by the

purchaser at the time of enquiry and order [see Clause 5 list entry h) and Clause 5 list entry i)].

6.8 Mass tolerances

The mass of a consignment shall not exceed ± 10 % referred to the ordered quantity.

6.9 Surface condition

The products shall be clean and free from injurious defects, which shall be specified by agreement

between the purchaser and the supplier at the time of enquiry and order. A superficial film of residual

lubricant is normally present on cold worked products and is permissible unless otherwise specified.

Discolouration is permissible as long as it does not impair utilization.

Special requirements shall be agreed between the purchaser and the supplier [see Clause 5 list

entry m)] and shall then be indicated on the drawing as appropriate.
7 Sampling
7.1 General

When required (e.g. if necessary in accordance with specified procedures of a supplier's quality

management system, or when the purchaser requests inspection documents with test results

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
