SIST EN 15654-2:2019
(Main)Railway applications - Measurement of vertical forces on wheels and wheelsets - Part 2: Test in workshop for new, modified and maintained vehicles
Railway applications - Measurement of vertical forces on wheels and wheelsets - Part 2: Test in workshop for new, modified and maintained vehicles
This European Standard applies to the measurement of vertical wheel forces of railway vehicles in maintenance workshops and at manufacturing sites. It also deals with derived quantities that are used to describe the vehicle’s vertical wheel force distribution.
The standard defines the assessment and acceptance criteria for the measurement process. The requirements for this assessment support the specification, the design and the operation of the measurement process. It is considered that the measurements are made either statically or quasi-statically. This standard is applicable to all railway vehicles.
The commercial weighing of vehicles is not covered by the scope of this standard, nor does it define in which cases the wheel forces of a vehicle will be measured.
Bahnanwendungen - Messung von vertikalen Rad- und Radsatzkräften - Teil 2: Test im Werk für neue, umgebaute und instandgesetzte Fahrzeuge
Diese Europäische Norm gilt für die Messung der Radaufstandskräfte von Schienenfahrzeugen in Instandsetzungswerkstätten und an Produktionsstätten. Sie behandelt außerdem abgeleitete Größen, die zur Beschreibung der Radaufstandskraftverteilung des Fahrzeugs verwendet werden.
Die Norm legt die Beurteilungs- und Zulassungskriterien für den Messprozess fest. Die Anforderungen für diese Beurteilung unterstützten die Spezifikation, die Auslegung und die Durchführung des Messprozesses. Es wird berücksichtigt, dass die Messungen entweder statisch oder quasi-statisch erfolgen. Diese Norm gilt für alle Schienenfahrzeuge.
Das kommerzielle Wiegen von Fahrzeugen fällt nicht in den Anwendungsbereich dieser Norm, in der auch nicht festlegt wird, in welchen Fällen die Radaufstandskräfte eines Fahrzeugs gemessen werden.
Applications ferroviaires - Mesurage des forces verticales à la roue et à l'essieu - Partie 2 : Essai en atelier des véhicules neufs, modifiés ou maintenus
La présente Norme européenne s'applique à la mesure des charges verticales aux roues des véhicules ferroviaires dans les ateliers de maintenance et sur les sites de fabrication. Elle aborde également les grandeurs dérivées utilisées pour décrire la répartition des charges verticales aux roues d’un véhicule.
Cette norme définit les critères d'évaluation et d'acceptation pour le processus de mesure. Les exigences d'évaluation portent sur la spécification, la conception et le fonctionnement du processus de mesure. On considère que les mesures sont réalisées de manière statique ou quasi statique. La présente norme s'applique à tous les véhicules ferroviaires.
Le poids en service commercial des véhicules n'est pas couvert par le domaine d'application de la présente Norme, laquelle ne définit pas non plus dans quels cas les charges aux roues d'un véhicule sont mesurées.
Železniške naprave - Meritve vertikalnih kolesnih in osnih obremenitev - 2. del: Preskus v delavnici za nova, spremenjena in vzdrževana vozila
Ta evropski standard se uporablja za merjenje vertikalnih kolesnih obremenitev železniških vozil v vzdrževalnih delavnicah in proizvodnih obratih. Obravnava tudi izpeljane količine, ki se uporabljajo za opis porazdelitve vertikalne obremenitve koles vozila.
Standard določa kriterije za ocenjevanje in sprejemljivost merilnega postopka. Zahteve za to oceno podpirajo specifikacijo, zasnovo in delovanje merilnega postopka. Meritve se opravljajo bodisi statično bodisi kvazistatično. Ta standard se uporablja za vsa železniška vozila.
Komercialno tehtanje vozil ne spada na področje uporabe tega standarda niti ne določa, v katerih primerih bodo merjene kolesne obremenitve vozila.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 15654-2:2019
01-junij-2019
Železniške naprave - Meritve vertikalnih kolesnih in osnih obremenitev - 2. del:
Preskus v delavnici za nova, spremenjena in vzdrževana vozila
Railway applications - Measurement of vertical forces on wheels and wheelsets - Part 2:
Test in workshop for new, modified and maintained vehicles
Bahnanwendungen - Messung von vertikalen Rad- und Radsatzkräften - Teil 2: Test im
Werk für neue, umgebaute und instandgesetzte Fahrzeuge
Applications ferroviaires - Mesurage des forces verticales à la roue et à l'essieu - Partie 2
: Essai en atelier des véhicules neufs, modifiés ou maintenus
Ta slovenski standard je istoveten z: EN 15654-2:2019
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
SIST EN 15654-2:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 15654-2:2019
---------------------- Page: 2 ----------------------
SIST EN 15654-2:2019
EN 15654-2
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2019
EUROPÄISCHE NORM
ICS 45.060.01
English Version
Railway applications - Measurement of vertical forces on
wheels and wheelsets - Part 2: Test in workshop for new,
modified and maintained vehicles
Applications ferroviaires - Mesurage des forces Bahnanwendungen - Messung von vertikalen Rad- und
verticales à la roue et à l'essieu - Partie 2 : Essai en Radsatzkräften - Teil 2: Test im Werk für neue,
atelier des véhicules neufs, modifiés ou maintenus umgebaute und instandgesetzte Fahrzeuge
This European Standard was approved by CEN on 28 February 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15654-2:2019 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)

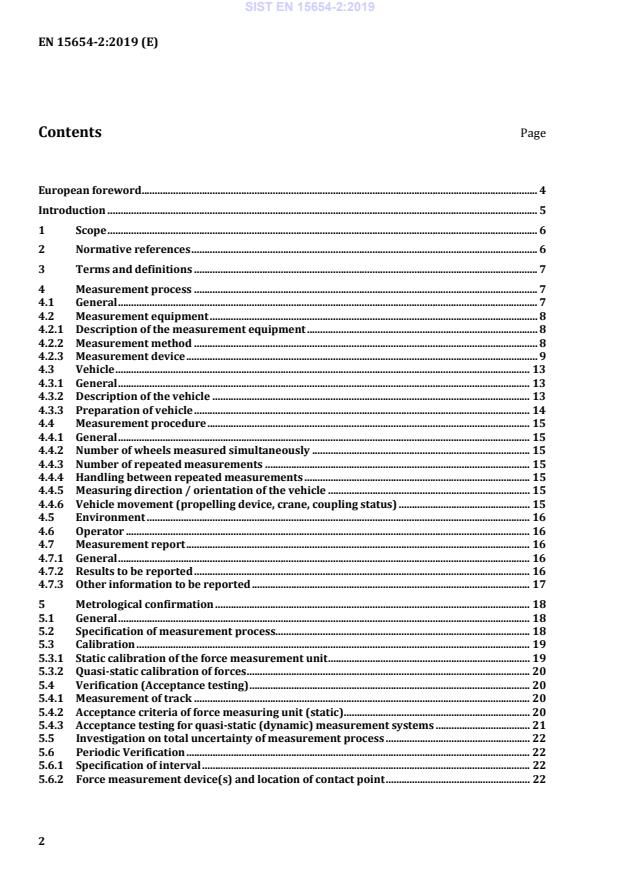

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Measurement process . 7
4.1 General . 7
4.2 Measurement equipment . 8
4.2.1 Description of the measurement equipment . 8
4.2.2 Measurement method . 8
4.2.3 Measurement device . 9
4.3 Vehicle . 13
4.3.1 General . 13
4.3.2 Description of the vehicle . 13
4.3.3 Preparation of vehicle . 14
4.4 Measurement procedure . 15
4.4.1 General . 15
4.4.2 Number of wheels measured simultaneously . 15
4.4.3 Number of repeated measurements . 15
4.4.4 Handling between repeated measurements . 15
4.4.5 Measuring direction / orientation of the vehicle . 15
4.4.6 Vehicle movement (propelling device, crane, coupling status) . 15
4.5 Environment . 16
4.6 Operator . 16
4.7 Measurement report . 16
4.7.1 General . 16
4.7.2 Results to be reported . 16
4.7.3 Other information to be reported . 17
5 Metrological confirmation . 18
5.1 General . 18
5.2 Specification of measurement process . 18
5.3 Calibration . 19
5.3.1 Static calibration of the force measurement unit . 19
5.3.2 Quasi-static calibration of forces . 20
5.4 Verification (Acceptance testing) . 20
5.4.1 Measurement of track . 20
5.4.2 Acceptance criteria of force measuring unit (static) . 20
5.4.3 Acceptance testing for quasi-static (dynamic) measurement systems . 21
5.5 Investigation on total uncertainty of measurement process . 22
5.6 Periodic Verification . 22
5.6.1 Specification of interval . 22
5.6.2 Force measurement device(s) and location of contact point . 22
2
---------------------- Page: 4 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
Annex A (normative) Symbols and units . 23
Annex B (informative) Influence Parameters / components of uncertainty . 26
B.1 Influence of transverse displacement . 26
B.2 Influence of cant/cross level . 26
B.3 Influence of twist . 26
B.4 Influence of damping . 29
B.5 Cross wind effects . 30
B.6 Influence of temperature . 30
Annex C (informative) Investigation on uncertainty of measurement process . 31
C.1 General . 31
C.2 Test procedure . 31
C.3 Test results . 41
Annex D (informative) Gauging procedure . 43
Annex E (informative) Additional quantities relating to the wheel load distribution . 44
E.1 Examples for additional quantities . 44
E.2 Quantities for analysis of wheel load distributions . 45
Annex F (informative) Measurement report form . 48
Annex G (informative) Migration rule for this European Standard . 58
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2008/57/EC aimed to be covered. 59
Bibliography . 61
3
---------------------- Page: 5 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
European foreword
This document (EN 15654-2:2019) has been prepared by Technical Committee CEN/TC 256 “Railway
applications”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2019, and conflicting national standards shall
be withdrawn at the latest by October 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 2008/57/EC.
For relationship with EU Directive 2008/57/EC, see informative Annex ZA, which is an integral part of
this document.
This document is the second part of a three-part standard collectively referred to as Railway
applications — Measurement of vertical forces on wheels and wheelsets and which covers:
— static and quasi-static wheel force measurements of new, modified or maintained rail vehicles in
workshops and
— the evaluation of derived quantities such as the vertical wheelset forces, axle loads and other
quantities that describe the vertical wheel force distribution of a vehicle.
Part 1: On-track measurement sites for vehicles in service deals with the measurement of wheel forces
and axle loads of in-service rail vehicles.
Part 3: Approval and verification of on-track measurement sites for vehicles in service (CEN/TR) is in
preparation and deals with the approval and verification of local measuring sites in-service.
A migration rule is specified in Annex G.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
4
---------------------- Page: 6 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
Introduction
There are many national and local procedures and methods for the measurement of wheel forces of
new, modified and maintained vehicles in use across Europe.
The existing multiplicity of different procedures and methods of calculating parameters can lead to
confusion in the interpretation of test data. By having a common set of defined assessment quantities
the possibility of confusion and misinterpretation is reduced.
To achieve comparable results for the same vehicle, when the wheel forces are measured at different
sites the uncertainty of the whole measurement process needs to be assessed.
The current situation leads in some cases to non-comparable results from different sites. The normative
requirements of this standard are based on current experience but these will not necessarily lead to
comparable results, being obtained, when a vehicle is measured on two or more different systems. In
order to improve this situation, methods are described in the informative part of this standard, to
assess the relevant uncertainties of the whole measuring process.
5
---------------------- Page: 7 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
1 Scope
This document applies to the measurement of vertical wheel forces of railway vehicles in maintenance
workshops and at manufacturing sites. It also deals with derived quantities that are used to describe the
vehicle’s vertical wheel force distribution.
The document defines the assessment and acceptance criteria for the measurement process. The
requirements for this assessment support the specification, the design and the operation of the
measurement process. It is considered that the measurements are made either statically or quasi-
statically. This document is applicable to all railway vehicles.
The commercial weighing of vehicles is not covered by the scope of this document, nor does it define in
which cases the wheel forces of a vehicle will be measured.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13848-1, Railway applications – Track - Track geometry quality – Part 1: Characterisation of track
geometry
EN 14363, Railway applications - Testing and Simulation for the acceptance of running characteristics of
railway vehicles - Running Behaviour and stationary tests
EN 15663, Railway applications - Vehicle reference masses
EN ISO 1101, Geometrical product specifications (GPS) - Geometrical tolerancing - Tolerances of form,
orientation, location and run-out (ISO 1101)
EN ISO 7500-1:2015, Metallic materials - Calibration and verification of static uniaxial testing machines -
Part 1: Tension/compression testing machines - Calibration and verification of the force-measuring system
(ISO 7500-1:2015)
EN ISO 10012, Measurement management systems - Requirements for measurement processes and
measuring equipment (ISO 10012)
ISO/IEC Guide 99:2007, International vocabulary of metrology - Basic and general concepts and
associated terms (VIM)
6
---------------------- Page: 8 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC Guide 99:2007 and those
listed below apply in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
individual static (vertical) wheel force
Q
F0
static vertical part of the total wheel force at the reference point D of the wheel profile as specified in
0
EN 13715, when all the reference points of a vehicle are in a horizontal plane and with the vehicle at
rest
Note 1 to entry: Where the symbol Q is used, j is the axle number and k is the side of the vehicle on which
F0,jk
the wheel is located:
— k = R denotes the right-hand side in the coordinate system of the vehicle;
— k = L denotes the left-hand side in the coordinate system of the vehicle.
Note 2 to entry: For standard gauge applications the lateral distance between the reference points of a wheelset
is 1 500 mm. For other applications such as special wheel profiles or other gauges this definition should be
applied using the same principle.
Note 3 to entry: The static vertical wheel force is the result obtained by the measurement process described in
this standard.
3.2
single measurement
value representing the wheel force of one wheel from one measurement unit which forms a part of the
measurement device
3.3
measurement results
documented results
results for wheel forces and derived quantities evaluated in one regular measurement process for the
report
4 Measurement process
4.1 General
The measurement process is the set of operations, devices and procedures, performed on the vehicle to
evaluate its vertical wheel forces.
The measurement process and its influence parameters are illustrated in Figure 1.
7
---------------------- Page: 9 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
Figure 1 — Measurement process of vertical wheel force
4.2 Measurement equipment
4.2.1 Description of the measurement equipment
The measurement equipment shall be described and documented in a manner that all users can
understand.
4.2.2 Measurement method
4.2.2.1 Static Measurements
Static measurements are made with the vehicle at rest and standing on the measurement devices.
Static measurements are performed:
— wheelset by wheelset (requiring for example one measurement section according to Figure 2),
— running gear by running gear (requiring for example one measurement section according to
Figure 2 for each wheelset of the running gear), or
— for the whole vehicle (by one device).
8
---------------------- Page: 10 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
4.2.2.2 Quasi Static (Dynamic) Measurements
Quasi-static measurements are made when the vehicle is moved along the measuring track. The aim is
to obtain from the vehicle running at low speed representative measurements which under ideal
conditions will be similar to those that can be obtained from the vehicle in the stationary condition.
A number of test runs shall be made at a slow and nearly constant speed (for example at up to
5 km/h ± 2 km/h on the measuring track).
To minimize dynamic effects on the uncertainty of the measurement, the speed shall be low and the
track quality good. The vertical movement of the vehicle body shall be negligible.
4.2.2.3 Measurements of vehicle under twist
Measurements with the vehicle under twist are taken with the vehicle located on a device that applies
twist.
Vertical wheel forces and the applied twist are measured continuously while the twist is being applied
to the running gear or to the vehicle both in a positive and in a negative direction with respect to a
horizontal reference plane. A full hysteresis loop shall be performed. The result of this measurement is
the mean value between the maximum and minimum force measured in the horizontal reference plane
(position without twist).
This method reduces the influence of hysteresis on measuring results. The type and the amplitude of
the applied twist (vehicle or bogie twist or both) shall be specified taking into account the
characteristics of the suspension system of the vehicle.
NOTE Results achieved by the application of vehicle and/or bogie test twist according to EN 14363 are
adequate.
4.2.3 Measurement device
4.2.3.1 Force measurement device (load cells, strain gauges, shear-force sensors, etc.)
The force measurement device converts the mechanical force into a proportional signal that is then
processed and transferred to an output device. The measurement device consists of a structure that
supports the wheelset, the measuring sensors, the processing instrumentation and a displaying device.
A force measurement device may consist of different sections that are located at different points along
the track. Each section consists usually of two units. Each unit provides one single measurement
(see Figure 2). Each unit usually contains one or more load cells, strain gauges or shear-force sensors.
Measurement devices shall be manufactured and tested according to generally accepted standards.
NOTE Information about the use of strain gauge installations is given in Annex D.
9
---------------------- Page: 11 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
Key
1 measurement device
2 measurement section including units A and B
3 measurement section including units C and D
4 displaying device
Figure 2 — Example for measurement device consisting of two measurement sections (four
units)
4.2.3.2 Location of contact points (Running surface, flange top, axle boxes)
The contact points between the vehicle wheels and the measurement devices are usually on the wheel
tread profiles at/or near to the reference points shown in Figure 3.
Other contact points on the wheel flange or on the axle box can be used. In these cases, Q (the vertical
F0
wheel forces at the reference points) shall be calculated from the measured values taking into account
the difference between the location of the contact point and the reference point.
Key
1 vertical wheel force Q
F0
2 reference point D
0
3 possible locations of contact point (running surface, flange, axle box) for measurement device
Figure 3 — Reference points and typical contact point areas on a wheelset
10
---------------------- Page: 12 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
4.2.3.3 Alignment of contact points / Track characteristics definition
The following geometric characteristics are specified with the intention of ensuring that the contact
points of the wheel treads of the vehicle are in a horizontal plane.
The whole section of a track where contact points of the wheelsets of a measured vehicle are positioned
during the measurement procedure shall be nominally plane, straight and untwisted.
For the geometry of the measurement device (usually the track) the following tolerance requirements
shall be applied:
1) the flatness tolerance (see EN ISO 1101) of the rail tops (on running surface, see EN 13848-1) at the
possible positions of the wheelsets along the track inside a measured running gear shall not exceed
1 mm;
2) the algebraic difference in the cross levels (see EN 13848-1) at the positions of any two wheelsets
of a running gear shall not exceed 1 mm;
3) the flatness tolerance (see EN ISO 1101) of the rail tops at possible positions of wheelsets along the
track in a measured running gear and any possible position of the wheelsets of an adjacent running
gear belonging to the same vehicle body shall not exceed 2 mm;
4) the algebraic difference between the mean values of the cross levels (see EN 13848-1) at the
positions of the wheelsets in a measured running gear and any possible position of the wheelsets of
an adjacent running gear belonging to the same vehicle body shall not exceed 2 mm;
5) the straightness tolerance (see EN ISO 1101) of the centre line of the track (evaluated in the range
up to 14 mm below top of rails) shall not exceed 10 mm. This applies to the distance between the
wheelsets in a measured running gear and any possible position of the wheelsets of an adjacent
running gear belonging to the same vehicle body;
6) The longitudinal gradient of a reference plane given by the possible positions of the wheelsets of
two adjacent running gear shall not exceed 0,4 %. The lateral gradient shall not exceed 0,1 %.
NOTE 1 The requirement related to the longitudinal gradient of the reference plane allows to measure one
running gear in a lifted position (for example on the flanges).
If the car bodies of measured vehicles are connected by a device that transfers torsional moments
around the longitudinal axis, the influence of further running gear shall be considered as specified in
Table 1.
It is possible to apply larger tolerances than given in Table 1 for vehicles with more than two connected
car bodies. In this case an analysis shall be performed in order to demonstrate that the uncertainties of
the measured wheel forces are not dominated by these larger tolerances (see Annex B).
If measurements are not taken on a track, the alignment of the contact points on the support (e.g. under
the flange or under the axle box) shall be made in way that it is ensured, that the alignment of the
reference points D of the wheel treads of the vehicle follow equivalent rules. The effect of vertical
0
deflections due to the load of a representative vehicle shall be respected for the flatness measurements
(see above requirements 1 and 3 and in Table 1).
For the above requirements related to the algebraic differences between two cross levels (2 and 4 and
in Table 1) deflections can be neglected, if the difference between the vertical deflections of the left and
right rail at the same wheelset position does not exceed 0,2 mm.
This specification is a minimum specification. In some cases a better track quality is useful. Annex B
gives more information about the influence of track quality on the measured results.
11
---------------------- Page: 13 ----------------------
SIST EN 15654-2:2019
EN 15654-2:2019 (E)
NOTE 2 Experience has shown that butt welds between rails, rail joints and the use of worn rails lead to
problems with compliance with the requirements.
Table 1 — Requirements of the geometry for the measurement device
Area wheelset 1 Area wheelset 2 Flatness tolerance Algebraic difference in
(see EN ISO 1101) of the cross levels
the rail tops on running (see EN 13848-1) at the
surface positions of any two
mm wheelsets
mm
Possible positions of Possible positions of the
the wheelsets along wheelsets along the track inside
1 1
the track inside a a measured running gear
measurement section
Possible positions of Possible positions of wheelsets
the wheelsets along along the track in a measured
the track inside a running gear and any possible
measurement section position of the wheelsets of an 2 2
adjacent r
...
SLOVENSKI STANDARD
oSIST prEN 15654-2:2016
01-december-2016
Železniške naprave - Meritve vertikalnih kolesnih in osnih obremenitev - 2. del:
Preskus v delavnici za nova, spremenjena in vzdrževana vozila
Railway applications - Measurement of vertical forces on wheels and wheelsets - Part 2:
Test in workshop for new, modified and maintained vehicles
Bahnanwendungen - Messung von vertikalen Rad- und Radsatzkräften - Teil 2: Test im
Werk für neue, umgebaute und instandgesetzte Fahrzeuge
Applications ferroviaires - Mesurage des forces verticales à la roue et à l'essieu - Partie
2 : Essai en atelier des véhicules neufs, modifiés ou maintenus
Ta slovenski standard je istoveten z: prEN 15654-2
ICS:
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
oSIST prEN 15654-2:2016 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 15654-2:2016
---------------------- Page: 2 ----------------------
oSIST prEN 15654-2:2016
DRAFT
EUROPEAN STANDARD
prEN 15654-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2016
ICS 45.060.01
English Version
Railway applications - Measurement of vertical forces on
wheels and wheelsets - Part 2: Test in workshop for new,
modified and maintained vehicles
Applications ferroviaires - Mesurage des forces Bahnanwendungen - Messung von vertikalen Rad- und
verticales à la roue et à l'essieu - Partie 2 : Essai en Radsatzkräften - Teil 2: Test im Werk für neue,
atelier des véhicules neufs, modifiés ou maintenus umgebaute und instandgesetzte Fahrzeuge
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 256.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15654-2:2016 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Measurement process . 7
4.1 General . 7
4.2 Measurement equipment . 8
4.2.1 Description of the measurement equipment . 8
4.2.2 Measurement method . 8
4.2.3 Measurement device . 9
4.3 Vehicle . 11
4.3.1 General . 11
4.3.2 Description of the vehicle . 11
4.3.3 Preparation of vehicle . 12
4.4 Measurement procedure . 13
4.4.1 General . 13
4.4.2 Number of wheels measured at the same moment . 14
4.4.3 Number of repeated measurements . 14
4.4.4 Handling between repeated measurements . 14
4.4.5 Measuring direction / orientation of the vehicle . 14
4.4.6 Vehicle movement (propelling device, crane, coupling status) . 14
4.5 Environment . 14
4.6 Operator . 15
4.7 Measurement report . 15
4.7.1 General . 15
4.7.2 Results to be reported . 15
4.7.3 Other information to be reported . 16
5 Metrological confirmation . 17
5.1 General . 17
5.2 Specification of measurement process . 17
5.3 Calibration . 18
5.3.1 Static calibration of the force measurement unit . 18
5.3.2 Quasi-static calibration of forces . 19
5.4 Verification (Acceptance testing) . 19
5.4.1 Measurement of track . 19
5.4.2 Acceptance criteria of force measuring unit (static) . 19
5.4.3 Acceptance testing for quasi-static (dynamic) measurement systems . 20
5.5 Investigation on total uncertainty of measurement process . 21
5.6 Regular Verification . 21
5.6.1 Specification of interval . 21
5.6.2 Force measurement device(s) and location of contact point . 21
Annex A (normative) Symbols and units . 22
Annex B (informative) Influence Parameters / components of uncertainty . 25
2
---------------------- Page: 4 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
B.1 Influence of transverse displacement . 25
B.2 Influence of cant / cross level. 25
B.3 Influence of twist . 25
B.4 Influence of damping . 28
B.5 Side wind effects . 28
B.6 Influence of temperature . 29
Annex C (informative) Investigation on uncertainty of measurement process . 30
C.1 General . 30
C.2 Test procedure . 30
C.3 Test results . 37
Annex D (informative) Gauging procedure . 39
Annex E (informative) Additional quantities relating to the wheel load distribution . 40
E.1 Examples for additional quantities . 40
E.2 Quantities for analysis of wheel load distributions . 41
Annex F (informative) Measurement report form . 44
Bibliography . 54
3
---------------------- Page: 5 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
European foreword
This document (prEN 15654-2:2016) has been prepared by Technical Committee CEN/TC 256 “Railway
applications”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive 2008/57/EC.
For relationship with EU Directive 2008/57/EC, see informative Annex ZA, which is an integral part of
this document.
This document is the second part of a three-part standard collectively referred to as "Railway
applications — Measurement of vertical forces on wheels and wheelsets" and which covers:
— static and quasi-static wheel force measurements of new, modified or maintained rail vehicles in
workshops and;
— the evaluation of derived quantities such as the vertical wheelset forces, axle loads and other
quantities that describe the vertical wheel force distribution of a vehicle.
Part 1: Interoperable on track measurement sites for vehicles in service
deals with the measurement of wheel forces and axle loads of in-service rail vehicles.
Part 3: Approval and verification of interoperable on track measurement sites for vehicles in service
(CEN/TR) is in preparation and deals with the approval and verification of interoperable local
measuring sites in-service.
4
---------------------- Page: 6 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
Introduction
There are many national and local procedures and methods for the measurement of wheel forces of
new, modified and maintained vehicles in use across Europe.
The existing multiplicity of different procedures and methods of calculating parameters can lead to
confusion in the interpretation of test data. By having a common set of defined assessment quantities
the possibility of confusion and misinterpretation is reduced.
To achieve comparable results for the same vehicle, when the wheel forces are measured at different
sites the uncertainty of the whole measurement process needs to be assessed.
The current situation leads in some cases to non-comparable results from different sites. The normative
requirements of this standard are based on current experience but these will not necessarily lead to
comparable results, being obtained, when a vehicle is measured on two or more different systems. In
order to improve this situation, methods are described in the informative part of this standard, to
assess the relevant uncertainties of the whole measuring process.
5
---------------------- Page: 7 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
1 Scope
This European Standard applies to the measurement of vertical wheel forces of railway vehicles in
maintenance workshops and at manufacturing sites. It also deals with derived quantities that are used
to describe the vehicle’s vertical wheel force distribution.
The standard defines the assessment and acceptance criteria for the measurement process. The
requirements for this assessment support the specification, the design and the operation of the
measurement process. It is considered that the measurements are made either statically or quasi-
statically. This standard is applicable to all railway vehicles.
The commercial weighing of vehicles is not covered by the scope of this standard, nor does it define in
which cases the wheel forces of a vehicle will be measured.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 13848-1, Railway applications — Track — Track geometry quality — Part 1: Characterisation of track
geometry
EN 14363, Railway applications — Testing and Simulation for the acceptance of running characteristics of
railway vehicles — Running Behaviour and stationary tests
EN 15663, Railway applications - Definition of vehicle reference masses
EN ISO 1101, Geometrical product specifications (GPS) — Geometrical tolerancing — Tolerances of form,
orientation, location and run-out (ISO 1101)
EN ISO 7500-1:2015, Metallic materials — Calibration and verification of static uniaxial testing
machines — Part 1: Tension/compression testing machines - Calibration and verification of the force-
measuring system (ISO 7500-1:2015)
EN ISO 10012, Measurement management systems — Requirements for measurement processes and
measuring equipment (ISO 10012)
ISO/IEC Guide 99:2007, International vocabulary of metrology — Basic and general concepts and
associated terms (VIM)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO/IEC Guide 99:2007 and those
listed below apply in this document.
3.1
individual static (vertical) wheel force
Q
0
static vertical part of the total wheel force at the reference point D of the wheel profile as specified in
0
EN 13715, when all the reference points of a vehicle are in a horizontal plane and with the vehicle at
rest
6
---------------------- Page: 8 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
Note 1 to entry: Where the symbol Q is used, j is the axle number and k is the side of the vehicle on which
0, jk
the wheel is located:
— k = R denotes the right-hand side in the coordinate system of the vehicle;
— k = L denotes the left-hand side in the coordinate system of the vehicle.
Note 2 to entry: For standard gauge applications the lateral distance between the reference points of a wheelset
is 1 500 mm. For other applications such as special wheel profiles or other gauges this definition should be
applied using the same principle.
Note 3 to entry: The static vertical wheel force is the result obtained by the measurement process described in
this standard.
3.2
single measurement
value representing the wheel force of one wheel from one measurement unit which forms a part of the
measurement device
3.3
measurement results
documented results
results for wheel forces and derived quantities evaluated in one regular measurement process for the
report
4 Measurement process
4.1 General
The measurement process is the set of operations, devices and procedures, performed on the vehicle to
evaluate its vertical wheel forces.
The measurement process and its influence parameters are illustrated in Figure 1.
7
---------------------- Page: 9 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
Figure 1 — Measurement process of vertical wheel force
4.2 Measurement equipment
4.2.1 Description of the measurement equipment
The measurement equipment shall be described and documented in a manner that all users can
understand.
4.2.2 Measurement method
4.2.2.1 Static Measurements
Static measurements are made with the vehicle at rest standing on the measurement devices.
Static measurements are performed:
— wheelset by wheelset,
— running gear by running gear or
— by a device for the whole vehicle.
4.2.2.2 Quasi Static (Dynamic) Measurements
Quasi-static measurements are made when the vehicle is moved along the measuring track.
A number of test runs shall be made at a slow and nearly constant speed (for example at up to
5 km/h ± 2 km/h on the measuring track)
8
---------------------- Page: 10 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
To minimize dynamic effects on the uncertainty of the measurement, the speed shall be low and the
track quality good. The vertical movement of the vehicle body shall be negligible.
4.2.2.3 Measurements of vehicle under twist
Measurements with the vehicle under twist are taken with the vehicle located on a device that applies
twist.
Vertical wheel forces and the applied twist are measured continuously while the twist is being applied
to the running gear or to the vehicle both in a positive and in a negative direction with respect to a
horizontal reference plane. A full hysteresis loop shall be performed. The result of this measurement is
the mean value between the maximum and minimum force measured in the horizontal reference plane
(position without twist).
This method reduces the influence of hysteresis on measuring results. The type and the amplitude of
the applied twist (vehicle or bogie twist or both) shall be specified taking into account the
characteristics of the suspension system of the vehicle.
NOTE Results achieved by the application of vehicle and/or bogie test twist according to EN 14363 are
adequate.
4.2.3 Measurement device
4.2.3.1 Force measurement device (load cells, strain gauges, shear-force sensors, etc.)
The force measurement device converts the mechanical force into a proportional signal that is then
treated and transferred to an output device. The measurement device consists of a structure that
supports the wheel set, the measuring sensors, the processing instrumentation and an indicating device.
A force measurement device may consist of different sections that are located at different points along
the track. Single measurements can on each device.
Measurement devices shall be manufactured and tested according to generally accepted standards.
NOTE Information about the use of strain gauge installations is given in Annex D.
Key
1 measurement device
2 measurement section including units A and B
3 measurement section including units C and D
4 indicating device
Figure 2 — Example for measurement device consisting of two measurement sections (four
units)
9
---------------------- Page: 11 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
4.2.3.2 Location of contact points (Running surface, flange top, axle boxes)
The contact points between the vehicle wheels and the measurement devices are normally on the wheel
tread profiles at/or near to the reference points shown in Figure 3.
Other contact points on the wheel flange or on the axle box can be used. In these cases, Q (the vertical
0
wheel forces at the reference points) shall be calculated from the measured values taking into account
the difference between the location of the contact point and the reference point.
Key
1 vertical wheel force Q
0
2 reference contact point D
0
3 possible locations of contact point (running surface, flange, axle box) for measurement device
Figure 3 — Reference points and typical contact point areas on a wheelset
4.2.3.3 Alignment of contact points / Track characteristics definition
The following geometric characteristics are specified with the intention of ensuring that the contact
points of the wheel treads of the vehicle are in a horizontal plane.
All locations where contact points of the wheelsets of a measured vehicle are positioned during the
measurement procedure shall be on a plain, straight and untwisted section of track.
The following requirements shall be applied to the geometry of the measurement device (usually the
track):
1) the flatness (see EN ISO 1101) of the rail tops (on running surface, see EN 13848-1) at the possible
positions of the wheelsets along the track inside a measured running gear shall not exceed 1 mm;
2) the difference in the cross levels (see EN 13848-1) over a longitudinal distance of any two
wheelsets of a running gear shall not exceed 1 mm;
3) the flatness (see EN ISO 1101) of the rail tops at possible positions of wheelsets along the track
inside a vehicle shall not exceed 2 mm. The longitudinal gradient of the reference plane shall not
exceed 0,4 %. The lateral gradient shall not exceed 0,1 %;
4) the difference between the mean cross levels (see EN 13848-1) of the wheelsets in a measured
running gear and any possible position of the wheelsets of an adjacent running gear that is inside
the same vehicle body shall not exceed 2 mm;
10
---------------------- Page: 12 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
5) the straightness (see EN ISO 1101) of the centre line of the track (evaluated in the range up to
14 mm below top of rails) shall be less than 10 mm. This applies to the area of the wheelsets in a
measured running gear and any possible position of the wheelsets of an adjacent running gear that
is inside the same vehicle body.
If measurements are not taken on a track, the alignment of the contact points on the support (e.g. under
the flange or under the axle box) shall follow equivalent rules.
The effect of deflections due to the load of a representative vehicle shall be respected for the flatness
measurements. For cross level measurements it needs only to be respected, if the difference between
the deflection of the left and right rail exceed 0,2 mm at the same wheelset position.
If the car bodies of measured vehicles are connected by a device that transfers torsional moments
around the longitudinal axis, the influence of further running gear shall be considered.
This specification is a minimum specification. In some cases a better track quality is useful. Annex B
gives more information about the influence of track quality on the measured results.
NOTE Experience has shown that butt welds between rails, rail joints and the use of worn rails lead to
problems with compliance with the requirements.
4.2.3.4 Lead-on and lead-off track
The length of the lead-on and lead-off tracks will depend on the measuring method being used and on
the overall length of the vehicles being measured.
It shall be specified, if special excitation elements, such as wedges, are to be included in the lead-on
track(s).
4.3 Vehicle
4.3.1 General
The wheel forces of a vehicle shall be measured after finishing all assembly work on the vehicle and
adjustments of the suspension system. If changes are made to the vehicle, which may result in an
unacceptable distribution of the wheel forces, the measurement shall be repeated.
4.3.2 Description of the vehicle
A vehicle based identification system, such as illustrated in Figure 4, shall be used to identify each wheel
in an unambiguous way.
11
---------------------- Page: 13 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
Key
1 vehicle type
2 vehicle body number
3 running gear number
4 wheelset number
5 wheel index (k = R: right wheel, k = L: left wheel)
6 number of wheelsets per vehicle
7 first wheelset number in running gear i
8 number of wheelsets of running gear i
Figure 4 — Example of a vehicle based identification system for the description of the wheel
arrangement
4.3.3 Preparation of vehicle
4.3.3.1 General
Before the measurement of the wheel forces are made, the vehicle shall be prepared in order to achieve:
1) the intended load condition,
2) the intended suspension status (inflated or deflated),
3) the intended lateral position of the vehicle body on the running gear (for example in some cases by
installation of shims between lateral bump stops and the structure in deflated condition of air
suspension).
12
---------------------- Page: 14 ----------------------
oSIST prEN 15654-2:2016
prEN 15654-2:2016 (E)
If it is specified for the vehicle, the dampers shall be removed or disconnected.
If it is specified for a trainset, the single vehicles shall be decoupled.
4.3.3.2 Load condition
4.3.3.2.1 New and modified vehicles
The reference load condition for new and modified vehicles is the design mass in working order
according to EN 15663. As other load conditions are permitted, it is necessary to specify and report the
load condition of the vehicle used in the measurement process. Deviations from the specified load
condition shall either be corrected by suitable measures or reported with the measured values
(see also 4.7.2 and Annex F), e.g. in case of a vehicle having:
1) wheelsets with reduced wheel diameter,
2) missing parts,
3) missing staff or
4) incomplete consumables.
4.3.3.2.2 Maintained vehicles
For measurement of maintained vehicles (meaning, without significant change of design mass and its
distribution), it is not necessary to control the amount of wear of the wheels and the amount of
consumables carried, as long as the assessed quantities for the maintained vehicle are not significantly
affected. If for certain vehicle types the influence of consumables and wear is relevant for the assessed
quantities, the necessary load condition needs to be specified and to be stated in the measurement
report (see Annex F).
4.3.3.3 Suspension state
Vehicles equipped with air suspension (or hydraulic suspension) shall be measured in the inflated and
in the deflated conditions. The status of the suspension (for example inflated/deflated) shall be
reported with the measured values (see also 4.7.2 and Annex F). When c
...
