SIST EN IEC 61084-2-4:2024/A11:2024

Cable trunking systems and cable ducting systems for electrical installations - Part 2-4: Particular requirements - Service poles and service posts

Common modifications for the adoption as a European Standard of IEC 61084-2-4:2017 ed 2.0 (PR=72103)

Elektroinstallationskanalsysteme für elektrische Installationen - Teil 2-4: Besondere Anforderungen für freistehende Installationseinheiten

Systèmes de goulottes et systèmes de conduits-profilés pour installations électriques - Partie 2-4: Exigences particulières - Colonnes et colonnettes

Sistemi kabelskih korit in sistemi kabelskih cevi za električne inštalacije - 2-4. del: Posebne zahteve - Podporni drogovi in podporni stebri - Dopolnilo A11

General Information

• Status: Published
• Public Enquiry End Date: 28-Feb-2023
• Publication Date: 22-Sep-2024
• ICS: 29.060.01 - Electrical wires and cables in general
• ICS: 29.120.10 - Conduits for electrical purposes
• Technical Committee: I11 - Imaginarni 11
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 18-Sep-2024
• Due Date: 23-Nov-2024
• Completion Date: 23-Sep-2024
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: EN IEC 61084-2-4:2024/A11:2024 - Cable trunking systems and cable ducting systems for electrical installations - Part 2-4: Particular requirements - Service poles and service posts

Relations

• Amends: SIST EN IEC 61084-2-4:2024 - Cable trunking systems and cable ducting systems for electrical installations - Part 2-4: Particular requirements - Service poles and service posts (IEC 61084-2-4:2017)
• Effective Date: 01-Nov-2024

Overview

EN IEC 61084-2-4:2024/A11:2024 (CLC/CENELEC amendment A11) is a European amendment to Part 2-4 of the IEC 61084 series, covering cable trunking systems and cable ducting systems with particular requirements for service poles and service posts (free‑standing installation units). Approved by CENELEC on 2024-08-05, this amendment updates normative references, refines construction and test requirements, and adds compliance guidance for manufacturers moving from EN 50085-2-4:2009 to EN IEC 61084-2-4:2024.

Key topics and requirements

• Scope: Particular requirements for service poles and service posts within cable trunking and ducting systems.
• Normative references: Updates to referenced standards (e.g., ISO 536:2019, ISO 535:2014, EN 10028-7:2016) used for test methods and materials.
• Construction: Clarifications on sharp edges, apparatus mounting, cable restraint, access to live parts and protection against water contact during wet-floor treatment.
• Mechanical properties: Revised notes and test references for impact tests, linear deflection, horizontal load and fixing tests (including materials such as stainless steel X5CrNi18‑10 per EN 10028‑7:2016).
• Fire hazard: Spread‑of‑fire testing specified to use IEC 60695‑11‑2:2017 method B.
• Electrical and thermal properties: Requirements for electrical continuity, insulation and thermal retention tests for non‑metallic/composite components.
• Routine tests: Amendment to routine checks for pre‑wired units - "Earth - Correct connection" clarifies verification of earth conductor connection to socket earth pin/contact.
• Annex C (normative): A practical compliance-check matrix indicating which tests are required or not required when declaring conformity for systems formerly compliant with EN 50085‑2‑4:2009.
• Regulatory linkage: Annex ZZ maps the standard to the safety objectives of Directive 2014/35/EU (Low Voltage Directive), supporting presumption of conformity when cited in the OJ.

Applications and users

This standard is essential for:

• Manufacturers and designers of cable trunking and cable ducting products, especially service poles and service posts.
• Test laboratories and certification bodies performing mechanical, electrical and fire testing.
• Specifiers, electrical contractors and compliance engineers responsible for product selection, installation and demonstrating conformity with the Low Voltage Directive.
• Regulatory authorities assessing market surveillance and harmonised standard compliance.

Related standards

• EN IEC 61084-1:2024 (General requirements)
• EN 50085-2-4:2009 (earlier version referenced in Annex C)
• IEC 60695-11-2:2017 (fire testing method B)
• ISO 536:2019, ISO 535:2014, EN 10028-7:2016

Keywords: EN IEC 61084-2-4:2024/A11:2024, cable trunking systems, cable ducting systems, service poles, service posts, CENELEC, compliance checks, Low Voltage Directive.

Standards Content (Sample)

SLOVENSKI STANDARD
01-november-2024
Sistemi kabelskih korit in sistemi kabelskih cevi za električne inštalacije - 2-4. del:
Posebne zahteve - Podporni drogovi in podporni stebri - Dopolnilo A11
Cable trunking systems and cable ducting systems for electrical installations - Part 2-4:
Particular requirements - Service poles and service posts
Elektroinstallationskanalsysteme für elektrische Installationen - Teil 2-4: Besondere
Anforderungen für freistehende Installationseinheiten
Systèmes de goulottes et systèmes de conduits-profilés pour installations électriques -
Partie 2-4: Exigences particulières - Colonnes et colonnettes
Ta slovenski standard je istoveten z: EN IEC 61084-2-4:2024/A11:2024
ICS:
29.120.10 Inštalacijske cevi za Conduits for electrical
električne namene purposes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 61084-2-4:2024/A11

NORME EUROPÉENNE
EUROPÄISCHE NORM September 2024
ICS 29.060.01; 29.120.10
English Version
Cable trunking systems and cable ducting systems for electrical
installations - Part 2-4: Particular requirements - Service poles
and service posts
Systèmes de goulottes et systèmes de conduits-profilés Installationskanalsysteme für elektrische Installationen -
pour installations électriques - Partie 2-4: Exigences Teil 2-4: Besondere Anforderungen - Freistehende
particulières - Colonnes et colonnettes Installationseinheiten
This amendment A11 modifies the European Standard EN IEC 61084-2-4:2024; it was approved by CENELEC on 2024-08-05. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 61084-2-4:2024/A11:2024 E

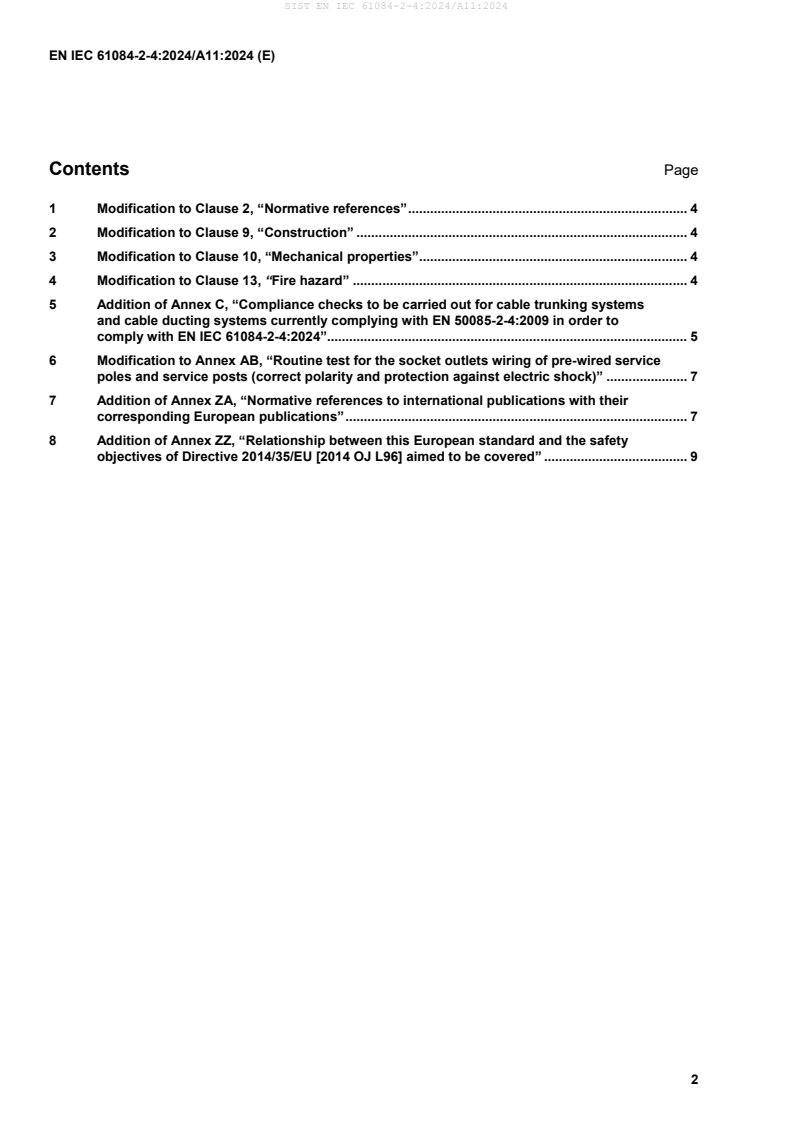

Contents Page
1 Modification to Clause 2, “Normative references” . 4
2 Modification to Clause 9, “Construction” . 4
3 Modification to Clause 10, “Mechanical properties”. 4
4 Modification to Clause 13, “Fire hazard” . 4
5 Addition of Annex C, “Compliance checks to be carried out for cable trunking systems
and cable ducting systems currently complying with EN 50085-2-4:2009 in order to
comply with EN IEC 61084-2-4:2024”. 5
6 Modification to Annex AB, “Routine test for the socket outlets wiring of pre-wired service
poles and service posts (correct polarity and protection against electric shock)” . 7
7 Addition of Annex ZA, “Normative references to international publications with their
corresponding European publications” . 7
8 Addition of Annex ZZ, “Relationship between this European standard and the safety
objectives of Directive 2014/35/EU [2014 OJ L96] aimed to be covered” . 9
European foreword
This document (EN IEC 61084-2-4:2024/A11:2024) has been prepared by CLC/TC 213 “Cable management
systems”.
The following dates are fixed:
• latest date by which this document has (dop) 2025-08-05
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2029-08-05
standards conflicting with this document
have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document is used in conjunction with EN IEC 61084-1:2024 and EN IEC 61084-1:2024/A11:2024.
This document has been prepared under a standardization request addressed to CENELEC by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZZ, which is an integral part of this document.
Any feedback and questions on this document should be directed to the users’ national committee. A complete
listing of these bodies can be found on the CENELEC website.
1 Modification to Clause 2, “Normative references”
Replace
“ISO 536:2012, Paper and board – Determination of grammage”
with
“ISO 536:2019, Paper and board – Determination of grammage”.
Replace
“ISO 9328-7:2011, Steel flat products for pressure purposes – Technical delivery conditions – Part 7: Stainless
steels“
with
“EN 10028-7:2016, Flat products made of steels for pressure purposes - Part 7: Stainless steels”.
2 Modification to Clause 9, “Construction”
In 9.104, replace “ISO 535” with “ISO 535:2014” and replace “ISO 536” with “ISO 536:2019”.
3 Modification to Clause 10, “Mechanical properties”
In 10.3.2.104
replace the NOTE with
“The assembly is opened to check that any internal cracks do not impair electrical safety.
NOTE Electrical safety can be impaired when the impact creates a sharp edge which can damage insulated conductors
or cables (see 9.1).”
In “10.4 Linear deflection test”:
replace in the fifth paragraph “class 5, Table 3” with “Table 3 - class 5”.
In “10.5.101 Horizontal load test for service poles not likely to be moved during use”:
replace in the fourth paragraph, in the first dash “stainless steel X5CrNi18-9, with a thickness of at least 2 mm
according to ISO 9328-7” with “stainless steel X5CrNi18-10, with a thickness of at least 2 mm according to
EN 10028-7:2016”.
4 Modification to Clause 13, “Fire hazard”
In “13.1.3 Spread of fire”:
replace in the last paragraph “IEC 60695-11-2” with “IEC 60695-11-2:2017 using method B.”
5 Addition of Annex C, “Compliance checks to be carried out for cable trunking
systems and cable ducting systems currently complying with EN 50085-2-4:2009
in order to comply with EN IEC 61084-2-4:2024”
Add the following Annex C:
“
Annex C
(normative)
Compliance checks to be carried out for cable trunking systems and
cable ducting systems currently complying with EN 50085-2
...
