SIST EN IEC 63355:2022
(Main)Cable management systems - Test method for content of halogens (IEC 63355:2022)
Cable management systems - Test method for content of halogens (IEC 63355:2022)
This document specifies a method for the determination of the content of halogens in cable
management system (CMS) products or system components made completely or partly of
combustible material(s). The determination is made by combustion and subsequent analysis of
the combustion product by ion chromatography. This document specifies how CMS products or
system components can be declared as halogen-free.
This document is for environmental performance purposes only.
Compliance with this document does not imply the absence of toxicity, corrosivity or opacity of
produced smoke, or other reaction to fire characteristics. If any of these characteristics are to
be evaluated, the appropriate standards can be used.
The detection limit of this test method is typically 0,025 g of halogen per kg (0,002 5 %).
Halides insoluble in aqueous solution present in the original sample or produced during the
combustion step are not determined by this method.
Kabelführungssysteme - Prüfverfahren für Halogengehalt (IEC 63355:2022)
Systèmes de gestion de câblage - Méthode d'essai relative à la teneur en halogènes (IEC 63355:2022)
L'IEC 63355:2022 spécifie une méthode de détermination de la teneur en halogènes dans les composants des systèmes ou les produits des systèmes de câblage (CMS, Cable Management System) fabriqués partiellement ou complètement en matériau(x) combustible(s). La détermination est réalisée par combustion et analyse ultérieure du produit de combustion par chromatographie ionique. Le présent document spécifie la façon dont les composants des systèmes ou les produits des CMS peuvent être déclarés sans halogène.
Sistemi za urejanje pokabljenja - Metoda za preskušanje vsebnosti halogenov (IEC 63355:2022)
Ta dokument določa metodo za določanje vsebnosti halogenov v izdelkih ali sestavnih delih sistemov za urejanje pokablenja (CMS), ki so v celoti ali delno izdelani iz gorljivih materialov. Določanje se izvede na podlagi zgorevanja in naknadne analize produktov zgorevanja z ionsko kromatografijo. Ta dokument določa, na podlagi česa je za izdelke ali sestavne dele sistemov CMS mogoče navesti, da so brez halogenov. Ta dokument je namenjen izključno za uporabo na področju ravnanja z okoljem. Skladnost s tem dokumentom ne pomeni odsotnosti strupenosti, korozivnosti ali motnosti proizvedenega dima ali drugih lastnosti odziva na ogenj. Če je treba ovrednotiti katero koli od teh lastnosti, se lahko uporabijo primerni standardi. Meje zaznavanja pri tej preskusni metodi so običajno 0,025 g halogena na kg (0,0025 %). Ta metoda ne določa halidov, ki niso topni v vodni raztopini in so prisotni v prvotnem vzorcu ali nastanejo v fazi zgorevanja.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 63355:2022
01-november-2022
Nadomešča:
SIST EN 50642:2018
Sistemi za urejanje pokabljenja - Metoda za preskušanje vsebnosti halogenov (IEC
63355:2022)
Cable management systems - Test method for content of halogens (IEC 63355:2022)
Kabelführungssysteme - Prüfverfahren für Halogengehalt (IEC 63355:2022)
Systèmes de gestion de câblage - Méthode d'essai relative à la teneur en halogènes
(IEC 63355:2022)
Ta slovenski standard je istoveten z: EN IEC 63355:2022
ICS:
29.060.01 Električne žice in kabli na Electrical wires and cables in
splošno general
29.120.10 Inštalacijske cevi za Conduits for electrical
električne namene purposes
SIST EN IEC 63355:2022 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 63355:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 63355:2022
EUROPEAN STANDARD EN IEC 63355
NORME EUROPÉENNE
EUROPÄISCHE NORM September 2022
ICS 29.060.01; 29.120.10 Supersedes EN 50642:2018; EN 50642:2018/A1:2022
English Version
Cable management systems - Test method for content of
halogens
(IEC 63355:2022)
Systèmes de gestion de câblage - Méthode d'essai relative Kabelführungssysteme - Prüfverfahren für Halogengehalt
à la teneur en halogènes (IEC 63355:2022)
(IEC 63355:2022)
This European Standard was approved by CENELEC on 2022-08-17. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 63355:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 63355:2022
EN IEC 63355:2022 (E)

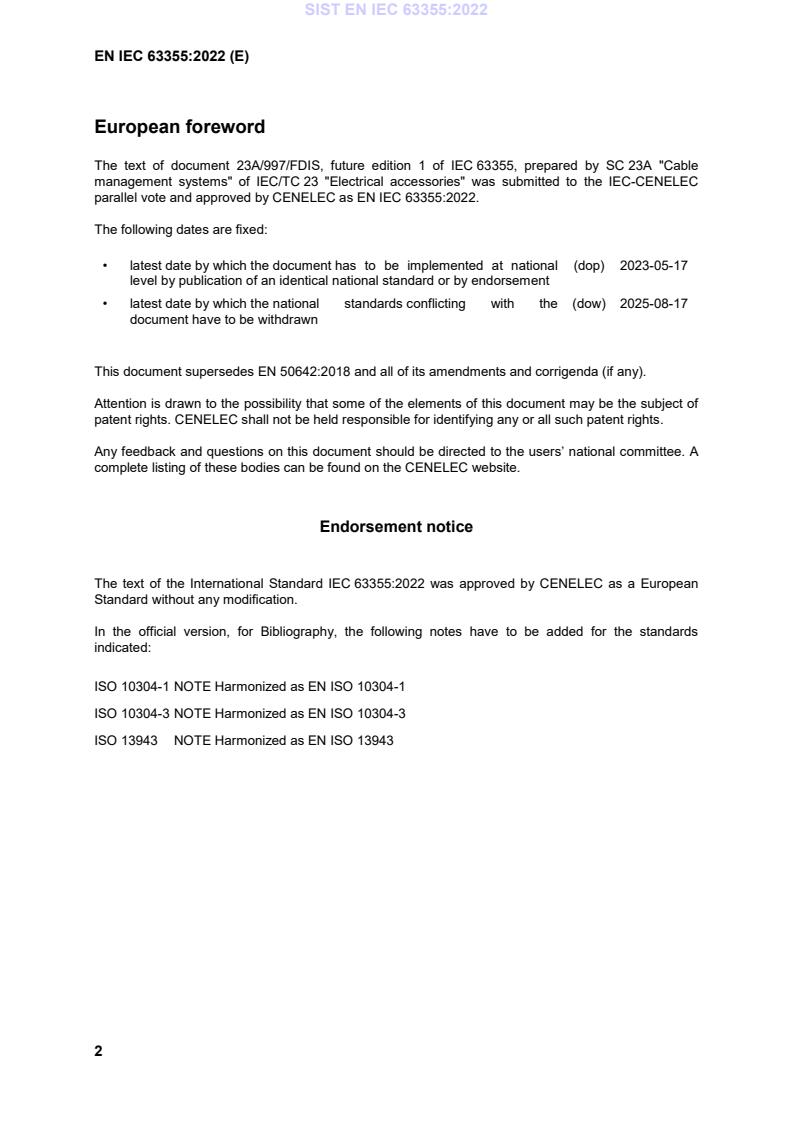

European foreword
The text of document 23A/997/FDIS, future edition 1 of IEC 63355, prepared by SC 23A "Cable
management systems" of IEC/TC 23 "Electrical accessories" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 63355:2022.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2023-05-17
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2025-08-17
document have to be withdrawn
This document supersedes EN 50642:2018 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 63355:2022 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
ISO 10304-1 NOTE Harmonized as EN ISO 10304-1
ISO 10304-3 NOTE Harmonized as EN ISO 10304-3
ISO 13943 NOTE Harmonized as EN ISO 13943
2
---------------------- Page: 4 ----------------------
SIST EN IEC 63355:2022
EN IEC 63355:2022 (E)
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1 Where an International Publication has been modified by common modifications, indicated by (mod), the
relevant EN/HD applies.
NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Publication Year Title EN/HD Year
ISO 1716 - Reaction to fire tests for products - EN ISO 1716 -
Determination of the gross heat of
combustion (calorific value)
ISO 3696 - Water for analytical laboratory use - EN ISO 3696 -
Specification and test methods
3
---------------------- Page: 5 ----------------------
SIST EN IEC 63355:2022
---------------------- Page: 6 ----------------------
SIST EN IEC 63355:2022
IEC 63355
®
Edition 1.0 2022-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Cable management systems – Test method for content of halogens
Systèmes de gestion de câblage – Méthode d'essai relative à la teneur en
halogènes
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.060.01; 29.120.10 ISBN 978-2-8322-3956-8
Warning! Make sure that you obtained this publication from an authorized distributor.
Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.
® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 7 ----------------------
SIST EN IEC 63355:2022
– 2 – IEC 63355:2022 © IEC 2022
CONTENTS
FOREWORD . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Principle . 7
5 Interferences . 7
5.1 General . 7
5.2 Organic halogen compounds . 7
5.3 Inorganic halogen compounds . 8
6 Classifications, limits and declaration . 8
6.1 Halogen content classification . 8
6.1.1 Not declared . 8
6.1.2 Halogen-free . 8
6.2 Limits . 8
6.3 Declaration . 8
7 Reagents and control mixtures . 8
7.1 Reagents . 8
7.1.1 General . 8
7.1.2 Water . 9
7.1.3 Absorption solution 1, for the determination of fluorine, chlorine and
bromine . 9
7.1.4 Absorption solution 2 for the determination of iodine . 9
7.1.5 Oxygen . 9
7.1.6 Combustion enhancer . 9
7.2 Control samples . 9
8 Sample preparation . 9
9 Equipment . 10
9.1 Calorimetric decomposition bomb . 10
9.2 Sample pan. 10
9.3 Firing wire . 10
9.4 Ignition circuit . 10
9.5 Usual laboratory equipment . 10
10 Procedure . 10
10.1 General . 10
10.2 Choice of the absorption solution . 11
10.3 Preparation of the bomb . 11
10.4 Combustion. 11
10.5 Collection of the halides . 12
10.6 Cleaning procedure . 12
11 Test method for determination . 12
12 Control measurements . 12
13 Evaluation . 12
13.1 General . 12
13.2 Procedure to evaluate the test results . 13
13.3 Determination of the halogen content of a CMS product or system
component made of multiple parts. 13
---------------------- Page: 8 ----------------------
SIST EN IEC 63355:2022
IEC 63355:2022 © IEC 2022 – 3 –
13.4 Calculation of total halogen content . 13
13.5 Compliance . 14
13.6 Extended application . 14
14 Test report . 14
Annex A (informative) Examples for possible control substances . 15
Bibliography . 16
Table A.1 – Examples for possible control substances . 15
---------------------- Page: 9 ----------------------
SIST EN IEC 63355:2022
– 4 – IEC 63355:2022 © IEC 2022
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CABLE MANAGEMENT SYSTEMS –
TEST METHOD FOR CONTENT OF HALOGENS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 63355 has been prepared by subcommittee 23A: Cable management systems, of IEC
technical committee 23: Electrical accessories. It is an International Standard.
The text of this International Standard is based on the following documents:
Draft Report on voting
23A/997/FDIS 23A/999/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
---------------------- Page: 10 ----------------------
SIST EN IEC 63355:2022
IEC 63355:2022 © IEC 2022 – 5 –
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 11 ----------------------
SIST EN IEC 63355:2022
– 6 – IEC 63355:2022 © IEC 2022
CABLE MANAGEMENT SYSTEMS –
TEST METHOD FOR CONTENT OF HALOGENS
1 Scope
This document specifies a method for the determination of the content of halogens in cable
management system (CMS) products or system components made completely or partly of
combustible material(s). The determination is made by combustion and subsequent analysis of
the combustion product by ion chromatography. This document specifies how CMS products or
system components can be declared as halogen-free.
This document is for environmental performance purposes only.
Compliance with this document does not imply the absence of toxicity, corrosivity or opacity of
produced smoke, or other reaction to fire characteristics. If any of these characteristics are to
be evaluated, the appropriate standards can be used.
The detection limit of this test method is typically 0,025 g of halogen per kg (0,002 5 %).
Halides insoluble in aqueous solution present in the original sample or produced during the
combustion step are not determined by this method.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
ISO 1716, Reaction to fire tests for products – Determination of the gross heat of combustion
(calorific value)
ISO 3696, Water for analytical laboratory use – Specification and test methods
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
halogen content
content of fluorine, chlorine, bromine and iodine as organic and inorganic compounds that can
be converted to halides (fluoride, chloride, bromide, iodide) by combustion and then absorbed
or dissolved in an aqueous solution
Note 1 to entry: The above definition is valid for this document only and does not strictly comply with the scientific
definition of halogen content.
---------------------- Page: 12 ----------------------
SIST EN IEC 63355:2022
IEC 63355:2022 © IEC 2022 – 7 –
3.2
combustible, adjective
capable of being ignited and burned
[SOURCE: ISO 13943:2017, 3.52]
4 Principle
For the purpose of this document, a material is considered as being non-combustible if its gross
calorific potential is assumed to be lower than 3,0 MJ/kg. In case of doubt ISO 1716 is used to
measure the calorific potential.
Examples of non-combustible materials are:
– uncoated stainless steel,
– steel with metallic coating,
– uncoat
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
