oSIST prEN 50126-2:2012

Railway applications - The Specification and Demonstration of Reliability, Availability, Maintainability and Safety (RAMS) - Part 2: Systems approach to safety

Together with prEN 50126-1:201X (pr=21752), will supersede EN 50126-1:1999 * In hands of WG 14 * D138/C125: Extension of the target date for vote approved to read 2013-03-31 * 2012-06-22 - Enquiry editing allocated to [e-mail]

Bahnanwendungen - Spezifikation und Nachweis von Zuverlässigkeit, Verfügbarkeit, Instandhaltbarkeit und Sicherheit (RAMS) - Teil 2: Systembezogene Sicherheitsmethodik

Applications ferroviaires - Spécification et démonstration de la fiabilité, de la disponibilité, de la maintenabilité et de la sécurité (FDMS) - Partie 2: Approche systématique pour la sécurité

Železniške naprave - Specifikacija in prikaz zanesljivosti, razpoložljivosti, vzdrževalnosti in varnosti (RAMS) - 2. del: Sistemski pristop k varnosti

General Information

• Status: Not Published
• Public Enquiry End Date: 30-Mar-2013
• ICS: 29.280 - Electric traction equipment
• ICS: 45.020 - Railway engineering in general
• Technical Committee: ŽEN - Electrical applications for railways
• Current Stage: 98 - Abandoned project (Adopted Project)
• Start Date: 21-Sep-2015
• Due Date: 26-Sep-2015
• Completion Date: 21-Sep-2015
• Directive: 2001/16/EC - Directive 2001/16/EC of the European Parliament and of the Council of 19 March 2001 on the interoperability of the trans-European conventional rail system
• Directive: 2008/57/EC - Directive 2008/57/EC of the European Parliament and of the Council of 17 June 2008 on the interoperability of the rail system within the Community (Recast)
• Directive: 96/48/EC - Interoperability of the trans-European high-speed rail system
• Mandate: M/334 - Mandate for programming and standardisation addressed to CEN, CENELEC and ETSI in the field of the Interoperability of the trans-european conventional rail system
• Mandate: M/483 - Mandate for programming and standardisation addressed to the European standardisation bodies under directive 2008/57/EC in the field of the interoperability of the rail system within the European Union
• Ref Project: prEN 50126-2 - Railway applications - The Specification and Demonstration of Reliability, Availability, Maintainability and Safety (RAMS) - Part 2: Systems approach to safety

Relations

• Replaces: SIST EN 50126-1:2001 - Railway applications - The specification and demonstration of Reliability, Availability, Maintainability and Safety (RAMS) - Part 1: Basic requirements and generic process
• Effective Date: 07-Jun-2022
• Revised: SIST EN 50126-1:2001 - Railway applications - The specification and demonstration of Reliability, Availability, Maintainability and Safety (RAMS) - Part 1: Basic requirements and generic process
• Effective Date: 29-Mar-2013

Overview

prEN 50126-2 - part of the RAMS family - is the CLC/CENELEC draft standard titled Railway applications - The Specification and Demonstration of Reliability, Availability, Maintainability and Safety (RAMS) - Part 2: Systems approach to safety. Prepared by CLC/TC 9X (draft 2012/2013), this document gives structured guidance on applying a systems-based safety process across the railway life‑cycle. It complements and will partially supersede earlier RAMS guidance (EN 50126-1:1999) and focuses specifically on safety engineering, risk acceptance and demonstration.

Key topics and technical requirements

• Life‑cycle and Hourglass models: tailoring the life‑cycle model and the hourglass approach for iterative safety development and verification.
• Safety acceptance processes & safety cases: generic and project‑specific acceptance flows, dependencies between safety cases, and post‑acceptance responsibilities.
• Avoidance of systematic failures: organisational measures, independent safety assessment, prevention, detection and correction of systematic faults through design, testing and maintenance.
• System definition and boundaries: methods for defining system structure, stakeholders, interfaces and system content for safety assessment.
• Risk analysis and evaluation: hazard identification techniques (empirical and creative), hazard classification, consequence analysis, and the risk model for likelihood/consequence assessment.
• Risk acceptance principles: ALARP and similar frameworks; options including codes of practice, use of reference systems, and explicit quantitative risk estimation.
• Specification and apportionment of safety requirements: functional, technical, operational and maintenance safety requirements and techniques for apportioning system safety down to subsystems.
• Functional safety for E/E/PE systems: Safety Integrity Levels (SIL) concept, allocation, combination of random and systematic aspects, and demonstration of quantified targets.
• Design, implementation and causal analysis: causal analysis, treatment of design-derived hazards, independence of functions and techniques/methods for safety analysis.
• Informative annexes: measures to avoid systematic failures, ALARP/GAME/MEM guidance, THR derivation from statistics, maintenance CoP for non‑E/E/PE, apportionment methods, quantification methods, common mistakes and safety analysis techniques.

Practical applications and users

This standard is intended for:

• Railway system engineers, safety engineers and system integrators
• Rolling stock and signalling designers (E/E/PE and non‑E/E/PE systems)
• Project managers, maintainers and operators responsible for RAMS compliance
• Notified bodies, independent safety assessors and regulators performing conformity and safety case reviews

Use cases:

• Defining and documenting safety requirements and safety cases
• Performing hazard identification, risk estimation and ALARP decisions
• Allocating SILs and apportioning safety requirements across subsystems
• Establishing processes to prevent and detect systematic failures throughout the life‑cycle

Related standards

• EN 50126-1 (RAMS) - overarching RAMS lifecycle principles
• EN 50128 / EN 50129 - software and signalling safety standards (linked for E/E/PE systems)

Keywords: prEN 50126-2, EN 50126-2, RAMS, railway safety, systems approach to safety, SIL allocation, hazard analysis, risk assessment, safety case, ALARP, E/E/PE.

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN 50126-2:2013
01-januar-2013
Železniške naprave - Specifikacija in prikaz zanesljivosti, razpoložljivosti,
vzdrževalnosti in varnosti (RAMS) - 2. del: Sistemski pristop k varnosti
Railway applications - The Specification and Demonstration of Reliability, Availability,
Maintainability and Safety (RAMS) - Part 2: Systems approach to safety
Bahnanwendungen - Spezifikation und Nachweis von Zuverlässigkeit, Verfügbarkeit,
Instandhaltbarkeit und Sicherheit (RAMS) - Teil 2: Systembezogene Sicherheitsmethodik
Applications ferroviaires - Spécification et démonstration de la fiabilité, de la disponibilité,
de la maintenabilité et de la sécurité (FDMS) - Partie 2: Approche systématique pour la
sécurité
Ta slovenski standard je istoveten z: prEN 50126-2:2012
ICS:
29.280 (OHNWULþQDYOHþQDRSUHPD Electric traction equipment
45.020 Železniška tehnika na Railway engineering in
splošno general
oSIST prEN 50126-2:2013 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

oSIST prEN 50126-2:2013
oSIST prEN 50126-2:2013
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2012
EUROPÄISCHE NORM
ICS 45.020 Will supersede EN 50126-1:1999 (partially)

English version
Railway applications -
The Specification and Demonstration of Reliability, Availability,
Maintainability and Safety (RAMS) -
Part 2: Systems approach to safety

Applications ferroviaires -  Bahnanwendungen -
Spécification et démonstration de la fiabilité, Spezifikation und Nachweis von
de la disponibilité, de la maintenabilité et de la Zuverlässigkeit, Verfügbarkeit,
sécurité (FDMS) - Instandhaltbarkeit und Sicherheit (RAMS) -
Partie 2: Approche systématique pour la Teil 2: Systembezogene Sicherheitsmethodik
sécurité
This draft European Standard is submitted to CENELEC members for CENELEC enquiry.
Deadline for CENELEC: 2013-03-29.

It has been drawn up by CLC/TC 9X.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal
Regulations which stipulate the conditions for giving this European Standard the status of a national standard without
any alteration.
This draft European Standard was established by CENELEC in three official versions (English, French, German). A
version in any other language made by translation under the responsibility of a CENELEC member into its own
language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they
are aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change
without notice and shall not be referred to as a European Standard.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Project: 21753 Ref. No. prEN 50126-2:2012 E

oSIST prEN 50126-2:2013

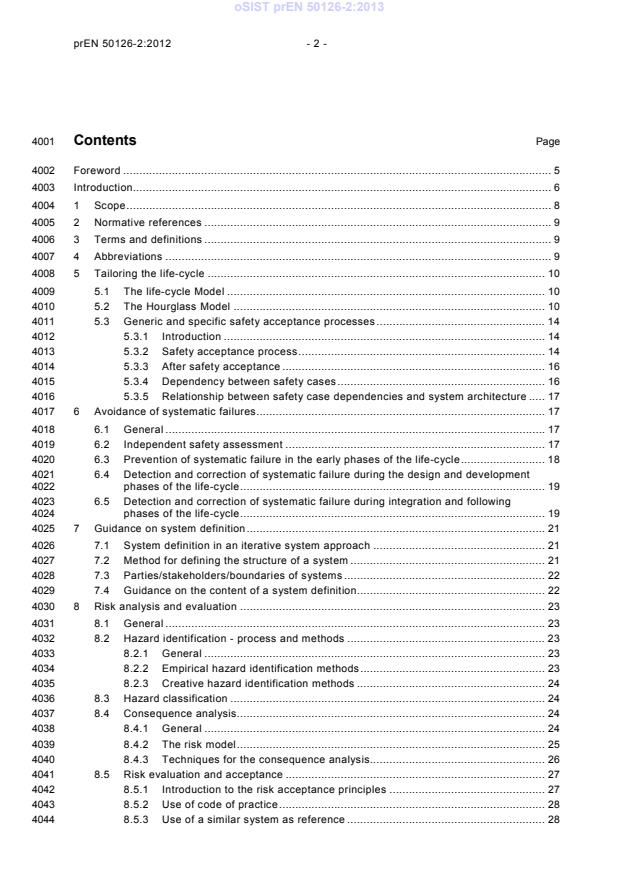

4001 Contents Page
4002 Foreword . 5
4003 Introduction. 6
4004 1 Sc op e . 8
4005 2 Normative references . 9
4006 3 Terms and definitions . 9
4007 4 Abbreviations . 9
4008 5 Tailoring the life-cycle . 10
4009 5.1 The life-cycle Model . 10
4010 5.2 The Hourglass Model . 10
4011 5.3 Generic and specific safety acceptance processes . 14
4012 5.3.1 Introduction . 14
4013 5.3.2 Safety acceptance process . 14
4014 5.3.3 After safety acceptance . 16
4015 5.3.4 Dependency between safety cases . 16
4016 5.3.5 Relationship between safety case dependencies and system architecture . 17
4017 6 Avoidance of systematic failures . 17
4018 6.1 General . 17
4019 6.2 Independent safety assessment . 17
4020 6.3 Prevention of systematic failure in the early phases of the life-cycle . 18
4021 6.4 Detection and correction of systematic failure during the design and development
4022 phases of the life-cycle . 19
4023 6.5 Detection and correction of systematic failure during integration and following
4024 phases of the life-cycle . 19
4025 7 Guidance on system definition . 21
4026 7.1 System definition in an iterative system approach . 21
4027 7.2 Method for defining the structure of a system . 21
4028 7.3 Parties/stakeholders/boundaries of systems . 22
4029 7.4 Guidance on the content of a system definition. 22
4030 8 Risk analysis and evaluation . 23
4031 8.1 General . 23
4032 8.2 Hazard identification - process and methods . 23
4033 8.2.1 General . 23
4034 8.2.2 Empirical hazard identification methods . 23
4035 8.2.3 Creative hazard identification methods . 24
4036 8.3 Hazard classification . 24
4037 8.4 Consequence analysis. 24
4038 8.4.1 General . 24
4039 8.4.2 The risk model . 25
4040 8.4.3 Techniques for the consequence analysis. 26
4041 8.5 Risk evaluation and acceptance . 27
4042 8.5.1 Introduction to the risk acceptance principles . 27
4043 8.5.2 Use of code of practice . 28
4044 8.5.3 Use of a similar system as reference . 28

oSIST prEN 50126-2:2013
- 3 - prEN 50126-2:2012
4045 8.5.4 Explicit risk estimation . 29
4046 8.6 Guidelines to the explicit risk estimation . 30
4047 8.6.1 Rationale . 30
4048 8.6.2 Quantitative approach . 30
4049 8.7 Qualitative approach . 33
4050 9 Specification of system requirements . 33
4051 9.1 General . 33
4052 9.2 Functional safety requirements . 34
4053 9.3 Technical safety requirements . 34
4054 9.4 Operational and maintenance safety requirements . 35
4055 10 Apportionment of System Safety Requirements . 35
4056 10.1 Deriving and apportioning system safety requirements . 35
4057 10.1.1 How to proceed with functions implemented by E/E/PE architectures . 35
4058 10.1.2 How to proceed with functions implemented by non-E/E/PE architecture . 35
4059 10.2 Functional safety integrity for E/E/PE . 35
4060 10.2.1 Deriving functional safety requirements for E/E/PE systems from defined
4061 hazards . 35
4062 10.2.2 The safety integrity concept and its levels . 36
4063 10.2.3 Random aspects of functional safety integrity . 37
4064 10.2.4 Systematic aspect of functional safety integrity . 37
4065 10.2.5 Combination of random and systematic aspects . 37
4066 10.2.6 The SIL table . 38
4067 10.2.7 SIL allocation . 39
4068 10.2.8 Apportionment of TFFR . 40
4069 10.2.9 Demonstration of quantified targets . 40
4070 10.2.10SIL0 . 41
4071 10.2.11Prevention of misuse of SILs and warnings. 41
4072 10.3 Safety Integrity for non-E/E/PE systems – Guidance on application of CoP . 41
4073 11 Design and implementation . 42
4074 11.1 Causal analysis . 42
4075 11.2 Identification and treatment of additional hazards arising from design . 42
4076 11.3 Techniques for causal analysis . 43
4077 11.4 Functional Safety principles. 43
4078 11.4.1 Functional composition . 43
4079 11.4.2 Independence of functions . 44
4080 11.4.3 Supporting rules for evaluating technical aspects of independence . 44
4081 Annex A (informative) Measures for the avoidance of systematic failures . 46
4082 A.1 General remark . 46
4083 A.2 Safety and quality management . 46
4084 A.3 System requirements specification . 46
4085 A.4 System architecture and design . 47
4086 A.5 Integration and testing of the system . 47
4087 A.6 Application, operation and maintenance . 47
4088 Annex B (informative) ALARP, GAME, MEM . 48
4089 Annex C (informative) Using failure and accident statistics to derive a THR . 54
4090 Annex D (informative) CoP on maintenance activities to preserve the safety integrity of non-
4091 E/E/PE systems . 55
4092 Annex E (informative) Apportionment methods. 57

oSIST prEN 50126-2:2013
4093 Annex F (informative) Safety Target Quantification Methods . 61
4094 Annex G (informative) Common mistakes in quantification . 67
4095 Annex H (informative) Techniques / methods for safety analysis . 68
4097 Figure 1 – The Hourglass Model . 11
4098 Figure 2 – Definition of hazards with respect to the system boundary . 13
4099 Figure 3 – Generic and specific safety acceptance processes . 15
4100 Figure 4 – Examples of dependencies between safety cases . 16
4101 Figure 5 – Organisational structure for early phases . 19
4102 Figure 6 – Organisational structure for integration and final phases . 20
4103 Figure 7 – An example of risk model . 25
4104 Figure 8 – Tolerable rates in an example of risk model . 31
4105 Figure 9 – Safety requirements . 34
4106 Figure 10 – Apportionment of functional safety requirements . 36
4107 Figure 11 – Relationship between SILs and techniques . 38
4108 Figure 12 – Impact of functional dependence in a fault-tree analysis . 44
4109 Figure B.1 – Example of simple qualitative risk matrix for use within an ALARP framework . 50
4110 Figure B.2 – Example of semi-quantitative risk matrix for use within an ALARP framework . 50
4111 Figure B.3 – Differential risk aversion . 53
4112 Figure E.1 – Functional breakdown . 57
4113 Figure E.2 – Analysis of the scenario: functional independence . 58
4114 Figure E.3 – 1st step of apportionment: analysis of the system . 59
4115 Figure E.4 – Example of quantified apportionment . 60
4116 Figure F.1 – Interpretation of failure and repair times . 61
4117 Figure F.2 – Double channel failure with common cause . 63
4118 Figure G.1 . 67
4120 Table 1 – Typical examples for a functional breakdown. 22
4121 Table 2 – Examples of hazards . 26
4122 Table 3 – SIL and SIL-measures . 38
4123 Table A.1 – Safety planning and quality assurance activities . 46
4124 Table A.2 – System requirements specification . 46
4125 Table A.3 – System architecture and design . 47
4126 Table A.4 – Integration and testing of the system . 47
4127 Table A.5 – Application, operation and maintenance . 47
4128 Table B.1 . 48
4129 Table D.1 – Measures to achieve the necessary safety integrity of non-E/E/PE systems . 56
4130 Table H.1 – Techniques / Methods for safety analysis . 68
oSIST prEN 50126-2:2013
- 5 - prEN 50126-2:2012
4132 Foreword
4133 This document [prEN 50126-2:2012] has been prepared by CLC/TC 9X "Electrical and electronic
4134 applications for railways".
4135 This document is currently submitted to the Enquiry.
4136 EN 50126 "Railway applications – The specification and demonstration of Reliability, Availability,
4137 Maintainability and Safety (RAMS)" consists of the following parts:
4138 – Part 1: Generic RAMS process;
4139 – Part 2: Systems approach to safety;
4140 – Part 4: Functional safety – Electrical/Electronic/Programmable electronic systems;
4141 – Part 5: Functional safety – Software.
4142 This new edition of EN 50126 (all parts) will supersede EN 50126-1:1999,
4143 CLC/TR 50126-2:2007, CLC/TR 50126-3:2008, EN 50128:2011 and EN 50129:2003.
4144 This part of EN 50126 covers the systems approach to safety. It is mainly based on
4145 EN°50126-1:1999.
4146 This part of EN 50126 will supersede EN 50126-1:1999 (together with prEN 50126-2:2012).
4147 This document has been prepared under a mandate given to CENELEC by the European
4148 Commission and the European Free Trade Association, and supports essential requirements of
4149 EU Directive(s).
oSIST prEN 50126-2:2013
4150 Introduction
4151 EN 50126-1:1999 was produced to introduce the application of a systematic RAMS management
4152 process in the railway sector. For safety-related electronic systems for signalling EN 50128 and
4153 EN 50129 were produced. Through the application of these standards and the experiences
4154 gained over the last years, the need for revision and restructuring became apparent with a need
4155 to deliver a systematic and coherent approach to RAMS applicable to all the railway application
4156 fields Signalling, Rolling Stock and Electric power supply for Railways (Fixed Installations).
4157 The revision work improved the coherency and consistency of the standards, the concept of
4158 safety management and the practical usage of EN 50126 and took into consideration the existing
4159 and related Technical Reports as well.
4160 This European Standard provides railway duty holders and the railway suppliers, throughout the
4161 European Union, with a process which will enable the implementation of a consistent approach to
4162 the management of reliability, availability, maintainability and safety, denoted by the acronym
4163 RAMS.
4164 Processes for the specification and demonstration of RAMS requirements are cornerstones of
4165 this standard. This European Standard promotes a common understanding and approach to the
4166 management of RAMS.
4167 EN 50126 is the railways sector specific application of IEC 61508. Meeting the requirements in
4168 this European Standard is sufficient to ensure that additional compliance to IEC 61508 does not
4169 need to be evaluated.
4170 With regard to safety EN 50126-1 provides a Safety Management Process which is supported by
4171 guidance and methods described in EN 50126-2.
4172 EN 50126-1 and EN 50126-2 are independent from the technology used. EN 50126-4 and
4173 EN 50126-5 provide guidance specific to safety-related E/E/PE technology of railway
4174 applications. Their application is determined through the application of the general RAMS
4175 process of EN 50126-1 and through the outcome of the safety-related methods described in
4176 EN 50126-2. As far as safety is concerned, EN 50126 takes the perspective of functional safety.
4177 This does not exclude other aspects of safety. However, these are not the focus.
4178 The aims set for revision of EN 50126 required a better understanding of the systems approach
4179 and improved methods for applying the safety management process described in EN 50126-1.
4180 EN 50126-2 provides this guidance.
4181 The application of this standard should be adapted to the specific requirements of the system
4182 under consideration.
4183 This European Standard can be applied systematically by the railway duty holders and railway
4184 suppliers, throughout all phases of the life-cycle of a railway application, to develop railway
4185 specific RAMS requirements and to achieve compliance with these requirements. The systems-
4186 level approach developed by this European Standard facilitates assessment of the RAMS
4187 interactions between elements of railway applications even if they are of complex nature.
4188 This European Standard promotes co-operation between the stakeholders of Railways in the
4189 achievement of an optimal combination of RAMS and cost for railway applications. Adoption of
4190 this European Standard will support the principles of the European Single Market and facilitate
4191 European railway inter-operability.
4192 The process defined by this European Standard assumes that railway duty holders and railway
4193 suppliers have business-level policies addressing Quality, Performance and Safety. The
4194 approach defined in this standard is consistent with the application of quality management
4195 requirements contained within the ISO 9001.

oSIST prEN 50126-2:2013
- 7 - prEN 50126-2:2012
1)
4196 In accordance with CENELEC editing rules , mandatory requirements in this standard are
4197 indicated with the modal verb “shall”. Where justifiable, the standard permits process tailoring.
4198 Specific guidance on the application of this standard in the case of process tailoring is provided
4199 in 7.3 of EN 50126-1. EN 50126-2 provides various methods for use in the safety management
4200 process. Where a particular method is selected for the system under consideration, the
4201 mandatory requirements of this method are by consequence mandatory for the safety
4202 management of the system under consideration.
—————————
1) CENELEC “Internal Regulations Part 3: Rules for the structure and drafting of CEN/CENELEC Publications (2009-
08), Annex H.
oSIST prEN 50126-2:2013
4203 1 Scope
4204 This part of EN 50126
4205  considers the safety-related generic aspects of the RAMS life-cycle. The guidance in this
4206 part is still applicable in the application of specific standards;
4207  defines methods and tools which are independent of the actual technology of the systems
4208 and subsystems, whilst following EN 50126-4 and EN 50126-5 are related to E/E/PE internal
4209 systems/subsystems;
4210  provides:
4211 – the user of the standard with the understanding of the system approach to safety which
4212 is a key concept of EN 50126;
4213 – methods to derive the safety requirements and their safety integrity requirements for
4214 the system and to apportion it to the subsystems, be it for hardware or software;
4215  provides guidance and methods for the following areas:
4216 – system life-cycles as applicable to generic and specific applications, and to the generic
4217 products;
4218 – systems safety assurance;
4219 – risk assessment process;
4220 – risk management process;
4221 – application of risk acceptance principles and criteria;
4222 – safety integrity concept.
4223  provides the user with the methods to assure safety with respect to the system under
4224 consideration and its interactions. Examples are guidance on safety integrity by the
4225 apportionment amongst the various parts of a system or a method to derive the safety-
4226 related role of software as a precondition to apply EN 50126-5;
4227  enables the user to define the system under consideration, to identify the interfaces and the
4228 interactions of this system with its subsystems or other systems and to conduct the risk
4229 analysis;
4230  addresses railway specifics;
4231  does not define:
4232 – RAMS targets, quantities, requirements or solutions for specific railway applications;
4233 – rules or processes pertaining to the certification of railway products against the
4234 requirements of this standard;
4235 – an approval process by the safety authority.
4236  does not specify requirements for ensuring system security.
4237 This part 2 of EN 50126 is applicable
4238  to all systems under consideration - as regards safety - within the entire railway system and
4239 the stakeholders involved;
4240  to the specification and demonstration of safety for all railway applications and at all levels
4241 of such an application, as appropriate, from complete railway systems to major systems and
4242 to individual and combined sub-systems and components within these major systems,
4243 including those containing software; in particular:
4244 – to new systems;
4245 – to new systems integrated into existing systems in operation prior to the creation of this
4246 standard, although it is not generally applicable to other aspects of the existing system;
4247 – for modifications of existing systems in operation prior to the creation of this standard,
4248 although it is not generally applicable to other aspects of the existing system;
4249 – at all relevant phases of the life-cycle of an application;
4250 – for use by railway duty holders and the railway suppliers.
4251 It is not required to apply this standard to existing systems including those systems already
4252 compliant with any version of former EN 50126, EN 50128 or EN 50129, which remain
4253 unmodified. Railway applications mean Command, Control & Signalling, Rolling Stock and
4254 Electric Power Supply for Railways (Fixed Installations).

oSIST prEN 50126-2:2013
- 9 - prEN 50126-2:2012
4255 In this standard the term hardware refers to E/E/PE components or systems. If non-E/E/PE
4256 hardware is meant, this is specifically mentioned.
4257 2 Normative references
4258 The following documents, in whole or in part, are normatively referenced in this document and
4259 are indispensable for its application. For dated references, only the edition cited applies. For
4260 undated references, the latest edition of the referenced document (including any amendments)
4261 applies.
4262 prEN 501261:2012, Railway applications – The Specification and Demonstration of Reliability,
4263 Availability, Maintainability and Safety (RAMS) – Part 1: Generic RAMS process
4264 ISO 9001, Quality management systems – Requirements
4265 ISO/IEC GUIDE 51, Safety aspects – Guidelines for their inclusion in standards
4266 3 Terms and definitions
4267 For the purposes of this document, the terms and definitions given in prEN 50126-1:2012 apply.
4268 4 Abbreviations
4269 ALARP As Low As Reasonable Practicable
4270 CBA Cost Benefit Analysis
4271 CCF Common Cause Failure (Analysis)
4272 CoP Code of Practice
4273 DCCA Deductive Cause-Consequence Analysis
4274 DRA Differential Risk Aversion
4275 E/E/PE Electrical/electronic/programmable electronic systems
4276 ERE Explicit Risk Estimation
4277 EMC Electromagnetic capability
4278 ETA Event Tree Analysis
4279 FCA Failure Consequence Analysis
4280 FMECA Failure Mode Effect & Criticality Analysis
4281 FTA Fault Tree Analysis
4282 GA, GASC Generic Application, Generic Application Safety Case
4283 GP, GPSC Generic Product, Generic Product Safety Case
4284 GAME Globalement Au Moins Equivalent
4285 HAZOP Hazard and Operability study
4286 ISA Independent Safety Assessment
4287 MEM Minimum Endogenous Mortality
4288 RAC Risk Acceptance Criterion
4289 RAMS Reliability, Availability, Maintainability, Safety
4290 RBD Reliability Block Diagram
4291 RRA Rapid Ranking Analysis
4292 SA, SASC Specific Application, Specific Application Safety Case
4293 SDR Safe Down Rate
4294 SDT Safe Down Time
4295 SIL Safety Integrity Level
4296 SRAC Safety-related Application Conditions
4297 TFFR Tolerable Functional Failure Rate
4298 THR Tolerable Hazard Rate
4299 VPF Value of Preventing a Fatality
oSIST prEN 50126-2:2013
4301 5 Tailoring the life-cycle
4302 5.1 The life-cycle Model
4303 The model described in EN 50126-1 covers general RAMS aspect of the whole life-cycle.
4304 From the perspective of safety methods, with the aim of
4305 • achieving a clear definition of responsibilities and interfaces between the operator and the
4306 supplier, and
4307 • facilitating reuse of existing systems and their related acceptance,
4308 the following subclauses are introducing the concept of hourglass model (see 5.2) and the
4309 distinction between generic product, generic application and specific application processes (see
4310 5.3).
4311 5.2 The Hourglass Model
4312 In this subclause, the so-called Hourglass Model is introduced: it offers a simplified approach
4313 that although not containing all aspects implied in the life-cycle model helps to clarify some
4314 issues.
4315 The Hourglass Model provides an overview of the major safety-related activities that are needed
4316 to ensure an acceptable safety level for a technical system, including the corresponding
4317 responsibility areas.
4318 Technical system means a product or an assembly of products including the design,
4319 implementation and support documentation. The development of a technical system starts with
4320 its requirements specification and ends with its acceptance. The design of relevant interfaces
4321 with human behaviour is considered, while human operators and their actions are not included in
4322 a technical system. Both the maintenance process (described in the maintenance manuals) and
4323 the operation are specified but are not considered parts of the technical system itself. They can
4324 be restricted in “application conditions”.
4325 The purpose of this model is to highlight the separation between risk analysis (at the railway
4326 system level) from hazard analysis (at the level of the system under consideration).
4327 This enhances co-operation between the relevant stakeholders, clarifying responsibilities and
4328 interfaces and has the advantages of reducing complexity and facilitating modularization.
4329 The Hourglass Model describes two main aspects:
4330 • “risk assessment”, i.e. deriving high-level safety requirements for operational and technical
4331 issues (including maintenance), and
4332 • “hazard control”, i.e. design and implementation of the safety-related system under
4333 consideration by determining and analysing causes internal to the system and implementing
4334 control measures on the basis of the given safety requirements.

oSIST prEN 50126-2:2013
- 11 - prEN 50126-2:2012
Risk Assessment
Railway Duty Holder‘s
A
¾ System Definition
responsibility
¾ Risk Analysis, including:
• Hazard Identification
• Consequence Analysis
• Selection of RAP
¾ Risk Evaluation
B
¾ System Requirement Specification
¾ Identified Hazards
Note: during each
D
¾ Safety Requirements: project
• Additional
responsibilities have
• Objectives from ERE
hazards
to be clarified
• selected Codes of Practice
• Application unambiguously
• Reference systems specifications
in order to avoid
Conditions
gaps or overlaps
C
¾ Hazard Analysis
• Causal Analysis
• Hazard Identification
(refinement)
• Common Cause Analysis
¾ Demonstration of Compliance
Supplier’s
responsibility
Hazard Control
4337 Figure 1 – The Hourglass Model
4338 A Risk assessment
4339 Risk assessment is performed at the railway system level.
4340 It covers system definition, risk analysis, risk evaluation.
4341 It defines the high level system safety requirements, in particular safety requirements for the
4342 system under consideration from the perspective of operator. It takes into account safety-related
4343 operational aspects, previous experience and the regulatory requirements of the railway
4344 application.
4345 The main task for this activity is the risk analysis, which is derived from the system definition.
4346 The risk analysis includes hazard identification, consequence analysis, and selection of risk
4347 acceptance principles (“RAP” in the picture) and associated criteria.
4348 The specification of safety requirements is the final result of risk assessment; in Figure 1 it is
4349 allocated in box B, because it has an interface function (together with system requirement
4350 specifications and the list of identified hazards) between different responsibilities.
4351 Gaining and sharing system knowledge
4352 All the knowledge gained during the process and the documented analyses, resulting from the
4353 risk assessment, should be considered as relevant information together with the specification of
4354 safety requirements.
4355 This knowledge should be shared and distributed among the stakeholders involved in the system
4356 process. It will provide significant potential benefits in terms of improved awareness of hazards
4357 and risk of accidents in the given operational and maintenance context, and will also help to
4358 understand the scope and limits of the risk reduction measures.
Legal framework
oSIST prEN 50126-2:2013
4359 Conducting risk assessment
4360 The level of detail in a risk assessment should be adequate to the risk. The purpose is not to
4361 catalogue every trivial hazard, nor is it expected that hazards beyond the limits of current
4362 knowledge will always be identified. A suitable and sufficient risk assessment should reflect a
4363 reasonable analysis of hazards and their associated risks within the railway operation and within
4364 the applied technology itself. Where reasonably practicable, risk assessments should be
4365 correlated with historical records of accidents and the records of causes.
4366 When possible, consideration of technical implementation/architecture should be avoided in this
4367 first stage i.e. the system to be developed should be considered as a black box, of which
4368 functions and hazards are evaluated only at the boundaries. These boundaries are well defined
4369 interfaces between the operational environment and the system under consideration.
4370 As an example, an “unintentional train motion” is a hazard for a train. It can be observed as an
4371 abstraction at the boundary of the “system train” and it could lead to different accidents
4372 depending on the operational context (e.g. collision in context with over-speeding while running
4373 or fall of persons in connection with a train moving in a station while expected to stand still, etc.).
4374 Assumptions defined during the risk assessment have to be checked and updated throughout the
4375 life-cycle phases.
4376 B Outcomes of the risk assessment
4377 The results of the first stage of the risk assessment are a set of safety requirements attached to
4378 clearly-identified functions, systems or operating rules. They are part of the System Requirement
4379 Specification that establishes the technical interface between the stakeholders.
4380 NOTE The project organisational structure and responsibilities are another factor to consider in understanding and
4381 controlling risk. For organisational aspects and requirements see EN 50126-1, 5.3 and EN 50126-1, 7.1.1.3
4382 On the basis of the selected risk acceptance principles, safety requirements can refer to Codes
4383 of Practise, to similar systems, or give explicit targets derived from an explicit risk estimation
4384 (“ERE” in the picture).
4385 Safety requirements include required efficiency of safety functions , that could be assessed
4386 quantitatively (e.g. maximum rates of hazards), semi-quantitatively or qualitatively (e.g. use of
4387 trained drivers for controlling human factor errors).
4388 Safety requirements should be assessed with a holistic approach, i.e. the residual risk should be
4389 evaluated as acceptable taking into consideration the identified hazards.
4390 C Hazard control
4391 The hazard control stage in the hourglass model is dedicated to ensuring that the system under
4392 consideration is compliant with the safety requirements: hence hazard control is performed for a
4393 specific system architecture.
4394 NOTE Hazard control as here defined has a narrow meaning and is limited to the design and implementation phase.
4395 The major impacts of human factors, operational and general maintenance rules as well as
4396 procedures are part of the preceding risk analysis and should have already been taken into
4397 account in the safety requirements. Therefore, during hazard control, the designer of the system
4398 under consideration can focus on the internal causes of the identified hazards, that can be
4399 considered as hazards at the system level.
4400 The main task for this activity is the “hazard analysis” comprising:
4401 – causal analysis;
4402 – a dedicated hazard identification focusing on the system under consideration, and;
4403 – a Common Cause Analysis.
4404 Hazard identification is a recurring task that can appear on several iteration levels for subsets of
4405 the system under consideration. In order to distinguish these different tasks (and related
4406 documents) the hazard identification has been quoted twice in Figure 1:
4407 1. during risk assessment, it focuses on high level hazards derived from the system functions
4408 (black box) and related operation of the system as well as its environment;
4409 2. within the hazard control, a refined/iterated hazard identification focuses on hazards and
4410 their causes derived from the technical solutions, i.e. from defined architecture and internal
4411 interfaces of the system under consideration, and potential new hazards introduced by the
4412 system itself.
oSIST prEN 50126-2:2013
- 13 - prEN 50126-2:2012
4413 Figure 2 shows that the cause of a hazard at the railway system level may be considered as a
4414 hazard on level of the system under consideration, with respect to its boundary. The boundary
4415 for a hazard identification is always given in the system definition that limits the scope of the
4416 task. This implies that the hazards are structured hierarchically hence a hierarchical approach to
4417 hazard analysis and hazard logging should be used.
Hazar
Cause (railway system level)
(railway
External occurrence
Hazard (level of system
= system level)
barriers
under consideration) Accident
Accident
Cause
(subsystem
level)
Boundary of the
Cause Consequence
system under
consideration
4421 Figure 2 – Definition of hazards with respect to the system boundary
4423 The picture is hazard-oriented and shows a “bow-tie” shape, suggesting that several causes may
4424 lead to the same hazard and one hazard may lead to several different accidents.
4425 The demonstration of compliance with the safety requirements of the system under consideration
4426 can be performed in various forms. These forms depend on the nature of the underlying
4427 requirements set at the beginning of the hazard control.
4428 D Revision of risk assessment
4429 During the hazard control stage, fulfilment of safety targets may not be reached at the first
4430 iteration:
4431 – additional hazards may be identified at the level of the system under consideration;
4432 – a need of new operational rules may arise;
4433 – additional external safety measures may be required to fulfil the safety objectives.
4434 In all these cases, a revision of the risk assessment is necessary.
4435 This revision should also take account of the application conditions that could rise at the level of
4436 the system under consideration.
4437 Responsibilities
4438 Risk assessment is mainly within the responsibility of the railway duty holders and operators.
4439 The roles and responsibilities may however be contracted to other parties in relation to their
4440 accountabilities, provided that they have a documented and suitable range of competencies to
4441 consider the whole operational context in detail. They need to take into account safety-related
4442 operational aspects, previous experience and regulatory requirements. In any case the railway
4443 duty holders should approve the results of the risk assessment.
4444 The hazard control, for hazards associated purely with the technical system, is the responsibility
4445 of the supplier of the technical system.
4446 Railway duty holder and supplier need to comply with the prevai
...
