SIST EN IEC 60317-73:2018
(Main)Specifications for particular types of winding wires - Part 73: Polyester or polyesterimide overcoated with polyamide-imide enamelled rectangular aluminium wire, class 200 (IEC 60317-73:2018)
Specifications for particular types of winding wires - Part 73: Polyester or polyesterimide overcoated with polyamide-imide enamelled rectangular aluminium wire, class 200 (IEC 60317-73:2018)
This part of IEC 60317 specifies the requirements of enamelled rectangular aluminium
winding wire of class 200 with a dual coating. The underlying coating is based on polyester or
polyesterimide resin, which can be modified providing it retains the chemical identity of the
original resin and meets all specified wire requirements. The superimposed coating is based
on polyamide-imide resin.
NOTE A modified resin is a resin that has undergone a chemical change, or contains one or more additives to
enhance certain performance or application characteristics.
The range of nominal conductor dimensions covered by this standard is:
– width: min. 2,0 mm max. 16,0 mm;
– thickness: min. 0,80 mm max. 5,60 mm.
Wires of grade 1 and grade 2 are included in this specification and apply to the complete
range of conductors.
The specified combinations of width and thickness as well as the specified width/thickness
ratio are given in IEC 60317-0-9:2015.
Technische Lieferbedingungen für bestimmte Typen von Wickeldrähten - Teil 73: Flachdraht aus Aluminium, lackisoliert mit Polyester oder Polyesterimid und darüber mit Polyamidimid, Klasse 200
Spécifications pour types particuliers de fils de bobinage - Partie 73: Fil de section rectangulaire émaillé en aluminium revêtu de polyester ou de polyesterimide ainsi que de polyamide-imide, de classe 200
IEC 60317-73:2018 spécifie les exigences relatives aux fils de bobinage de section rectangulaire en aluminium émaillé de classe 200 à double revêtement. La première couche de revêtement est en résine de polyester ou de polyesterimide; elle peut être modifiée à condition de conserver les propriétés chimiques de la résine d'origine et de respecter toutes les exigences spécifiées pour les fils. La deuxième couche de revêtement est en résine de polyamide-imide. NOTE Une résine modifiée est une résine dont les propriétés chimiques ont été modifiées ou qui contient un ou plusieurs additifs visant à améliorer certaines performances ou caractéristiques d'application.La plage des dimensions nominales des conducteurs couvertes par la présente norme est:
- pour la largeur: min. 2,0 mm - max. 16,0 mm;
- pour l'épaisseur: min. 0,80 mm - max. 5,60 mm.
Les fils de grades 1 et 2 sont couverts par la présente spécification et s'appliquent à toute la gamme des conducteurs.
Les combinaisons largeur-épaisseur spécifiées ainsi que le rapport largeur/épaisseur spécifié sont indiqués dans l'IEC 60317-0-9:2015.
Mots clés: fils isolés utilisés pour les enroulements
Specifikacije za posebne vrste navijalnih žic - 73. del: Aluminijasta žica s pravokotnim prerezom, emajlirana s poliamidimidom, prekrita s poliestrom ali poliesterimidom, razred 200 (IEC 60317-73:2018)
Ta del standarda IEC 60317 določa zahteve za emajlirano aluminijasto navijalno žico s pravokotnim prerezom razreda 200 z dvojno prevleko. Spodnja prevleka je osnovana na poliestrski ali poliesteramidski smoli, ki se lahko spremeni, če ohrani kemijsko identiteto izvirne smole in izpolnjuje vse določene zahteve za žice. Vrhnja prevleka je osnovana na poliamid-imidni smoli.
OPOMBA: spremenjena smola je smola, ki je bila kemijsko spremenjena ali vsebuje enega ali več aditivov za izboljšanje določene lastnosti učinkovitosti ali uporabe.
Razpon nazivnih mer prevodnika, ki ga zajema ta standard, je:
– širina: min. 2,0 mm, maks. 16,0 mm;
– debelina: min. 0,80 mm, maks. 5,60 mm.
V to specifikacijo so vključene žice razreda 1 in 2 ter se uporabljajo za celoten nabor prevodnikov.
Navedene kombinacije širine in debeline ter določena razmerja med širino in debelino so podana v standardu IEC 60317-0-9:2015.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 60317-73:2018
01-julij-2018
Specifikacije za posebne vrste navijalnih žic - 73. del: Aluminijasta žica s
pravokotnim prerezom, emajlirana s poliamidimidom, prekrita s poliestrom ali
poliesterimidom, razred 200 (IEC 60317-73:2018)
Specifications for particular types of winding wires - Part 73: Polyester or polyesterimide
overcoated with polyamide-imide enamelled rectangular aluminium wire, class 200 (IEC
60317-73:2018)
Ta slovenski standard je istoveten z: EN IEC 60317-73:2018
ICS:
29.060.10 Žice Wires
77.150.10 Aluminijski izdelki Aluminium products
SIST EN IEC 60317-73:2018 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 60317-73:2018
---------------------- Page: 2 ----------------------
SIST EN IEC 60317-73:2018
EUROPEAN STANDARD EN IEC 60317-73
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2018
ICS 29.060.10
English Version
Specifications for particular types of winding wires - Part 73:
Polyester or polyesterimide overcoated with polyamide-imide
enamelled rectangular aluminium wire, class 200
(IEC 60317-73:2018)
Spécifications pour types particuliers de fils de bobinage - Technische Lieferbedingungen für bestimmte Typen von
Partie 73: Fil de section rectangulaire émaillé en aluminium Wickeldrähten - Teil 73: Polyester oder Polyesterimid
revêtu de polyester ou de polyesterimide ainsi que de beschichteter, mit Polyamidimid lackierter Flachdraht aus
polyamide-imide, de classe 200 Aluminium, Klasse 200
(IEC 60317-73:2018) (IEC 60317-73:2018)
This European Standard was approved by CENELEC on 2018-04-03. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60317-73:2018 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60317-73:2018
EN IEC 60317-73:2018 (E)

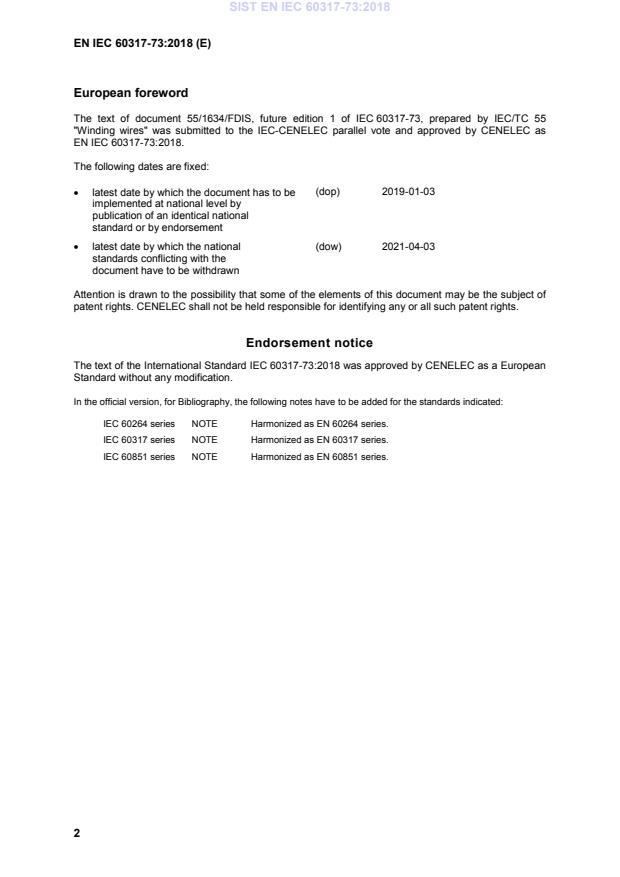

European foreword
