Designation: F2255 − 05 (Reapproved 2015)
Standard Test Method for
Strength Properties of Tissue Adhesives in Lap-Shear by
Tension Loading
This standard is issued under the fixed designation F2255; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope for use in closing wounds (surgical or traumatic) or for sealing
against leakage of body fluids.
1.1 This test method is intended to provide a means for
comparison of the adhesive strengths of tissue adhesives
3.2.2 tissue sealant—a surface coating with adequate adhe-
intended for use as surgical adhesives or sealants, or both, on
sive strength to prevent leakage of body fluids.
softtissue.Withtheappropriatechoiceofsubstrate,itmayalso
be used for purposes of quality control in the manufacture of
4. Significance and Use
tissue adhesive based medical devices.
4.1 Materials and devices that function at least in part by
1.2 The values stated in SI units are to be regarded as
adhering to living tissues are finding increasing use in surgical
standard. No other units of measurement are included in this
procedureseitherasadjunctstosuturesandstaples,orasfrank
standard.
replacements for those devices in a wide variety of medical
1.3 This standard does not purport to address all of the procedures. While the nature and magnitude of the forces
safety concerns, if any, associated with its use. It is the involvedvariesgreatlywithindicationandwithpatientspecific
responsibility of the user of this standard to establish appro- circumstances,allusesinvolvetosomeextenttheabilityofthe
priate safety and health practices and determine the applica- material to resist imposed mechanical forces. Therefore, the
bility of regulatory limitations prior to use. mechanical properties of the materials, and in particular the
adhesive properties, are important parameters in evaluating
2. Referenced Documents
their fitness for use. In addition, the mechanical properties of a
given adhesive composition can provide a useful means of
2.1 ASTM Standards:
determining product consistency for quality control, or as a
D907Terminology of Adhesives
meansfordeterminingtheeffectsofvarioussurfacetreatments
E4Practices for Force Verification of Testing Machines
on the substrate prior to use of the device.
2.2 American Association of Tissue Banks Standards:
Standards for Tissue Banking 4.2 The complexity and variety of individual applications
for tissue adhesive devices, even within a single indicated use
3. Terminology (surgical procedure) is such that the results of a single-lap-
shear test are not suitable for determining allowable design
3.1 Definitions—Many terms in this test method are defined
stresses without thorough analysis and understanding of the
in Terminology D907.
application and adhesive behaviors.
3.2 Definitions:
4.3 This test method may be used for comparing adhesives
3.2.1 tissue adhesive—for the purposes of this test method,
or bonding processes for susceptibility to fatigue and environ-
tissue adhesive is defined as a compound or system intended
mentalchanges,butsuchcomparisonsmustbemadewithgreat
caution since different adhesives may respond differently to
varying conditions.
ThistestmethodisunderthejurisdictionofASTMCommitteeF04onMedical
andSurgicalMaterialsandDevicesandisthedirectresponsibilityofSubcommittee
F04.15 on Material Test Methods.
5. Apparatus
CurrenteditionapprovedMay1,2015.PublishedJuly2015.Originallyapproved
in 2003. Last previous edition approved in 2010 as F2255–05 (2010). DOI:
5.1 Testing Machine, of the constant-rate-of-crosshead-
10.1520/F2255-05R15.
movement type and comprising essentially the following:
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM 5.1.1 Fixed Member, a fixed or essentially stationary mem-
Standards volume information, refer to the standard’s Document Summary page on
ber carrying one grip.
the ASTM website.
5.1.2 Movable Member, a movable member carrying a
Available from the American Association of Tissue Banks (AATB), 1350
Beverly Rd., Suite 220-A, McLean, VA 22101. second grip.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
F2255 − 05 (2015)
5.1.3 Grips,forholdingthetestspecimenbetweenthefixed AmericanAssociation of Tissue Banks. The specimens should
member and the movable member of the testing machine can be brought to the test temperature or other prescribed tempera-
be either the fixed or self-aligning type. ture (such as body temperature) prior to application of the
5.1.3.1 Fixed Grips are rigidly attached to the fixed and adhesive.
movable members of the testing machine. When this type of 6.2.2 Fixed tissue should not be used since it has been
gripisusedextremecareshouldbetakentoensurethatthetest demonstrated that fixatives cause large alterations in the
specimen is inserted and clamped so that the long axis of the mechanical properties of the tissue and it is probable that the
test specimen coincides with the direction of pull through the adhesive strength would be affected as well.
centerline of the grip assembly. 6.2.3 Ifthetargetorganisofasizeorgeometry,orboth,that
5.1.3.2 Self-aligning Grips are attached to the fixed and does not allow fabrication of test samples as shown in Fig. 1,
movablemembersofthetestingmachineinsuchamannerthat a tissue of similar origin but larger size should be used. For
they will move freely into alignment as soon as any load is example, if the intended indication is for anastomosis of small
applied so that the long axis of the test specimen will coincide blood vessels, a larger vessel should be substituted.
with the direction of the applied pull through the center line of 6.2.4 The thickness of the tissue sample should be mini-
the grip assembly. The specimens should be aligned as per- mized and should not exceed 5 mm.Thicker samples will lead
fectly as possible with the direction of pull so that no rotary to distortion of the substrate and mixed loading (shear and
motion that may induce slippage or damage to the sample will tension).Itisalsoimportantthatthethicknessbeasuniformas
occur in the grips; there is a limit to the amount of misalign- possible.
ment self-aligning grips will accommodate.
6.3 Substrates for Quality Control Testing:
5.1.4 Drive Mechanism,forimpartingtothemovablemem-
6.3.1 For testing that is undertaken as part of a quality
berauniform,controlledvelocitywithrespecttothestationary
control process in the manufacturing of a tissue adhesive
member, with this velocity to be regulated as specified in 9.3.
device, the use of freshly harvested tissue is highly inconve-
5.1.5 Load Indicator, a suitable load-indicating mechanism
nient and may also lead to unacceptable variation in the test
capable of showing the total tensile load carried by the test
results, especially if the failure occurs in the adherend (sub-
specimen when held by the grips. This mechanism shall be
strate failure). Since the purpose of quality control testing is to
essentially free of inertia lag at the specified rate of testing and
demonstrate consistency in the device, substitution of a model
shall indicate the load with an accuracy of 61% of the
substrate is preferred so long as it is demonstrated that the
indicated value, or better. The accuracy of the testing machine
adhesive does bond to the adherand. For devices that require
shall be verified in accordance with Practices E4.
contact with tissues to cure, Mediskin XenoGraft should be
5.2 Temperature-controlling Equipment, capable of main- used for quality control testing as well as comparative testing.
taining the test temperature to 62°C. If ambient laboratory
7. Test Specimen
conditionsareemployedthesamedegreeofcontrolisrequired.
7.1 Specimens with Soft-tissue Substrates shall conform to
Awaterbathorenvironmentalchambercapableofmaintaining
the form shown in Fig. 1.The length of the tissue substrate (L)
37°C is required for testing on tissue substrates.
attached to each specimen holder should be at least 1.5 times
6. Test Substrate
the length of the overlap area in order to ensure that the failure
occurs at the overlap bond and doesn’t pull the tissue substrate
6.1 For comparative testing, either fresh or frozen split
off of the specimen holder. For very strong adhesives, L may
thickness porcine skin graft may be used.
need to be 2 to 3 times the overlap length. The tissue can be
6.1.1 Frozen split thickness porcine skin that has been
bonded to the specimen holder with any suitable adhesive.
aseptically prepared is available commercially and is preferred
Gel-type cyanoacrylate adhesives have been found to be
due to ease of use and the potential for more consistent
convenient for this purpose since they adhere well to moist
properties.Itshouldbethawedaccordingtothemanufacturer’s
tissues and cure quickly.
instructions prior to use. Unused graft may be kept at 2 to 8°C
for up to two weeks after thawing.
7.2 Specimens with Polymer or Metal Substrates shall
6.1.2 Iffreshskinischosen,itshouldbepreparedaccording
conform to the form and dimensions shown in Fig. 2.
to the method in Appendix X1.
7.3 Number of Test Specimens—Test at least 10 specimens
6.2 Application Specific Testing:
of each type. Discard results if failure occurs between the test
6.2.1 The strength of any adhesive is highly dependent on
fixture and the tissue sample and test additional samples to
the test substrate, or adherend. For a specific application, the
obtain a total of 10 valid tests. Tissue substrates tend to give
preferred substrate is freshly harvested tissue from the target
higher variances and may require more samples to attain a
organ of a domestic food animal. Tissue from bovine, porcine,
reasonable estimate of the mean strength.
orovineoriginispreferredduetowideavailabilityandthefact
8. Sample Preparation
that relatively large samples of tissue can be harvested from a
single source. Ideally, the tissue should be used within 24 h of 8.1 Tissue Preparation:
harvest,andshouldbekeptbetween5and10°Cpriortotesting 8.1.1 Tissue substrate materials should be kept moist at all
if it cannot be used immediately after harvesting. Storage and times with phosphate buffered saline (PBS).
handling of tissue samples should be carried out according to 8.1.2 The substrate will be cut to the dimensions shown in
the guidelines set forth in Standards forTissue Banking by the Fig. 1 using a template and a fresh scalpel blade or a cutter
F2255 − 05 (2015)

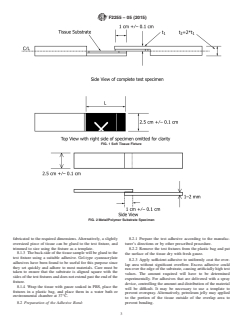

FIG. 1 Soft Tissue Fixture
