ASTM F2070-00(2022)

Standard Specification for Transducers, Pressure and Differential, Pressure, Electrical and Fiber-Optic

ABSTRACT
This specification covers the requirements for pressure and differential pressure transducers for general applications. Pressure transducers typically consist of a sensing element that is in contact with the process medium and a transduction element that modifies the signal from the sensing element to produce an electrical or optical output. Some parts of the transducer may be hermetically sealed if those parts are sensitive to and may be exposed to moisture. Pressure connections must be threaded with appropriate fittings to connect the transducer to standard pipe fittings or to other appropriate leak-proof fittings. The output cable must be securely fastened to the body of the transducer. Most common sensing elements are diaphragms, bellows, capsules, Bourdon tubes, and piezoelectric crystals. The function of the sensing element is to produce a measurable response to applied pressure or vacuum. The response may be sensed directly on the element or a separate sensor may be used to detect element response. The following are the different types of electrical pressure transducers: differential transformed transducer, potentiometric transducer, strain gage transducer, variable reluctance transducer, and piezoelectric transducer. Different kinds of fiber-optic pressure transducers shall be discussed: Fabry-Perot interferometer, Bragg grating interferometer, quartz resonator, and micromachined membrane/diaphragm deflection. The following physical properties of transducers shall be determined: enclosure, transducer mounting, external configuration, standard electrical connection, pressure connections, damping, size, and weight. Different tests shall be conducted in order to determine the service life and overall performance of the transducers.
SCOPE
1.1 This specification covers the requirements for pressure and differential pressure transducers for general applications.
1.2 Special requirements for naval shipboard applications are included in Supplementary Requirements S1, S2, and S3.
1.3 The values stated in SI units are to be regarded as standard. The values given in parentheses are mathematical conversions to inch-pound units that are provided for information only and are not considered standard. Where information is to be specified, it shall be stated in SI units.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

General Information

• Status: Published
• Publication Date: 30-Sep-2022
• ICS: 17.100 - Measurement of force, weight and pressure
• Technical Committee: F25 - Ships and Marine Technology
• Drafting Committee: F25.10 - Electrical

Relations

• Refers: ASTM D3951-18(2023) - Standard Practice for Commercial Packaging
• Effective Date: 01-Oct-2023
• Refers: ASTM D3951-18 - Standard Practice for Commercial Packaging
• Effective Date: 01-May-2018
• Refers: ASTM D3951-15 - Standard Practice for Commercial Packaging
• Effective Date: 01-Dec-2015
• Refers: ASTM D3951-10 - Standard Practice for Commercial Packaging
• Effective Date: 15-Aug-2010
• Refers: ASTM D3951-98(2004) - Standard Practice for Commercial Packaging
• Effective Date: 10-Nov-1998
• Refers: ASTM D3951-98 - Standard Practice for Commercial Packaging
• Effective Date: 10-Nov-1998

Overview

ASTM F2070-00(2022) is the established standard specification for pressure and differential pressure transducers, focusing specifically on electrical and fiber-optic technologies. Published by ASTM International, this standard outlines comprehensive requirements for the design, performance, materials, testing, and application of transducers used to measure pressure or differential pressure in a variety of general and specialized environments, including naval shipboard use.

Pressure transducers are key components in diverse sectors such as industrial automation, marine systems, process industries, and hazardous locations, providing critical measurement and monitoring of fluid pressures. Their accurate performance relies on a combination of robust sensing elements and reliable signal conversion to electrical or optical outputs.

Key Topics

Main subject areas covered by ASTM F2070-00(2022) include:

• Types of Pressure Transducers

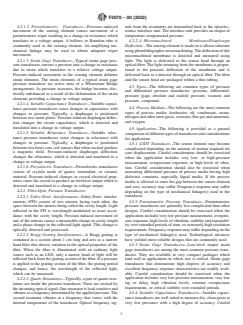

  • Electrical pressure transducers such as differential transformer, potentiometric, strain gage, variable reluctance, and piezoelectric types
  • Fiber-optic pressure transducers, including Fabry-Perot interferometer, Bragg grating, quartz resonator, and micromachined membrane

• Core Design Elements

  • Sensing elements (diaphragms, bellows, capsules, Bourdon tubes, piezoelectric crystals)
  • Transduction element converting mechanical responses to measurable outputs
  • Hermetic sealing where moisture exposure risk dictates

• Physical and Performance Properties

  • Enclosures, mounting configurations, size, and weight
  • Threaded, leak-proof pressure connections
  • Secure output cable attachment
  • Determination of static error band, repeatability, hysteresis, sensitivity, and more

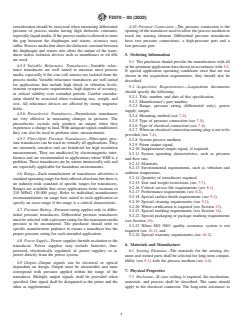

• Material and Compatibility Requirements

  • Long-term compatibility of sensing elements and wetted parts with the process medium
  • Avoidance of dissimilar metals in contact unless protected from corrosion

• Test and Documentation Procedures

  • Service life and performance tests for reliability
  • Detailed inspection, certification, marking, and packaging compliance
  • Quality assurance aligned with ISO 9001 where required

• Special Naval Shipboard Requirements

  • Supplementary criteria for application in naval environments, including shock, vibration, and EMI standards

Applications

ASTM F2070-00(2022) serves organizations and engineers involved in:

• Industrial Process Control:
  Ensuring robust and precise pressure measurement in pipelines, reactors, and automated systems.

• Marine and Naval Shipboard Systems:
  Providing reliable pressure transducer performance in harsh shipboard conditions, including corrosion-resistant materials, and resistance to shock and vibration.

• Power Plants and Utilities:
  Monitoring steam, oil, water, and gas pressures to maintain safety and efficiency.

• Chemical and Petrochemical Industries:
  Measuring pressure in aggressive or hazardous environments where fiber-optic transducers offer immunity to electromagnetic interference and intrinsic safety.

• Aerospace and Defense:
  Accurate differential pressure monitoring for fuel, hydraulic, and environmental control systems.

• Research and Development:
  Offering standardized terminology, classification, and procurement guidance for designing new pressure measurement solutions.

Related Standards

For comprehensive performance and quality assurance, the following related standards and references are recommended:

• ASTM D3951: Practice for Commercial Packaging
• ISO 9001: Quality management systems
• ANSI/ISA S37.1: Electrical Transducer Nomenclature and Terminology
• NEMA Standard 250: Enclosures for Electrical Equipment
• MIL-STD-167-1, MIL-STD-461: Military standards for vibration and EMI (relevant for shipboard applications)

ASTM F2070-00(2022) supports best practices in pressure and differential pressure transducer specification, ensuring high reliability, system compatibility, and safety across industries. Organizations seeking standard-compliant pressure measurement solutions should refer to this document for procurement, design, and maintenance guidelines.
