ASTM C14-20
(Specification)Standard Specification for Nonreinforced Concrete Sewer, Storm Drain, and Culvert Pipe
Standard Specification for Nonreinforced Concrete Sewer, Storm Drain, and Culvert Pipe
ABSTRACT
This specification covers nonreinforced concrete sewer, storm drain, and culvert pipe. The pipe manufactured according to this specification shall be of three classes: Class 1, Class 2, and Class 3. The strength requirements for nonreinforced concrete pipe are specified. The concrete shall consist of cementitious material, mineral aggregates, and water. Cementitious materials are the following: cement, fly ash, ground granulated blast furnace slag, and allowable combinations of cementitious materials. The design of the pipe may be according to design tables or modified or special design. The following are the processes for pipe manufacturing: mixture; curing such as pipe curing, water curing, and membrane curing; and specials like shapes or fittings and fabricated branches. The following tests shall be made: strength test, absorption test, permeability test, and hydrostatic test.
SCOPE
1.1 This covers nonreinforced concrete pipe intended to be used for the conveyance of sewage, industrial wastes, storm water, and for the construction of culverts.
1.2 A complete metric companion to Specification C14 has been developed—C14M; therefore, no metric equivalents are presented in this specification.
Note 1: This specification is a manufacturing and purchase specification only and does not include requirements for bedding, backfill, or the relationship between field load conditions and the strength classification of pipe. However, experience has shown that the successful performance of this product depends upon the proper selection of the class of pipe, type of bedding and backfill, and care that the installation conforms to the construction specifications. The owner is cautioned that he must correlate the field requirements with the class of pipe specified and provide for or require inspection at the construction site.
1.3 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
General Information
Relations
Buy Standard
Standards Content (Sample)
This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

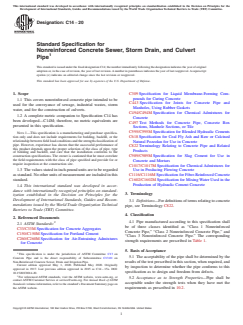

Designation:C14 −20
Standard Specification for
Nonreinforced Concrete Sewer, Storm Drain, and Culvert
1
Pipe
ThisstandardisissuedunderthefixeddesignationC14;thenumberimmediatelyfollowingthedesignationindicatestheyearoforiginal
adoptionor,inthecaseofrevision,theyearoflastrevision.Anumberinparenthesesindicatestheyearoflastreapproval.Asuperscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope C309Specification for Liquid Membrane-Forming Com-
pounds for Curing Concrete
1.1 This covers nonreinforced concrete pipe intended to be
C443 Specification for Joints for Concrete Pipe and
used for the conveyance of sewage, industrial wastes, storm
Manholes, Using Rubber Gaskets
water, and for the construction of culverts.
C494/C494MSpecification for Chemical Admixtures for
1.2 Acomplete metric companion to Specification C14 has
Concrete
been developed—C14M; therefore, no metric equivalents are
C497 Test Methods for Concrete Pipe, Concrete Box
presented in this specification.
Sections, Manhole Sections, or Tile
C595/C595MSpecification for Blended Hydraulic Cements
NOTE 1—This specification is a manufacturing and purchase specifica-
tion only and does not include requirements for bedding, backfill, or the C618Specification for Coal Fly Ash and Raw or Calcined
relationshipbetweenfieldloadconditionsandthestrengthclassificationof
Natural Pozzolan for Use in Concrete
pipe. However, experience has shown that the successful performance of
C822Terminology Relating to Concrete Pipe and Related
this product depends upon the proper selection of the class of pipe, type
Products
of bedding and backfill, and care that the installation conforms to the
C989/C989MSpecification for Slag Cement for Use in
construction specifications. The owner is cautioned that he must correlate
the field requirements with the class of pipe specified and provide for or
Concrete and Mortars
require inspection at the construction site.
C1017/C1017MSpecification for Chemical Admixtures for
1.3 The values stated in inch-pound units are to be regarded Use in Producing Flowing Concrete
asstandard.Nootherunitsofmeasurementareincludedinthis C1116/C1116MSpecification for Fiber-Reinforced Concrete
standard. C1602/C1602MSpecification for Mixing Water Used in the
Production of Hydraulic Cement Concrete
1.4 This international standard was developed in accor-
dance with internationally recognized principles on standard-
3. Terminology
ization established in the Decision on Principles for the
Development of International Standards, Guides and Recom-
3.1 Definitions—Fordefinitionsoftermsrelatingtoconcrete
mendations issued by the World Trade Organization Technical
pipe, see Terminology C822.
Barriers to Trade (TBT) Committee.
4. Classification
2. Referenced Documents
4.1 Pipe manufactured according to this specification shall
2
2.1 ASTM Standards:
be of three classes identified as “Class 1 Nonreinforced
C33/C33MSpecification for Concrete Aggregates
Concrete Pipe,” “Class 2 Nonreinforced Concrete Pipe,” and
C150/C150MSpecification for Portland Cement
“Class 3 Nonreinforced Concrete Pipe.” The corresponding
C260/C260MSpecification for Air-Entraining Admixtures
strength requirements are prescribed in Table 1.
for Concrete
5. Basis of Acceptance
1
This specification is under the jurisdiction of ASTM Committee C13 on
5.1 The acceptability of the pipe shall be determined by the
Concrete Pipe and is the direct responsibility of Subcommittee C13.01 on
Non-Reinforced Concrete Sewer, Drain and Irrigation Pipe.
resultsofthetestprescribedinthissection,whenrequired,and
Current edition approved May 1, 2020. Published May 2020. Originally
by inspection to determine whether the pipe conforms to this
approved in 1917. Last previous edition approved in 2015 as C14–15a. DOI:
specification as to design and freedom from defects.
10.1520/C0014-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or
5.2 Acceptance as to Strength Properties—Pipe shall be
contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM
acceptable under the strength tests when they have met the
Standards volume information, refer to the standard’s Document Summary page on
the ASTM website. requirements as prescribed in 10.2.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
C14−20
A

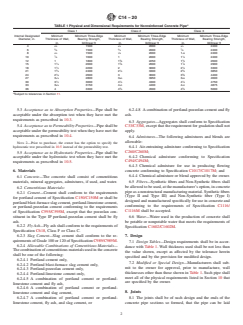

TABLE 1 Physical and Dimensional Requirements for Nonreinforced Concrete Pipe
Class 1 Class 2 Class 3
Internal Designated Minimum Minimum Three-Edge Minimum Minimum Three
...
This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

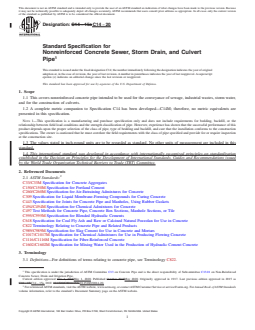

Designation: C14 − 15a C14 − 20
Standard Specification for
Nonreinforced Concrete Sewer, Storm Drain, and Culvert
1
Pipe
This standard is issued under the fixed designation C14; the number immediately following the designation indicates the year of original
adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A superscript
epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This covers nonreinforced concrete pipe intended to be used for the conveyance of sewage, industrial wastes, storm water,
and for the construction of culverts.
1.2 A complete metric companion to Specification C14 has been developed—C14M; therefore, no metric equivalents are
presented in this specification.
NOTE 1—This specification is a manufacturing and purchase specification only and does not include requirements for bedding, backfill, or the
relationship between field load conditions and the strength classification of pipe. However, experience has shown that the successful performance of this
product depends upon the proper selection of the class of pipe, type of bedding and backfill, and care that the installation conforms to the construction
specifications. The owner is cautioned that he must correlate the field requirements with the class of pipe specified and provide for or require inspection
at the construction site.
1.3 The values stated in inch-pound units are to be regarded as standard. No other units of measurement are included in this
standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2
2.1 ASTM Standards:
C33/C33M Specification for Concrete Aggregates
C150/C150M Specification for Portland Cement
C260/C260M Specification for Air-Entraining Admixtures for Concrete
C309 Specification for Liquid Membrane-Forming Compounds for Curing Concrete
C443 Specification for Joints for Concrete Pipe and Manholes, Using Rubber Gaskets
C494/C494M Specification for Chemical Admixtures for Concrete
C497 Test Methods for Concrete Pipe, Concrete Box Sections, Manhole Sections, or Tile
C595/C595M Specification for Blended Hydraulic Cements
C618 Specification for Coal Fly Ash and Raw or Calcined Natural Pozzolan for Use in Concrete
C822 Terminology Relating to Concrete Pipe and Related Products
C989/C989M Specification for Slag Cement for Use in Concrete and Mortars
C1017/C1017M Specification for Chemical Admixtures for Use in Producing Flowing Concrete
C1116/C1116M Specification for Fiber-Reinforced Concrete
C1602/C1602M Specification for Mixing Water Used in the Production of Hydraulic Cement Concrete
3. Terminology
3.1 Definitions—For definitions of terms relating to concrete pipe, see Terminology C822.
1
This specification is under the jurisdiction of ASTM Committee C13 on Concrete Pipe and is the direct responsibility of Subcommittee C13.01 on Non-Reinforced
Concrete Sewer, Drain and Irrigation Pipe.
Current edition approved Oct. 1, 2015May 1, 2020. Published October 2015May 2020. Originally approved in 1917. Last previous edition approved in 2015 as
C14 – 15.C14 – 15a. DOI: 10.1520/C0014-15A.10.1520/C0014-20.
2
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1
---------------------- Page: 1 ----------------------
C14 − 20

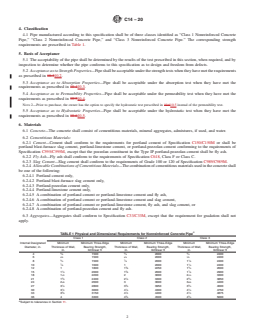

4. Classification
4.1 Pipe manufactured according to this specification shall be of three classes identified as “Class 1 Nonreinforced Concrete
Pipe,” “Class 2 Nonreinforced Concrete Pipe,” and “Class 3 Nonreinforced Concrete Pipe.” The corresponding strength
requirements are prescribed in Table 1.
5. Basis of Acceptance
5.1 The acceptability of the pipe shall be determined by the results of the test prescribed in this section, when required, and by
inspection to determine whether the pipe conforms to this specification as to design and freedom from defects.
5.2 Acceptance as to Strength Properties—Pipe shall b
...
