ASTM E1333-22

(Test Method)

Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber

Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber

ABSTRACT
This test method measures the formaldehyde concentration in air and emission rate from wood products containing formaldehyde by the use of a large chamber under specific test conditions of temperature and relative humidity, or conditions designed to simulate product use. This method employs a single set of environmental conditions but different product loading ratios to assess formaldehyde concentrations in air and emission rates from certain wood products. The conditions controlled in the procedure are the conditioning of specimens prior to testing, exposed surface area of the specimens in the test chamber, test chamber temperature and relative humidity, number of air changes per hour, and air circulation within the chamber. At the end of a specified time period in the test chamber, the air is sampled, and the concentration of formaldehyde in the air and emission rate are determined.
SIGNIFICANCE AND USE
4.1 Significance and Use:
4.1.1 Limitations on formaldehyde concentrations in air have been established for some building products permanently installed in manufactured and conventional homes. This test method provides a standard means of testing typical product sizes, such as 1.2 m by 2.4 m (4 ft by 8 ft) sheets, at product loadings consistent with product end use.
4.2 Summary of Test Method:
4.2.1 This test method incorporates a chamber of 22 m3  (800 ft3) minimum size to evaluate formaldehyde concentrations in air and emission rates from building products over a specified duration of time. This test method employs a single set of environmental conditions but different product loading ratios to assess formaldehyde concentrations in air and emission rates from certain wood products. Conditions controlled in the procedure are as follows:
4.2.1.1 Conditioning of specimens prior to testing,
4.2.1.2 Exposed surface area of the specimens in the test chamber,
4.2.1.3 Test chamber temperature and relative humidity,
4.2.1.4 Number of air changes per hour, and
4.2.1.5 Air circulation within the chamber.
4.2.1.6 At the end of a 16 to 20-h period in the test chamber, the air is sampled and the concentration of formaldehyde in air and emission rate are determined.
Note 3: Care must be exercised in the extension of the results to formaldehyde concentrations in air and emission rates from products under different conditions of air change rate or loading ratio, or both.
SCOPE
1.1 This test method measures the formaldehyde concentration in air and emission rate from wood products containing formaldehyde under conditions designed to simulate product use (see 11.5 and Note 9). The concentration in air and emission rate is determined in a large chamber under specific test conditions of temperature and relative humidity. The general procedures are also intended for testing product combinations at product-loading ratios and at air-exchange rates typical of the indoor environment  (1).2 The products tested, the loading ratios and the air exchange rates employed are described in the test report.
1.2 This test method determines the average formaldehyde concentration in air and emission rate from a number of large size samples. The average concentration and emission rate reported, thus, will not provide information on higher or lower emitting panels in the test lot.
1.3 This method is primarily used for testing newly manufactured panel products that are shipped for testing either seal-wrapped in polyethylene or with waster sheets, or with both. When this test method is used for evaluating other than newly manufactured panel products (after original application, installation or use), the method of packaging and shipping the product for testing shall be described in the test report.
1.4 The quantity of formaldehyde in the air sample taken from the chamber is determined by an adaptation of the National Institute for Occupational Safety and Health (NIOSH) chromotropic acid test procedure. If ...

General Information

Status
Published
Publication Date
31-Jul-2022
ICS
79.060.20 - Fibre and particle boards
Technical Committee
D07 - Wood
Drafting Committee
D07.03 - Panel Products
Current Stage
Ref Project

Buy Standard

ASTM E1333-22 - Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large ChamberASTM E1333-22 - Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber
PreviousNext
Standard
ASTM E1333-22 - Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber
English language
13 pages
sale 15% off
Preview
sale 15% off
Preview
REDLINE ASTM E1333-22 - Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large ChamberREDLINE ASTM E1333-22 - Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber
PreviousNext
Standard
REDLINE ASTM E1333-22 - Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber
English language
13 pages
sale 15% off
Preview
sale 15% off
Preview

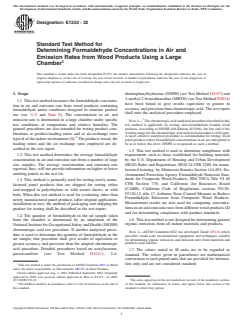

Standards Content (Sample)

This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the
Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
Designation: E1333 − 22
Standard Test Method for
Determining Formaldehyde Concentrations in Air and
Emission Rates from Wood Products Using a Large
1
Chamber
This standard is issued under the fixed designation E1333; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision.Anumber in parentheses indicates the year of last reapproval.A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope dinitrophenylhydrazine (DNPH) (seeTest Method D5197) and
3-methyl-2-benzothiazoline(MBTH)(seeTestMethodD5014)
1.1 This test method measures the formaldehyde concentra-
have been found to give results equivalent or greater in
tion in air and emission rate from wood products containing
accuracy and precision than chromotropic acid.The test report
formaldehyde under conditions designed to simulate product
shall note the analytical procedure employed.
use (see 11.5 and Note 9). The concentration in air and
3
emission rate is determined in a large chamber under specific
NOTE1— Thechromotropicacidanalyticalproceduredescribedinthis
test conditions of temperature and relative humidity. The test method is applicable for testing urea-formaldehyde bonded wood
products.According to NIOSH (4th Edition, 8/15/94), the low end of the
general procedures are also intended for testing product com-
workingrangeforthechromotropicacidanalyticalprocedureis0.02ppm.
binations at product-loading ratios and at air-exchange rates
A more sensitive analytical procedure is recommended for testing wood
2
typicaloftheindoorenvironment (1). Theproductstested,the
panelproductswhereformaldehydeconcentrationsinairareanticipatedto
loading ratios and the air exchange rates employed are de-
be at or below this level. DNPH is recognized as such a method.
scribed in the test report.
1.5 This test method is used to determine compliance with
1.2 This test method determines the average formaldehyde
requirements such as those established for building materials
concentration in air and emission rate from a number of large
by the U.S. Department of Housing and Urban Development
size samples. The average concentration and emission rate
(HUD) Rules and Regulations, HUD24CFR3280, for manu-
reported, thus, will not provide information on higher or lower
factured housing, by MinnesotaStatutesSection144.495, En-
emitting panels in the test lot.
vironmental Protection Agency Formaldehyde Emission Stan-
dards for Composite Wood Products, EPA TSCA Title VI 40
1.3 This method is primarily used for testing newly manu-
CFR Section 770, and California Air Resources Board
factured panel products that are shipped for testing either
(CARB), California Code of Regulations sections 93120-
seal-wrapped in polyethylene or with waster sheets, or with
93120.12, title 17,Airborne Toxic Control Measure to Reduce
both. When this test method is used for evaluating other than
Formaldehyde Emissions from Composite Wood Products.
newly manufactured panel products (after original application,
Measurement results are also used for comparing concentra-
installation or use), the method of packaging and shipping the
tionsinairandemissionratesfromdifferentwoodproducts (2)
product for testing shall be described in the test report.
and for determining compliance with product standards.
1.4 The quantity of formaldehyde in the air sample taken
1.6 Thistestmethodisnotdesignedfordetermininggeneral
from the chamber is determined by an adaptation of the
organic emissions from all indoor materials and products.
NationalInstituteforOccupationalSafetyandHealth(NIOSH)
chromotropic acid test procedure. If another analytical proce-
NOTE 2—ASTM CommitteeD22 has developed Guide D5116 which
dure is used to determine the quantity of formaldehyde in the
describes small-scale environmental equipment and techniques suitable
air sample, that procedure shall give results of equivalent or for determining organic emissions and emission rates from materials and
products used indoors.
greater accuracy and precision than the adapted chromotropic
acid procedure. Detailed procedures based on acetylacetone,
1.7 The values stated in SI units are to be regarded as
pararosaniline (see Test Method D5221), 2,4-
standard. The values given in parentheses are mathematical
conversions to inch-pound units that are provided for informa-
tion only and are not considered standard.
1
This test method is under the jurisdiction ofASTM Committee D07 on Wood
and is the direct responsibility of Subcommittee D07.03 on Panel Products.
Current edition approved Aug. 1, 2022. Published September 2022. Originally
ap
...

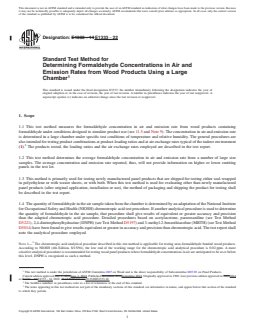

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.
Designation: E1333 − 14 E1333 − 22
Standard Test Method for
Determining Formaldehyde Concentrations in Air and
Emission Rates from Wood Products Using a Large
1
Chamber
This standard is issued under the fixed designation E1333; the number immediately following the designation indicates the year of
original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last reapproval. A
superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
1. Scope
1.1 This test method measures the formaldehyde concentration in air and emission rate from wood products containing
formaldehyde under conditions designed to simulate product use (see 11.5 and Note 9). The concentration in air and emission rate
is determined in a large chamber under specific test conditions of temperature and relative humidity. The general procedures are
also intended for testing product combinations at product-loading ratios and at air-exchange rates typical of the indoor environment
2
(1). The products tested, the loading ratios and the air exchange rates employed are described in the test report.
1.2 This test method determines the average formaldehyde concentration in air and emission rate from a number of large size
samples. The average concentration and emission rate reported, thus, will not provide information on higher or lower emitting
panels in the test lot.
1.3 This method is primarily used for testing newly manufactured panel products that are shipped for testing either seal-wrapped
in polyethylene or with waster sheets, or with both. When this test method is used for evaluating other than newly manufactured
panel products (after original application, installation or use), the method of packaging and shipping the product for testing shall
be described in the test report.
1.4 The quantity of formaldehyde in the air sample taken from the chamber is determined by an adaptation of the National Institute
for Occupational Safety and Health (NIOSH) chromotropic acid test procedure. If another analytical procedure is used to determine
the quantity of formaldehyde in the air sample, that procedure shall give results of equivalent or greater accuracy and precision
than the adapted chromotropic acid procedure. Detailed procedures based on acetylacetone, pararosaniline (see Test Method
D5221), 2,4-dinitrophenylhydrazine (DNPH) (see Test Method D5197) and 3-methyl-2-benzothiazoline (MBTH) (see Test Method
D5014) have been found to give results equivalent or greater in accuracy and precision than chromotropic acid. The test report shall
note the analytical procedure employed.
3
NOTE 1— The chromotropic acid analytical procedure described in this test method is applicable for testing urea-formaldehyde bonded wood products.
According to NIOSH (4th Edition, 8/15/94), the low end of the working range for the chromotropic acid analytical procedure is 0.02 ppm. A more
sensitive analytical procedure is recommended for testing wood panel products where formaldehyde concentrations in air are anticipated to be at or below
this level. DNPH is recognized as such a method.
1
This test method is under the jurisdiction of ASTM Committee D07 on Wood and is the direct responsibility of Subcommittee D07.03 on Panel Products.
Current edition approved Oct. 1, 2014Aug. 1, 2022. Published December 2014September 2022. Originally approved in 1990. Last previous edition approved in 20102014
as E1333 – 10.E1333 – 14. DOI: 10.1520/E1333-14.10.1520/E1333-22.
2
The boldface numbers in parentheses refer to a list of references at the end of this standard.
3
The notes appearing in this test method are not part of the mandatory sections of this standard, are informative in nature, and appear below that section of the standard
to which they pertain.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
1

---------------------- Page: 1 ----------------------

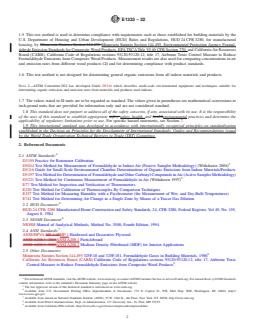

E1333 − 22
1.5 This test method is used to determine compliance with requirements such as those established for building materials by the
U.S. Department of Housing and Urban Development (HUD) Rules and Regulations, HUD 24 CFR 3280, for manufactured
housing, by Minnesota Statutes Section 144.495 Minnesota Statutes Section 144.495, Environmental Protection Agency Formal-
dehyde Emission Standards for Composite Wood Products, EPA TSCA Title VI 40 CFR Section 770, and California Air Resources
Board (CARB), California Code of Regulations sections 931
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.

This May Also Interest You

ASTM
ASTM D5722-20(Practice)
Standard Practice for Performing Accelerated Outdoor Weathering of Factory-Coated Embossed Hardboard Using Concentrated Natural Sunlight and a Soak-Freeze-Thaw Procedure

SIGNIFICANCE AND USE
5.1 The ability to quickly and accurately evaluate and predict long-term weathering performance of factory-applied coatings is of paramount importance in making sound business and technical decisions.
5.2 It is important to include control specimens of known field performance to determine the efficacy of this practice for specific substrate(s) and coating system(s). These control specimens may include materials known to possess acceptable and unacceptable field performance for the defect(s) under consideration.
5.3 Results derived from this practice are best used to compare the relative performance of materials tested at the same time in the same device.
5.4 The inclusion of control specimens and their resulting data will assist in dealing with test variability caused by seasonal or annual variations in important climatic factors.
5.5 Extensive research was performed during the development of this standard practice. This research showed that this practice is not useful for determination of quantitative acceleration factors. However, this practice is very useful for comparing the performance of different materials.
5.6 A minimum of two replicates for both control specimens and test specimens is recommended to allow statistical evaluation of results. Refer to Practice G169 for additional guidance on establishing the number of replicates.
SCOPE
1.1 This practice covers techniques to accelerate weathering effects of factory-coated embossed hardboard using Cycle 1 of Practice G90 (concentrated natural sunlight with periodic surface water spray) plus a soak-freeze thaw cycle (see Section 5 of this practice).
1.2 Testing by use of the methods described in this practice may be employed in the qualitative assessment of weathering effects. The relative durability of coated hardboards may be best determined by comparison of their test results with those of control specimens derived from real time exposure test experience.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM A370-23(Test Method)
Standard Test Methods and Definitions for Mechanical Testing of Steel Products

SIGNIFICANCE AND USE
4.1 The primary use of these test methods is testing to determine the specified mechanical properties of steel, stainless steel, and related alloy products for the evaluation of conformance of such products to a material specification under the jurisdiction of ASTM Committee A01 and its subcommittees as designated by a purchaser in a purchase order or contract.
4.1.1 These test methods may be and are used by other ASTM Committees and other standards writing bodies for the purpose of conformance testing.
4.1.2 The material condition at the time of testing, sampling frequency, specimen location and orientation, reporting requirements, and other test parameters are contained in the pertinent material specification or in a general requirement specification for the particular product form.
4.1.3 Some material specifications require the use of additional test methods not described herein; in such cases, the required test method is described in that material specification or by reference to another appropriate test method standard.
4.2 These test methods are also suitable to be used for testing of steel, stainless steel and related alloy materials for other purposes, such as incoming material acceptance testing by the purchaser or evaluation of components after service exposure.
4.2.1 As with any mechanical testing, deviations from either specification limits or expected as-manufactured properties can occur for valid reasons besides deficiency of the original as-fabricated product. These reasons include, but are not limited to: subsequent service degradation from environmental exposure (for example, temperature, corrosion); static or cyclic service stress effects, mechanically-induced damage, material inhomogeneity, anisotropic structure, natural aging of select alloys, further processing not included in the specification, sampling limitations, and measuring equipment calibration uncertainty. There is statistical variation in all aspects of mechanical testin...
SCOPE
1.1 These test methods2 cover procedures and definitions for the mechanical testing of steels, stainless steels, and related alloys. The various mechanical tests herein described are used to determine properties required in the product specifications. Variations in testing methods are to be avoided, and standard methods of testing are to be followed to obtain reproducible and comparable results. In those cases in which the testing requirements for certain products are unique or at variance with these general procedures, the product specification testing requirements shall control.
1.2 The following mechanical tests are described:
Sections
Tension
7 to 14
Bend
15
Hardness
16
Brinell
17
Rockwell
18
Portable
19
Impact
20 to 30
Keywords
32
1.3 Annexes covering details peculiar to certain products are appended to these test methods as follows:
Annex
Bar Products
Annex A1
Tubular Products
Annex A2
Fasteners
Annex A3
Round Wire Products
Annex A4
Significance of Notched-Bar Impact Testing
Annex A5
Converting Percentage Elongation of Round Specimens to
Equivalents for Flat Specimens
Annex A6
Testing Multi-Wire Strand
Annex A7
Rounding of Test Data
Annex A8
Methods for Testing Steel Reinforcing Bars
Annex A9
Procedure for Use and Control of Heat-cycle Simulation
Annex A10
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 When these test methods are referenced in a metric product specification, the yield and tensile values may be determined in inch-pound (ksi) units then converted into SI (MPa) units. The elongation determined in inch-pound gauge lengths of 2 in. or 8 in. may be report...

  • Standard
    51 pages
    English language
    sale 15% off
  • Standard
    51 pages
    English language
    sale 15% off
ASTM
ASTM F3565-23(Practice)
Standard Practice for Electrofusion Joining Polyethylene (PE) Pipe and Fittings for Pressure Pipe Service

SIGNIFICANCE AND USE
4.1 Using the procedures and apparatus in Sections 8 and 9 and the manufacturer's instructions, pressure-tight joints as strong as the pipe itself can be made between manufacturer-recommended combinations of pipe and fittings. See Specification F1055 for performance requirements of polyethylene electrofusion fittings.
SCOPE
1.1 This practice describes procedures for making joints suitable for pressure service with polyethylene (PE) pipe and fittings by means of electrofusion joining techniques in, but not limited to, a field environment. Other suitable electrofusion joining procedures are available from various sources including fitting manufacturers. This standard does not purport to address all possible electrofusion joining procedures, or to preclude the use of qualified procedures developed by other parties that have been proven to produce reliable electrofusion joints. (Note 1)
Note 1: Reference to the manufacturer in this practice refers to the electrofusion fitting manufacturer.
1.2 The parameters and procedure are applicable only to joining polyethylene pipe and fittings (Note 2) which are intended for PE fuel gas pipe per Specification D2513 and PE potable water, sewer and industrial pipe manufactured per Specification F714, Specification D3035, Specification F2619, and AWWA C901 and C906.
Note 2: Commercially available materials classified with a thermoplastic pipe material designation code beginning with PE 14, PE 23, PE 24, PE 27, PE 33, PE 34, PE 36, and PE 46, and PE 47 in accordance with Specification D3350 and Terminology F412 are generally acceptable for electrofusion joining using this practice. Consult with the pipe or fitting manufacturer for specific compatibility information.
1.3 Parts that are within the dimensional tolerances given in present ASTM specifications are required to produce sound joints between polyethylene pipe and fittings when using the joining techniques described in this practice.
1.4 The values stated in inch-pound units are to be regarded as standard. The values given in parentheses are mathematical conversions to SI units that are provided for information only and are not considered standard.
1.5 The text of this practice references notes, footnotes, and appendices which provide explanatory material. These notes and footnotes (excluding those in tables and figures) shall not be considered as requirements of the practice.
1.6 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.7 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    7 pages
    English language
    sale 15% off
ASTM
ASTM D5141-23(Test Method)
Standard Test Method for Determining Filtering Efficiency and Flow Rate of the Filtration Component of a Sediment Retention Device

SIGNIFICANCE AND USE
5.1 This test method is used to determine the filtering efficiency and flow rate of the filtration component of a sediment retention device, such as a silt fence, a silt barrier, or a silt curtain, for specific soil tested.
5.2 This test method may be used for the design of the filtration component of a sediment retention device to meet requirements of regulatory agencies in filtering efficiency or flow rate for the specific soil tested.
5.2.1 The designer can use this test method to determine the spacing between sediment retention devices.
5.3 This test method is intended for performance evaluation, as the results will depend on the specific soil evaluated. Unless testing with the default soil is desired, it is recommended that the user or representative perform the test to pre-approve products, as sediment retention device manufacturers are not typically equipped to handle or test soil requirements.
5.4 This test method provides a means of evaluating the filtration component of sediment retention devices with different soils under various conditions that simulate the conditions that exist in a sediment retention device installation. This test method may be used to simulate several storm events on the same sediment retention device specimen. Therefore, the number of times this test is repeated per specimen is dependent upon the user and the site conditions.
SCOPE
1.1 This test method is used to determine the filtering efficiency and the flow rate of the filtration component of a sediment retention device, such as a silt fence, silt barrier, or inlet protector.
1.1.1 The results are shown as a percentage for filtering efficiency and cubic metres per square metre per minute (m3/m2/min) or gallons per square foot per minute (gal/ft2/min) for flow rate.
1.1.2 The filtering efficiency indicates the percent of sediment removed from sediment-laden water.
1.1.3 The flow rate is the average rate of passage of the sediment-laden water through the filtration component of a sediment retention device.
1.2 This test method requires several specialized pieces of equipment, such as an integrated water sampler and an analytical balance, or a vacuum filtration system. At the client’s discretion, the test soil is either a site-specific soil or a soil that is representative of a target default gradation.
1.3 The values stated in SI units are the standard, while the inch-pound units are provided for information. The values expressed in each system may not be exact equivalents; therefore, each system must be used independently of the other, without combining values in any way.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    5 pages
    English language
    sale 15% off
  • Standard
    5 pages
    English language
    sale 15% off
ASTM
ASTM F2647-07(2023)(Guide)
Standard Guide for Approved Methods of Installing a CVS (Central Vacuum System)

SIGNIFICANCE AND USE
4.1 The suggestions of this guide are intended to provide proper installation materials and practices to be used during the installation of a central-vacuum system.
SCOPE
1.1 This guide demonstrates proper methods for installing a central-vacuum system.
1.2 Appendix X1 contains additional sources of information that may be helpful to the user of this guide.
1.3 The values stated in inch-pound units are to be regarded as the standard. The values given in parentheses are for information only.
1.4 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    7 pages
    English language
    sale 15% off
ASTM
ASTM F2886-17(2023)(Specification)
Standard Specification for Metal Injection Molded Cobalt-28Chromium-6Molybdenum Components for Surgical Implant Applications

ABSTRACT
This specification covers chemical, mechanical, and metallurgical general requirements for metal injection molded (MIM) cobalt-28chromium-6molybddenum components to be used in manufacturing surgical implants. In this specification, the MIM components covered may have been densified beyond their as-sintered density by post-sinter processing. For the chemical requirements, the components supplied in this specification must conform in accordance to the chemical requirements specified herein in Table 1. The product analysis tolerances must also conform to the product tolerances presented in Table 2. The specification also enumerates the mechanical requirements for MIM components wherein the tensile properties of the MIM must conform to the mechanical properties in Table 3. The microstructural requirements and specimen preparation shall be in accordance with Guide E3 and Practice E407.
SCOPE
1.1 This specification covers chemical, mechanical, and metallurgical requirements for metal injection molded (MIM) cobalt-28chromium-6molybdenum components to be used in the manufacture of surgical implants
1.2 The MIM components covered by this specification may have been densified beyond their as-sintered density by post-sinter processing.
1.3 Units—The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    5 pages
    English language
    sale 15% off
ASTM
ASTM A480/A480M-23a(Specification)
Standard Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip

ABSTRACT
This specification covers general requirements for flat-rolled stainless and heat-resisting steel plate, sheet, and strip. The steel shall be made by one of the following processes: electric-arc, electric-induction, or other suitable processes. Heat and product analyses shall conform to the chemical requirements for each of the specific elements. The material shall undergo mechanical tests such as tension test, hardness test, and bend test. Special tests like intergranular corrosion test, permeability test, Charpy impact testing and tests for detrimental intermetallic phases in wrought duplex stainless steels shall be also be performed when required.
SCOPE
1.1 This specification2 covers a group of general requirements that, unless otherwise specified in the purchase order or in an individual specification, shall apply to rolled steel plate, sheet, and strip, under each of the following specifications issued by ASTM: Specifications A240/A240M, A263, A264, A265, A666, A693, A793, and A895.
1.2 In the case of conflict between a requirement of a product specification and a requirement of this specification, the product specification shall prevail. In the case of conflict between a requirement of the product specification or a requirement of this specification and a more stringent requirement of the purchase order, the purchase order shall prevail. The purchase order requirements shall not take precedence if they, in any way, violate the requirements of the product specification or this specification; for example, by waiving a test requirement or by making a test requirement less stringent.
1.3 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The SI units are shown in brackets, except that when A480M is specified, Annex A3 shall apply for the dimensional tolerances and not the bracketed SI values in Annex A2. The values stated in each system are not necessarily exact equivalents; therefore, to ensure conformance with the standard, each system shall be used independently of the other, and values from the two systems shall not be combined.
1.4 This specification and the applicable material specifications are expressed in both inch-pound and SI units. However, unless the order specifies the applicable “M” specification designation [SI units], the material shall be furnished in inch-pound units.
1.5 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Technical specification
    26 pages
    English language
    sale 15% off
  • Technical specification
    26 pages
    English language
    sale 15% off
ASTM
ASTM E2552-23(Guide)
Standard Guide for Assessing the Environmental and Human Health Impacts of New Compounds for Military Use

SIGNIFICANCE AND USE
5.1 The purpose of this guide is to provide a logical, tiered approach in the development of environmental health criteria coincident with level and effort in the research, development, testing, and evaluation of new materials for military use. Various levels of uncertainty are associated with data collected from previous stages. Following the recommendation in the guide should reduce the relative uncertainty of the data collected at each developmental stage. At each stage, a general weight of evidence qualifier shall accompany each exposure/effect relationship. They may be simple (for example, low, medium, or high confidence) or sophisticated using a numerical value for each predictor as a multiplier to ascertain relative confidence in each step of risk characterization. The specific method used will depend on the stage of development, quantity and availability of data, variation in the measurement, and general knowledge of the dataset. Since specific formulations, conditions, and use scenarios may not be known until the later stages, exposure estimates can be determined when practical (for example, Engineering and Manufacturing Development; see 6.6). Exposure data can then be used with other toxicological data collected from previous stages in a quantitative risk assessment to determine the relative degree of hazard.
5.2 Data developed from the use of this guide are designed to be consistent with criteria required in weapons and weapons system development (for example, programmatic environment, safety and occupational health evaluations, environmental assessments/environmental impact statements, toxicity clearances, and technical data sheets).
5.3 Information shall be evaluated in a flexible manner consistent with the needs of the authorizing program. This requires proper characterization of the current problem. For example, compounds may be ranked relative to the environmental criteria of the prospective alternatives, the replacement compound, and within bo...
SCOPE
1.1 This guide is intended to determine the relative environmental influence of new substances, consistent with the research and development (R&D) level of effort and is intended to be applied in a logical, tiered manner that parallels both the available funding and the stage of research, development, testing, and evaluation. Specifically, conservative assumptions, relationships, and models are recommended early in the research stage, and as the technology is matured, empirical data will be developed and used. Munition constituents are included and may include propellants, oxidizers, explosives, binders, stabilizers, metals, dyes, and other compounds used in the formulation to produce a desired effect. Munition systems range from projectiles, grenades, rockets/missiles, training simulators, to smokes and obscurants. Given the complexity of issues involved in the assessment of environmental fate and effects and the diversity of the systems used, this guide is broad in scope and not intended to address every factor that may be important in an environmental context. Rather, it is intended to reduce uncertainty at minimal cost by considering the most important factors related to human health and environmental impacts of energetic materials. This guide provides an outline for collecting data useful in a relative ranking procedure to provide the systems scientist with a sound basis for prospectively determining a selection of candidates based on environmental and human health criteria. The general principles in this guide are applicable to substances other than energetics if intended to be used in a similar manner with similar exposure profiles.
1.2 The scope of this guide includes:
1.2.1 Energetic and other new/novel materials and compositions in all stages of research, development, test and evaluation.
1.2.2 Environmental assessment, including:
1.2.2.1 Human and ecological effects of the unexploded energetics and ...

  • Guide
    9 pages
    English language
    sale 15% off
  • Guide
    9 pages
    English language
    sale 15% off
ASTM
ASTM D8042-18(2023)(Test Method)
Test Method for Shrinkage Temperature of Wet Blue and Wet White

SIGNIFICANCE AND USE
5.1 This test method is designed to determine the temperature at which the Wet Blue or Wet White specimen experiences shrinkage. In this test method, shrinkage occurs as a result of hydrothermal denaturation of the collagen protein molecules which make up the fiber structure of the Wet Blue or Wet White. The shrinkage temperature of Wet Blue or Wet White is influenced by many different factors, most of which appear to affect the number and nature of crosslinking interactions between adjacent polypeptide chains of the collagen protein molecules. The value of the shrinkage temperature of Wet Blue or Wet White is commonly used as an indicator of the type of tannage or the degree of tannage, or both, of that particular Wet Blue or Wet White (especially for the more hydrothermally stable tannages such as chrome tannage).
SCOPE
1.1 This test method covers the determination of the shrinkage temperature of all types of Wet Blue and Wet White. The heating medium is water when the shrinkage temperature is at or below 98 °C. The heating medium is a glycerine-water solution when the shrinkage temperature is above 98 °C.
1.2 The values stated in SI units are to be regarded as the standard. The values in parentheses are for information only.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Standard
    3 pages
    English language
    sale 15% off
ASTM
ASTM D8530/D8530M-23(Guide)
Standard Guide for the Selection and Use of Waterstops

SIGNIFICANCE AND USE
4.1 This guide is intended to be used in the selection and installation of waterstops in cast-in-place concrete construction. This guide is intended to assist the building owner, owner’s representative, architect, engineer, contractor, and/or authorized inspector during the specification and installation of waterstops.
4.2 This guide is applicable to cast-in-place concrete construction. The use of this guide may not be appropriate for installation of waterstops in other types of concrete construction, including but not limited to, pneumatically applied (that is, shotcrete) and precast concrete construction.
SCOPE
1.1 This guide covers the use of waterstops within cast-in-place concrete construction. Waterstops are generally placed within static, non-moving construction joints in concrete to close off the joint to water, which may be under significant hydrostatic pressure. They are used as part of the overall waterproofing strategy for a building or other structure. Expansion and other types of moving joints may require the use of waterstops, which can accommodate the anticipated movement of the structure and are beyond the scope of this guide.
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each system may not be exact equivalents: therefore, each system shall be used independently of the other. Combining values from the two systems may result in nonconformance with the standard.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility of the user of this standard to establish appropriate safety, health, and environmental practices and determine the applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued by the World Trade Organization Technical Barriers to Trade (TBT) Committee.

  • Guide
    4 pages
    English language
    sale 15% off
