EN 572-3:2012

Glass in building - Basic soda lime silicate glass products - Part 3: Polished wired glass

This European Standard specifies dimensional and minimum quality requirements (in respect of optical, visual and wire faults) for polished wired glass, as defined in EN 572-1:2012, for use in building.
This European Standard applies only to polished wired glass supplied in rectangular panes and in stock sizes.
EN 572-8 gives information on polished wired glass in sizes other than those covered by this European Standard.

Glas im Bauwesen - Basiserzeugnisse aus Kalk-Natronsilicatglas - Teil 3: Poliertes Drahtglas

Diese Europäische Norm legt die Anforderungen an Maße und Mindestqualität (in Bezug auf optische und sichtbare Fehler sowie Fehler im Drahtnetz) für poliertes Drahtglas für das Bauwesen, wie es in EN 572 1:2012 definiert ist, fest.
Diese Europäische Norm gilt nur für poliertes Drahtglas, das in rechtwinkligen Scheiben und Standardabmessungen geliefert wird.
EN 572 8 informiert über poliertes Drahtglas in anderen als in dieser Europäischen Norm aufgeführten Abmessungen.

Verre dans la construction - Produit de base: verre de silicate sodo-calcique - Partie 3: Verre armé poli

La présente Norme européenne détermine les exigences dimensionnelles et les exigences qualitatives minimales (concernant les défauts optiques, les défauts d’aspect et les défauts du fil métallique) pour le verre armé poli, tel que défini dans le EN 572-1:2012, pour l’utilisation dans la construction.
La présente Norme européenne ne s’applique qu’au verre armé poli fourni en feuilles rectangulaires et en dimensions standard.
L’EN 572-8 fournit des informations sur le verre armé poli fourni dans des dimensions autres que celles couvertes par la présente Norme européenne.

Steklo v gradbeništvu - Osnovni izdelki iz natrij-kalcijevega silikatnega stekla - 3. del: Polirano žično steklo

Ta evropski standard določa zahteve glede mer in minimalne kakovosti (v zvezi z optičnimi, vizualnimi in žičnimi napakami) za polirano žično steklo, kot je določeno v standardu FprEN 572-1:2011, za uporabo v gradbeništvu. Ta evropski standard se nanaša le na polirano žično steklo, dobavljeno kot pravokotno steklo in v velikostih na zalogi. EN 572-8 vsebuje informacije o poliranem žičnem steklu, razen za velikosti, vključene v tem evropskem standardu.

General Information

• Status: Published
• Publication Date: 17-Jul-2012
• Withdrawal Date: 30-Jan-2013
• ICS: 81.040.20 - Glass in building
• Technical Committee: CEN/TC 129 - Glass in building
• Drafting Committee: CEN/TC 129/WG 1 - Basic glass products
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 04-Mar-2018
• Completion Date: 04-Mar-2018
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/135 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on flat glass, profiled glass and glass block products
• Ref Project: SIST EN 572-3:2012 - Glass in building - Basic soda lime silicate glass products - Part 2: Polished wired glass

Relations

• Replaces: EN 572-3:2004 - Glass in Building - Basic soda lime silicate glass products - Part 3: Polished wire glass
• Effective Date: 13-Aug-2011

Overview

EN 572-3:2012 - “Glass in building - Basic soda lime silicate glass products - Part 3: Polished wired glass” (CEN) specifies dimensional and minimum quality requirements for polished wired glass used in building. The standard applies to rectangular panes in stock sizes (nominal length H: 1 650–3 820 mm; nominal width B: 1 980–2 540 mm) and defines inspection, measurement and acceptance criteria for optical, visual and wire faults. EN 572-3:2012 supersedes EN 572-3:2004 and is part of the EN 572 series for soda‑lime silicate glass products.

Key topics and technical requirements

• Scope and definitions
  • Applies to polished wired glass as defined in EN 572-1:2012 and only to rectangular stock sizes; EN 572-8 covers other sizes.
• Dimensional requirements
  • Thickness: actual thickness is the average of four caliper micrometer measurements (one at centre of each side), measured to 0.01 mm and rounded to 0.1 mm for tolerance checks. Tabled tolerances are given (e.g., for nominal 7 mm and 10 mm).
  • Length, width and squareness: tolerances on nominal H and B are ±4 mm. Squareness is assessed by difference between diagonals with limits related to pane dimensions.
• Wire mesh specification
  • Square welded steel mesh of approx. 12.5 mm pitch, manufactured from wire with diameter ≥ 0,42 mm.
• Quality requirements and acceptance levels
  • One quality level defined by optical faults (distortions seen when viewing strip lights) and visual faults (spot, elongated, linear/extended and wire faults).
  • Observation methods: optical inspection with pane 1 m from strip lights and observer at 2 m; visual inspection against a matt black screen (reflection coefficient 0.2–0.4) with the observer 2 m from the pane.
  • Acceptance criteria: detailed size and concentration limits for spot and elongated faults (e.g., spherical spots >4.0 mm not acceptable); linear/extended faults and wire deviations limits (wire deviation y ≤ 15 mm per metre). No wire penetration or broken wires accepted.
• Designation
  • Specifies how to mark compliant panes (type, EN reference, nominal thickness, dimensions). Example provided.

Applications and users

EN 572-3:2012 is used by:

• Glass manufacturers and suppliers for production tolerances and quality control of polished wired glass.
• Architects, specifiers and procurement teams to write clear performance and acceptance criteria in building contracts.
• Fabricators and installers for inspection and acceptance on delivery.
• Test laboratories and conformity assessors checking compliance with EN 572 series requirements.

Keywords: EN 572-3:2012, polished wired glass, soda lime silicate glass, glass in building, dimensional requirements, optical faults, visual faults, wire mesh, stock sizes.

Related standards

• EN 572-1:2012 - Definitions and general physical/mechanical properties
• EN 572-8 - Supplied and final cut sizes (polished wired glass beyond stock sizes)
• Other parts of the EN 572 series for different basic glass product types

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2012
1DGRPHãþD
SIST EN 572-3:2004
6WHNORYJUDGEHQLãWYX2VQRYQLL]GHONLL]QDWULMNDOFLMHYHJDVLOLNDWQHJDVWHNOD
GHO3ROLUDQRåLþQRVWHNOR
Glass in building - Basic soda lime silicate glass products - Part 2: Polished wired glass
Glas im Bauwesen - Basiserzeugnisse aus Kalk-Natronsilicatglas - Teil 3: Poliertes
Drahtglas
Verre dans la construction - Produits de base : verre de silicate sodocalcique - Partie 3:
Verre armé poli
Ta slovenski standard je istoveten z: EN 572-3:2012
ICS:
81.040.20 Steklo v gradbeništvu Glass in building
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 572-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2012
ICS 81.040.20 Supersedes EN 572-3:2004
English Version
Glass in building - Basic soda lime silicate glass products - Part
3: Polished wired glass
Verre dans la construction - Produit de base: verre de Glas im Bauwesen - Basiserzeugnisse aus Kalk-
silicate sodo-calcique - Partie 3: Verre armé poli Natronsilicatglas - Teil 3: Poliertes Drahtglas
This European Standard was approved by CEN on 11 May 2012.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 572-3:2012: E
worldwide for CEN national Members.

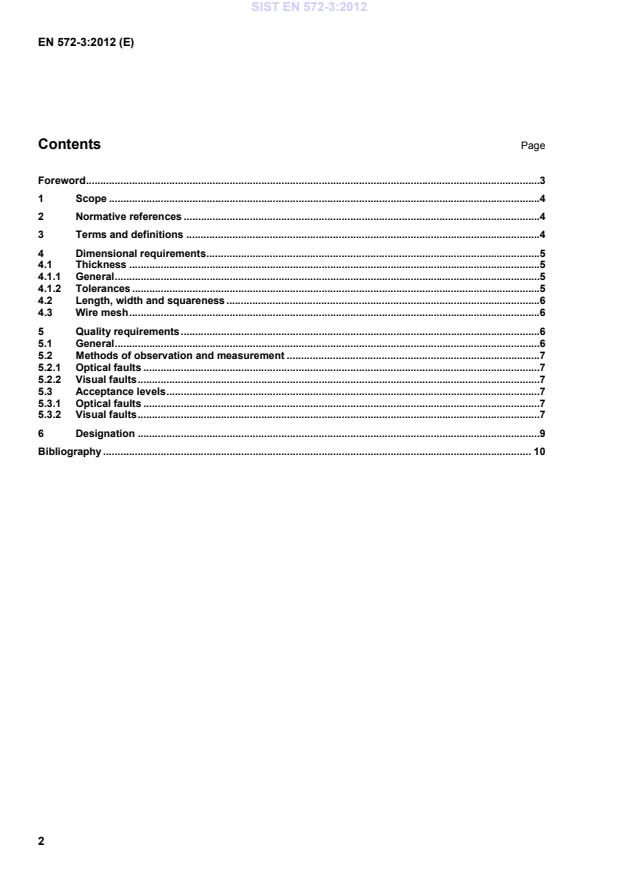

Contents Page
Foreword .3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Dimensional requirements .5
4.1 Thickness .5
4.1.1 General .5
4.1.2 Tolerances .5
4.2 Length, width and squareness .6
4.3 Wire mesh .6
5 Quality requirements .6
5.1 General .6
5.2 Methods of observation and measurement .7
5.2.1 Optical faults .7
5.2.2 Visual faults .7
5.3 Acceptance levels .7
5.3.1 Optical faults .7
5.3.2 Visual faults .7
6 Designation .9
Bibliography . 10

Foreword
This document (EN 572-3:2012) has been prepared by Technical Committee CEN/TC 129 “Glass in building”,
the secretariat of which is held by NBN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by January 2013, and conflicting national standards shall be withdrawn at
the latest by January 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 572-3:2004.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
This edition is a revision of EN 572-3:2004. The main change in this edition is a new method of determination
of squareness.
This European Standard “Glass in building — Basic soda lime silicate glass products” consists of the following
parts:
 Part 1: Definitions and general physical and mechanical properties;
 Part 2: Float glass;
 Part 3: Polished wired glass;
 Part 4: Drawn sheet glass;
 Part 5: Patterned glass;
 Part 6: Wired patterned glass;
 Part 7: Wired or unwired channel shaped glass;
 Part 8: Supplied and final cut sizes;
 Part 9: Evaluation of conformity/Product standard.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

1 Scope
This European Standard specifies dimensional and minimum quality requirements (in respect of optical, visual
and wire faults) for polished wired glass, as defined in EN 572-1:2012, for use in building.
This European Standard applies only to polished wired glass supplied in rectangular panes and in stock sizes.
EN 572-8 gives information on polished wired glass in sizes other than those
...
