EN ISO 4641:2024
(Main)Rubber hoses and hose assemblies for water suction and discharge - Specification (ISO 4641:2024)
Rubber hoses and hose assemblies for water suction and discharge - Specification (ISO 4641:2024)
This document specifies the minimum requirements for textile-reinforced, smooth-bore rubber water-suction and discharge hoses and hose assemblies.
Three types of hoses and hose assemblies are specified according to their operating duty requirements, i.e. their ambient and water temperature ranges:
— ambient temperatures: −25 °C to +70 °C;
— water temperatures during operation: 0 °C to +70 °C.
Saug- und Druck-Gummischläuche und ‑schlauchleitungen für Wasser - Anforderungen (ISO 4641:2024)
Dieses Dokument legt die Mindestanforderungen an Gummischläuche und -schlauchleitungen mit Textileinlage und glatter Innenschicht zum Ansaugen und Fördern von Wasser fest.
Drei Bauarten von Schläuchen und Schlauchleitungen sind entsprechend den Anforderungen an die Betriebsbedingungen festgelegt, d. h. Umgebungs- und Wassertemperaturbereiche:
- Umgebungstemperaturen: −25 °C bis +70 °C;
- Wassertemperaturen bei Betrieb: 0 °C bis +70 °C.
Tuyaux et flexibles en caoutchouc pour aspiration et refoulement d'eau - Spécifications (ISO 4641:2024)
Le présent document spécifie les exigences minimales pour les tuyaux et flexibles en caoutchouc à armature textile, à paroi intérieure lisse, utilisés pour l'aspiration et le refoulement de l'eau.
Trois types de tuyaux et de flexibles sont spécifiés selon leurs exigences de service, c'est-à-dire les plages de températures ambiantes et de températures de l'eau:
— températures ambiantes: −25 °C à +70 °C;
— températures de l'eau en service: 0 °C à +70 °C.
Gumene cevi in cevni priključki za dotok in odtok vode - Specifikacija (ISO 4641:2024)
Standard ISO 4641:2016 določa minimalne zahteve za s tekstilom ojačene, gladke gumene cevi in cevne priključke za dotok in odtok vode.
Tri vrste cevi in cevnih priključkov so določene v skladu z zahtevami za njihovo delovanje, tj. z njihovimi razponi temperature okolja in vode:
– temperatura okolja: od –25 °C do +70 °C;
– temperatura vode med delovanjem: od 0 °C do +70 °C.
General Information
Relations
Standards Content (Sample)

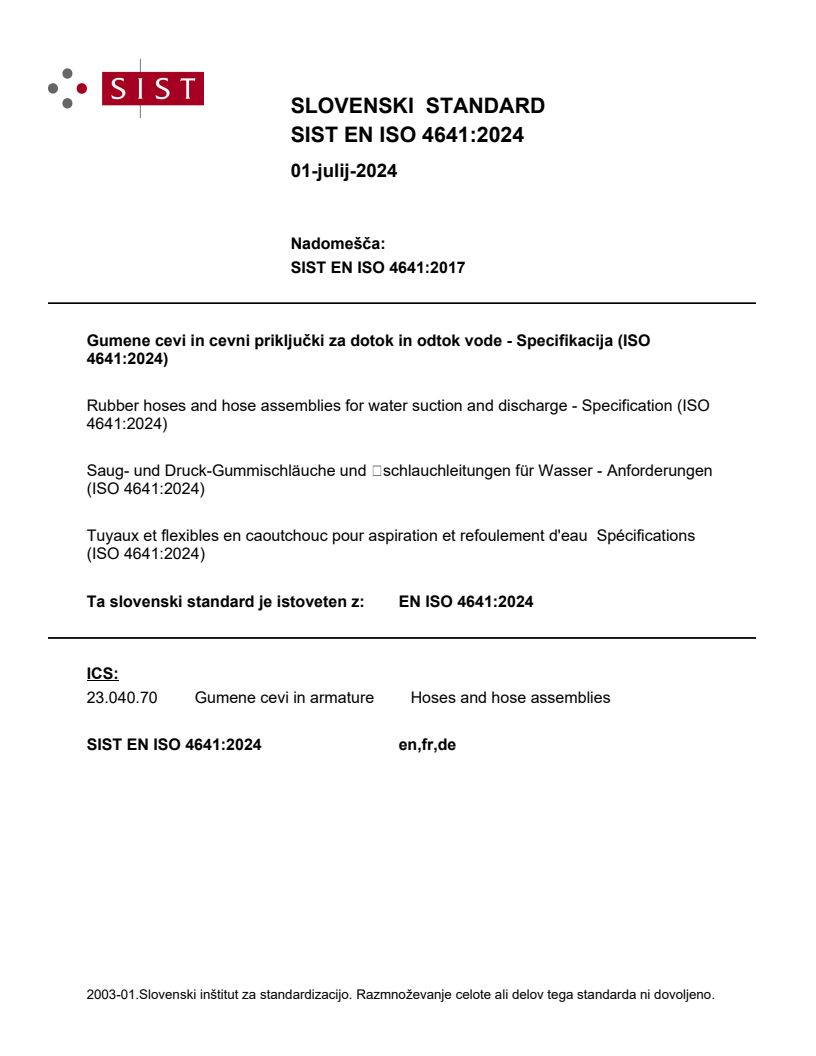

SLOVENSKI STANDARD
