CEN

EN 14989-1:2007

(Main)

Chimneys - Requirements and test methods for metal chimneys and material independent air supply ducts for roomsealed heating applications - Part 1: Vertical air/flue terminals for C6-type appliances

Chimneys - Requirements and test methods for metal chimneys and material independent air supply ducts for roomsealed heating applications - Part 1: Vertical air/flue terminals for C6-type appliances

This standard specifies the requirements and test methods for positive pressure air/flue terminals with metal flue ducts for C62- and C63-type gas appliances, which convey air for combustion, and the products of combustion from appliances to the outside atmosphere.
It also specifies the requirements for marking, manufacturer’s instructions, product information and evaluation of conformity.
NOTE   The classification of gas appliances is according to CEN/TR 1749.

Abgasanlagen - Anforderungen und Prüfverfahren für Metall-Abgasanlagen und materialunabhängige Luftleitungen für raumluftunabhängige Anlagen - Teil 1: Senkrecht angeordnete luft/Abgas-Aufsätze für Abgasanlagen mit Gasgeräten des Typs C6

Diese Norm beinhaltet Anforderungen und Prüfverfahren für senkrecht angeordnete Aufsätze für Abgasanlagen mit Gasgeräten der Typen C62 und C63.
Sie legt ebenfalls Anforderungen an die Kennzeichnung, an Herstelleranleitungen, Produktinformationen und an ein Konformitätsbeurteilungssystem fest.

Conduits de fumée - Exigences et méthodes d'essais pour conduits de fumées métalliques et conduits d'alimentation en air pour tous matériaux pour des appareils de chauffages étanches - Partie 1 : Terminaux verticaux air/fumée pour appareils de type C6

La présente Norme spécifie les exigences et les méthodes d'essai relatives aux terminaux verticaux fonctionnant sous pression positive destinés aux appareils à gaz de type C62 et C63.
Elle spécifie également les exigences relatives au marquage, aux instructions des fabricants, aux informations produit et à l'évaluation de la conformité.

Dimniki - Zahteve in preskusne metode za kovinske dimnike in od materialov neodvisne kanale za dovod zraka za ogrevalne naprave v zaprtih prostorih - 1. del: Navpični terminali za odvod dima in dovod zraka za plinske kotle tipa C6

General Information

Status
Published
Publication Date
27-Feb-2007
ICS
91.060.40 - Chimneys, shafts, ducts
Technical Committee
CEN/TC 166 - Chimneys
Drafting Committee
CEN/TC 166/SC 2 - Chimneys and their components with inner linings of metal
Current Stage
9093 - Decision to confirm - Review Enquiry
Completion Date
30-May-2018
Directive
305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
89/106/EEC - Construction products
Mandate
M/105 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on chimneys, flues and specific products
Ref Project
SIST EN 14989-1:2007 - Chimneys - Requirements and test methods for metal chimneys and material independent air supply ducts for roomsealed heating applications - Part 1: Vertical air/flue terminals for C6-type appliances

Relations

Revised
prEN 1856-1 - Chimneys - Requirements for metal chimneys - Part 1: System chimney products
Effective Date
13-Jun-2018

Buy Standard

EN 14989-1:2007EN 14989-1:2007
PreviousNext
Standard
EN 14989-1:2007
English language
64 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Chimneys - Requirements and test methods for metal chimneys and material independent air supply ducts for roomsealed heating applications - Part 1: Vertical air/flue terminals for C6-type appliancesDWHULDORYConduits de fumée - Exigences et méthodes d'essais pour conduits de fumées métalliques et conduits d'alimentation en air pour tous matériaux pour des appareils de chauffages étanches - Partie 1 : Terminaux verticaux air/fumée pour appareils de type C6Abgasanlagen - Anforderungen und Prüfverfahren für Metall-Abgasanlagen und materialunabhängige Luftleitungen für raumluftunabhängige Anlagen - Teil 1: Senkrecht angeordnete luft/Abgas-Aufsätze für Abgasanlagen mit Gasgeräten des Typs C6Ta slovenski standard je istoveten z:EN 14989-1:2007SIST EN 14989-1:2007en;fr;de91.060.40Dimniki, jaški, kanaliChimneys, shafts, ductsICS:SLOVENSKI
STANDARDSIST EN 14989-1:200701-julij-2007







EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14989-1February 2007ICS 91.060.40 English VersionChimneys - Requirements and test methods for metal chimneysand material independent air supply ducts for roomsealedheating applications - Part 1: Vertical air/flue terminals for C6-type appliancesConduits de fumée - Exigences et méthodes d'essais pourconduits de fumées métalliques et conduits d'alimentationen air pour tous matériaux pour des appareils dechauffages étanches - Partie 1 : Terminaux verticauxair/fumée pour appareils de type C6Abgasanlagen - Anforderungen und Prüfverfahren fürMetall-Abgasanlagen und materialunabhängigeLuftleitungen für raumluftunabhängige Anlagen - Teil 1:Senkrecht angeordnete luft/Abgas-Aufsätze fürAbgasanlagen mit Gasgeräten des Typs C6This European Standard was approved by CEN on 7 January 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14989-1:2007: E

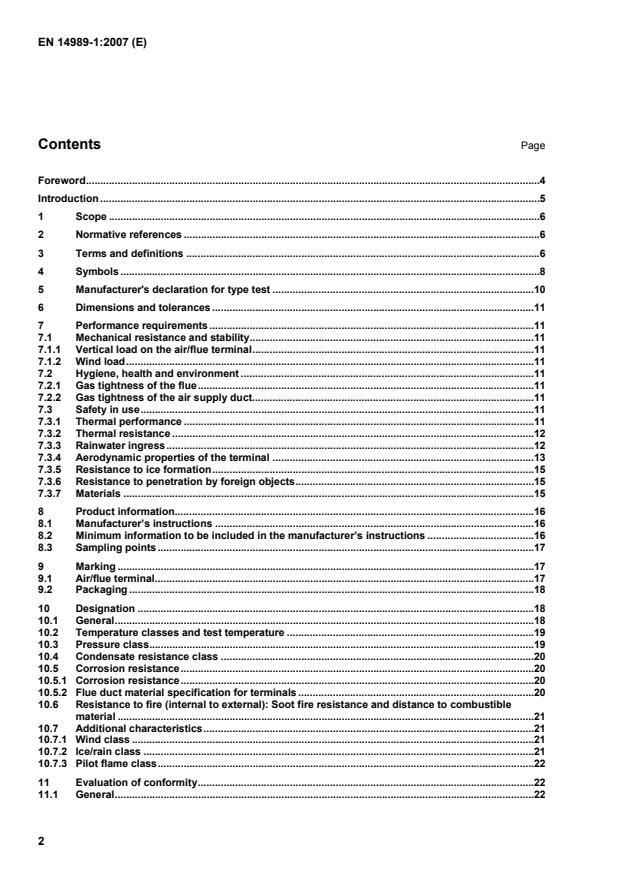

EN 14989-1:2007 (E) 2 Contents Page Foreword.4 Introduction.5 1 Scope.6 2 Normative references.6 3 Terms and definitions.6 4 Symbols.8 5 Manufacturer's declaration for type test.10 6 Dimensions and tolerances.11 7 Performance requirements.11 7.1 Mechanical resistance and stability.11 7.1.1 Vertical load on the air/flue terminal.11 7.1.2 Wind load.11 7.2 Hygiene, health and environment.
...
