Communication systems for meters - Part 2: Wired M-Bus communication

This draft European standard is applicable to the physical and link layer parameters of baseband communication over twisted pair (M Bus) for meter communication systems. It is especially applicable to thermal energy meters, heat cost allocators, water meters and gas meters.
NOTE    It is usable also for other meters (like electricity meters) and for sensors and actuators. For generic descriptions concerning communication systems for meters and remote reading of meters see EN 13757-1.

Kommunikationssysteme für Zähler - Teil 2: Drahtgebundene M-Bus-Kommunikation

Systèmes de communication pour compteurs - Partie 2 : Communication M-Bus filaire

La présente Norme européenne est applicable aux paramètres de la couche physique et de liaison de la communication en bande de base sur paire torsadée (M-Bus) pour les systèmes de communication des compteurs. Elle s'applique tout particulièrement aux compteurs d'énergie thermique, aux répartiteurs de frais de chauffage, aux compteurs d'eau et aux compteurs de gaz.
NOTE   Elle est également applicable à d'autres compteurs (tels que les compteurs électriques) ainsi qu'à d'autres capteurs et organes de commande. Pour les descriptions génériques concernant les systèmes de communication et de télérelevé de compteurs, voir l'EN 13757-1.

Komunikacijski sistemi za števce - 2. del: Žične komunikacije po M-vodilu

Ta osnutek evropskega standarda se uporablja za parametre fizične in povezovalne plasti komunikacije v osnovnem pasu prek sukane parice (M-vodilo) za komunikacijske sisteme za merilnike. Uporablja se zlasti za merilnike toplotne energije, delilnike stroškov, merilnike vode in merilnike plina.
OPOMBA:    Lahko se uporablja tudi za druge merilnike (npr. merilnike električne energije) ter za tipala in pogone. Za generične opise v zvezi s komunikacijskimi sistemi za merilnike in oddaljeno odbiranje merilnikov glej standard EN 13757-1.

General Information

Status
Published
Publication Date
03-Apr-2018
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
04-Apr-2018
Completion Date
04-Apr-2018

RELATIONS

Buy Standard

Standard
EN 13757-2:2018
English language
30 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.0YRGLOXKommunikationssysteme für Zähler - Teil 2: Drahtgebundene M-Bus-KommunikationSystèmes de communication pour compteurs - Partie 2 : Communication M-Bus filaireCommunication systems for meters - Part 2: Wired M-Bus communication35.100.10Physical layer33.200Daljinsko krmiljenje, daljinske meritve (telemetrija)Telecontrol. TelemeteringICS:Ta slovenski standard je istoveten z:EN 13757-2:2018SIST EN 13757-2:2018en,fr,de01-junij-2018SIST EN 13757-2:2018SLOVENSKI

STANDARDSIST EN 13757-2:20051DGRPHãþD
SIST EN 13757-2:2018

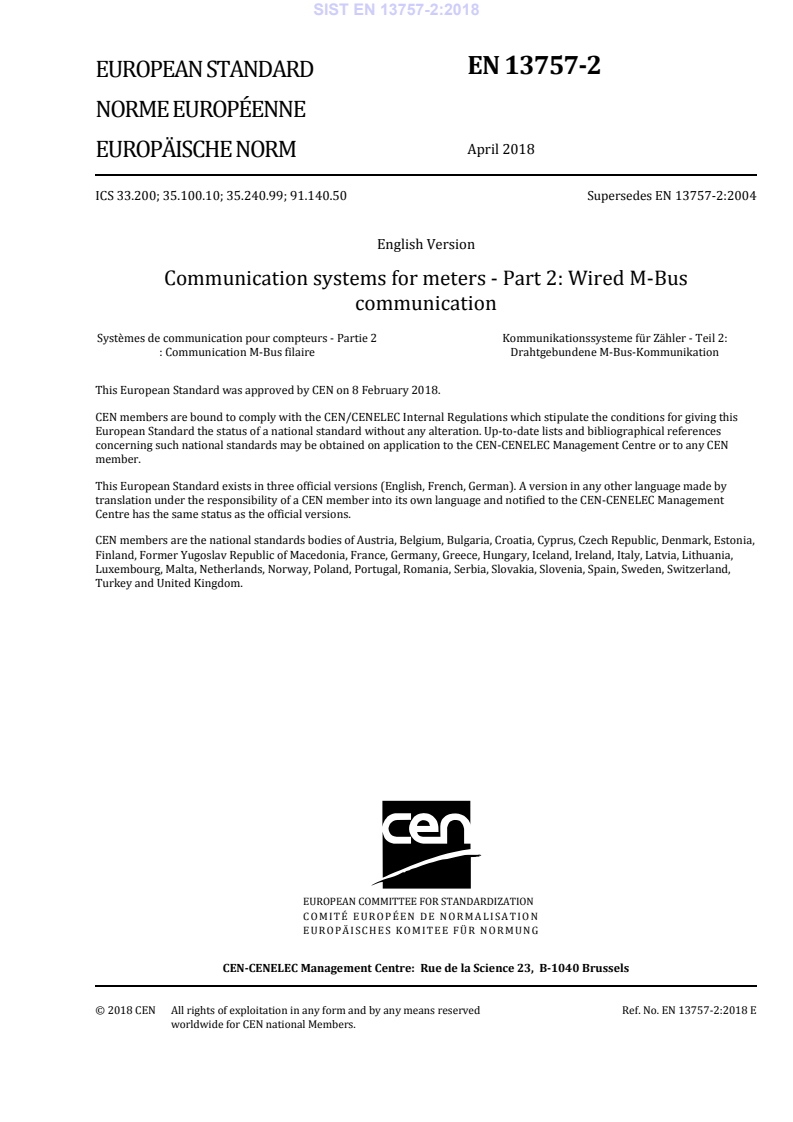

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13757-2
April
t r s z ICS
u uä t r râ
u wä s r rä s râ
u wä t v rä { {â
{ sä s v rä w r Supersedes EN
s u y w yæ tã t r r vEnglish Version
Communication systems for meters æ Part
tã Wired MæBus communication Systèmes de communication pour compteurs æ Partie
t ã Communication MæBus filaire
Kommunikationssysteme für Zähler æ Teil

tã Drahtgebundene MæBusæKommunikation This European Standard was approved by CEN on

z February
t r s zä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s u y w yæ tã t r s z ESIST EN 13757-2:2018

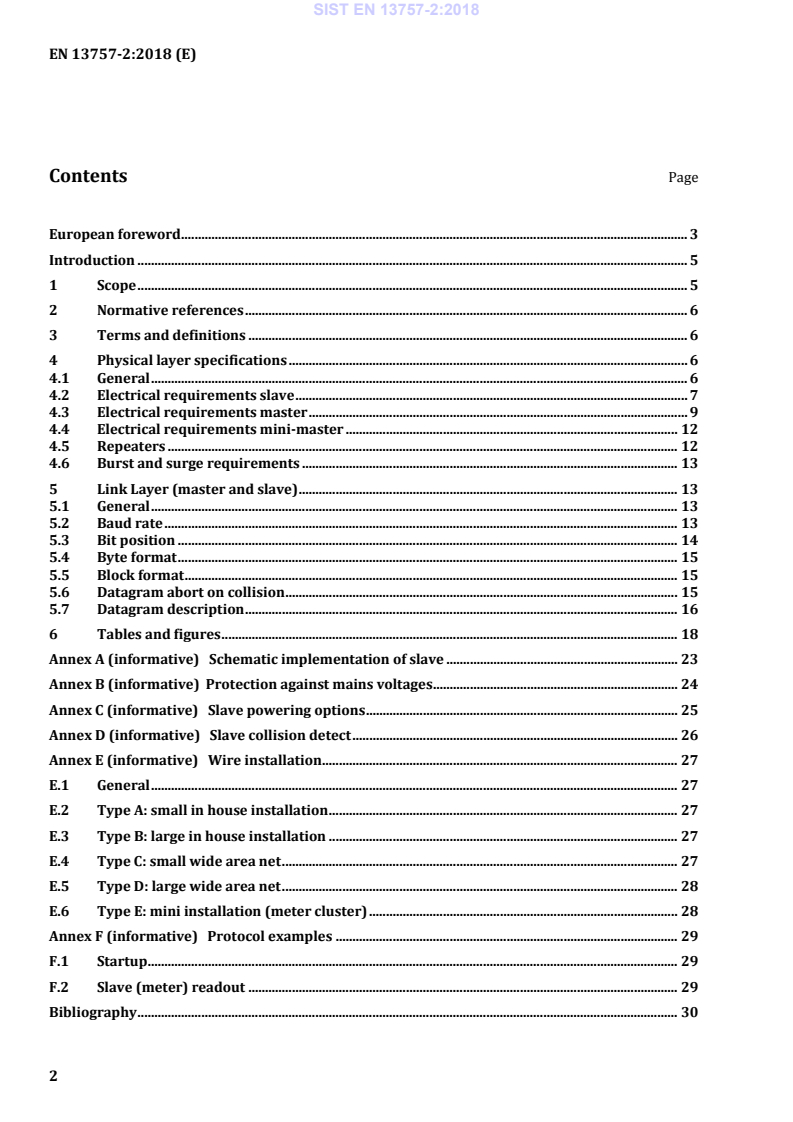

EN 13757-2:2018 (E) 2 Contents Page
