EN ISO 10618:2004
(Main)Carbon fibre - Determination of tensile properties of resin-impregnated yarn (ISO 10618:2004)
Carbon fibre - Determination of tensile properties of resin-impregnated yarn (ISO 10618:2004)
ISO 10618:2004 specifies a method of test for the determination of the tensile strength, tensile modulus of elasticity and strain at maximum load of a resin-impregnated yarn specimen. The method is applicable to yarns (continuous and staple-fibre yarns) of carbon fibre for use as reinforcements in composite materials.
Kohlenstofffasern - Bestimmung des Zugverhaltens von harzimprägnierten Garnen (ISO 10618:2004)
Diese Internationale Norm legt ein Prüfverfahren zur Bestimmung der Zugfestigkeit, des Zugelastizitätsmoduls und der Dehnung bei Höchstkraft an harzimprägnierten Garnprobekörpern fest. Das Verfahren gilt für Kohlenstofffilament- und -Stapelfasergarne, die zur Verstärkung von Verbundwerkstoffen verwendet werden.
Fibres de carbone - Détermination des propriétés en traction sur fils imprégnés de résine (ISO 10618:2004)
L'ISO 10618:2004 spécifie une méthode d'essai pour la détermination de la résistance en traction, du module d'élasticité en traction et de la déformation à la charge maximale sur une éprouvette de fil imprégné de résine. La méthode s'applique à des fils (continus ou discontinus) de fibres de carbone utilisés pour le renforcement des matériaux composites.
Ogljikova vlakna - Ugotavljanje nateznih lastnosti s smolo impregniranih prej (ISO 10618:2004)
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-oktober-2004
1DGRPHãþD
SIST EN ISO 10618:2000
Ogljikova vlakna - Ugotavljanje nateznih lastnosti s smolo impregniranih prej (ISO
10618:2004)
Carbon fibre - Determination of tensile properties of resin-impregnated yarn (ISO
10618:2004)
Kohlenstofffasern - Bestimmung des Zugverhaltens von harzimprägnierten Garnen (ISO
10618:2004)
Fibres de carbone - Détermination des propriétés en traction sur fils imprégnés de résine
(ISO 10618:2004)
Ta slovenski standard je istoveten z: EN ISO 10618:2004
ICS:
59.100.20 Ogljikovi materiali Carbon materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN ISO 10618
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2004
ICS 59.100.20 Supersedes EN ISO 10618:1999
English version
Carbon fibre - Determination of tensile properties of resin-
impregnated yarn (ISO 10618:2004)
Fibres de carbone - Détermination des propriétés en Kohlenstofffasern - Bestimmung des Zugverhaltens von
traction sur fils imprégnés de résine (ISO 10618:2004) harzimprägnierten Garnen (ISO 10618:2004)
This European Standard was approved by CEN on 14 August 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10618:2004: E
worldwide for CEN national Members.

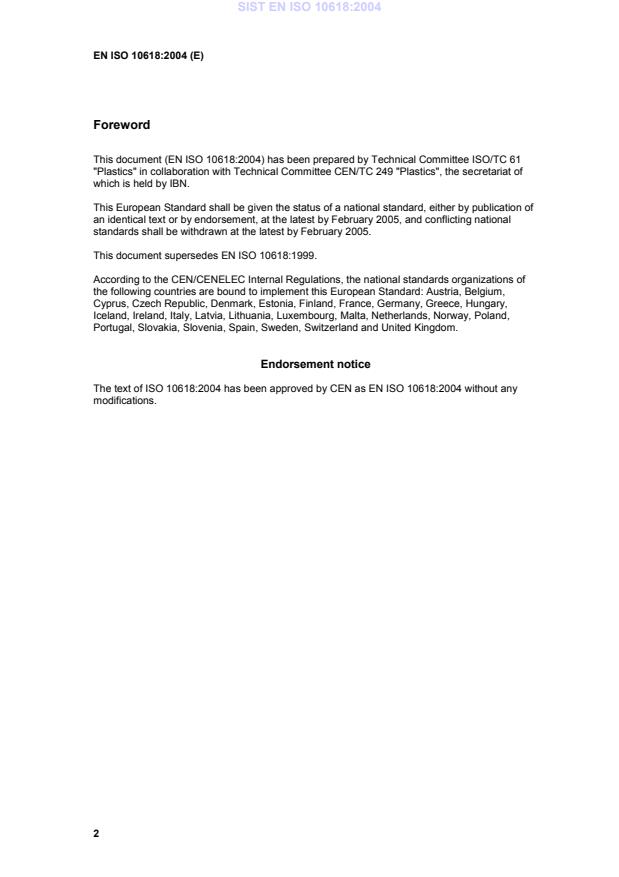

Foreword
This document (EN ISO 10618:2004) has been prepared by Technical Committee ISO/TC 61
"Plastics" in collaboration with Technical Committee CEN/TC 249 "Plastics", the secretariat of
which is held by IBN.
This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by February 2005, and conflicting national
standards shall be withdrawn at the latest by February 2005.
This document supersedes EN ISO 10618:1999.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Endorsement notice
The text of ISO 10618:2004 has been approved by CEN as EN ISO 10618:2004 without any
modifications.
INTERNATIONAL ISO
STANDARD 10618
Second edition
2004-08-15
Carbon fibre — Determination of tensile
properties of resin-impregnated yarn
Fibres de carbone — Détermination des propriétés en traction sur fils
imprégnés de résine
Reference number
ISO 10618:2004(E)
©
ISO 2004
ISO 10618:2004(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2004
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2004 – All rights reserved
ISO 10618:2004(E)
Contents Page
Foreword. iv
1 Scope. 1
2 Normative references . 1
3 Terms and definitions. 1
4 Symbols . 1
5 Principle . 2
6 Apparatus and materials . 2
7 Test specimens . 3
8 Atmosphere for conditioning and testing . 5
9 Procedure for tensile testing . 5
10 Expression of results. 6
11 Precision . 8
12 Test report. 8
Annex A (informative) Examples of heat-curable epoxy-resin systems. 10
Annex B (informative) Examples of impregnating apparatus . 12
Annex C (informative) Examples of tabs and tab-preparation apparatus . 13
Annex D (informative) Examples of extensometers. 15
ISO 10618:2004(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10618 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 13, Composites
and reinforcement fibres.
This second edition cancels and replaces the first edition (ISO 10618:1999), which has been technically
revised.
iv © ISO 2004 – All rights reserved
INTERNATIONAL STANDARD ISO 10618:2004(E)
Carbon fibre — Determination of tensile properties of
resin-impregnated yarn
1 Scope
This International Standard specifies a method of test for the determination of the tensile strength, tensile
modulus of elasticity and strain at maximum load of a resin-impregnated yarn specimen. The method is
applicable to yarns (continuous and staple-fibre yarns) of carbon fibre for use as reinforcements in composite
materials.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 291, Plastics — Standard atmospheres for conditioning and testing
ISO 527-1, Plastics — Determination of tensile properties — Part 1: General principles
ISO 1889, Reinforcement yarns — Determination of linear density
ISO 10119, Carbon fibre — Determination of density
ISO 10548, Carbon fibre — Determination of size content
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 527-1 and the following apply.
3.1
cross-sectional area of carbon-fibre yarn
A
f
the linear density of the yarn divided by the density of the carbon fibre
NOTE It is expressed in square millimetres.
4 Symbols
The symbols used in this International Standard are as follows:
σ tensile strength, in megapascals;
f
F maximum tensile force, in newtons;
f
A cross-sectional area of yarn, in square millimetres;
f
ISO 10618:2004(E)
ρ density of yarn, in grams per cubic centimetre;
f
T linear density of yarn, in tex;
tf
T linear density of impregnated yarn, in tex;
ti
E tensile modulus of elasticity, in gigapascals;
f
L gauge length of extensometer, in millimetres;
∆L variation in the length, in millimetres, corresponding to the variation in the force, in newtons;
∆F variation in the force, in newtons, corresponding to the variation in the length, in millimetres.
5 Principle
A sample of yarn is uniformly impregnated with resin, then cured to provide test specimens. The specimens
are loaded in tension at a constant speed by a suitable mechanical testing machine until failure.
The tensile strength, the tensile modulus of elasticity and the strain at maximum load are calculated from the
force-extension relationship.
The tensile modulus is determined by dividing the variation in the stress by the corresponding variation in the
strain between two defined points. For carbon-fibre yarns, the relation between stress and strain is not linear,
hence a chord modulus must be defined. In method A, the modulus is defined between two strain levels and in
method B it is defined between two load levels. The linear density and the size content have to be determined
independently.
NOTE The precision of the values obtained is believed to be approximately the same for method A and for method B.
However, for the generally non-linear stress-strain response common to carbon fibres, the mean modulus values from
these two methods will be somewhat different and not necessarily statistically comparable. Method B, or other methods,
may be used in the purchase specification or for quality assurance by agreement between customer and supplier.
6 Apparatus and materials
6.1 Resin
The impregnating resin shall be compatible with the yarn and its size. The viscosity of the resin or resin
solution shall be such that sufficient resin pick-up is achieved to ensure uniform impregnation. The strain at
failure of the cured resin shall be at least twice that of the fibre, preferably three times. In this respect, heat-
curable epoxy-resin systems with a viscosity during impregnation of preferably less than 1 000 mPa⋅s are
suitable (see Annex A for example) as is any formulation capable of giving test specimens that fulfill the
requirements of this International Standard. The resin formulation, however, shall be specified in detail and
shall be agreed upon between the fibre manufacturer and the user.
6.2 Impregnation apparatus
Test specimens can be prepared by any method which produces a uniformly impregnated, smooth specimen.
These methods include both single- and multiple-specimen preparation techniques. A multiple-specimen
impregnation apparatus may consist of:
6.2.1 A holder for the sample yarn bobbin, with yarn-tensioning devices.
6.2.2 An impregnation bath, with temperature-control devices and impregnation rollers or yarn-tensioning
bars.
2 © ISO 2004 – All rights reserved
...
