EN 13733:2002

Products and systems for the protection and repair of concrete structures - Tests methods - Determination of the durability of structural bonding agents

The purpose of this standard is to define laboratory methods of testing to ascertain the durability of structural bonding agents in composite systems involving the bonding of hardened concrete to hardened concrete, fresh concrete to hardened concrete and steel to steel.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Bestimmung der Dauerhaftigkeit von Klebstoffen für konstruktive Zwecke

Diese Europäische Norm definiert Laborprüfverfahren zur Untersuchung der Dauerhaftigkeit von Klebstoffen für konstruktive Zwecke bei Verbundsystemen unter Berücksichtigung des Verbunds von Festbeton auf Festbeton, Frischbeton auf Festbeton und Stahl auf Sathl.

Produits et systèmes pour la protection et la réparation des structures en béton - Méthodes d'essai - Détermination de la durabilité des produits de collage structural

La présente Norme européenne a pour objet de définir des méthodes d'essai de laboratoire pour évaluer la durabilité des produits de collage structural dans les systèmes composites, qu'il s'agisse de collage de béton durci sur béton durci, de béton frais sur béton durci ou d'acier sur acier.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Preskusne metode - Določevanje trajnosti konstrukcijskih lepil

General Information

• Status: Published
• Publication Date: 21-May-2002
• ICS: 83.180 - Adhesives
• ICS: 91.080.40 - Concrete structures
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 8/WG 3 - Bonding
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 18-Jun-2021
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/128 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on products for concrete, mortar and grout
• Ref Project: SIST EN 13733:2002 - Products and systems for the protection and repair of concrete structures - Tests methods - Determination of the durability of structural bonding agents

Overview

EN 13733:2002 (CEN) specifies laboratory test methods to determine the durability of structural bonding agents used in repair and protection of concrete structures. The standard covers composite systems involving:

• hardened concrete to hardened concrete,
• fresh concrete to hardened concrete, and
• steel-to-steel bonding.

EN 13733 defines specimen preparation, environmental regimes, test procedures and reporting requirements to evaluate long‑term performance of adhesives used for bonded reinforcement, mortars, or plate bonding.

Key topics and technical requirements

• Specimen types
  • Concrete-to-concrete: three 100 × 100 × 100 mm cubes bonded in-line (bond line ≈ 1 mm) for compressive‑shear testing.
  • Fresh-to-hardened concrete: two grit-blasted cubes separated in a 100 × 100 × 302 mm mould with fresh concrete poured into the central volume.
  • Steel-to-steel: two 150 × 25 × 3 mm steel plates bonded with a controlled glue line and tested with a wedge (cleavage) method.
• Environmental regimes
  • Thermal cycling: programmable cabinet cycling between (−25 ± 2) °C and (+55 ± 2) °C. One cycle = 12 h (50 cycles total), with specified dwell and ramp rates.
  • Warm‑moist exposure: continuous exposure for 6 months at (+40 ± 2) °C and (95 ± 5) % RH.
• Test methods
  • Concrete specimens: conditioned 24 h at standard climate then loaded in compressive shear (load rate (60 ± 20) kN/min); record load at failure and mode of failure.
  • Steel specimens: wedge inserted to create a crack; crack length measured before exposure and at regular intervals (daily initially, then weekly) to monitor propagation and crack position; calculate fracture energy vs time.
• Equipment and preparation
  • Moulds, alignment jigs, grit blasting to EN 1766 requirements, compression testing machine per EN 12390‑4, programmable temperature and climatic cabinets, and steel surface prep per ISO 8501‑1.
• Reporting
  • Detailed test report requirements including product ID, preparation/storage conditions, test equipment/calibration, load/fracture results, mode/position of failure and precision data.

Applications and users

EN 13733 is used to assess adhesives and structural bonding agents for:

• Bonded plate reinforcement and external bonded reinforcement systems
• Repair mortars and concrete overlay bonding
• Steel plate bonding and adhesive joint design

Primary users:

• Material manufacturers and suppliers of structural adhesives
• Test laboratories and independent assessors
• Structural engineers, repair contractors and specifiers evaluating bonding system durability

Related standards

• EN 1766 - Reference concretes for testing (cast and surface preparation)
• EN 12390‑4 - Compressive strength testing machines
• ISO 8501‑1 - Steel surface preparation (rust and preparation grades)

Keywords: EN 13733:2002, structural bonding agents, durability testing, concrete repair, thermal cycling, warm‑moist exposure, compressive shear, wedge test, bonded reinforcement.

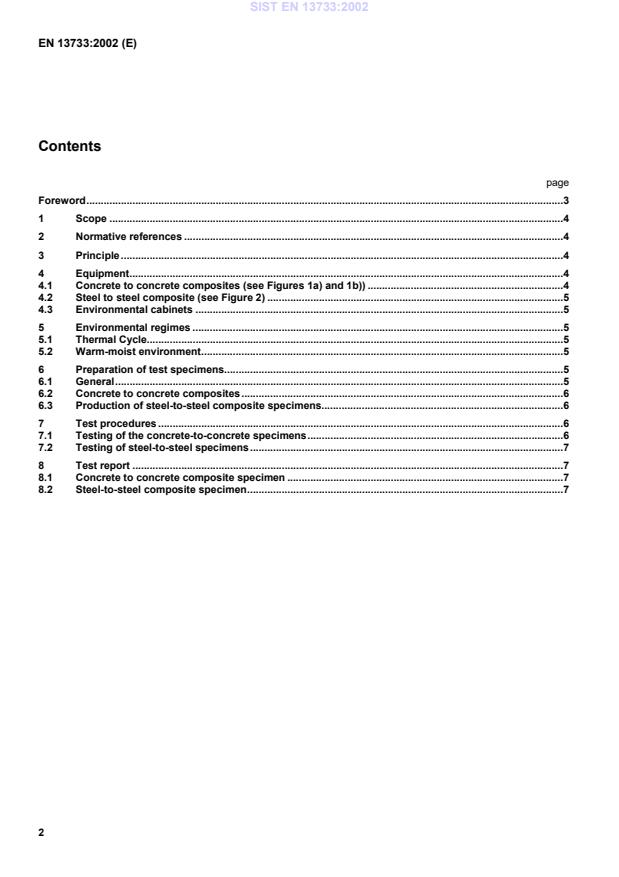

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Bestimmung der Dauerhaftigkeit von Klebstoffen für konstruktive ZweckeProduits et systemes pour la protection et la réparation des structures en béton - Méthodes d'essai - Détermination de la durabilité des produits de collage structuralProducts and systems for the protection and repair of concrete structures - Tests methods - Determination of the durability of structural bonding agents91.080.40Betonske konstrukcijeConcrete structures83.180LepilaAdhesivesICS:Ta slovenski standard je istoveten z:EN 13733:2002SIST EN 13733:2002en01-november-2002SIST EN 13733:2002SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13733May 2002ICS 83.180; 91.080.40English versionProducts and systems for the protection and repair of concretestructures - Tests methods - Determination of the durability ofstructural bonding agentsProduits et systèmes pour la protection et la réparation desstructures en béton - Méthodes d'essai - Détermination dela durabilité des produits de collage structuralProdukte und Systeme für den Schutz und dieInstandsetzung von Betontragwerken - Prüfverfahren -Bestimmung der Dauerhaftigkeit von Klebstoffen fürkonstruktive ZweckeThis European Standard was approved by CEN on 30 December 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13733:2002 ESIST EN 13733:2002
...
