(Main)Aluminium and aluminium alloys - Extruded precision profiles in alloys EN AW-6060 and EN AW-6063 - Part 2: Tolerances on dimensions and form
Aluminium and aluminium alloys - Extruded precision profiles in alloys EN AW-6060 and EN AW-6063 - Part 2: Tolerances on dimensions and form
This European Standard specifies tolerances on dimensions and form of extruded precision profiles, in alloys EN AW-6060 and EN AW-6063 manufactured with and without a thermal barrier (see Figures 1 and 2). It applies to extruded products supplied without further surface treatment. Precision profiles covered in this standard are distinguished from extruded profiles for general applications covered in EN 755-9 by the following characteristics:
- they are mainly for architectural applications;
- they meet more stringent requirements regarding the surface condition of visible surfaces;
- the maximum diameter of the circumscribing circle CD is 350 mm;
- they are made to closer tolerances on dimensions and form.
In the case of profiles which, due to the complexity of their design, are difficult to manufacture and specify, then special agreements between supplier and purchaser may need to be reached.
NOTE The effect of the thermal barrier material on the dimensional tolerances is covered by this document although the actual thermal barrier material itself is not (see EN 14024).
Aluminium und Aluminiumlegierungen - Stranggepresste Präzisionsprofile aus Legierungen EN AW-6060 und EN AW-6063 - Teil 2: Grenzabmaße und Formtoleranzen
Diese Europäische Norm legt die Grenzabmaße und Formtoleranzen für stranggepresste Präzisionsprofile aus den Legierungen EN AW-6060 und EN AW-6063, die mit oder ohne Wärmedämmung (siehe Bild 1 bzw. Bild 2) hergestellt werden, fest. Sie gilt für stranggepresste Erzeugnisse, die ohne weitere Oberflächen¬behandlung hergestellt werden. Die Präzisionsprofile, die Gegenstand dieser Norm sind, unterscheiden sich von den stranggepressten Profilen für allgemeine Anwendungen nach EN 755-9 wie folgt:
- sie sind hauptsächlich für Anwendungen im Architekturbereich vorgesehen;
- sie entsprechen strengeren Anforderungen im Hinblick auf den Zustand der sichtbaren Oberflächen;
- der maximale Durchmesser des Umschlingungskreises (en: diameter of the circumscribing circle (CD)) beträgt 350 mm;
- sie weisen engere Grenzabmaße und Formtoleranzen auf.
Bei Profilen, die aufgrund ihrer komplexen Konstruktion schwierig herzustellen und zu spezifizieren sind, können besondere Vereinbarungen zwischen Hersteller und Käufer notwendig sein.
ANMERKUNG Der Einfluss des Materials für die Wärmedämmung auf die Grenzabmaße wird in diesem Dokument berücksichtigt, wenngleich das eigentliche Material für die Wärmedämmung nicht enthalten ist (siehe EN 14024).
Aluminium et alliages d'aluminium - Profilés de précision filés en alliages EN AW-6060 et EN AW-6063 - Partie 2 : Tolérances sur dimensions et forme
La présente Norme européenne spécifie les tolérances sur dimensions et forme des profilés filés de précision en alliages EN AW-6060 et EN AW-6063 fabriqués avec ou sans barrière thermique (voir Figures 1 et 2). Elle s’applique aux produits filés fournis sans traitement de surface spécifique. Les profilés de précision couverts par cette norme sont distincts des produits filés pour application générale couverts par l’EN 755-9 par les caractéristiques suivantes :
- ils sont principalement destinés aux applications architecturales ;
- ils satisfont à des exigences plus rigoureuses en ce qui concerne l’état des surfaces visibles ;
- le diamètre maximal du cercle circonscrit CD est de 350 mm ;
- ils sont fabriqués avec des tolérances sur dimensions et forme plus serrées.
Dans le cas de profilés qui, en raison de la complexité de leur conception, sont difficiles à fabriquer et à spécifier, des accords spéciaux sont à trouver entre l’acheteur et le fournisseur.
NOTE Les effets du matériau de barrière thermique sur les tolérances dimensionnelles sont couverts par le présent document, même si le matériau de la barrière thermique lui-même ne l’est pas (voir l'EN 14024).
Aluminij in aluminijeve zlitine - Precizni iztiskani profili v zlitinah EN AW-6060 in EN AW-6063 - 2. del: Tolerance mer in oblike
Ta Evropski standard določa tolerance mer in oblike preciznih iztiskanih profilov v zlitinah EN AW-6060 in EN AW-6063, izdelanih s termično prevleko ali brez nje (glej sliki 1 in 2). Uporablja se za iztiskane proizvode, dobavljene brez nadaljnje površinske obdelave. Precizni profili, ki jih zajema ta standard, se razlikujejo od iztiskanih profilov za splošno uporabo, ki so zajeti v standardu EN 755-9, po naslednjih lastnostih:
– namenjeni so zlasti arhitekturni uporabi;
– izpolnjujejo strožje zahteve glede stanja vidnih površin;
– največji premer odprtine CD je 350 mm;
– izdelani so z manjšimi tolerancami mer in oblike.
Pri profilih, ki jih je zaradi kompleksnosti zasnove težko izdelati in določiti, je morda treba doseči posebne dogovore med dobaviteljem in kupcem.
OPOMBA: Učinek termične prevleke na tolerance mer je zajet v tem dokumentu, čeprav sam material termične prevleke ni zajet (glej standard EN 14024).
General Information
- Status
- Withdrawn
- Publication Date
- 06-Dec-2016
- Withdrawal Date
- 13-Apr-2025
- Technical Committee
- CEN/TC 132 - Aluminium and aluminium alloys
- Drafting Committee
- CEN/TC 132/WG 5 - Extruded and drawn products
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 21-Dec-2022
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 14-Dec-2016
- Effective Date
- 28-Dec-2022
- Effective Date
- 11-Jan-2017
Frequently Asked Questions
EN 12020-2:2016 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aluminium and aluminium alloys - Extruded precision profiles in alloys EN AW-6060 and EN AW-6063 - Part 2: Tolerances on dimensions and form". This standard covers: This European Standard specifies tolerances on dimensions and form of extruded precision profiles, in alloys EN AW-6060 and EN AW-6063 manufactured with and without a thermal barrier (see Figures 1 and 2). It applies to extruded products supplied without further surface treatment. Precision profiles covered in this standard are distinguished from extruded profiles for general applications covered in EN 755-9 by the following characteristics: - they are mainly for architectural applications; - they meet more stringent requirements regarding the surface condition of visible surfaces; - the maximum diameter of the circumscribing circle CD is 350 mm; - they are made to closer tolerances on dimensions and form. In the case of profiles which, due to the complexity of their design, are difficult to manufacture and specify, then special agreements between supplier and purchaser may need to be reached. NOTE The effect of the thermal barrier material on the dimensional tolerances is covered by this document although the actual thermal barrier material itself is not (see EN 14024).
This European Standard specifies tolerances on dimensions and form of extruded precision profiles, in alloys EN AW-6060 and EN AW-6063 manufactured with and without a thermal barrier (see Figures 1 and 2). It applies to extruded products supplied without further surface treatment. Precision profiles covered in this standard are distinguished from extruded profiles for general applications covered in EN 755-9 by the following characteristics: - they are mainly for architectural applications; - they meet more stringent requirements regarding the surface condition of visible surfaces; - the maximum diameter of the circumscribing circle CD is 350 mm; - they are made to closer tolerances on dimensions and form. In the case of profiles which, due to the complexity of their design, are difficult to manufacture and specify, then special agreements between supplier and purchaser may need to be reached. NOTE The effect of the thermal barrier material on the dimensional tolerances is covered by this document although the actual thermal barrier material itself is not (see EN 14024).
EN 12020-2:2016 is classified under the following ICS (International Classification for Standards) categories: 77.150.10 - Aluminium products. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 12020-2:2016 has the following relationships with other standards: It is inter standard links to EN 12020-2:2008, EN 12020-2:2022, EN 12020-2:2016/AC:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 12020-2:2016 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aluminij in aluminijeve zlitine - Precizni iztiskani profili v zlitinah EN AW-6060 in EN AW-6063 - 2. del: Tolerance mer in oblikeAluminium und Aluminiumlegierungen - Stranggepresste Präzisionsprofile aus Legierungen
EN AW-6060 und EN AW-6063 - Teil 2: Grenzabmaße und FormtoleranzenAluminium et alliages d'aluminium - Profilés de précision filés en alliages EN AW-6060 et EN AW-6063 - Partie 2 : Tolérances sur dimensions et formeAluminium and aluminium alloys - Extruded precision profiles in alloys EN AW-6060 and EN AW-6063 - Part 2: Tolerances on dimensions and form77.150.10Aluminijski izdelkiAluminium productsICS:Ta slovenski standard je istoveten z:EN 12020-2:2016SIST EN 12020-2:2017en,fr,de01-februar-2017SIST EN 12020-2:2017SLOVENSKI
STANDARDSIST EN 12020-2:20081DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 12020-2
December
t r s x ICS
y yä s w rä s r Supersedes EN
s t r t ræ tã t r r zEnglish Version
Aluminium and aluminium alloys æ Extruded precision profiles in alloys EN AWæ x r x r and EN AWæ x r x u æ Part
tã Tolerances on dimensions and form Aluminium et alliages d 5aluminium æ Profilßs de prßcision filßs en alliages EN AWæ x r x r et EN AWæ x r x u æ Partie
t ã Tolßrances sur dimensions et forme
Aluminium und Aluminiumlegierungen æ Stranggepresste Präzisionsprofile aus Legierungen
EN AWæ x r x r und EN AWæ x r x u æ Teil
tã Grenzabmaße und Formtoleranzen This European Standard was approved by CEN on
v March
t r s xä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s t r t ræ tã t r s x ESIST EN 12020-2:2017

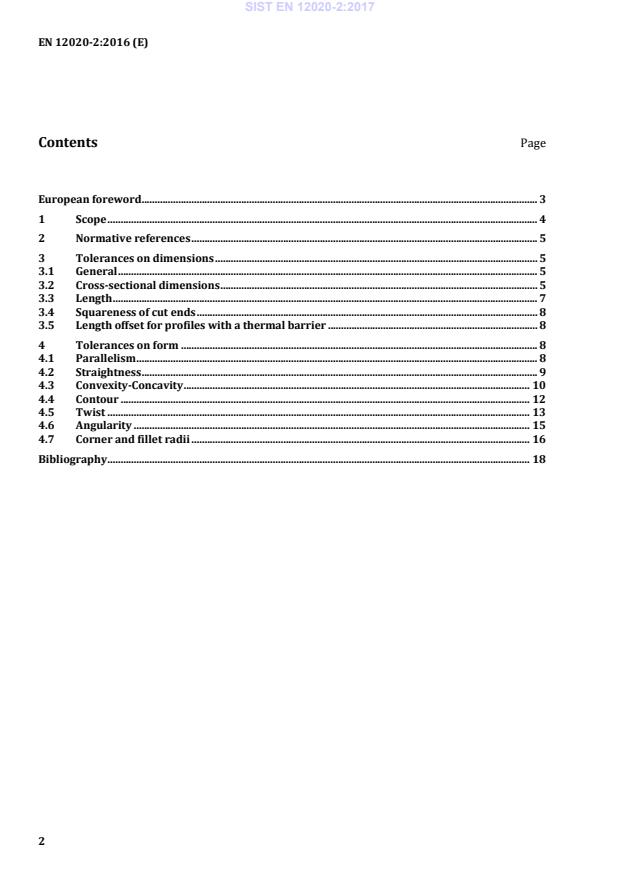

European foreword . 3 1 Scope . 4 2 Normative references . 5 3 Tolerances on dimensions . 5 3.1 General . 5 3.2 Cross-sectional dimensions . 5 3.3 Length . 7 3.4 Squareness of cut ends . 8 3.5 Length offset for profiles with a thermal barrier . 8 4 Tolerances on form . 8 4.1 Parallelism . 8 4.2 Straightness . 9 4.3 Convexity-Concavity . 10 4.4 Contour . 12 4.5 Twist . 13 4.6 Angularity . 15 4.7 Corner and fillet radii . 16 Bibliography . 18
