EN 1504-7:2006

Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 7: Reinforcement corrosion protection

This Part of EN 1504 specifies requirements for the identification and the performance (including durability aspects) of products and systems for active and barrier coatings for protection of existing uncoated steel reinforcement and embedded steel in concrete structures under repair.
This standard does not cover products for corrosion protection of pre-stressing steels and stainless steels.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Definitionen, Anforderungen, Qualitätsüberwachung und Beurteilung der Konformität - Teil 7: Korrosionsschutz der Bewehrung

Dieser Teil von EN 1504 legt Anforderungen an die Identifizierung und das Leistungsvermögen (einschließlich Dauerhaftigkeit) von Produkten und Systemen für aktive Beschichtungen und Sperrschichten für den Schutz vorhandener unbeschichteter Stahlbewehrung und eingebetteter Stahlelemente in Betontragwerken, die instand gesetzt werden, fest.
Diese Norm gilt nicht für den Korrosionsschutz von Spannbewehrung und Edelstahl.

Produits et systèmes pour la protection et la réparation des structures en béton - Définitions, prescriptions, maîtrise de la qualité et évaluation de la conformité - Partie 7: Protection contre la corrosion des armatures

La présente partie de l’EN 1504 fixe les prescriptions relatives à l’identification et aux performances (y compris les aspects durabilité) des produits et systèmes des revêtements actifs et étanches pour la protection des armatures métalliques existantes non revêtues et de l’acier noyé dans les structures en béton en cours de réparation.
La présente norme ne traite pas des produits destinés à la protection contre la corrosion des aciers pré-contraints et des aciers inoxydables.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Definicije, zahteve, kontrola kakovosti in ovrednotenje skladnosti – 7. del: Zaščita armature proti koroziji

General Information

• Status: Published
• Publication Date: 22-Aug-2006
• Withdrawal Date: 30-Dec-2008
• ICS: 91.080.40 - Concrete structures
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 8/WG 7 - General principles for the use of products and systems
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 17-Sep-2010
• Completion Date: 17-Sep-2010
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/128 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on products for concrete, mortar and grout
• Ref Project: SIST EN 1504-7:2006 - Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 7: Reinforcement corrosion protection

Relations

• Revised: FprEN 1504-7 - Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and AVCP - Part 7: Reinforcement corrosion protection
• Effective Date: 18-Jan-2023

Overview

EN 1504-7:2006 is the CEN (European) standard that specifies requirements for products and systems used for reinforcement corrosion protection in repaired concrete structures. It covers identification, performance (including durability), quality control and evaluation of conformity for active coatings (electrochemically active pigments, inhibitors or localized cathodic protection) and barrier coatings (which isolate embedded, uncoated steel from pore water). This Part explicitly excludes products for pre-stressing steels and stainless steels.

Key topics and technical requirements

• Scope and definitions: Aligns with EN 1504 series definitions for repair and protection of concrete structures; focuses on coatings applied to existing, uncoated reinforcement.
• Identification tests (manufacturer responsibility): visual appearance, density, infrared spectrum, epoxy/amine functions (where applicable), volatile/non‑volatile content, thermogravimetric analysis, viscosity, pot‑life, consistency, thixotropy, and hardness - with specified tolerances and record retention.
• Performance requirements:
  • Corrosion protection: verified by test method EN 15183 - coated steel zones must be free of corrosion; rust creep limits apply.
  • Glass transition temperature (EN 12614): product Tg at least 10 K above maximum service temperature.
  • Shear adhesion (EN 15184 pull‑out test): bond stress with coated bars ≥ 80% of the uncoated reference at 0.1 mm displacement.
• Quality control & conformity:
  • Factory Production Control (FPC) required; FPC procedures described in EN 1504-8 and include minimum testing frequencies (informative Annex A).
  • Initial type testing, sampling, assessment and surveillance are defined in EN 1504-8.
• Environmental / health: products must not release substances hazardous to health or the environment (see Annex B / Annex ZA relating to Construction Products Directive and CE marking).

Applications - who uses EN 1504-7:2006

• Concrete repair manufacturers developing or certifying corrosion protection coatings (active and barrier types).
• Specifiers, structural and corrosion engineers selecting products for rehabilitation of reinforced concrete elements (beams, columns, bridges, tunnels).
• Contractors and QA/QC teams implementing factory production control, testing and CE marking procedures.
• Test laboratories performing EN 15183, EN 12614 and EN 15184 test methods.

Related standards

• EN 1504-1 (Definitions) - foundational terminology.
• EN 1504-8 (Quality control & conformity evaluation) - FPC and assessment procedures.
• ENV 1504-9 / EN 1504 series parts - general principles, surface protection, repair, bonding and site application.
• Referenced test methods: EN 15183 (corrosion test), EN 12614 (Tg), EN 15184 (shear adhesion), and various EN/ISO methods for viscosity, density, TG, pot life, etc.

Keywords: EN 1504-7:2006, reinforcement corrosion protection, active coatings, barrier coatings, concrete repair, corrosion protection products, factory production control, CE marking, CEN.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Products and systems for the protection and repair of concrete structures - Definitions, requirements, quality control and evaluation of conformity - Part 7: Reinforcement corrosion protectionProduits et systemes pour la protection et la réparation des structures en béton - Définitions, prescriptions, maîtrise de la qualité et évaluation de la conformité - Partie 7: Protection contre la corrosion des armaturesProdukte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Definitionen, Anforderungen, Qualitätsüberwachung und Beurteilung der Konformität - Teil 7: Korrosionsschutz der BewehrungTa slovenski standard je istoveten z:EN 1504-7:2006SIST EN 1504-7:2006en91.080.40Betonske konstrukcijeConcrete structuresICS:SLOVENSKI
STANDARDSIST EN 1504-7:200601-december-2006

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 1504-7August 2006ICS 91.080.40 English VersionProducts and systems for the protection and repair of concretestructures - Definitions, requirements, quality control andevaluation of conformity - Part 7: Reinforcement corrosionprotectionProduits et systèmes pour la protection et la réparation desstructures en béton - Définitions, exigences, maîtrise de laqualité et évaluation de la conformité - Partie 7: Protectioncontre la corrosion des armaturesProdukte und Systeme für den Schutz und dieInstandsetzung von Betontragwerken - Definitionen,Anforderungen, Qualitätsüberwachung und Beurteilung derKonformität - Teil 7: Korrosionsschutz der BewehrungThis European Standard was approved by CEN on 19 June 2006.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2006 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 1504-7:2006: E

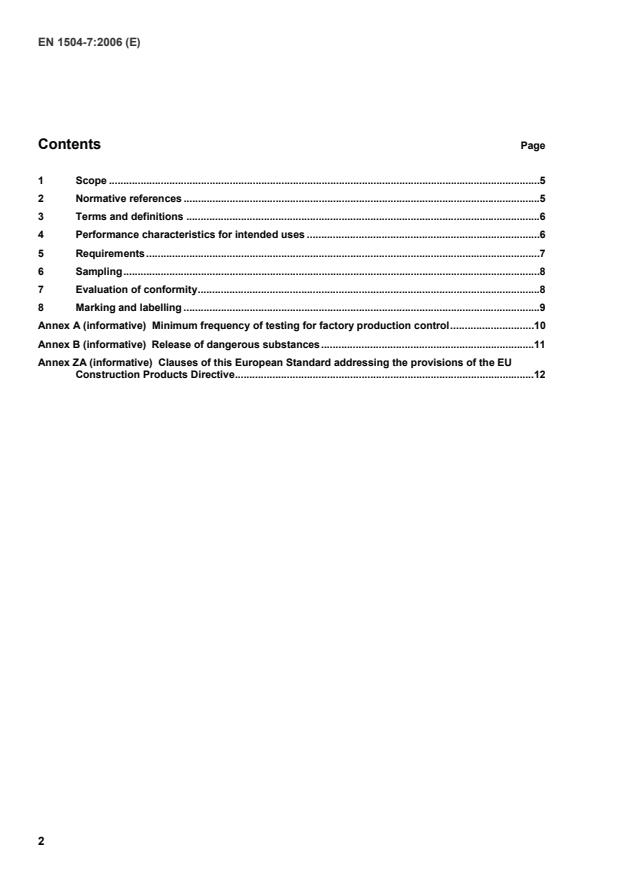

Minimum frequency of testing for factory production control.10 Annex B (informative)
Release of dangerous substances.11 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive.12

For the relationship with the EU Directive, see informative Annex ZA, which is an integral part of this document. This Part of EN 1504 includes an informative Annex A, dealing with minimum frequency of testing for factory production control. This Part of EN 1504 is one of the parts of this standard on products and systems for the repair and protection of concrete structures. The other parts are listed below: EN 1504-1, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 1: Definitions. EN 1504-2, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 2: Surface protection systems for concrete. EN 1504-3, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 3: Structural and non-structural repair. EN 1504-4, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 4: Structural bonding. EN 1504-5, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 5: Concrete injection. prEN 1504-61, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 6: Anchoring of reinforcing steel bar. EN 1504-8, Products and systems for the protection and repair of concrete structures — Definitions, requirements, quality control and evaluation of conformity — Part 8: Quality control and evaluation of conformity.
1 This document is in preparation.

2) ENV 1504-9 will have to be modified when adopted as EN according to finalisation of this European Standard.

3 This document is in preparation.

3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 1504-1:2005, EN 1504-8:2004, ENV 1504-9:1997 and the following apply. 3.1 active coatings coatings, which contain electrochemically active pigments, which may function as inhibitors or which may provide localised cathodic protection NOTE Cement is considered to be an active pigment due to its alkalinity. 3.2 barrier coatings coatings which isolate the reinforcement from pore water in the surrounding cementitious matrix 4 Performance characteristics for intended uses Table 1 lists the performance characteristics of reinforcement corrosion protection products and systems, which are required for “all intended uses” or “for certain intended uses” according to the “principles” and “methods” defined in ENV 1504-9. Performance characteristics which are required for “all intended uses” are marked g. All other performance characteristics which are marked 1 may be required for “certain intended uses”. Performance requirements are given in 5.2.

Method in accordance with ENV 1504-9. 5 Requirements
5.1 Identification requirements The manufacturer shall undertake selected representative initial identification tests for the product or system as specified in Table 2. These tests may be used to confirm the composition of the product at any time.
Acceptable tolerances are given in Table 2. The manufacturer shall hold the test records. Table 2 — Identification test methods and requirements Property Test method Requirement/tolerance Components (liquid) Colour/general appearance Visual Uniform and similar to the description pro-vided by the manufacturer Density  Pyknometer method  Immersed body method
EN ISO 2811-1 EN ISO 2811-2
± 3 % ± 3 % Infrared spectrum EN 1767 Confirmed by visual comparison Epoxy equivalenta EN 1877-1 ± 5 % Amine functionsa EN 1877-2 ± 6 % Volatile and non-volatile matter EN ISO 3251 ± 5 % Thermogravimetric analysis EN ISO 11358 Confirmed by comparison and ± 5 % with re-spect to loss of mass at 600°C Viscosity EN ISO 3219 ± 20 % Mixture Pot-lifea EN ISO 9514 ± 15 %
Consistency EN 1015-4 ± 15 %
Thixotropy EN 13062 ± 15 % Hardness (shore D after 7 days) EN ISO 868 ± 3 units a Only for epoxy (EP).
...
