EN 13062:2003

Products and systems for the protection and repair of concrete structure - Test method - Determination of thixotropy of products for protection of reinforcement

This European Standard specifies a method for determining the thixotropy of products and systems intended for the protection of reinforcement.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Bestimmung der Ablaufneigung von Produkten für den Schutz der Bewehrung

Diese Europäische Norm gehört zu einer Reihe von Normen, die sich mit Produkten und Systemen für Schutz und die Instandsetzung von Betontragwerken beschäftigt. Es wird eine Methode zur Bestimmung der Ablaufneigung von Produkten für den Schutz der Bewehrung angegeben.

Produits et systèmes pour la protection et la réparation des structures en béton - Méthodes d'essai - Détermination de la thixotropie des produits de protection des armatures

La présente Norme Européenne fixe une méthode permettant de déterminer la thixotropie des produits et systèmes de protection de l'armature.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij - Preskusne metode – Določevanje tiksotropičnosti proizvodov za zaščito armature

General Information

• Status: Published
• Publication Date: 20-May-2003
• ICS: 91.080.40 - Concrete structures
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 8/WG 1 - Surface protection systems
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 18-Jun-2021
• Completion Date: 14-Apr-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 13062:2003 - Products and systems for the protection and repair of concrete structure - Test method - Determination of thixotropy of products for protection of reinforcement

Overview

EN 13062:2003 (CEN) specifies a laboratory test method to determine the thixotropy (sagging behaviour) of products and systems intended for the protection of reinforcement in concrete structures. The method produces objective, repeatable data on coating sag that can be used for quality control, product development and selection of appropriate protective systems.

Key Topics

• Scope: Applies to products and systems intended to protect reinforcement; part of the CEN series on protection and repair of concrete structures.

• Normative references: Includes EN 1504-1 and relevant ISO standards for sampling, film thickness and panel preparation (EN ISO 1513, EN ISO 2808, EN ISO 12944-4, EN ISO 15528).

• Apparatus:

  • Stirrer for homogenizing multi-component systems.
  • Film applicator (doctor blade) with a gap width ~60 mm and gap clearance from 200 µm to 1 000 µm.
  • Two steel plates (~3 mm × 70 mm × 150 mm) with surface roughness ~50 µm.
  • Wet- and dry-film thickness measurement equipment per EN ISO 2808.

• Sampling & preparation: Take representative, homogeneous samples per EN ISO 15528; examine and prepare samples as described in EN ISO 1513. Mix components according to manufacturer instructions; minimum mass of mixture is specified.

• Test environment: Laboratory conditions are (21 ± 2) °C and (60 ± 10) % relative humidity.

• Procedure highlights:

  • Apply mixed material to two steel plates using a film applicator to the wet thickness required by the manufacturer or intended use.
  • Immediately store one plate vertically (on its longitudinal side) and the other horizontally.
  • After (24 ± 2) h measure dry-film thickness at defined positions (measurements 10 ± 1 mm from each long edge; five readings at each position).
  • Record mean values for the horizontally stored plate (h) and for the vertically stored plate (top vt and bottom vb readings).

• Results & reporting: Results are expressed as a percentage thixotropy value derived from measured mean thicknesses. The test report must include method reference, laboratory and manufacturer details, sample identification, applied wet thickness, storage conditions, measurement method, individual and mean thickness values, the thixotropy result and any deviations.

Applications

• Quality control and batch verification of protective coatings for reinforcement.
• Comparative evaluation during product development and formulation tuning to reduce sag.
• Selection guidance for contractors and specifiers to ensure proper application performance on vertical reinforcement surfaces.

Related Standards

• EN 1504-1: Definitions and requirements for products and systems for protection and repair of concrete structures
• EN ISO 1513: Sample examination and preparation
• EN ISO 2808: Film thickness determination
• EN ISO 12944-4: Surface types and preparation for corrosion protection
• EN ISO 15528: Sampling

Practical value: EN 13062:2003 delivers a standardized, repeatable procedure for assessing sag and thixotropic behavior of reinforcement-protection products - essential for ensuring coating performance, compliance and informed product selection.

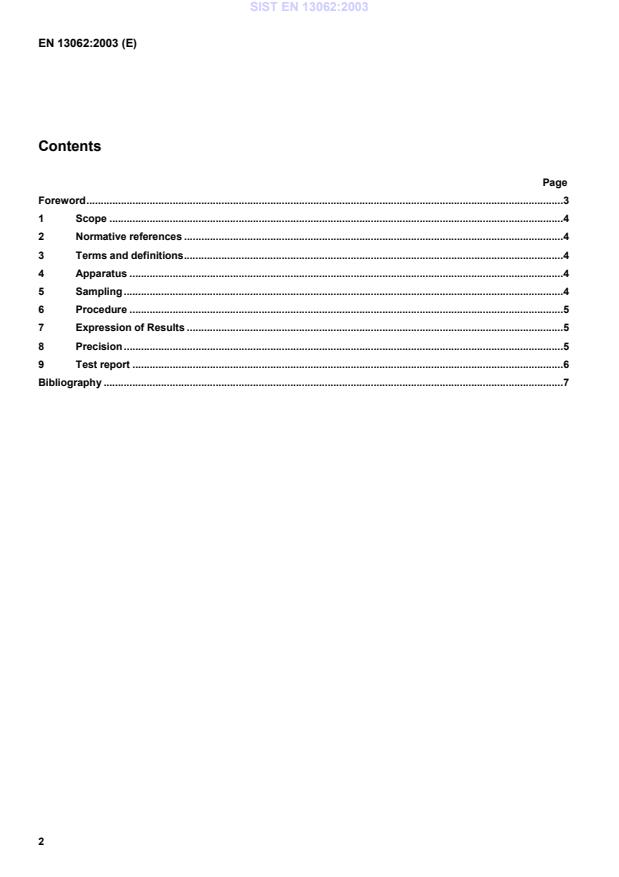

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.XUHProdukte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Bestimmung der Ablaufneigung von Produkten für den Schutz der BewehrungProduits et systemes pour la protection et la réparation des structures en béton - Méthodes d'essai - Détermination de la thixotropie des produits de protection des armaturesProducts and systems for the protection and repair of concrete structure - Test method - Determination of thixotropy of products for protection of reinforcement91.080.40Betonske konstrukcijeConcrete structuresICS:Ta slovenski standard je istoveten z:EN 13062:2003SIST EN 13062:2003en01-december-2003SIST EN 13062:2003SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13062May 2003ICS 91.080.40English versionProducts and systems for the protection and repair of concretestructure - Test method - Determination of thixotropy of productsfor protection of reinforcementProduits et systèmes pour la protection et la réparation desstructures en béton - Méthodes d'essais - Détermination dela thixotropie des produits de protection des armaturesProdukte und Systeme für den Schutz und dieInstandsetzung von Betontragwerken - Prüfverfahren -Bestimmung der Ablaufneigung von Produkten für denSchutz der BewehrungThis European Standard was approved by CEN on 14 March 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13062:2003 ESIST EN 13062:2003
...
