EN 13894-1:2003

Products and systems for the protection and repair of concrete structures - Test methods - Determination of fatigue under dynamic loading - Part 1: During cure

This Part of this European Standard specifies laboratory method of testing to ascertain how dynamic loading affects strength development of structural bonding agents during curing.

Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Bestimmung der Dauerschwingfestigkeit unter dynamischer Belastung - Teil 1: Während des Aushärten

Diese Europäische Norm legt ein Laborprüfverfahren zur Untersuchung fest, wie eine dynamische Belastung während des Aushärtens die Ausbildung der Festigkeit von Klebstoffen für konstruktive Zwecke beeinflusst.

Produits et systèmes de protection et de réparation des structures en béton - Méthodes d'essai - Détermination de la fatigue sous charge dynamique - Partie 1: Pendant le durcissement

La présente partie de cette Norme européenne prescrit une méthode d'essai de laboratoire permettant de vérifier comment une charge dynamique affecte le développement de la résistance des produits de collage structural pendant le durcissement.

Proizvodi in sistemi za zaščito in popravilo betonskih konstrukcij – Preskusne metode - Določevanje utrujanja pri dinamični obtežbi – 1. del: Trajna nega

General Information

• Status: Published
• Publication Date: 04-Nov-2003
• ICS: 91.080.40 - Concrete structures
• Technical Committee: CEN/TC 104 - Concrete ( performance, production, placing and compliance criteria )
• Drafting Committee: CEN/TC 104/SC 8/WG 3 - Bonding
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 13-Nov-2020
• Completion Date: 23-Sep-2025
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Ref Project: SIST EN 13894-1:2004 - Products and systems for the protection and repair of concrete structures - Test methods - Determination of fatigue under dynamic loading - Part 1: During cure

Relations

• Child: EN 13894-2:2002 - Products and systems for the protection and repair of concrete structures - Test methods - Determination of fatigue under dynamic loading - Part 2: After hardening
• Effective Date: 22-Dec-2008

Overview

EN 13894-1:2003 specifies a laboratory method to determine how dynamic loading during cure affects the strength development of structural bonding agents used in the protection and repair of concrete structures. The method uses a thick adherent shear test specimen and compares specimens cured under cyclic strain with stationary control specimens to derive a failure strength ratio.

This Part 1 procedure is intended for laboratory assessment and quality validation of adhesives and bonding agents while they cure under simulated service-like dynamic loading.

Key Topics

• Test specimen and geometry: thick adherent shear test specimen with a bonded area of 225 mm² and a target glueline thickness of (1.0 ± 0.1) mm.
• Surface preparation: degrease, grit-blast to SA 2 1/2 per EN ISO 8501-1:2001, vacuum to remove dust and mask butting surfaces with PVC tape.
• Dynamic loading parameters:
  • Strain cycled between 20 m/m and 170 m/m using a sine wave
  • Frequency (2 ± 0.1) Hz
  • Cycling begins 20 minutes after adhesive mixing and continues for 48 hours while curing
  • Curing temperature maintained at (21 ± 2) °C (ensure dynamic apparatus does not raise temperature)
• Curing and control specimens:
  • Cycled specimens: 3 pairs (6 specimens) subjected to dynamic straining, then 5 days stationary cure before testing
  • Control specimens: 3 pairs cured stationary at zero strain for 7 days
• Mechanical testing:
  • Strain control via electrical resistance strain gauge
  • Dynamic machine: minimum 10 kN capacity, capable of required cyclic strain and frequency
  • Static testing: tension to failure at 1 mm/min, load accuracy 0.1 kN
• Failure assessment:
  • Type A: cohesive failure within adhesive
  • Type B: adhesive failure at an interface
  • If mixed modes occur, record percentage area for each type (e.g., A:B = 70:30)
• Metrics:
  • Failure strength per specimen = failure load / 225 mm²
  • Failure strength ratio = mean failure strength (cycled) / mean failure strength (control)
• Report requirements: reference to method, laboratory and manufacturer details, specimen preparation and storage, individual failure loads, failure modes and the computed failure strength ratio.

Applications

• Practical tool for quality control of structural bonding agents and adhesives used in concrete repair.
• Supports material selection and acceptance testing where structures may experience dynamic loads during cure (e.g., near machinery, traffic or vibrating environments).
• Provides objective data to compare product performance and to document compliance for repair specifications.

Related Standards

• EN ISO 8501-1:2001 - referenced for steel substrate surface cleanliness and preparation (SA 2 1/2).
• Prepared by CEN/TC 104 (Sub‑Committee 8) and approved by CEN; intended for adoption as a national standard by CEN members.

Keywords: EN 13894-1:2003, fatigue under dynamic loading, during cure, structural bonding agents, thick adherent shear test, failure strength ratio, strain control.

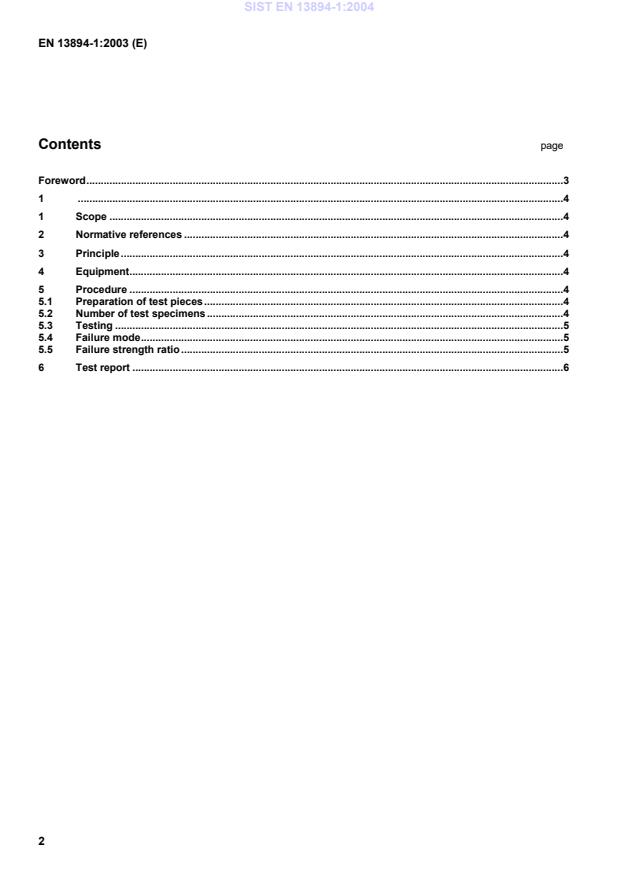

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Produkte und Systeme für den Schutz und die Instandsetzung von Betontragwerken - Prüfverfahren - Bestimmung der Dauerschwingfestigkeit unter dynamischer Belastung - Teil 1: Während des AushärtenProduits et systemes de protection et de réparation des structures en béton - Méthodes d'essai - Détermination de la fatigue sous charge dynamique - Partie 1: Pendant le durcissementProducts and systems for the protection and repair of concrete structures - Test methods - Determination of fatigue under dynamic loading - Part 1: During cure91.080.40Betonske konstrukcijeConcrete structuresICS:Ta slovenski standard je istoveten z:EN 13894-1:2003SIST EN 13894-1:2004en01-april-2004SIST EN 13894-1:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13894-1October 2003ICS 91.080.40English versionProducts and systems for the protection and repair of concretestructures - Test methods - Determination of fatigue underdynamic loading - Part 1: During cureProduits et systèmes de protection et de réparation desstructures en béton - Méthodes d'essai - Détermination dela fatigue sous charge dynamique - Partie 1: Pendant ledurcissementProdukte und Systeme für den Schutz und dieInstandsetzung von Betontragwerken - Prüfverfahren -Bestimmung der Dauerschwingfestigkeit unter dynamischerBelastung - Teil 1: Während des AushärtenThis European Standard was approved by CEN on 10 July 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13894-1:2003 ESIST EN 13894-1:2004
...
