EN 115-1:2017

Safety of escalators and moving walks - Part 1: Construction and installation

This European Standard is applicable for new escalators and moving walks (pallet or belt type) as defined in Clause 3.
This European Standard deals with all significant hazards, hazardous situations and events relevant to escalators and moving walks when they are used as intended and under conditions of misuse which are reasonably foreseeable by the manufacturer (see Clause 4).
This European Standard is not applicable to escalators and moving walks which were manufactured before the date of its publication. It is, however, recommended that existing installations be adapted to this standard.

Sicherheit von Fahrtreppen und Fahrsteigen - Teil 1: Konstruktion und Einbau

1.1   Dieser Europäische Norm-Entwurf gilt für neue Fahrtreppen und Fahrsteige (Paletten- oder Gurtkonstruktion), wie im Abschnitt 3 definiert.
Dieser Europäische Norm-Entwurf behandelt alle signifikanten Gefährdungen, Gefährdungssituationen und Gefährdungsereignisse, die auf Fahrtreppen und Fahrsteige zutreffen, wenn sie bestimmungsgemäß und unter Bedingungen von durch den Hersteller vernünftigerweise vorhersehbaren Fehlanwendungen verwendet werden (siehe Abschnitt 4).
1.2   Dieses Dokument gilt nicht für Fahrtreppen und Fahrsteige, die vor dem Datum seiner Veröffentlichung hergestellt wurden. Es wird jedoch empfohlen, dass bestehende Anlagen an diese Norm angepasst werden.

Sécurité des escaliers mécaniques et trottoirs roulants - Partie 1: Construction et installation

1.1   Le présent projet de Norme européenne est applicable aux nouveaux escaliers mécaniques et trottoirs roulants (à palettes ou à bande) tels que définis à l’Article 3.
Le présent projet de Norme européenne prend en compte tous les phénomènes dangereux, situations et événements dangereux significatifs relatifs aux escaliers mécaniques et trottoirs roulants, utilisés conformément à l’usage pour lequel ils ont été prévus ainsi que dans des cas d’utilisations inappropriées qui peuvent être raisonnablement prévisibles par le constructeur (voir Article 4).
1.2   Le présent document ne s’applique pas aux escaliers mécaniques et trottoirs roulants fabriqués avant sa date de publication. Il est toutefois recommandé que les installations existantes soient adaptées à cette norme.

Varnost tekočih stopnic in tekočih stez - 1. del: Konstrukcija in vgradnja

1.1 Ta osnutek evropskega standarda se uporablja za nove tekoče stopnice in tekoče steze (paletne ali tračne), kot je opredeljeno v točki 3.
Ta osnutek evropskega standarda opisuje vsa večja tveganja, nevarne situacije in nevarne dogodke, ki so povezani s tekočimi stopnicami in tekočimi stezami, kadar se uporabljajo v skladu z njihovim namenom in pod pogoji pričakovane nepravilne uporabe, ki jih določa proizvajalec (glej točko 4).
1.2 Ta dokument se ne uporablja za tekoče stopnice in tekoče steze, ki so bile izdelane pred njegovo objavo. Vseeno se priporoča, da se obstoječe naprave prilagodijo v skladu s tem standardom.

General Information

• Status: Published
• Publication Date: 18-Jul-2017
• Withdrawal Date: 30-Jan-2019
• ICS: 91.140.90 - Lifts. Escalators
• Technical Committee: CEN/TC 10 - Passenger, goods and service lifts
• Drafting Committee: CEN/TC 10/WG 2 - Escalators and passenger conveyors
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 19-Jul-2017
• Due Date: 06-Mar-2018
• Completion Date: 19-Jul-2017
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 2016/797/EU - Directive (EU) 2016/797 of the European Parliament and of the Council of 11 May 2016 on the interoperability of the rail system within the European Union (Text with EEA relevance)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Mandate: M/483 - Mandate for programming and standardisation addressed to the European standardisation bodies under directive 2008/57/EC in the field of the interoperability of the rail system within the European Union
• Ref Project: SIST EN 115-1:2017 - Safety of escalators and moving walks - Part 1: Construction and installation

Relations

• Replaces: EN 115-1:2008+A1:2010 - Safety of escalators and moving walks - Part 1: Construction and installation
• Effective Date: 08-Jun-2022

Overview

EN 115-1:2017 - "Safety of escalators and moving walks - Part 1: Construction and installation" is a European Standard published by SIST (adoption of EN 115-1). It applies to new escalators and moving walks (pallet or belt type) as defined in the standard and addresses all significant hazards when equipment is used as intended or under reasonably foreseeable misuse. It is not mandatory for machines manufactured before publication, although updating existing installations to this standard is recommended.

Key topics and technical requirements

This standard sets out comprehensive safety, design and installation requirements, including:

• List of significant hazards: mechanical, electrical, electromagnetic radiation, fire, ergonomic issues, slipping/tripping/falling, control-circuit failures, break-up during operation, and seismic events.
• Structural and construction requirements: supporting truss, enclosure, access and inspection covers, structural design and angle of inclination.
• Steps, pallets and belt design: dimensions, guidance, clearances, missing-step/pallet devices.
• Drive and braking systems: driving machines, braking requirements and drive arrangements for steps, pallets or belts.
• Balustrades and skirting: dimensions, clearances, newels and measures to prevent entrapment.
• Handrail systems: profile, positioning, guidance and handrail entry.
• Landings and combs: surface properties, step/pallet/belt configuration and comb design.
• Machinery and equipment spaces: dimensions, lighting, access and fire protection.
• Electrical installations and control systems: wiring, contactors, main switches, failsafe circuits, protective and safety functions.
• Verification, testing and documentation: inspection and test regimes, required technical data and certificates, testing of E/E/PE (electrical/electronic/programmable electronic) systems.
• Information for use: instruction handbook content, marking, signals, warning plates and maintenance/inspection guidance.
• Annexes: building interfaces, prevention of access by trolleys/carts, and guidance on failsafe electronic components and testing.

Practical applications and users

EN 115-1:2017 is essential for stakeholders involved in the lifecycle of escalators and moving walks:

• Manufacturers and product designers - to design compliant equipment and safety systems.
• Installers and contractors - to ensure correct construction, installation and building interfaces.
• Building owners, facility managers and asset operators - for safe operation, regular inspection and modernization decisions.
• Safety engineers and inspectors - for verification, type testing and conformity assessment.
• Regulators and standards bodies - for national implementation and coordination with building codes.

Related standards

• Part of the EN 115 framework of standards for escalators and moving walks; consult other parts of EN 115 and applicable national standards for installation, maintenance and operation requirements.

Keywords: EN 115-1:2017, escalators and moving walks, safety standard, construction and installation, failsafe circuits, balustrade, handrail, drive unit, inspection and testing.

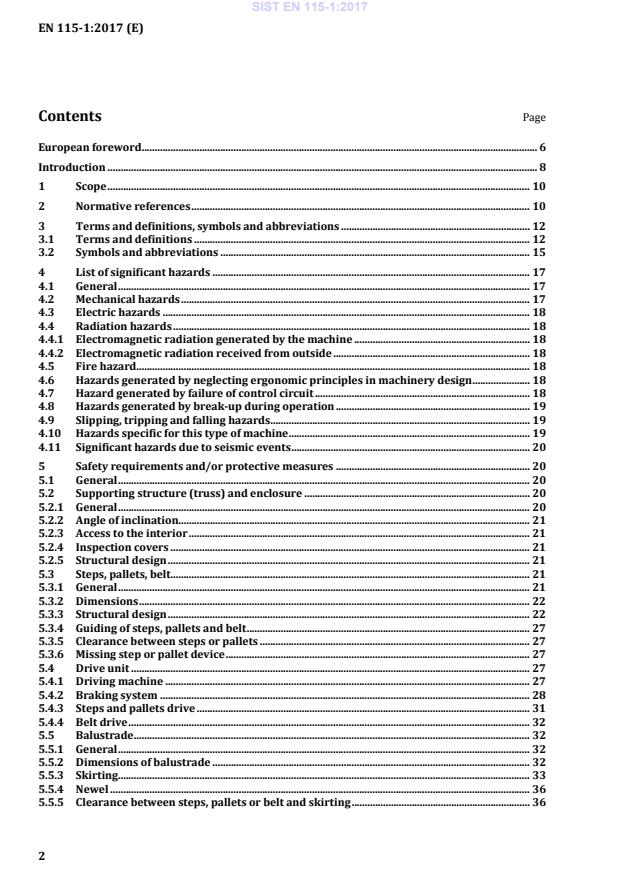

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sicherheit von Fahrtreppen und Fahrsteigen - Teil 1: Konstruktion und EinbauSécurité des escaliers mécaniques et trottoirs roulants - Partie 1 : Construction et installationSafety of escalators and moving walks - Part 1: Construction and installation91.140.90Lifts. EscalatorsICS:Ta slovenski standard je istoveten z:EN 115-1:2017SIST EN 115-1:2017en,fr,de01-november-2017SIST EN 115-1:2017SLOVENSKI
STANDARDSIST EN 115-1:2009+A1:20101DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 115-1
July
t r s y ICS
{ sä s v rä { r Supersedes EN
s s wæ sã t r r z ªA sã t r s rEnglish Version
Safety of escalators and moving walks æ Part
sã Construction and installation Sécurité des escaliers mécaniques et trottoirs roulants æ Partie
sã Construction et installation
Sicherheit von Fahrtreppen und Fahrsteigen æ Teil
sã Konstruktion und Einbau This European Standard was approved by CEN on
s May
t r s yä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s s wæ sã t r s y ESIST EN 115-1:2017

Building interfaces . 78 A.1 General . 78 A.2 Free space for users . 78 A.3 Machinery spaces outside the truss . 79 A.4 Measures to prevent access of shopping trolleys and baggage carts . 80 A.4.1 General . 80 A.4.2 Barriers . 80 A.5 Fixed guiding barriers and traffic columns . 81 A.6 Electric power supply . 82 SIST EN 115-1:2017

Electronic components - Failure exclusion . 86 B.1 Scope . 86 B.2 Failure exclusions - conditions. 86 Annex C (normative)
Drafting and assessing failsafe circuits . 90 Annex D (normative)
Testing of failsafe circuits containing electronic components and/or safety related electrical, electronic and programmable electronic devices (E/E/PE) . 91 D.1 General . 91 D.2 General provisions . 91 D.2.1 Failsafe circuits containing electronic components . 91 D.2.2 Safety related electrical, electronic and programmable electronic devices (E/E/PE) . 91 D.3 Test samples . 91 D.4 Mechanical tests . 92 D.4.1 General . 92 D.4.2 Vibrations . 92 D.4.3 Bumping . 92 D.5 Climatic stress testing. 93 D.5.1 Temperature tests . 93 D.5.2 Humidity tests . 93 D.6 Functional and safety test of E/E/PE . 93 Annex E (informative)
Design guideline for safety circuits . 94 Annex F (informative)
Examples of possible dynamic torsional tests for steps and pallets . 95 F.1 General . 95 F.2 Torsional test 1 . 95 F.3 Torsional test 2 . 96 Annex G (normative)
Safety signs for the user of escalators and moving walks . 98 Annex H (informative)
Guidelines for selection and planning of escalators and moving walks . 100 H.1 Maximum capacity . 100 H.2 Escalators or moving walks for public transport . 100 Annex I (normative)
Requirements on escalators and moving walks intended to transport shopping trolleys and baggage carts . 101 I.1 Escalators . 101 I.2 Moving walks . 102 Annex J (informative)
Determination of anti-slip properties of the tread surfaces of steps and pallets, of comb plates and floor plates . 103 J.1 Introduction . 103 J.2 Testing and assessing anti-slip properties . 103 Annex K (informative)
Determination of sliding properties of footwear on balustrade skirting . 105 SIST EN 115-1:2017

Major modification . 106 Annex M (normative)
Escalators and moving walks subject to seismic conditions . 107 M.1 Introduction. 107 M.2 Structural requirements . 107 M.2.1 General . 107 M.2.2 Supports . 107 M.2.3 Arrangement . 107 M.2.4 Mechanical safety devices for escalators and moving walks . 107 M.3 Design requirements . 107 M.3.1 General . 107 M.3.2 Truss . 107 M.3.3 Mass for the truss of escalators and moving walks . 108 M.3.4 Condition of loading and deformation during a seismic event . 108 M.3.5 Calculation procedure according to EN 1998-1:2004 . 108 M.4 Machinery . 108 M.5 Electrical installation and other equipment . 108 Annex N (normative)
Interpretations of EN 115-1 . 110 N.1 Format of an interpretation request . 110 N.2 Format of an interpretation . 111 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC aimed to be covered. 112 Bibliography . 113
1) Within CEN/TC 10 an interpretation committee has been established to answer questions about the spirit in which the experts have drafted the various clauses of this standard. All such interpretations are published within CEN/TS 115-4 [1] until incorporated by amendment into the standards concerned. SIST EN 115-1:2017

2) This standard is currently impacted by the amendment EN 1990:2002/A1:2005. SIST EN 115-1:2017

3) This standard is currently impacted by the amendment EN 60947-4-1:2010/A1:2012. 4) This standard is currently impacted by the amendment EN 60947-5-1:2004/A1:2009. 5) This standard is currently impacted by the amendment EN 62061:2005/A1:2013. SIST EN 115-1:2017
...
