EN 14513:2005

Transportable gas cylinders - Bursting disc pressure relief devices (excluding acetylene gas cylinders)

This standard specifies requirements for design, manufacture and testing of safety devices to prevent over-pressurization. It does not specify where such safety devices are required, or the sizing of devices.

Ortsbewegliche Gasflaschen - Berstscheibeneinrichtungen zur Druckentlastung (ausgenommen für Acetylenflaschen)

Dieses Dokument legt Anforderungen für die Konstruktion, Herstellung und die Prüfung von Berstscheibenein-
richtungen zur Druckentlastung (im Folgenden Berstscheibeneinrichtungen genannt) für Gas-flaschen fest. Dieses
Dokument fordert, dass die Berstscheibeneinrichtungen der EN ISO 4126-2 entsprechen. Im Streitfall gelten die
Anforderungen in dieser Norm vorrangig.
Dieses Dokument gilt nicht für Acetylenflaschen, und sie beschränkt sich auf Berstscheibeneinrichtungen für
Gasflaschen zur Anwendung in besonderen Fällen.
ANMERKUNG Dieses Dokument sieht keine Verfahren zur Bestimmung des Ausflusses von Berstscheibeneinrichtungen für
eine bestimmten Gasflasche vor.
Dieses Dokument enthält keine Angaben darüber, wann eine Berstscheibeneinrichtung eingebaut werden darf und
auf welchen Druck sie eingestellt wird, siehe EN 13096.

Bouteilles à gaz - Bouteilles à gaz transportables - Dispositifs limiteurs de pression à disque de rupture (à l'exclusion des bouteilles pour acétylène)

Le présent document spécifie les exigences relatives à la conception, à la fabrication et aux essais des dispositifs
limiteurs de pression à disque de rupture utilisés avec les bouteilles à gaz. Le présent document exige que les
dispositifs limiteurs de pression à disque de rupture soient conformes à l�EN ISO 4126-2. En cas de conflit, ce sont
les exigences du présent document qui prévalent.
Le présent document ne s�applique pas aux bouteilles à gaz pour acétylène et ne traite que des dispositifs limiteurs
de pression à disque de rupture utilisés avec les bouteilles à gaz dans certaines applications spécifiques.
NOTE Le présent document n�indique pas de méthodes permettant de déterminer la capacité du dispositif limiteur de
pression à disque de rupture pour une bouteille à gaz en particulier.
Le présent document n�indique pas quand un dispositif limiteur de pression à disque de rupture doit être installé, ni
sa pression de tarage, voir l�EN 13096.

Premične plinske jeklenke – Membrana za sprostitev tlaka (izključujoč acetilenske plinske jeklenke)

General Information

• Status: Published
• Publication Date: 29-Mar-2005
• Withdrawal Date: 29-Sep-2005
• ICS: 13.240 - Protection against excessive pressure
• ICS: 23.020.30 - Pressure vessels, gas cylinders
• ICS: 23.020.35 - Gas cylinders
• Technical Committee: CEN/TC 23 - Transportable gas cylinders
• Drafting Committee: CEN/TC 23/WG 20 - Cylinder design - Fittings
• Current Stage: 9093 - Decision to confirm - Review Enquiry
• Start Date: 02-Feb-2023
• Completion Date: 14-Apr-2025
• Directive: 94/55/EC - Transport of dangerous goods by road
• Directive: 96/49/EC - Transport of dangerous goods by rail
• Directive: 96/86/EC - Transport of dangerous goods by road (94/55/EC Dir. amendment)
• Directive: 96/87/EC - Transport of dangerous goods by rail (96/49/EC Dir. amendment)
• Mandate: M/086 - Mandate to CEN for standardization in the field of transport of dangerous goods
• Ref Project: SIST EN 14513:2005 - Transportable gas cylinders - Bursting disc pressure relief devices (excluding acetylene gas cylinders)

Overview

EN 14513:2005 specifies requirements for the design, manufacture and testing of bursting disc pressure relief devices used on transportable gas cylinders. The standard is applicable to a range of gas cylinder applications but explicitly excludes acetylene cylinders. It requires conformity with EN ISO 4126-2 and provides additional, cylinder-specific provisions where this document takes precedence.

This standard does not determine when a bursting disc device shall be fitted or how to size a device; those aspects are addressed in related documents (for example EN 13096).

Key Topics

• Scope and applicability: Devices for transportable gas cylinders; acetylene excluded.
• Standards relationship: Devices shall conform to EN ISO 4126-2:2003; EN 14513:2005 requirements override in case of conflict.
• Design temperatures: Default specified minimum and maximum temperatures are -40 °C and +65 °C respectively, unless otherwise specified. The default coincident temperature is +15 °C unless the purchase order specifies otherwise.
• Assembly and configuration:
  • Only a single bursting disc is permitted per device assembly.
  • Assemblies are normally fitted to the cylinder valve and must not be overstressed during normal operation or fitting.
  • Holder design must prevent ejection of material or contents if overstress occurs during fitting.
• Materials and compatibility:
  • Metallic materials shall follow EN ISO 11114-1; non-metallic materials shall follow EN ISO 11114-2 (and EN ISO 11114-3 as relevant).
  • Corrosion resistance and oxygen compatibility are required for relevant gases; copper alloys require careful selection due to stress corrosion cracking risk.
• Testing and production:
  • Pressure and burst tests per EN ISO 4126-2.
  • Test media: clean water or air for hydraulic tests; oil-free air or inert gas (e.g. nitrogen) for pneumatic tests.
  • Coatings that resist corrosion must have coating integrity demonstrated prior to pressure testing.
• Cleanliness, marking and packaging:
  • Parts must be cleaned for intended service (EN 12300 as guidance).
  • Tamper-evident seals and marking of the document number and burst pressure are required on the disc or holder.
  • Packaging must include manufacturer, model, size, material and batch identity.

Applications

EN 14513:2005 is intended for manufacturers, valve suppliers, cylinder fillers and safety engineers who specify or supply bursting disc pressure relief devices for transportable gas cylinders used in industrial, medical, welding and specialty gas applications (excluding acetylene). The standard ensures consistent over‑pressure protection, material compatibility and traceability for cylinder fittings.

Related Standards

• EN ISO 4126-2:2003 (bursting disc safety devices)
• EN ISO 11114-1 / -2 / -3 (material compatibility)
• EN 13096 (filling and pressure-setting guidance)
• EN 12300 (cleanliness guidance)

Keywords: EN 14513:2005, bursting disc, pressure relief device, transportable gas cylinders, over‑pressurization, burst pressure, testing, material compatibility.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2005
3UHPLþQHSOLQVNHMHNOHQNH±0HPEUDQD]DVSURVWLWHYWODNDL]NOMXþXMRþDFHWLOHQVNH
SOLQVNHMHNOHQNH
Transportable gas cylinders - Bursting disc pressure relief devices (excluding acetylene
gas cylinders)
Ortsbewegliche Gasflaschen - Berstscheibeneinrichtungen zur Druckentlastung
(ausgenommen für Acetylenflaschen)
Bouteilles a gaz - Bouteilles a gaz transportables - Dispositifs limiteurs de pression a
disque de rupture (a l'exclusion des bouteilles pour acétylene)
Ta slovenski standard je istoveten z: EN 14513:2005
ICS:
23.020.30 7ODþQHSRVRGHSOLQVNH Pressure vessels, gas
MHNOHQNH cylinders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 14513
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2005
ICS 23.020.30
English version
Transportable gas cylinders - Bursting disc pressure relief
devices (excluding acetylene gas cylinders)
Bouteilles à gaz - Bouteilles à gaz transportables - Ortsbewegliche Gasflaschen - Berstscheibeneinrichtungen
Dispositifs limiteurs de pression à disque de rupture (à zur Druckentlastung (ausgenommen für Acetylenflaschen)
l'exclusion des bouteilles pour acétylène)
This European Standard was approved by CEN on 14 February 2005.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14513:2005: E
worldwide for CEN national Members.

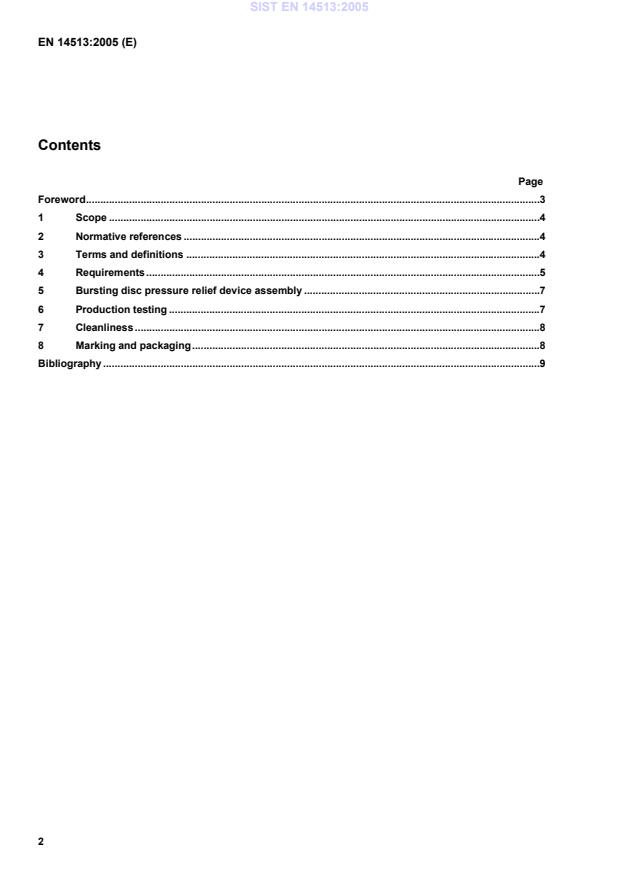

Contents
Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Terms and definitions .4
4 Requirements.5
5 Bursting disc pressure relief device assembly .7
6 Production testing .7
7 Cleanliness .8
8 Marking and packaging.8
Bibliography .9

Foreword
This document (EN 14513:2005) has been prepared by Technical Committee CEN/TC 23 “Transportable gas
cylinders”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by September 2005, and conflicting national standards shall be withdrawn at the
latest by September 2005.
This document includes a Bibliography.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
1 Scope
This document specifies the requirements for the design, manufacture and testing for bursting disc pressure relief
devices for use with gas cylinders. It is a requirement of this document that the bursting disc pressure relief devices
conform to EN ISO 4126-2. In the event of a conflict, the requirements of this document take precedence over that
standard.
This document does not apply to acetylene gas cylinders and is restricted to bursting disc pressure relief devices
for gas cylinders used in some specific applications.
NOTE This document does not provide methods for determining the capacity of a bursting disc pressure relief device for a
particular gas cylinder.
This document will not indicate when a bursting disc pressure relief device shall be fitted and at which pressure it
will be set, see EN 13096.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
...
