EN 16264:2014

Pyrotechnic articles - Other pyrotechnic articles - Cartridges for powder actuated tools

This European Standard defines the procedures for classifying, testing and labelling of cartridges for powder actuated tools (PAT cartridges), as defined in Clause 3 of this standard.
This European Standard does not apply to pyrotechnic articles containing blasting agents and military explosives except black powder and flash composition.
PAT cartridges contain pyrotechnic composition(s) delivering mainly gases, intended to propel a piston. The piston propels fasteners (e.g. nails) or drives hard marking characters into appropriate materials.
This standard also applies to PAT cartridges sold to persons younger than 18 years, if this is permitted by the member state due to the low hazard of the PAT cartridges.
NOTE   PAT cartridges can also be used for hard marking tools. Information on cartridge operated fixing and hard marking tools can be found in EN 15895:2011.
This European Standard applies to the cartridges listed in Table 1.
(...)

Pyrotechnische Gegenstände - Sonstige pyrotechnische Gegenstände - Kartuschen für kartuschenbetriebene handgehaltene Werkzeuge

Diese Europäische Norm legt die Verfahren zum Einstufen, zur Prüfung und Kennzeichnung von Kartuschen für Befestigungswerkzeuge (Befestigungskartuschen) nach der Definition in Abschnitt 3 dieser Norm fest.
Diese Europäische Norm gilt nicht für pyrotechnische Gegenstände, die militärische Explosivstoffe oder kommerzielle Sprengstoffe außer Schwarzpulver und Blitzsatz enthalten.
Befestigungskartuschen enthalten pyrotechnische(n) Satz/Sätze, die vorwiegend Gase freisetzen, die einen Kolben antreiben. Der Kolben schlägt auf Befestigungselemente (z. B. Nägel) oder treibt harte Markierzeichen in entsprechende Materialien.
Diese Norm gilt auch für Kartuschen für Befestigungswerkzeuge, die an Personen unter 18 Jahren verkauft werden, wenn dies durch das Mitgliedsland aufgrund der geringen Gefährlichkeit der Kartuschen für Befestigungswerkzeuge gestattet ist.
ANMERKUNG   Kartuschen für Befestigungswerkzeuge können auch für Hartmarkierwerkzeuge benutzt werden. Informationen zu kartuschenbetriebenen Befestigungs- und Markierwerkzeugen können in EN 15895:2011 gefunden werden.
Diese Europäische Norm gilt für die in Tabelle 1 aufgeführten Kartuschen.

Articles pyrotechniques - Autres articles pyrotechniques - Cartouches pour outils à charge propulsive

La présente Norme européenne définit les modes opératoires liés à la classification, à l'essai et à l'étiquetage des charges de scellement pour outils utilisant ces mêmes charges tels que définis à l'Article 3 de la présente norme.
La présente Norme européenne ne s'applique pas aux articles pyrotechniques contenant des explosifs, et explosifs militaires, autres que de la poudre noire ou une composition éclair.
Les charges de scellement PAT contiennent une ou plusieurs compositions pyrotechniques libérant principalement des gaz, dans le but de propulser un piston. Le piston, à son tour, propulse des projectiles (par exemple, des clous) ou entraîne des caractères de marquage dur dans des matériaux appropriés.
La présente norme s'applique également aux charges de scellement vendues aux particuliers de moins de 18 ans, si cela est permis par l'État membre, en raison du faible risque induit par les charges de scellement.
NOTE   Les charges de scellement peuvent également être utilisées pour les outils de marquage. Les informations concernant les outils de marquage et de scellement figurent dans l'EN 15895.
La présente Norme européenne s'applique aux charges de scellement listées au Tableau 1.

Pirotehnični izdelki - Drugi pirotehnični izdelki - Pritrdilne kartuše

Standard EN 16264 definira postopke za klasifikacijo, preskušanje in označevanje kartuš za plinska orodja (kartuše PAT), kot je definirano v točki 3 tega standarda. Ta evropski standard se ne uporablja za pirotehnične izdelke, ki vsebujejo vojaški eksploziv in tržne eksplozivne sestavine razen črnega smodnika ali bliskovnega praška. Kartuše PAT vsebujejo pirotehnične praške, ki večinoma zagotavljajo pline, potrebne za poganjanje bata. Bat omogoča pritrjevanje (npr. žebljev) ali graviranje znakov v ustrezne materiale. Ta standard se uporablja tudi za kartuše PAT, ki se prodajajo osebam, mlajšim od 18 let, če država članica zaradi majhnega tveganja kartuš PAT to dovoljuje.

General Information

• Status: Published
• Publication Date: 02-Sep-2014
• Withdrawal Date: 30-Mar-2015
• ICS: 71.100.30 - Explosives. Pyrotechnics and fireworks
• Technical Committee: CEN/TC 212 - Fireworks
• Drafting Committee: CEN/TC 212/WG 5 - Other pyrotechnic articles, category P1 and P2
• Current Stage: 9092 - Decision on results of review/2YR ENQ - revise - Review Enquiry
• Completion Date: 20-Apr-2022
• Directive: 2007/23/EC - Directive 2007/23/EC of the European Parliament and of the Council of 23 May 2007 on the placing on the market of pyrotechnic articles
• Directive: 2013/29/EU - Directive 2013/29/EU of the European Parliament and of the Council of 12 June 2013 on the harmonisation of the laws of the Member States relating to the making available on the market of pyrotechnic articles (recast)
• Mandate: M/416 - Standardization mandate assigned to CEN concerning pyrotechnic articles
• Ref Project: SIST EN 16264:2014 - Pyrotechnic articles - Other pyrotechnic articles - Fixing cartridges

Standards Content (Sample)

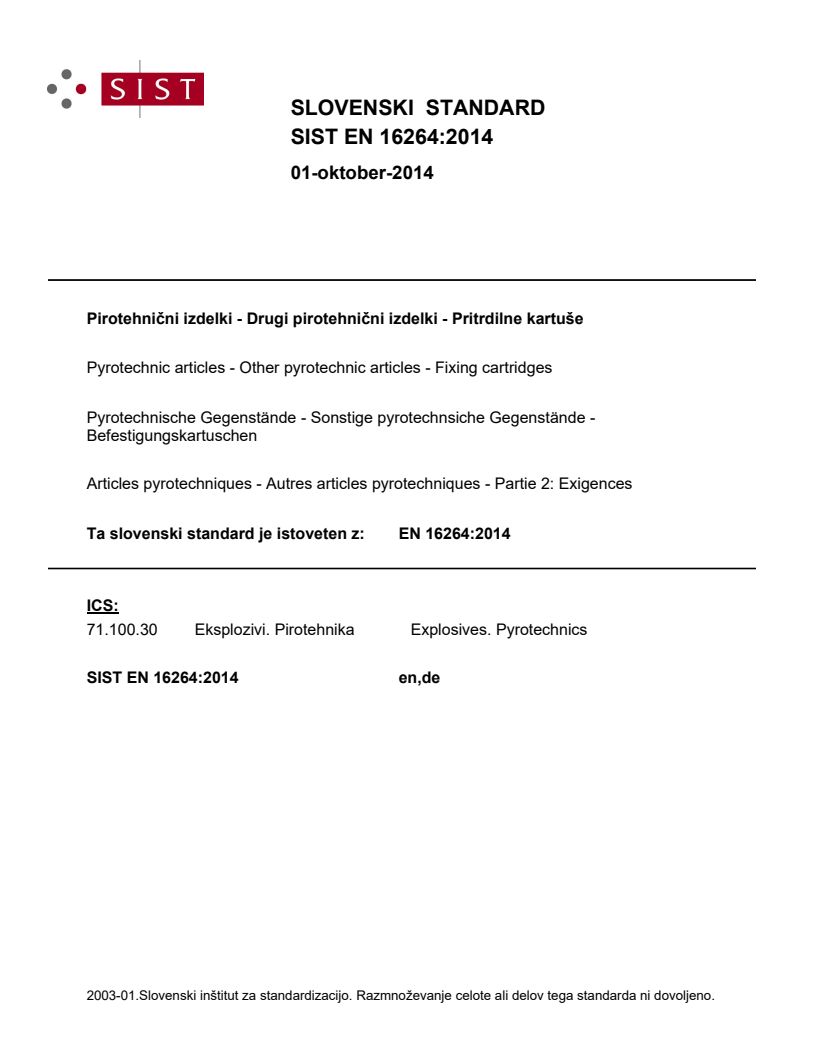

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.UWXãHPyrotechnische Gegenstände - Sonstige pyrotechnsiche Gegenstände - BefestigungskartuschenArticles pyrotechniques - Autres articles pyrotechniques - Partie 2: ExigencesPyrotechnic articles - Other pyrotechnic articles - Fixing cartridges71.100.30Eksplozivi. PirotehnikaExplosives. PyrotechnicsICS:Ta slovenski standard je istoveten z:EN 16264:2014SIST EN 16264:2014en,de01-oktober-2014SIST EN 16264:2014SLOVENSKI
STANDARD

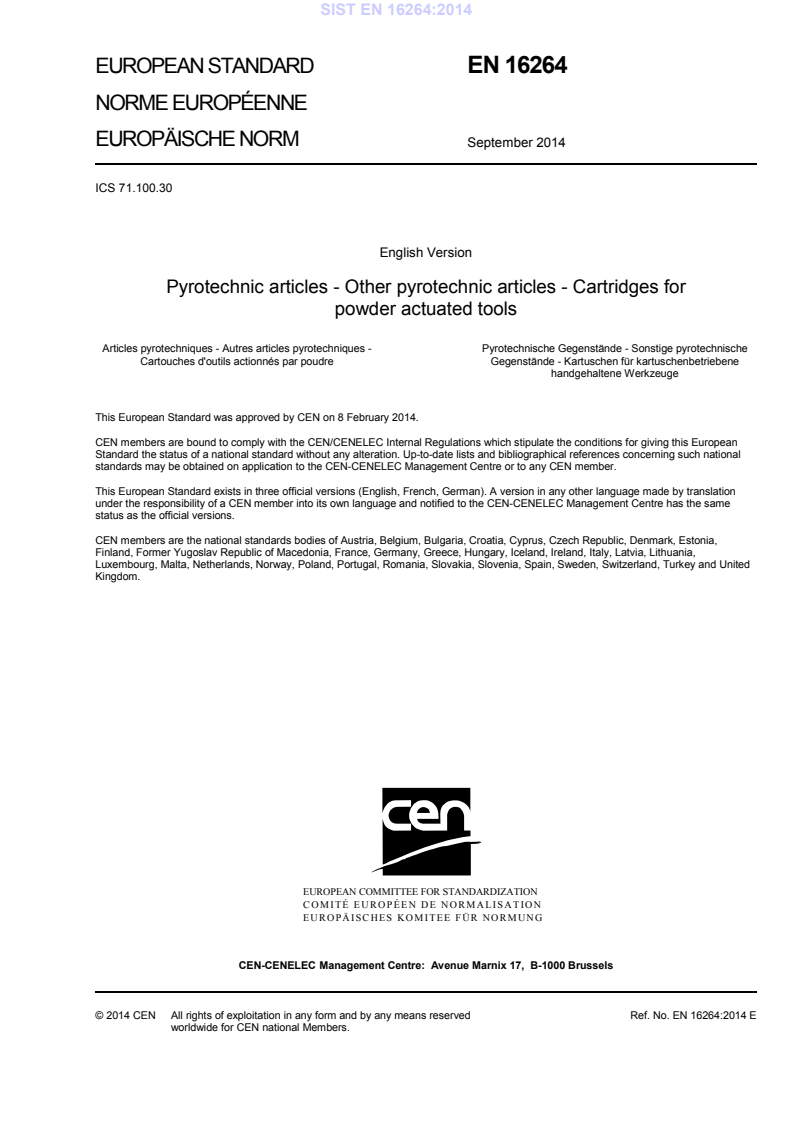

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16264
September 2014 ICS 71.100.30 English Version
Pyrotechnic articles - Other pyrotechnic articles - Cartridges for powder actuated tools
Articles pyrotechniques - Autres articles pyrotechniques - Cartouches d'outils actionnés par poudre
Pyrotechnische Gegenstände - Sonstige pyrotechnische Gegenstände - Kartuschen für kartuschenbetriebene handgehaltene Werkzeuge This European Standard was approved by CEN on 8 February 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16264:2014 ESIST EN 16264:2014

Calibre Rimfire type 22 NC (5,5/16) 22 (5,6/16) 22 EX (5,6/25) 5,7/16 5,7/25 6,3/10 6,3/12 6,3/14 6,3/16 6,8/11 6,8/18 Centre fire type 9 × 17 9 × 20 9 × 27 38 SP (9 × 29) 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN ISO 3611, Geometrical product specifications (GPS) — Dimensional measuring equipment: Micrometers for external measurements — Design and metrological characteristics (ISO 3611) EN ISO 9237, Textiles — Determination of the permeability of fabrics to air (ISO 9237) SIST EN 16264:2014

loose cartridge cartridge that is not mechanically attached to other cartridges and is inserted individually in the cartridge chamber (by hand) 3.6 collated cartridge cartridge that is contained with a number of others in a means of collation, e.g. a plastic collation strip or a metal disc 3.7 cartridge chamber essentially cylindrical or slightly conical bore which accommodates the cartridge before ignition; located in the rear end of the piston guide of a cartridge operated tool; the dimensions of the cartridge chamber correspond to cartridge calibre 3.8 powder actuated tool
PAT tool to drive fasteners into a base material by means of a piston powered by the hot combustion gases from a cartridge SIST EN 16264:2014

slug brass or semi hardened steel cylinder used in pressure barrel, having different face dimensions to reproduce the additional volume Va Note 1 to entry
“Slug” is used as a synonym of “plunger” in the context of pressure measurement with a test barrel. 3.22 propellant mostly nitrocellulose-based powder which fills the cartridge partly or totally, depending on cartridge strength, the hot combustion gases of which accelerate the piston of a cartridge operated tool 3.23 primary pack package of cartridges of the same calibre and strength (colour), offered for retail sale as a single unit 3.24 primer mix pyrotechnic composition located in the rim of the cartridge or in the centre primer which ignites the propellant when the ignition pin deforms the rim of the cartridge or the centre primer cup and locally compresses and ignites the primer mix 3.25 pyrotechnic composition mixture of substances designed to produce an effect by heat, light, sound, gas or smoke or a combination of these, as a result of a self-sustained exothermic reactions 3.26 primer device used in centre fire cartridges consisting of a metal cup containing primer mix and an anvil located in the centre 3.27 rim circumferential outward bulge at the rear end of a cartridge generated by axial deformation of the hemispherical end of the punch-drawn metal blank 3.28 rimfire cartridge cartridge in which the primer mix is located in the rim of the cartridge case 3.29 test barrel test equipment used to measure the gas pressure and energy of PAT cartridges SIST EN 16264:2014

Figure 1 — VET 3.31 total volume of maximum cartridge VC total volume of maximum cartridge as presented in Figure 2 according to Table 2
Figure 2 — VC 3.32 volume of the material of the case Vm volume of the material of the case (without primer mix where rimfire cartridges are concerned, with primer where centre fire cartridges are concerned) as presented in Figure 3
Figure 3 — Vm SIST EN 16264:2014

Figure 4 — Va 3.34 total volume Vtot total volume of PAT tool
aETtotVVV+= as presented in Figure 5
Figure 5 — Vtot 3.35 free volume Vi volume of free space between the cartridge and the chamber CETiVVV−= as presented in Figure 6
Figure 6 — Vi SIST EN 16264:2014

Figure 7 — Vh 3.37 total additional volume VA additional volume given by the equation aCETaiA)(VVVVVV+−=+= as presented in Figure 8
Figure 8 — VA
3.38 total combustion volume VT volume given by the equation amETahT)(VVVVVV+−=+= as presented in Figure 9
Figure 9 — VT SIST EN 16264:2014
...
