EN 14373:2021
(Main)Explosion suppression systems
Explosion suppression systems
This document describes the basic requirements for the design and application of explosion suppression systems. This document also specifies test methods for evaluating the effectiveness and the scaling up of explosion suppression systems against defined explosions. This document covers:
- general requirements for explosion suppression system parts;
- evaluating the effectiveness of an explosion suppression system;
- evaluating the scale up of an explosion suppression system to larger than tested volumes;
- development and evaluation of design tools for explosion suppression systems;
- installation, operation and maintenance instructions for an explosion suppression system.
This document is applicable only to explosion suppression systems intended for the protection of closed, or essentially closed, enclosures in which an explosion could result as a consequence of ignition of an explosible mixture, e.g. dust-air, gas(vapour)-air, dust-gas(vapour)-air and mist-air.
This document is not applicable for explosions of materials listed below, or for mixtures containing some of those materials:
- unstable materials that are liable to dissociate;
- explosive materials;
- pyrotechnic materials;
- pyrophoric materials.
Explosions-Unterdrückungssysteme
Dieses Dokument beschreibt die Grundanforderungen für die Konstruktion und Anwendung von Explosions-Unterdrückungssystemen. Dieses Dokument legt außerdem Prüfverfahren zur Beurteilung der Wirksamkeit und Skalierung von Explosions-Unterdrückungssystemen bei bestimmten Explosionen fest. Dieses Dokument behandelt:
- allgemeine Anforderungen an Bauteile für Explosions-Unterdrückungssysteme;
- Bewerten des Wirksamkeit eines Explosions-Unterdrückungssystems;
- Bewerten der Extrapolation eines Explosions-Unterdrückungssystems über das geprüfte Volumen hinaus;
- Entwicklung und Bewertung von Auslegungsverfahren für Explosions-Unterdrückungssysteme;
- Einbau-, Betriebs- und Instandhaltungsanleitungen für ein Explosions-Unterdrückungssystem.
Dieses Dokument ist nur für Explosions-Unterdrückungssysteme anzuwenden, die zum Schutz von geschlossenen oder im Wesentlichen geschlossenen Gehäusen vorgesehen sind, in denen eine Explosion durch die Zündung eines explosionsfähigen Gemisches, z. B. Staub/Luft, Gas(Dampf)/Luft, Staub/Gas(Dampf)/Luft und Nebel/Luft, entstehen könnte.
Dieses Dokument ist nicht anwendbar für Explosionen von nachstehend aufgeführten Stoffen oder Gemischen, die diese Stoffe enthalten:
- instabile Stoffe, die möglicherweise zerfallen können;
- Explosivstoffe;
- pyrotechnische Materialien;
- pyrophore Stoffe.
Systèmes de suppression d’explosion
Le présent document décrit les exigences minimales de conception et d’application des systèmes de suppression d’explosion. Il spécifie également des méthodes d’essai pour l’évaluation de l’efficacité et de l’extrapolation des systèmes de suppression d’explosion par rapport à des explosions définies. Le présent document couvre les points suivants :
- les exigences générales relatives aux éléments des systèmes de suppression d’explosion ;
- l’évaluation de l’efficacité d’un système de suppression d’explosion ;
- l’évaluation de l’extrapolation d’un système de suppression d’explosion à des volumes supérieurs à ceux soumis à essai ;
- le développement et l’évaluation d’outils de conception pour les systèmes de suppression d’explosion ;
- des instructions relatives à l’installation, au fonctionnement et à la maintenance d’un système de suppression d’explosion.
Le présent document s’applique uniquement aux systèmes de suppression d’explosion destinés à protéger des enveloppes fermées ou en majeure partie fermées, dans lesquelles une explosion peut être la conséquence de l’inflammation de mélanges explosibles de type poussière-air, gaz (vapeur)-air, poussière-gaz (vapeur)-air et brouillard-air, par exemple.
Le présent document ne s’applique pas aux explosions des matières énumérées ci-dessous ni aux mélanges contenant certaines de ces matières :
- matières non stables susceptibles de se dissocier ;
- matières explosives ;
- matières pyrotechniques ;
- matières pyrophoriques.
Sistemi za dušenje eksplozij
Ta dokument opisuje osnovne zahteve za projektiranje in uporabo sistemov za dušenje eksplozij. Ta dokument določa tudi preskusne metode za vrednotenje učinkovitosti in nadgradnje sistemov za dušenje eksplozij v primerih navedenih eksplozij. Ta dokument obravnava:
– splošne zahteve za komponente sistemov za dušenje eksplozij;
– vrednotenje učinkovitosti sistema za dušenje eksplozij;
– vrednotenje nadgradnje sistema za dušenje eksplozij;
– razvoj in vrednotenje orodij za projektiranje sistemov za dušenje eksplozij;
– navodila za namestitev, delovanje in vzdrževanje sistema za dušenje eksplozij.
Ta dokument se uporablja samo za sisteme za dušenje eksplozij, namenjene za zaščito zaprtih oziroma v osnovi zaprtih prostorov, v katerih bi lahko prišlo do eksplozije zaradi vžiga eksplozivne mešanice, npr. prah-zrak, plin (hlapi)-zrak, prah-plin (hlapi)-zrak in meglica-zrak.
Ta dokument se ne uporablja za eksplozije spodaj navedenih snovi ali za mešanice, ki vsebujejo nekatere od teh snovi:
– nestabilne snovi, ki se lahko ločijo;
– eksplozivne snovi;
– pirotehnične snovi;
– piroforne snovi.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2022
Nadomešča:
SIST EN 14373:2006
Sistemi za dušenje eksplozij
Explosion suppression systems
Explosions-Unterdrückungssysteme
Systèmes de suppression d’explosion
Ta slovenski standard je istoveten z: EN 14373:2021
ICS:
13.230 Varstvo pred eksplozijo Explosion protection
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 14373
EUROPEAN STANDARD
NORME EUROPÉENNE
November 2021
EUROPÄISCHE NORM
ICS 13.230 Supersedes EN 14373:2005
English Version
Explosion suppression systems
Systèmes de suppression d'explosion Explosions-Unterdrückungssysteme
This European Standard was approved by CEN on 27 September 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 14373:2021 E
worldwide for CEN national Members.

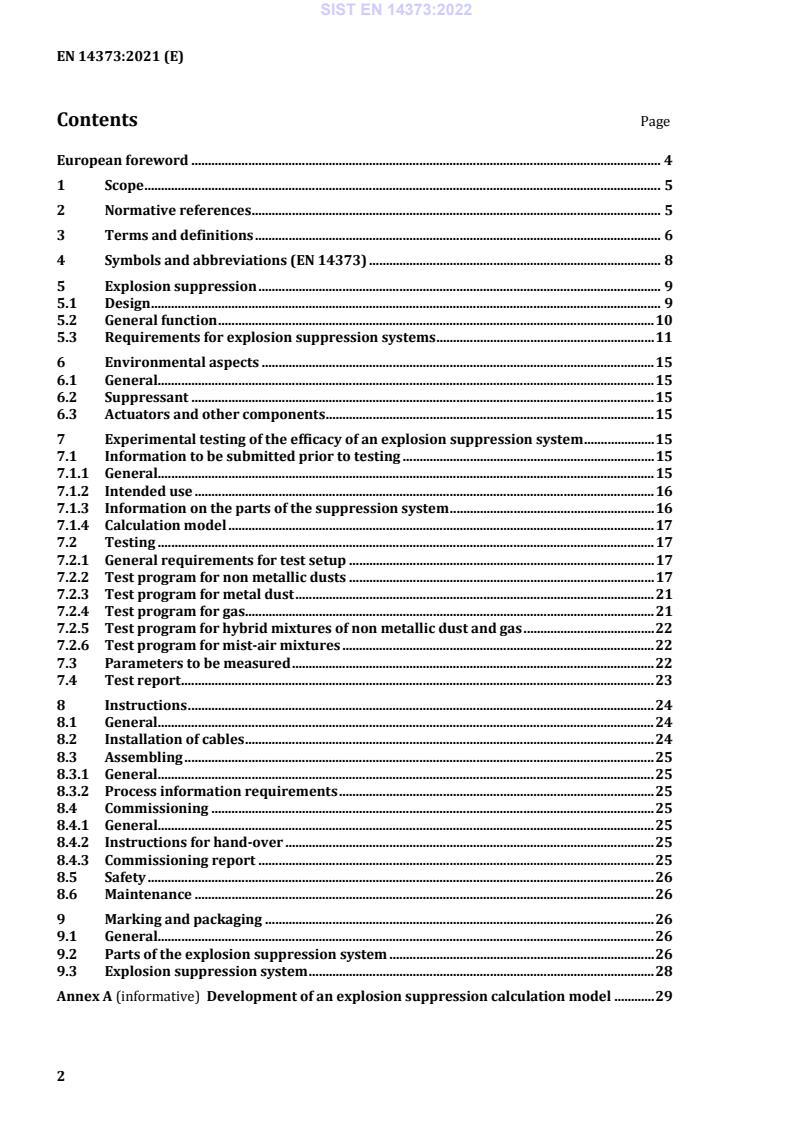

Contents Page
