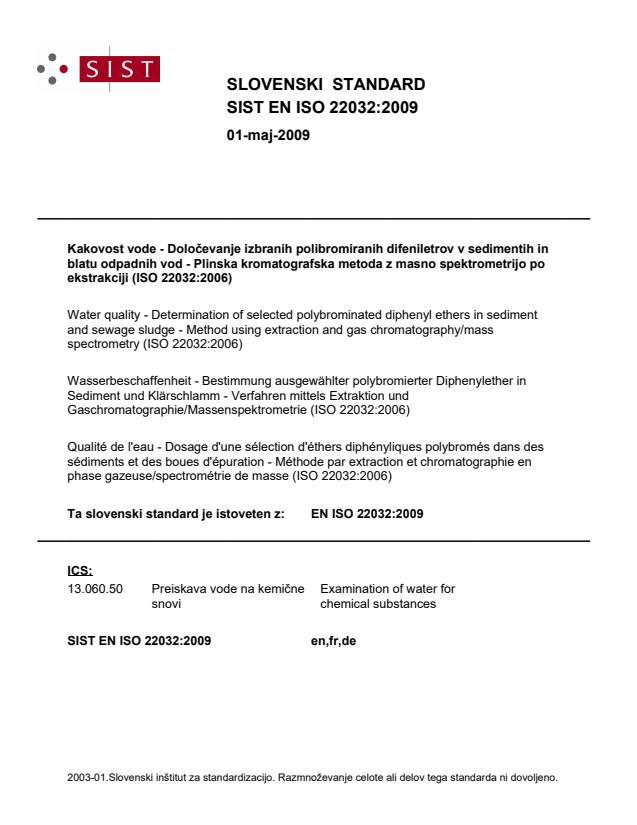

SLOVENSKI STANDARD
01-maj-2009
.DNRYRVWYRGH'RORþHYDQMHL]EUDQLKSROLEURPLUDQLKGLIHQLOHWURYYVHGLPHQWLKLQ
EODWXRGSDGQLKYRG3OLQVNDNURPDWRJUDIVNDPHWRGD]PDVQRVSHNWURPHWULMRSR
HNVWUDNFLML,62
Water quality - Determination of selected polybrominated diphenyl ethers in sediment
and sewage sludge - Method using extraction and gas chromatography/mass
spectrometry (ISO 22032:2006)
Wasserbeschaffenheit - Bestimmung ausgewählter polybromierter Diphenylether in
Sediment und Klärschlamm - Verfahren mittels Extraktion und
Gaschromatographie/Massenspektrometrie (ISO 22032:2006)
Qualité de l'eau - Dosage d'une sélection d'éthers diphényliques polybromés dans des
sédiments et des boues d'épuration - Méthode par extraction et chromatographie en
phase gazeuse/spectrométrie de masse (ISO 22032:2006)
Ta slovenski standard je istoveten z: EN ISO 22032:2009
ICS:
13.060.50 3UHLVNDYDYRGHQDNHPLþQH Examination of water for
VQRYL chemical substances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

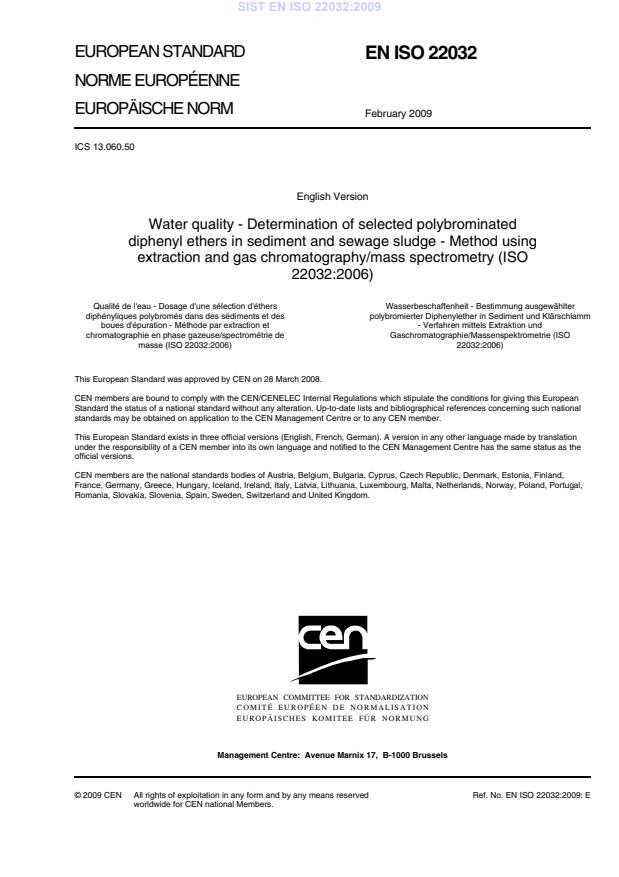

EUROPEAN STANDARD
EN ISO 22032
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2009
ICS 13.060.50
English Version
Water quality - Determination of selected polybrominated
diphenyl ethers in sediment and sewage sludge - Method using
extraction and gas chromatography/mass spectrometry (ISO
22032:2006)
Qualité de l'eau - Dosage d'une sélection d'éthers Wasserbeschaffenheit - Bestimmung ausgewählter
diphényliques polybromés dans des sédiments et des polybromierter Diphenylether in Sediment und Klärschlamm
boues d'épuration - Méthode par extraction et - Verfahren mittels Extraktion und
chromatographie en phase gazeuse/spectrométrie de Gaschromatographie/Massenspektrometrie (ISO
masse (ISO 22032:2006) 22032:2006)
This European Standard was approved by CEN on 28 March 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 22032:2009: E
worldwide for CEN national Members.

Contents Page
Foreword .3

Foreword
The text of ISO 22032:2006 has been prepared by Technical Committee ISO/TC 147 “Water quality” of the
International Organization for Standardization (ISO) and has been taken over as EN ISO 22032:2009 by
Technical Committee CEN/TC 230 “Water analysis” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by August 2009, and conflicting national standards shall be withdrawn at
the latest by August 2009.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.
Endorsement notice
The text of ISO 22032:2006 has been approved by CEN as a EN ISO 22032:2009 without any modification.

INTERNATIONAL ISO
STANDARD 22032
First edition
2006-12-15
Water quality — Determination of
selected polybrominated diphenyl ethers
in sediment and sewage sludge —
Method using extraction and gas
chromatography/mass spectrometry
Qualité de l'eau — Dosage d'une sélection d'éthers diphényliques
polybromés dans des sédiments et des boues d'épuration — Méthode
par extraction et chromatographie en phase gazeuse/spectrométrie de
masse
Reference number
ISO 22032:2006(E)
©
ISO 2006
ISO 22032:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

ISO 22032:2006(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope . 1
2 Normative references . 2
3 Principle. 2
4 Interferences . 2
5 Reagents and standards . 3
6 Apparatus . 4
7 Sampling and sample pre-treatment. 5
8 Procedure . 5
9 Calibration . 8
10 Test report . 11
Annex A (informative) Clean-up procedures . 12
Annex B (informative) Examples for separation conditions in gas chromatography and mass
spectrometry . 16
Annex C (informative) Typical ions and time windows for electron impact ionization detection. 19
Annex D (informative) Examples of chromatograms and spectra . 20
Annex E (informative) Precision data. 25
Bibliography . 26

ISO 22032:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 22032 was prepared by Technical Committee ISO/TC 147, Water quality, Subcommittee SC 2, Physical,
chemical and biochemical methods.
iv © ISO 2006 – All rights reserved

ISO 22032:2006(E)
Introduction
The user should be aware that particular problems could require the specification of additional marginal
conditions.
INTERNATIONAL STANDARD ISO 22032:2006(E)

Water quality — Determination of selected polybrominated
diphenyl ethers in sediment and sewage sludge — Method
using extraction and gas chromatography/mass spectrometry
WARNING — Persons using this International Standard should be familiar with normal laboratory
practice. This standard does not purport to address all of the safety problems, if any, associated with
its use. It is the responsibility of the user to establish appropriate safety and health practices and to
ensure compliance with any national regulatory conditions.
IMPORTANT — It is absolutely essential that tests conducted according to this standard be carried
out by suitably trained staff.
1 Scope
This International Standard specifies a method for the determination of selected polybrominated diphenyl
ethers (PBDE) (see Figure 1 and Table 1) in sediment and sludge using gas chromatography/mass
spectrometry (GC-MS) in the electron impact (EI) or negative ion chemical ionization (NCI) mode.
When using GC-EI-MS, the method is applicable to samples containing 0,05 µg/kg to 25 µg/kg of tetra- to
octabromo congeners and 0,3 µg/kg to 100 µg/kg of decabromo diphenyl ether (BDE-209), respectively.
Approximately ten times lower concentrations can be quantified when using GC-NCI-MS. The risk of
misinterpretation of interfering substances is smaller with EI due to its higher specificity. It is also possible to
analyse other brominated diphenyl ethers according to this International Standard, after verifying its
applicability in each case.
Figure 1 — Chemical formula of polybrominated diphenyl ethers
ISO 22032:2006(E)
Table 1 — PBDE congeners determined by this method
a
No. Congener Formula Abbreviation Molar mass
g/mol
1 2,2’,4,4’-Tetrabromodiphenyl ether C H BrO BDE-47 485,795 0
12 6 4
2 2,2’,4,4’,5-Pentabromodiphenyl ether C H BrO BDE-99 564,691 1
12 5 5
3 2,2’,4,4’,6-Pentabromodiphenyl ether C H BrO BDE-100 564,691 1
12 5 5
4 2,2’,4,4’,5,6’-Hexabromodiphenyl ether C H BrO BDE-154 643,587 2
12 4 6
5 2,2’,4,4’,5,5’-Hexabromodiphenyl ether C H BrO BDE-153 643,587 2
12 4 6
6 2,2’,3,4,4’,5’,6-Heptabromodiphenyl ether C H BrO BDE-183 722,483 2
12 3 7
7 Decabromodiphenyl ether C BrO BDE-209 959,171 4
12 10
a
Numbering analogous to IUPAC nomenclature for PCB.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the refer
...
