prEN 17817

Fertilizing products - Determination of the quantity (indicated by mass or volume)

This document specifies methods for the determination of quantity of solid and liquid forms of organic fertilizers, organo-mineral fertilizers, inorganic fertilizers, liming materials, inhibitors and blends of these products. It is not applicable to the quantity determination of: growing media, soil improvers and plant biostimulants.

Düngemittel und Kalkdünger - Bestimmung der Menge (durch Angabe der Masse oder des Volumens)

Fertilisants - Détermination de la quantité (indiquée en masse ou en volume)

Sredstva za gnojenje - Določanje količine (mase ali prostornine)

General Information

• Status: Not Published
• Publication Date: 13-Sep-2023
• ICS: 65.080 - Fertilizers
• Technical Committee: CEN/TC 260 - Fertilizers and liming materials
• Drafting Committee: CEN/TC 260/WG 1 - Sampling
• Current Stage: 4599 - Dispatch of FV draft to CMC - Finalization for Vote
• Start Date: 06-Apr-2023
• Due Date: 03-Apr-2023
• Completion Date: 06-Apr-2023
• Directive: 2019/1009 - Regulation (EU) 2019/1009 of the European Parliament and of the Council of 5 June 2019 laying down rules on the making available on the market of EU fertilising products and amending Regulations (EC) No 1069/2009 and (EC) No 1107/2009 and repealing Regulation (EC) No 2003/2003
• Mandate: M/564 - Fertilising products in support of Regulation (EU) 2019/1009
• Mandate: M/564 AMD 1 - amending Implementing Decision C(2020) 612 as regards certain harmonised standards and standardisation deliverables, deadlines for their adoption and the duration of the validity of the standardisation request
• Mandate: M/XXX - COMMISSION IMPLEMENTING DECISION of XXX on a standardisation request to the European Committee for Electrotechnical Standardisation as regards ecodesign and energy labelling requirements for household washing machines and household washer-dryers in support of Commission Regulation (EU) 2019/2023 and Commission Delegated Regulation (EU) 2019/2014
• Ref Project: oSIST prEN 17817:2022 - Fertilizing products - Determination of the quantity (indicated by mass or volume)

Standards Content (Sample)

SLOVENSKI STANDARD
oSIST prEN 17817:2022
01-februar-2022
Sredstva za gnojenje - Določanje količine (mase ali prostornine)

Fertilizing products - Determination of the quantity (indicated by mass or volume)

Düngemittel und Kalkdünger - Bestimmung der Menge (durch Angabe der Masse oder
des Volumens)
Ta slovenski standard je istoveten z: prEN 17817
ICS:
65.080 Gnojila Fertilizers
oSIST prEN 17817:2022 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 17817:2022
---------------------- Page: 2 ----------------------
oSIST prEN 17817:2022
DRAFT
EUROPEAN STANDARD
prEN 17817
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2022
ICS 65.080
English Version
Fertilizing products - Determination of the quantity
(indicated by mass or volume)
Düngemittel und Kalkdünger - Bestimmung der Menge
(durch Angabe der Masse oder des Volumens)

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 260.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17817:2022 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)

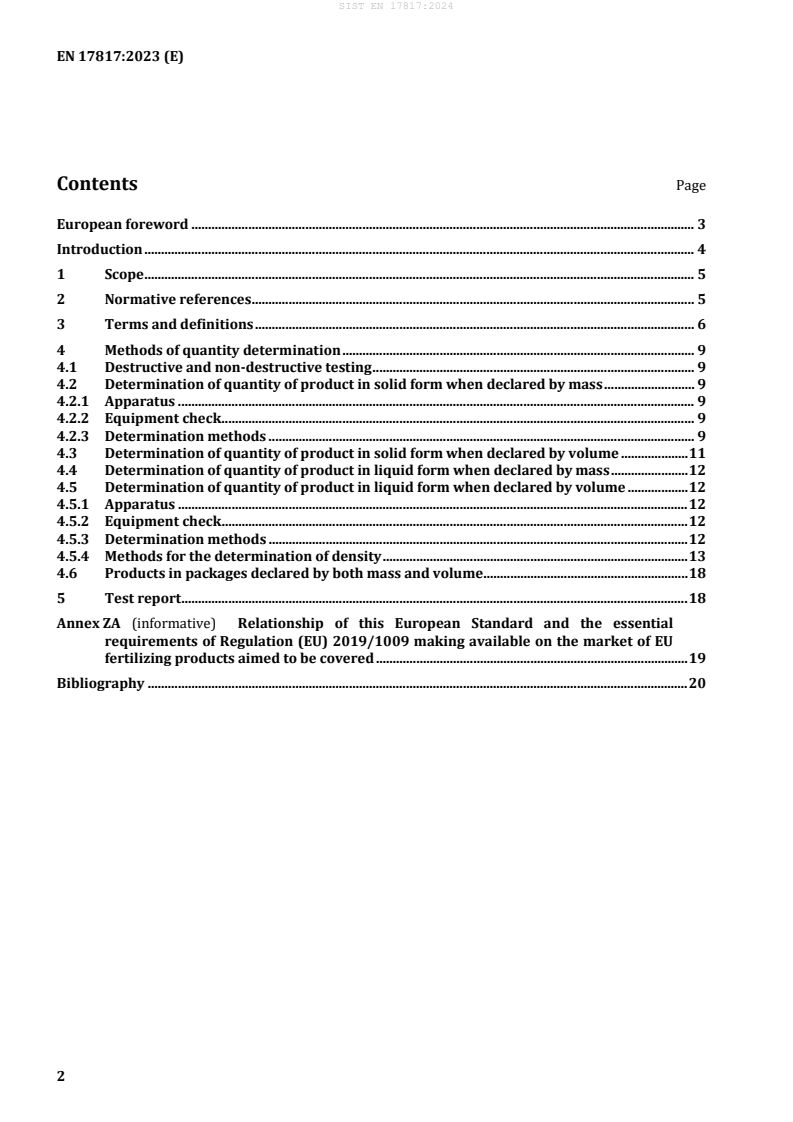

Contents Page

European foreword ...................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Methods of quantity determination ......................................................................................................... 8

4.1 Destructive and non-destructive testing ................................................................................................ 8

4.2 Determination of quantity of solid or liquid fertilizing product when sold by mass ............. 8

4.2.1 Apparatus .......................................................................................................................................................... 8

4.2.2 Equipment check ............................................................................................................................................. 8

4.2.3 Method ................................................................................................................................................................ 8

4.3 Determination of quantity of liquid fertilizing product when sold by volume ........................ 9

4.3.1 Apparatus .......................................................................................................................................................... 9

4.3.2 Equipment check ............................................................................................................................................. 9

4.3.3 Method .............................................................................................................................................................. 10

4.4 Determination of quantity of fertilizing product in solid form when sold by volume ......... 16

4.5 Fertilizing products in packages marked in both mass and volume .......................................... 16

5 Test report ....................................................................................................................................................... 17

Annex ZA (informative) Relationship of this European Standard and the essential
requirements of Regulation (EU) 2019/1009 making available on the market of EU

fertilizing products aimed to be covered ............................................................................................. 18

Bibliography ................................................................................................................................................................. 19

---------------------- Page: 4 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
European foreword

This document (prEN 17817:2022) has been prepared by Technical Committee CEN/TC 260 “Fertilizers

and liming materials”, the secretariat of which is held by DIN.
This document is currently submitted to the CEN Enquiry.

This document has been prepared under a Standardization Request given to CEN by the European

Commission and the European Free Trade Association, and supports essential requirements of EU

Directive(s) / Regulation(s).

For relationship with EU Directive(s) / Regulation(s), see informative Annex ZA, which is an integral

part of this document.
---------------------- Page: 5 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
Introduction

In order to measure compliance with the related requirements of the Regulation (EU) 2019/1009 [6]

relevant test methods have to be defined in harmonized standards. In this document the determination

of the quantity of organic, organo-mineral and inorganic fertilizers, liming materials, inhibitors and

blends of these fertilizing products are defined.
---------------------- Page: 6 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
1 Scope

This document specifies methods for the determination of quantity of solid and liquid forms of organic

fertilizers, organo-mineral fertilizers, inorganic fertilizers, liming materials, inhibitors and blends of

these products or blends where one or more of these products are the major ingredient in packages,

containers or in bulk.

This document is not applicable to the quantity determination of: growing media, soil improvers and

plant biostimulants.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 1482-1:2007, Fertilizers and liming materials - Sampling and sample preparation - Part 1: Sampling

EN 12580:2013, Soil improvers and growing media - Determination of a quantity

EN 12944-1:1999, Fertilizers and liming materials and soil improvers - Vocabulary - Part 1: General terms

EN 15238:2006, Soil improvers and growing media - Determination of quantity for materials with particle

size greater than 60 mm

EN 15761:2009, Pre-shaped growing media - Determination of length, width, height, volume and bulk

density
EN 45501:2015, Metrological aspects of non-automatic weighing instruments
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 12944-1:1999, and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
fertilizing product

substance, mixture, micro-organism or any other material, applied or intended to be applied on plants

or their rhizosphere or on mushrooms or their mycosphere, or intended to constitute the rhizosphere

or mycosphere, either on its own or mixed with other material, for the purpose of providing the plants

or mushrooms with nutrient or improving their nutrition efficiency

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Chapter 1, Article 2, (1).

---------------------- Page: 7 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
3.2
soil improver

fertilizing product, which maintains, improves or protects the physical or chemical properties, the

structure or the biological activity of the soil to which it is added

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Annex I, Part II, PFC 3.

3.3
growing medium
fertilizing product, other than soil in situ, for plants or mushrooms to grow in

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Annex I, Part II, PFC 4, 1.

3.4
plant biostimulant

fertilizing product, which stimulates plant nutrition processes independently of the product’s nutrient

content with the sole aim of improving nutrient use efficiency, and/or tolerance to abiotic stress,

and/or quality traits, and/or availability of confined nutrients in the soil or rhizosphere

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Annex I, Part II, PFC 6.

3.5
fertilizing product blend

fertilizing product composed of two or more EU fertilizing products of PFC 1 to PFC 6 for which the

compliance with the requirements of Regulation (EU) 2019/1009 of each component EU fertilizing

product in the blend has been demonstrated in accordance with the conformity assessment procedure

applicable to that component EU fertilizing product

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Annex I, Part II, PFC 7, 1.

3.6
liquid form
suspension or solution

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Chapter 1, Article 2, (6).

3.7
suspension

two-phase dispersion in which solid particles are maintained in suspension in the liquid phase

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Chapter 1, Article 2, (6).

3.8
solution
liquid or gel or paste that is free of solid particles

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Chapter 1, Article 2, (6).

3.9
solid form

form characterised by structural rigidity and resistance to changes of shape or volume and in which

atoms are tightly bound to each other, either in a regular geometric lattice (crystalline solids) or in an

irregular manner (an amorphous solid)

Note 1 to entry: Based on Regulation (EU) 2019/1009 [6], Chapter 1, Article 2, (7).

---------------------- Page: 8 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
3.10
destructive testing
testing which involves opening or destroying of the package
Note 1 to entry: Based on Council Directive 76/211/EEC [1], Annex II, 2.
3.11
non-destructive testing
testing which does not involve the opening or destroying of the package
Note 1 to entry: Based on Council Directive 76/211/EEC [1], Annex II, 2.
3.12
weighing instrument

measuring instrument serving to determine the mass of a body by using the action of gravity on that

body
Note 1 to entry: Based on Directive 2014/31/EU [2], Chapter 1, Article 2, (1).
3.13
non-automatic weighing instrument

weighing instrument requiring the intervention of an operator during the weighing process to decide

that the weighing result is acceptable
Note 1 to entry: Based on Directive 2014/31/EU [2], Chapter 1, Article 2, (2).
3.14
nominal quantity

declared mass or volume of the contents of a package or container indicated on or with the package or

in documentation associated with the contents
3.15
net quantity
actual mass or volume of the contents of a package
3.16
gross quantity
mass or volume of package
3.17
package
container or wrapping plus contents
3.18
container
object in which a product is delivered
EXAMPLE Bottle, box, bag, intermediate bulk container, road tanker, lorry.
---------------------- Page: 9 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
4 Methods of quantity determination
4.1 Destructive and non-destructive testing

For economic and practical reasons destructive testing should be used only when non-destructive

testing is impractical.

4.2 Determination of quantity of solid or liquid fertilizing product when sold by mass

4.2.1 Apparatus

4.2.1.1 Weighing instrument, shall be of a suitable type and sufficiently accurate to determine the

gross quantity and mass of the container used so that a net quantity of the contents can be determined.

“Suitable type” means a non-automatic weighing instrument that complies with the requirements of

EN 45501:2015.

“Sufficiently accurate” means that the scale intervals or sensitivity of the non-automatic weighing

instrument shall be no more than one fifth of the tolerable error permitted by the Regulation (EU)

2019/1009 [6] in relation to nominal quantity being weighed.

NOTE Since half a graduation can be read on an analogue indicator non-automatic weighing instrument

weight display, digital instruments will need to indicate 50 % of those required for an analogue graduation.

4.2.2 Equipment check

Before using the non-automatic weighing instrument to establish the quantity of a fertilizing product it

shall be checked with weights, which comply with OIML R111-1 [5] and have a measurement error of

no more than one third of the maximum error for the non-automatic weighing instrument under test.

The tests are laid down in EN 45501:2015.
A record should be kept of the results of the tests.
4.2.3 Method
4.2.3.1 Packages 5 g to 25 kg

Place each package to be checked separately on the weighing plate of the non-automatic weighing

instrument and record the gross quantity for each (x).

Weigh 10 randomly selected empty containers (non-destructive testing) or if empty containers are not

available empty weigh 10 containers randomly selected from those already weighed, after ensuring no

fertilizing product remains in or on the containers (destructive testing).

Record the masses and obtain a mean mass of the containers (y). Record the calculation and result.

Subtract the mean mass of the container from the gross quantity of each packed fertilizing product and

calculate and record each net quantity (z) using Formula (1).
z x− y (1)
where
z is the net quantity by mass of the contents of an individual package in g;
x is the gross quantity by mass of an individual package in g;
y is the mean mass of the empty containers in g.
---------------------- Page: 10 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
4.2.3.2 Packages more than 25 kg to 1 t

These are packages which cannot be manually handled and require larger capacity non-automatic

weighing instruments to ascertain their gross weight.

The non-automatic weighing instrument used shall be of a suitable type and sufficiently accurate for the

net quantity of fertilizing product in the package. See 4.2.1.1.

The procedure detailed in 4.2.3.1 shall be followed except that the number of empty containers to be

weighed should be reduced to 5.
4.2.3.3 Fertilizing product sold loose and in bulk

This fertilizing product will need to be loaded into some type of transport container (vehicle, large

container or other suitable method of containing the fertilizing product). Using a non-automatic

weighing instrument suitable for the quantity of fertilizing product in the container/consignment (see

4.2.1.1). The transport container shall be weighed empty and the mass (m ) recorded. The fertilizing

product shall then be placed in the transport container and the gross quantity (m ) recorded. The net

quantity (m ) of the fertilizing product can then be calculated using the Formula (2).

m mm− (2)
n g t
where
mn is the net quantity of the fertilizing product in kg;

m is the gross quantity of the fertilizing product and transport container in kg;

m is the mass of the transport container empty in kg.

NOTE It is equally acceptable to weigh the gross quantity first and then empty the transport container and

determine the mass empty.
4.3 Determination of quantity of liquid fertilizing product when sold by volume
4.3.1 Apparatus
4.3.1.1 Weighing instrument capable of weighing to the nearest 0,1 g.
4.3.1.2 Sampling equipment as per EN 1482-1:2007.
4.3.1.3 Density determination equipment,
a density bottle, or
a graduated measuring cylinder with maximum 2 ml graduations, or
a density meter reading to three decimal places.
4.3.1.4 Water bath at (20 ± 1) °C.
4.3.2 Equipment check
Check weighing equipment as detailed in 4.2.2.
---------------------- Page: 11 ----------------------
oSIST prEN 17817:2022
prEN 17817:2022 (E)
4.3.3 Method
4.3.3.1 Determination of quantity when sold in liquid form
4.3.3.1.1 Packages 5 ml to 25 l

Determine the net quantity by mass (z) of the liquid fertilizing product in each package using the

method described in Clause 4.2.3.1 and Formula (1).
4.3.3.1.2 General provisions for the determination of density

Take a representative sample of the liquid fertilizing product, after thorough mixing, using a method

given in EN 1482-1:2007. The quantity of the sample shall be more than the capacity of the density

bottle.

Where the quantity of fertilizing product in each container is below the required quantity the whole

contents of a number of containers can be used to make up the sample.

For a density check to be carried out the liquid fertilizing product shall be brought to and kept at

(20 ± 1) °C during the determination process.

The method used for the determination of the density of the fertilizing product will be determined by

the physical nature of the fertilizing product.
NOTE Some fertilizing products contai
...
